  1. Anatomy and function of the spinal cord and nerves Spinal cord Autonomic nervous system Ch. 18, 20

  2. Spinal cord is protected by vertebrae, meninges and CSF • Canal formed by foramina of vertebrae • Meninges • Dura mater • Arachnoid mater • Pia mater • CSF formed in brain • Found in subarachnoid space

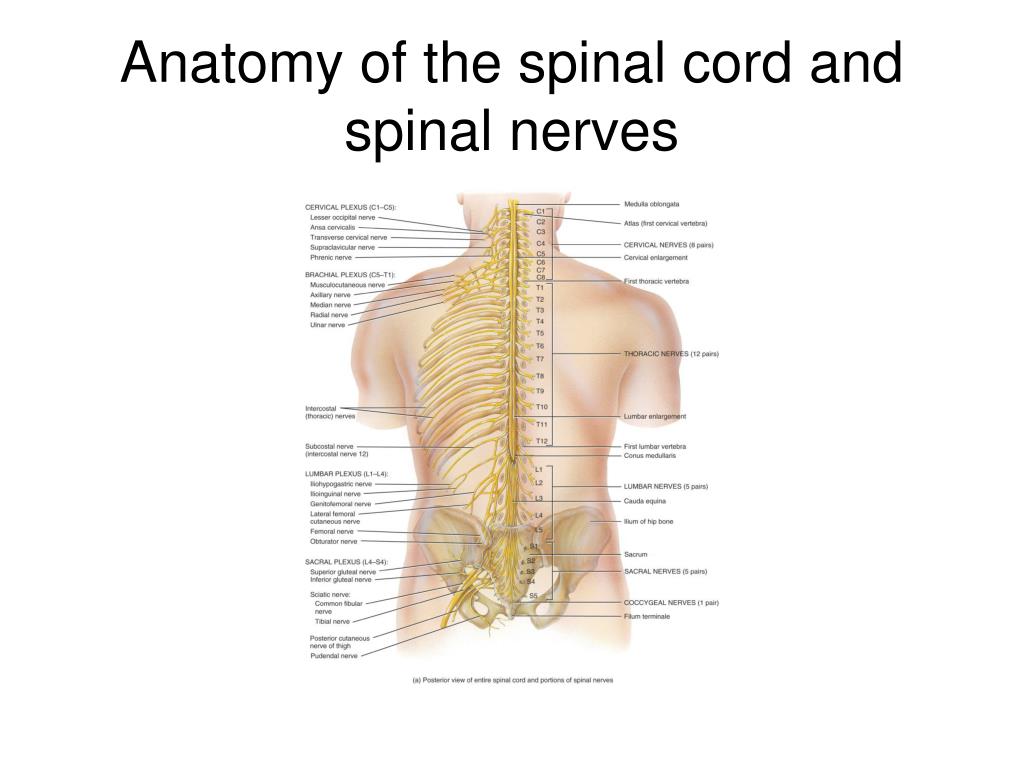

  3. Anatomy of the spinal cord and spinal nerves

  4. Internal structure of spinal cord • Roots connect spinal nerves to spinal cord • Dorsal root- sensory neurons • Ganglion-cell bodies of sensory neurons • Ventral root- motor neurons • Horns- gray matter; integrates sensory and motor information • Anterior, posterior, lateral • White matter- myelinated; sensory and motor tracts • Columns- anterior, posterior, lateral

  5. Regions of white and gray matter • Dorsal (posterior) horns- sensory neurons • Ventral (anterior) horns- motor neurons • Lateral horns- autonomic (motor) neurons • Columns- ascending (sensory) and descending (motor) tracts

  6. Sensory and motor tracts • Named according to its position and pathway • Sensory impulses move up tracts and columns • Join the “pool” of sensory information • Voluntary motor output emanates form cerebral cortex (direct pathways) • Involuntary output originates in brain stem and hypothalamus (indirect pathways)

  7. Reflex arcs- fast involuntary responses to stimuli

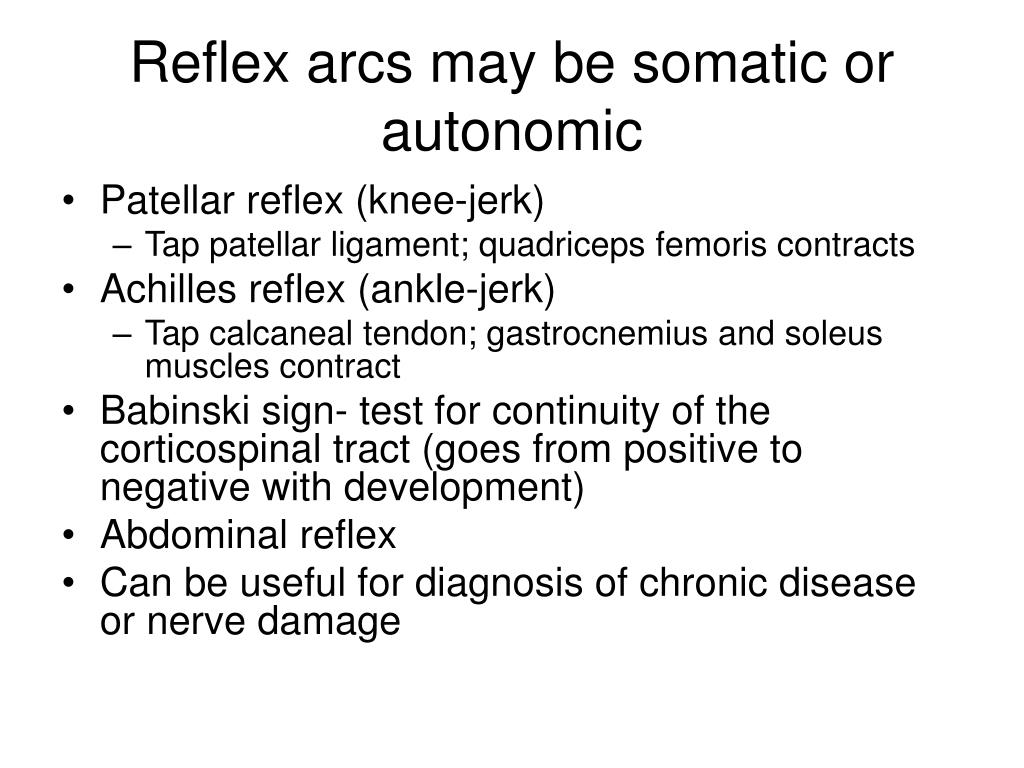

  8. Reflex arcs may be somatic or autonomic • Patellar reflex (knee-jerk) • Tap patellar ligament; quadriceps femoris contracts • Achilles reflex (ankle-jerk) • Tap calcaneal tendon; gastrocnemius and soleus muscles contract • Babinski sign- test for continuity of the corticospinal tract (goes from positive to negative with development) • Abdominal reflex • Can be useful for diagnosis of chronic disease or nerve damage

  9. Spinal nerves • Comprise the peripheral nervous system (PNS) • Connect the CNS to muscles, sensory receptors and glands • 31 pairs of spinal nerves • Posterior and anterior roots (mixed nerves)

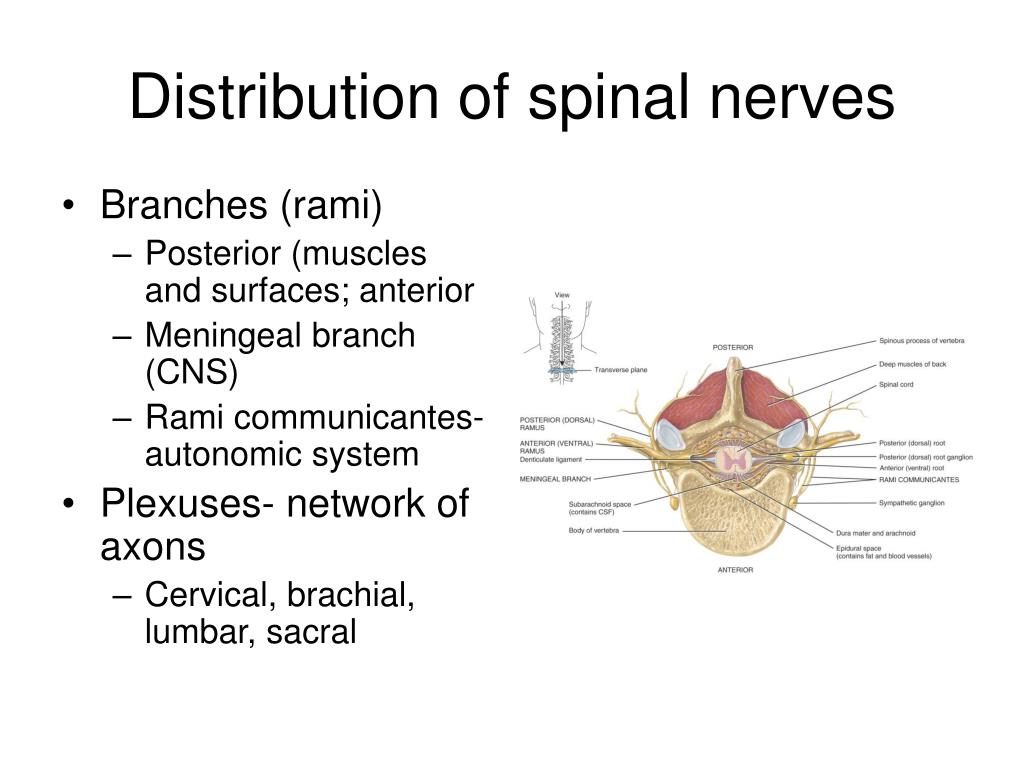

  10. Distribution of spinal nerves • Branches (rami) • Posterior (muscles and surfaces; anterior • Meningeal branch (CNS) • Rami communicantes- autonomic system • Plexuses- network of axons • Cervical, brachial, lumbar, sacral

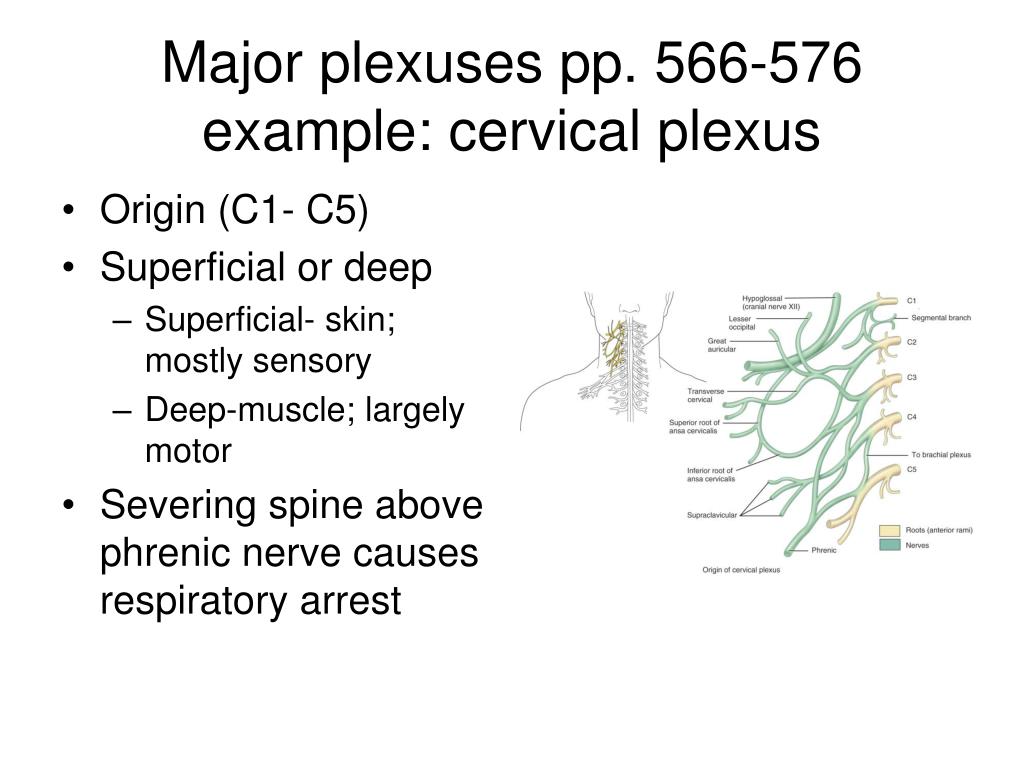

  11. Major plexuses pp. 566-576example: cervical plexus • Origin (C1- C5) • Superficial or deep • Superficial- skin; mostly sensory • Deep-muscle; largely motor • Severing spine above phrenic nerve causes respiratory arrest

  12. More plexuses • Brachial • Shoulders, upper limbs • Axial, musculocutaneous, radial, medial, ulnar • Lumbar • Anterolateral abdominal wall, genitalia, part of lower limbs • Sacral and coccygeal • Buttocks, perineum, lower limbs • Damage can cause loss of sensation, palsy, loss of motor control • Intercostal nerves directly innervate muscles (no plexuses)

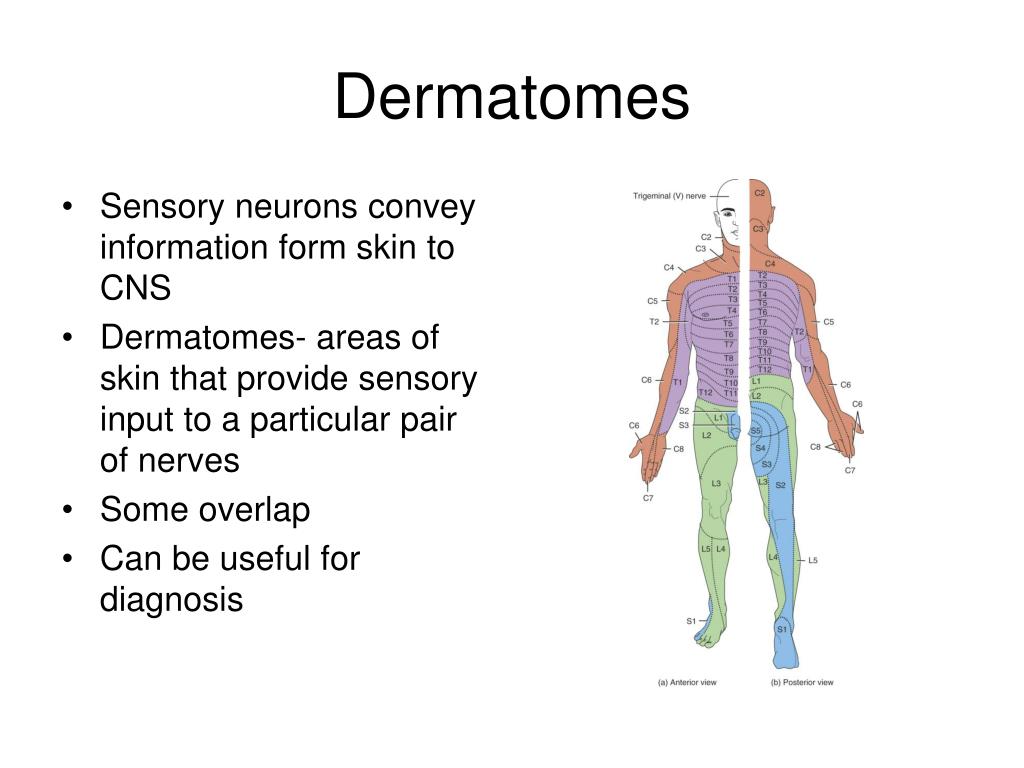

  13. Dermatomes • Sensory neurons convey information form skin to CNS • Dermatomes- areas of skin that provide sensory input to a particular pair of nerves • Some overlap • Can be useful for diagnosis

  14. Somatic senses (pain, thermal, tactile, proprioreceptive) Somatic motor neurons- skeletal muscle Usually voluntary Motor units acetylcholine Autonomic sensory (chemoreceptors, mechano- (stretch) receptors Motor neurons regulate visceral activities; can function independently of ANS Preganglionic and postganglionic neurons Acetylcholine or norepinephrine Autonomic vs. somatic nervous system

  15. Different types of ganglia • Sympathetic • Sympathetic trunk • Innervate organs above the diaphragm • Superior, middle, inferior cervical ganglia • Prevertebral • Below the diaphragm • Celiac, superior and inferior mesenteric ganglia • Parasympathetic • Preganglionic axons are longer than in sympathetic ganglia • Preganglionic neurons are myelinated, postganglionic neurons are not

  16. Sympathetic (thoracolumbar)

  17. Parasympathetic (craniosacral)

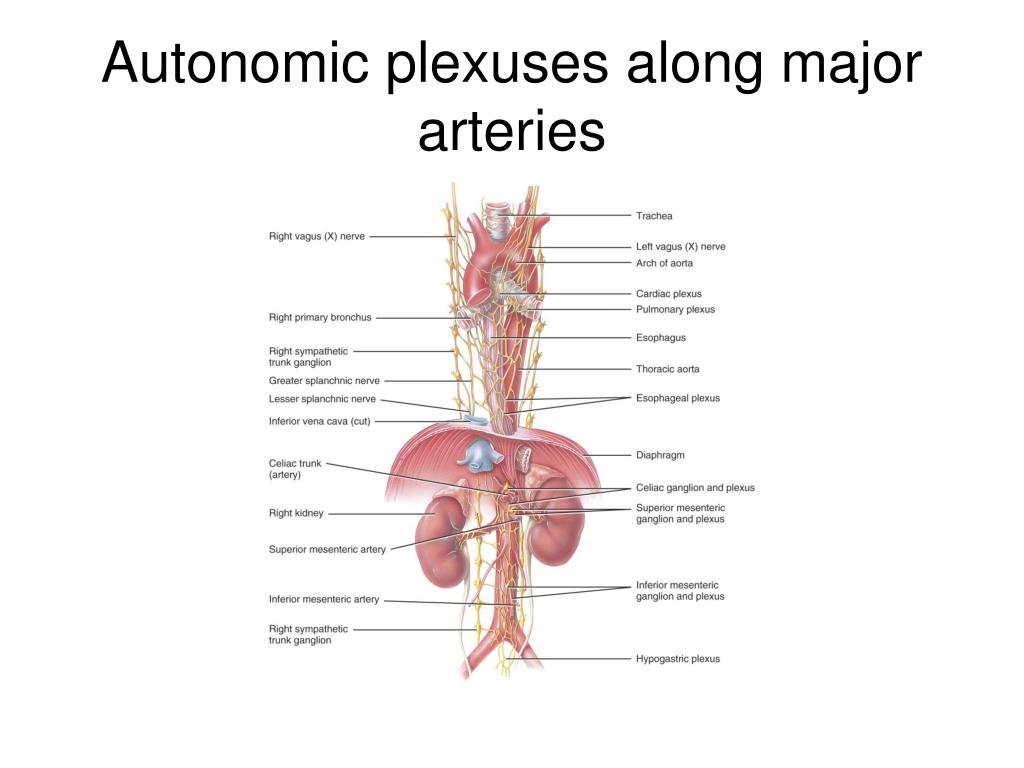

  18. Autonomic plexuses along major arteries

  19. Postganglionic neurons • Sympathetic system • One presynaptic neuron can diverge into many • Many organs can be affected at once • May extend to adrenal medullae • Parasympathetic system • Many presynaptic neurons can converge on a single effector • Effect can be localized to a single effector

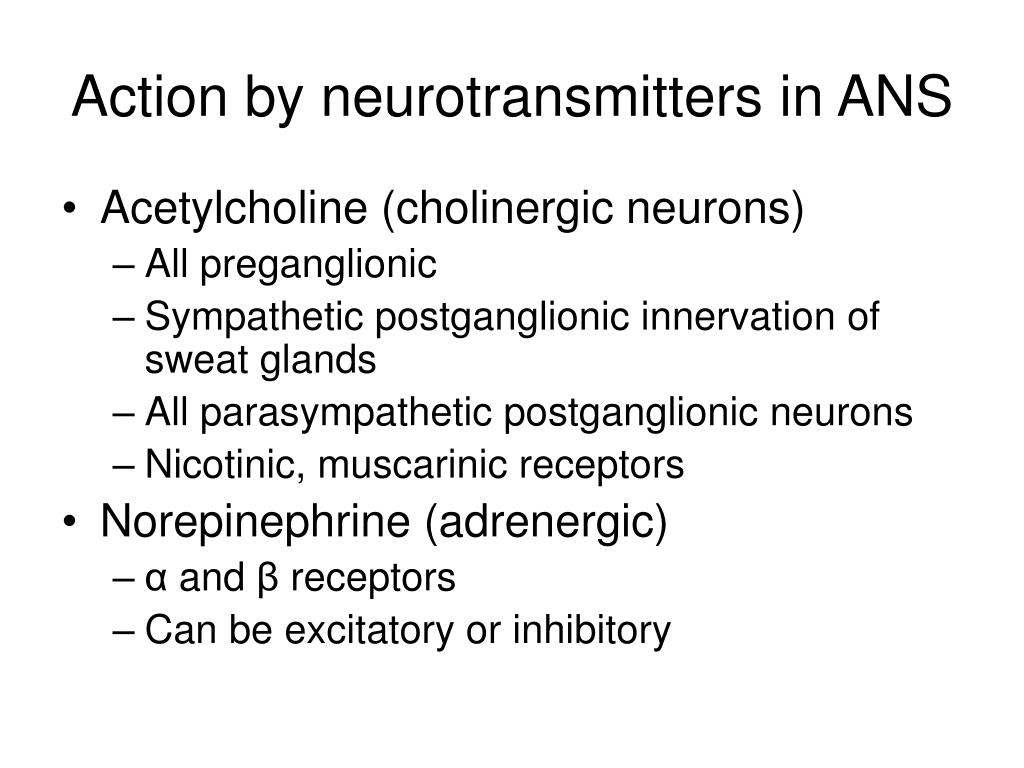

  20. Action by neurotransmitters in ANS • Acetylcholine (cholinergic neurons) • All preganglionic • Sympathetic postganglionic innervation of sweat glands • All parasympathetic postganglionic neurons • Nicotinic, muscarinic receptors • Norepinephrine (adrenergic) • α and β receptors • Can be excitatory or inhibitory

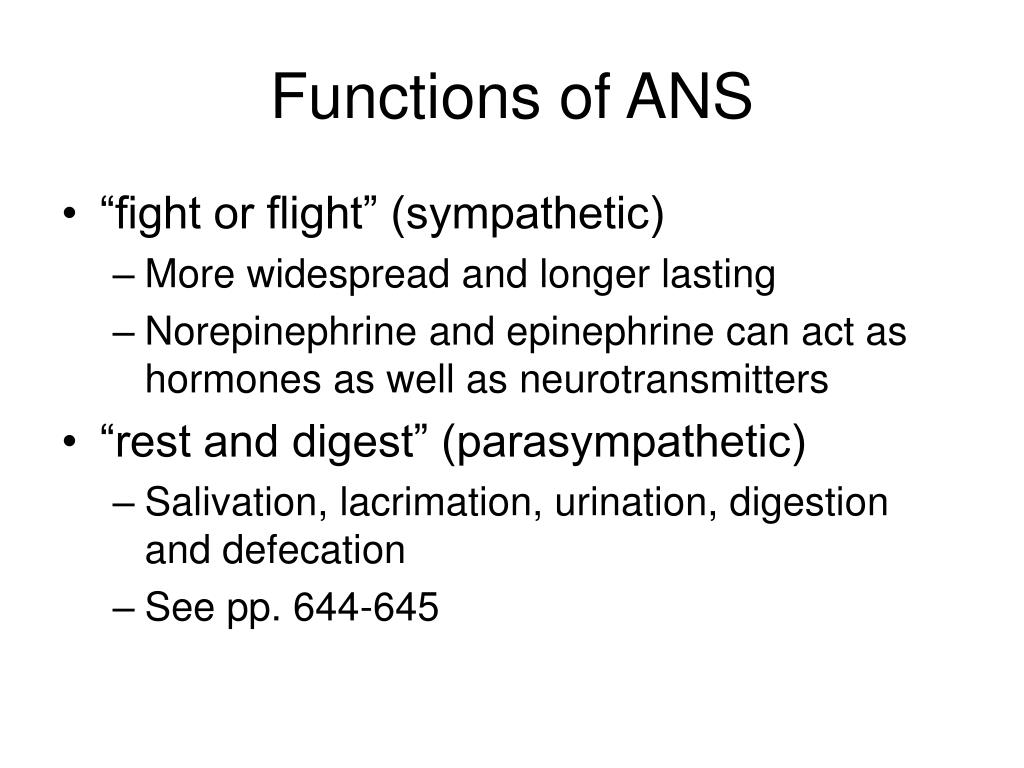

  21. Functions of ANS • “fight or flight” (sympathetic) • More widespread and longer lasting • Norepinephrine and epinephrine can act as hormones as well as neurotransmitters • “rest and digest” (parasympathetic) • Salivation, lacrimation, urination, digestion and defecation • See pp. 644-645

  22. Control of autonomic functions • Reflexes • Blood pressure • Digestion • Defecation and urination • Control within brain • Brain stem (cardiovascular, swallowing , digestion) • Spinal cord (elimination) • Control and integration center is hypothalamus
