  1. The importance of symmetry in an insect communication system. A critical examination of “Symmetry in the songs of crickets” Simmons & Ritchie (1996) Luke Verburgt Prof J.W.H. Ferguson Dr T. Weber

  2. Introduction Males sing to attract females Gryllus bimaculatus

  3. Introduction Bandwidth 0.4kHz 5.3 kHz 4.9 ~ 150ms

  4. Introduction  FA Fluctuating Asymmetry (R-L) Developmental Instability

  5. Introduction  DA Directional Asymmetry (R-L) Genetically determined

  6. Simmons & Ritchie (summary) • MALES • Harp size is correlated with body size • Call frequency is correlated with harp size • Call bandwidth is correlated with DA of harp • FA morph is correlated with DA of harp • Therefore: Females can “hear” how symmetrical a male is • FEMALES • Prefer pure-tones indicative of a symmetrical male • Therefore: • Females can “choose” symmetrical males acoustically

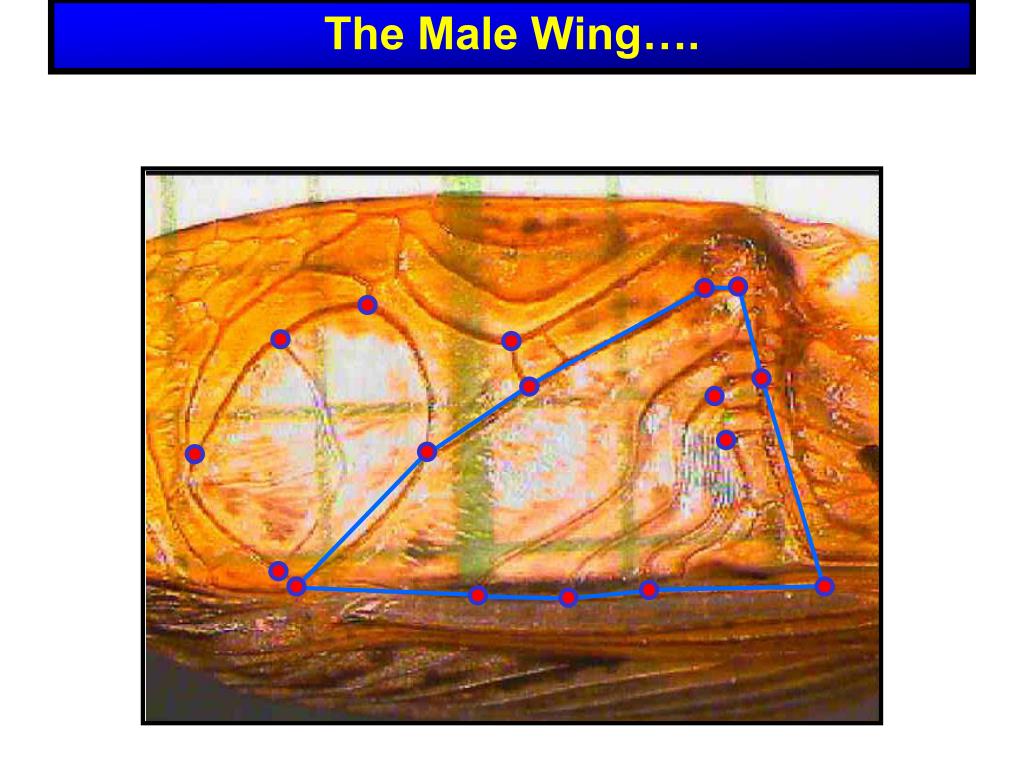

  7. The Male Wing….

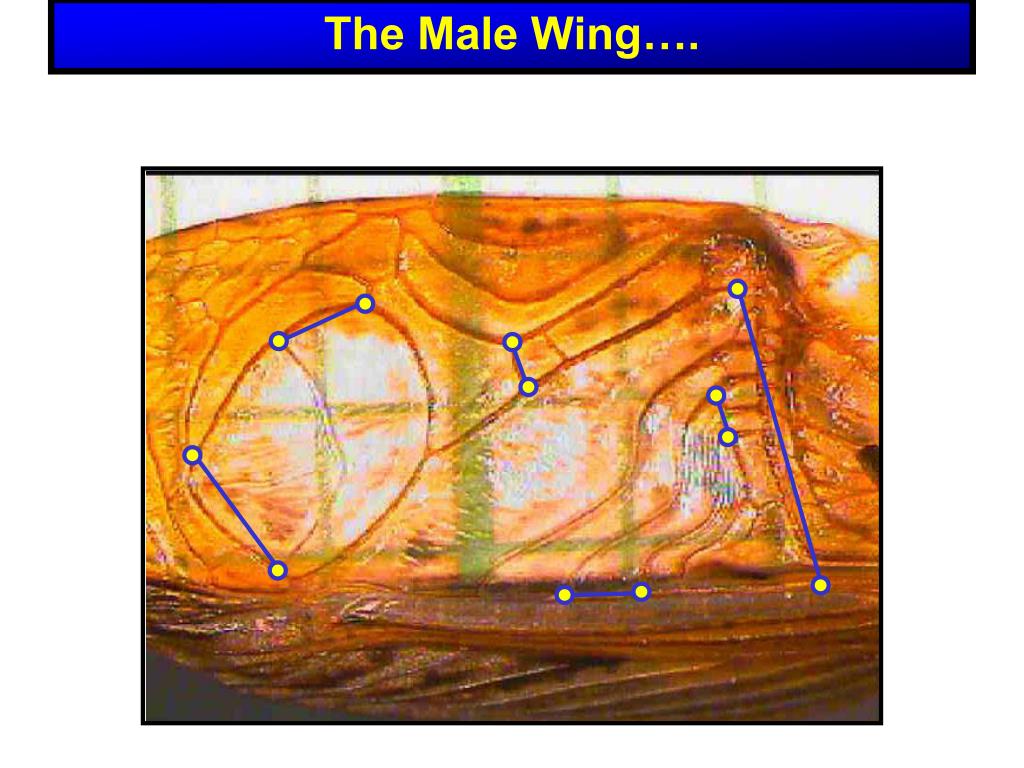

  8. The Male Wing….

  9. Male Harp Area vs Size

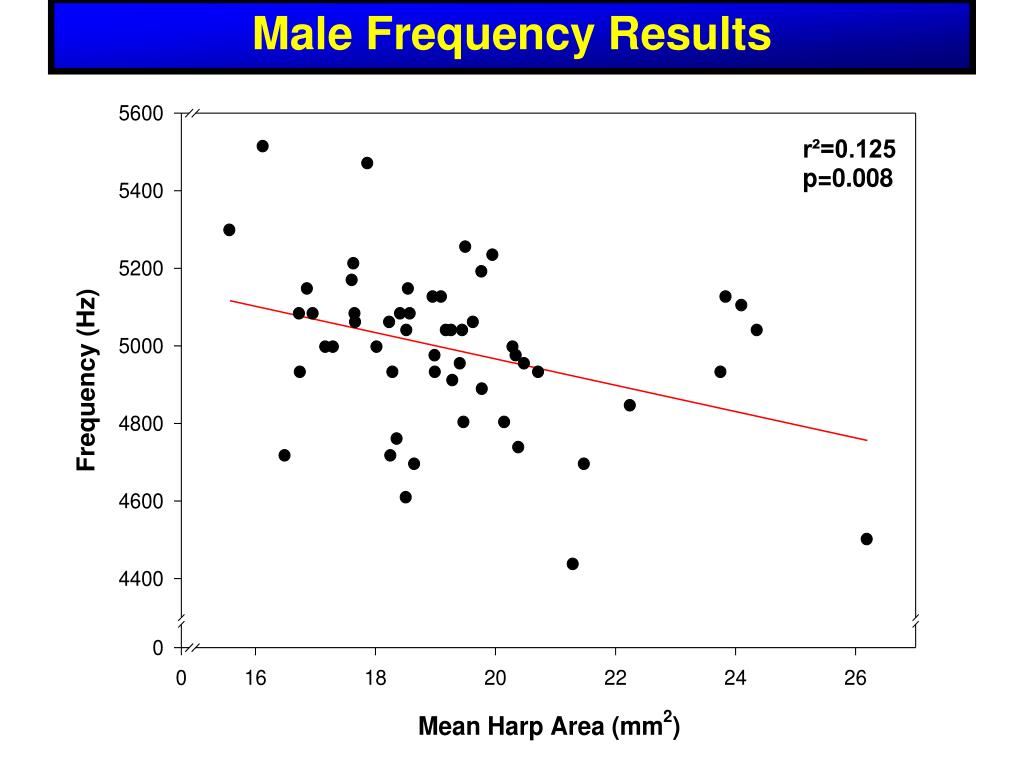

  10. Male Frequency Results

  11. Male Bandwidth Results

  12. Male Bandwidth Results

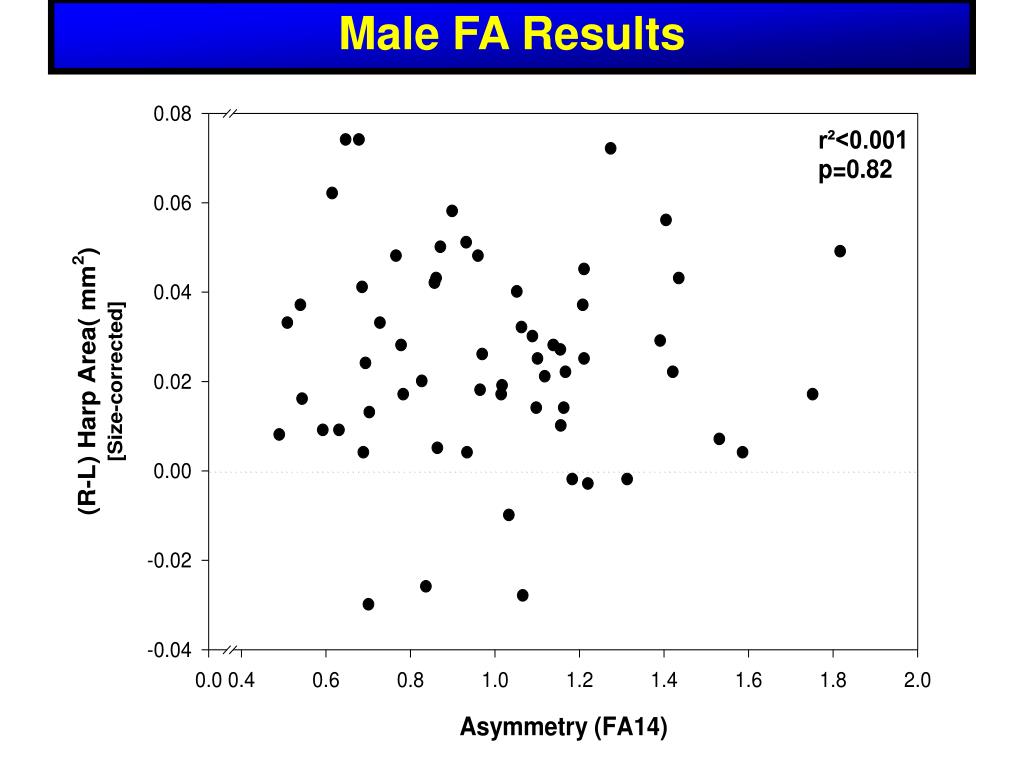

  13. Male FA Results

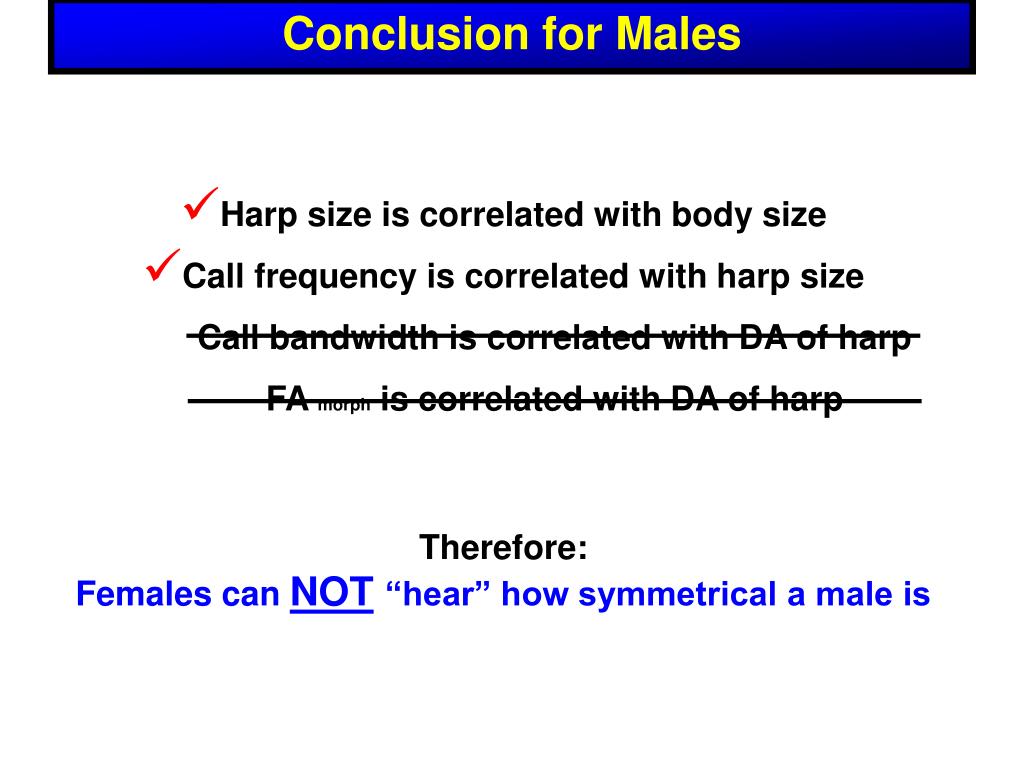

  14. Conclusion for Males • Harp size is correlated with body size • Call frequency is correlated with harp size • Call bandwidth is correlated with DA of harp • FA morph is correlated with DA of harp Therefore: Females can NOT“hear” how symmetrical a male is

  15. Kramer spherical treadmill Speaker Cricket Sphere

  16. Female frequency response….

  17. Female frequency response….

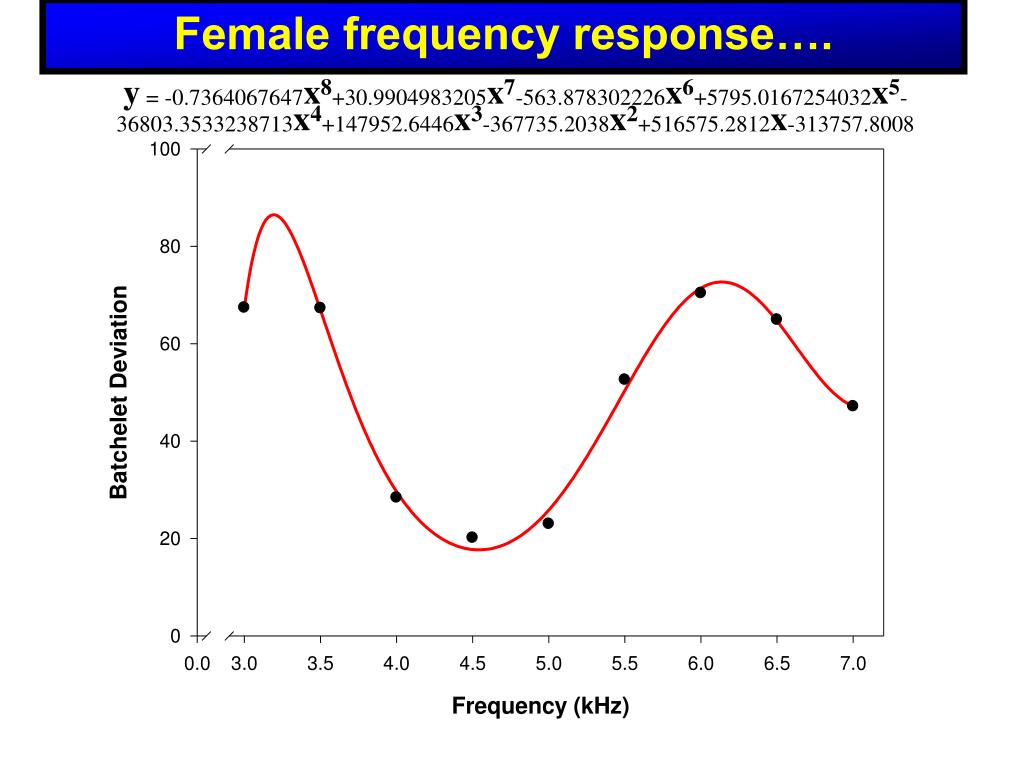

  18. Female frequency response…. y = -0.7364067647x8+30.9904983205x7-563.878302226x6+5795.0167254032x5-36803.3533238713x4+147952.6446x3-367735.2038x2+516575.2812x-313757.8008

  19. Female frequency response….

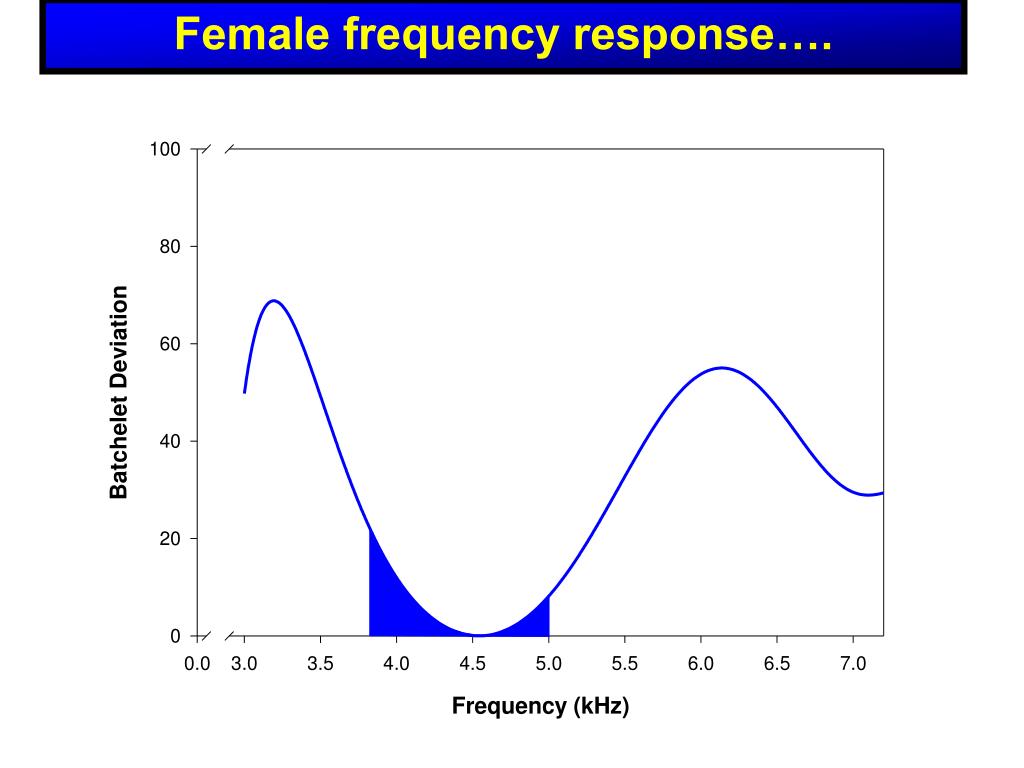

  20. Female frequency response….

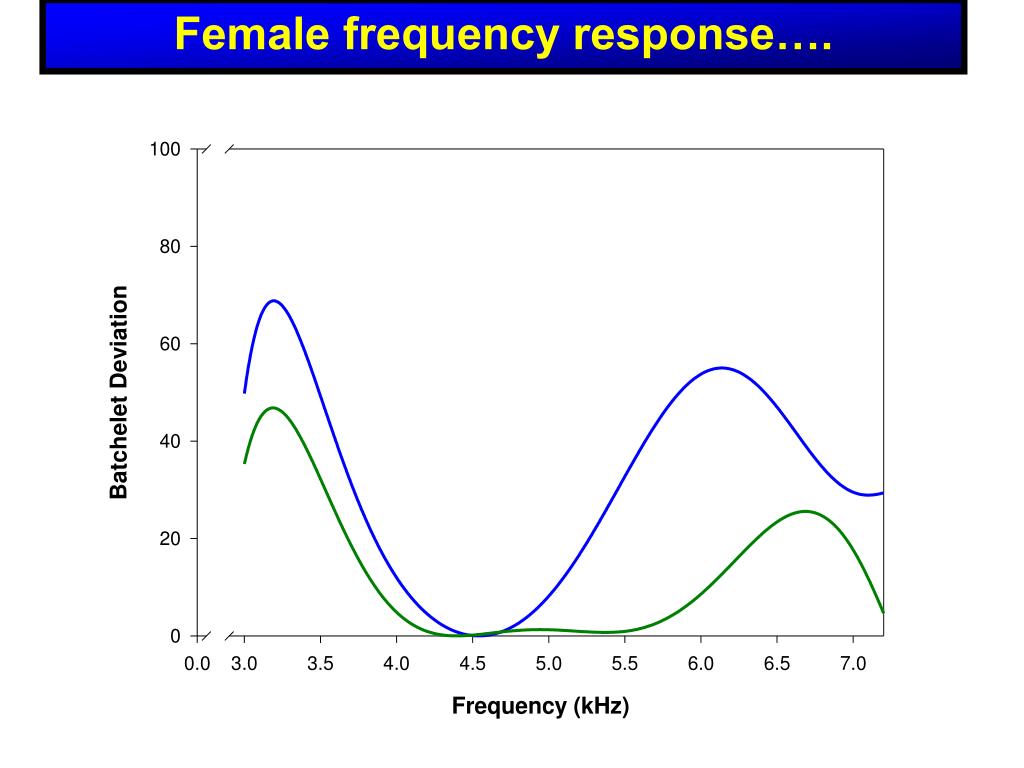

  21. Female frequency response….

  22. Female bandwidth response…. 5 4.8

  23. Female bandwidth response….

  24. Female bandwidth response….

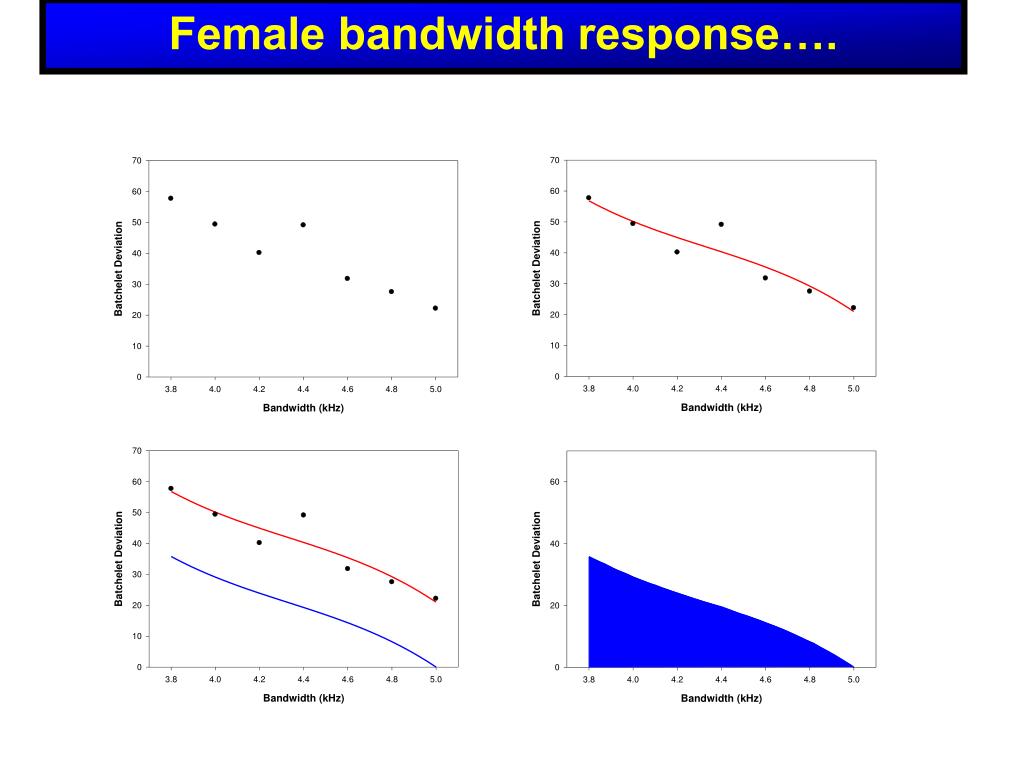

  25. Female bandwidth response….

  26. Female bandwidth response….

  27. Multiple regression…. Area under BW curve 1) Area under Frequency curve 2) Poly-predicted Frequency preference F2,109 = 15.24; R2 = 0.22; p<0.001 Area under Frequency curve  p=0.008 Poly-predicted Frequency preference p = 0.005

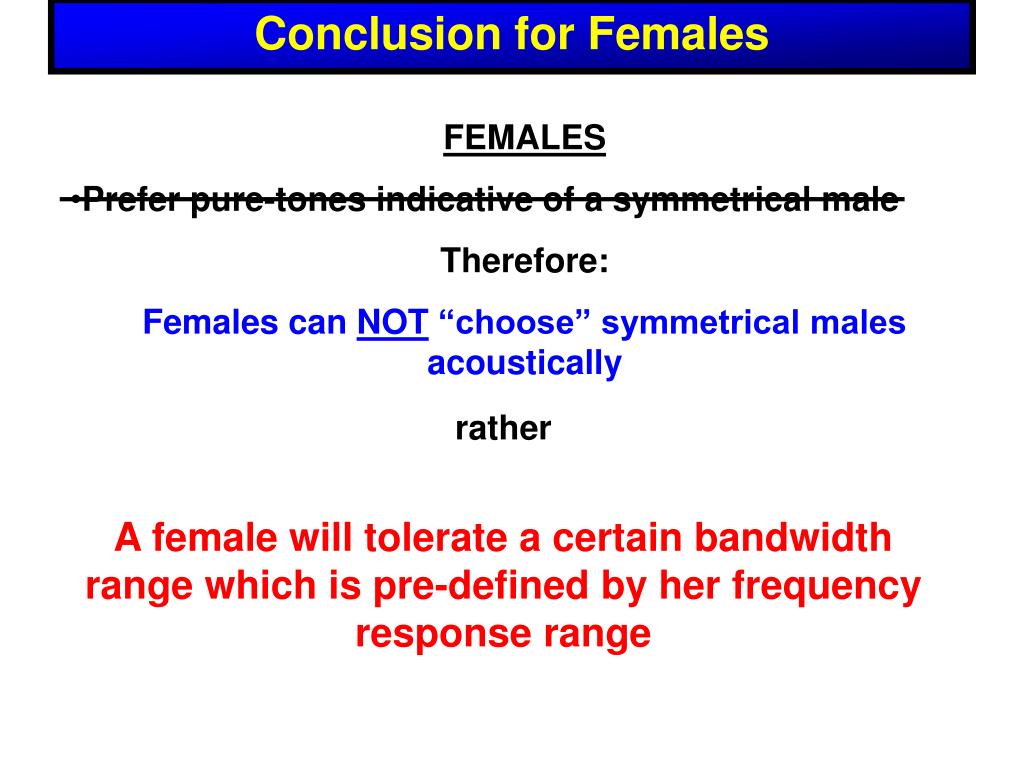

  28. Conclusion for Females • FEMALES • Prefer pure-tones indicative of a symmetrical male • Therefore: • Females can NOT “choose” symmetrical males acoustically rather A female will tolerate a certain bandwidth range which is pre-defined by her frequency response range

  29. Acknowledgements • Dr. H.U. Kleindienst • Heidrun Bamberg Funding & logistics • Dr. Xim Cerda • Marna Ferreira
