  1. Ink Filtration

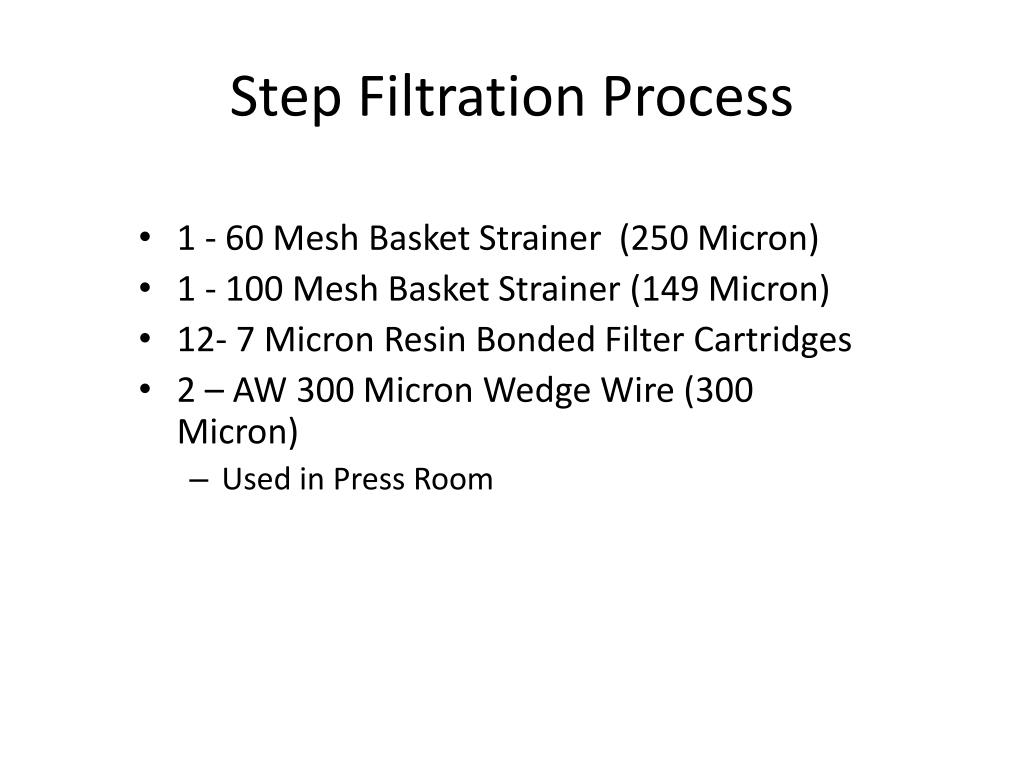

  2. Step Filtration Process • 1 - 60 Mesh Basket Strainer (250 Micron) • 1 - 100 Mesh Basket Strainer (149 Micron) • 12- 7 Micron Resin Bonded Filter Cartridges • 2 – AW 300 Micron Wedge Wire (300 Micron) • Used in Press Room

  3. Filters that are changed every batch

  4. Basket Strainer

  5. Filtration costs

  6. Filter Measurements • Measurements: • Pressure Differential Across filters • Grind Check

  7. Filtration SOP’S

  8. Standard WorkWeekly Audited by production leads Various SOPS in the Filtration Process

  9. Tote Repair Staged for various defects in the tote itself

  10. Tote Repair – Ongoing TPM Process Inside of tote lid Tote lid being removed

  11. Various wash outs of Ink Filter waste Contamination, magnetic and non-magnetic: Dark particles are magnetic particles, yellow particles are dried ink, amber particles are resinous.

  12. Analyzed Sample Debris

  13. Hartford Filters - Clay

  14. SO # 6970536 Replaced both upper and lower ink filters, both were collapsed due to sand particles.

  15. SO # 6970536 Replaced both upper and lower ink filters, both were collapsed due to sand particles. Plastic

  16. SO# 697500 Large number of filters being used in the yellow units Replaced the main filter in the yellow main line

  17. How do we get the filters?
