  1. Transport Layer Computer Networks

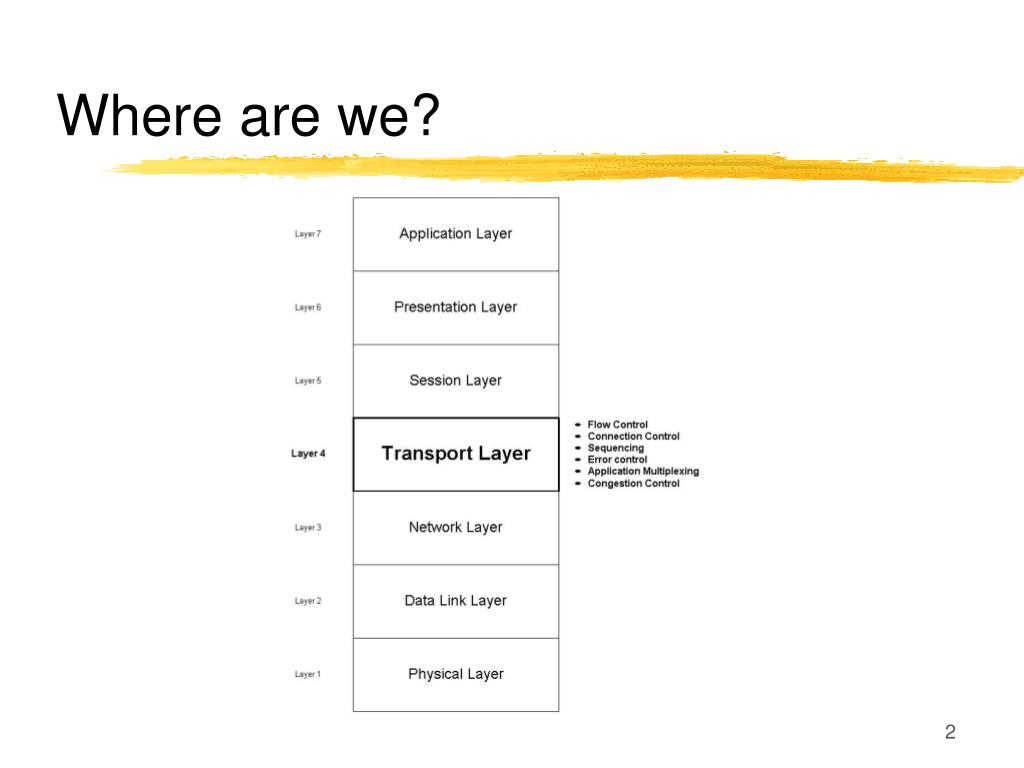

  2. Where are we?

  3. Recall • Network Layer • Provides host-to-host communication • Source and destination addresses identify host interfaces • Machine-to-machine networking

  4. Transport Protocols • Provide application-to-application communication • Need extended addressing mechanism to identify applications • Called end-to-end • Optionally provide: • Reliability • Flow Control • Congestion Control

  5. Example Transport Layer:Transmission Control Protocol (TCP) • Standardized by IETF as RFC 793 • Most popular layer 4 protocol • Connection-oriented protocol • Conceptually between applications and IP • Full-duplex operation • Byte-stream interface • Of utmost importance for this class! • The book: TCP/IP Illustrated, Volume I - W.R. Stevens • Also see: http://condor.depaul.edu/~jkristof/tcp.html

  6. TCP Feature Summary Provides a completely reliable (no data duplication or loss), connection-oriented, full-duplex stream transport service that allows two application programs to form a connection, send data in either direction and then terminate the connection.

  7. Relationship Between TCP and Other Protocols • TCP on one computer uses IP to communicate with TCP on another computer

  8. Apparent Contradiction • IP offers best-effort (unreliable) delivery • TCP uses IP • TCP provides completely reliable transfer • How is this possible?

  9. Achieving Reliability • Reliable connection setup • Reliable data transmission • Reliable connection shutdown

  10. Reliable Data Transmission • Positive Acknowledgement • Receiver returns short message when data arrives • Call an acknowledgement • Retransmission • Sender starts timer whenever message is transmitted • If timer expires before acknowledgement arrives, sender retransmits message

  11. Retransmission Illustrated

  12. How Long Should TCP Wait Before Retransmitting? • Time for acknowledgement to arrive depends on • Distance to destination • Current traffic conditions • Multiple connections can be open simultaneously • Traffic conditions change rapidly

  13. Important Point The delay required for data to reach a destination and an acknowledgement to return depends on traffic in the internet as well as the distance to the destination. Since it allows multiple application programs to communicate with multiple destinations concurrently, TCP must handle a variety of delays that can change rapidly.

  14. Solving the Retransmission Problem • Keep estimate of round trip time on each connection • Use current estimate to set retransmission timer • Known as adaptive retransmission • Key to TCP’s success

  15. Adaptive Retransmission Illustrated • Timeout depends on current round-trip estimate

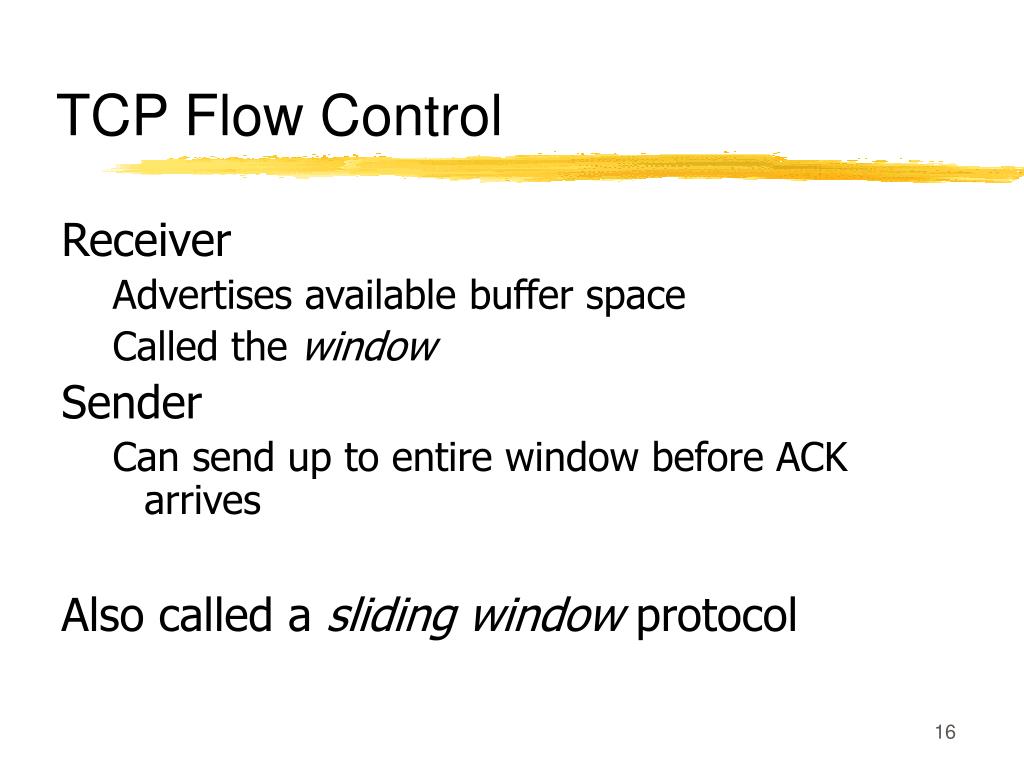

  16. TCP Flow Control • Receiver • Advertises available buffer space • Called the window • Sender • Can send up to entire window before ACK arrives • Also called a sliding window protocol

  17. Window Advertisement • Each acknowledgement carries new window information • Called window advertisement • Can be zero (called closed window) • Interpretation: I have received up through X and can take Y more octets

  18. Window Advertisement Illustrated

  19. Another View: Sliding Window Illustrated

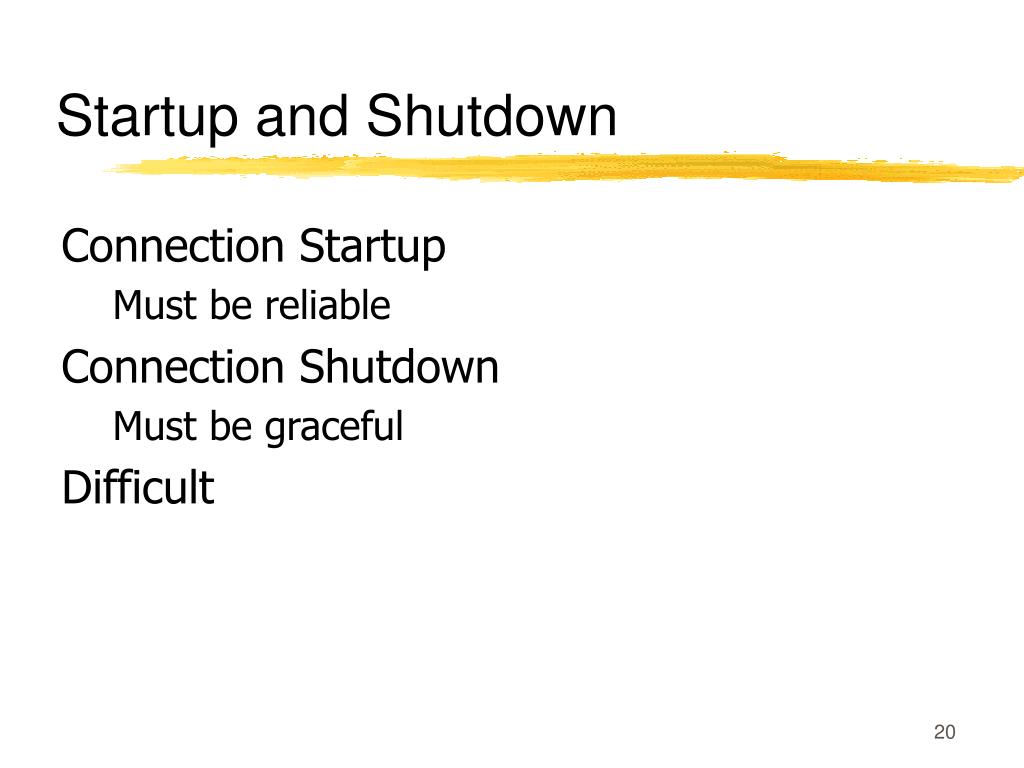

  20. Startup and Shutdown • Connection Startup • Must be reliable • Connection Shutdown • Must be graceful • Difficult

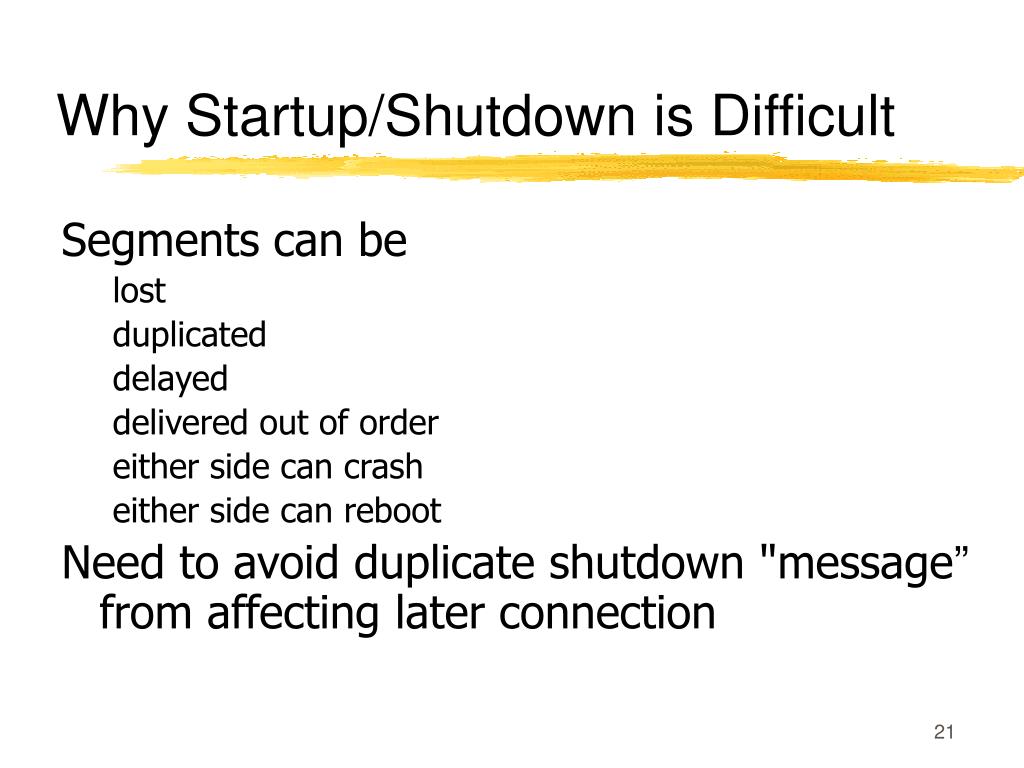

  21. Why Startup/Shutdown is Difficult • Segments can be • lost • duplicated • delayed • delivered out of order • either side can crash • either side can reboot • Need to avoid duplicate shutdown "message” from affecting later connection

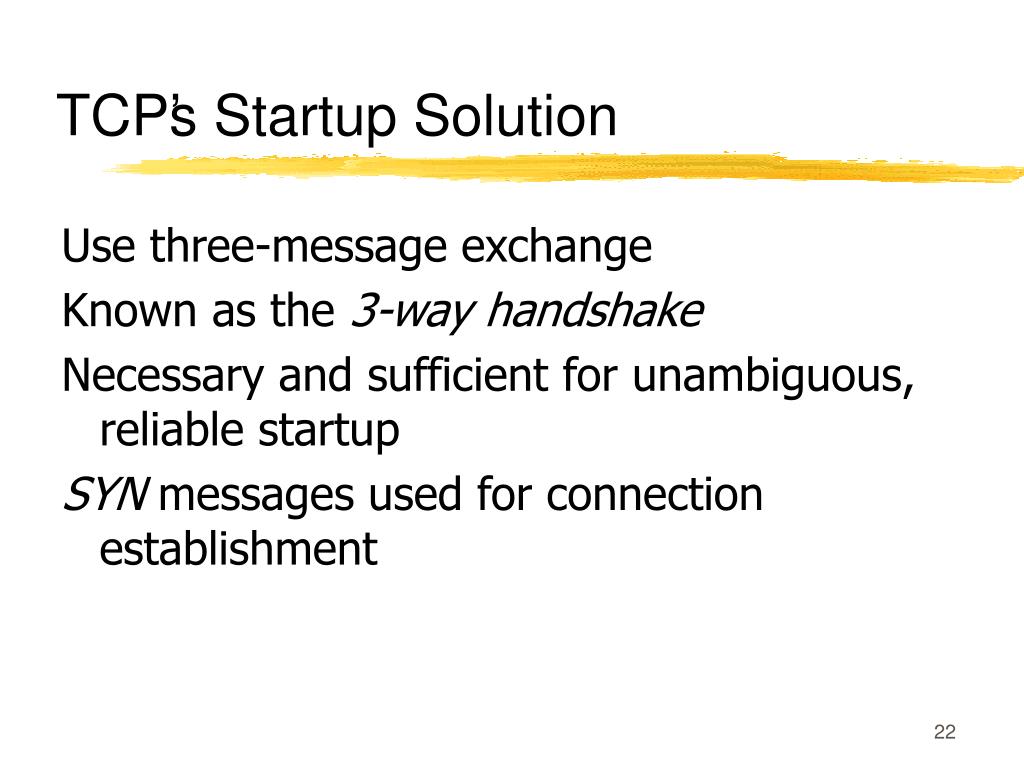

  22. TCP’s Startup Solution • Use three-message exchange • Known as the 3-way handshake • Necessary and sufficient for unambiguous, reliable startup • SYN messages used for connection establishment

  23. 3-Way Handshake Illustrated

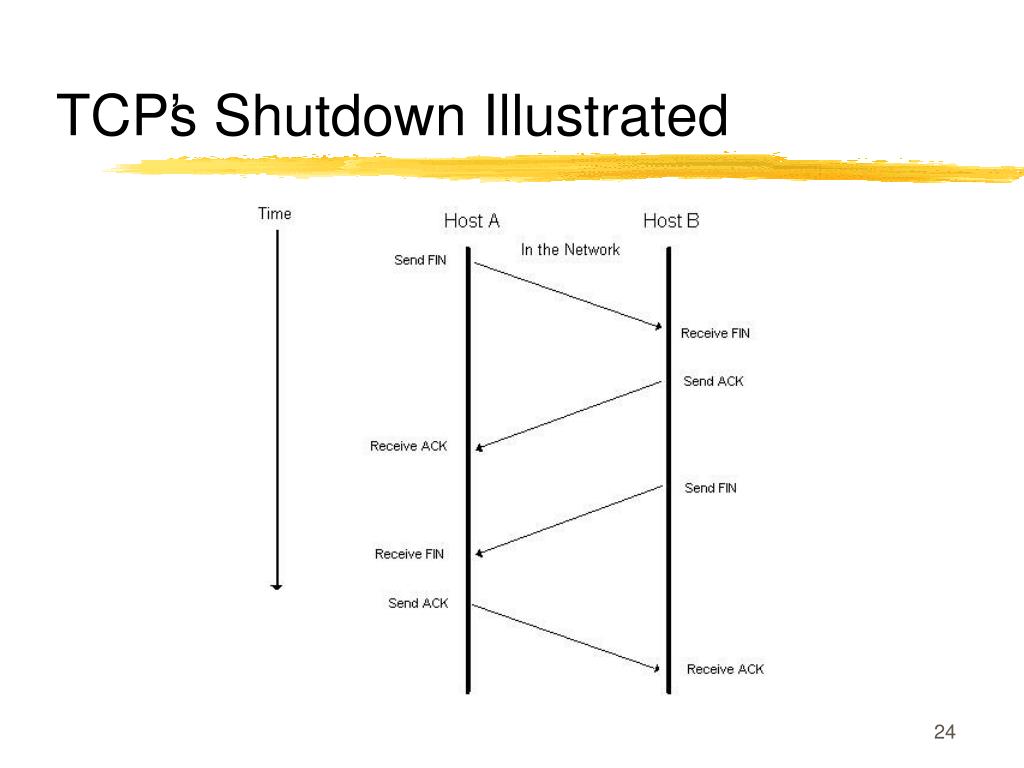

  24. TCP’s Shutdown Illustrated

  25. Byte Stream Sequencing • Segments are labeled with a sequence number • Protects from out-of-order delivery • 32-bit number • Limited size of byte stream? • Initial Sequence Numbers (ISNs) must be exchanged at TCP connection establishment

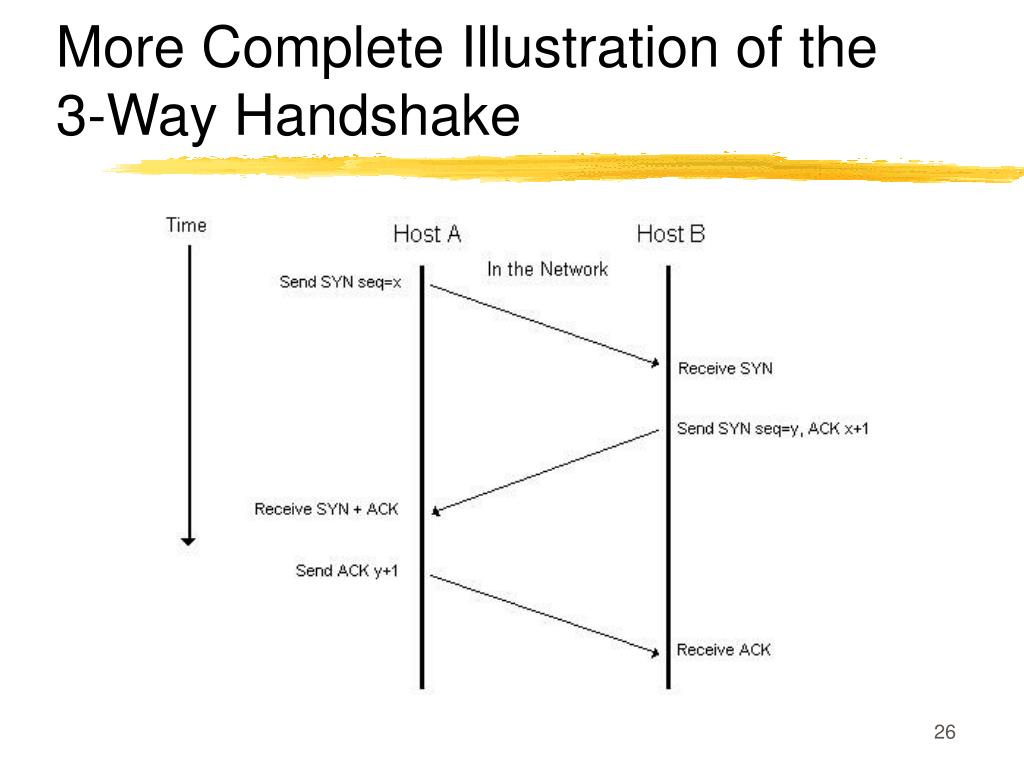

  26. More Complete Illustration of the 3-Way Handshake

  27. Application Multiplexing • Cannot extend IP address • No unused bits • Cannot use OS dependent quantity • Process ID • Task number • Job name • Must work on all computer systems

  28. Application Multiplexing Illustrated

  29. Protocol Ports • Each application assigned a unique integer • Server • Follows standard • Always uses same port number • Usually uses lower port numbers • Client • Obtains unused port from protocol software • Usually uses higher port numbers

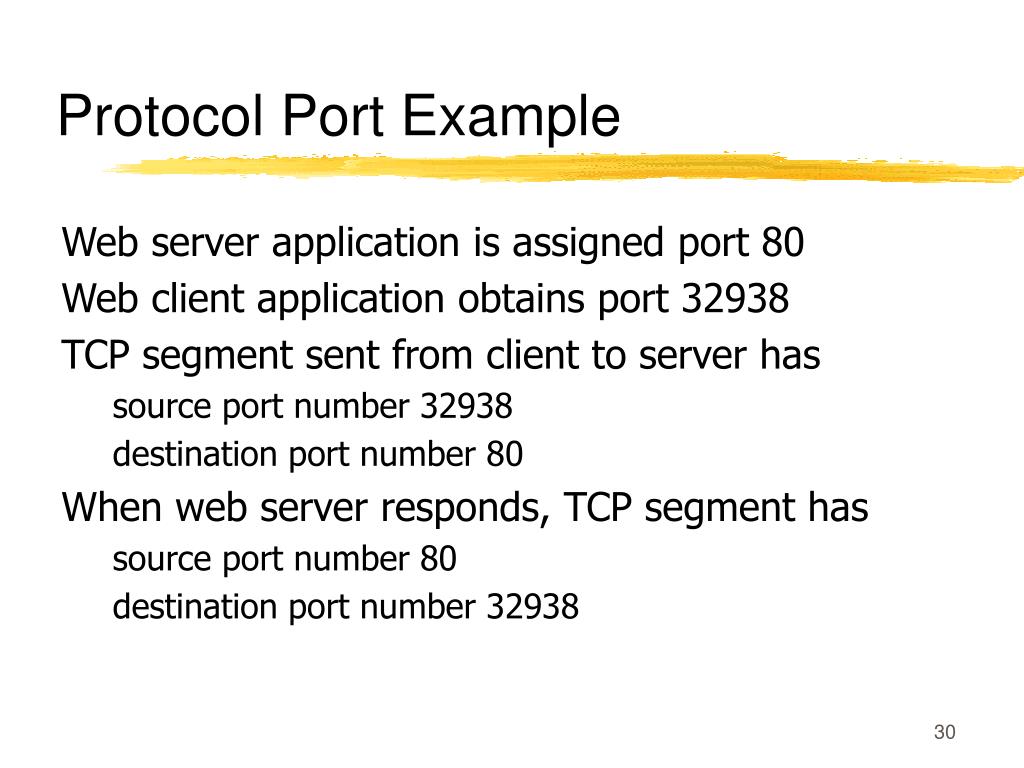

  30. Protocol Port Example • Web server application is assigned port 80 • Web client application obtains port 32938 • TCP segment sent from client to server has • source port number 32938 • destination port number 80 • When web server responds, TCP segment has • source port number 80 • destination port number 32938

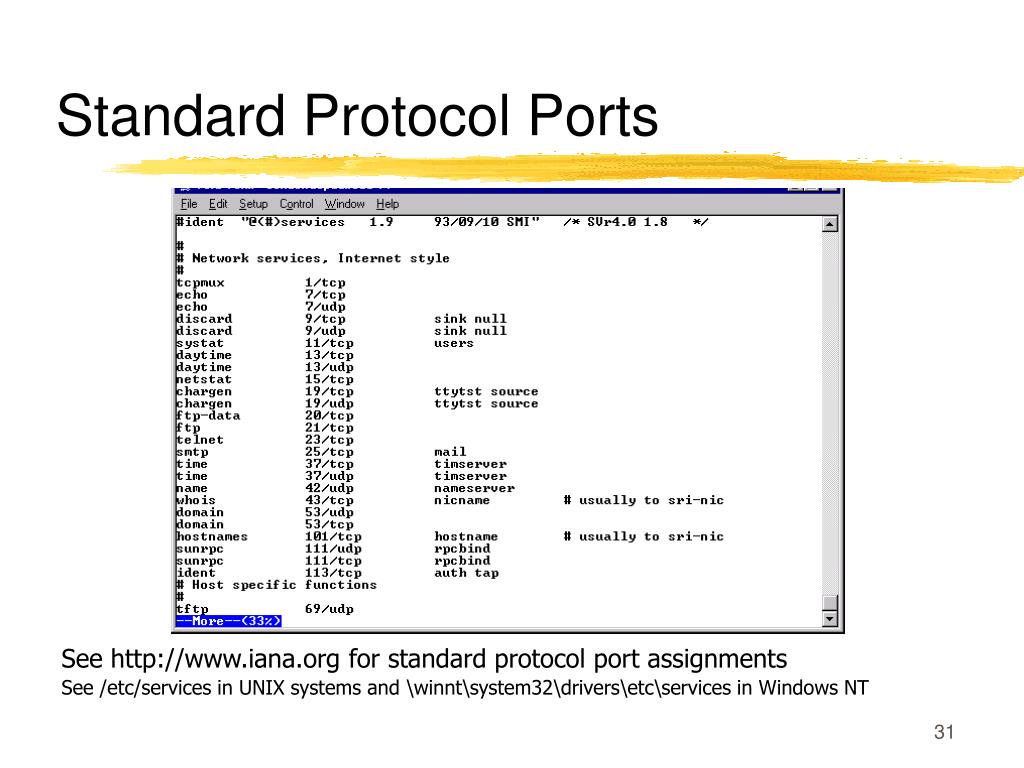

  31. Standard Protocol Ports • See http://www.iana.org for standard protocol port assignments • See /etc/services in UNIX systems and \winnt\system32\drivers\etc\services in Windows NT

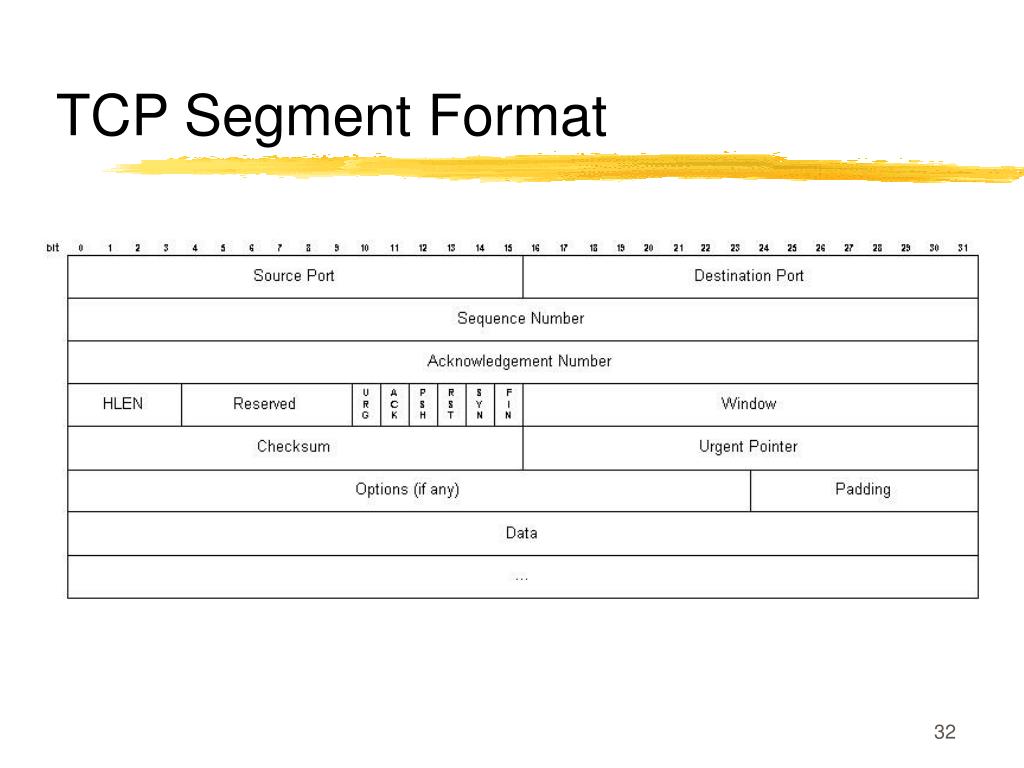

  32. TCP Segment Format

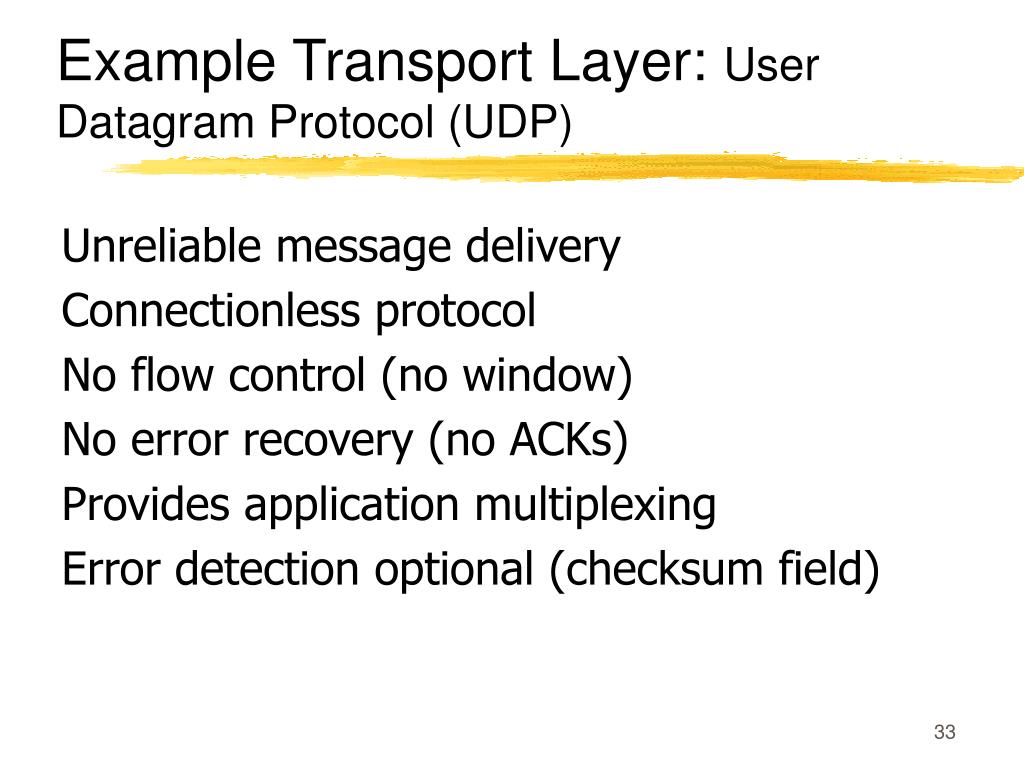

  33. Example Transport Layer: User Datagram Protocol (UDP) • Unreliable message delivery • Connectionless protocol • No flow control (no window) • No error recovery (no ACKs) • Provides application multiplexing • Error detection optional (checksum field)

  34. UDP Message Format
