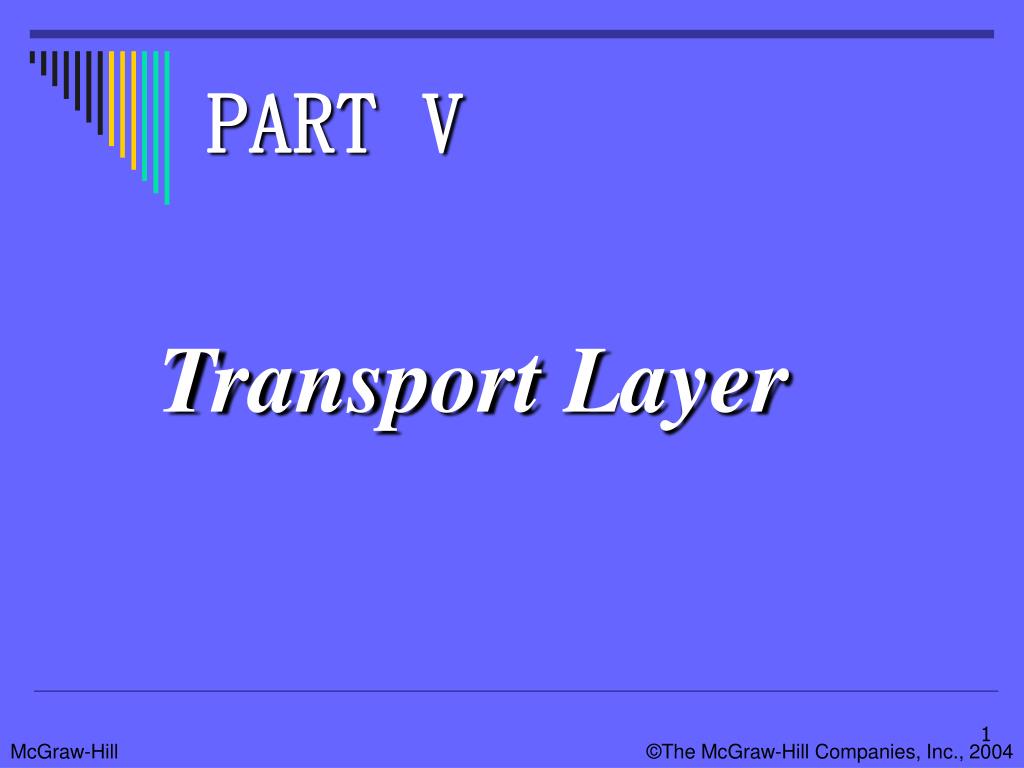

  1. PART V Transport Layer

  2. Position of Transport Layer

  3. Transport Layer Duties

  4. Packetizing Division of large message Adding transport-layer header Connection control Connection-oriented delivery: Virtual path between sender and receiver Connectionless delivery Addressing Logical address (Network Layer) Server application process: port number Client application process: port number Reliability: involves flow control and error control Flow control, error control, congestion control, QoS OBJECTIVES

  5. Chapters Chapter 22 Process-to-Process Delivery Chapter 23 Congestion Control and QoS

  6. Chapter 22 Process-to-ProcessDelivery:UDP and TCP

  7. Data link layer is responsible for delivery of frames between two neighboring nodes over a link  Node-to-node delivery Network layer is responsible for delivery of datagrams between two hosts  host-to-host delivery Real communication takes place between two processes (application programs). So, we need process-to-process delivery Transport layer is responsible for process-to-process delivery, the delivery of a packet, part of a message, from one process to another. § 22.1Types of data deliveries

  8. Common process-to-process communication is via client-server paradigm A process on the local host, called a client, needs services from a process usually on a remote host, called a server Both the client and server processes have the same name. Ex. Daytime client and Daytime server. A remote computer can run several server programs at the same time, just as local computers can run one or more client programs at the same time. For communication, we need: Local host, local process, remote host and remote process Client-Server Paradigm

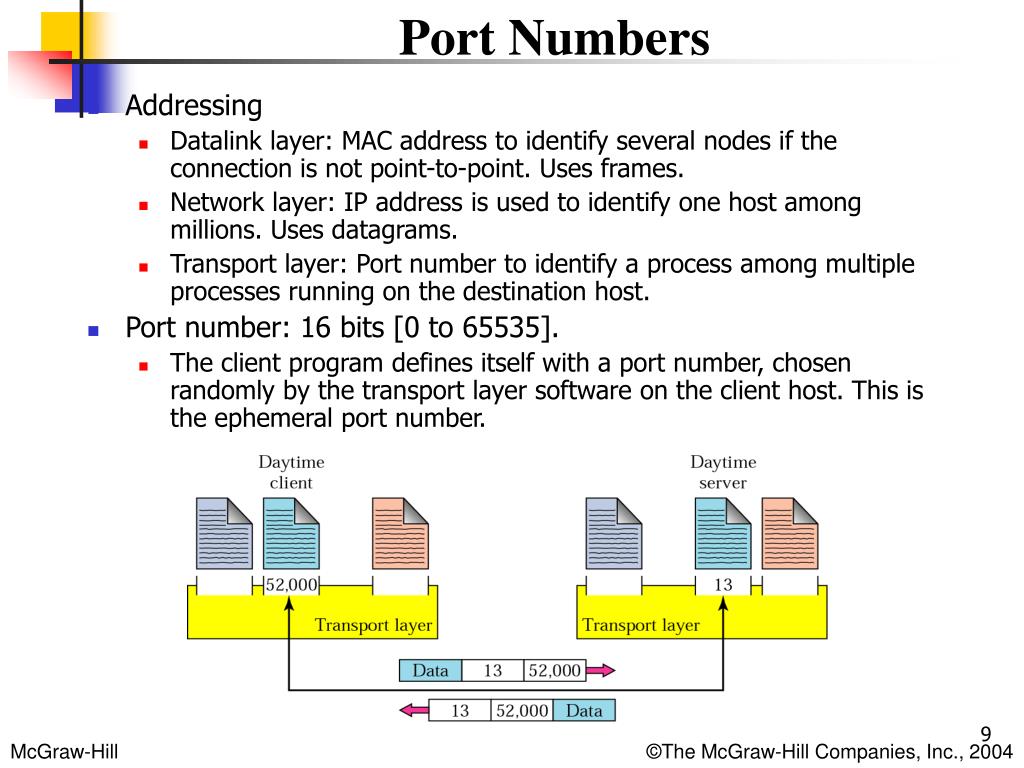

  9. Addressing Datalink layer: MAC address to identify several nodes if the connection is not point-to-point. Uses frames. Network layer: IP address is used to identify one host among millions. Uses datagrams. Transport layer: Port number to identify a process among multiple processes running on the destination host. Port number: 16 bits [0 to 65535]. The client program defines itself with a port number, chosen randomly by the transport layer software on the client host. This is the ephemeral port number. Port Numbers

  10. Server process uses well-known ports. If the computer at the server site runs a server process and assigns a random number as the port number, the process at the client side that wants to access the server and use it services will not know the port number. Client can send a special request to known port number, which will cause overhead. Use Well-known ports. IP addresses versus Port Numbers

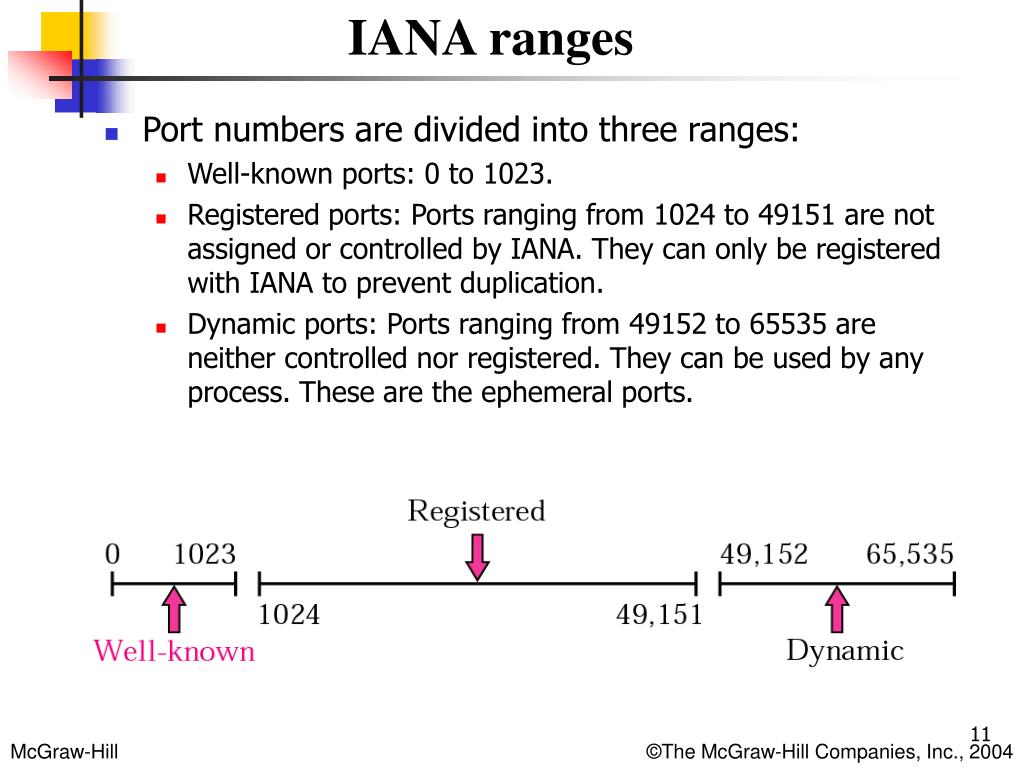

  11. Port numbers are divided into three ranges: Well-known ports: 0 to 1023. Registered ports: Ports ranging from 1024 to 49151 are not assigned or controlled by IANA. They can only be registered with IANA to prevent duplication. Dynamic ports: Ports ranging from 49152 to 65535 are neither controlled nor registered. They can be used by any process. These are the ephemeral ports. IANA ranges

  12. Combination of an IP address and a port number is called a socket address. Client socket address defines the client process uniquely just as the server socket address defines the server process uniquely. Transport layer protocol needs a pair of socket addresses: the client socket address and server socket address. Socket address

  13. Multiplexing At the sender site, there may be several processes that need to send packets. However, there is only one transport-layer protocol [UDP or TCP]. Protocol accepts messages from different process, differentiated by their assigned port number. After adding the header, the transport layer passes the packet to network layer. Demultiplexing At receiver site, the transport layer receives datagrams/segments from network layer. After error checking and dropping of the header, the transport layer delivers each message to the appropriate process based on the port number. Multiplexing and Demultiplexing

  14. Multiplexing and Demultiplexing

  15. Connectionless service Packets are sent from one party to another with no need for connection establishment or connection release. Packets are not numbered; they may be delayed, lost, or arrive out of sequence. No acknowledgement. UDP [User Datagram Protocol] Connection-oriented service Connection is first established between the sender and the receiver Data are transferred At the end, the connection is released. TCP [Transmission Control Protocol] Connection oriented and Connectionless

  16. Host A sends a packet to announce its wish for connection and includes its initialization information about traffic from A to B Host B sends a packet to acknowledge (confirm) the request of A Host B sends a packet that includes its initialization information about traffic from B to A Host A sends a packet to acknowledge (confirm) the request of B. Steps 2 and 3 can occur at the same time, they can be combined into one step. Connection Establishment

  17. Each connection request needs to have a sequence number to recover from the loss or duplication of the packet. Also each acknowledgement needs to have an acknowledgement number for the same reason. First sequence number in each direction must be random for each connection established. A sender cannot create several connections that start with the same sequence number. The reason is to prevent a situation called Playback. Using a sequence number for each connection requires that the receiver keep a history of sequence numbers for each remote host for a specified time. Connection Establishment

  18. Connection termination Any of the two parties involved in exchanging data can close the connection When connection in one direction is terminated, the other party can continue sending data in the other direction. Host A sends a packet announcing its wish for connection termination Host B sends a segment acknowledge (confirming) the request of A. After this, the connection is closed in one direction, but not in the other. Host B can continue sending data to A. When Host B has finished sending its own data, it sends a segment to indicate that it wants to close the connection. Host A acknowledge (confirms) the request of B.

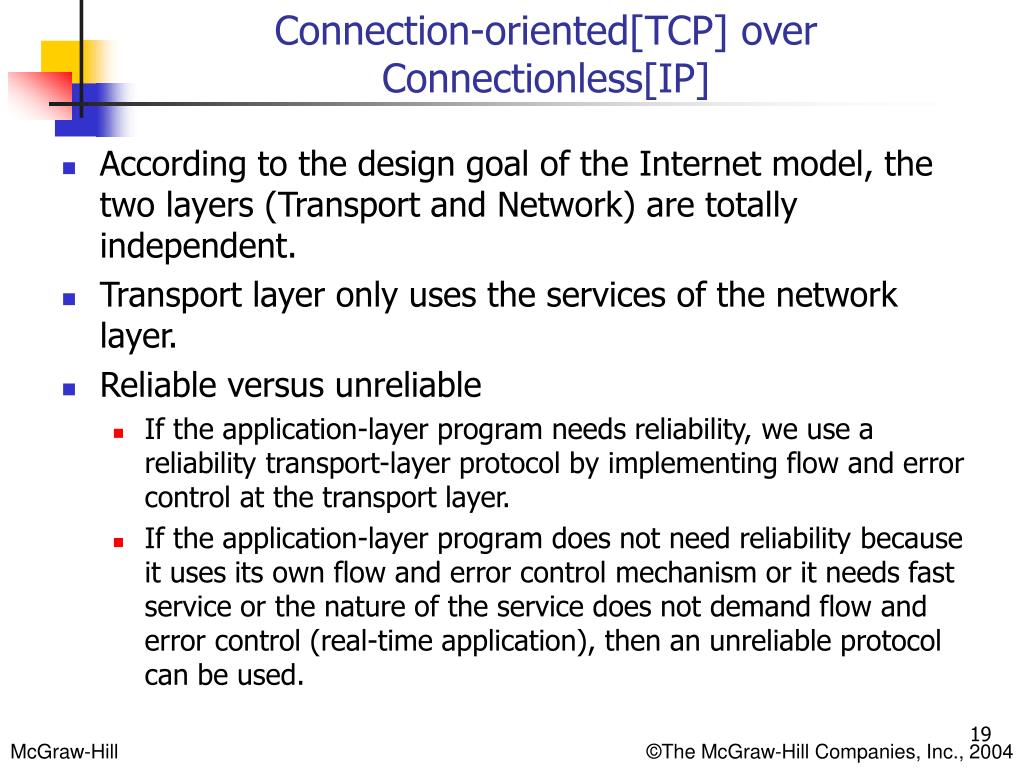

  19. According to the design goal of the Internet model, the two layers (Transport and Network) are totally independent. Transport layer only uses the services of the network layer. Reliable versus unreliable If the application-layer program needs reliability, we use a reliability transport-layer protocol by implementing flow and error control at the transport layer. If the application-layer program does not need reliability because it uses its own flow and error control mechanism or it needs fast service or the nature of the service does not demand flow and error control (real-time application), then an unreliable protocol can be used. Connection-oriented[TCP] over Connectionless[IP]

  20. If data link layer is reliable and has flow and error control, do we need this at the transport layer ? Reliability at the data link layer is between two nodes We need reliability between two ends. Because the network layer in the Internet is unreliable (best-effort delivery), we need to implement reliability at the transport layer. Reliability at the data link layer is between two nodes; we need reliability between two ends. Because the network layer in the Internet is unreliable, we need to implement reliability at transport layer. Error Control

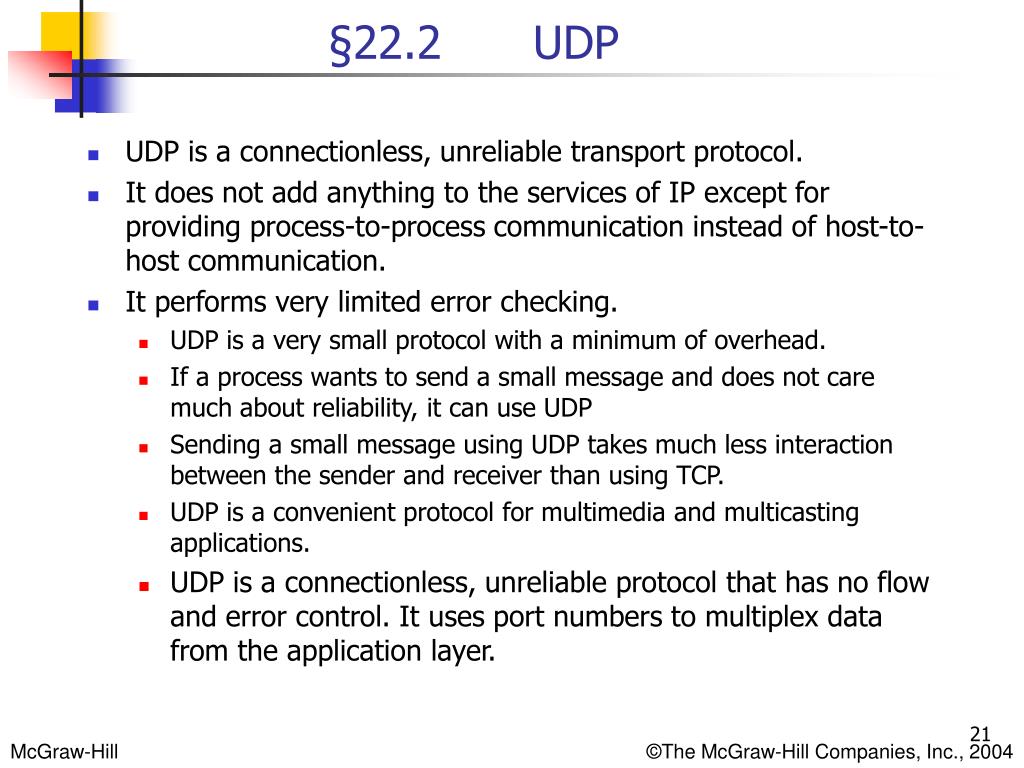

  21. UDP is a connectionless, unreliable transport protocol. It does not add anything to the services of IP except for providing process-to-process communication instead of host-to-host communication. It performs very limited error checking. UDP is a very small protocol with a minimum of overhead. If a process wants to send a small message and does not care much about reliability, it can use UDP Sending a small message using UDP takes much less interaction between the sender and receiver than using TCP. UDP is a convenient protocol for multimedia and multicasting applications. UDP is a connectionless, unreliable protocol that has no flow and error control. It uses port numbers to multiplex data from the application layer. §22.2 UDP

  22. Table 22.1 Well-known ports used by UDP

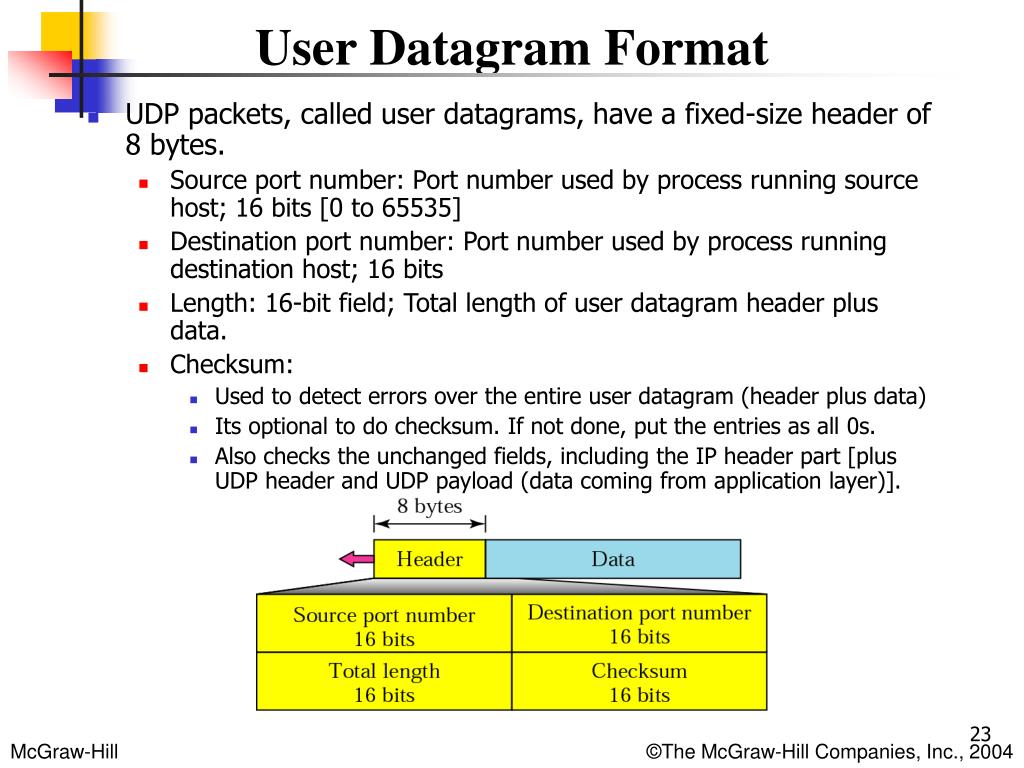

  23. UDP packets, called user datagrams, have a fixed-size header of 8 bytes. Source port number: Port number used by process running source host; 16 bits [0 to 65535] Destination port number: Port number used by process running destination host; 16 bits Length: 16-bit field; Total length of user datagram header plus data. Checksum: Used to detect errors over the entire user datagram (header plus data) Its optional to do checksum. If not done, put the entries as all 0s. Also checks the unchanged fields, including the IP header part [plus UDP header and UDP payload (data coming from application layer)]. User Datagram Format

  24. A process that requires simple request-response communication with little concern for flow and error control. It is not usually used for a process that needs to send bulk data, such as FTP. A process with internal flow and error control mechanisms. For Trivial File Transport Protocol (TFTP) includes flow and error control. It can easily use UDP. A suitable transport protocol for multicasting. Multicasting capabilities are embedded in the UDP software but not in TCP software. UDP is used for some route updating protocols such as Routing Information Protocol (RIP). UDP is used in conjunction with the Real-Time Transport Protocol (RTP) to provide a transport-layer mechanism for real-time data. UDP APPLICATIONS

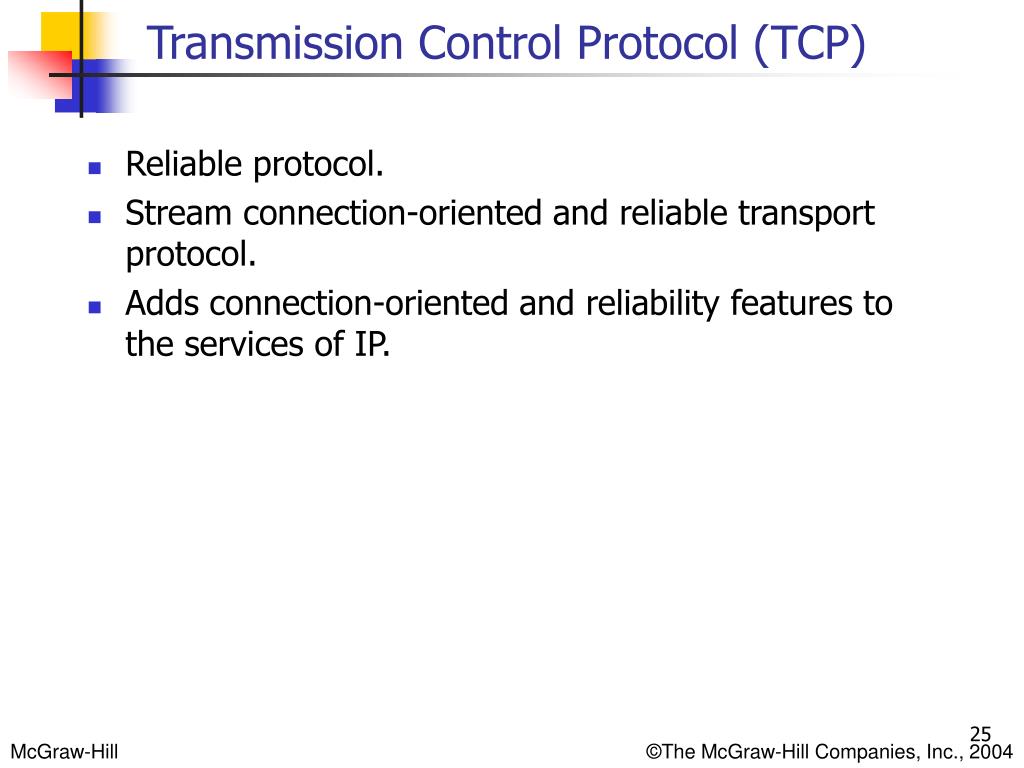

  25. Reliable protocol. Stream connection-oriented and reliable transport protocol. Adds connection-oriented and reliability features to the services of IP. Transmission Control Protocol (TCP)

  26. Table 22.2 Well-known ports used by TCP

  27. Stream Delivery Service TCP, unlike UDP, is a stream-oriented protocol. UDP adds its own header to chunk of data, which is now called a user datagram, and delivers it to IP for transmission. The process may deliver several chunks of data to the UDP, but UDP treats each chunk independently without seeing any connection between them. TCP allows the sending process to deliver data as a stream of bytes and receiving process to obtain data as a stream of bytes. TCP creates an environment in which the two processes seem to be connected by an imaginary “tube” that carries their data across the Internet. Stream Delivery

  28. Sending and Receiving Buffers Because the sending and receiving processes may not produce and consume data at the same speed, TCP needs buffers for storage. There are two buffers, the sending buffer and the receiving buffer, for each direction. Buffers are of hundreds or thousands of bytes, depending on implementation and not of same size. Byte locations are recycled and made available for further use.

  29. The IP layer, as a service provider for TCP, needs to send data in packets, not as a stream of bytes. At the transport layer, TCP groups a number of bytes together into a packet called a segment. TCP adds a header to each segment (for control purposes) and delivers the segment to the IP layer for transmission. The segments are encapsulated in an IP datagram and transmitted. Segments are not necessarily the same size. TCP Segments

  30. A process at site A wants to send and receive data from another process at site B A’s TCP informs B’s TCP and gets approval from B’s TCP A’s TCP and B’s TCP exchange data in both directions After both processes have no data left to send and buffers are empty, the two TCPs destroy their buffers. Uses virtual connection and not physical connection TCP segments are encapsulation in IP datagram and so can be sent out of order or lost or corrupted. TCP creates a stream-oriented environment in which it accepts the responsibility of delivering bytes in order to the other side. Connection Oriented Service

  31. Numbering bytes Sequence number and acknowledgement number Byte number: When TCP receives bytes of data from the process and stores them in the sending buffer; it numbers them. Numbering does not necessarily start from 0; it starts with a randomly generated number between 0 to 232 – 1. If random number happens to be 1057 and total data to be sent are 6000 bytes, the bytes are numbered from 1057 to 7056. Sequence number TCP assigns a sequence number to each segment that is being sent. Sequence number of each segment is the number of the first byte carried in that segment. Acknowledgement number Sequence number in each direction shows the number of first byte carried by the segment. Each party also uses an acknowledgement number to confirm the bytes it has received. However, the acknowledgement number defines the number of the next byte that the party expects to receive. Acknowledgement number is cumulative, which means that the receiver takes the number of the last byte it has received, safe and sound, adds 1 to it, and announces this sum as the acknowledgement number.

  32. Example 1 Imagine a TCP connection is transferring a file of 6000 bytes. The first byte is numbered 10010. What are the sequence numbers for each segment if data are sent in five segments with the first four segments carrying 1000 bytes and the last segment carrying 2000 bytes? Solution The following shows the sequence number for each segment: Segment 1==> sequence number: 10,010 (range: 10,010 to 11,009) Segment 2 ==> sequence number: 11,010 (range: 11,010 to 12,009) Segment 3==> sequence number: 12,010 (range: 12,010 to 13,009) Segment 4 ==> sequence number: 13,010 (range: 13,010 to 14,009) Segment 5 ==> sequence number: 14,010 (range: 14,010 to 16,009)

  33. Header Length Number of 4-byte words in TCP header; 20 to 60 bytes Reserved: for future use Control: Used for flow control, connection establishment and termination, mode of data transfer. Window size: Size of window in bytes Checksum: Same as UDP Urgent pointer: Active only if urgent flag is set. The number is added to the sequence number to obtain the number of the last urgent byte in the data section of the segment. Options: up to 40 bytes Figure 22.14TCP segment format

  34. Figure 22.15Control field

  35. Table 22.3 Description of flags in the control field

  36. TCP establishes a virtual path between the source and destination. All the segments belonging to a message are then sent over this virtual path. Connection establishment Transmits data in full-duplex mode Three-way handshake SYN: Destination port number is a well-known port number. Initialization sequence number (ISN) is used by client. SYN + ACK: Acknowledge the first segment. ACK = Seq + 1 because there is no user data in first segment. Server must also define the client window size ACK: Client acknowledges the previous seq from server. Here also, ACK = seq + 1. Data can be sent in this third packet. Figure 22.16Three-step connection establishment

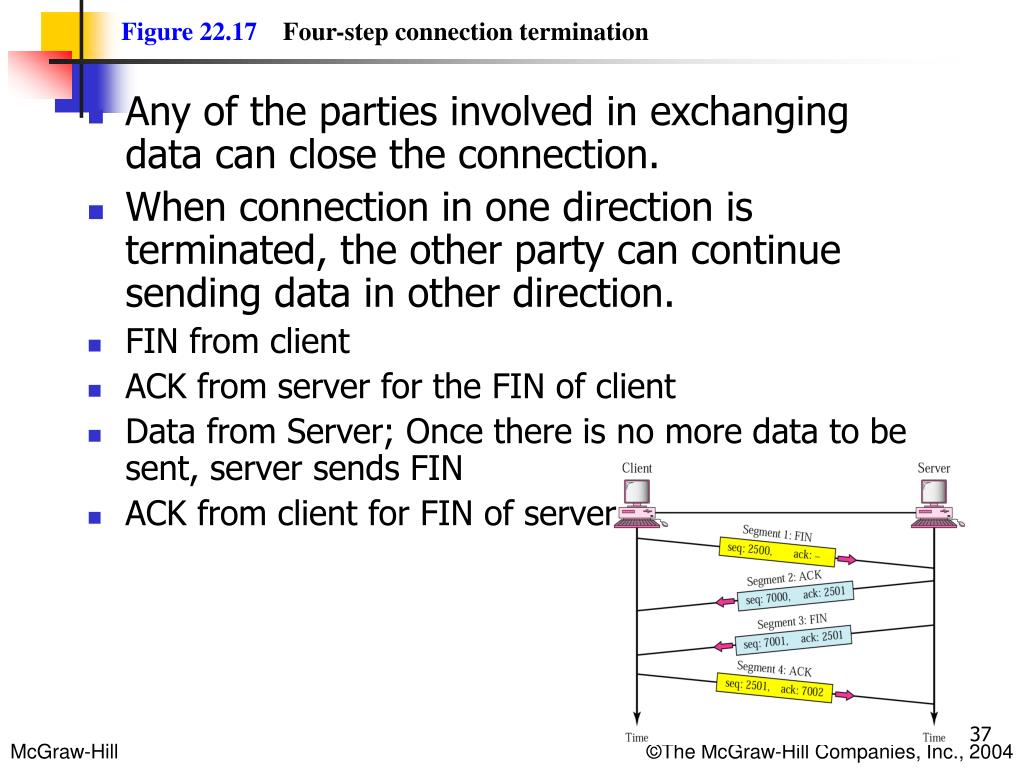

  37. Any of the parties involved in exchanging data can close the connection. When connection in one direction is terminated, the other party can continue sending data in other direction. FIN from client ACK from server for the FIN of client Data from Server; Once there is no more data to be sent, server sends FIN ACK from client for FIN of server Figure 22.17Four-step connection termination

  38. Connection Resetting Resetting means that the current connection is destroyed due to anyone of the following cases: TCP on one side has requested a connection to a nonexistent port. The TCP on the other side may send a segment with its RST bit set to annul the request TCP may want to abort the connection due to an abnormal situation. It can send an RST segment to close the connection TCP on one side may discover that the TCP on the other side has been idle for long time. It may send an RST segment to destroy the connection. State Transition Diagram Finite state machine is a machine that goes through a limited number of states. At any moment, the machine is one of the states. It remains in that state until an event happens.

  39. Table 22.4 States for TCP

  40. Client TCP starts in CLOSED state An active open request from application program to TCP client makes a SYN segment to TCP server and goes to SYN-SENT With SYN+ACK and ACK segments, TCP client moves to ESTABLISHED state [Data transfer state] Client receives a close from application program, then sends a FIN segment and moves to FIN-WAIT-1 When it receives an ACK from server, client moves to FIN-WAIT-2 state FIN from server makes the client to move to TIME-WAIT state When the client is in this state, it starts a timer and wait until this time goes off. The value of this timer is set to double the lifetime estimate of a segment of maximum size. The client remains in the state before totally closing to let all duplicate packets, if any, arrive at their destination to be discarded. After the time-out, the client goes to CLOSED state. Client Diagram

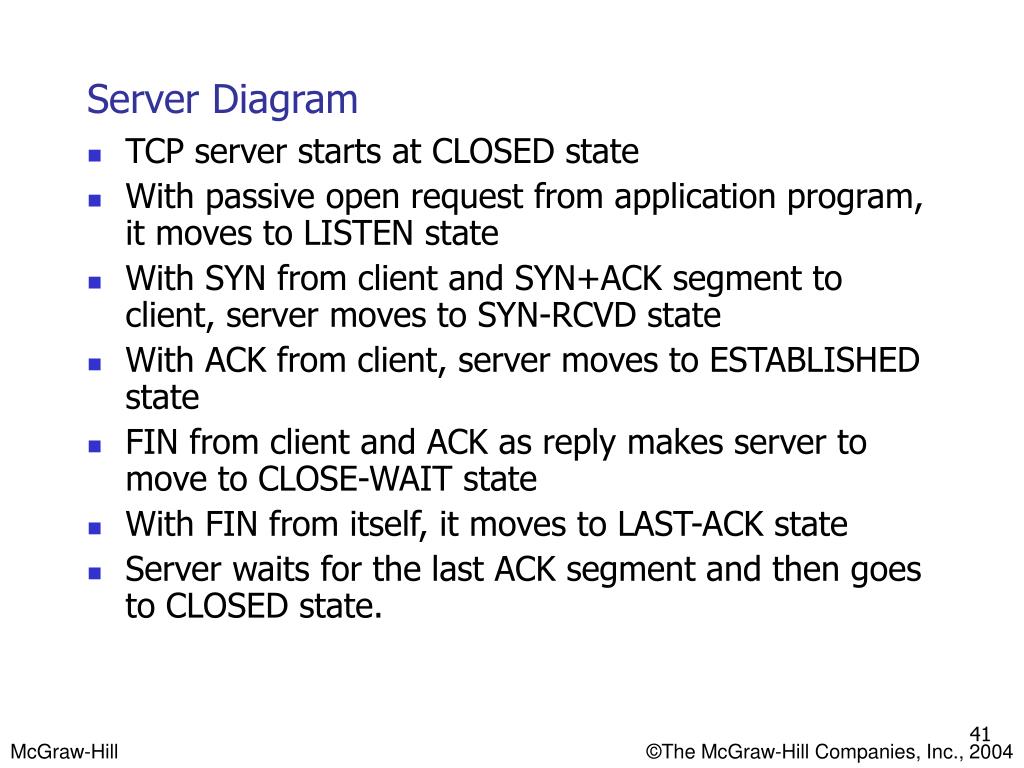

  41. TCP server starts at CLOSED state With passive open request from application program, it moves to LISTEN state With SYN from client and SYN+ACK segment to client, server moves to SYN-RCVD state With ACK from client, server moves to ESTABLISHED state FIN from client and ACK as reply makes server to move to CLOSE-WAIT state With FIN from itself, it moves to LAST-ACK state Server waits for the last ACK segment and then goes to CLOSED state. Server Diagram

  42. Figure 22.18State transition diagram

  43. Flow control Defines the amount of data a source can send before receiving an acknowledgement from the destination. In an extreme case, a transport layer protocol could send 1 byte of data and wait for an acknowledgement before sending the next byte. This would be an extremely slow process. At the other extreme, a transport-layer protocol can send all the data it has without worrying about acknowledgement. But this would overwhelm the receiver. Also, handling lost or corrupted or duplicated packets would be difficult for the source. TCP defines a window that is imposed on the buffer of data delivered from the application program and is ready to be sent. Figure 22.19Sender buffer

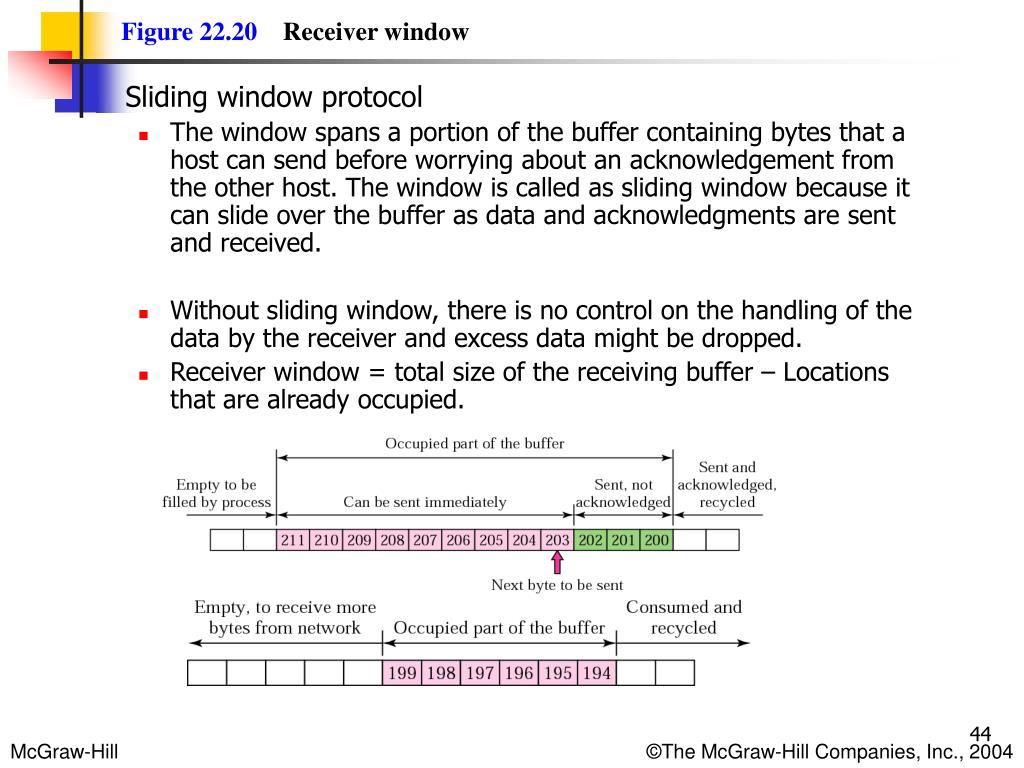

  44. Sliding window protocol The window spans a portion of the buffer containing bytes that a host can send before worrying about an acknowledgement from the other host. The window is called as sliding window because it can slide over the buffer as data and acknowledgments are sent and received. Without sliding window, there is no control on the handling of the data by the receiver and excess data might be dropped. Receiver window = total size of the receiving buffer – Locations that are already occupied. Figure 22.20Receiver window

  45. Flow control is present if the sender creates a window with size less than or equal to the size of the receiver window. Number of bytes the sender can send is equal to the window size minus the number of bytes that have already been sent. Figure 22.21Sender buffer and sender window

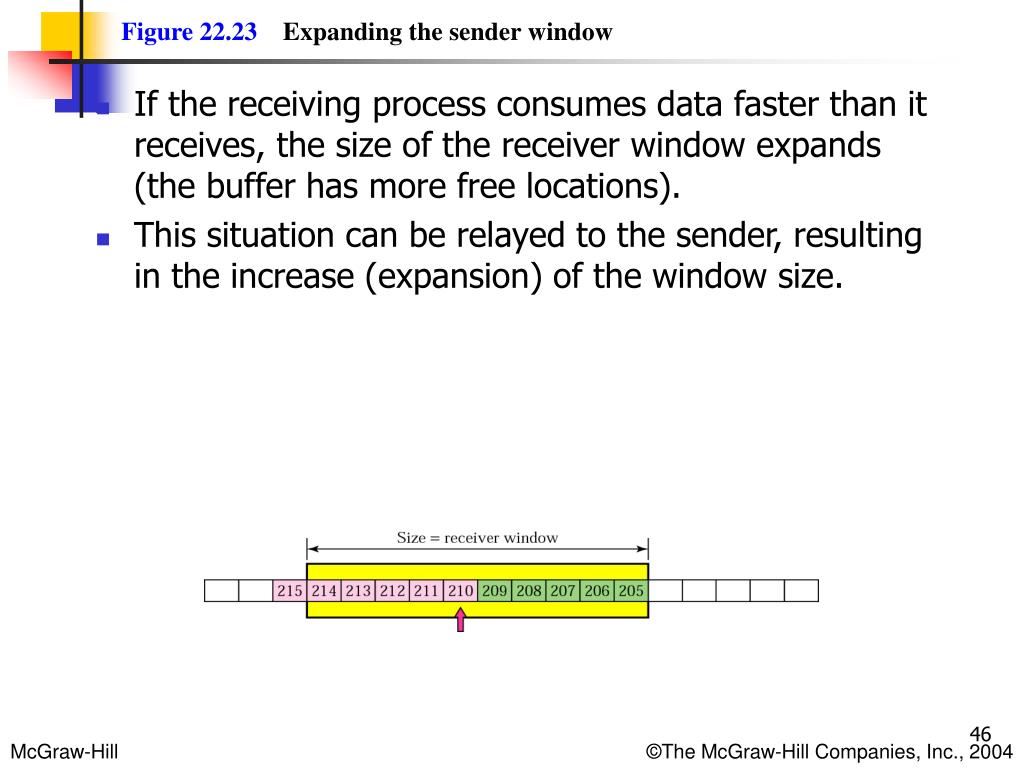

  46. If the receiving process consumes data faster than it receives, the size of the receiver window expands (the buffer has more free locations). This situation can be relayed to the sender, resulting in the increase (expansion) of the window size. Figure 22.23Expanding the sender window

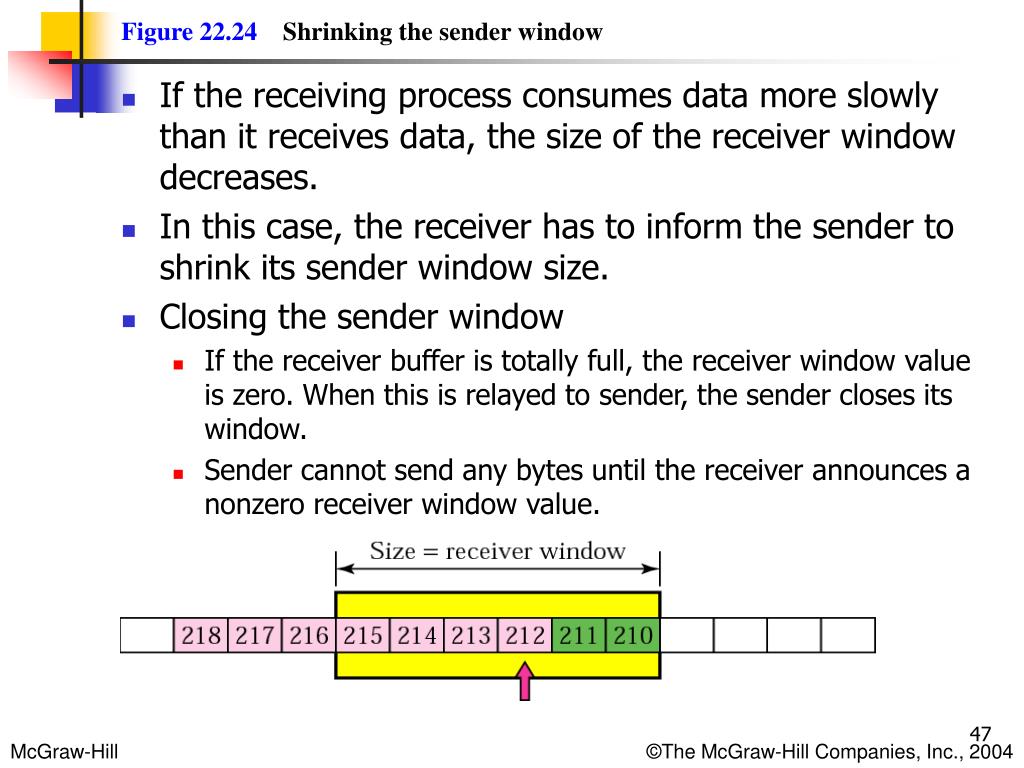

  47. If the receiving process consumes data more slowly than it receives data, the size of the receiver window decreases. In this case, the receiver has to inform the sender to shrink its sender window size. Closing the sender window If the receiver buffer is totally full, the receiver window value is zero. When this is relayed to sender, the sender closes its window. Sender cannot send any bytes until the receiver announces a nonzero receiver window value. Figure 22.24Shrinking the sender window

  48. If the sender or the receiver application program processes slowly and can send only 1 byte of data at a time, then the overhead is high. This is because to send one byte of data, 20 bytes of TCP header and 20 bytes of IP header are sent. This is called as silly window syndrome. Syndrome by sender If the application program works slowly and writes one byte at a time into the buffer. Here, instead of sending one byte every time, we wait to accumulate a block and send. If it waits too long, it may delay the process. If it does not wait long enough, it may be up sending small segments. Nagle’s algorithm First segment is sent as it is even if it is only one byte Wait for ACK from receiver [OR segment accumulation until maximum-size segment] and till them accumulate data into the output buffer. If the application program is faster than the network, the segments are larger (maximum-size segments). If the application program is slower than the network, the segments are smaller (less than the maximum segment size). Silly Window Syndrome

  49. Syndrome by receiver Due to handling capacity of the receiver application program and accumulation on the buffer. Clark’s solution Send an ACK as soon as the data arrive, but to announce a window size of zero until either there is enough space to accommodate a segment of maximum size or until one-half of the buffer is empty. Delayed acknowledgement Acknowledgement is delayed. Receiver waits until there is a decent amount of space in its incoming buffer before acknowledging the arrived segments. Delayed acknowledgement prevents the sending TCP from sliding its window. Reduces traffic.

  50. Error Control Checksum: Used to check for corrupted segment. Corrupted segment is discarded by destination TCP Acknowledgement: Confirm the receipt of those segments that have reached the destination uncorrupted. No negative acknowledgement is used in TCP If a segment is not acknowledged before time-out, the segment is considered to be either corrupted or lost. Source TCP starts one time-out counter for each segment. Each counter is checked periodically. When a counter matures, the corresponding segment is considered to be either corrupted or lost, and the segment will be retransmitted.
