PROJECT SCHEDULE ( I ). ISMU KUSUMANTO. ES. ID. EF. SLK. Act Name. LS. Dur. LF. ES. ID. EF. SLK. Res. SLK. LS. Dur. LF. ACTIVITY ON NODE (AON). Metode penjadwalan proyek dengan memfokuskan perhitungan berdasarkan node (catatan didalam box). Node digambarkan sebagai berikut :

derick
Télécharger la présentation

PROJECT SCHEDULE ( I )

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. PROJECT SCHEDULE (I) ISMU KUSUMANTO

  2. ES ID EF SLK Act Name LS Dur LF ES ID EF SLK Res SLK LS Dur LF ACTIVITY ON NODE (AON) Metode penjadwalan proyek dengan memfokuskan perhitungan berdasarkan node (catatan didalam box). Node digambarkan sebagai berikut : Dimana, ES : Early Start (Start paling awal) ID : Identification EF : Early Finish (Finish paling awal) SLK : Slack (Selisih) Res : Resource (Sumber daya) LS : Late Start (Start terakhir) Dur : Duration (jangka waktu) LF : Late Finish (Finish terakhir)

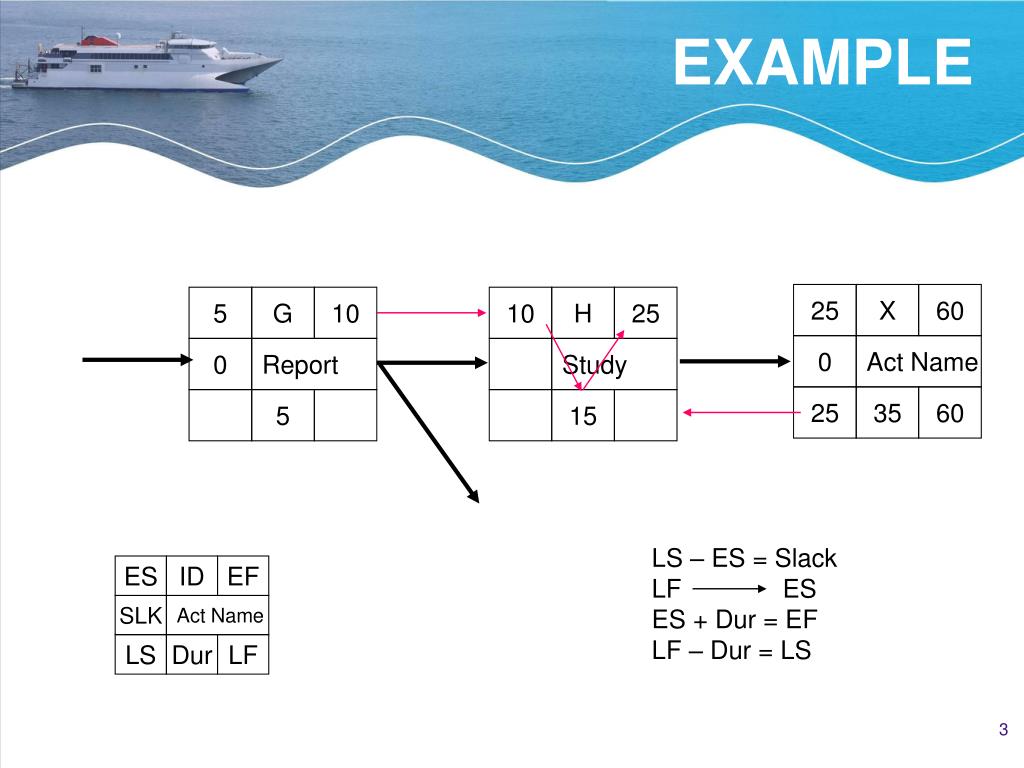

  3. 5 25 ES 10 X ID H G 25 60 10 EF 0 SLK 0 Report Act Name Act Name Study LS 25 35 Dur 15 5 60 LF EXAMPLE LS – ES = Slack LF ES ES + Dur = EF LF – Dur = LS

  4. ES 0 35 A X ID EF 35 70 0 0 SLK Act Name Closing Opening 0 LS 35 Dur 35 35 70 LF 35 KETENTUAN AON harus dimulai dengan node pembuka dan node penutup …

  5. 20 30 ES 200 H E G ID EF 200 235 35 0 0 SLK 165 Act Name Plan Action Study LS 185 30 200 15 Dur 170 35 LF 235 200 200 KETENTUAN Jika terdapat dua prodecessor (node pendahuluan) maka dipilih EF terbesar.

  6. 0 5 ES 5 E ID G H 15 5 20 EF SLK 0 5 0 Act Name Plan Study Opening 0 5 LS 10 10 5 15 Dur 20 LF 5 20 Untuk backward (arus balik), maka LS terkecil yang dipilih

  7. 0 5 5 E G H 20 5 15 0 5 0 Opening Plan Study 5 10 0 5 15 10 20 20 5 Slack = 0 menunjukkan sebagai lintasan kritis

  8. PROBLEM Buatlah time schedule proyek tersebut

  9. 5 ES 200 30 20 5 5 0 20 F D H G A C ID E B 20 5 EF 35 200 235 30 10 15 SLK 0 5 0 0 165 0 0 10 Work Act Name Opening Learn Plan Study Action Report Do 10 30 5 200 185 0 15 LS 20 15 10 Dur 5 35 10 15 170 5 200 30 20 235 200 5 LF 20 20 PENYELESAIAN

  10. LATIHAN

  11. 41 5 36 5 30 ES 12 5 12 0 15 A E B G D ID I J F H C 15 46 EF 12 30 12 41 36 24 24 5 SLK 17 10 0 0 0 17 3 0 0 0 Report Study Learn Action Report Do Report Plan Work Opening Act Name 21 41 5 30 0 29 36 29 15 8 LS Dur 6 5 8 10 12 7 5 5 12 15 41 41 41 30 46 LF 5 15 15 36 29 JAWABAN 11

  12. Terima Kasih
