  1. Mechanism Mechanism is an assembly of rigid elements (linkages) arranged and connected to form a closed kinematic chain with one link fixed in order to transmit motion in a predetermined fashion. Mechanism consists of linkages and joints. Machine is an arrangement of parts for doing work, and applying power . Structure is an assembly of parts for supporting loads. Qassim University

  2. Can crusher Simple press Rear-window wiper Example of Mechanism

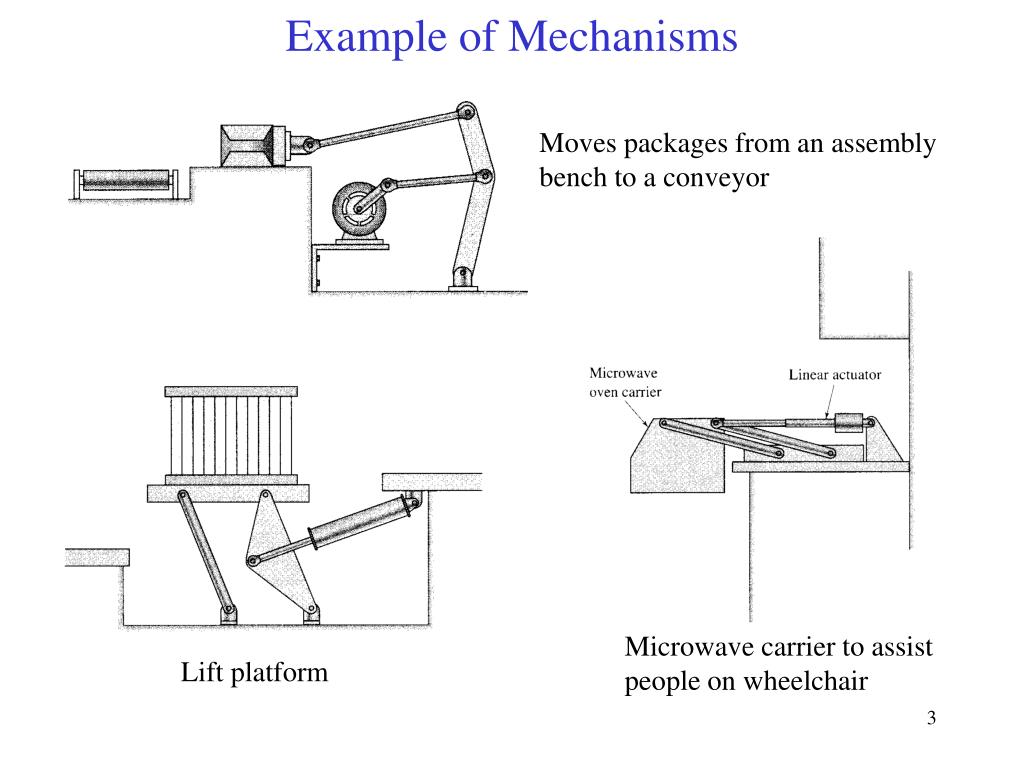

  3. Moves packages from an assembly bench to a conveyor Microwave carrier to assist people on wheelchair Lift platform Example of Mechanisms

  4. Lift platform Front loader Device to close the top flap of boxes Example of Mechanisms

  5. Rowing type exercise machine Conceptual design for an exercise machine Example of Mechanisms

  6. Mechanisms in Automotive Industry

  7. Four-Bar Linkage

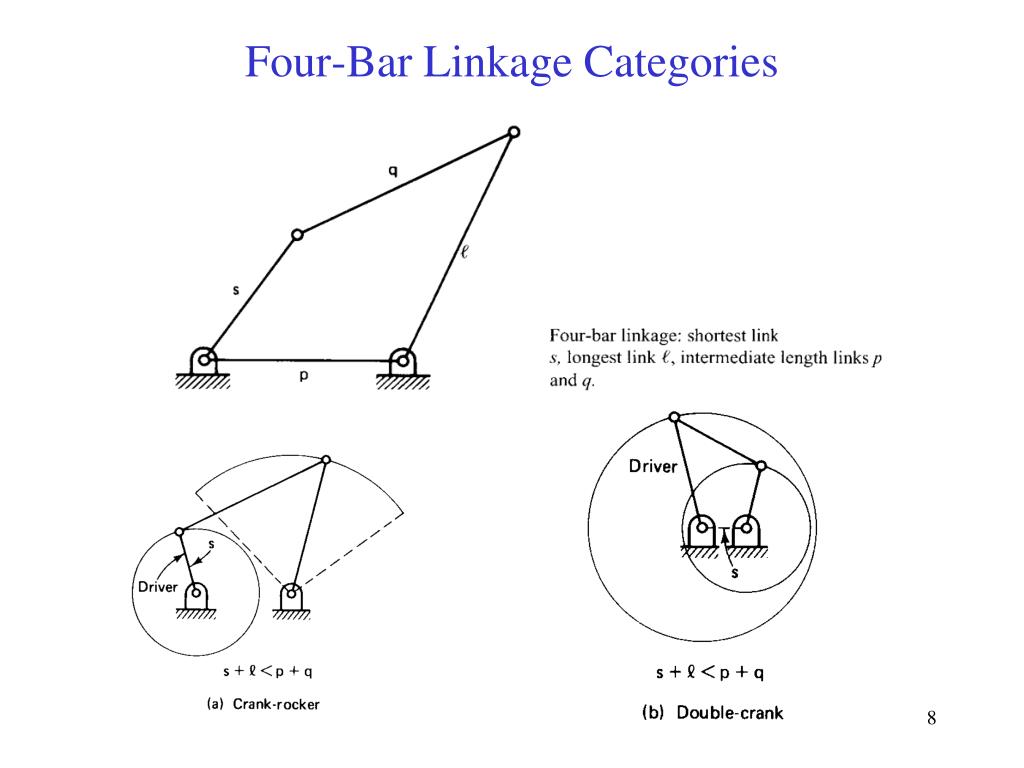

  8. Four-Bar Linkage Categories

  9. Four-Bar Linkage Categories

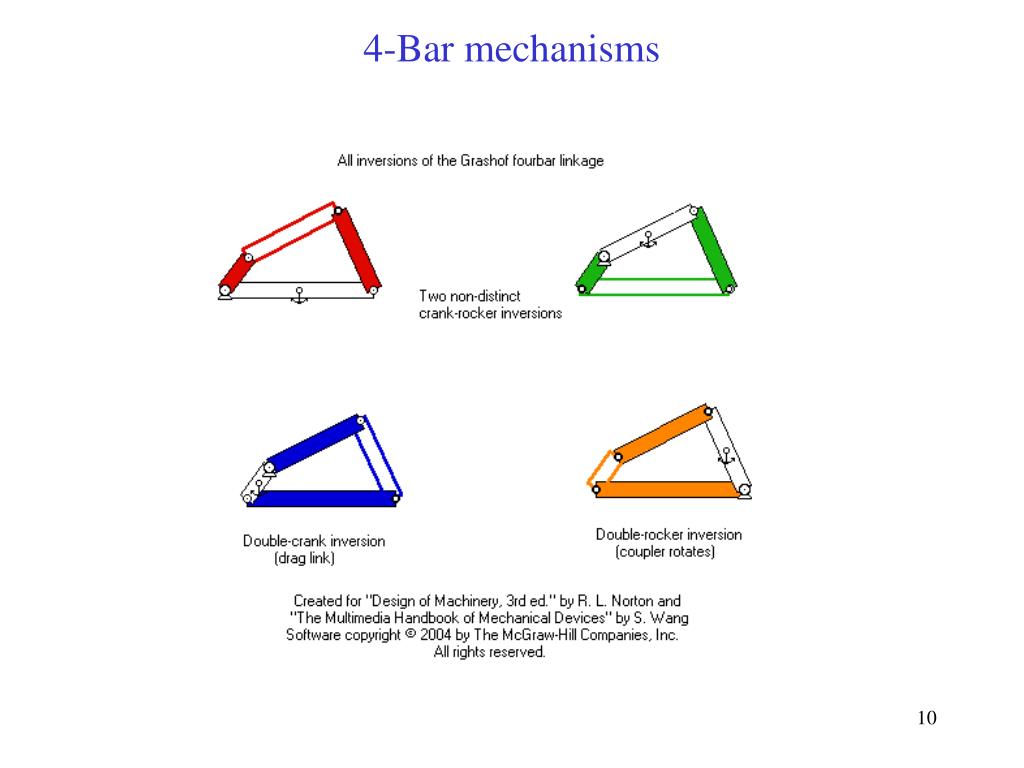

  10. 4-Bar mechanisms

  11. S + l > p + q 4-Bar mechanisms 4 double rocker mechanisms

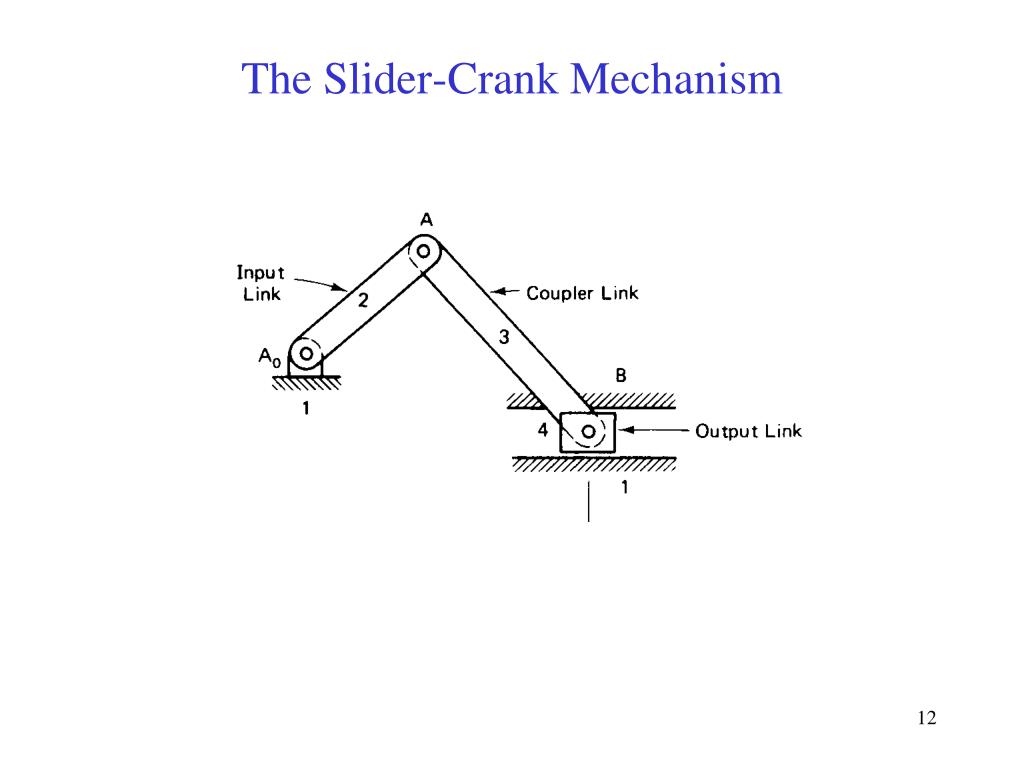

  12. The Slider-Crank Mechanism

  13. Slider-Crank Mechanism - Inversion

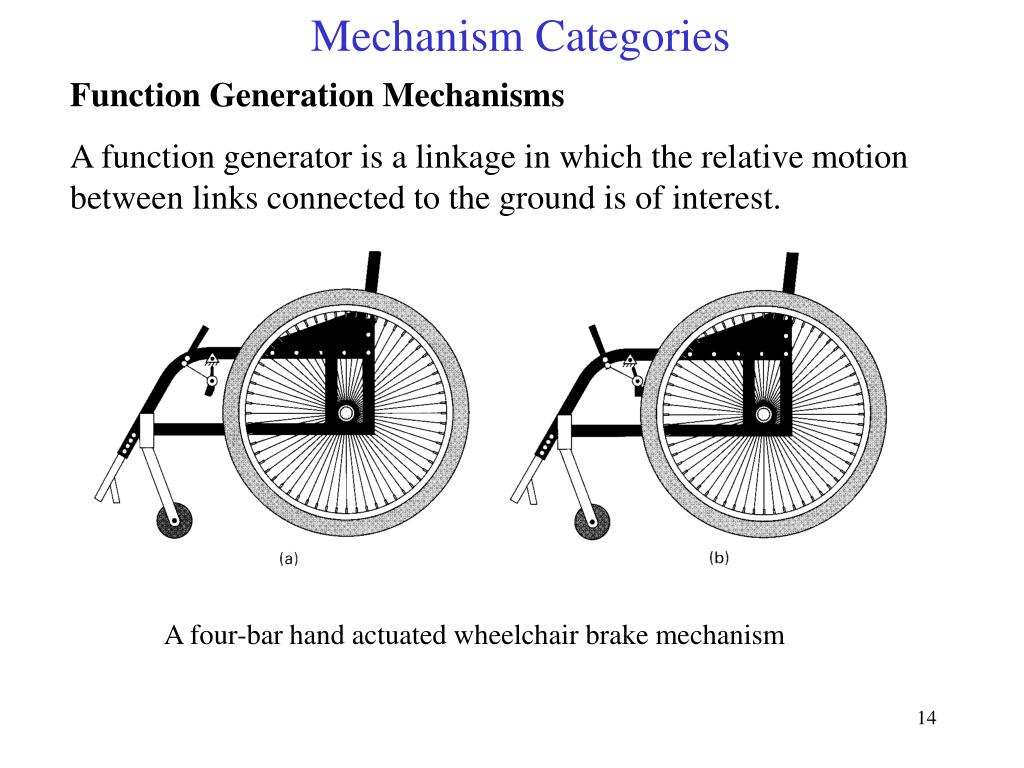

  14. Function Generation Mechanisms A function generator is a linkage in which the relative motion between links connected to the ground is of interest. Mechanism Categories A four-bar hand actuated wheelchair brake mechanism

  15. Mechanism Categories Function Generation Mechanisms A four-bar drive linkage for a lawn sprinkler

  16. Mechanism Categories Motion Generation Mechanisms Four-bar automobile hood linkage design

  17. Mechanism Categories Path Generation Mechanisms In path generation, we are concerned only with the path of a tracer point and not with the motion (rotation) of the coupler link. Crane – straight line motion

  18. Lower Pairs (1 DOF)

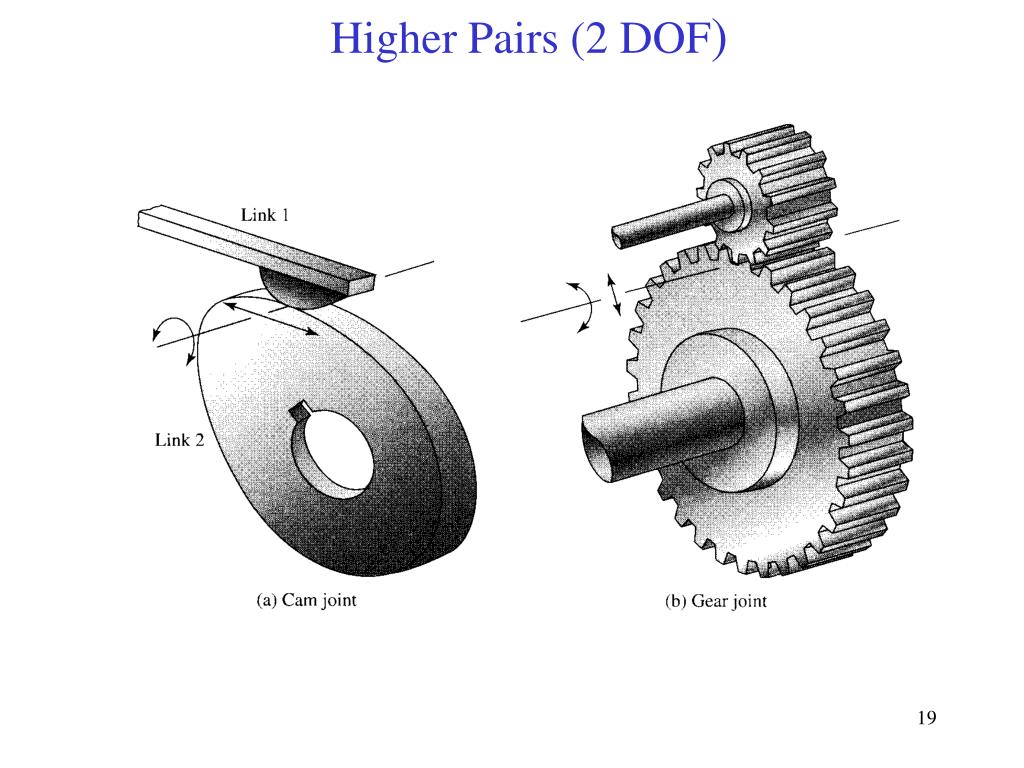

  19. Higher Pairs (2 DOF)

  20. Motion Generation Mechanisms Moving a storage bin from an accessible position to a stored position Rotating a monitor into a storage position

  21. Geneva Mechanism

  22. Linear Geneva Mechanism

  23. Type of Motion and Mechanisms Rotation to Translation
