Low-cost Video Camera Adapter for the Orion Go-Scope 80

Low-cost Video Camera Adapter for the Orion Go-Scope 80. Ted Blank IOTA 2014 Annual Meeting College Park, MD. Orion Go-Scope 80 is another option for mobile deployments. 80 mm aperture Simple alt- az mount $130 as shown Innovative focus design (rear knob moves front objective!).

dextra
Télécharger la présentation

Low-cost Video Camera Adapter for the Orion Go-Scope 80

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Low-cost Video Camera Adapter for the Orion Go-Scope 80 Ted Blank IOTA 2014 Annual Meeting College Park, MD

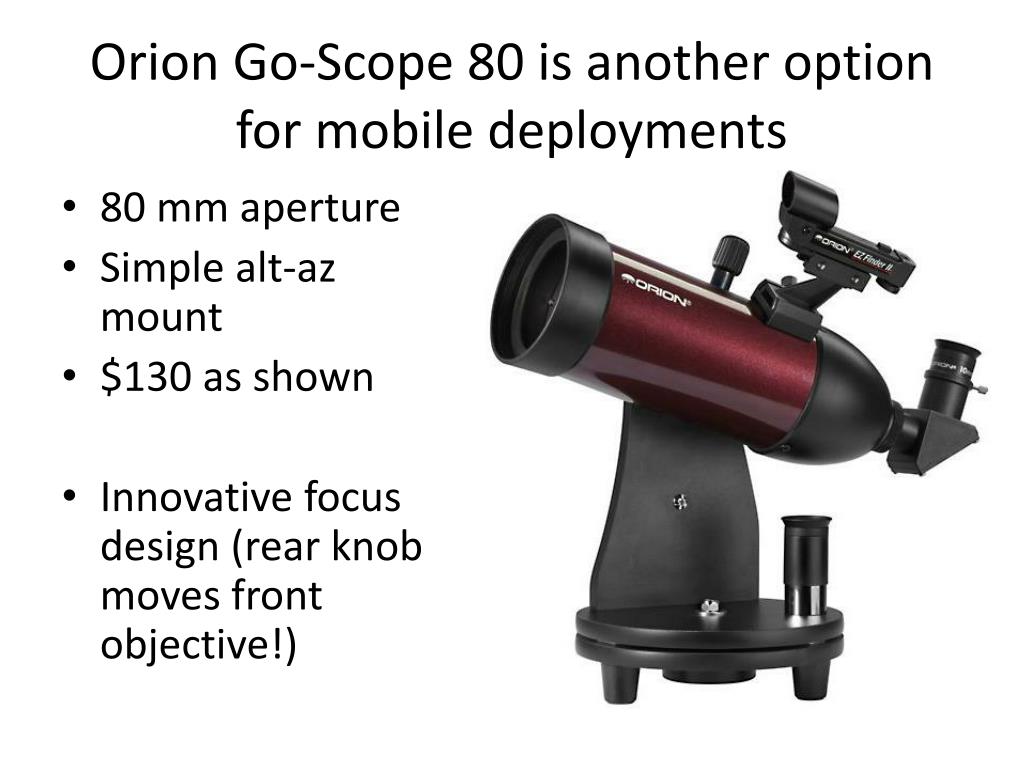

  2. Orion Go-Scope 80 is another option for mobile deployments • 80 mm aperture • Simple alt-az mount • $130 as shown • Innovative focus design (rear knob moves front objective!)

  3. Problem: PC164CEX-2 with Owl 0.5X FR will not come to focus in Go-Scope • Visual back uses non-standard thread size • With the diagonal in place, not enough in-travel • Without the diagonal in place, no way to attach to the rear threads • Solution: take a lesson from Scotty D. and visit the Lowes Plumbing Dept.

  4. Low-cost adapter

  5. Cut on dotted lines for outer piece Cut on solid lines for insert Wrap insert in tape for snug fit Cut 3 pairs of slots with hacksaw. Drill and tap at location shown for thumbscrew Spot glue around edges

  6. Now camera will come to focus • With adapter in place, PC164CEX-2 with 0.5X FR comes to focus approximately in the middle of the focuser travel • Insure cuts in PVC are made square so all parts of camera chip will be in focus
