Artificial Neural Networks II - Outline

1. Artificial Neural Networks II - Outline • Cascade Nets and Cascade-Correlation Algorithm • Architecture - incremental building of the net • Hopfield Networks • Recurrent networks, Associative memory • Hebb learning rule • Energy function and capacity of the Hopfield network • Applications • Self-Organising Networks • Spatial representation of data used to code the information • Unsupervised learning • Kohonen Self-Organising Maps • Applications J. Kubalík, Gerstner Laboratory for Intelligent Decision Making and Control

2. Cascade Nets and Cascade-Correlation Algorithm • Starts with input- and output-layer of neurons and build a hierarchy of hidden units • Feed-forward network - n input, m output, h hidden units • Perceptrons in the hidden layer are ordered - lateral connections • inputs from the input layer and from all antecedent hidden units • i-th unit has n + (i-1) inputs • Output units are connected to all input and hidden units J. Kubalík, Gerstner Laboratory for Intelligent Decision Making and Control

3. Cascade Nets: Topology output (y) hidden (z) input (x) • Active mode hidden perceptrons: , for i=1…h output units: , for i=1,…,m J. Kubalík, Gerstner Laboratory for Intelligent Decision Making and Control

4. Cascade-Correlation Algorithm • Start with a minimal configuration of the network (h = 0) • Repeat until satisfied • Initialise a set of candidates for a new hidden unit i.e. connect them to the input units • Adapt their weights in order to maximise the correlation between their outputs and the error of the network • Choose the best candidate and connect him to the outputs • Adapt weights of output perceptrons J. Kubalík, Gerstner Laboratory for Intelligent Decision Making and Control

5. Remarks on Cascade-Correlation Algorithm • Greedy learning mechanism • Incremental constructive learning algorithm • easy to learn additional examples • Typically faster than backpropagation • one layer of weights is optimised in each step (linear complexity) • Easy to parallelise the process of maximisation of the correlation J. Kubalík, Gerstner Laboratory for Intelligent Decision Making and Control

6. Associative Memory • Problem: • Store a set of p patterns • When given a new pattern, the network returns one of the stored patterns that most closely resembles the new one • To be insensitive to small errors in the input pattern • Content-addressable memory - an index key for searching the memory is a portion of the searched information • autoassociative - refinement of the input information (B&W picture  colours) • heteroassociative - evocation of associated information (friend’s picture  name) J. Kubalík, Gerstner Laboratory for Intelligent Decision Making and Control

7. Hopfield Model • Auto-associative memory • Topology - cyclic network with completely interconnected n neurons • 1, …, n  Z - internal potentials • y1, …, yn  {-1,1} - bipolar outputs • wji  Z - connection from i-th to j-th neuron • wjj = 0 (j = 1, …, n) J. Kubalík, Gerstner Laboratory for Intelligent Decision Making and Control

8. Adaptation According to Hebb Rule • Hebb Rule - synaptic strengths in the brain change in response to experience Changes are proportional to the correlation between the firing of the pre- and post-synaptic neurons. • Technically: • training set: T = {xk | xk = (xk1, …, xkn)  {-1,1}n, k = 1, …, p} 1. Start with wji = 0 (j = 1, …, n; i = 1, …, n) 2. For the given training set do 1 jin J. Kubalík, Gerstner Laboratory for Intelligent Decision Making and Control

9. Remarks on Hebb Rule • Training examples are represented in the net through the relations between neurons’ states • Symmetric network: wji = wij • Adaptation can be represented as voting of examples about the weights: xkj = xki (YES) vs. xkjxki (NO) • sign of the weight • absolute value of the weight J. Kubalík, Gerstner Laboratory for Intelligent Decision Making and Control

10. Active Mode of Hopfield Network 1. Set yi = xi (i = 1, …, n) 2. Go through all neurons and at each time step select one neuron j to be updated according the following rule: • compute its internal potential: • set its new state: 3. If not stable configuration then go to step 2 else end - output of the net is determined by the state of neurons. J. Kubalík, Gerstner Laboratory for Intelligent Decision Making and Control

11. Energy Function and Energy Landscape • Energy function: • Energy landscape: • high energy - unstable states • low energy - more stable states • energy always decreases (or remain constant) as the system evolves according to its dynamical rule J. Kubalík, Gerstner Laboratory for Intelligent Decision Making and Control

12. Energy Landscape • Local minima of the energy function represent stored examples - attractors • Basins of attraction - catchment areas around each minimum • False local optima - phantoms J. Kubalík, Gerstner Laboratory for Intelligent Decision Making and Control

13. Storage Capacity of Hopfield Network • Random patterns with equal probability. • Perror - probability, that any chosen bit is unstable • depends on the number of units n and the number of patterns p • Capacity of the network - maximum number of patterns that can be stored without unacceptable errors. • Results: p 0.138n - training examples as local minima of E(y) p < 0.05n - training examples as global minima of E(y), deeper minima than those corresponding to phantoms Example: 10 training examples, 200 neurons  40000 weights J. Kubalík, Gerstner Laboratory for Intelligent Decision Making and Control

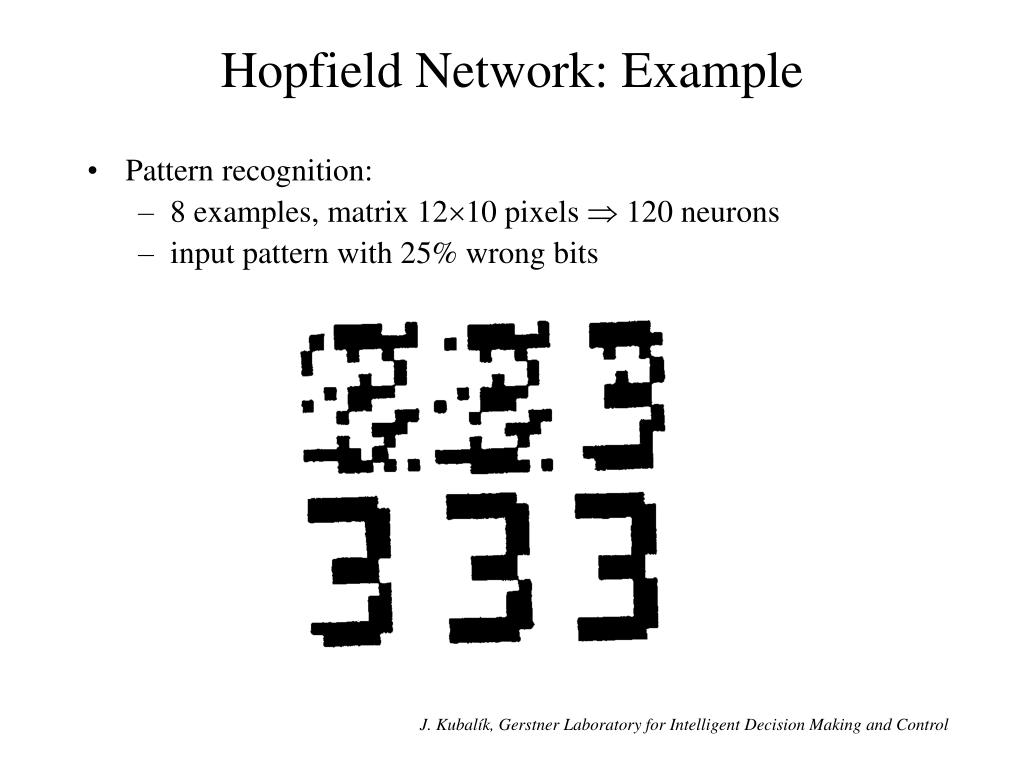

14. Hopfield Network: Example • Pattern recognition: • 8 examples, matrix 1210 pixels  120 neurons • input pattern with 25% wrong bits J. Kubalík, Gerstner Laboratory for Intelligent Decision Making and Control

15. Selforganisation • Unsupervised learning • a network must discover for itself patterns, features, regularities, or categories in the input data and code them in the output • Units and connections must display some degree of selforganisation • Competitive learning • output units compete for being excited • only one output unit is on at a time (winner-takes-all mechanism) • Feature mapping • development of significant spatial organisation in the output layer • Applications: • function approximation, image processing, statistical analysis • combinatorial optimisation J. Kubalík, Gerstner Laboratory for Intelligent Decision Making and Control

16. Selforganising Network • Goal is to approximate the probability distribution of real-valued input vectors with a finite set of units • Given the training set T of training examples xRnand a number of representatives h • Network topology: • Weights belonging to one output unit determine its position in the input space • Lateral inhibitions J. Kubalík, Gerstner Laboratory for Intelligent Decision Making and Control

17. Selforganising Network and Kohonen Learning • Principal: Go through the training set and for each example select the winner output neuron j and modify its weights as follows wji= wji + (xi - wji) where real parameter 0<<1 determines the scale of changes • winner neuron is shifted towards the current input in order to improve its relative position • k-means clustering J. Kubalík, Gerstner Laboratory for Intelligent Decision Making and Control

18. Kohonen Selforganising Maps • Topology - as in the previous case • no lateral connections • output units formed in a structure defining neighbourhood • one- or two-dimensional array of units J. Kubalík, Gerstner Laboratory for Intelligent Decision Making and Control

19. Kohonen Selforganising Maps • Neighbourhood of the output neuron c Ns(c) = {j; d(j,c)  s} defines a set of neurons whose distance from c is less than s. • Learning algorithm: • weight update rule involves neighbourhood relations • weights of the winner as well as the units close to him are changed according to wji= wji + hc(j)(xi - wji) j  Ns(c) where or Gaussian function • closer units are more affected than those further away J. Kubalík, Gerstner Laboratory for Intelligent Decision Making and Control
