  1. Introduction of System General AP900Desktop Automated Programming System

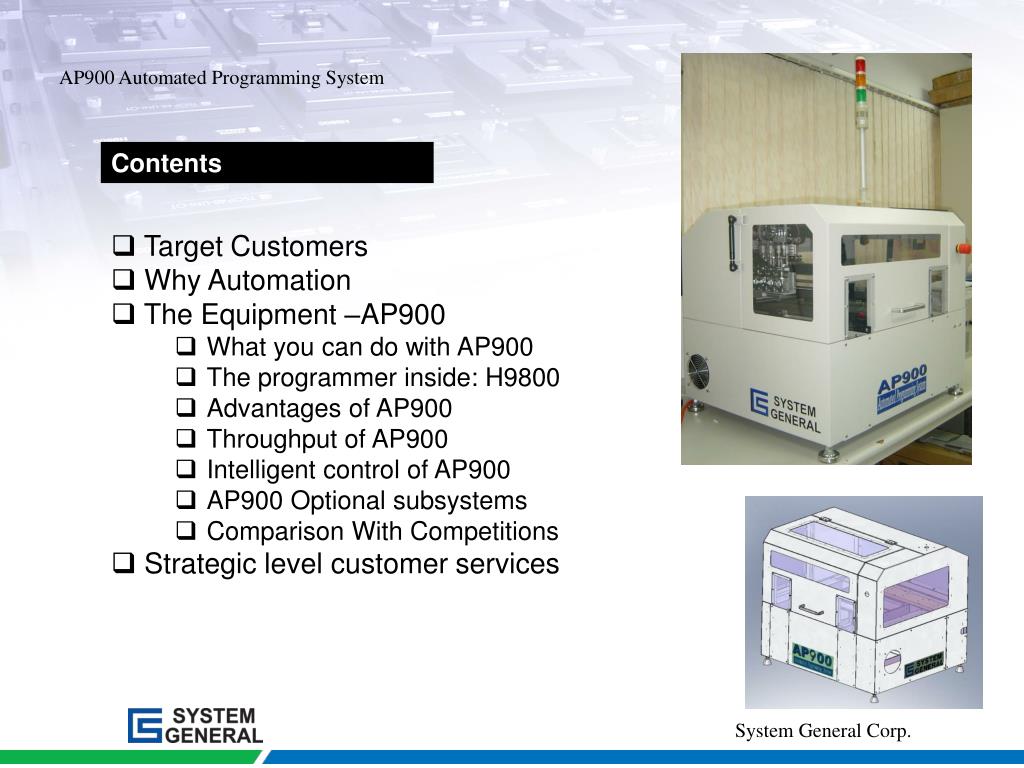

  2. Contents • Target Customers • Why Automation • The Equipment –AP900 • What you can do with AP900 • The programmer inside: H9800 • Advantages of AP900 • Throughput of AP900 • Intelligent control of AP900 • AP900 Optional subsystems • Comparison With Competitions • Strategic level customer services

  3. Target Customers • AP900 is an 4 site (up to 16 socket sites), pick-and-place desktop automated device programming system; • Device programming, covering all types of devices in today’s semiconductor industry • Optional Media conversions: Tray to Tape, Tube to Tray, Tube to Tape, etc. • Compact dimension, flexible operating on the production. • AP900 is targeted for the following markets • Electronics Manufacturing Service (EMS) Provider; such as Flextronics, Foxconn, SCI…. • Contract Electronics Manufacturing Service Provider, middle/small scales produce volume… • Component distribution channels such as Arrow Electronics and Avent. • Independent programming centers,

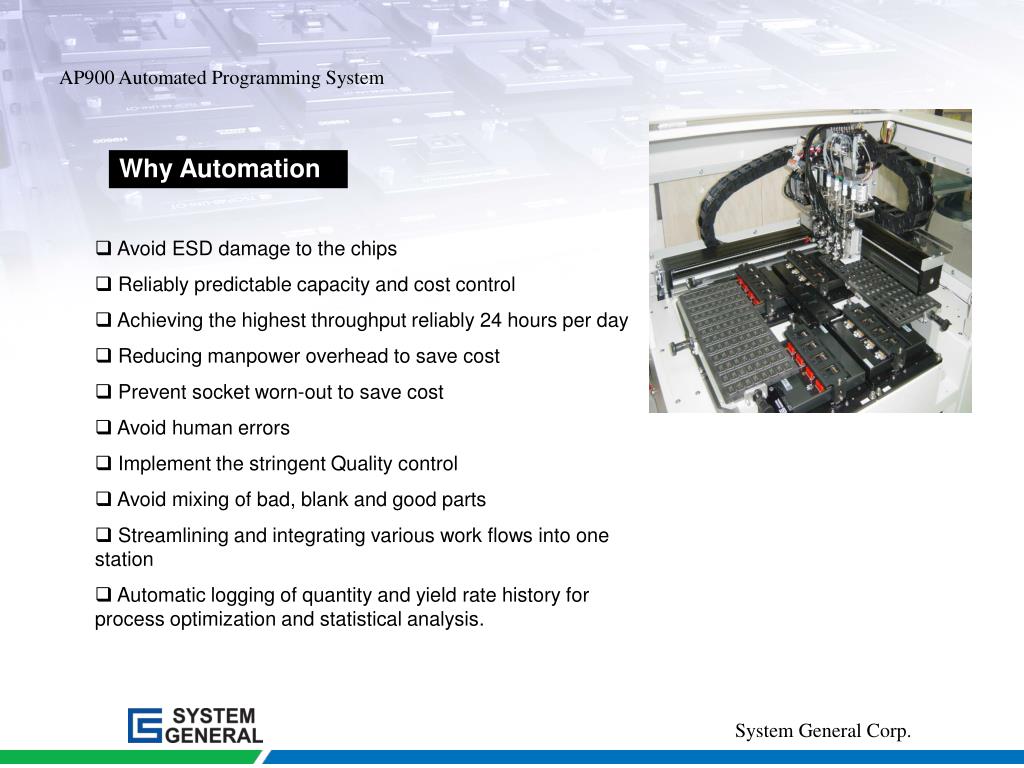

  4. Why Automation • Avoid ESD damage to the chips • Reliably predictable capacity and cost control • Achieving the highest throughput reliably 24 hours per day • Reducing manpower overhead to save cost • Prevent socket worn-out to save cost • Avoid human errors • Implement the stringent Quality control • Avoid mixing of bad, blank and good parts • Streamlining and integrating various work flows into one station • Automatic logging of quantity and yield rate history for process optimization and statistical analysis.

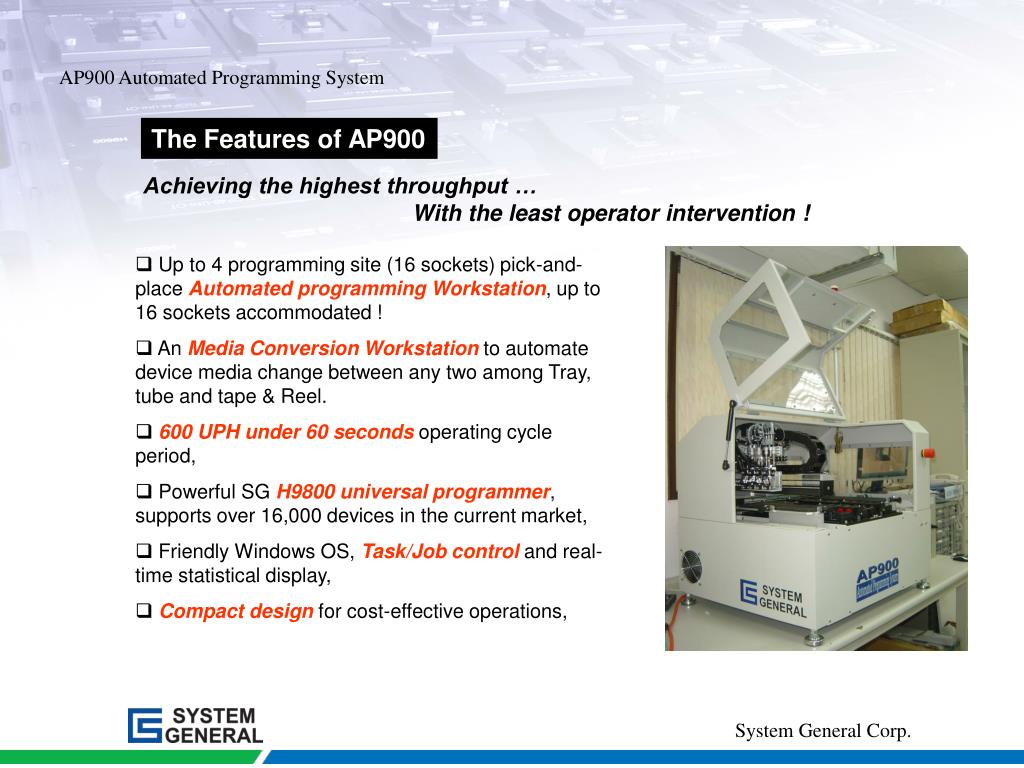

  5. The Features of AP900 Achieving the highest throughput … With the least operator intervention ! • Up to 4 programming site (16 sockets) pick-and-place Automated programmingWorkstation, up to 16 sockets accommodated ! • An Media Conversion Workstation to automate device media change between any two among Tray, tube and tape & Reel. • 600 UPH under 60 seconds operating cycle period, • Powerful SG H9800 universal programmer, supports over 16,000 devices in the current market, • Friendly Windows OS, Task/Job control and real-time statistical display, • Compact design for cost-effective operations,

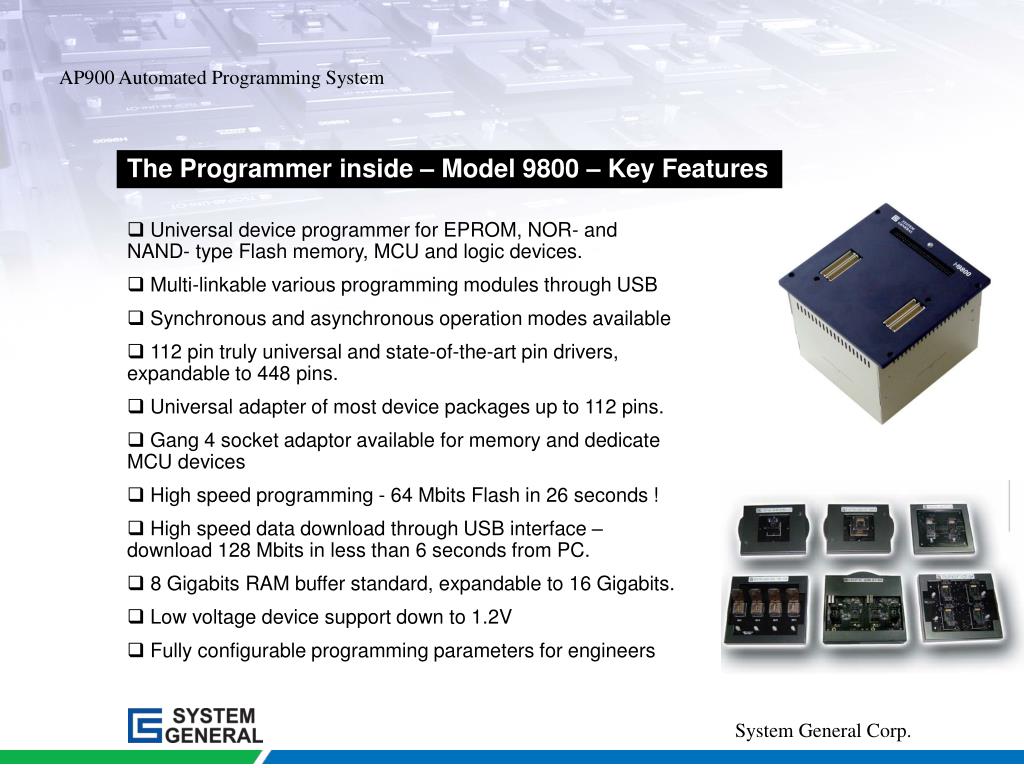

  6. The Programmer inside – Model 9800 – Key Features • Universal device programmer for EPROM, NOR- and NAND- type Flash memory, MCU and logic devices. • Multi-linkable various programming modules through USB • Synchronous and asynchronous operation modes available • 112 pin truly universal and state-of-the-art pin drivers, expandable to 448 pins. • Universal adapter of most device packages up to 112 pins. • Gang 4 socket adaptor available for memory and dedicate MCU devices • High speed programming - 64 Mbits Flash in 26 seconds ! • High speed data download through USB interface – download 128 Mbits in less than 6 seconds from PC. • 8 Gigabits RAM buffer standard, expandable to 16 Gigabits. • Low voltage device support down to 1.2V • Fully configurable programming parameters for engineers

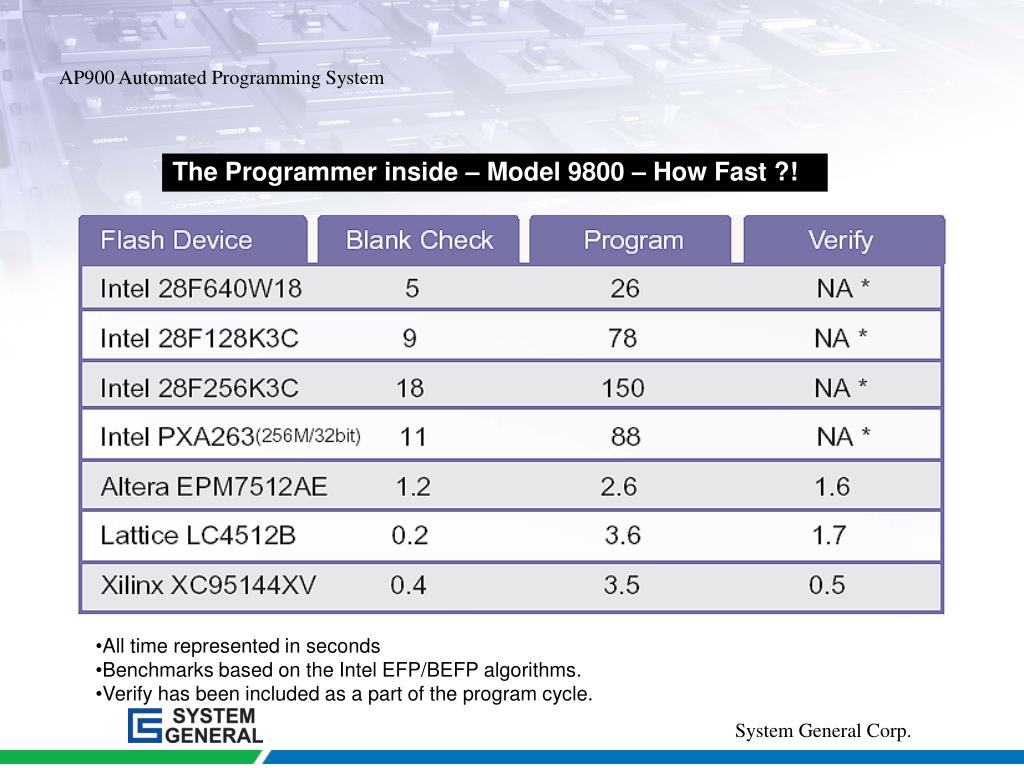

  7. The Programmer inside – Model 9800 – How Fast ?! • All time represented in seconds • Benchmarks based on the Intel EFP/BEFP algorithms. • Verify has been included as a part of the program cycle.

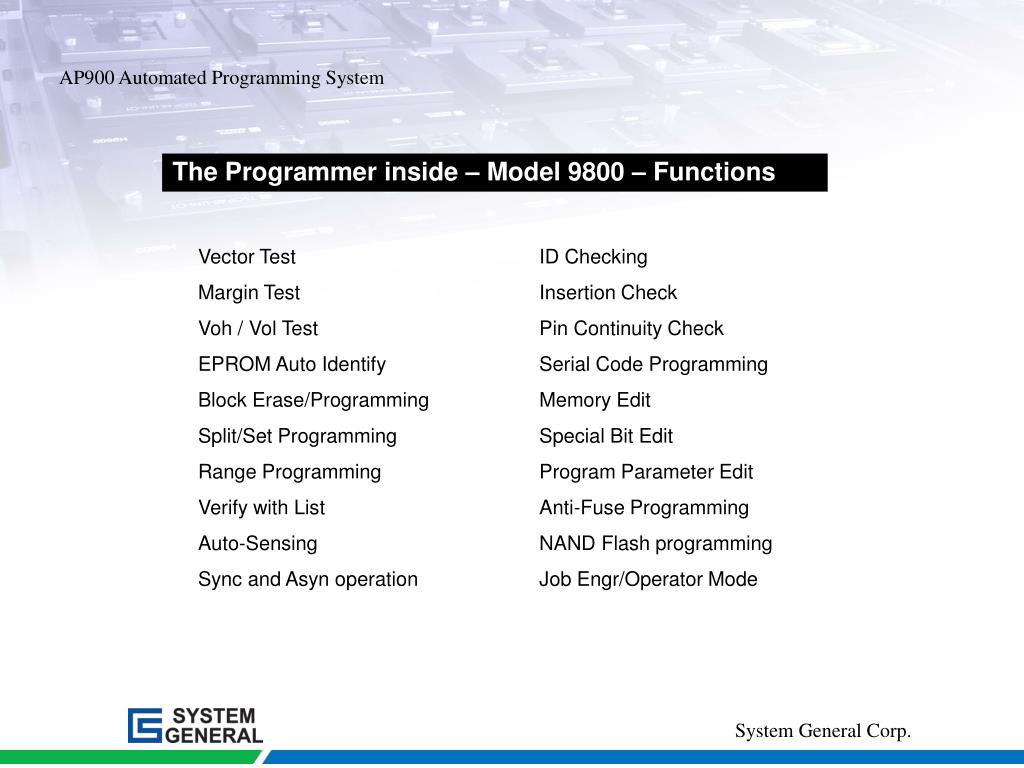

  8. The Programmer inside – Model 9800 – Functions Vector Test Margin Test Voh / Vol Test EPROM Auto Identify Block Erase/Programming Split/Set Programming Range Programming Verify with List Auto-Sensing Sync and Asyn operation ID Checking Insertion Check Pin Continuity Check Serial Code Programming Memory Edit Special Bit Edit Program Parameter Edit Anti-Fuse Programming NAND Flash programming Job Engr/Operator Mode

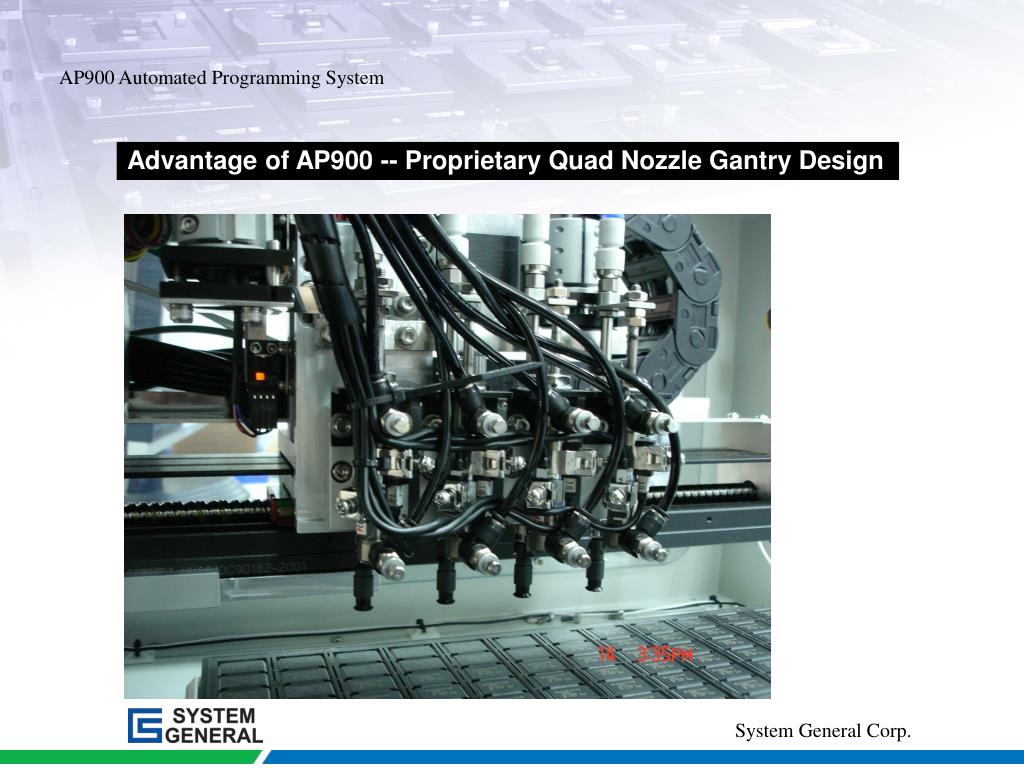

  9. Advantage of AP900 -- Proprietary Quad Nozzle Gantry Design

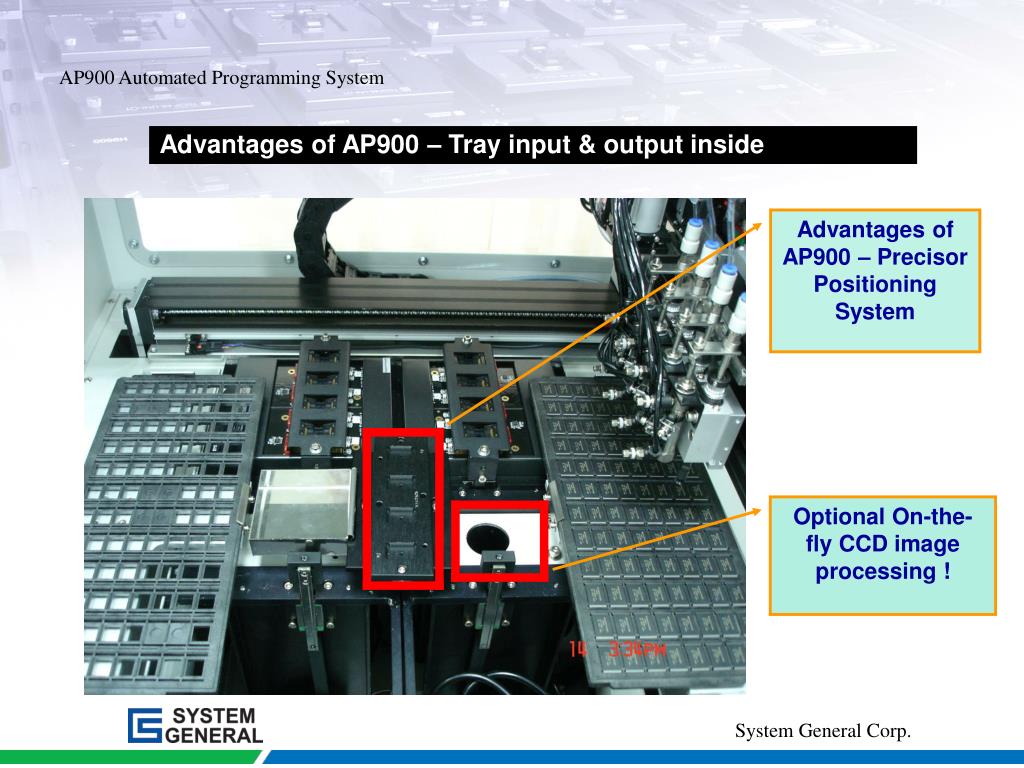

  10. Advantages of AP900 – Tray input & output inside Advantages of AP900 – Precisor Positioning System Optional On-the-fly CCD image processing !

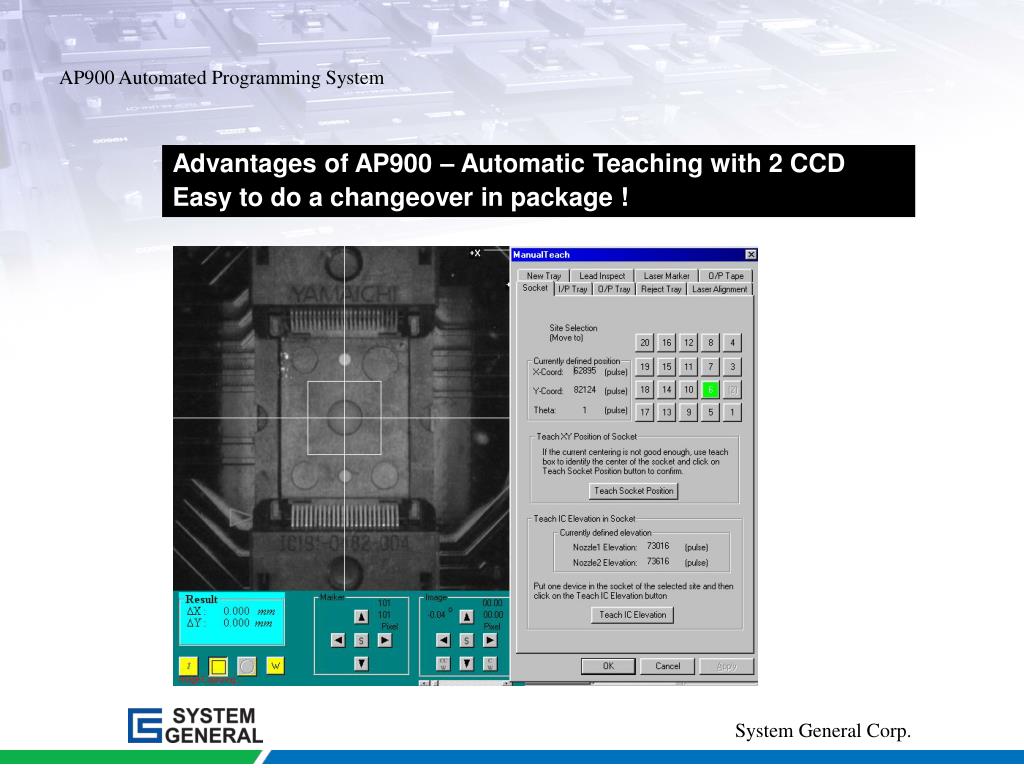

  11. Advantages of AP900 – Automatic Teaching with 2 CCD Easy to do a changeover in package !

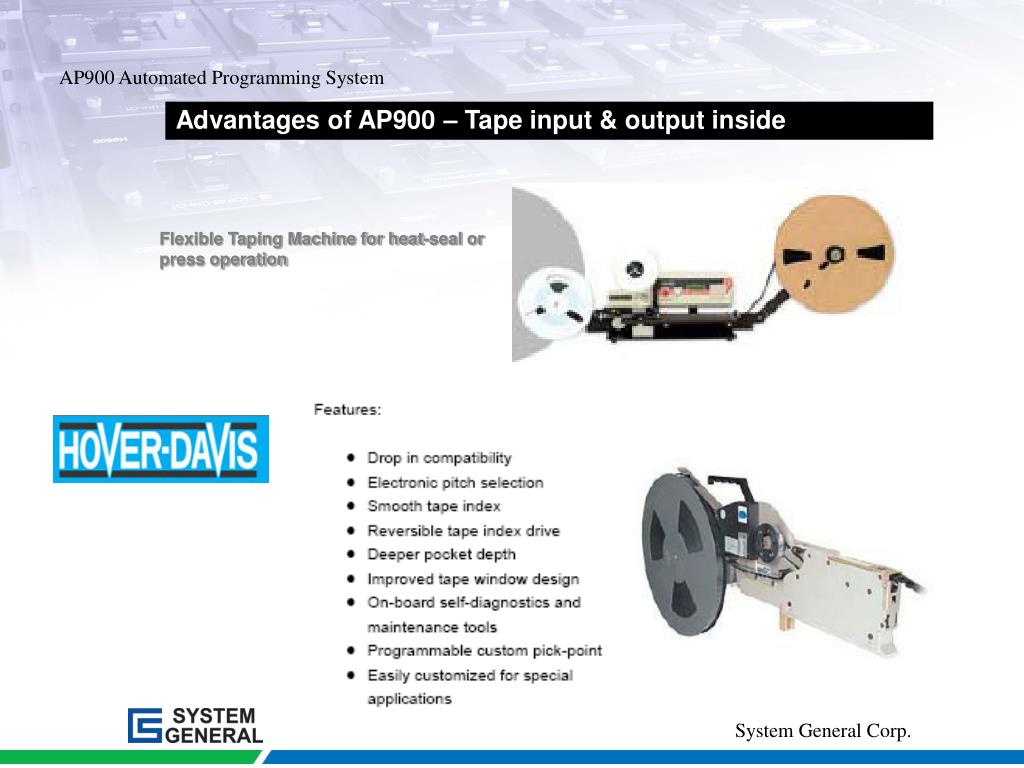

  12. Advantages of AP900 – Tape input & output inside Flexible Taping Machine for heat-seal or press operation

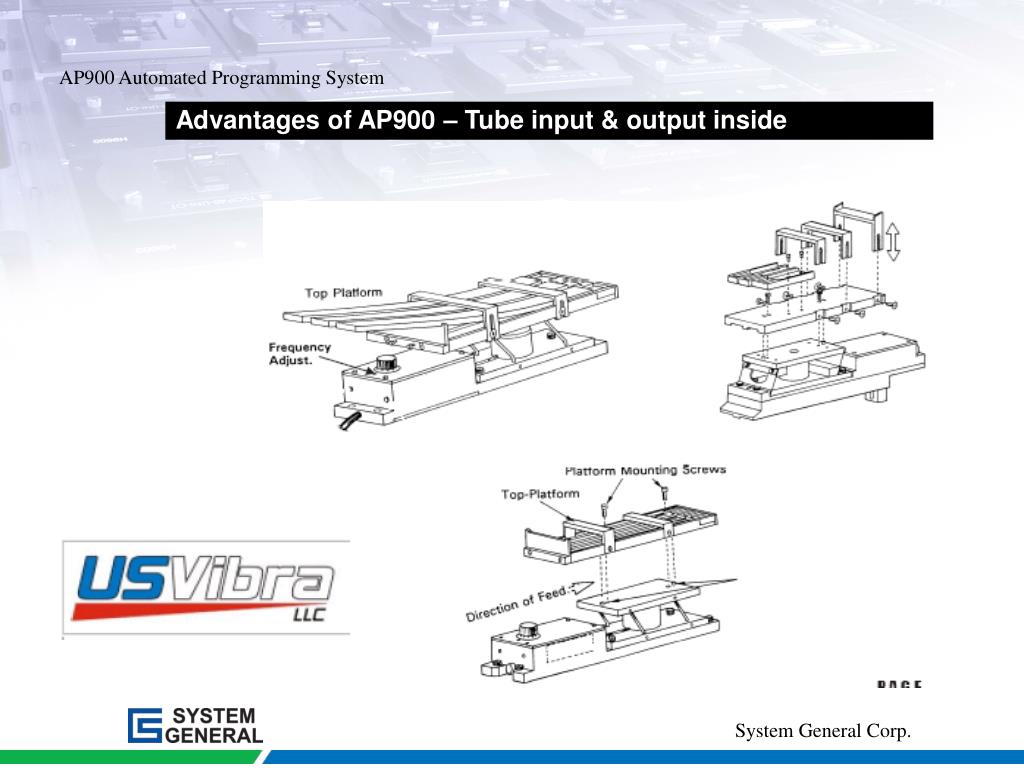

  13. Advantages of AP900 – Tube input & output inside

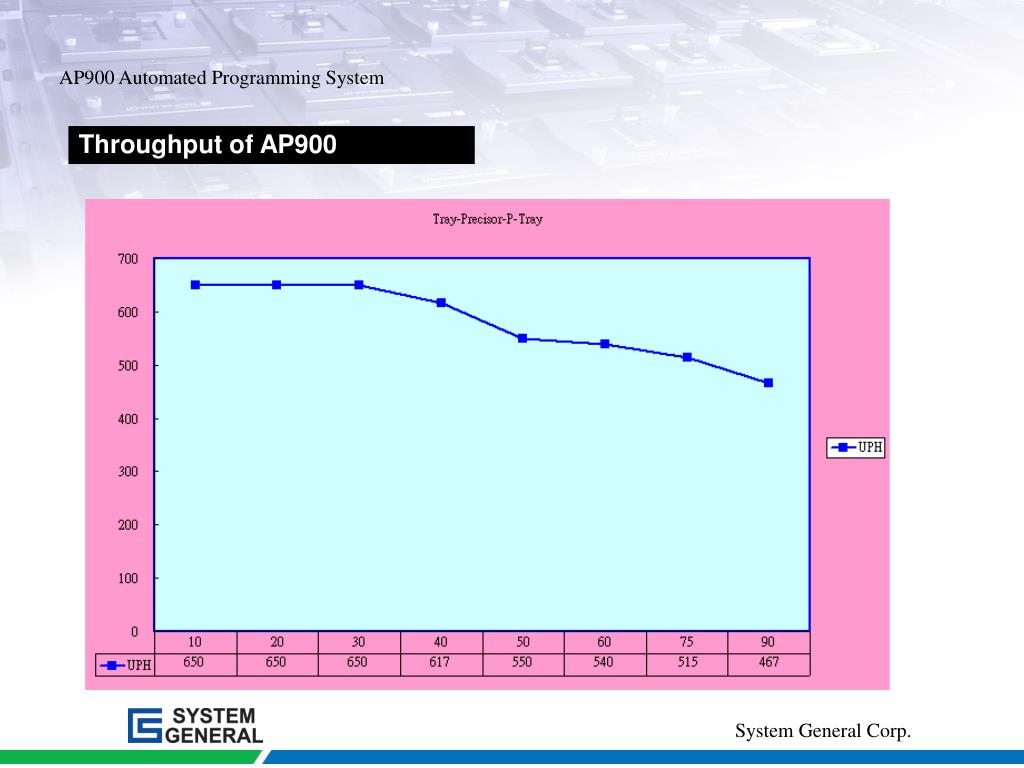

  14. Throughput of AP900

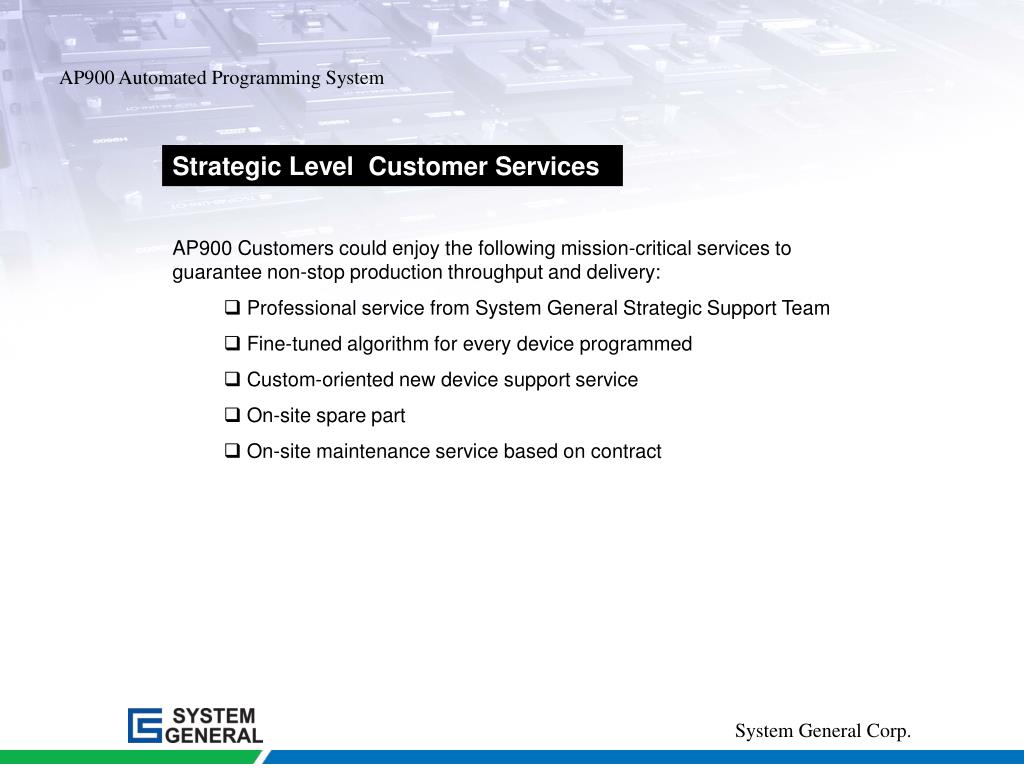

  15. Strategic Level Customer Services AP900 Customers could enjoy the following mission-critical services to guarantee non-stop production throughput and delivery: • Professional service from System General Strategic Support Team • Fine-tuned algorithm for every device programmed • Custom-oriented new device support service • On-site spare part • On-site maintenance service based on contract

  16. Regional Maintain Services Suzhou-SG TPE-SG Philippines-APP System Shenzhen-SG

  17. Thanks
