  1. Choosing the right MCU

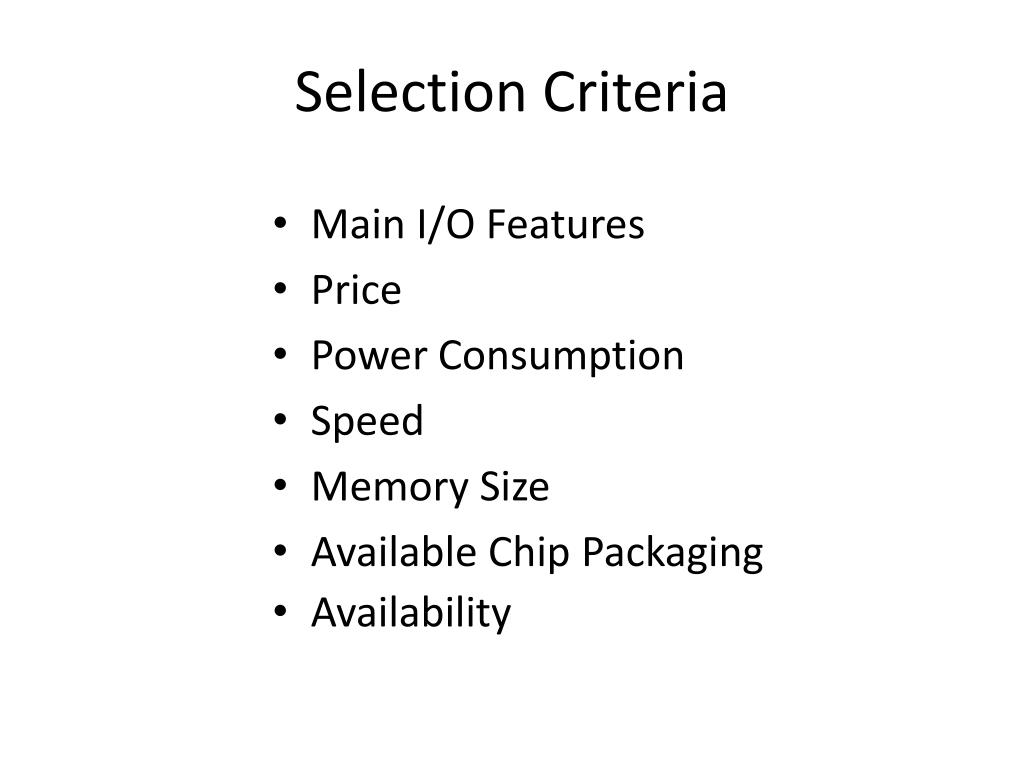

  2. Selection Criteria • Main I/O Features • Price • Power Consumption • Speed • Memory Size • Available Chip Packaging • Availability

  3. Which MCU would you use? • ระบบควบคุมปั๊มน้ำอัตโนมัติ เปิด/ปิด ปั๊มเมื่อน้ำน้อย/เต็ม ถังน้ำ • ระบบควบคุมและประมวลผลภาพจากกล้องวงจรปิดผ่าน LAN • Game Controller สำหรับเกมบน PC • กล่อง Data Logger สำหรับบันทึกค่า sensor ทางการเกษตรในไร่นา

  4. PIC16 Many I/O pins Good set of features Low-cost 5x Baht PIC18 More Memory Faster (12 vs 5 MIPS) Added features (i.e. USB)

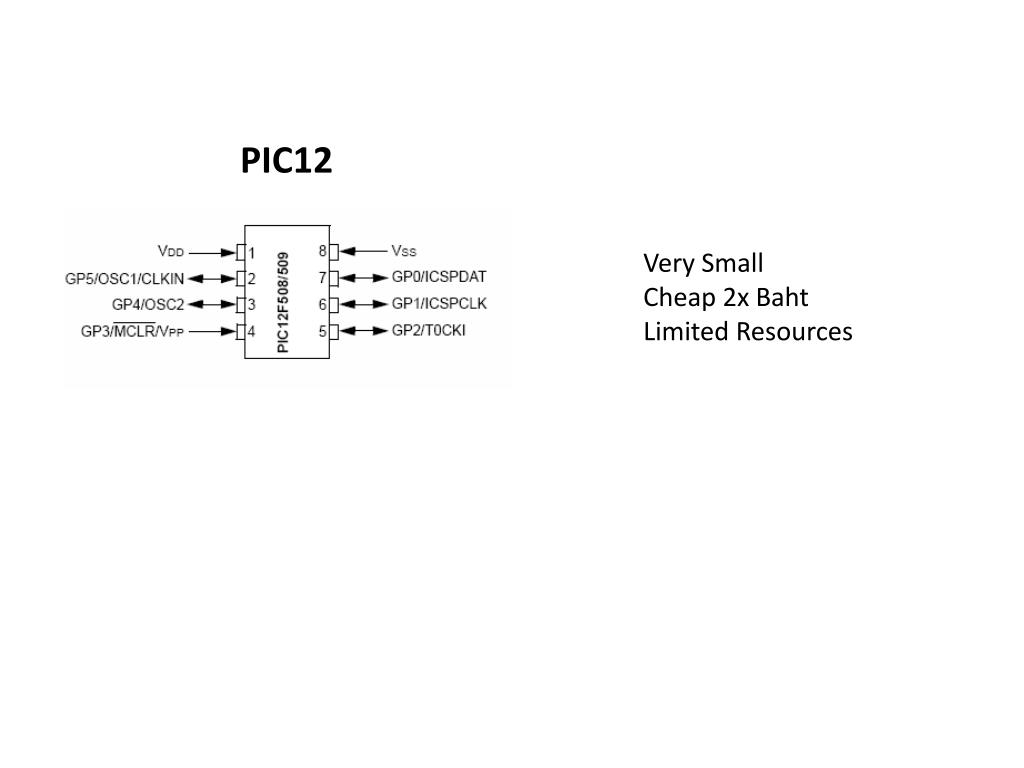

  5. PIC12 Very Small Cheap 2x Baht Limited Resources

  6. PIC32 Lots of memory (512K vs 32K) Fast (up to 120 MIPS) More I/O ports Advanced peripherals (i.e Ethernet, RTCC) Small package hard to use 3.3V Supply More expensive (3xx Baht)

  7. PSoC More specialized Flexible digital/analog modules Not very popular in Thailand

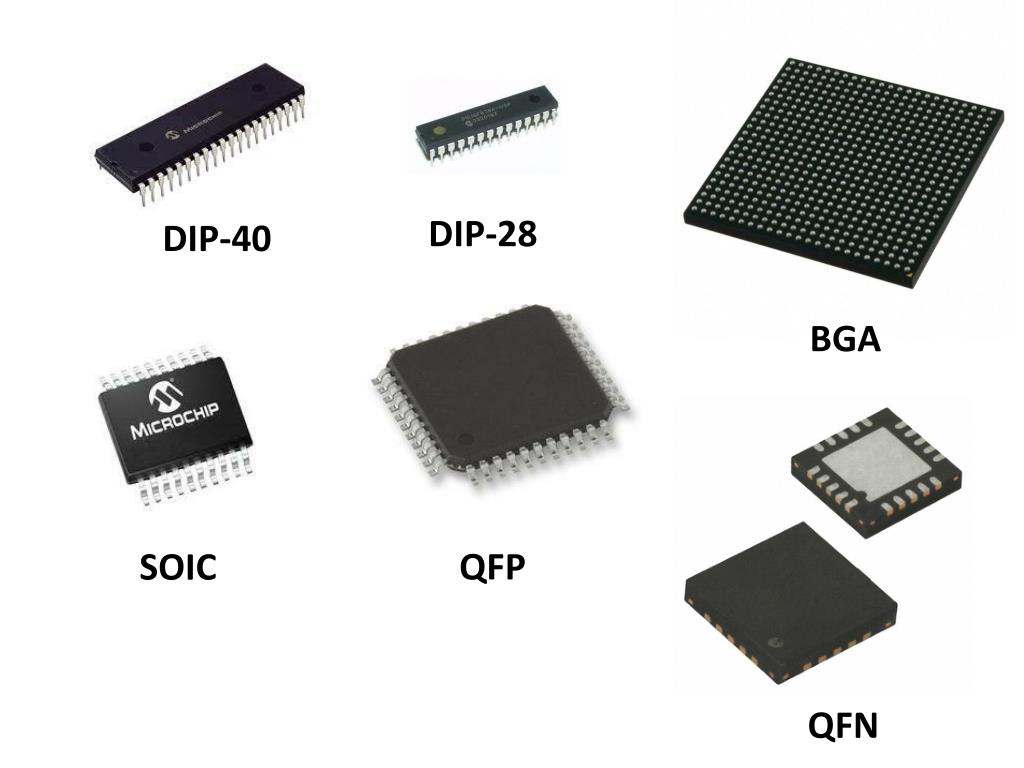

  8. DIP-28 DIP-40 BGA QFP SOIC QFN
