  1. Fast, Accurate • Traceable • Diversity Input Decoder • Simple to Setup & Use • Portable, 12VDC power • View Spectrum • View Constellations • View Impulse DSS5600-T/H DriveTest System for DVB T/H signals

  2. DSS5600-T/H Block Diagram Simplified Block Diagram

  3. System Includes: R-507 Programmable Field Strength Meter • Tunes: 5 - 1000MHz • Range: -10dBuV to +90dBuV (-117 dBm to 17 dBm) • Accuracy: +/-2dB @25 deg. +/-10deg • Covers Digital TV, Analog TV, FM • Covers AM With Block Converter RF Measurement Engine

  4. System Includes: R-507 Programmable Field Strength Meter • Field Strength Meter Measured and Recorded Figures of Merit (FOMs) • Total Integrated Power • Peak Power • In-Band Tilt • In-Band Notches (Hi-Lo Diff) • In-Band Std Deviation of Power

  5. System Includes: Diversity DVB-T/H Decoder • Diversity input • ASI Output • SNR, MER, BER … • Constellation • Impulse Response DVB-T/H Measurement Engine

  6. System Includes: Diversity DVB-T/H Decoder • Diversity DVB-T/H Decoder Measured and Recorded Figures of Merit (FOMs) • Antenna, FFT, Guard, FMT, Alpha, HP Code Rate, LP Code Rate, OUTFMT[Bytes], • For Each Decoder: • AGC,Lock, Carr Lock, TPS Lock, Vit Lock, MPEG-Sync Lock, MPEG-Data Lock, Bad MPEG • Pkt, QEF, Cell ID, MER[dB], BER, PER[/sec], SNR1[dB], SQI, DVBH SIG, HP TSL, HP MF, LP TSL, LP MF,

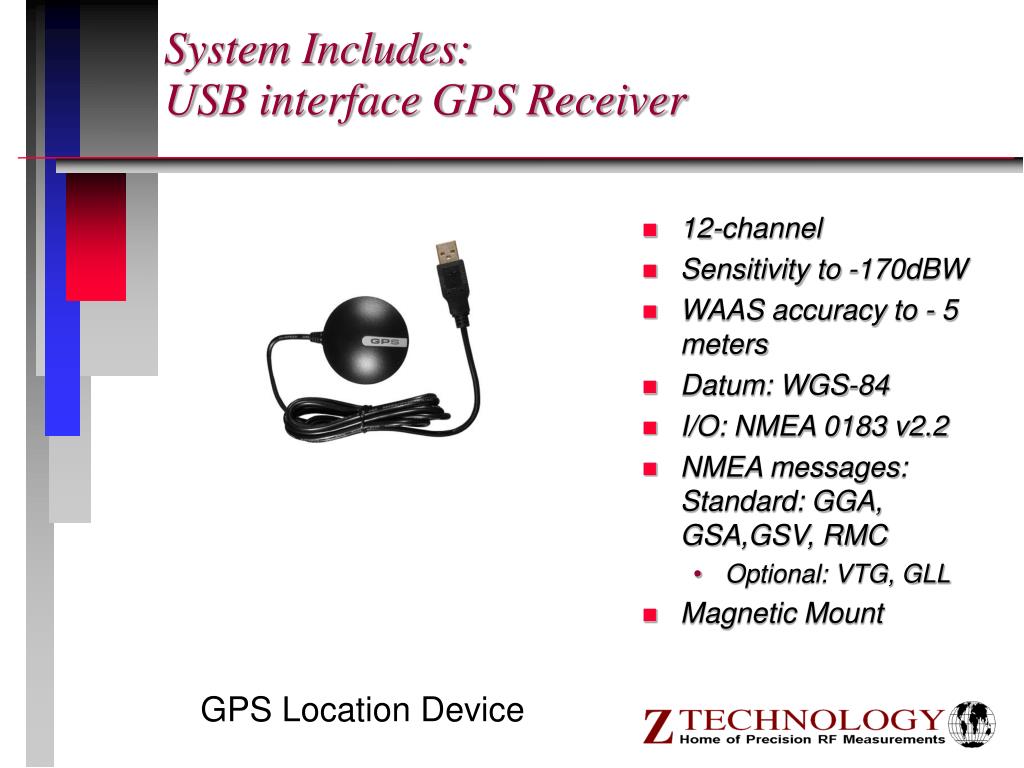

  7. System Includes: USB interface GPS Receiver • 12-channel • Sensitivity to -170dBW • WAAS accuracy to - 5 meters • Datum: WGS-84 • I/O: NMEA 0183 v2.2 • NMEA messages: Standard: GGA, GSA,GSV, RMC • Optional: VTG, GLL • Magnetic Mount GPS Location Device

  8. System Includes: USB interface GPS Receiver • GPS Receiver Recorded Figures of Merit (FOMs) • Latitude, Longitude, Altitude, Altitude Units, Heading, Heading Units, Speed, Speed Units, • System also records Data and Time of measurement from Laptop PC. • Time can be synchronized with GPS.

  9. System Includes: Laptop PC with DriveTest Software • DriveTest Software • Automates the measurement and mapping process • Build list of frequencies to measure • Plot measurement results of each frequency individually • Plot each Figure of Merit (FOM) individually • Conditional plotting • For instance plot RF power where SNR > 20 dB • Export data to other applications • Make stationary measurements or moving measurements. DriveTest SW Highlights

  10. System Includes: Laptop PC with DriveTest Software • DriveTest Software • Includes: • Job Editor ( to build frequency and signal type list) • Process Status screen (Data Tab) • PLOT screen (Plot Tab) • Spectrum screen (Spectrum Display view) • View Spectrum • or Time plot of any Spectrum FOM • View Constellation plots for each decoder • or Time plot of any Diversity Decoder FOM • or Impulse Response plots of each decoder DriveTest SW Highlights

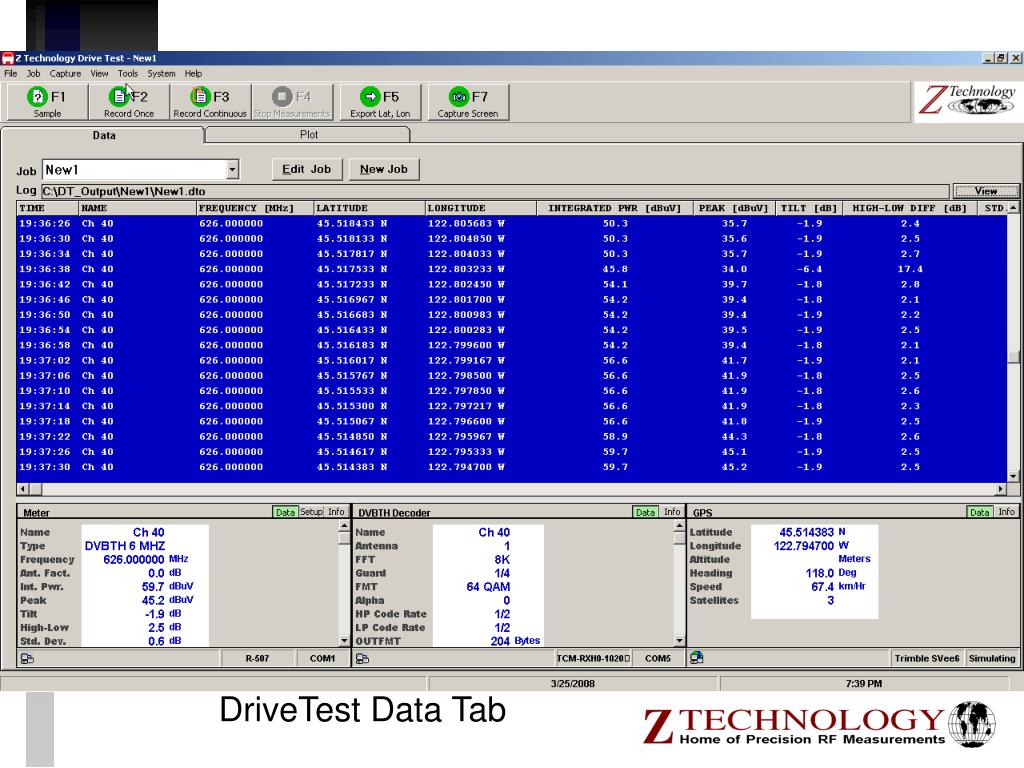

  11. DriveTest Data Tab

  12. DriveTest Plot with Simple Map Data

  13. DriveTest Plot with Custom Map Data

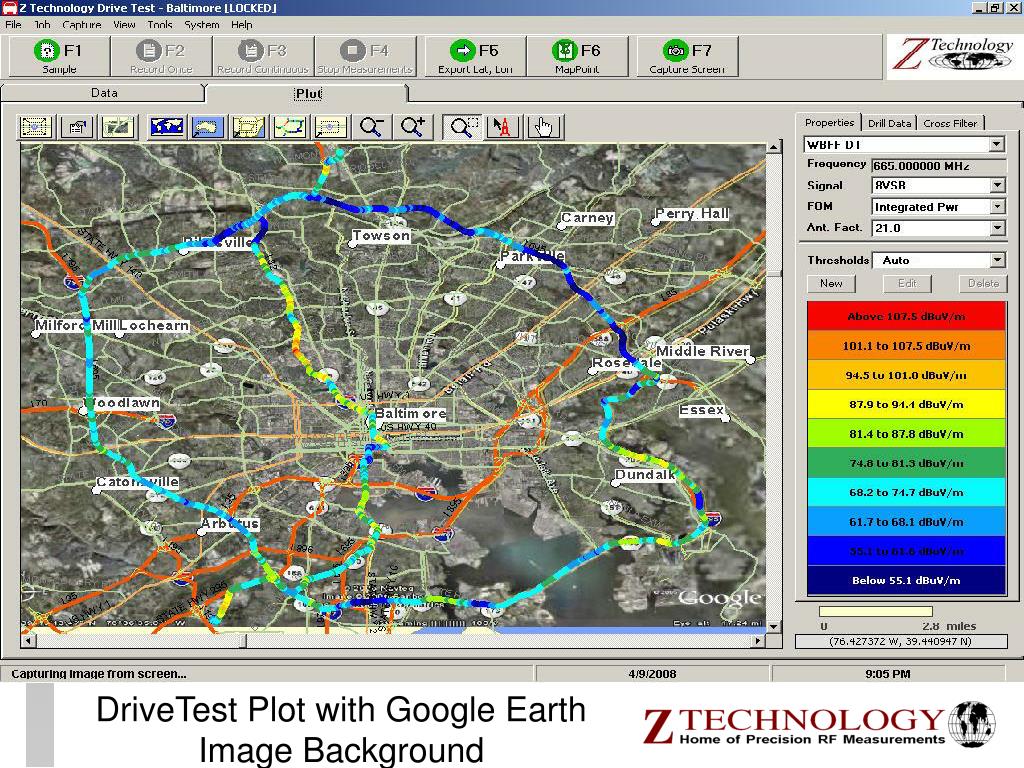

  14. DriveTest Plot with Google Earth Image Background

  15. DriveTest Data imported into Surfer 3D

  16. DriveTest Spectrum & Time Plot of SNR

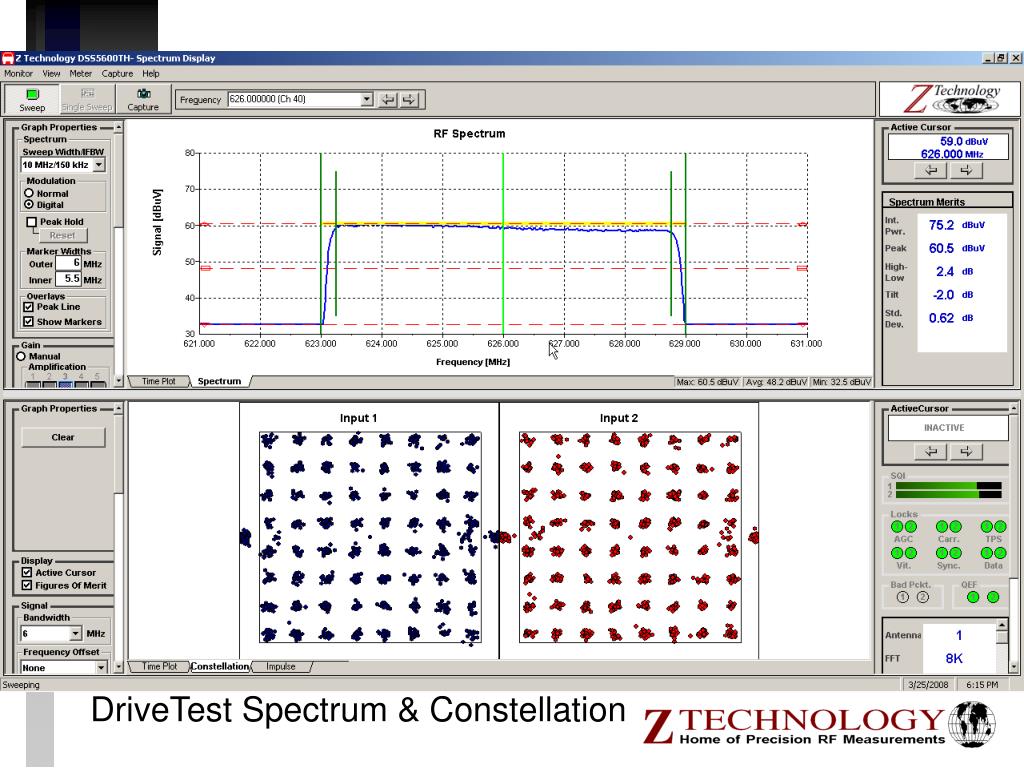

  17. DriveTest Spectrum & Constellation

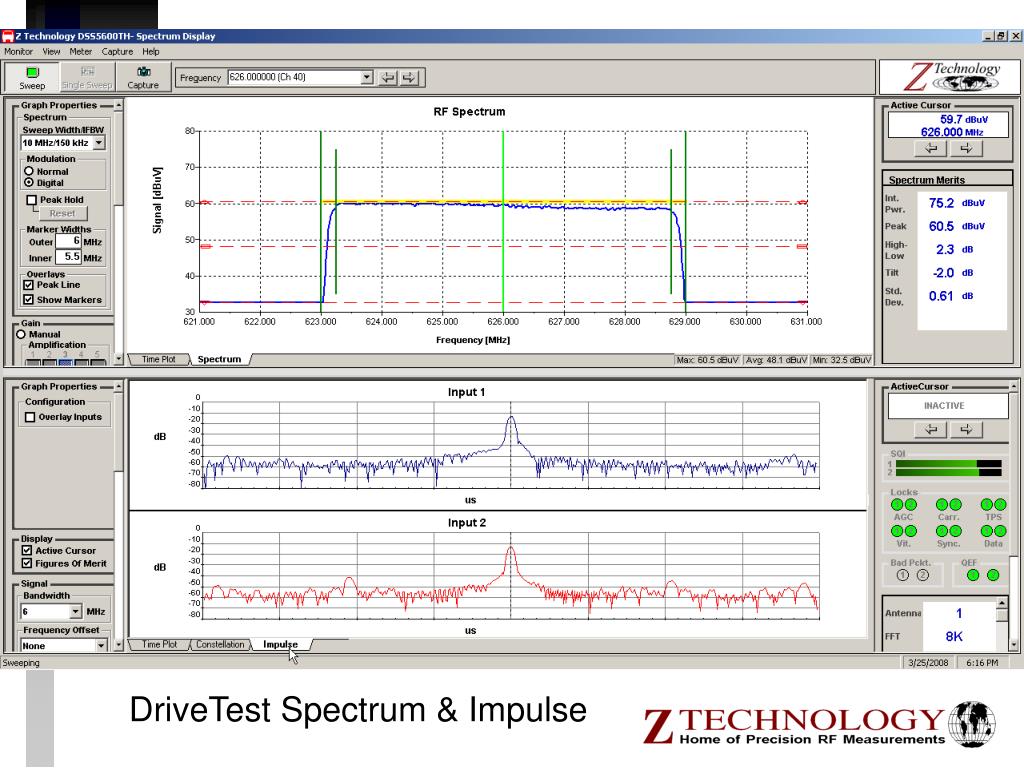

  18. DriveTest Spectrum & Impulse

  19. Learn more about our systems Z Technology, Inc. 14950 NW Greenbrier Parkway Beaverton, Oregon 97006 USA Tel: 503.614.9800 Fax: 503.614.9898 www.ztechnology.com sales@ztechnology.com Factory Contacts: John Purdy, Jim Zook
