  1. Environmental Test Chambers by Hastest Solutions

  2. About Hastest Solutions the Company • Providing reliability testing services and environmental test chambers for the past 12 years • Built our reputation by providing state-of-the-art quality products with special emphasis on our engineering, value added solutions and above all customer service and satisfaction. • Our products and services support a variety of industries, such as semi-conductor, automotive, bio tech, defense, aerospace, paper & pulp, glass & ceramics, rubber, polymers, pharmaceutical, solar/pv and other materiel

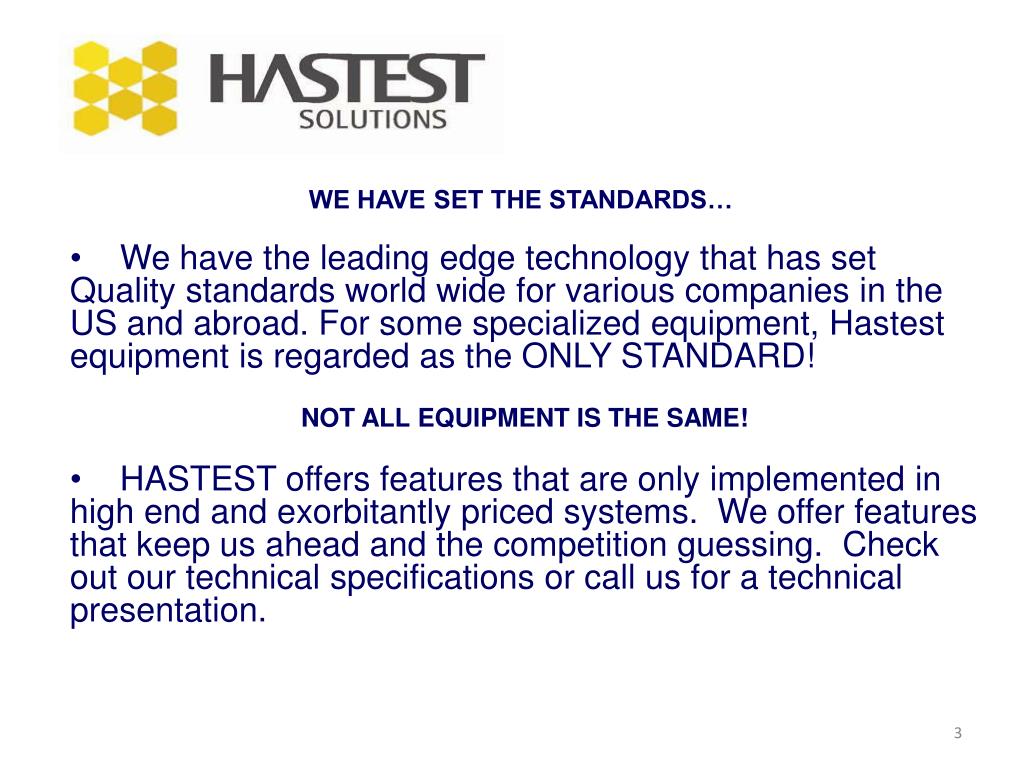

  3. WE HAVE SET THE STANDARDS… • We have the leading edge technology that has set Quality standards world wide for various companies in the US and abroad. For some specialized equipment, Hastest equipment is regarded as the ONLY STANDARD! • NOT ALL EQUIPMENT IS THE SAME! • HASTEST offers features that are only implemented in high end and exorbitantly priced systems. We offer features that keep us ahead and the competition guessing. Check out our technical specifications or call us for a technical presentation.

  4. Our Demo Facility in Silicon Valley

  5. Our Manufacturing Facility in Shanghai

  6. Facts on our Shanghai Manufacturing Facility • Started chamber manufacturing in 1996 • Size of company:  30,000 square meters  • Certificates: ISO9001:2000 • CEU: Can be provided • 3C certificate • Production Type: Chambers

  7. Various Chambers Ready for Delivery

  8. Walk In Chamber Built to Customer Specifications Picture Showing Completed Unit

  9. Walk-In Chamber -Specifications Chamber Size: 8’2” x 10’2” x 10’2”, （W×D×H） Door Size: 5’11” x 5’11”（W×H）   Temperature: -45ºC ~ +125ºC Humidity: ＜85%R.H. Air pressure: 86～103Kpa Power Supply: AC440V ±10%, 3 phase, 60Hz Material: Polyurethane foam heat isolating composite board and high-quality stainless steel for inner wall BUILT TO CUSTOMIZED SPECS. & SIZES

  10. Picture Showing Assembly Process Size of each panel is approx. 1.0 W X 3.0 LX 0.05 H m

  11. 4. Exhaust 5. Air Flow Duct 6. Door w/ Window 7. Controller

  12. 1. Air Cooling Unit 2. Viewing Window 3. AC Power Sockets

  13. Features of Walk In Chambers • Easy of Assembly: Assemble piece by piece on site, does NOT require large entry doors. • Built-in reliability: All major sub-systems procured from world class manufacturers • Easy to use: Easy to use graphic interface for test environment setup, through LCD color Touch Key in Controllers with Large Display • Safety protections: Overheat, short, chamber protection, operator protection • Spare parts: Availability of spare parts • Unique, scientific structural design to guarantee the uniformity of indoor temperature & Humidity with no dead zones

  14. Description: Size: 252Liters 60Wx70Hx60D(cm) Temp Ranges: -70ºC to +150ºC -40ºC to +150ºC -20ºC to +150ºC Humidity Ranges: 25% ~ 98% Computer Interface: RS485/RS232 CONTROLLER: LCD Color Touch Screen Standard Features: Casters RS485/RS232 Shelves Access Port Communication Port Options: External Water Circulation De-Mineralizer Viewing Window Interior Light with Switch LN-2

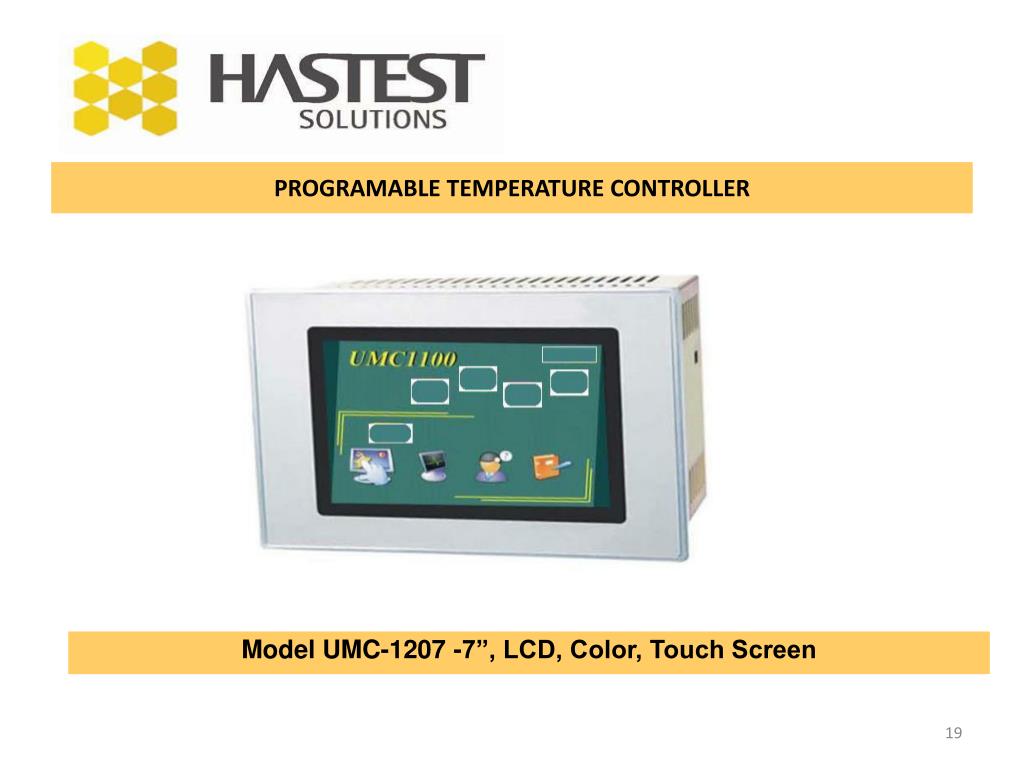

  15. PROGRAMABLE TEMPERATURE CONTROLLER Model UMC-1207 -7”, LCD, Color, Touch Screen

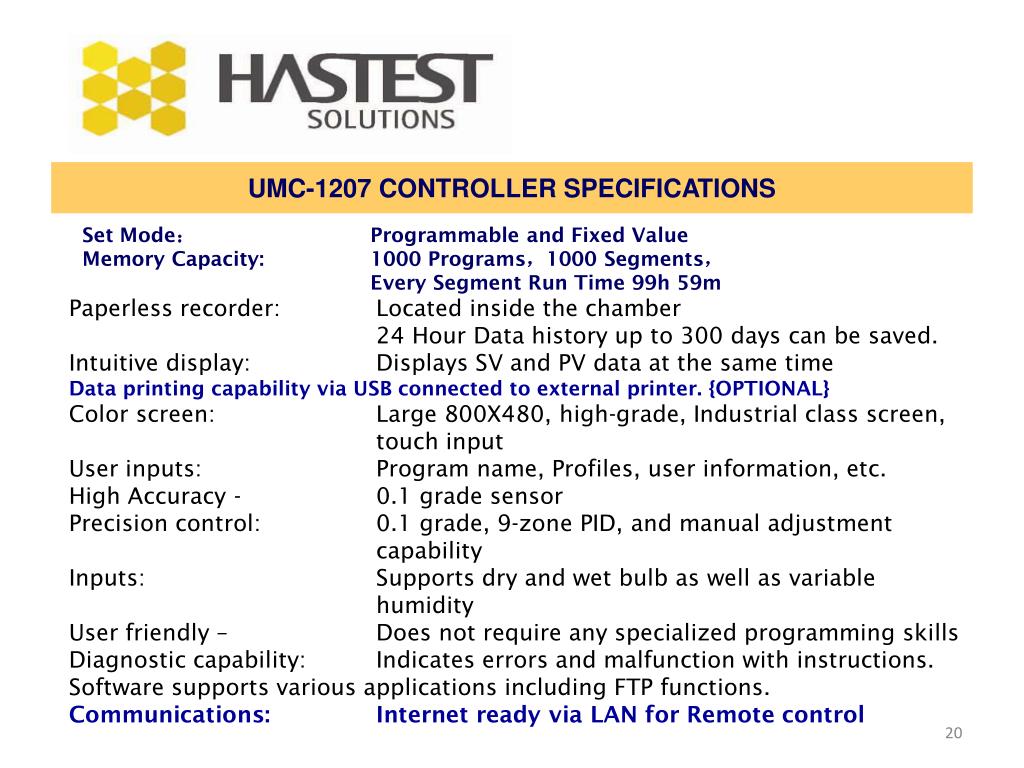

  16. UMC-1207 CONTROLLER SPECIFICATIONS Set Mode： Programmable and Fixed Value Memory Capacity: 1000 Programs，1000 Segments， Every Segment Run Time 99h 59m Paperless recorder: Located inside the chamber 24 Hour Data history up to 300 days can be saved. Intuitive display: Displays SV and PV data at the same time Data printing capability via USB connected to external printer. {OPTIONAL} Color screen: Large 800X480, high-grade, Industrial class screen, touch input User inputs: Program name, Profiles, user information, etc. High Accuracy - 0.1 grade sensor Precision control: 0.1 grade, 9-zone PID, and manual adjustment capability Inputs: Supports dry and wet bulb as well as variable humidity User friendly – Does not require any specialized programming skills Diagnostic capability: Indicates errors and malfunction with instructions. Software supports various applications including FTP functions. Communications: Internet ready via LAN for Remote control

  17. PROGRAMABLE TEMPERATURE CONTROLLER Model TEMI-880, LCD, Color, Touch Screen Key In

  18. TEMI-880 CONTROLLER SPECIFICATIONS LCD DISPLAY TOUCH SCREEN KEY IN Set Mode: Programmable and Fixed Value Memory Capacity: 120 Programs 1200 Segments， Run Time: 99 h59m; 999 Cycles Temperature Set Range: PT1: –50~150ºC, PT2: -100~200ºC Humidity Set Range:0~100%RH Temp Display Range: –50-150ºC, PT1; –50~150ºC, PT2: -100-200ºC Humidity Display Range:0~100%RH Settable Time: 9999h59m Set Resolution: Temperature: + 0.01ºC; Humidity: + 0.1%RH Time: 1 Minute Precision: Temperature: +0.1F.S+1digit; Humidity: + 0.1%RH Input: PT(100Ω);DC Input Temp: -1V~2V Humidity :1V~5V Control Mode： PID and Fuzzy Communication: RS485

  19. Temperature and Humidity Program Controller

  20. Temperature and Humidity Program Controller Hastest Solutions

  21. Temperature and Humidity Program Controller Hastest Solutions

  22. Temperature and Humidity Program Controller Hastest Solutions

  23. Temperature and Humidity Program Controller

  24. Temperature and Humidity Program Controller

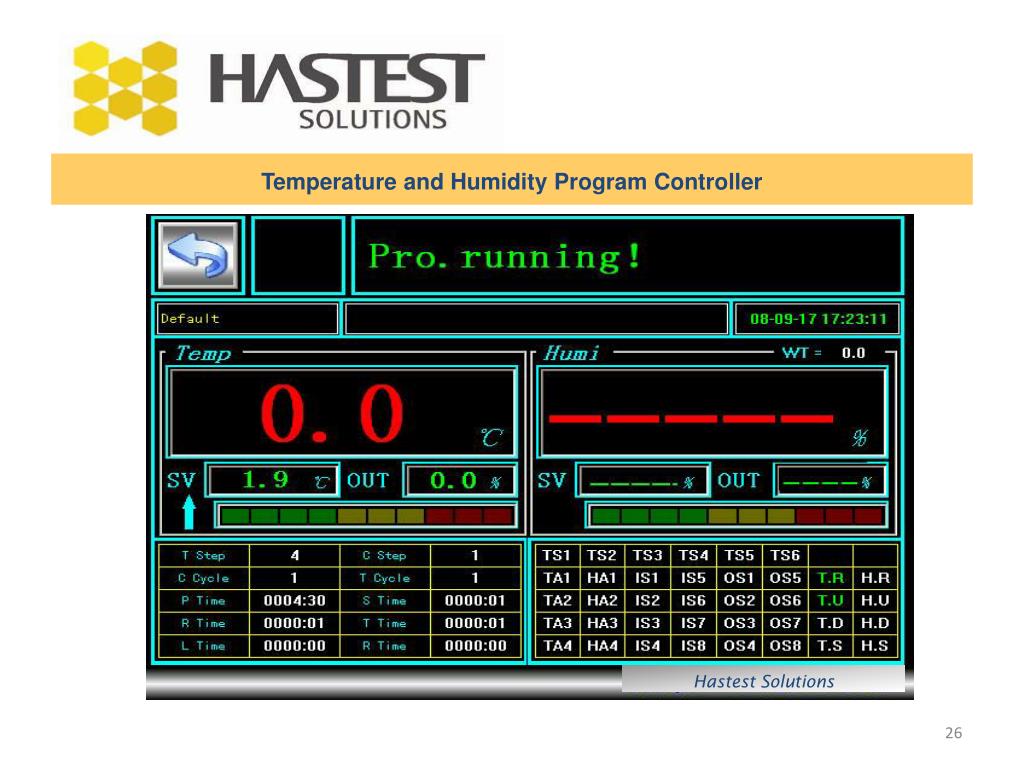

  25. Temperature and Humidity Program Controller

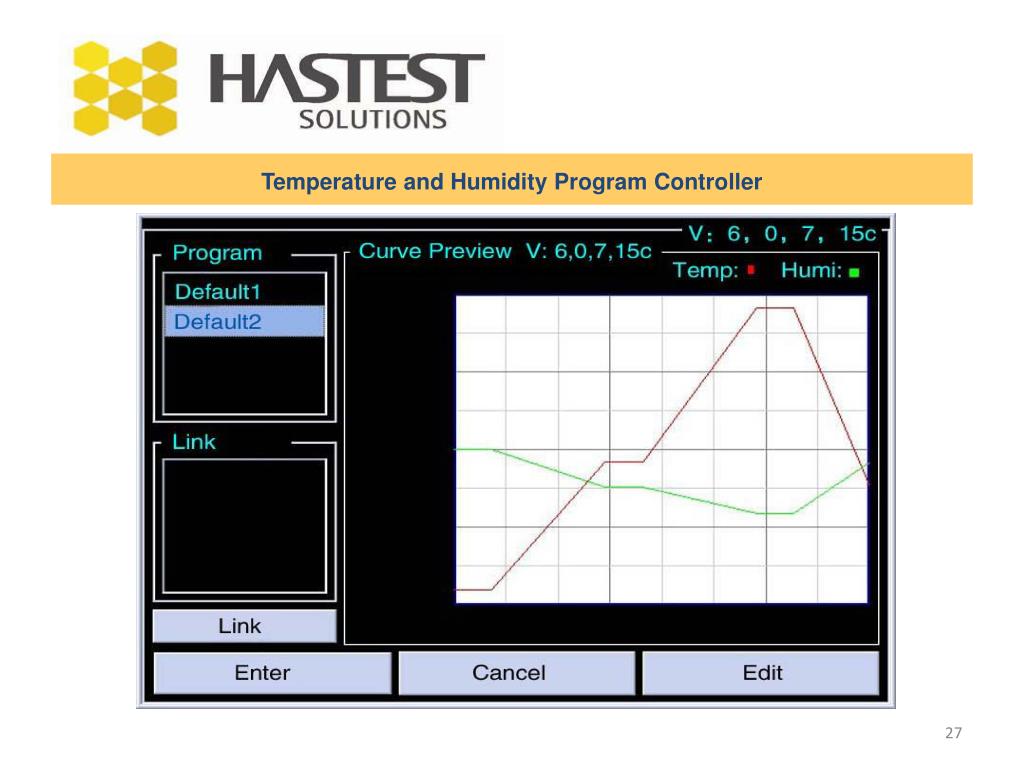

  26. Temperature and Humidity Program Controller Hastest Solutions

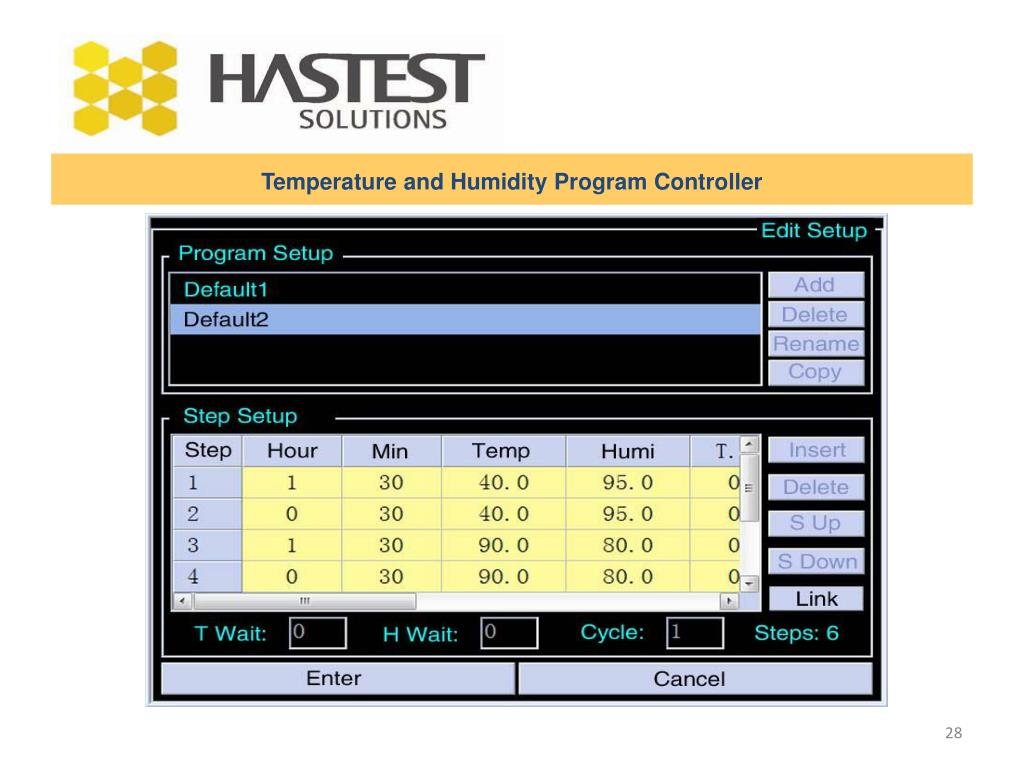

  27. Temperature and Humidity Program Controller Hastest Solutions

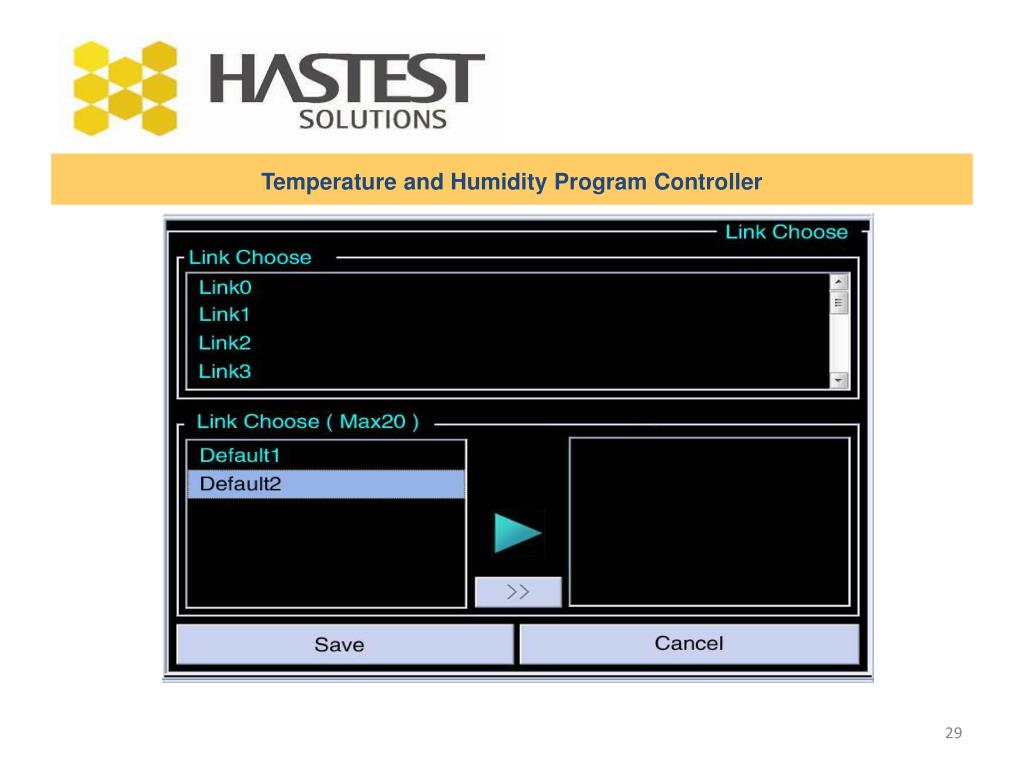

  28. Temperature and Humidity Program Controller Hastest Solutions

  29. Temperature and Humidity Program Controller Hastest Solutions

  30. Temperature and Humidity Program Controller Hastest Solutions

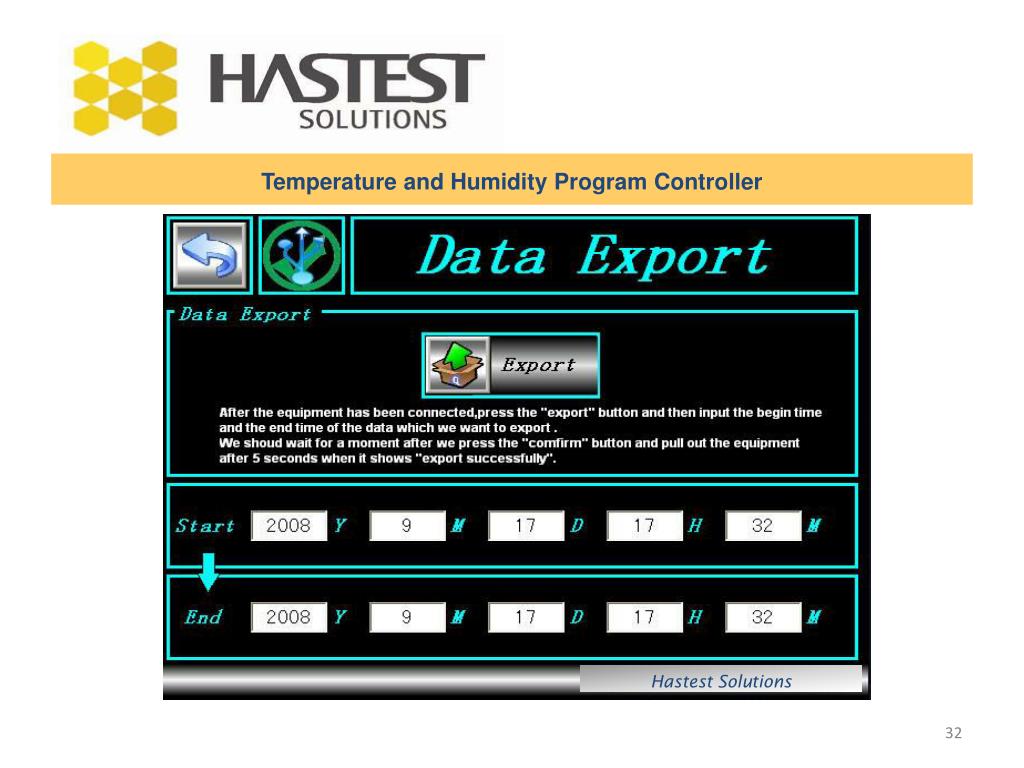

  31. Temperature and Humidity Program Controller

  32. Temperature and Humidity Program Controller

  33. DUST CHAMBERS

  34. DUST CHAMBERS

  35. DUST CHAMBERS

  36. DUST CHAMBERS

  37. DUST CHAMBERS

  38. DUST CHAMBERS Vertical View

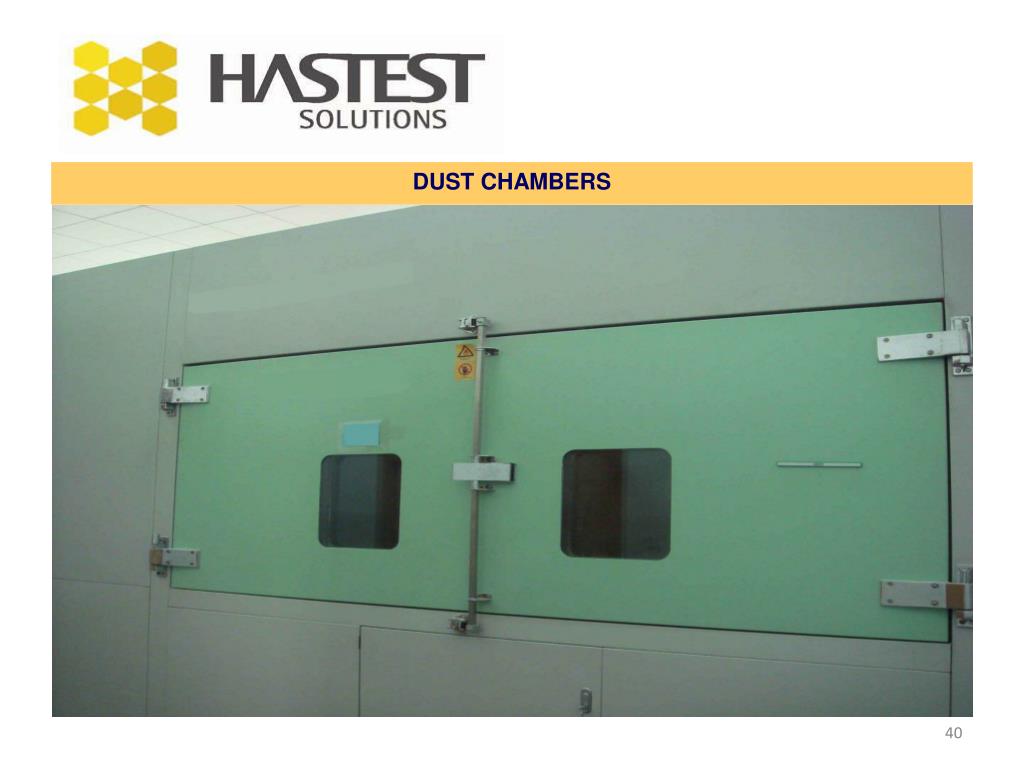

  39. DUST CHAMBERS Front View

  40. DUST CHAMBERS Interior of Large Dust Chamber

  41. DUST CHAMBERS Showing Electrical System

  42. DUST CHAMBERS Showing Electrical System Details

  43. DUST CHAMBERS

  44. SETTLING DUST CHAMBERS HDT-IP-1000 Settling Dust Chamber Easy to use, Plug and Play System Many Safety Features Meets IEC 60529 MIL Standard 810F/G Available Pressurized Air Flow Custom Sizes Available

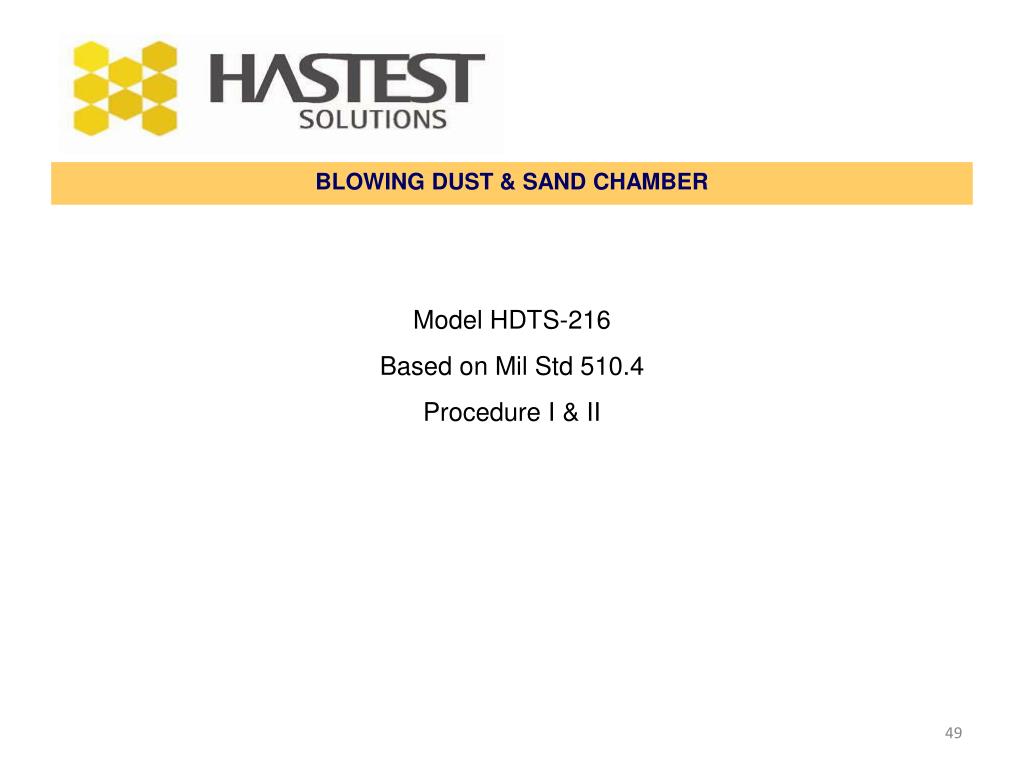

  45. BLOWING DUST & SAND CHAMBER Model HDTS-216 Based on Mil Std 510.4 Procedure I & II

  46. BLOWING DUST & SAND CHAMBER Large DUST & SAND Chamber (Sample Photo)
