  1. DOCSIS 3.0 DS Planning & Bandwidth Management John Downey, Consulting Network Engineer – CMTS BU

  2. Agenda • Objectives • Terms • M-CMTS • SPAs, timing servers, e-qams, 5x20, 3G60.. • I-CMTS • 20x20 • Optional Architectures • Frequency Stacking Levels • Frequency Placement • Isolation Concerns

  3. DS Questions & Potential Concerns • Why it’s Needed • Competitive pressure, offering higher tiers of service, more customers signing up • Frequency Stacking Levels & Placement • What is the e-qam max output with four channels stacked • Do channels have to be contiguous? • Isolation Concerns • Applications w/ different service grps lead to overlaid networks • Signals destined for one node could “bleed” over to another • DS Frequency Expansion to 1 GHz • Amplifier upgrades are occurring now. It’s best to make the truck roll once, so think about diplex filters, spacing, taps, etc.

  4. Business Objectives • Allow more BW for DOCSIS 1.x & 2.0 CMs • Limit/reduce more node splits • Introduce new HSD service of 50 to 100 Mbps • Allow migration of existing customers to higher tier and DOCSIS 3.0 capability • Better Stat Muxing

  5. DOCSIS 3.0 Terms • Local DS = CMTS DS • Remote DS = E-QAM DS • Primary = DOCSIS messaging • Secondary = Bonding • “Wideband” generically used to describe D3.0 DS bonding • Channel Grouping Domain (CGD) is MxN mac domain • Mac Domain = 1 DS & N USs • Service group = CMTS Fiber Node config • M-CMTS is an architecture, not necessarily D3.0 • Provides DS load balance within MxN domain • I-CMTS allows MxN and bonding within linecard • D3.0 CM supports minimum of 4 US and 4 DS chs • CMs on market are 4x4 (TI-based) & 8x4 (Brcm-based)

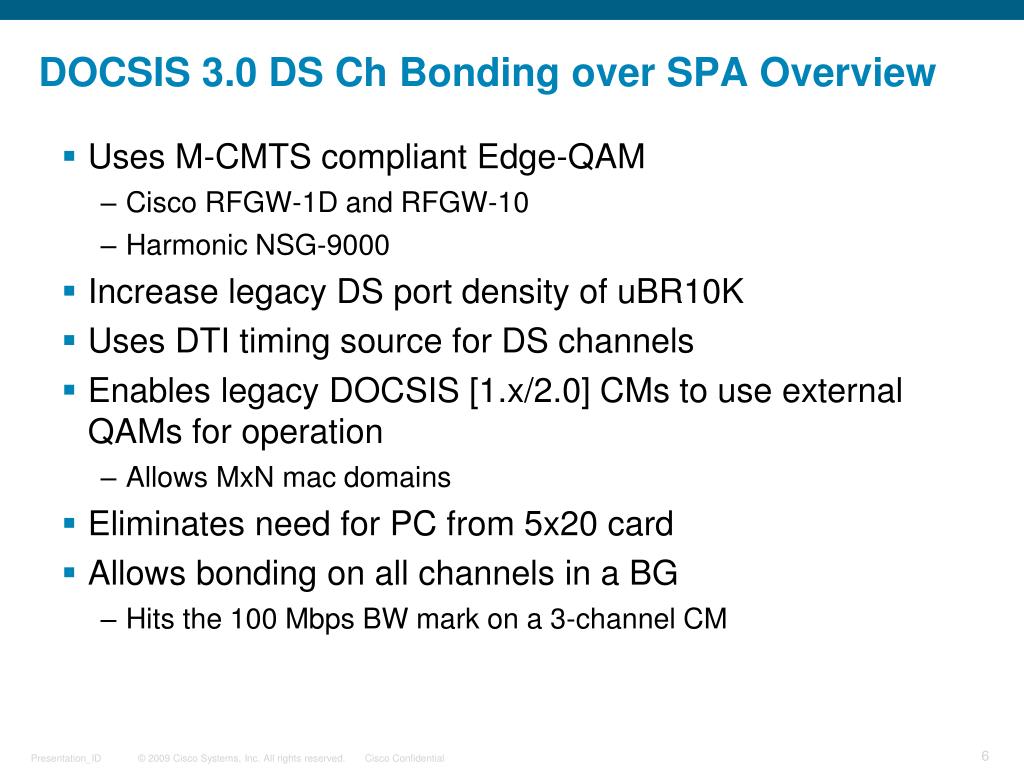

  6. DOCSIS 3.0 DS Ch Bonding over SPA Overview • Uses M-CMTS compliant Edge-QAM • Cisco RFGW-1D and RFGW-10 • Harmonic NSG-9000 • Increase legacy DS port density of uBR10K • Uses DTI timing source for DS channels • Enables legacy DOCSIS [1.x/2.0] CMs to use external QAMs for operation • Allows MxN mac domains • Eliminates need for PC from 5x20 card • Allows bonding on all channels in a BG • Hits the 100 Mbps BW mark on a 3-channel CM

  7. Narrowband Network Topology

  8. DOCSIS 3.0 M-CMTS System DTI Server D3.0 DS + Primary Jacket Card DTI Card D3.0 BG DTI Card WB DS SPA M-CMTS EQAM WB DS SPA Primary Ch CPU/RP Primary MC5x20H SA DPC 3000 SA DPC-2505 CM CM CM CM Backhauls uBR10K CMTS NB DS

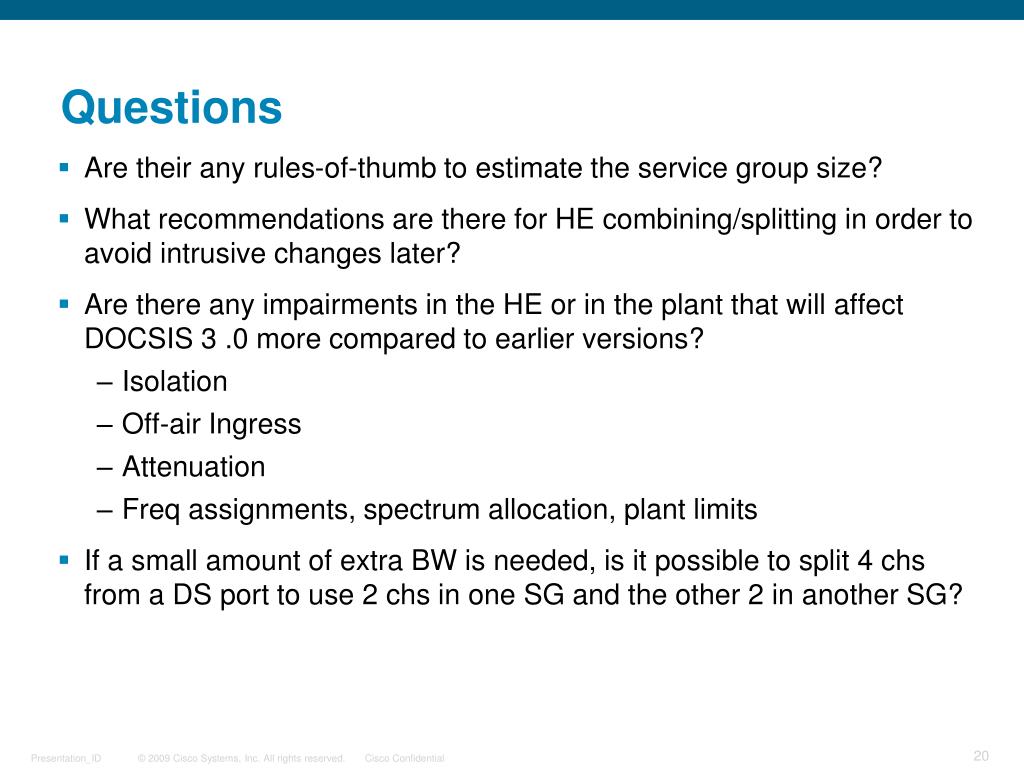

  9. Questions • Are their any rules-of-thumb to estimate the service group size? • What recommendations are there for HE combining/splitting in order to avoid intrusive changes later? • Are there any impairments in the HE or in the plant that will affect DOCSIS 3 .0 more compared to earlier versions? • Isolation • Off-air Ingress • Attenuation • Freq assignments, spectrum allocation, plant limits • If a small amount of extra BW is needed, is it possible to split 4 chs from a DS port to use 2 chs in one SG and the other 2 in another SG?

  10. Option 1: 100 Mbps Tier & 2 Channel US Bonding Cisco Products • UBR10012 CMTS w/ PRE4 • “Amazon”, 12.2SCB IOS • Spumoni SIP with 6 SPAs • 5x20H linecards • RFGW-1 EQAM • 3 chassis • 6 modules each • DPC/EPC 3000 CM • DPC/EPC 3002 eMTA Resources (Per SG) • 5 DS frequencies • 1 I-DS • 4 M-DS • (5 Primary) • 2 US frequencies • 2 channel bonding

  11. Option 1 = 100 Mbps Service Tier • 5 DS freqs • 2 US freqs Remote Bonding Remote Primary Local Bonding Local Primary 16-QAM 64-QAM 3.2 MHz 6.4 MHz • 5, 5x4 MAC domains with ATDMA & TDMA USs • E-qam overlaid for 2 nodes 70/2 = 35 connectors • 3 e-qam chassis with 6 modules each • 4 freqs * 35 = 140 QAMs = 6 SPAs = Spumoni & PRE4

  12. 20x20 Option 1: 100 Mbps Tier & 2 Ch US Bonding Cisco Products • UBR10012 CMTS w/ PRE4 • “Bighorn”, 12.2SCC IOS • 20x20V linecards • DPC/EPC 3000 CM • DPC/EPC 3002 eMTA Resources (Per SG) • 4 DS frequencies • 4 I-DS • 2 US frequencies • 2 channel bonding

  13. 20x20 Option 1 = 100 Mbps Service Tier • 4 DS freqs • 2 US freqs Local Bonding Local Primary 16-QAM 64-QAM 3.2 MHz 6.4 MHz • 5, 4x4 MAC domains with ATDMA & TDMA USs • DS connector overlaid for 2 nodes, 35 connectors*2 = 70 nodes • 4 freqs * 35 = 140 QAMs = PRE4

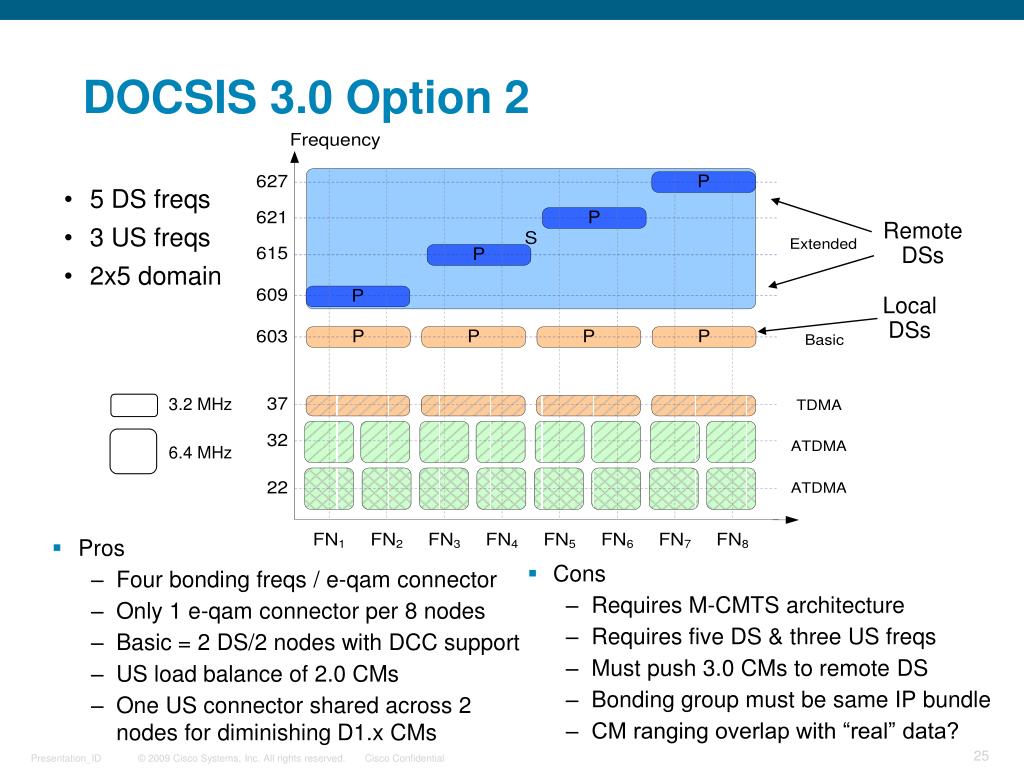

  14. Cons Requires M-CMTS architecture Requires five DS & three US freqs Must push 3.0 CMs to remote DS Bonding group must be same IP bundle CM ranging overlap with “real” data? DOCSIS 3.0 Option 2 • Pros • Four bonding freqs / e-qam connector • Only 1 e-qam connector per 8 nodes • Basic = 2 DS/2 nodes with DCC support • US load balance of 2.0 CMs • One US connector shared across 2 nodes for diminishing D1.x CMs • 5 DS freqs • 3 US freqs • 2x5 domain Remote DSs Local DSs 3.2 MHz 6.4 MHz

  15. Cons Requires 8 DS & 3 US freqs 20x20 DOCSIS 3.0 Option 2 • Pros • 8 bonding freqs per 2 connectors • Only 5 connectors per 8 nodes • Can provide 8 ch DS bonding • US load balance of 2.0 CMs • One US connector shared across 2 nodes for diminishing D1.x CMs • 8 DS freqs • 3 US freqs • 5x5 domain Local DSs 3.2 MHz 6.4 MHz

  16. DOCSIS 3.0 Option 2 Wiring Diagram

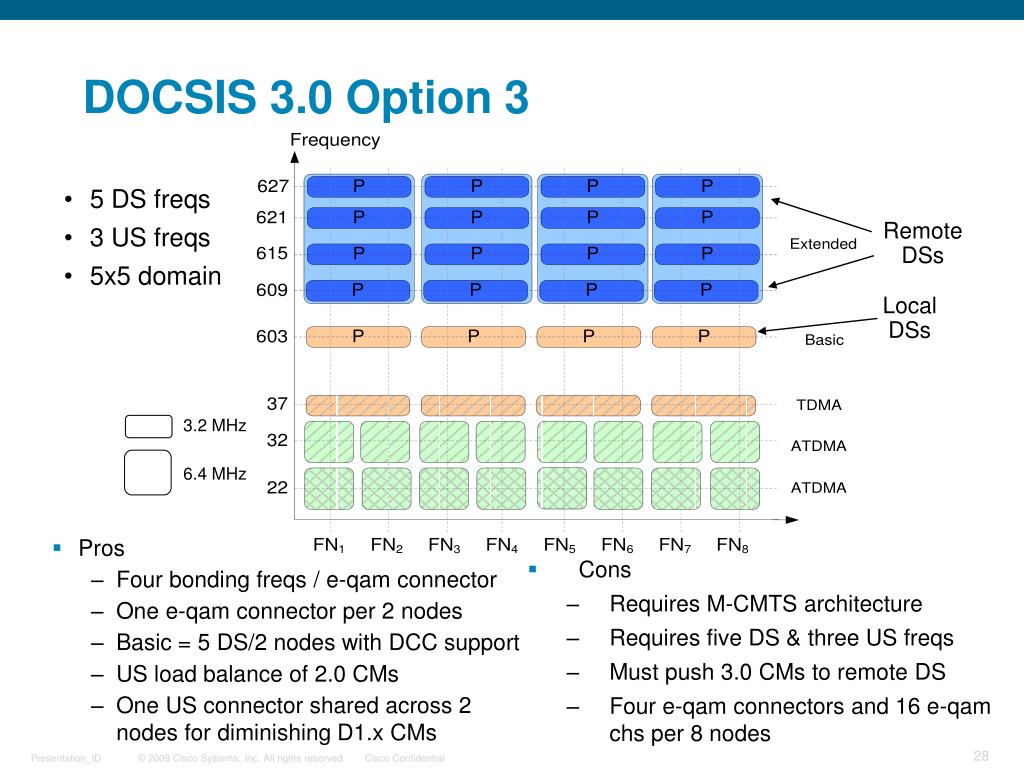

  17. Cons Requires M-CMTS architecture Requires five DS & three US freqs Must push 3.0 CMs to remote DS Four e-qam connectors and 16 e-qam chs per 8 nodes DOCSIS 3.0 Option 3 • Pros • Four bonding freqs / e-qam connector • One e-qam connector per 2 nodes • Basic = 5 DS/2 nodes with DCC support • US load balance of 2.0 CMs • One US connector shared across 2 nodes for diminishing D1.x CMs • 5 DS freqs • 3 US freqs • 5x5 domain Remote DSs Local DSs 3.2 MHz 6.4 MHz

  18. DOCSIS 3.0 DS Considerations • Frequency assignments • CMTS may be limited to 860 MHz or 1 GHz • Legacy CMs (1.x & 2.0) limited to 860 MHz bandedge • E-qam limited to contiguous 24 MHz or 4 channel slots • Annex A may only be 3 chs vs 4 for annex B • CMs may be limited to 50 or 60 MHz passband • M-CMTS architecture requires DTI and local USs • Distance limitation, time offset differences, level differences • Resiliency is another topic to address • If one DS frequency goes bad in the field, how will CMs recover or react?

  19. DOCSIS 3.0 DS Considerations (cont) • E-qam licensing? • CM requires 1.1 config file • More DS = more US • Testing and maintaining multiple DS channels • Physical chs have not changed for DOCSIS 3.0 • Test equip with built-in CMs need to support bonding • DS ch bonding max power with 4 freqs stacked • Four chs stacked on 1 connector limited to 52 dBmV/ch • DOCSIS 1.x/2.0 DS is 61 dBmV max output • DS isolation issues

  20. 61? DS0 U0 U1U2 U3 1x4 Potential Isolation Path 1x4 DS1 U0 U1U2 U3 DS Combiner DS Splitter 1x4 DS2 U0 U1U2 U3 DS Tx 1x4 DS3 U0 U1U2 U3 52? Edge-QAM DS Ports with Edge-QAM for DS Bonding DSs 0-3 = 603 MHz E-QAM = 609, 615, 621, & 627 MHz • Requires: • 5 DS freqs • 3 US freqs in each node Isolation amp

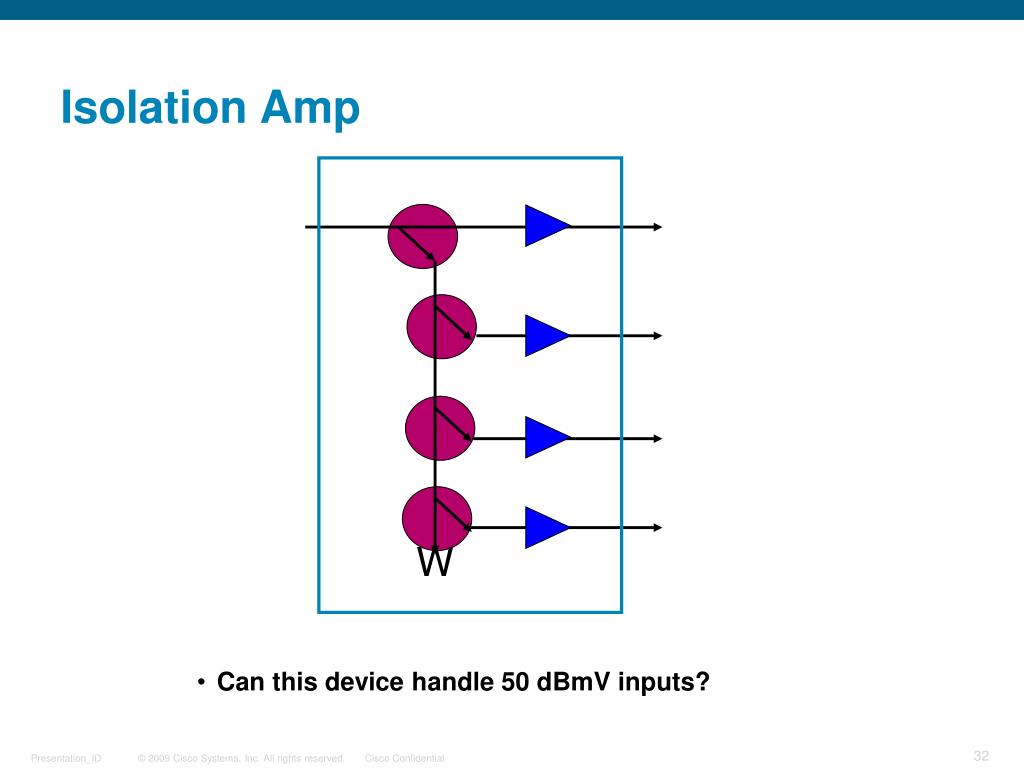

  21. W Isolation Amp • Can this device handle 50 dBmV inputs?

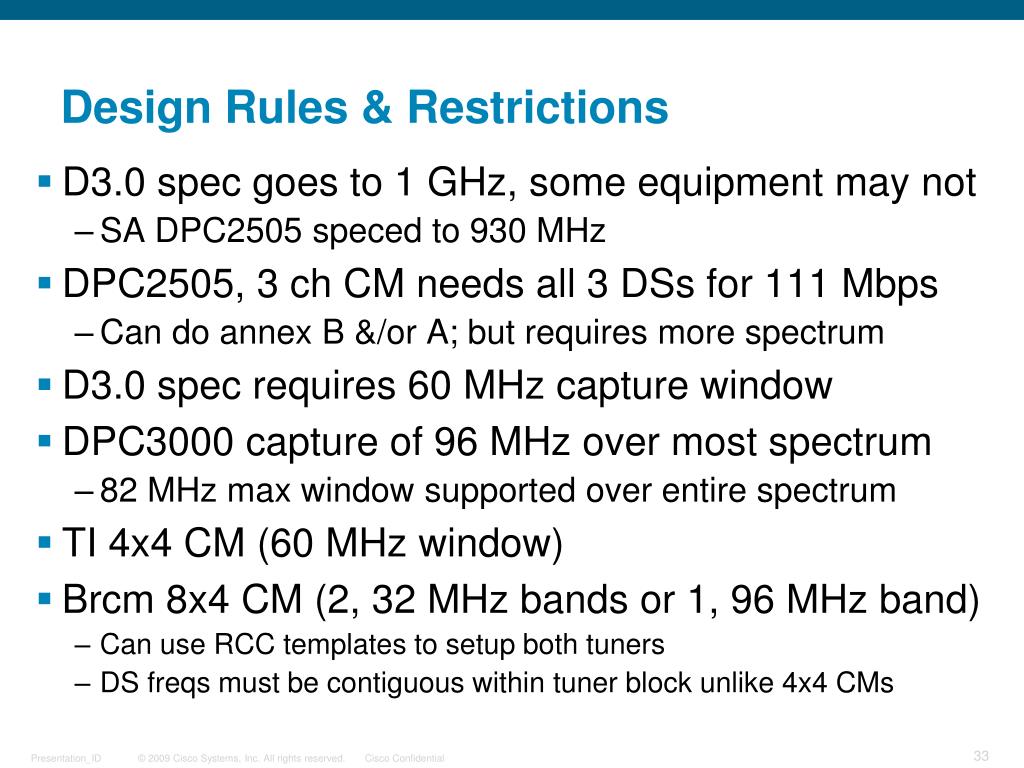

  22. Design Rules & Restrictions • D3.0 spec goes to 1 GHz, some equipment may not • SA DPC2505 speced to 930 MHz • DPC2505, 3 ch CM needs all 3 DSs for 111 Mbps • Can do annex B &/or A; but requires more spectrum • D3.0 spec requires 60 MHz capture window • DPC3000 capture of 96 MHz over most spectrum • 82 MHz max window supported over entire spectrum • TI 4x4 CM (60 MHz window) • Brcm 8x4 CM (2, 32 MHz bands or 1, 96 MHz band) • Can use RCC templates to setup both tuners • DS freqs must be contiguous within tuner block unlike 4x4 CMs

  23. Modem Steering • Restrict legacy eMTAs to Local DS • Enforce legacy CMs to only register on Primary-only DS or move to a specific DS frequency • Enforce legacy CMs to move to specific DS freq • Force 3.0-capable CMs to initialize on Remote DS • Can specify UCDs sent for each DS • Put voice call service flows on a primary DS • cable docsis30-voice downstream req-attr-mask 0 forb-attr-mask 80000000 • EDCS-668028 explains this feature

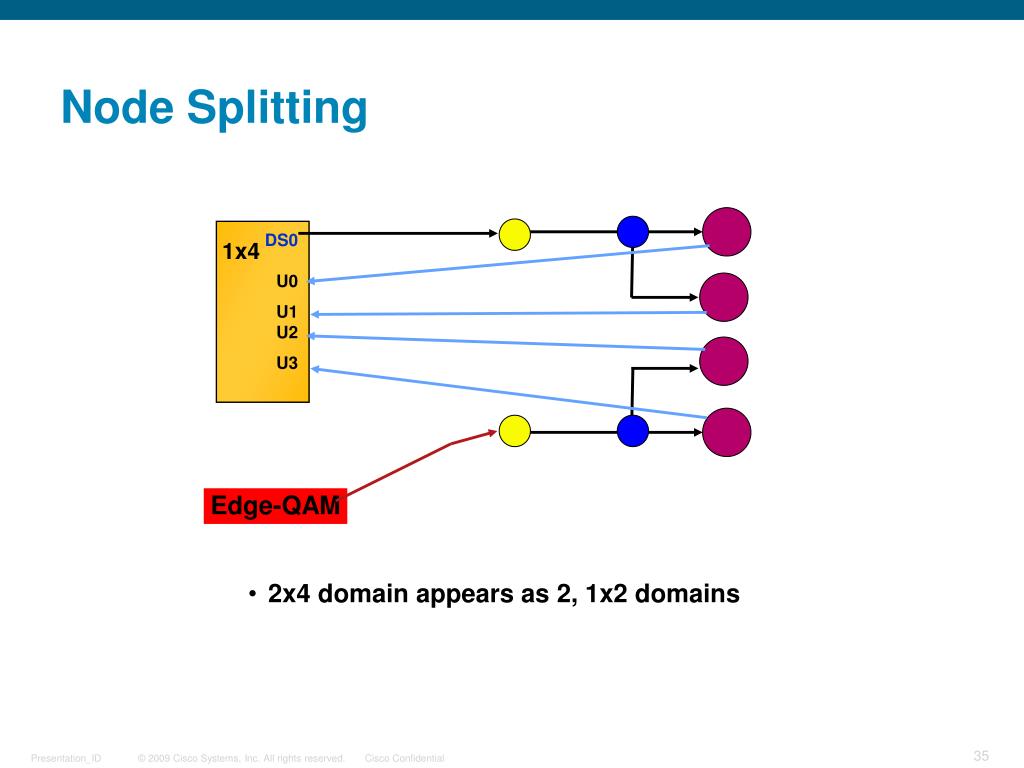

  24. Node Splitting DS0 U0 U1U2 U3 1x4 Edge-QAM • 2x4 domain appears as 2, 1x2 domains

  25. Summary • Cost effective and faster time to market • Decrease DS costs – deploy D3.0 later with no additional CMTS investment! • Targeted insertion of D3.0 • Leverage existing US chs while adding more DS capacity • Load balance 1.x/2.0 and enable D3.0 when needed • Minimizes capex & opex • Leverage D3.0 bonding for D2.0 tiers & services • Better stat-mux efficiency & improved consumer experience

  26. Summary (cont) • Long term D3.0 service planning • Insure optimized frequency allocation • Enable seamless upgrade to higher D3.0 tiers • Wire once & add QAM chs as tiers or service take-rates go up • End-to-end solution minimizes risk • CMTS, QAM, and CPE • Can also disable DS bonding • No cable mrc-mode • Per-CM exclude with vendor specific MIB or TLV
