Variants of Magnet Study: Ferrous Materials and Clamp Force Analysis

This study examines the properties of ferrous materials in magnetic applications, focusing on air gaps in Varian magnets. Two configurations are analyzed: one with a samarium-cobalt pole and the other with a neodymium pole, both paired with Alnico materials. The estimated clamp force for each unit is approximately 35 lb. Additionally, the leakage flux levels are measured, revealing values of less than 0.005T (5 Gauss) above the pole surface and under 0.015T (15 Gauss) below, measured at 1 inch away from the unit. This study contributes critical insights for magnetic system designs.

donnan
Télécharger la présentation

Variants of Magnet Study: Ferrous Materials and Clamp Force Analysis

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

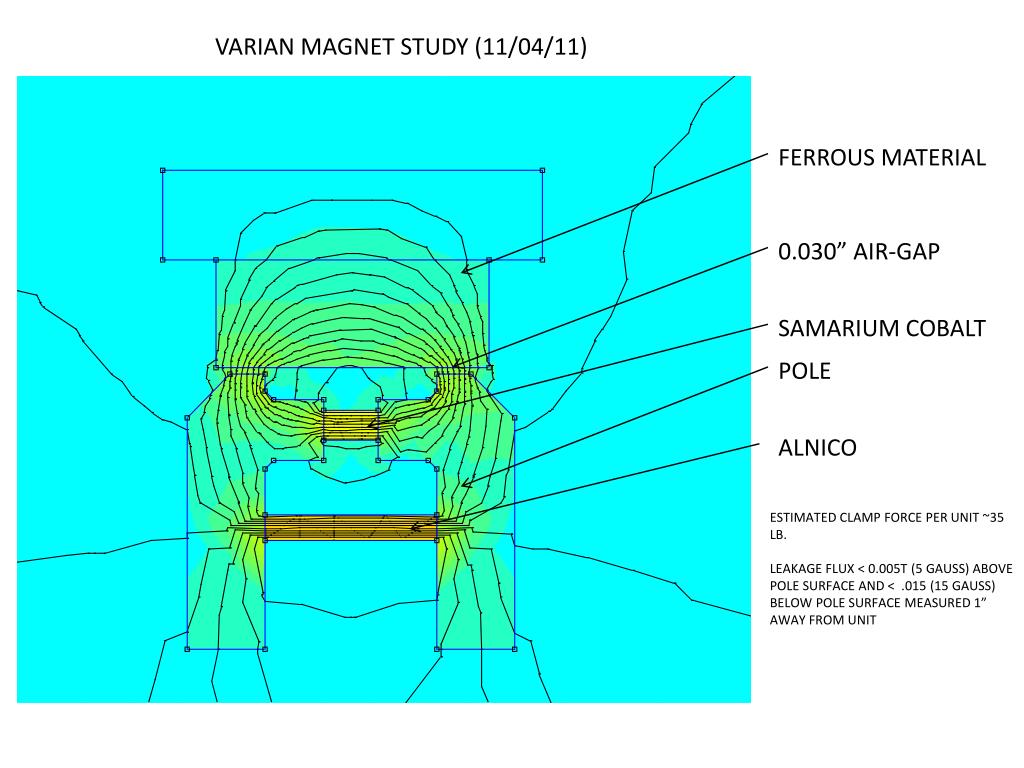

  1. VARIAN MAGNET STUDY (11/04/11) FERROUS MATERIAL 0.030” AIR-GAP SAMARIUM COBALT POLE ALNICO ESTIMATED CLAMP FORCE PER UNIT ~35 LB. LEAKAGE FLUX < 0.005T (5 GAUSS) ABOVE POLE SURFACE AND < .015 (15 GAUSS) BELOW POLE SURFACE MEASURED 1” AWAY FROM UNIT

  2. VARIAN MAGNET STUDY (11/26/12) FERROUS MATERIAL 0.030” AIR-GAP Neodymium 42 SH POLE ALNICO ESTIMATED CLAMP FORCE PER UNIT ~35 LB. LEAKAGE FLUX < 0.005T (5 GAUSS) ABOVE POLE SURFACE AND < .010 (10 GAUSS) BELOW POLE SURFACE MEASURED 1” AWAY FROM UNIT
