Magnetic Force Study on Varian Magnet with Ferrous Material and Air Gap

This study investigates a Varian magnet composed of ferrous material with a 0.030” air gap. The focus is on the properties of the magnet, specifically the estimated clamp force per unit, which is approximately 35 pounds. Additionally, measurements of leakage flux are detailed, revealing values below 0.005 Tesla (5 Gauss) above the pole surface and below 0.015 Tesla (15 Gauss) one inch away from the unit. Understanding these characteristics is crucial for the optimization of magnetic applications in varied settings.

howie
Télécharger la présentation

Magnetic Force Study on Varian Magnet with Ferrous Material and Air Gap

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

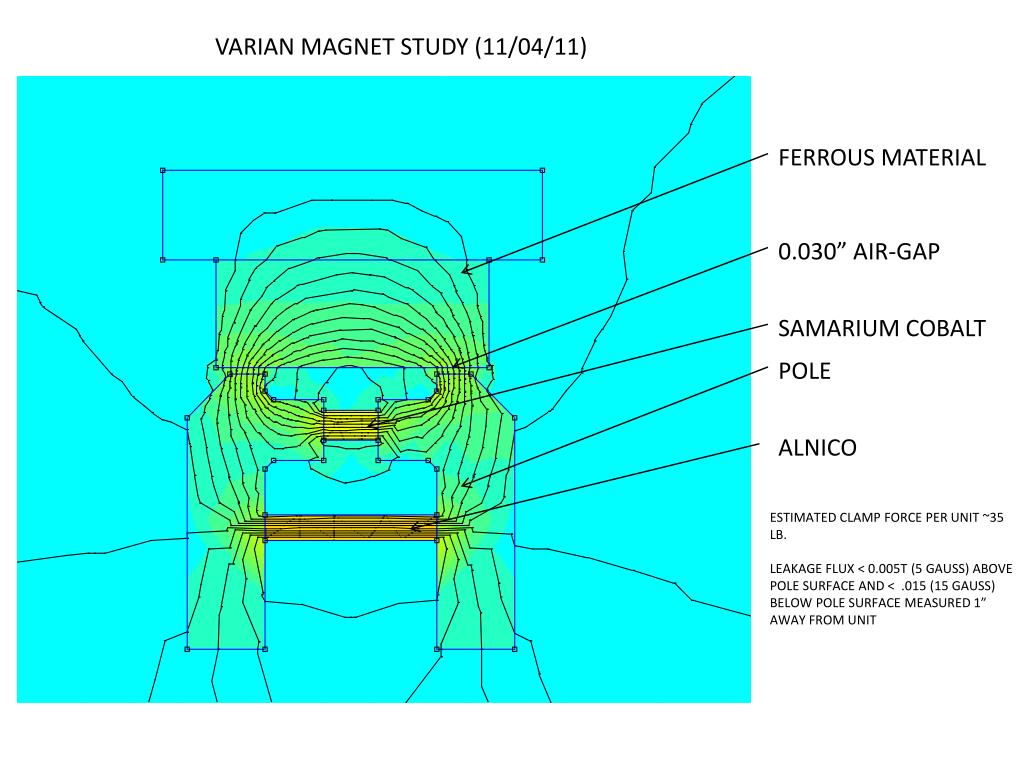

  1. VARIAN MAGNET STUDY (11/04/11) FERROUS MATERIAL 0.030” AIR-GAP SAMARIUM COBALT POLE ALNICO ESTIMATED CLAMP FORCE PER UNIT ~35 LB. LEAKAGE FLUX < 0.005T (5 GAUSS) ABOVE POLE SURFACE AND < .015 (15 GAUSS) BELOW POLE SURFACE MEASURED 1” AWAY FROM UNIT
