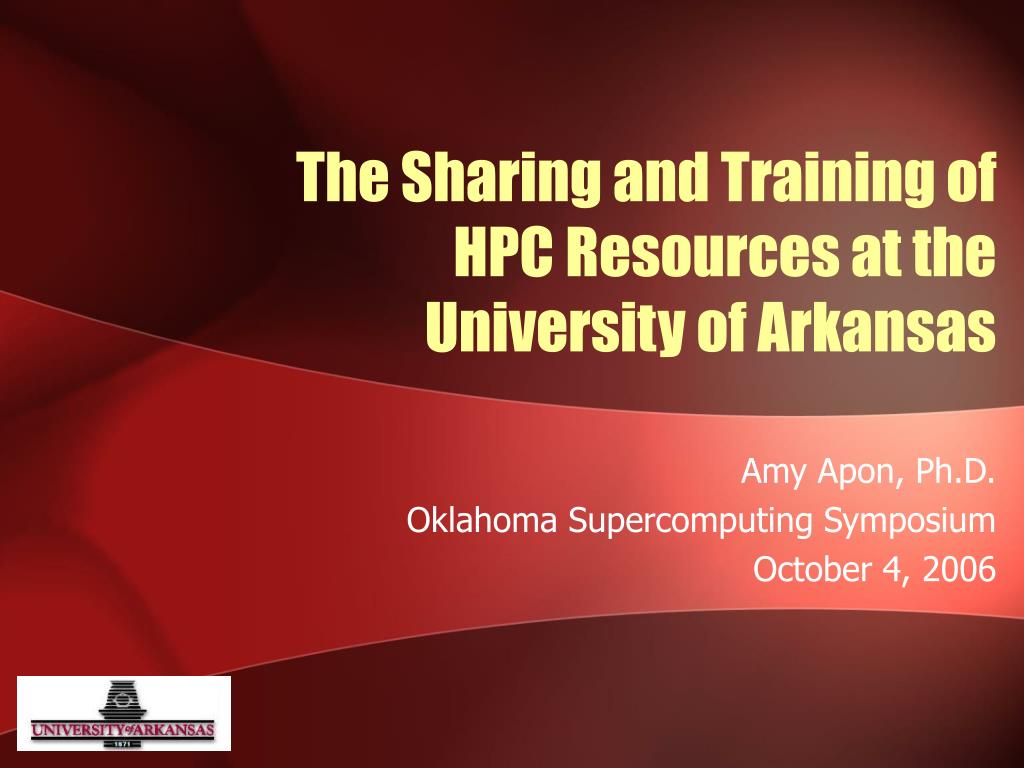

  1. The Sharing and Training of HPC Resources at the University of Arkansas Amy Apon, Ph.D. Oklahoma Supercomputing Symposium October 4, 2006

  2. Outline of Talk • HPC at the University of Arkansas • Current status • A New Mechanism for Sharing Resources • AREON • HPC Training • New course delivery via HDTV collaboration with LSU • Collaboration opportunities and challenges • GPNGrid and SURAGrid • Resource allocation issues Amy Apon, Ph.D. ● University of Arkansas ● October 4, 2006

  3. High Performance Computing Resourcesat the University of Arkansas • Red Diamond supercomputer • NSF MRI grant, August, 2004 • Substantial University match • Substantial gift from Dell • First supercomputer in Arkansas • Number 379 on the Top 500 list, June, 2005 • 128 node (256 processor), 1.349 TFlops Amy Apon, Ph.D. ● University of Arkansas ● October 4, 2006

  4. More Resources • Prospero cluster • 30 dual processor PIII nodes • SURAGrid resource • Ace cluster • 4 dual processor Opteron • Our entry point to the GPNGrid/Open Science Grid • Trillion cluster • 48 dual processor Opteron • Owned by Mechanical Engineering • About 1TFlop Amy Apon, Ph.D. ● University of Arkansas ● October 4, 2006

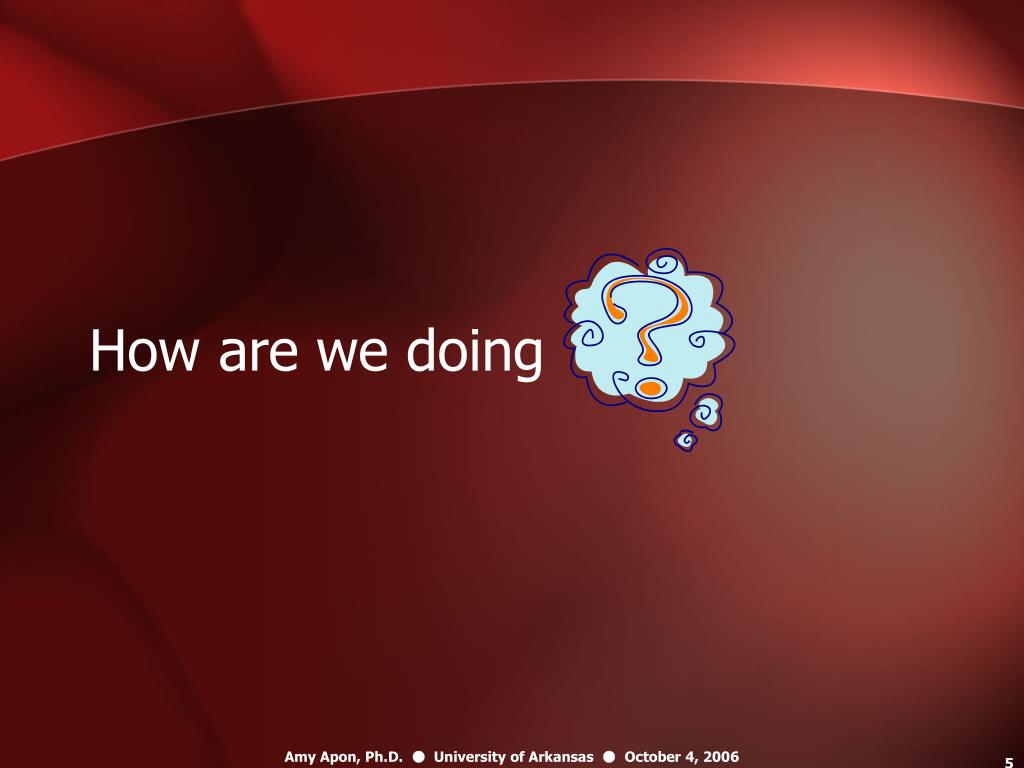

  5. How are we doing Amy Apon, Ph.D. ● University of Arkansas ● October 4, 2006

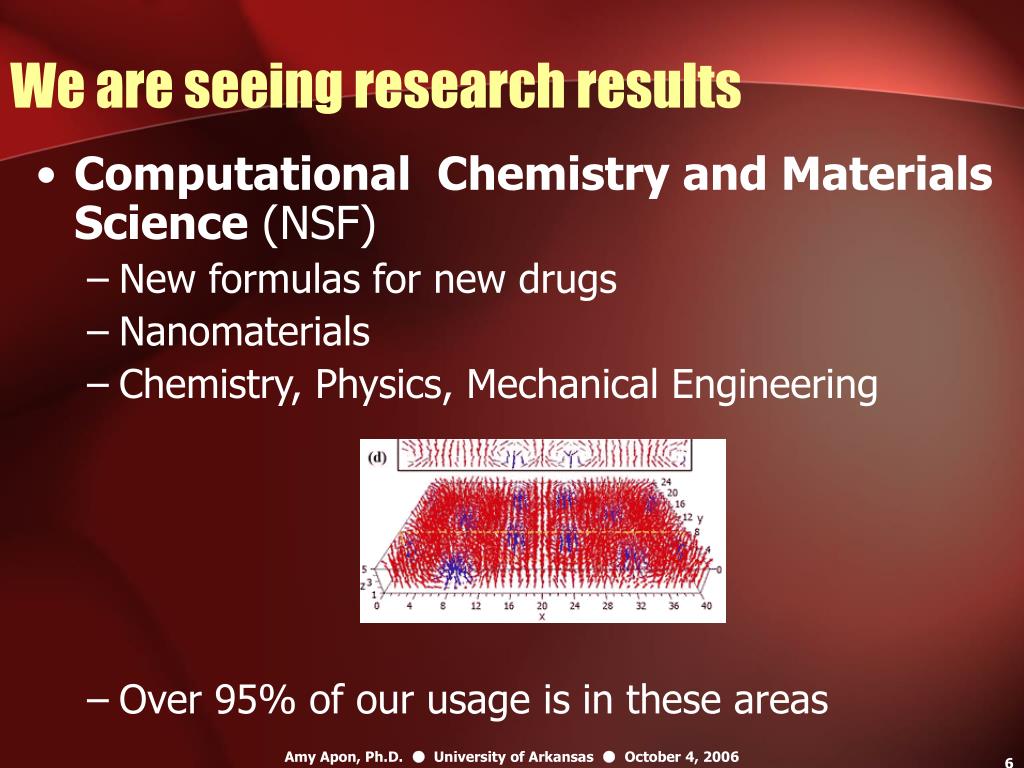

  6. We are seeing research results • Computational Chemistry and Materials Science (NSF) • New formulas for new drugs • Nanomaterials • Chemistry, Physics, Mechanical Engineering • Over 95% of our usage is in these areas Amy Apon, Ph.D. ● University of Arkansas ● October 4, 2006

  7. Research results in other areas, also • Multiscale Modeling • DNA Computing • Middleware and HPC Infrastructure • Tools for managing data for large-scale applications (NSF) • Performance modeling of grid systems (Acxiom) Amy Apon, Ph.D. ● University of Arkansas ● October 4, 2006

  8. We have done some significant upgrades • For the first year we used SGE on half the computer and half of the computer was self-scheduled PVM jobs • LSF scheduler installed May 2006 • About 60 users, about 10 very active users Amy Apon, Ph.D. ● University of Arkansas ● October 4, 2006

  9. Thanks to LSF, we are busy LSF Daily Pending Parallel Job Statistics by Queue (jobs waiting) Amy Apon, Ph.D. ● University of Arkansas ● October 4, 2006

  10. And jobs have to wait LSF Hourly Turnaround Time of Normal Queue Amy Apon, Ph.D. ● University of Arkansas ● October 4, 2006

  11. We have something exciting to share Amy Apon, Ph.D. ● University of Arkansas ● October 4, 2006

  12. AREON Arkansas Research and Education Optical Network TULSA Fayetteville Jonesboro Russellville Fort Smith Conway MEMPHIS We ARE ON ! Little Rock Pine Bluff Arkadelphia Monticello DALLAS Magnolia 25-July-2006 MONROE

  13. AREON Arkansas Research and Education Optical Network • The first bond issue (last fall) failed • Governor Huckabee of Arkansas granted $6.4M • (PI Zimmerman) • MBO loop between Tulsa and Fayetteville fiber is in place, network hardware is being shipped • The campus (last mile) connections are in progress • All is on target for a demo to the Governor on 12/5/06! TULSA Fayetteville Jonesboro Russellville FortSmith Conway MEMPHIS Little Rock PineBluff Arkadelphia Monticello DALLAS Magnolia MONROE

  14. AREON Arkansas Research and Education Optical Network • This fall, Uark will have connectivity to Internet2 and • the National Lambda Rail • The bond issue is on the ballot again this coming fall • If it passes then the other research institutions • will be connected to AREON • We hope this happens! • The timeframe for this is about a year and a half Amy Apon, Ph.D. ● University of Arkansas ● October 4, 2006

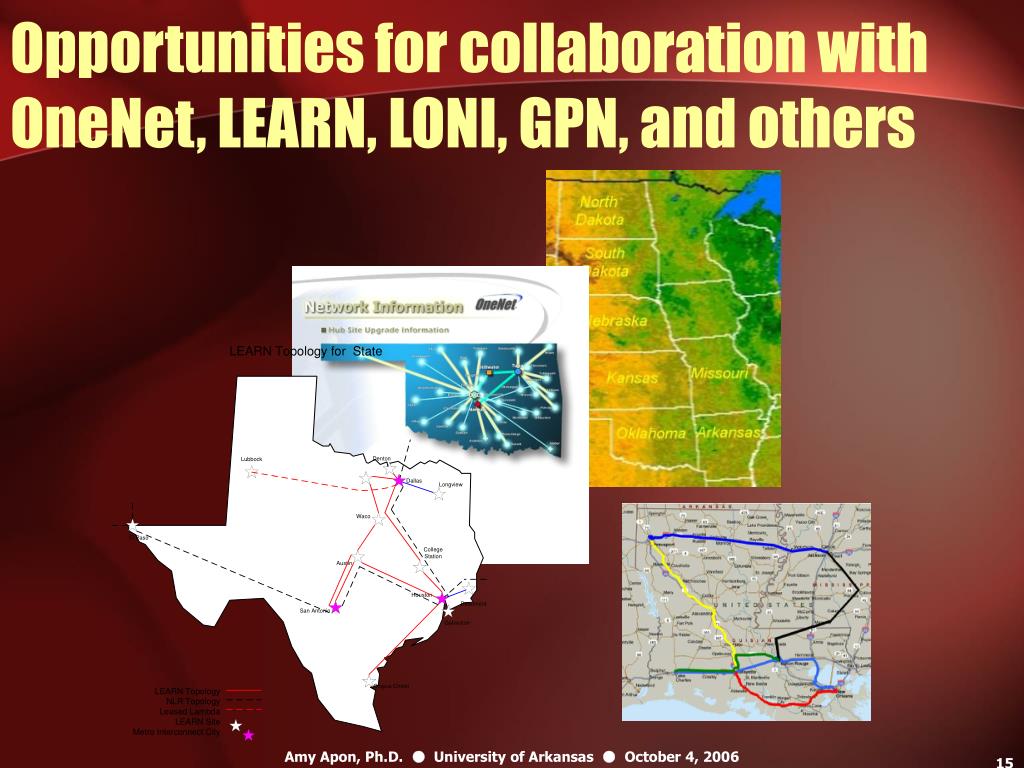

  15. Opportunities for collaboration with OneNet, LEARN, LONI, GPN, and others Amy Apon, Ph.D. ● University of Arkansas ● October 4, 2006

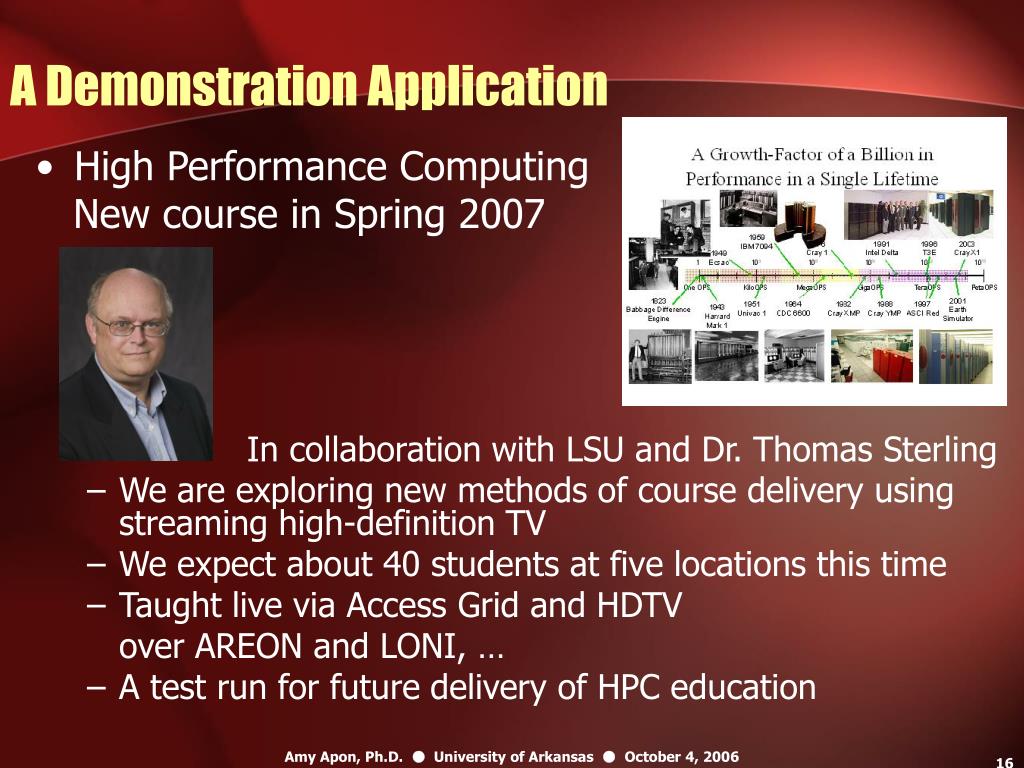

  16. A Demonstration Application • High Performance Computing New course in Spring 2007 In collaboration with LSU and Dr. Thomas Sterling • We are exploring new methods of course delivery using streaming high-definition TV • We expect about 40 students at five locations this time • Taught live via Access Grid and HDTV over AREON and LONI, … • A test run for future delivery of HPC education Amy Apon, Ph.D. ● University of Arkansas ● October 4, 2006

  17. Collaboration via GPN Grid • Active middleware collaboration for almost 3 years • GPNGrid is in the process of making application as a new Virtual Organization in Open Science Grid • Sponsored by University of Nebraska – Lincoln, includes participants from Arkansas, UNL, Missouri, KU, KSU, OU • Hardware grant from Sun and NSF provide 4 small Opteron clusters for the starting grid environment • Applications are in the process of being defined Amy Apon, Ph.D. ● University of Arkansas ● October 4, 2006

  18. Collaboration via SURA Grid • Uark has a 30-node Pentium cluster in SURAGrid • Some differences with GPN • CA is different • Account management, discovery stacks are different • AUP policy is different • SURA Grid applications are increasing. Uark can run coastal • modeling and is open to running other SURA applications Amy Apon, Ph.D. ● University of Arkansas ● October 4, 2006

  19. More Collaboration Mechanisms • Arkansas is participating with the recently awarded CI-TEAM award to OU, PI Neeman • Will deploy Condor across Oklahoma and with participating collaborators • LSF Multicluster provides another mechanism for collaboration • AREON will give the University of Arkansas great bandwidth Amy Apon, Ph.D. ● University of Arkansas ● October 4, 2006

  20. UofA Current HPC Challenges • We have some I/O infrastructure challenges • The system was designed to have a large amount of storage, but it is not fast • Supercomputing operations • AC, power, and UPS need to be upgraded • Funding models for on-going operations • How will basic systems administration and project director be funded? Amy Apon, Ph.D. ● University of Arkansas ● October 4, 2006

  21. Collaboration and sharing bring a challenge • Usage policies • How do you partition usage fairly among existing users? • How do you incorporate usage from new faculty? Current policy uses a fair-share scheduling policy. Dynamic Priority = (# shares) / (#slots*F1 + cpu_time*F2 + run_time*F3); Shares divided among largest users groups: chem, phys, others Amy Apon, Ph.D. ● University of Arkansas ● October 4, 2006

  22. Collaboration and sharing bring a challenge • Are max run times needed? • Almost everyone has them • Requires checkpointing of jobs which is hard to do with our current I/O infrastructure • Requires user education and a change of culture • Are user allocations and accounting of usage needed? • Your suggestions here Amy Apon, Ph.D. ● University of Arkansas ● October 4, 2006

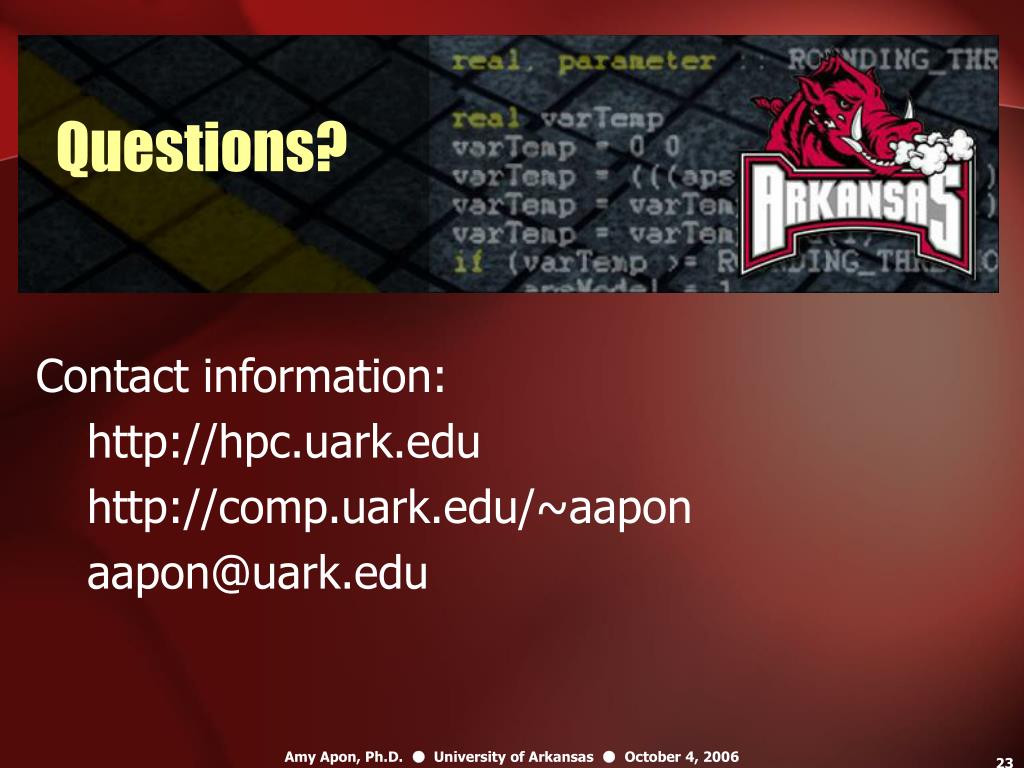

  23. Questions? Contact information: http://hpc.uark.edu http://comp.uark.edu/~aapon aapon@uark.edu Amy Apon, Ph.D. ● University of Arkansas ● October 4, 2006
