2D Standard Drawings (Orthographic Projections)

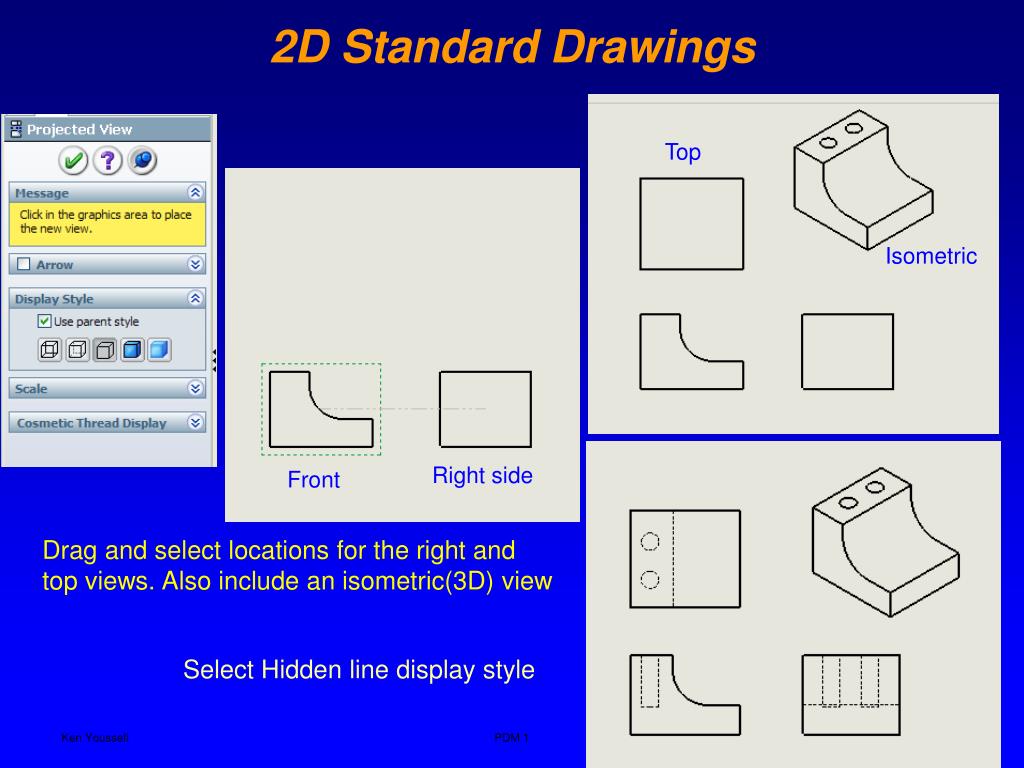

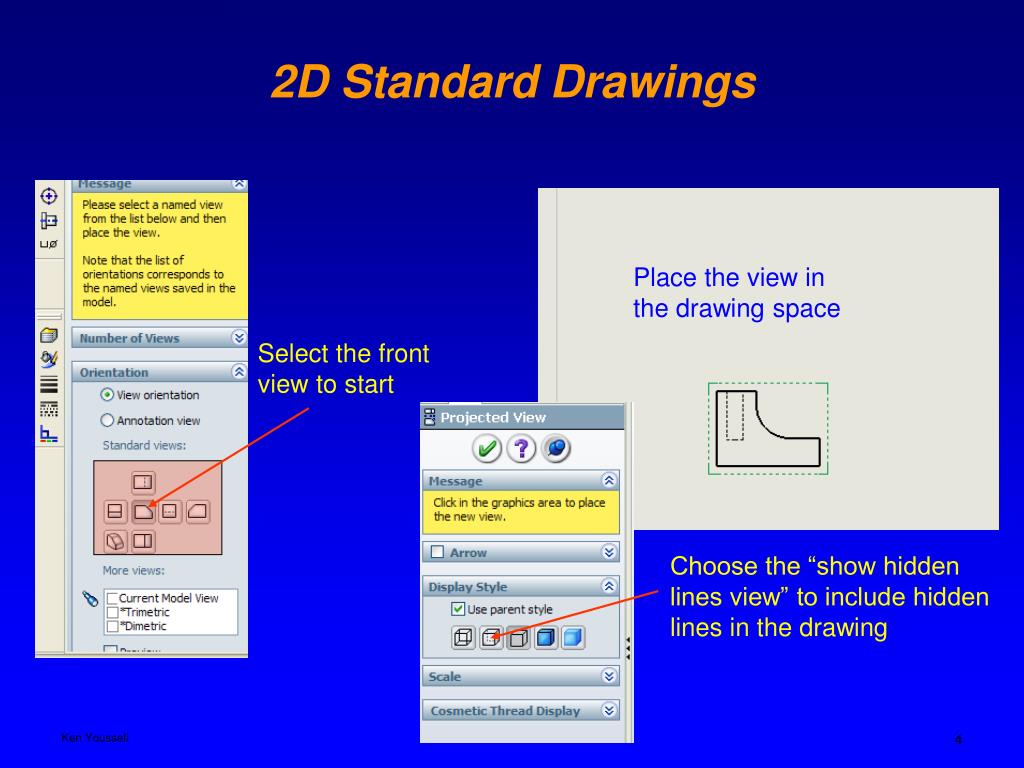

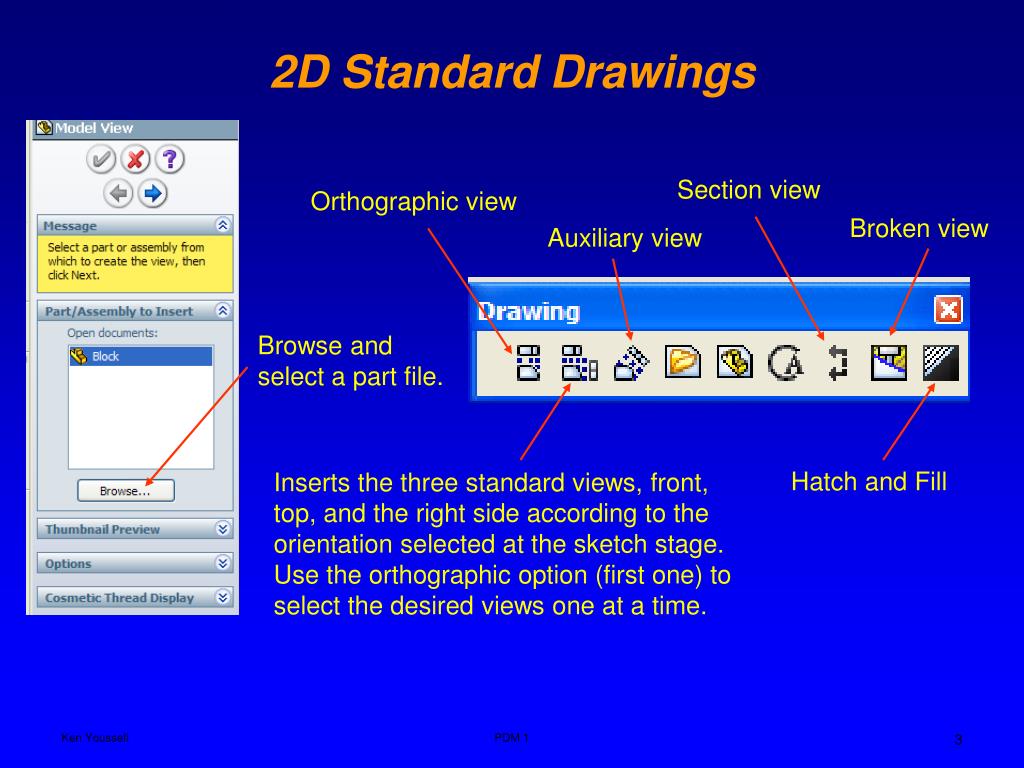

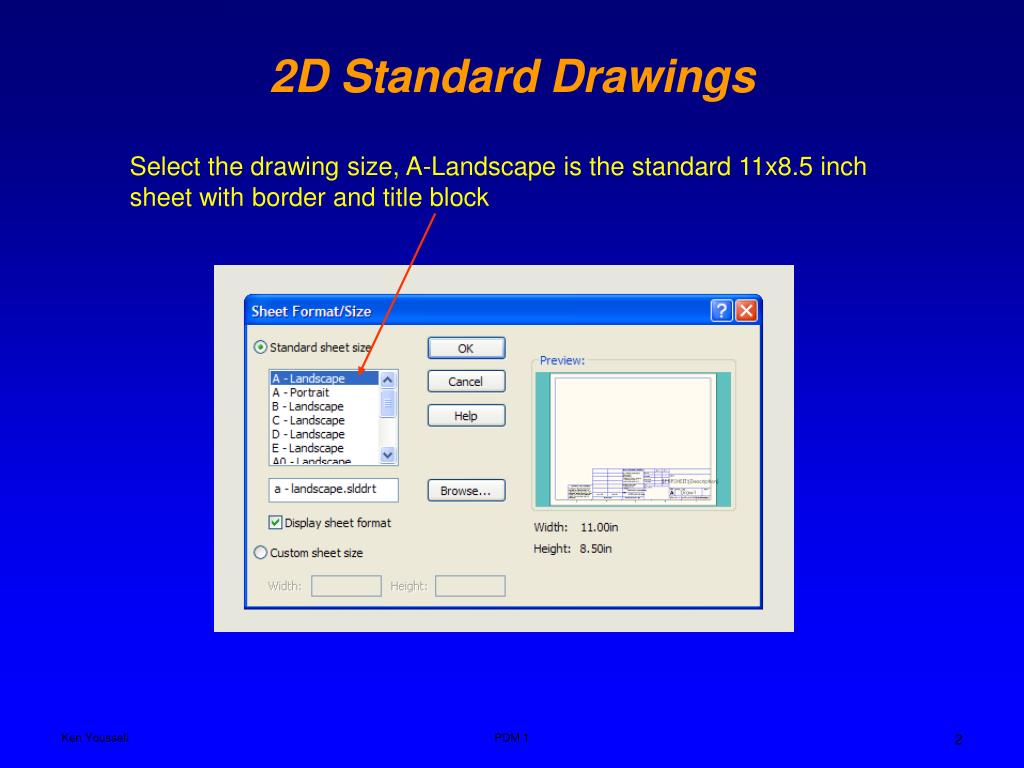

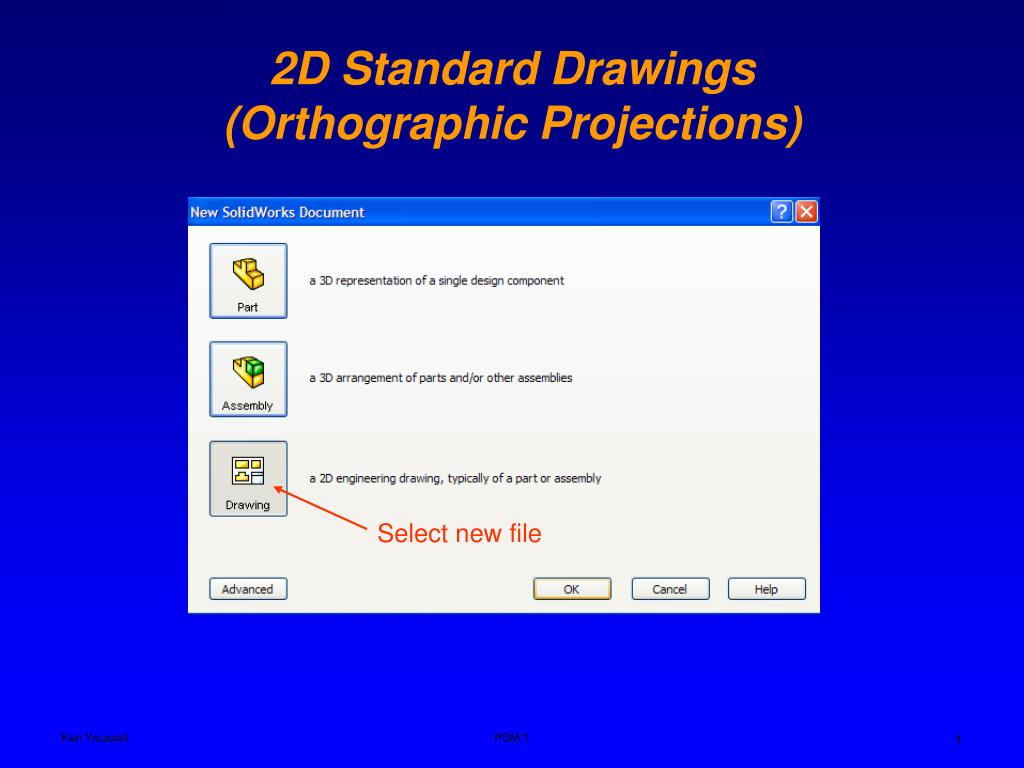

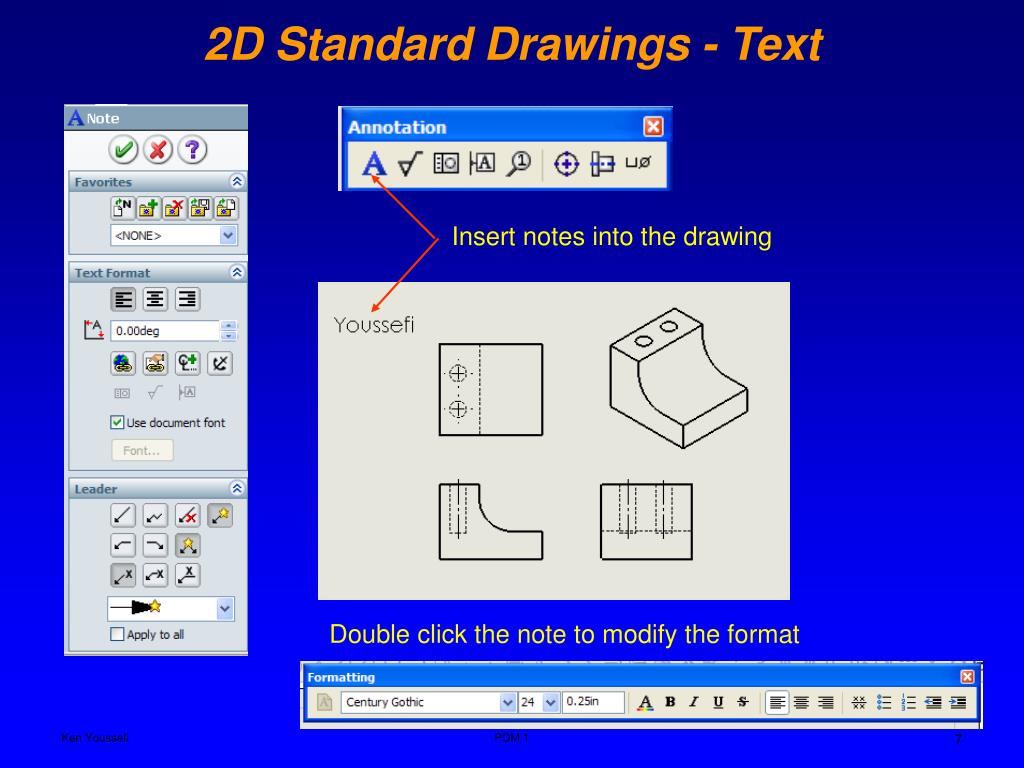

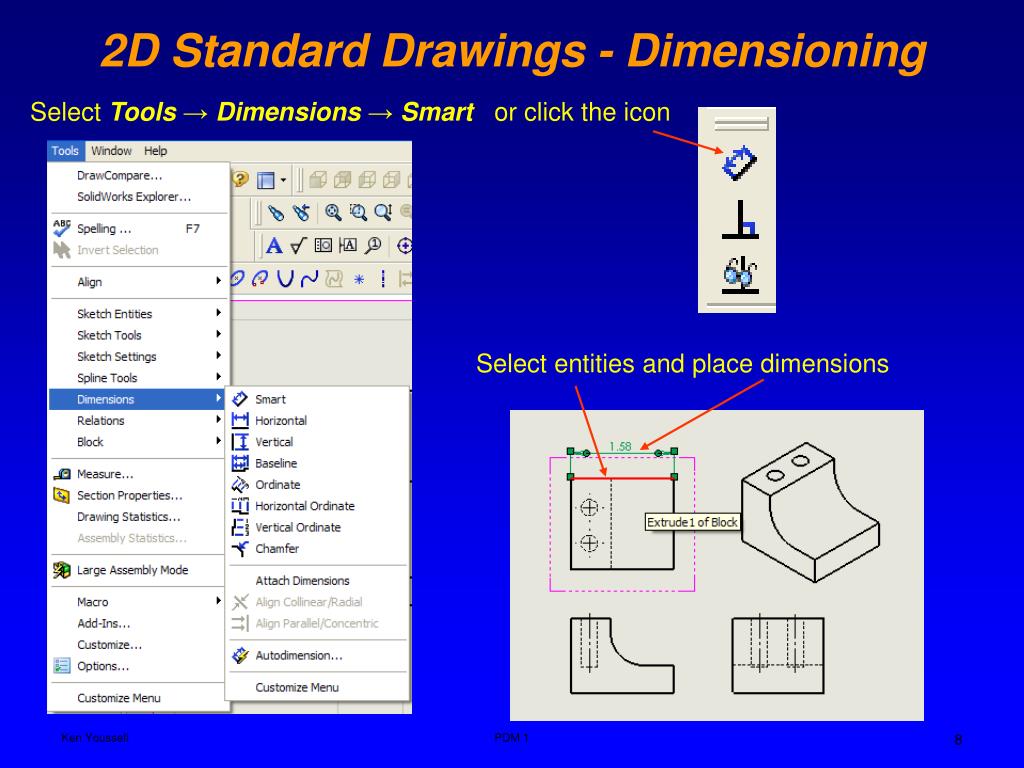

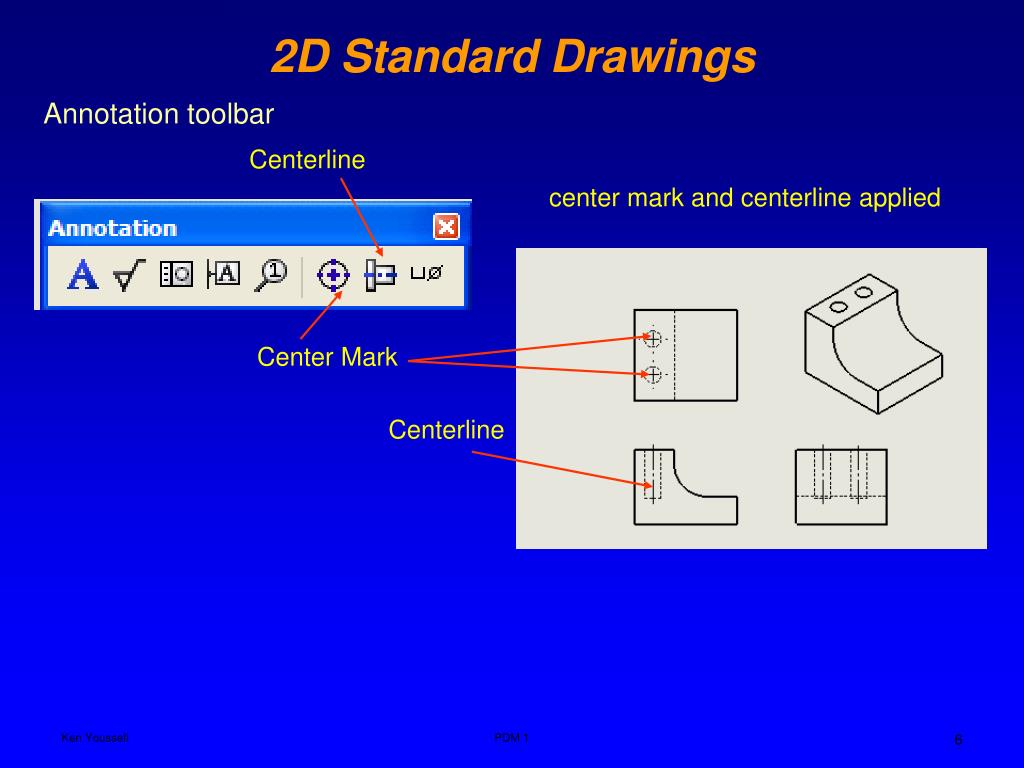

2D Standard Drawings (Orthographic Projections). Select new file. 2D Standard Drawings. Select the drawing size, A-Landscape is the standard 11x8.5 inch sheet with border and title block. Section view. Orthographic view. Broken view. Auxiliary view. Hatch and Fill.
