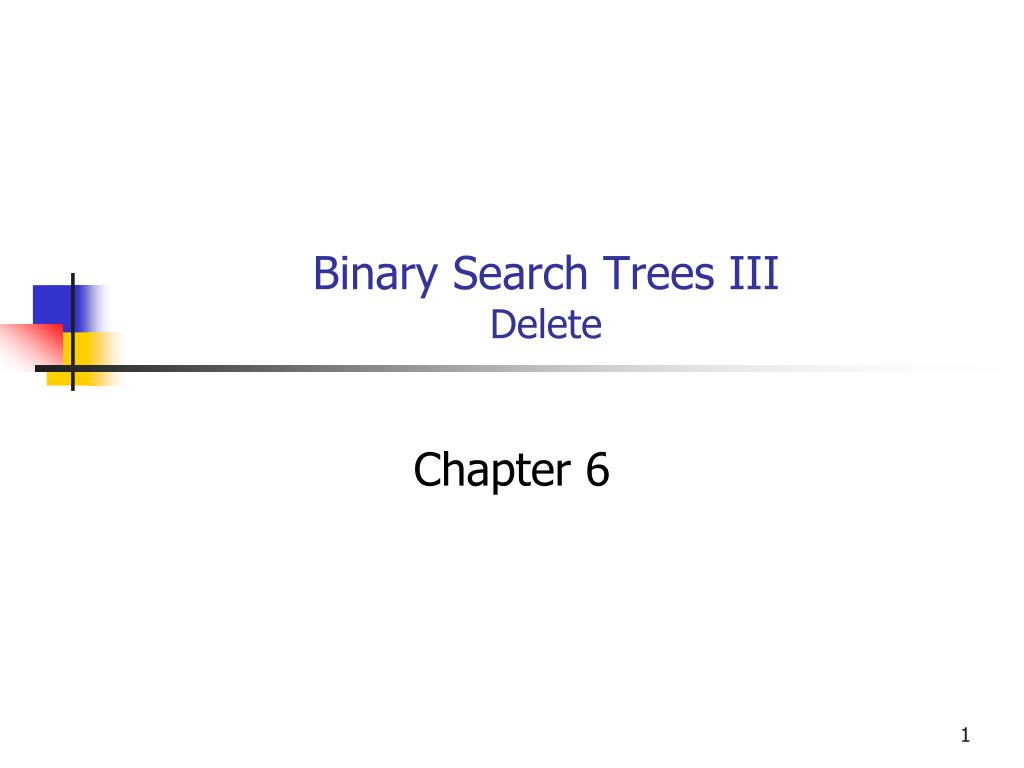

1. Binary Search Trees IIIDelete Chapter 6

2. Objectives • You will be able to write code to delete a node from a Binary Search Tree.

3. Issues in Deletion from a BST • Deleting a node from a BST is more complex than adding a node. • We have to ensure that the BST is still a binary tree after we delete a node. • And that the BST constraints are still met. • Everything to the left of any node is <=. • Everything to the right of any node is >=.

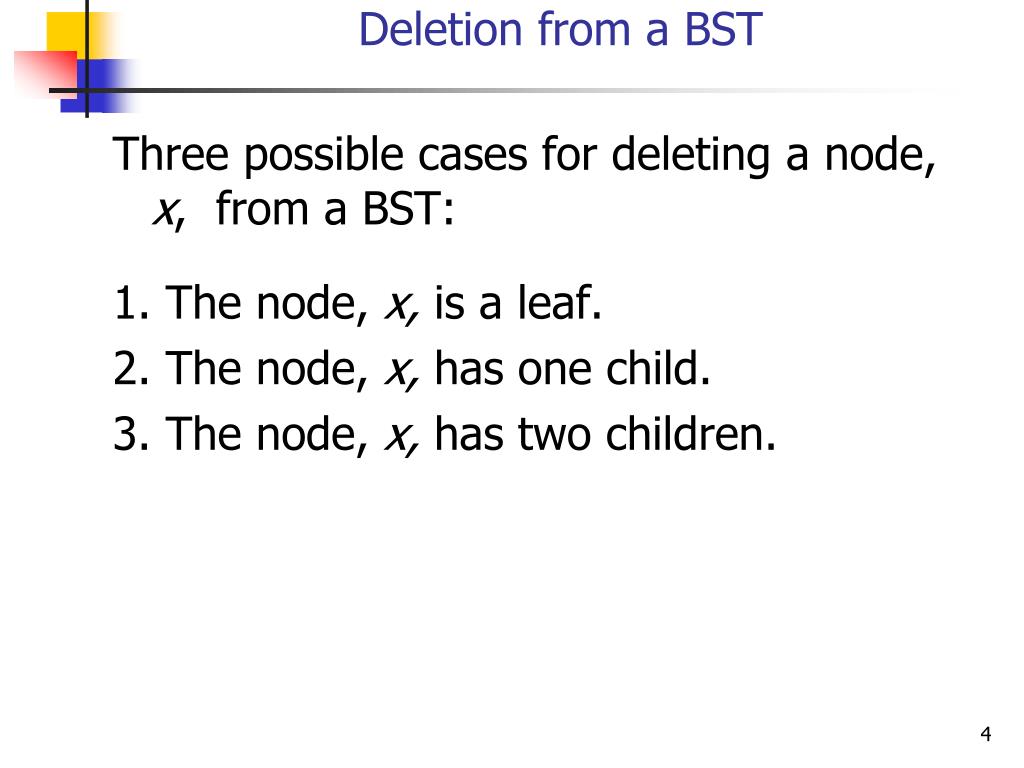

4. Deletion from a BST Three possible cases for deleting a node, x, from a BST: 1. The node, x, is a leaf. 2. The node, x, has one child. 3. The node, x, has two children.

5. Deleting a Leaf Case 1. The node, x, is a leaf.

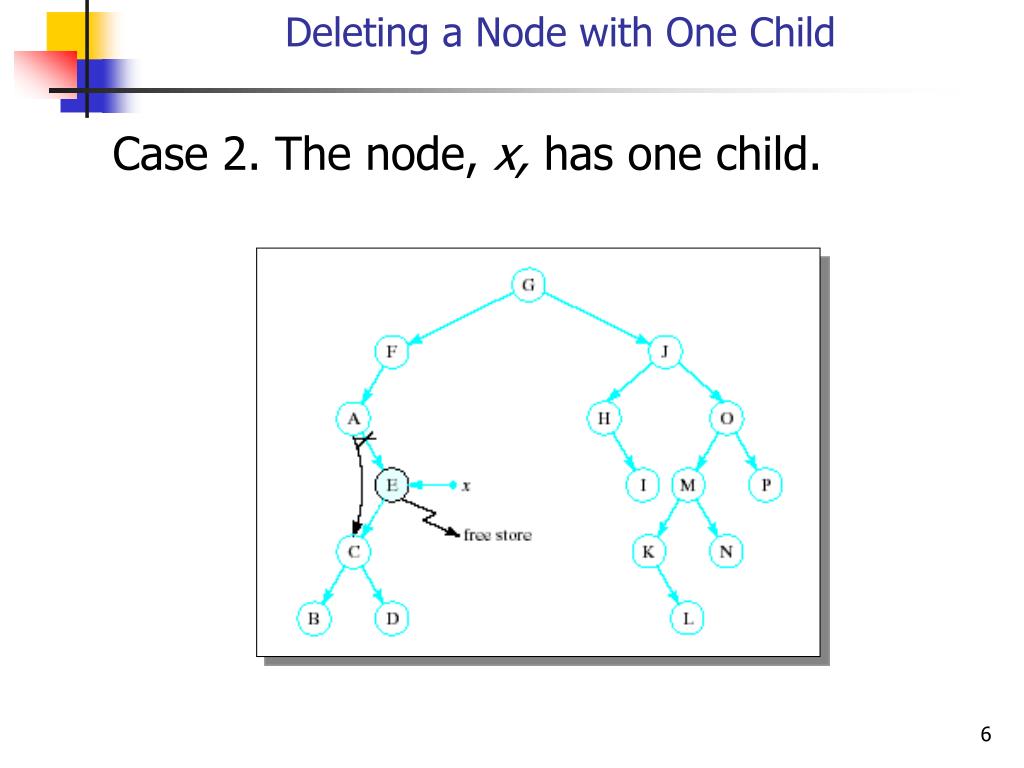

6. Deleting a Node with One Child Case 2. The node, x, has one child.

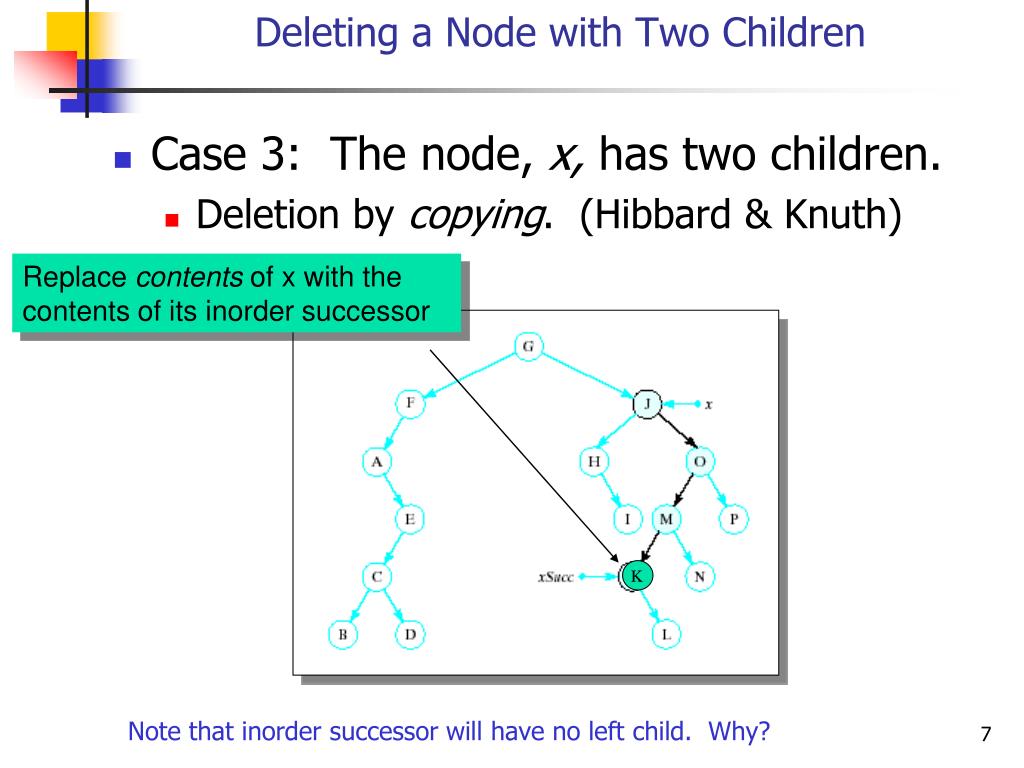

7. Deleting a Node with Two Children K • Case 3: The node, x, has two children. • Deletion by copying. (Hibbard & Knuth) Replace contents of x with the contents of its inorder successor Note that inorder successor will have no left child. Why?

8. Deleting a Node with Two Children Delete the former inorder successor node as described for cases 1 and 2 K The node that was the inorder successor will either be a leaf or have one child (a right child.) In this example it has a right child.

9. Implementing Deletion • Download most recent version of BST. • http://www.cse.usf.edu/~turnerr/Data_Structures/Downloads/2011_03_21_Delete_Node/ • BST_Vertical_Display • Expand. • Build and run. • Rename folder BST_with_Delete

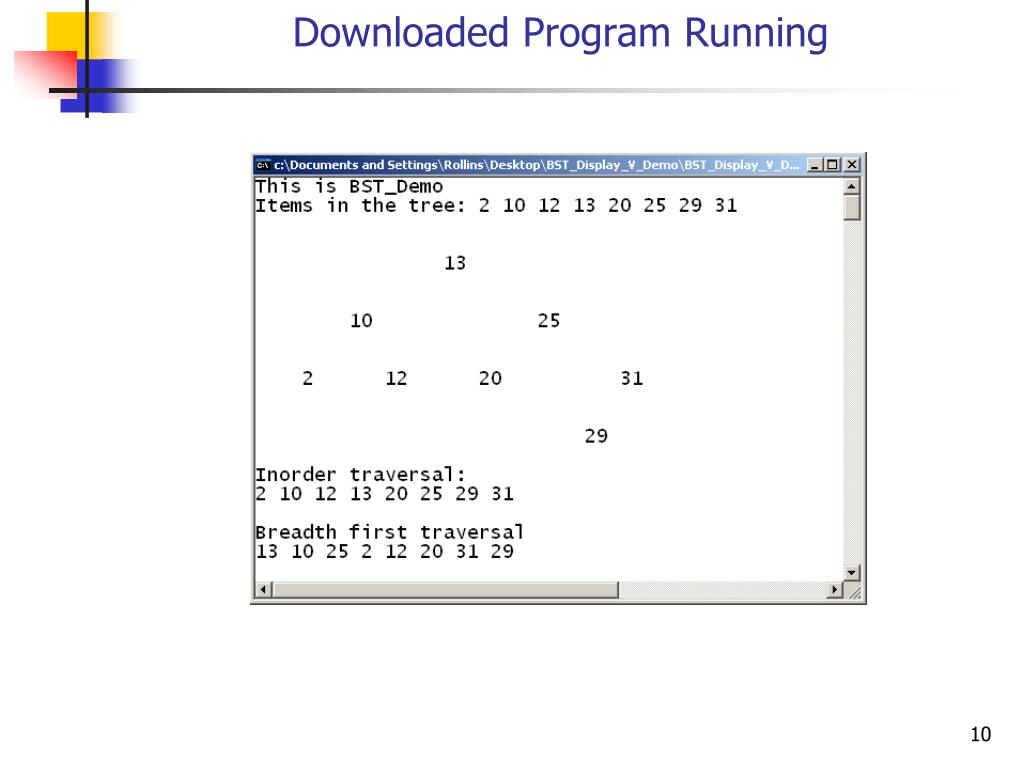

10. Downloaded Program Running

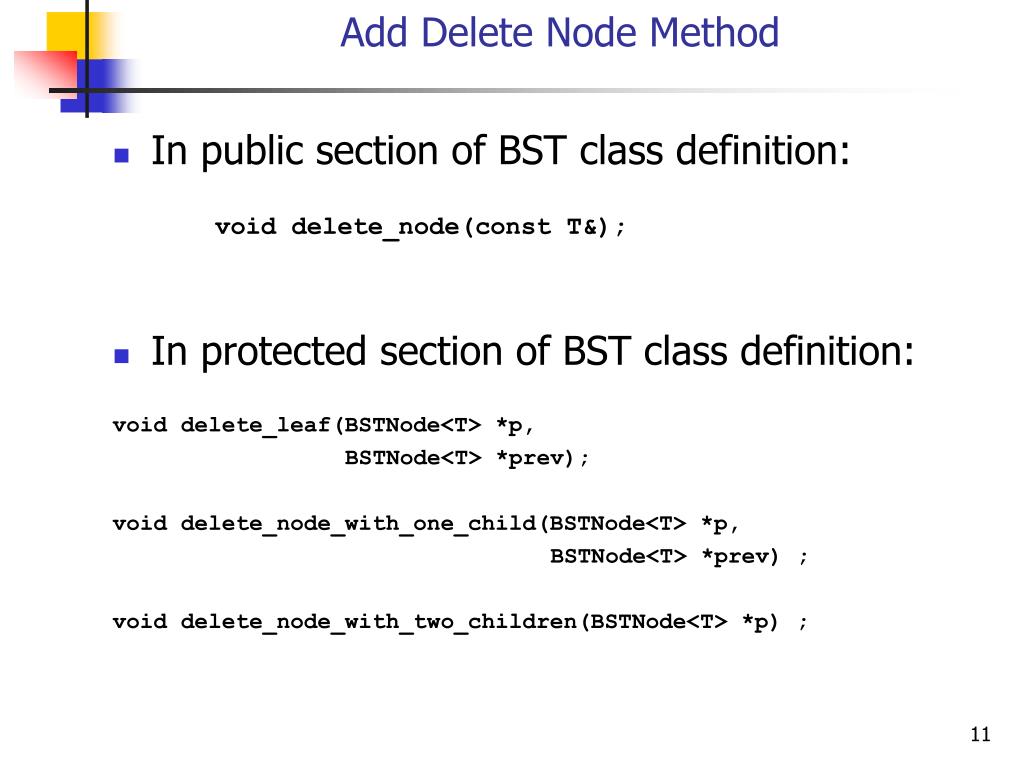

11. Add Delete Node Method • In public section of BST class definition: void delete_node(const T&); • In protected section of BST class definition: void delete_leaf(BSTNode<T> *p, BSTNode<T> *prev); void delete_node_with_one_child(BSTNode<T> *p, BSTNode<T> *prev) ; void delete_node_with_two_children(BSTNode<T> *p) ;

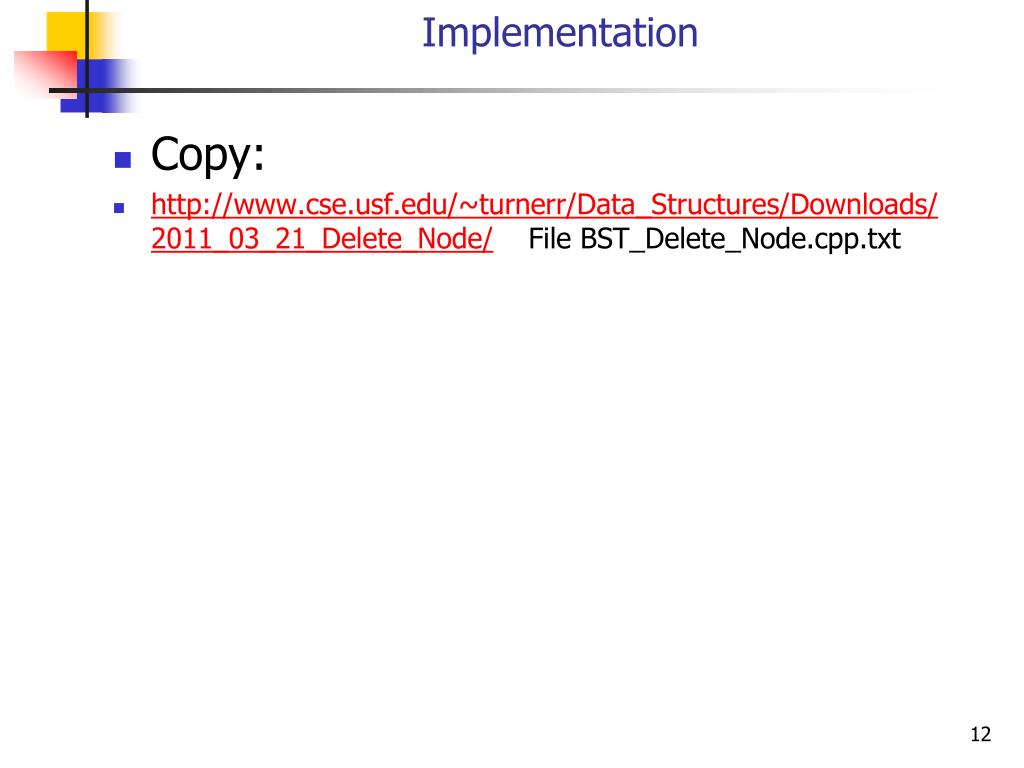

12. Implementation • Copy: • http://www.cse.usf.edu/~turnerr/Data_Structures/Downloads/2011_03_21_Delete_Node/ File BST_Delete_Node.cpp.txt

13. Below Class Defintion template<class T> void BST<T>::delete_node(const T& el) { BSTNode<T> *p = root; BSTNode<T> *prev = 0; // Find node to be deleted. while (p != 0 && !(p->key == el)) { prev = p; if (p->key < el) { p = p->right; } else { p = p->left; } }

14. Delete Node Method (continued) if (p == 0) { // Declare success! cout << el << " is not in the tree\n"; return; } // p points to the node to be deleted. if ((p->left != 0) && (p->right != 0)) { // Delete node with two children abort(); // Not yet implemented } if ((p->left != 0) || (p->right != 0)) { // Delete node with one child. abort(); // Not yet implemented }

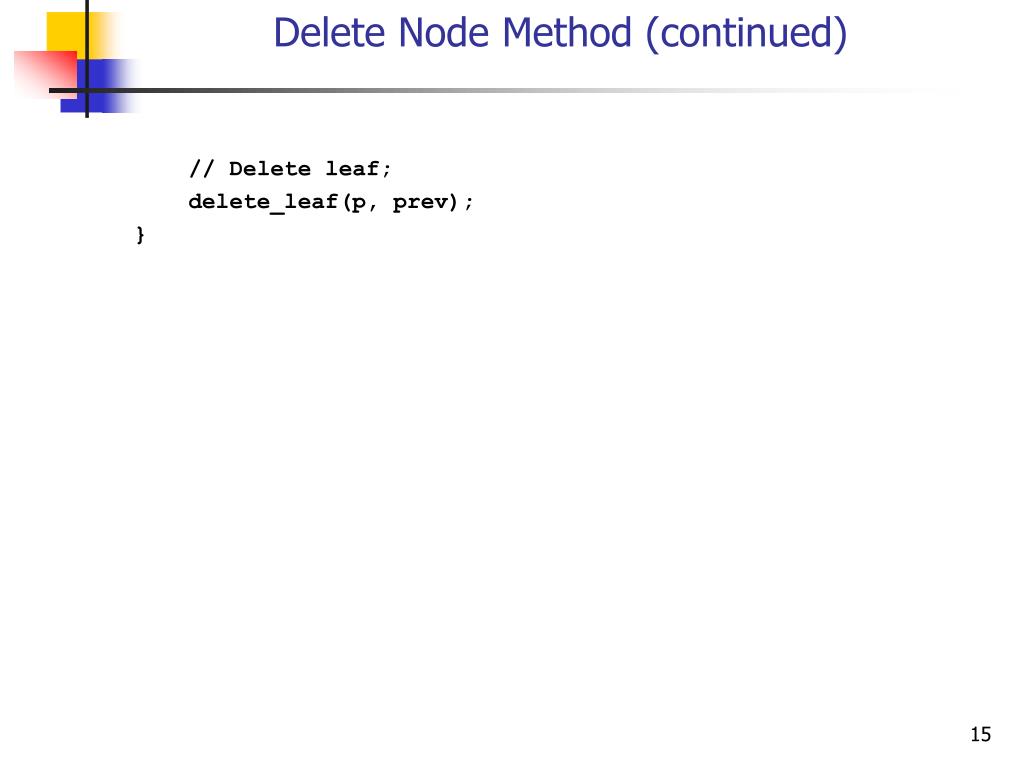

15. Delete Node Method (continued) // Delete leaf; delete_leaf(p, prev); }

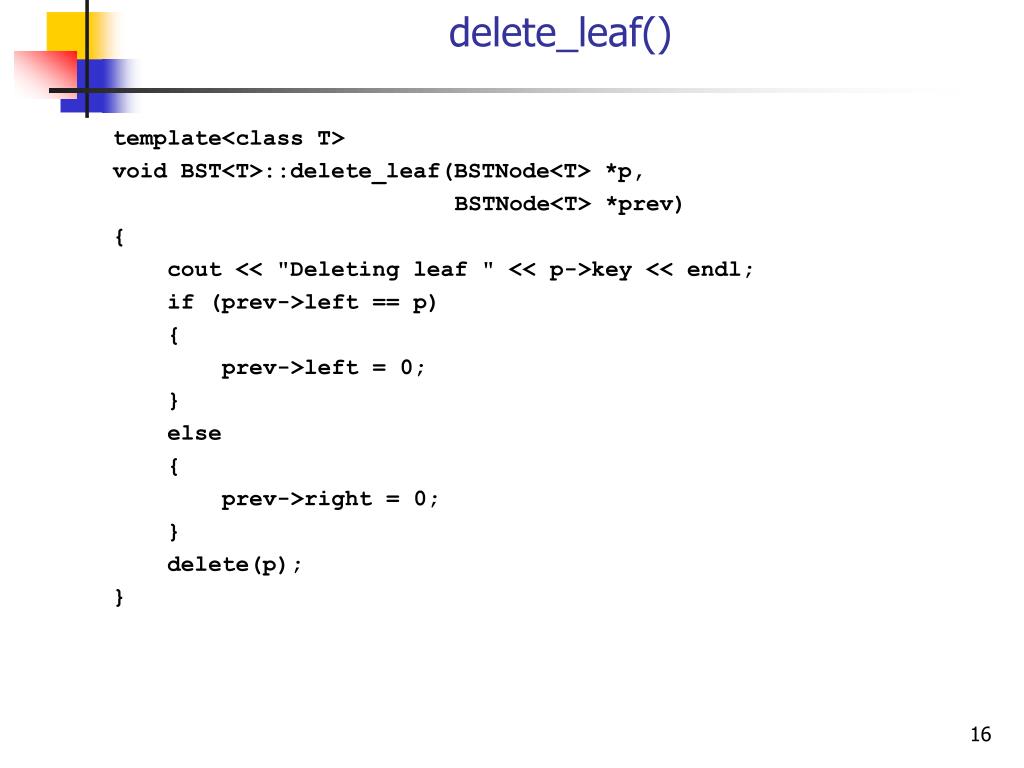

16. delete_leaf() template<class T> void BST<T>::delete_leaf(BSTNode<T> *p, BSTNode<T> *prev) { cout << "Deleting leaf " << p->key << endl; if (prev->left == p) { prev->left = 0; } else { prev->right = 0; } delete(p); }

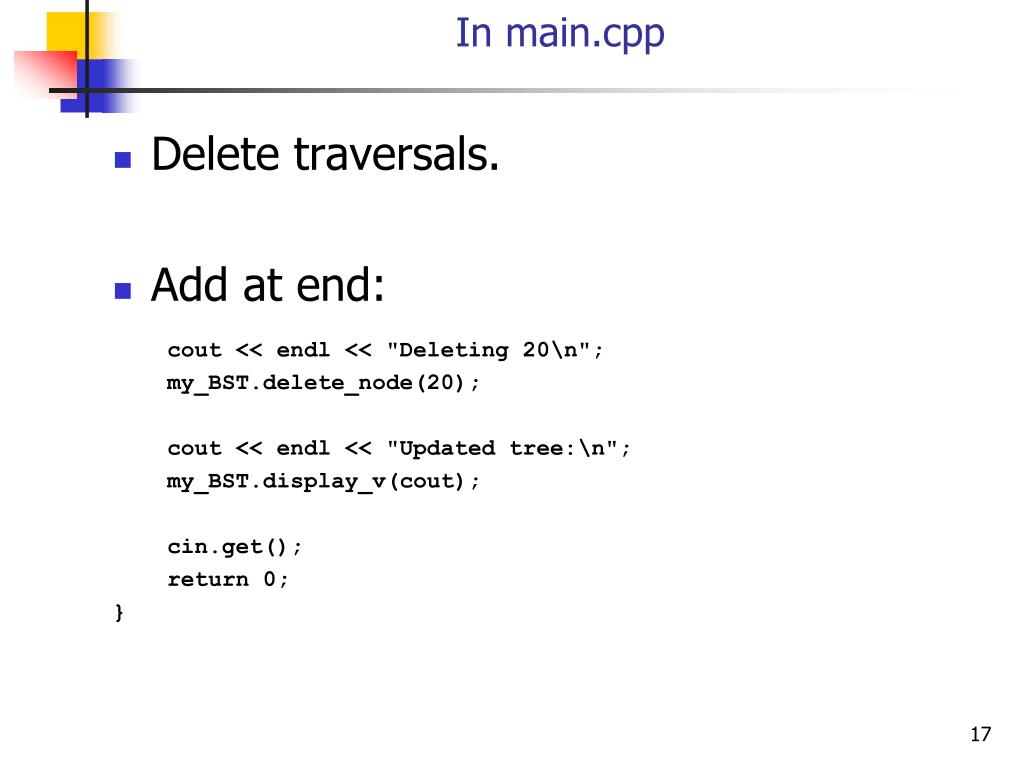

17. In main.cpp • Delete traversals. • Add at end: cout << endl << "Deleting 20\n"; my_BST.delete_node(20); cout << endl << "Updated tree:\n"; my_BST.display_v(cout); cin.get(); return 0; }

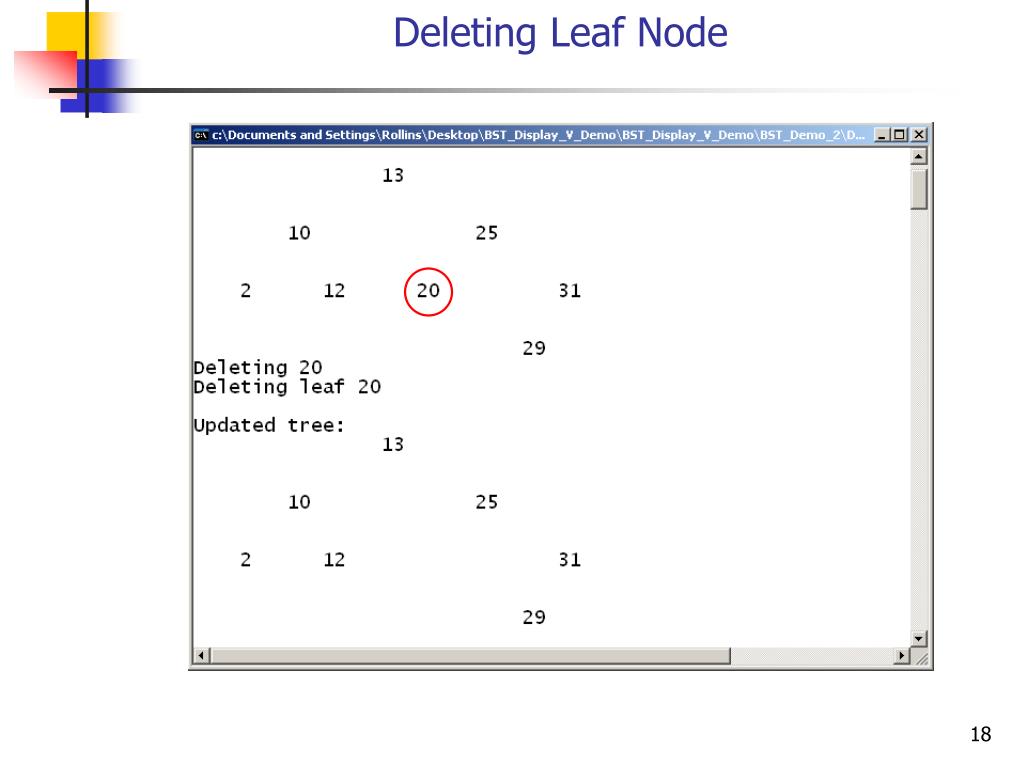

18. Deleting Leaf Node

19. Delete Nonexistent Node • Add at end of main: cout << "\n\nDeleting nonexistent node, 15\n"; my_BST.delete_node(15); my_BST.display_v(cout); cout << endl << endl;

20. Deleting Nonexistent Node

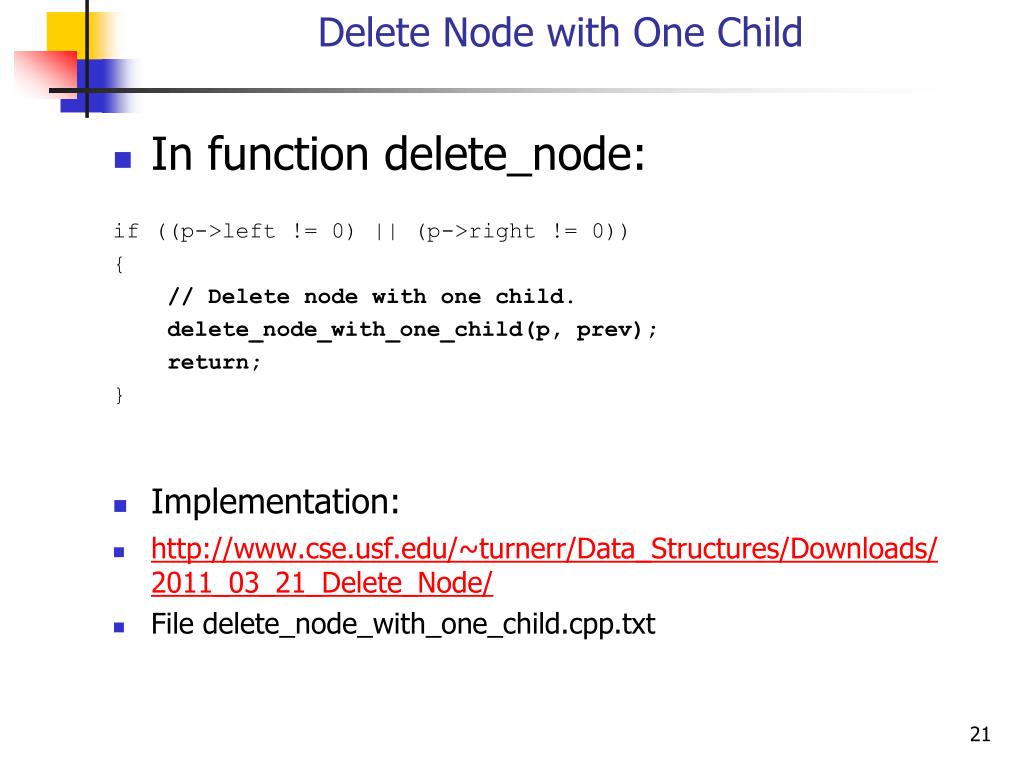

21. Delete Node with One Child • In function delete_node: if ((p->left != 0) || (p->right != 0)) { // Delete node with one child. delete_node_with_one_child(p, prev); return; } • Implementation: • http://www.cse.usf.edu/~turnerr/Data_Structures/Downloads/2011_03_21_Delete_Node/ • File delete_node_with_one_child.cpp.txt

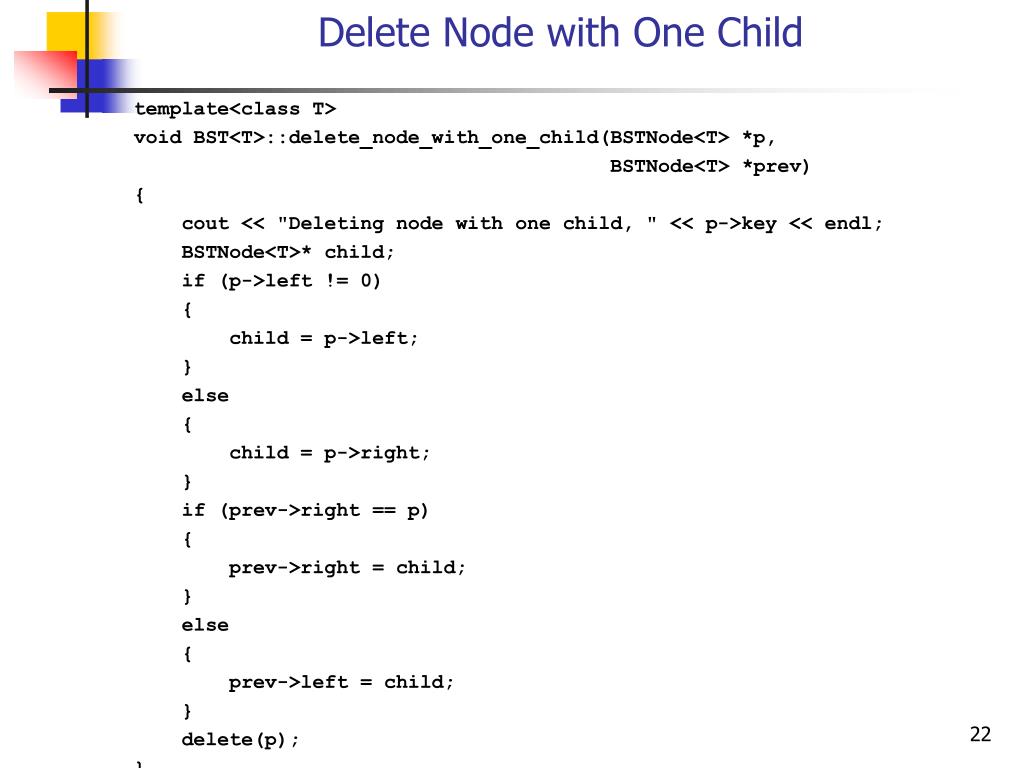

22. Delete Node with One Child template<class T> void BST<T>::delete_node_with_one_child(BSTNode<T> *p, BSTNode<T> *prev) { cout << "Deleting node with one child, " << p->key << endl; BSTNode<T>* child; if (p->left != 0) { child = p->left; } else { child = p->right; } if (prev->right == p) { prev->right = child; } else { prev->left = child; } delete(p); }

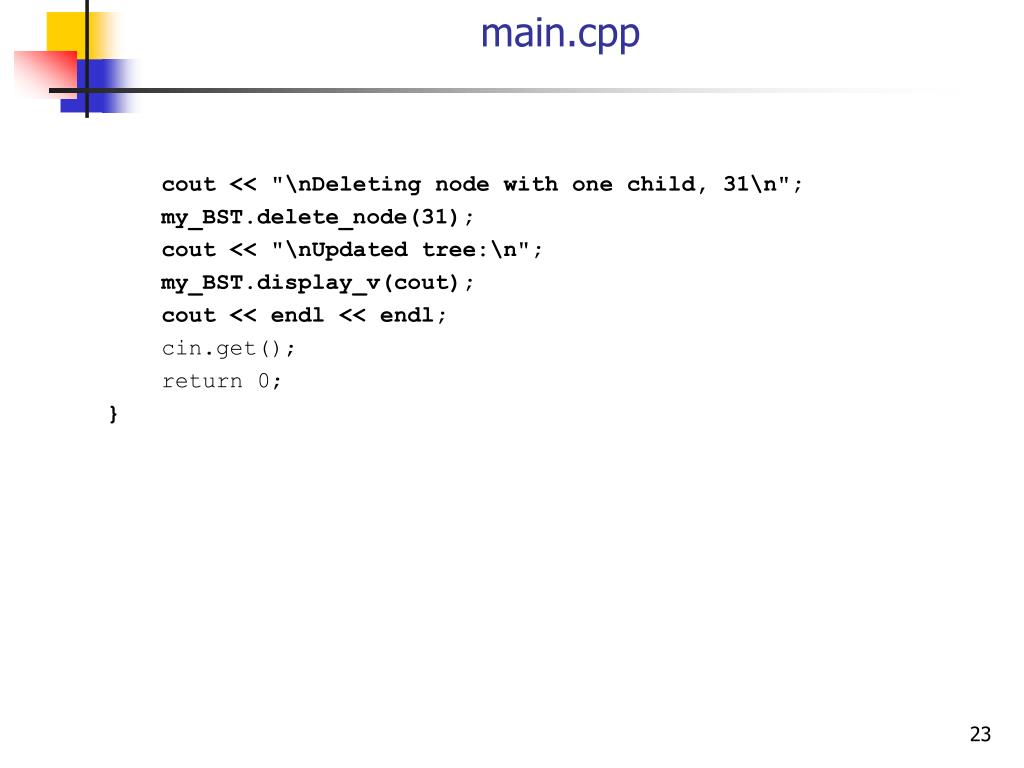

23. main.cpp cout << "\nDeleting node with one child, 31\n"; my_BST.delete_node(31); cout << "\nUpdated tree:\n"; my_BST.display_v(cout); cout << endl << endl; cin.get(); return 0; }

24. Deleting Node with One Child

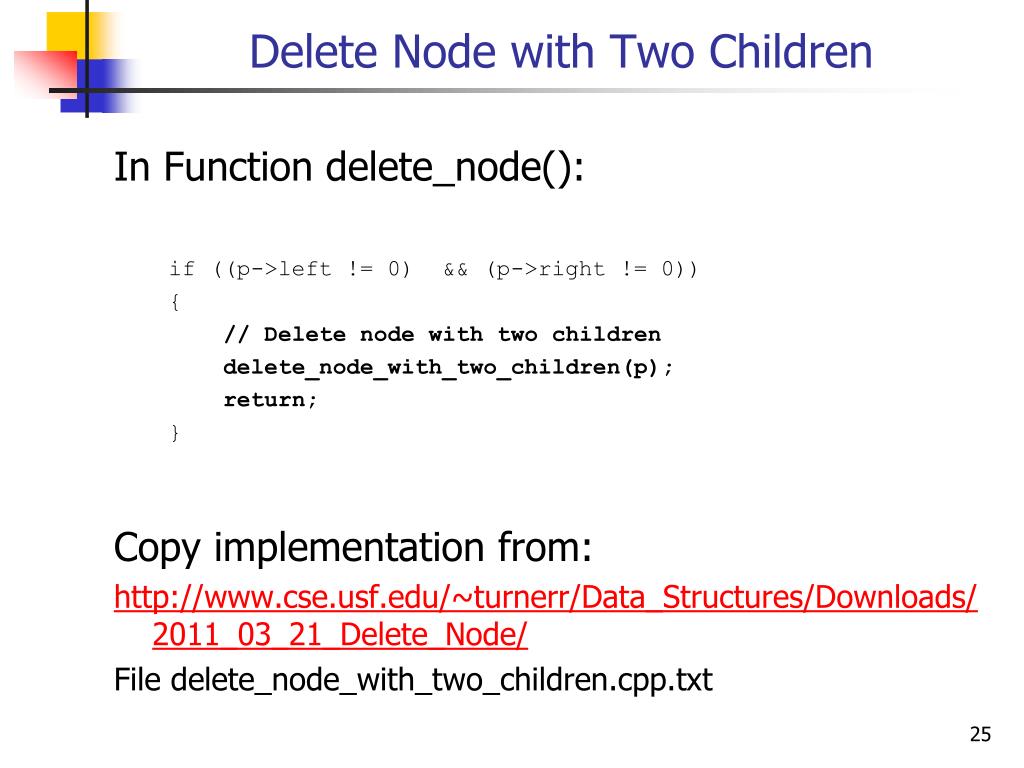

25. Delete Node with Two Children In Function delete_node(): if ((p->left != 0) && (p->right != 0)) { // Delete node with two children delete_node_with_two_children(p); return; } Copy implementation from: http://www.cse.usf.edu/~turnerr/Data_Structures/Downloads/2011_03_21_Delete_Node/ File delete_node_with_two_children.cpp.txt

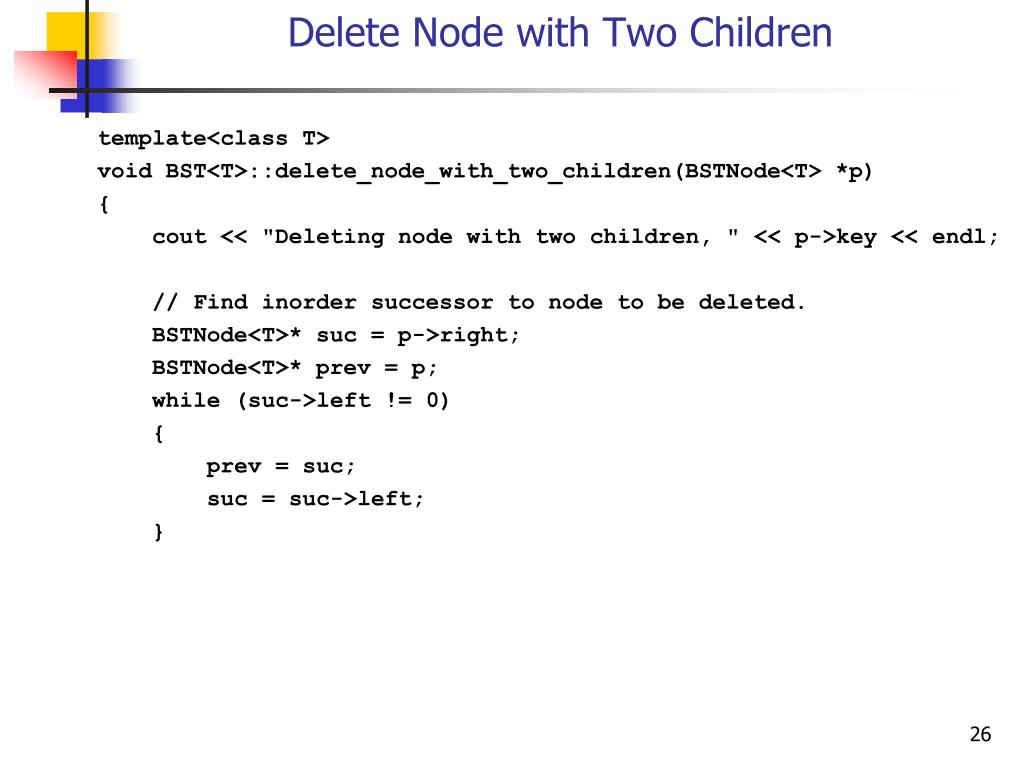

26. Delete Node with Two Children template<class T> void BST<T>::delete_node_with_two_children(BSTNode<T> *p) { cout << "Deleting node with two children, " << p->key << endl; // Find inorder successor to node to be deleted. BSTNode<T>* suc = p->right; BSTNode<T>* prev = p; while (suc->left != 0) { prev = suc; suc = suc->left; }

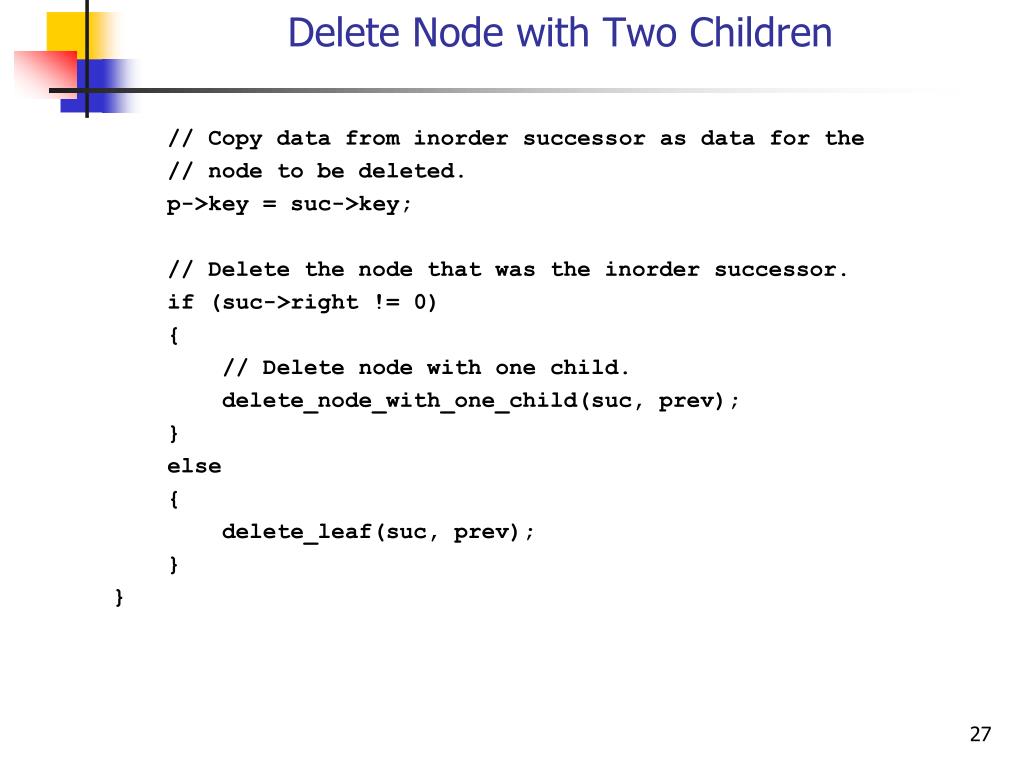

27. Delete Node with Two Children // Copy data from inorder successor as data for the // node to be deleted. p->key = suc->key; // Delete the node that was the inorder successor. if (suc->right != 0) { // Delete node with one child. delete_node_with_one_child(suc, prev); } else { delete_leaf(suc, prev); } }

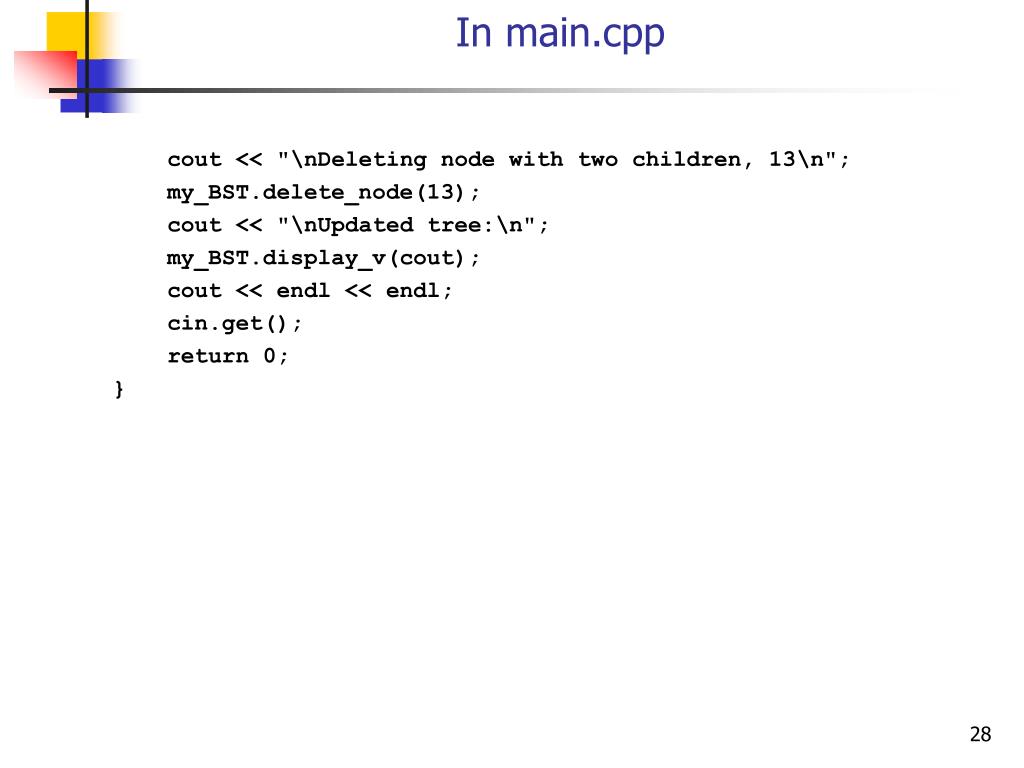

28. In main.cpp cout << "\nDeleting node with two children, 13\n"; my_BST.delete_node(13); cout << "\nUpdated tree:\n"; my_BST.display_v(cout); cout << endl << endl; cin.get(); return 0; }
