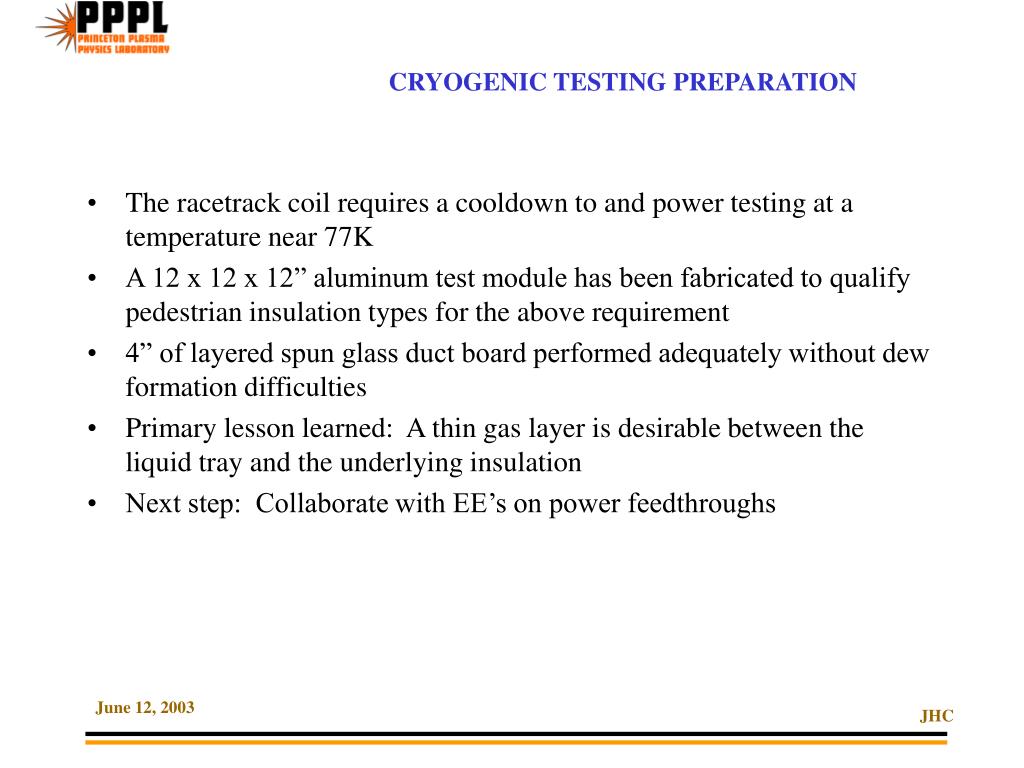

  1. CRYOGENIC TESTING PREPARATION • The racetrack coil requires a cooldown to and power testing at a temperature near 77K • A 12 x 12 x 12” aluminum test module has been fabricated to qualify pedestrian insulation types for the above requirement • 4” of layered spun glass duct board performed adequately without dew formation difficulties • Primary lesson learned: A thin gas layer is desirable between the liquid tray and the underlying insulation • Next step: Collaborate with EE’s on power feedthroughs

  2. INSULATION TEST MODULE 2” Duct Board Sample 12” x 12” x 12” Test Module

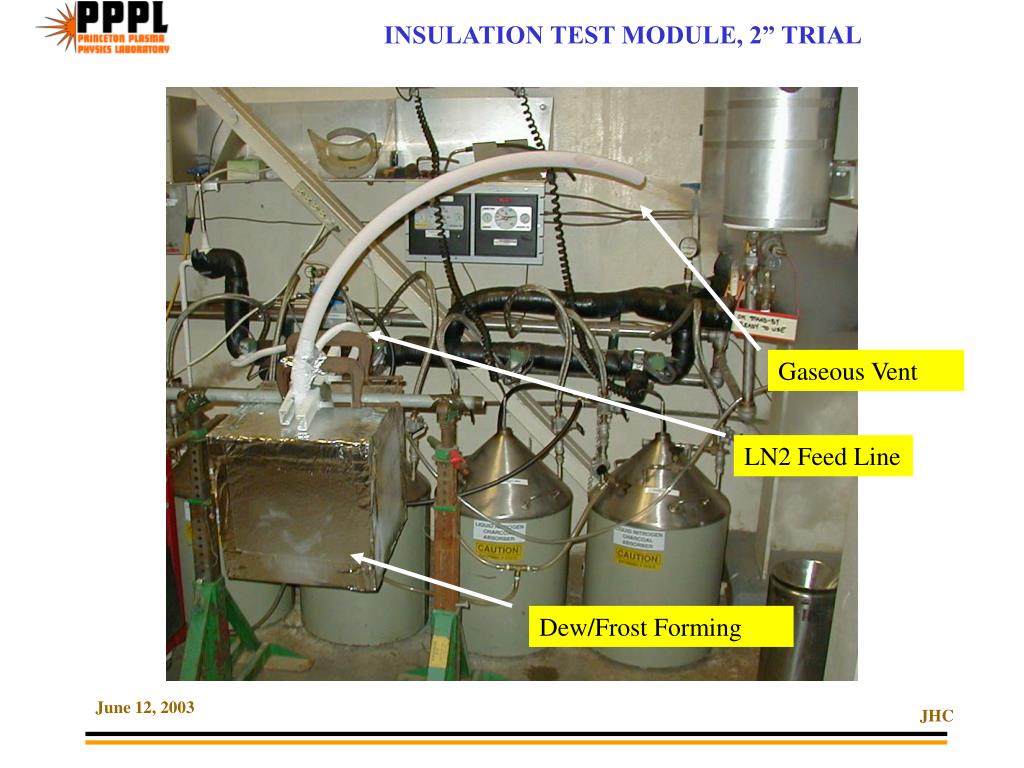

  3. INSULATION TEST MODULE, 2” TRIAL Gaseous Vent LN2 Feed Line Dew/Frost Forming
