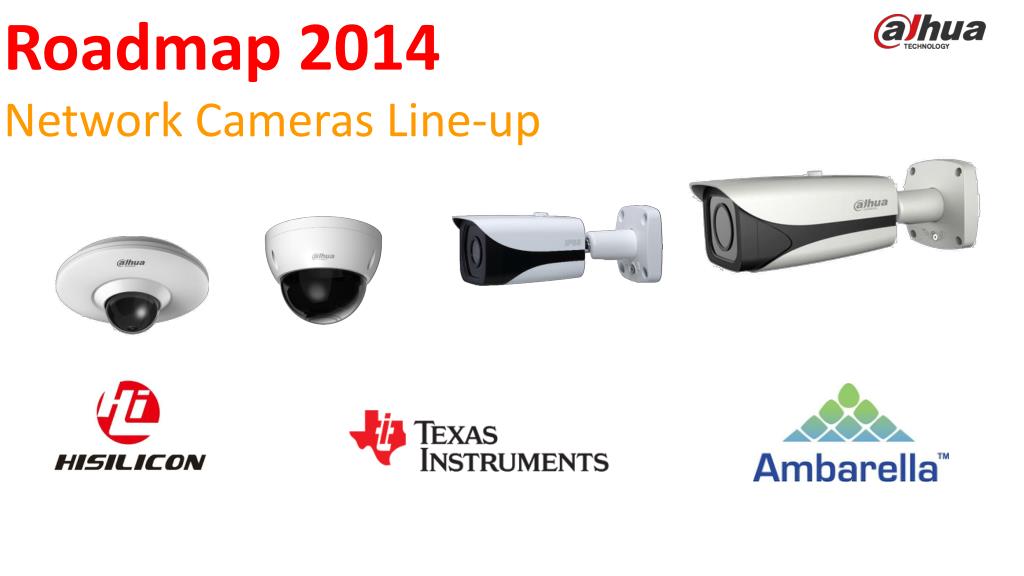

  1. Roadmap 2014 Network Cameras Line-up

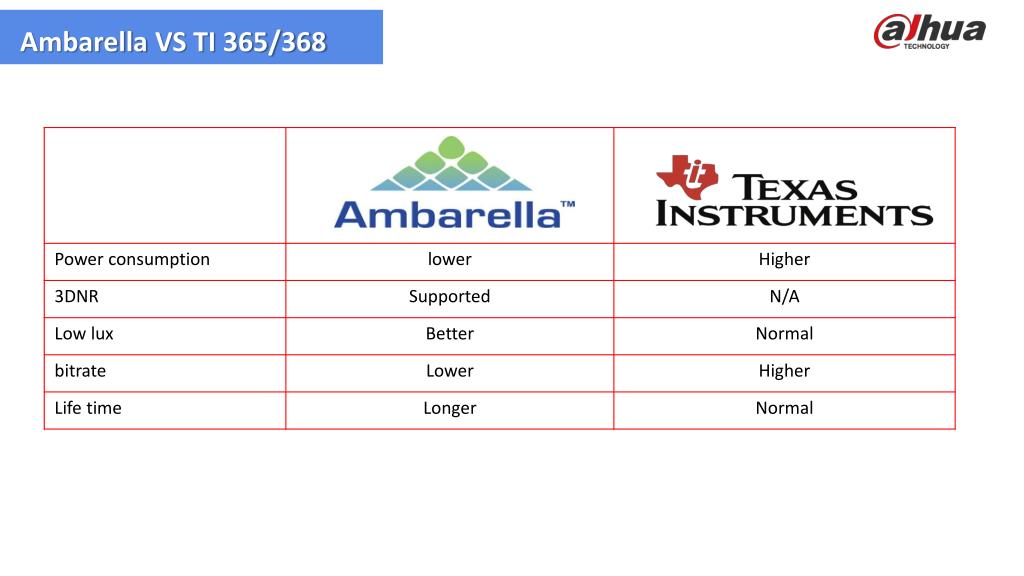

  2. Ambarella VS TI 365/368

  3. Chipset Solution A5S A5S A5S A5S 5MP 388/8127 368 WDR 3MP 388/8127 2MP 365 WDR 1.3MP 3518C 1MP Economy Series Professional series Highlight series

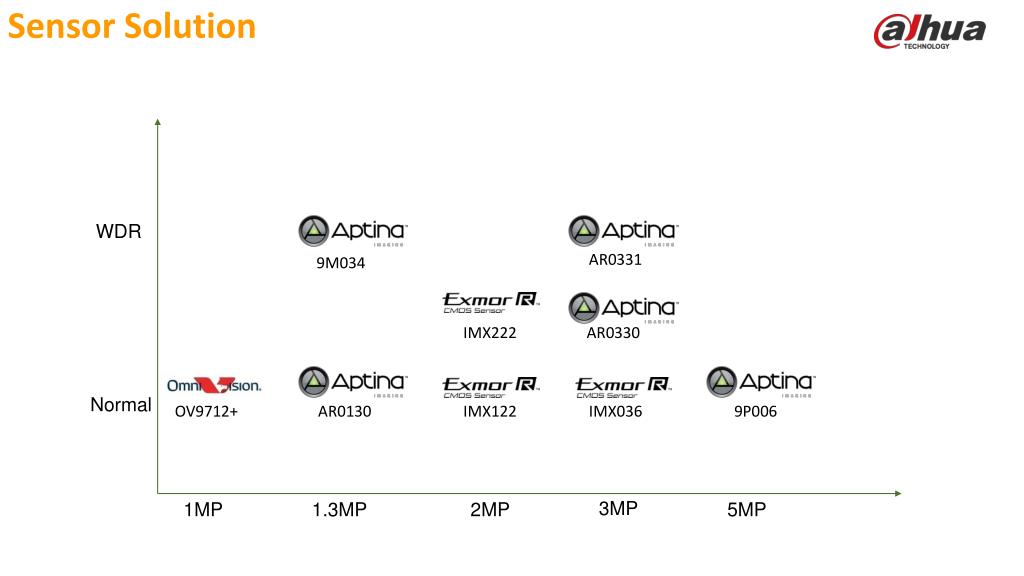

  4. Sensor Solution WDR AR0331 9M034 IMX222 AR0330 Normal OV9712+ AR0130 IMX122 IMX036 9P006 3MP 1MP 1.3MP 2MP 5MP

  5. Numbering Rule DH- -H IPC- H FW 3 3 0 0 C P Platform 1: Hisilicon 2:DM365 3: DM368 4: Amberalla entry level 5: Amberalla Profession 7: Amberalla Highlight 8:Ti Highlight Dahua IPC: Network HDC: HD-SDI High Definition Resolution5: 5 Mega 3: 3Mega 2: 2Mega 1: 1.3Mega Sensor 0: CMOS 1: CCD 2: 60fps 4:120fps 8:Nightjar Function 0: Standard 1: WDR 2: Motorized lens 6: WDR & Motorized lens A~Z: Case Sequence Video format P: PAL N: NTSC Camera Type F: Fixed box D: Fixed dome DW: Fixed IR dome DB: Vandal-proof fixed dome DBW: Vandal-proof IR dome FW: IR-Bullet box W: WIFI E: EVDO C: WCDMA M:Mobile H: Heater DI: In-celling dome DP: Outdoor pendant

  6. Stylish product • Smart IR infrared tech • Core ISP technology • Stable & efficient system • Low bitrate • Ultra Low illumination • Low consumption

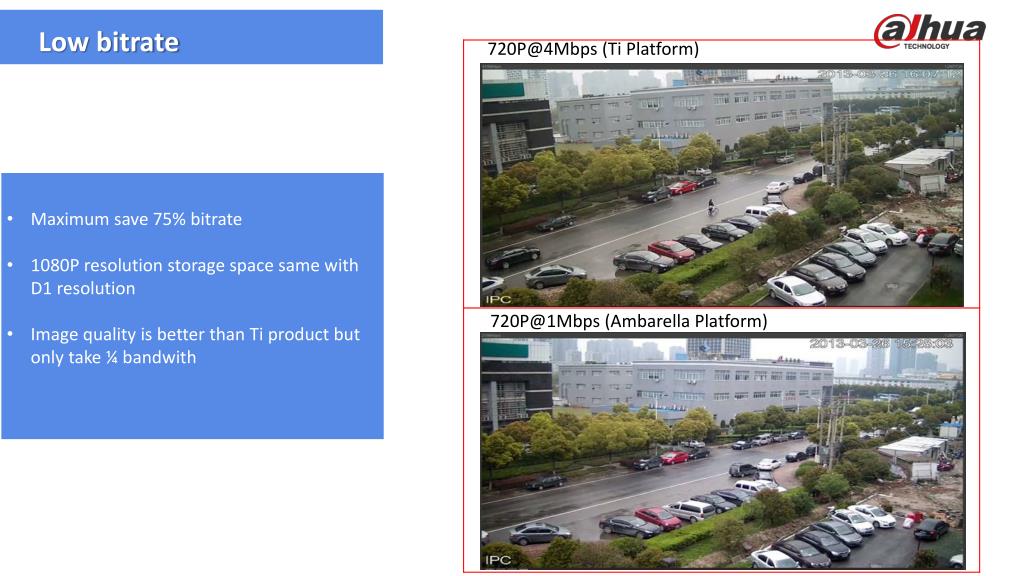

  7. Low bitrate 720P@4Mbps (Ti Platform) • Maximum save 75% bitrate • 1080P resolution storage space same with D1 resolution • Image quality is better than Ti product but only take ¼ bandwith 720P@1Mbps (Ambarella Platform)

  8. Benefit of low bitrate • Save the network bandwith Easy for you to build the network for the Project solution • Save the storage space maximum save 75% HDDs, easy to build storage center • Save electricity cost • 100 channels1080P/2Mbps record one month, save HDDs 206per month, save HDDs 7per day. • Each HDD’s consumption 12 Watt, one year HDD can save power like follow: • 100channels 1 year=12W*24H*7(HDD)*365(day)=735840W

  9. Ultra Low illumination Color • Ultra 3D DNR supported • Provide bright , low noise ,clear picture in the low-lux scene B/W

  10. Night view performance

  11. Low consumption 5.76W (Ti Platform) 3W (Ambarella Platform) New product nearly save 50% power consumption, make the product green and long time using

  12. Smart IR infrared tech • Provide smooth night view • Fixed closed object over exposure issue when IR on • Save the power consumption

  13. Core ISP technology Dahua • Perfect color reproduction • Great white balance display • Keep lot of details • Correct exposure Other

  14. Core ISP technology • Provide over 75dB WDR by latest ISP technology • Offer better High light control(HLC) performance

  15. Stable & efficient system • 6 users view 1080P video under 4Mbps bitrate at same time • 100 meters, data packet is not lost • Dual system backup make the system more stable

  16. Appearance Roadmap-compact series NEW NEW NEW NEW

  17. Smart Series Ti DM365/368 Ambarella A5S 3M HFW4300S 2M HFW3200S HFW4200S 1.3M HFW2100S HFW4100S 3M HDW4300S Smart series • Upgrade 2M HDW3200S HDW4200S 1.3M HDW2100 HDW4100S 3M HDB4300C 2M HDB3200C HDB4200C 1.3M HD2100 HDB4100C

  18. Smart Series Ti DM365/368 Ambarella A5S HF3100 HF5100 1.3M 2M HF3200 HF5200 Pro series 1.3M HFW3100C HFW5100C • Upgrade HFW3100C HFW5200C 2M 1.3M HDB(W)3100 HDB(W)5100 2M HDB(W)3200 HDB(W)5200

  19. Lite Series NEW

  20. Eco-savvy Series NEW NEW

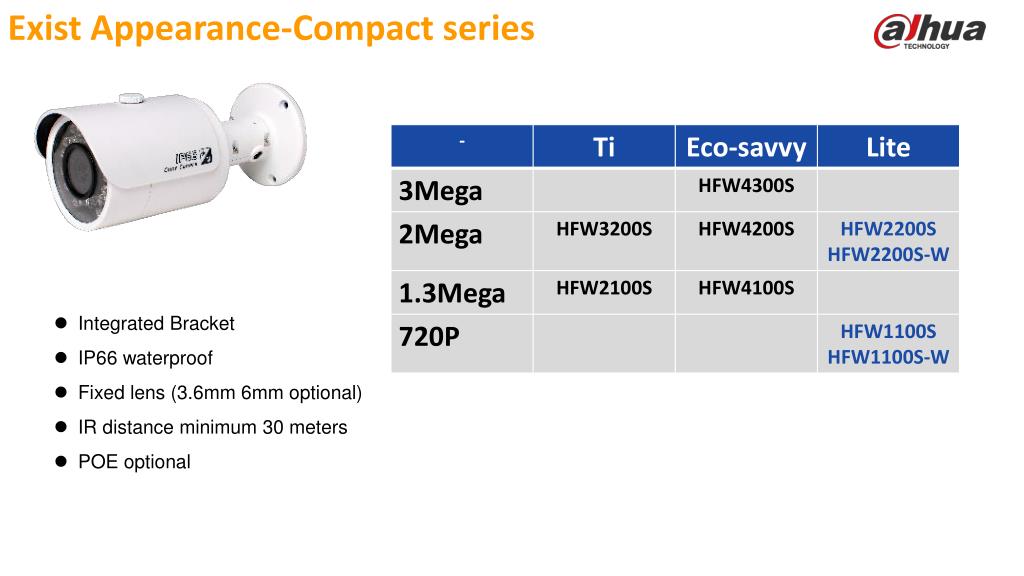

  21. Exist Appearance-Compact series • Integrated Bracket • IP66 waterproof • Fixed lens (3.6mm 6mm optional) • IR distance minimum 30 meters • POE optional

  22. Exist Appearance-Mini IR ball • Mini IR Ball Camera • IP66 waterproof • Fixed lens (3.6mm 6mm optional) • For 720P &1.3M with 2.8mm optional • IR distance minimum 20 meters • DC12V &POE (without 1105)

  23. Exist Appearance-Mini Dome • Mini dome • Metal & plastic cover optional • For Metal case IK10 & IP66 • Fixed lens (2.8mm 3.6mm 6mm optional) • PoE support(except 1105 series)

  24. New Appearance-Mini Bullet • Third Generation Design • IP66 waterproof • Smoke glass hidden the infrared Led • IR distance minimum 30 meters • DC12V &POE • Redesigned more stable Bracket

  25. New Appearance-Mini IR ball • Metal case • IP66 waterproof &IK10 vandal proof • Array IR LED • Built-in Mic • Fixed lens (3.6mm 6mm optional) • IR distance minimum 30 meters • Redesigned structure. Easy to install

  26. New Appearance-mini IR Dome • Metal case • IP66 waterproof &IK10 vandal proof • Smoke glass & transparent glass optional • Fixed lens (2.8mm 3.6mm 6mm optional) • IR distance up to 30 meters • PoE support • Wifi optional

  27. New Appearance-Compact series • Metal case • IP66 waterproof &IK10 vandal proof • Built-in Mic • 360°Pan & 90°Tilt supported • SD local storage supported • Redesigned structure. Easy to install

  28. Exit Appearance-Home series • Cube & cute design • With bracket integrated • Built-in Mic & Speaker optional • PIR sensor optional • Flash & Infrared IR optional • WIFI supported (WPS easy connection • SD local storage supported

  29. Appearance-Pro series NEW NEW NEW

  30. Highlight Series NEW NEW NEW

  31. Eco-savvy Series NEW

  32. Exist Appearance-Pro series • Third Generation design • 1.3Mega to 5Mega • WDR optional • WIFI optional • POE support

  33. Exist Appearance-Bullet II • Integrated bracket • IP66 water-proof • 1.3Mega to 5Mega • Motorized lens optional • -40℃ ~ 70 ℃ wild temperature • PoE supported

  34. Exist Appearance-Dome II • Modular design • Metal plastic case optional • In-celling install optional • Motorized lens optional • 1.3Mega to 5Mega optional • IP66 & IK10 optional

  35. New Appearance-Bullet • 1.3Mega to 5Mega optional • Starlight series in 2M • Smoke glass for Infrared IR • Motorized lens optional • 12x optional zoom • Focus outsidedesign • Heater optional • IP66 water-proof

  36. New Appearance-Box • Smooth design without screw • ABF (auto back focus) • PoE supported

  37. New Appearance-Fisheye • 6Mega Sony Exmor Sensor • Fisheye lens180 • IR optional • Vandal proof & water proof

  38. OEM Case- Mini Bullet Jupiter Venus • Jupiter , Venus is ready for order

  39. OEM Case- Mini IR ball Venus Jupiter • Jupiter , Venus is ready for order • The design of rest two is ready

  40. OEM Case- Bullet Jupiter Venus • All these case is waiting for own new Bullet camera • Design is finished

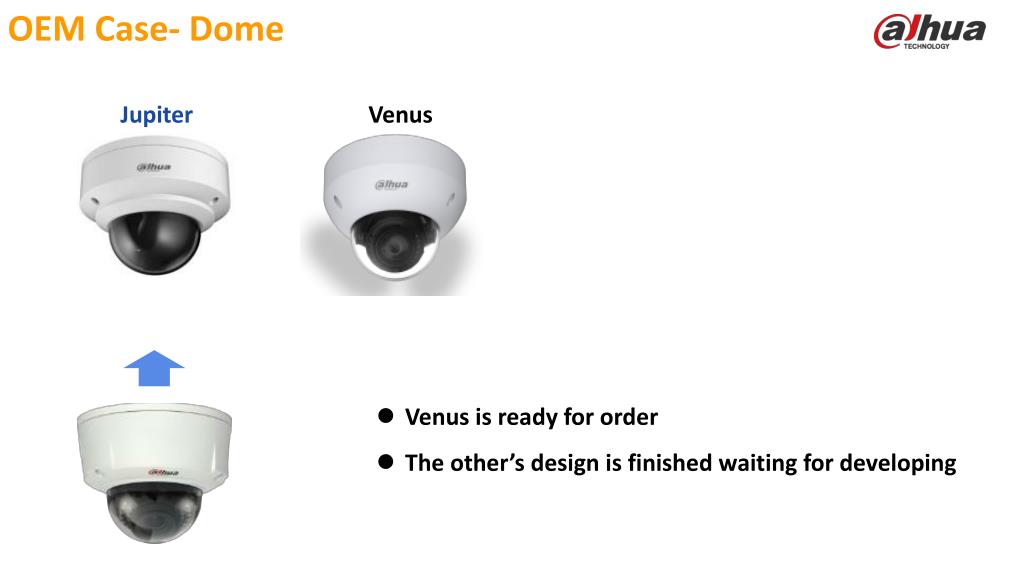

  41. OEM Case- Dome Venus Jupiter • Venus is ready for order • The other’s design is finished waiting for developing

  42. THANK YOU! www.dahuasecurity.com
