  1. C2 R2 C1 R1 Vin - Vout + GND Why are we interested in Passives? • Switched-Capacitor Filters • Continuous-Time Filters

  2. Circuit of Choice (stray insensitive) SUMMARY OF THE FOUR SWITCHED CAPACITOR RESISTANCE CIRCUITS Parallel Series Series-Parallel Bilinear

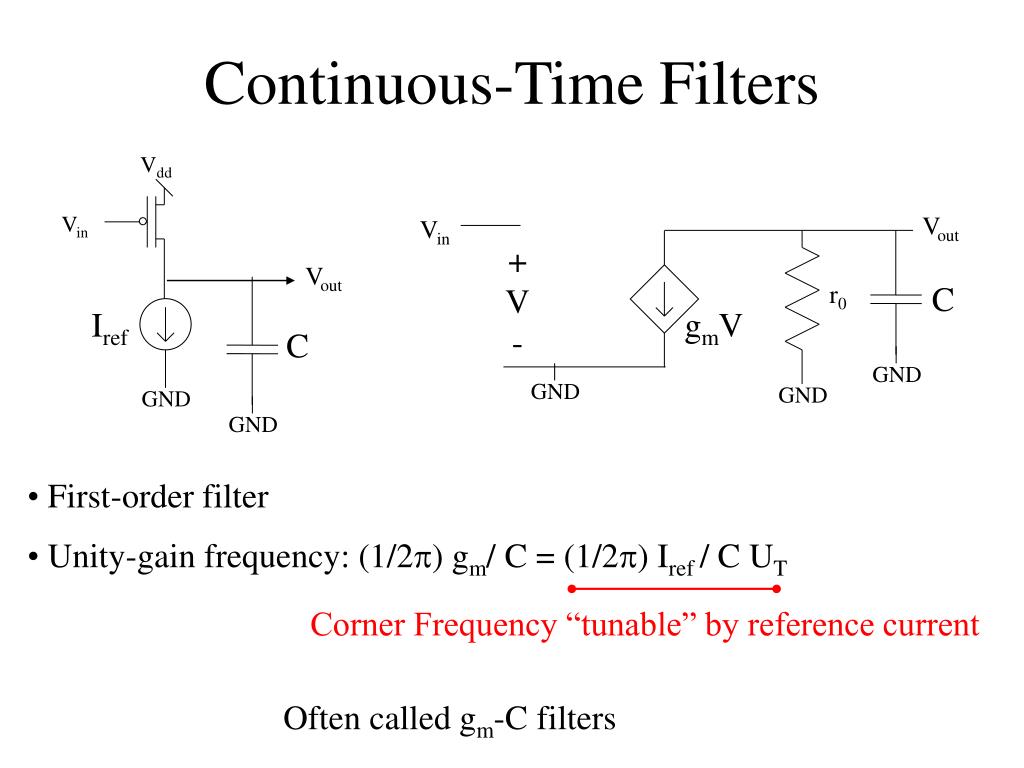

  3. Vout Vin Vdd + V - r0 C gmV GND GND GND GND GND Corner Frequency “tunable” by reference current Continuous-Time Filters Vin Vout Iref C • First-order filter • Unity-gain frequency: (1/2p) gm/ C = (1/2p) Iref / C UT Often called gm-C filters

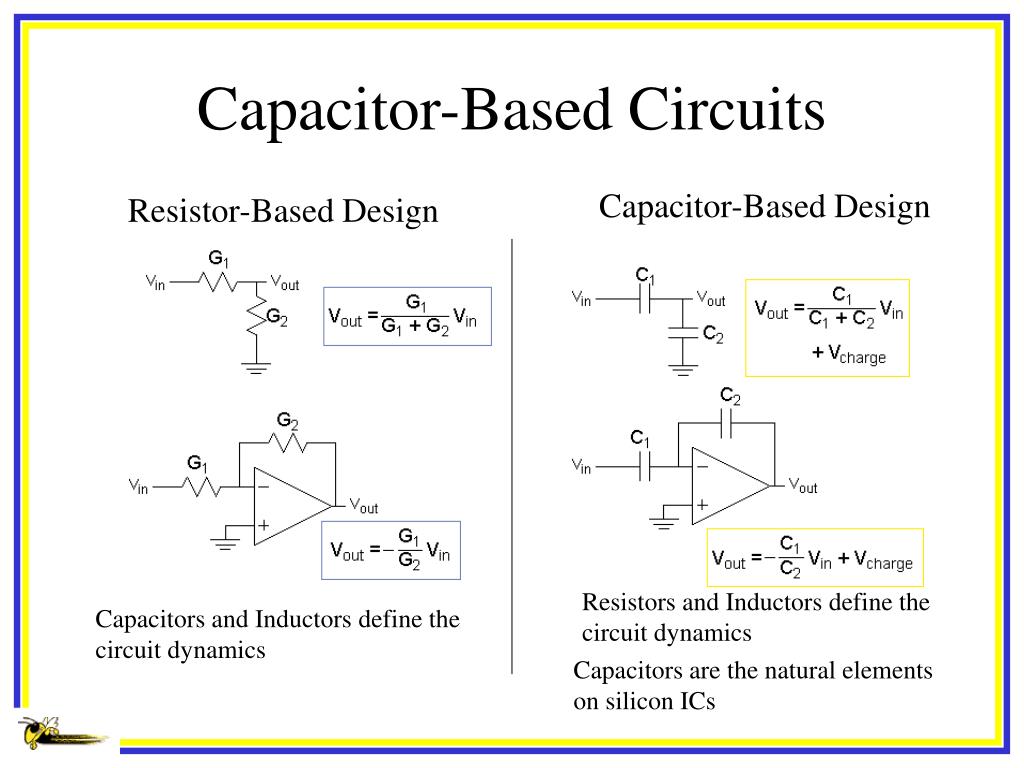

  4. Capacitor-Based Circuits Capacitor-Based Design Resistor-Based Design Resistors and Inductors define the circuit dynamics Capacitors and Inductors define the circuit dynamics Capacitors are the natural elements on silicon ICs

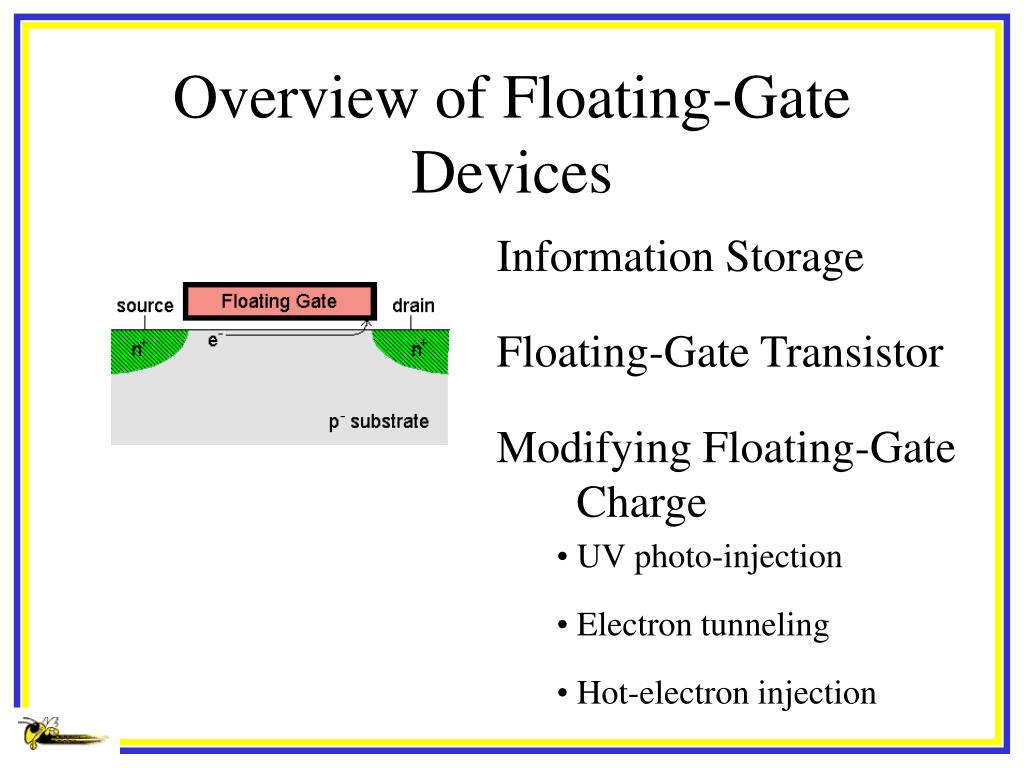

  5. Overview of Floating-Gate Devices Information Storage Floating-Gate Transistor Modifying Floating-Gate Charge • UV photo-injection • Electron tunneling • Hot-electron injection
