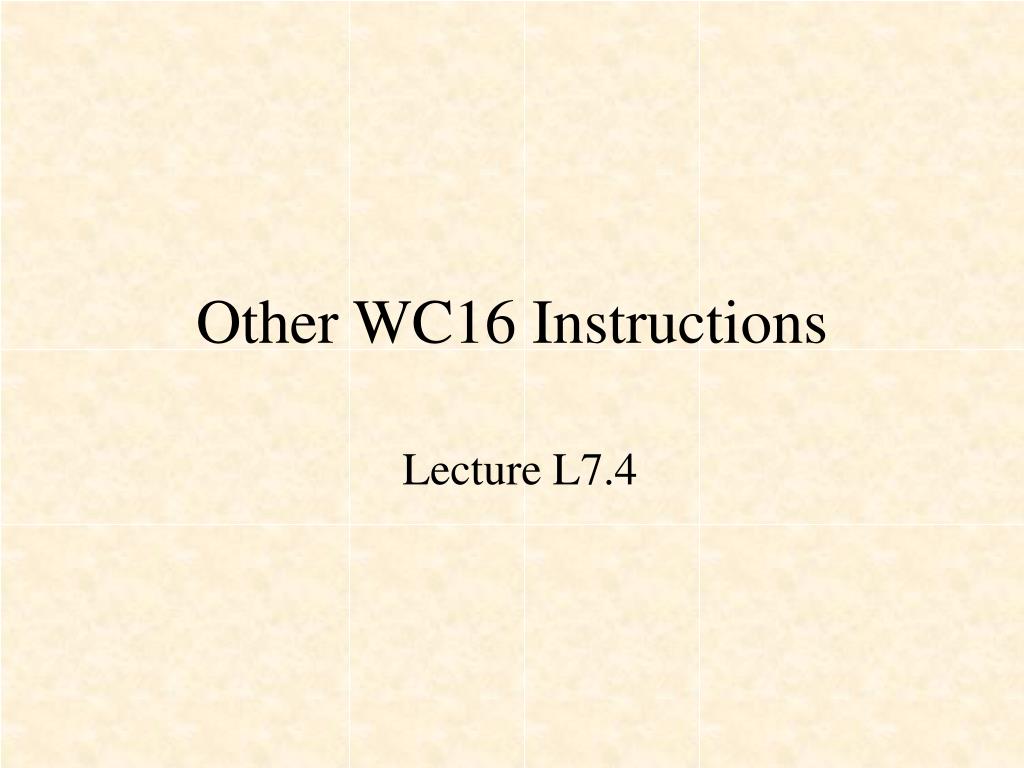

  1. Other WC16 Instructions Lecture L7.4

  2. Other Instructions

  3. when lit => tload <= '1'; nload <= '1'; tsel <= "001"; dpush <= '1'; LIT Load inline literal to T and push data stack.

  4. when jb0LO => pload <= not B(0); psel <= '0'; pinc <= B(0); JB0LO Jump if input pin B0 is LO.

  5. when jb0HI => pload <= B(0); psel <= '0'; pinc <= not B(0); JB0HI Jump if input pin B0 is HI

  6. Hex2asc.whp \ Convert hex to ASCII HEX : hex2asc ( n -- asc ) 0F AND \ mask upper nibble DUP 9 > \ if n > 9 IF 37 + \ add $37 ELSE 30 + \ else add $30 THEN ; : main ( -- ) BEGIN waitb0 S@ DUP DIG! waitb0 hex2asc DIG! AGAIN ;

  7. LIT, --2 X"000f", --3 andd, --4 dup, --5 LIT, --6 X"0009", --7 gt, --8 JZ, --9 X"0010", --a LIT, --b X"0037", --c plus, --d JMP, --e X"0013", --f LIT, --10 X"0030", --11 plus, --12 RET, --13 : hex2asc ( n -- asc ) 0F AND \ mask upper nibble DUP 9 > \ if n > 9 IF 37 + \ add $37 ELSE 30 + \ else add $30 THEN ;

  8. when jmp => pload <= '1'; psel <= '0'; pinc <= '0'; JMP Jump to inline address.

  9. when jz => -- pop flag pload <= not z; psel <= '0'; pinc <= z; tload <= '1'; nload <= '1'; tsel <= "111"; nsel <= "01"; dpop <= '1'; -- z <= '0' if T = all zeros JZ Jump if all bits in T are ‘0’ and pop T

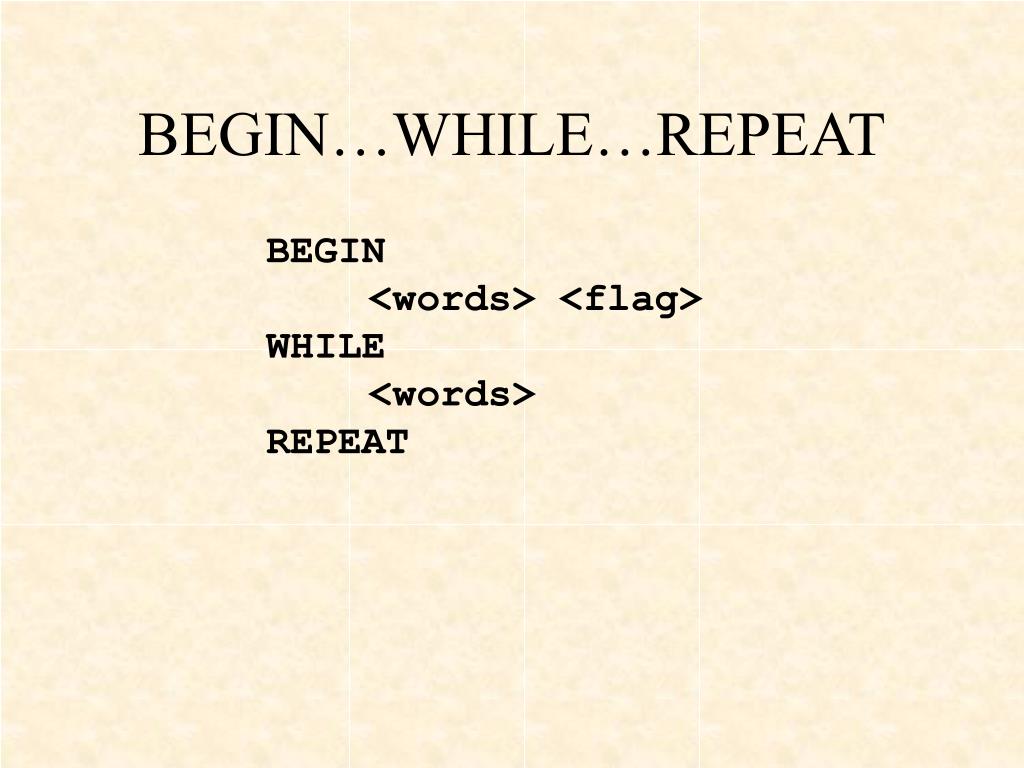

  10. BEGIN…WHILE…REPEAT BEGIN <words> <flag> WHILE <words> REPEAT

  11. Factorial x = 1 i = 2 DO WHILE i <= n x = x * i i = i + 1 ENDDO factorial = x : factorial ( n -- n! ) 1 2 ROT \ x i n BEGIN \ x i n 2DUP <= \ x i n f WHILE \ x i n -ROT TUCK \ n i x i * SWAP \ n x i 1+ ROT \ x i n REPEAT \ x i n 2DROP ; \ x

  12. \ Example of BEGIN...WHILE...REPEAT : UM* ( u1 u2 - upL upH ) 0 mpp mpp mpp mpp mpp mpp mpp mpp mpp mpp mpp mpp mpp mpp mpp mpp ROT_DROP ; : * ( n1 n2 -- n3 ) UM* DROP ; : factorial ( n -- n! ) 1 2 ROT \ x i n BEGIN \ x i n OVER OVER <= \ x i n f WHILE \ x i n -ROT TUCK \ n i x i * SWAP \ n x' i 1+ ROT \ x' i' n REPEAT \ x i n DROP DROP ; \ x : main ( -- ) BEGIN waitB0 S@ DUP DIG! waitB0 factorial DIG! AGAIN ; Fact16.whp

  13. LIT, --1a X"0001", --1b LIT, --1c X"0002", --1d rot, --1e over, --1f over, --20 lte, --21 JZ, --22 X"002d", --23 mrot, --24 tuck, --25 CALL, --26 X"0016", --27 swap, --28 plus1, --29 rot, --2a JMP, --2b X"001f", --2c drop, --2d drop, --2e RET, --2f : factorial ( n -- n! ) 1 2 ROT BEGIN 2DUP <= WHILE -ROT TUCK * SWAP 1+ ROT REPEAT 2DROP ;
