EAN13 text font creation and printing procedure

In this presentation file we are going to learn how to create and print EAN13 linear text font by using Barcode Generator Tool. You can easily design product stickers in any shapes or size by using batch processing series methods. There are multiple features that are available for users at the time of barcode label designing these are Linear and 2D text font support, print preview facility, inbuilt advance email setting feature, bulk barcode printing and many more.

drputarun
Télécharger la présentation

EAN13 text font creation and printing procedure

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. EAN13 barcode font creation and printing procedure Submitted By – TarunTyagi www.BarcodeFor.Us Support@BarcodeFor.Us Email: support@BarcodeFor.Us Site: www.BarcodeFor.Us

  2. Contents • EAN13 Barcode Font • Barcode Label Maker Software • EAN13 Font Designing • Barcode Settings Mode • Barcode Designing View Mode • EAN 13 Label Printing Settings • EAN13 Barcode Printing • EAN 13 Barcode Scanning • References Email: support@BarcodeFor.Us Site: www.BarcodeFor.Us

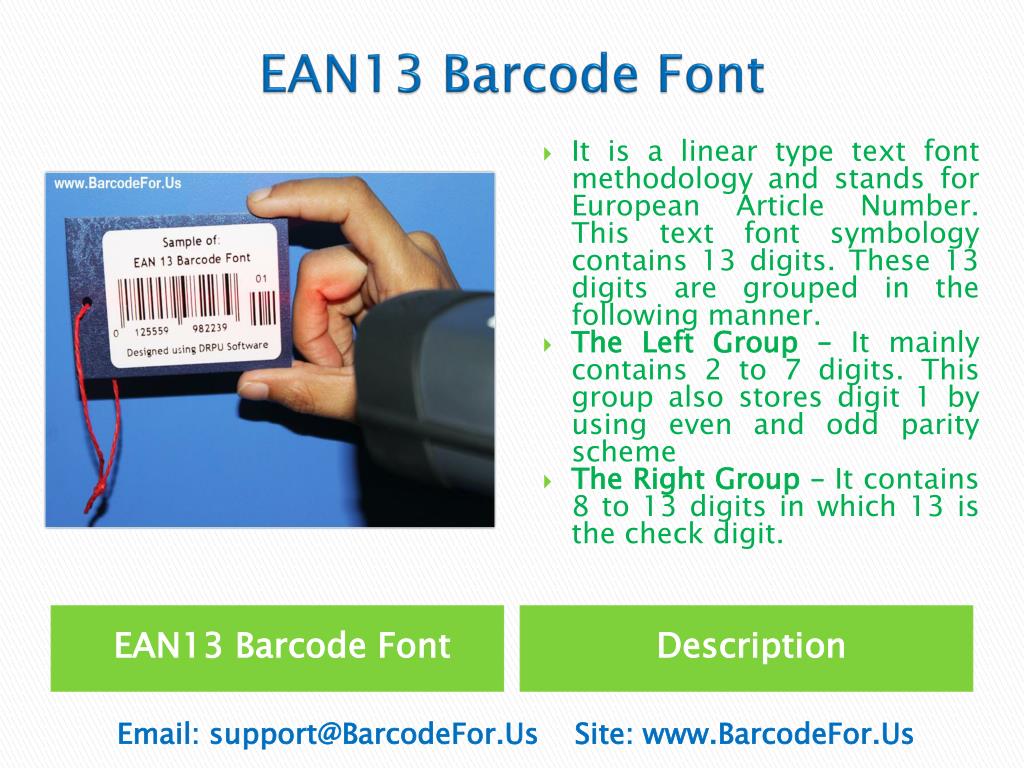

  3. EAN13 Barcode Font • It is a linear type text font methodology and stands for European Article Number. This text font symbology contains 13 digits. These 13 digits are grouped in the following manner. • The Left Group – It mainly contains 2 to 7 digits. This group also stores digit 1 by using even and odd parity scheme • The Right Group – It contains 8 to 13 digits in which 13 is the check digit. EAN13 Barcode Font Description Email: support@BarcodeFor.Us Site: www.BarcodeFor.Us

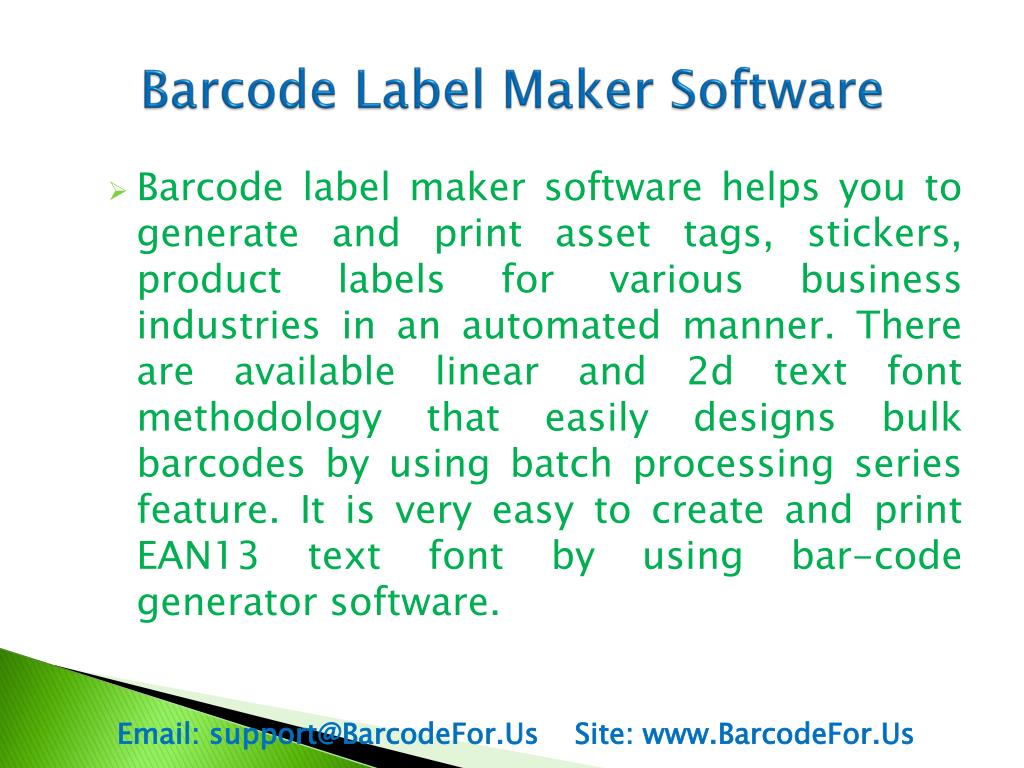

  4. Barcode Label Maker Software • Barcode label maker software helps you to generate and print asset tags, stickers, product labels for various business industries in an automated manner. There are available linear and 2d text font methodology that easily designs bulk barcodes by using batch processing series feature. It is very easy to create and print EAN13 text font by using bar-code generator software. Email: support@BarcodeFor.Us Site: www.BarcodeFor.Us

  5. EAN13 Font Designing • This information is prepared by BarcodeFor.US, a label making organization. Before designing EAN13 font at first you need to install DRPU Barcode Label Maker Software. Now run It. Go to the software screen. You will see two tabs here. These are the two modes for label designing 1-Barcode Settings 2-Barcode Designing View mode. We have defined both of the label designing modes in short here. Email: support@BarcodeFor.Us Site: www.BarcodeFor.Us

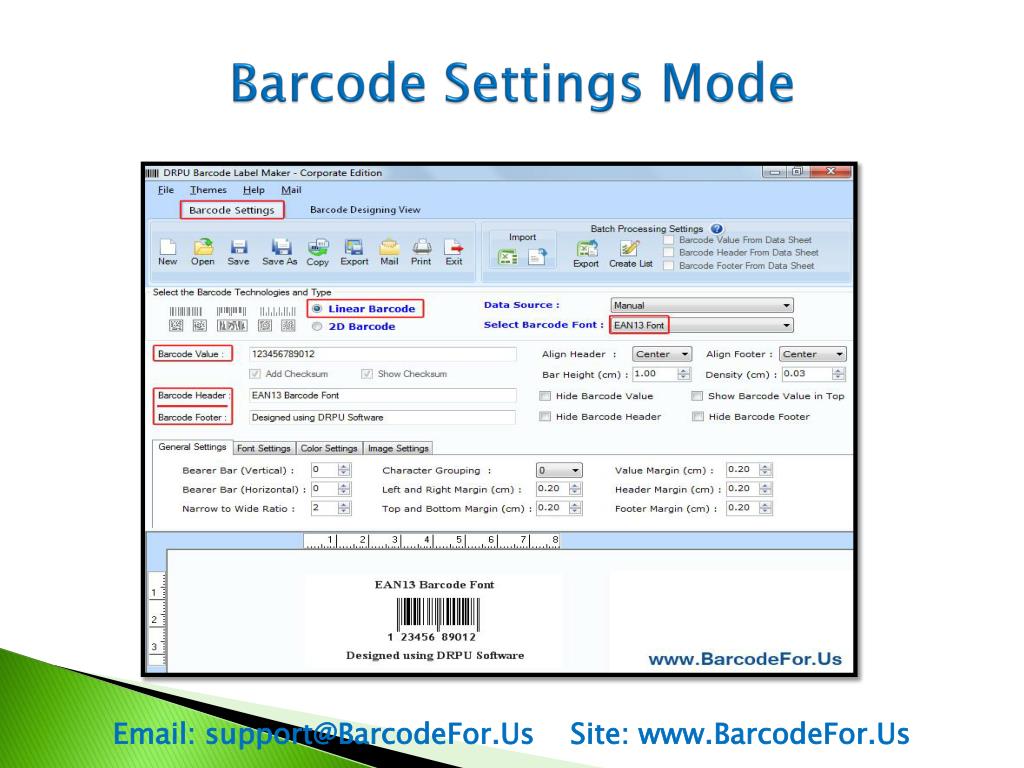

  6. Barcode Settings Mode • This is the simple and fast way of barcode label designing. Go to the Barcode Settings tab. Here you will see a predefined stock of labels under Linear and 2D text font methodology. We have selected Linear text methodology and EAN13 as barcode font type here. You can add Barcode value, barcode header and barcode footer as per your labeling need. You can also adjust General Settings (horizontal, vertical, top, bottom, left and right margins), font settings (barcode header font, footer font and value font), color settings (barcode color, background color etc) and image settings (image file type) here according to you. Your barcode label is ready now. Email: support@BarcodeFor.Us Site: www.BarcodeFor.Us

  7. Barcode Settings Mode Email: support@BarcodeFor.Us Site: www.BarcodeFor.Us

  8. Barcode Designing View Mode • This is the advance method to create your product specific barcode labels. Go to the Barcode Designing view mode and insert barcode icon from the tool bar. After clicking two times on it a new window will appear in front of you. There are also available two types of text font methodology including linear barcode and 2D barcode. A predefined set of text fonts is also available here. We have selected linear text methodology and EAN13 as font type. Here you can also adjust value, size, font and color settings according to you. Your barcode labels are created now. Email: support@BarcodeFor.Us Site: www.BarcodeFor.Us

  9. Barcode Designing View Mode Email: support@BarcodeFor.Us Site: www.BarcodeFor.Us

  10. Card Properties Email: support@BarcodeFor.Us Site: www.BarcodeFor.Us

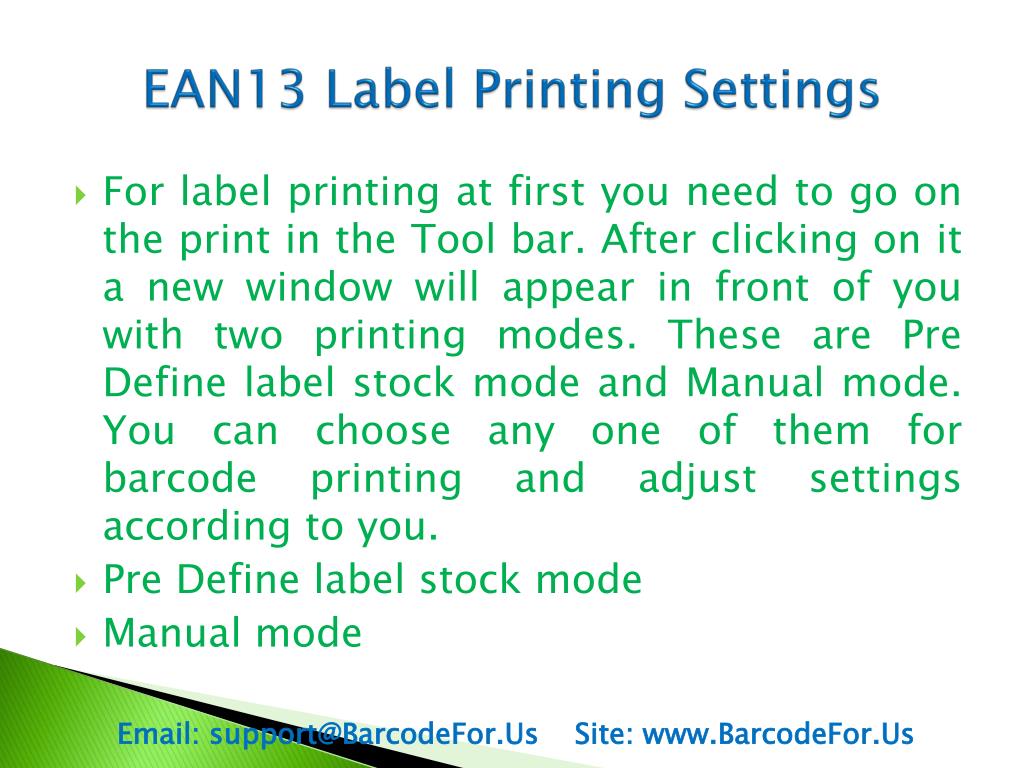

  11. EAN13 Label Printing Settings • For label printing at first you need to go on the print in the Tool bar. After clicking on it a new window will appear in front of you with two printing modes. These are Pre Define label stock mode and Manual mode. You can choose any one of them for barcode printing and adjust settings according to you. • Pre Define label stock mode • Manual mode Email: support@BarcodeFor.Us Site: www.BarcodeFor.Us

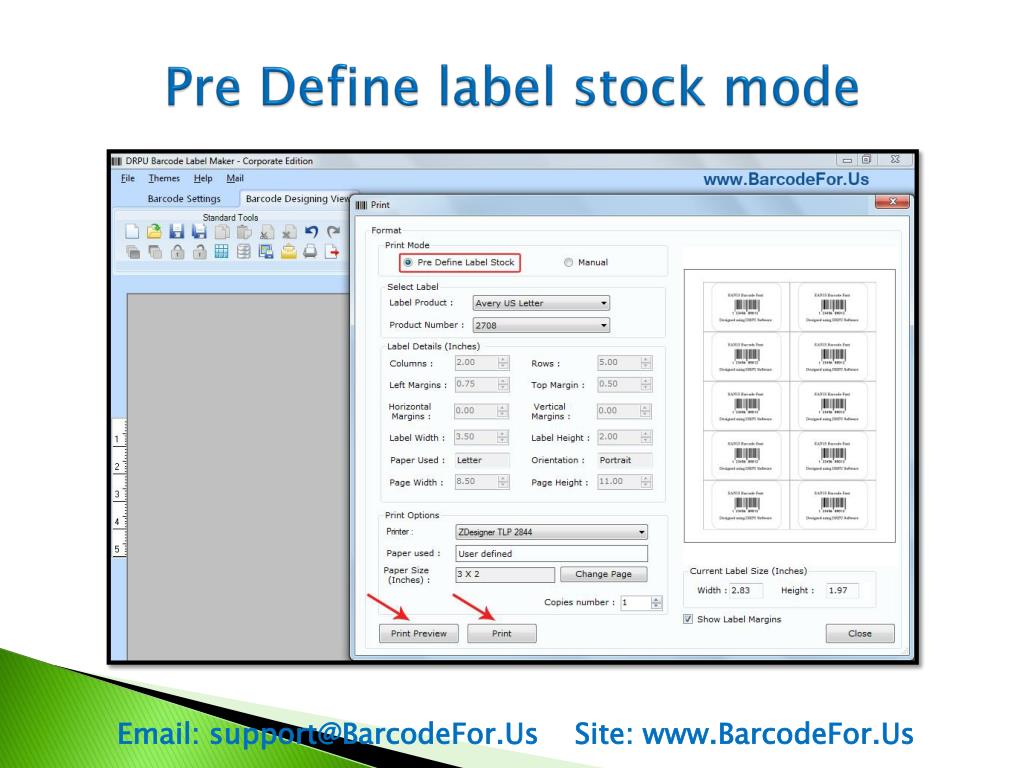

  12. Pre Define label stock mode Email: support@BarcodeFor.Us Site: www.BarcodeFor.Us

  13. Manual Mode Email: support@BarcodeFor.Us Site: www.BarcodeFor.Us

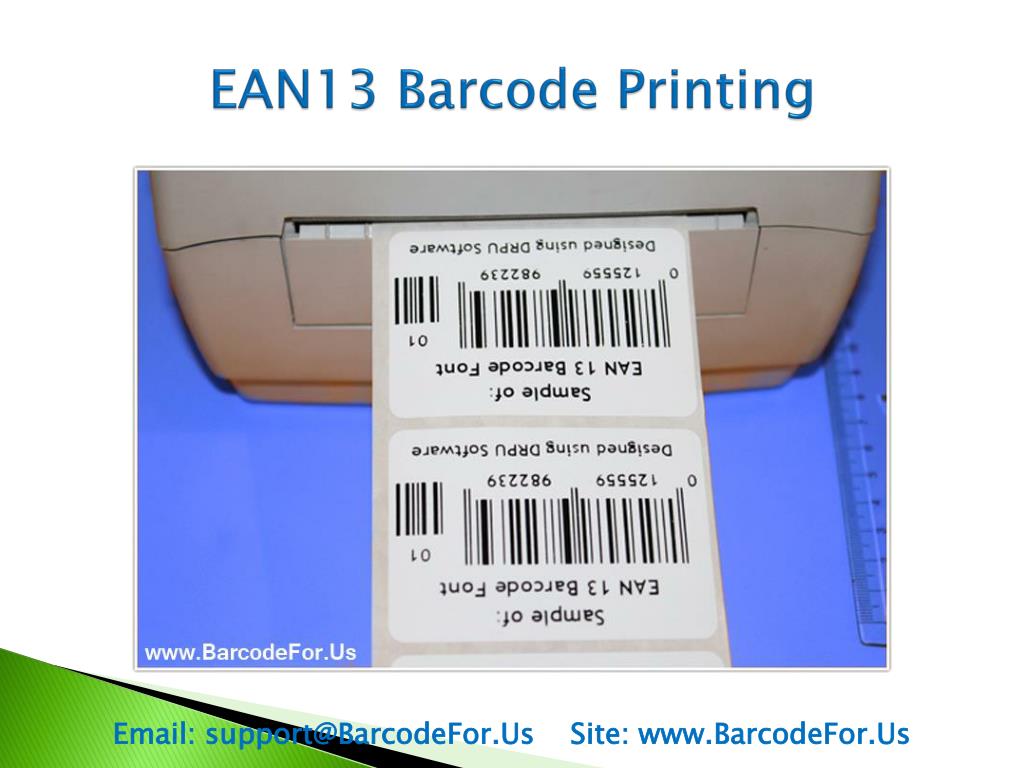

  14. EAN13 Barcode Printing Email: support@BarcodeFor.Us Site: www.BarcodeFor.Us

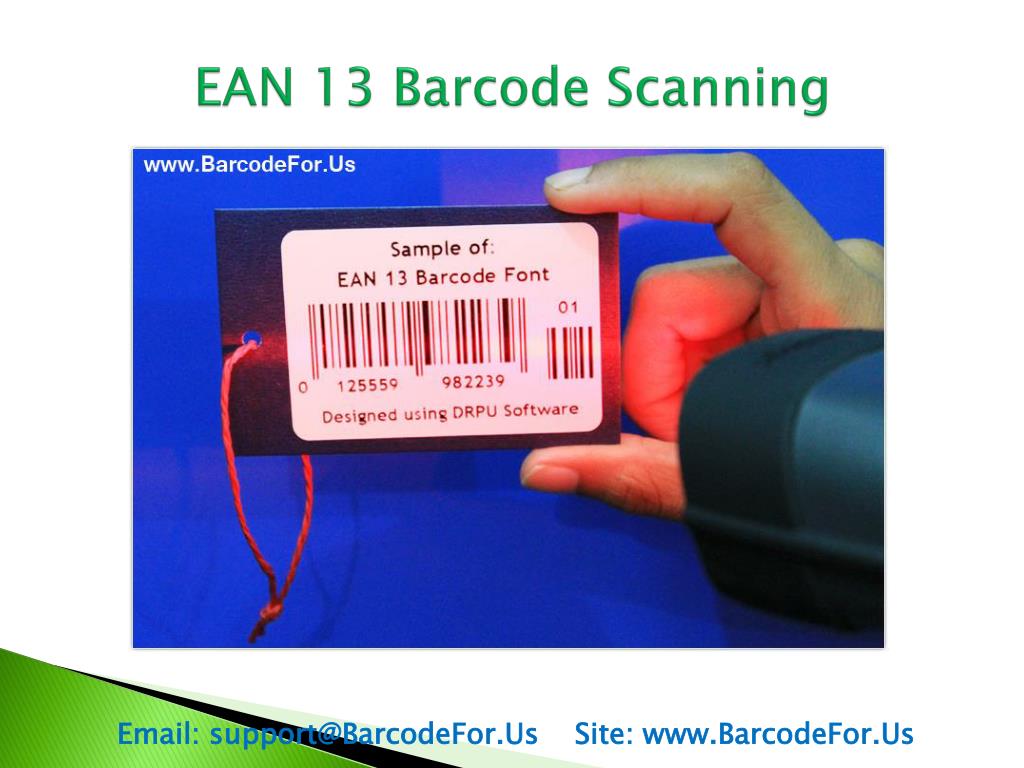

  15. EAN 13 Barcode Scanning Email: support@BarcodeFor.Us Site: www.BarcodeFor.Us

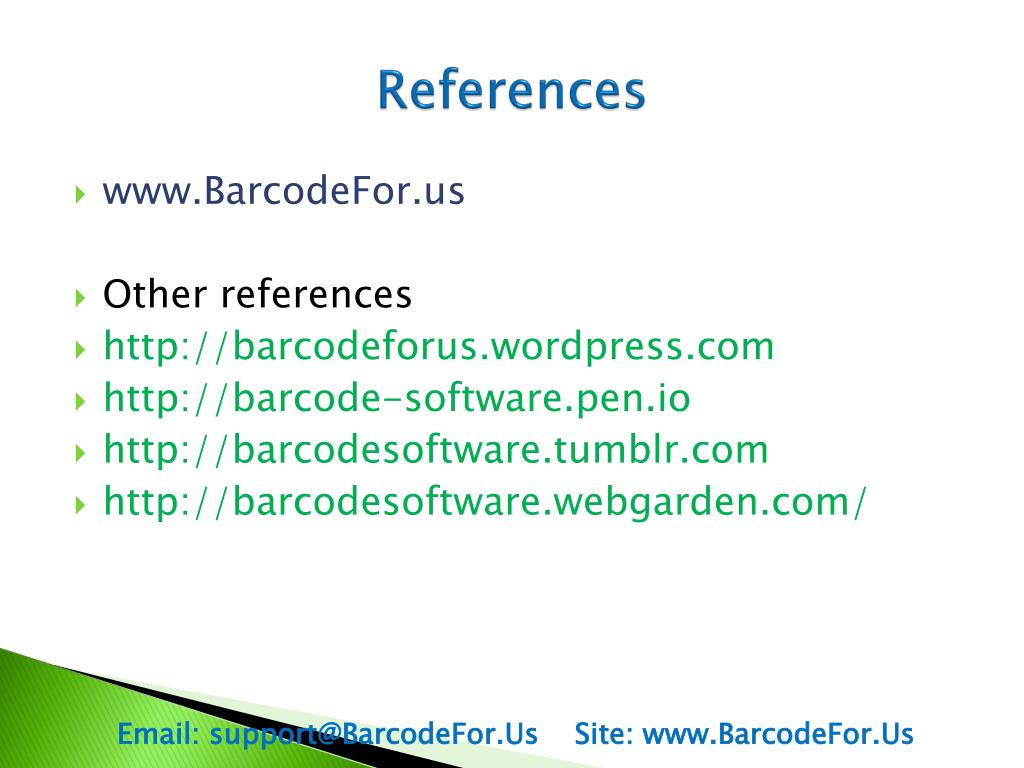

  16. References • www.BarcodeFor.us • Other references • http://barcodeforus.wordpress.com • http://barcode-software.pen.io • http://barcodesoftware.tumblr.com • http://barcodesoftware.webgarden.com/ Email: support@BarcodeFor.Us Site: www.BarcodeFor.Us

  17. Thank You Email: support@BarcodeFor.Us Site: www.BarcodeFor.Us
