  1. Introspect ESP for GHz Probe Cards

  2. What is Introspect ESP? Introspect ESP Software Introspect ESP Engine (Functional Test) Gbps Transceiver Hard -IP Introspect ESP Engine (Analog Test) Host PC Gbps Transceiver FPGA • Real-time signal integrity analyzer for FPGA systems • Turns a standard FPGA into full-fledged AC Parametric Tester

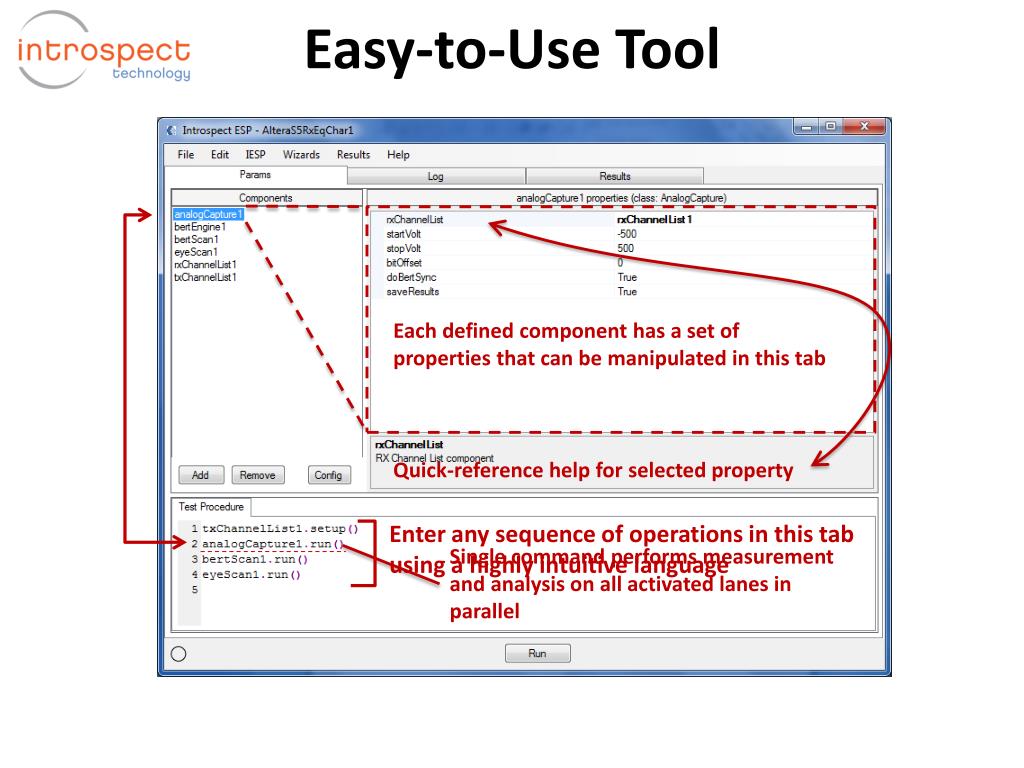

  3. Easy-to-Use Tool Each defined component has a set of properties that can be manipulated in this tab Quick-reference help for selected property Enter any sequence of operations in this tab using a highly intuitive language Single command performs measurement and analysis on all activated lanes in parallel

  4. Easy-to-Use Tool Eye diagram BER Eye Analog Waveform Capture Scientific Analysis Intuitive Wizards Intuitive Wizards

  5. AnalogMeasurement Features Analog Waveforms Eye Diagrams Scientific Analysis BER Statistics Multi-Variable Sweeps Skew Measurement Jitter & Bathtubs Raw Data Capture Built-In Report Generation Custom CSV Output HTML Report Output Text Report Output Custom Folder Output Automatic Pattern Identification Jitter Separation

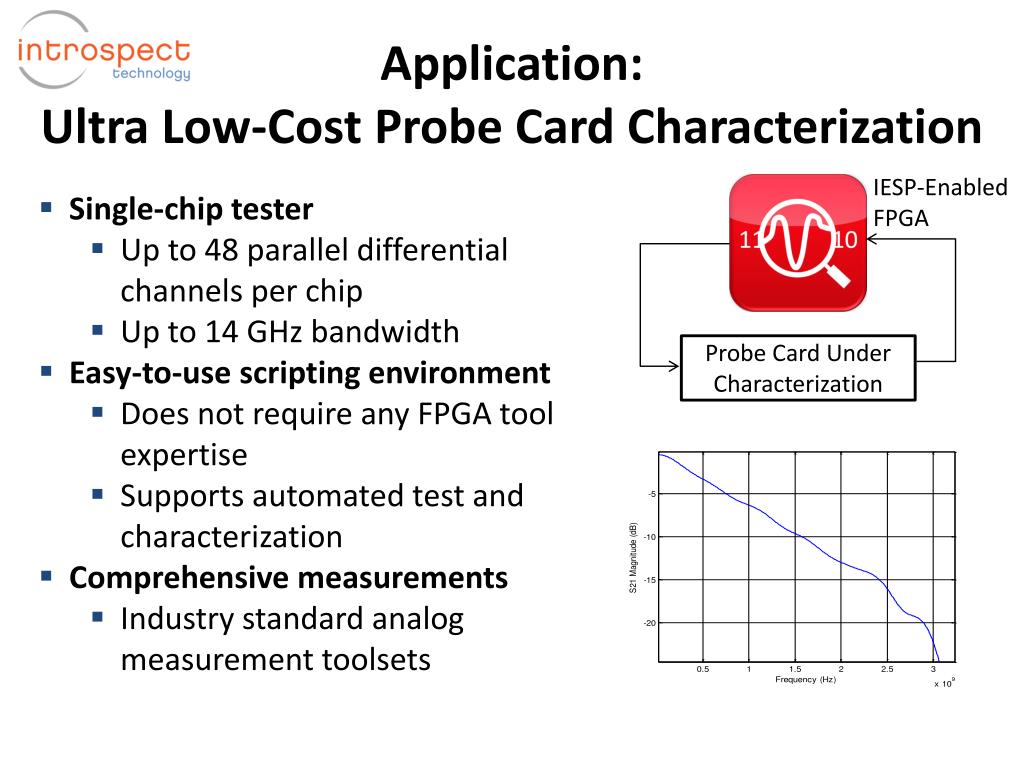

  6. Application: Ultra Low-Cost Probe Card Characterization IESP-Enabled FPGA • Single-chip tester • Up to 48 parallel differential channels per chip • Up to 14 GHz bandwidth • Easy-to-use scripting environment • Does not require any FPGA tool expertise • Supports automated test and characterization • Comprehensive measurements • Industry standard analog measurement toolsets Probe Card Under Characterization

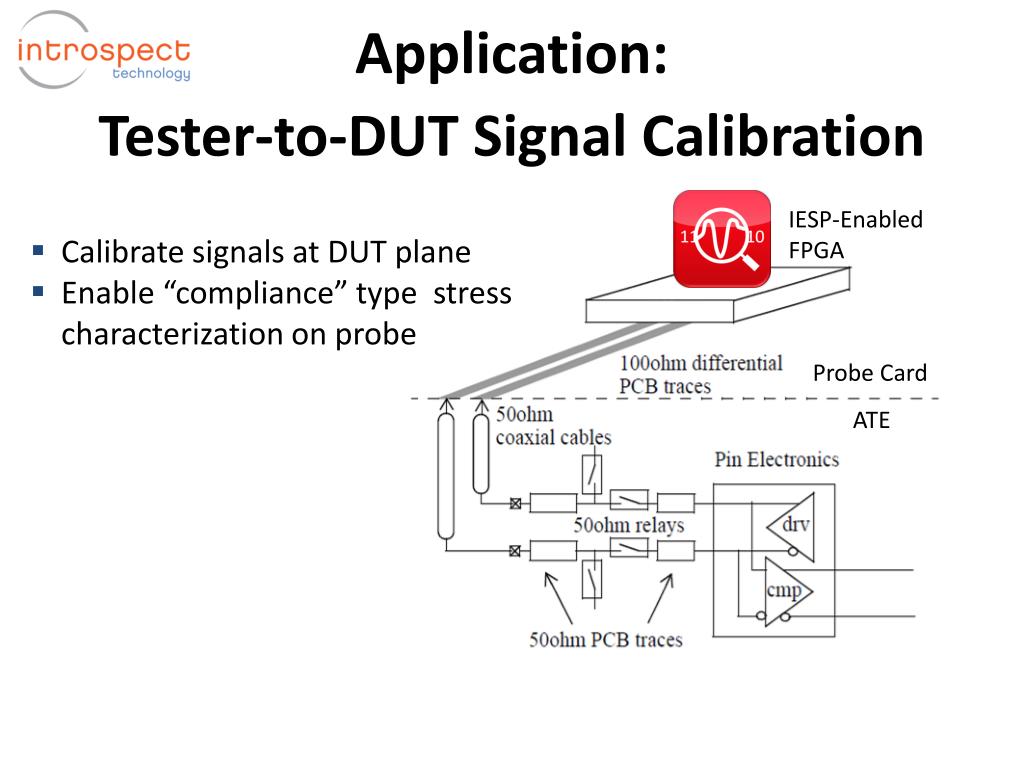

  7. Application: Tester-to-DUT Signal Calibration IESP-Enabled FPGA • Calibrate signals at DUT plane • Enable “compliance” type stress characterization on probe Probe Card ATE

  8. Application: SerDes Tester on Card • Single-FPGA solution FPGA • Full-PHY characterization • Protocol aware
