Simulation of Spherical Uniform Distribution for HKS Particle Width Analysis

ebony avatar
ebony
15 diapositives · 271 Views · Aug 26, 2014

This document presents a detailed analysis of the simulation of spherical uniform distribution for HKS particle events, focusing on the momentum, angles, and widths of generated peaks. Key findings include the widths of the 12ΛB g.s. state, which is observed to be wider than others, with specific measurements including FWHM of 523.9 ± 30.6 keV and mean of 36.27 ± 13.42 keV. The document also outlines the simulation conditions, including the solid angle, peak position differences, and event generation statistics. For more insights, refer to the full report available at the provided link.

#simulation of spherical uniform distribution for hks particle width analysis #simulation of spherical uniform distribution for hks particle width analysis ppt #powerpoint #presentation
Simulation of Spherical Uniform Distribution for HKS Particle Width Analysis - slide 1
01 / 15Simulation of Spherical Uniform Distribution for HKS Particle Width Analysis
1 / 17

Télécharger la présentation

Simulation of Spherical Uniform Distribution for HKS Particle Width Analysis
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

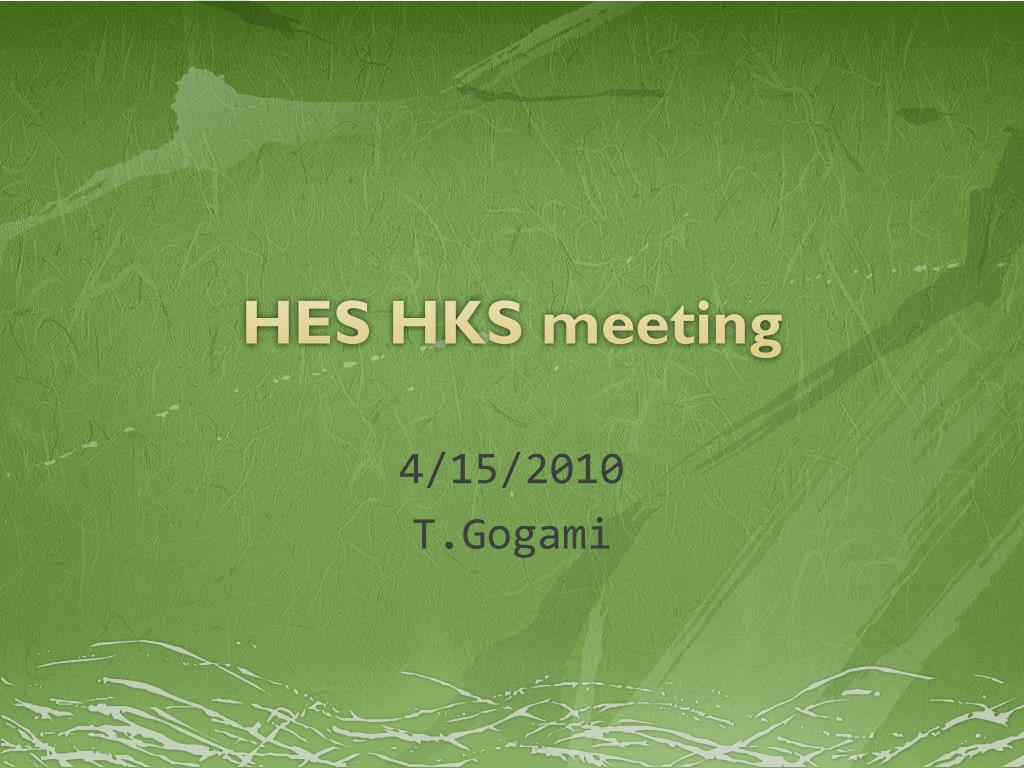

  1. HES HKS meeting 4/15/2010 T.Gogami

  2. Today’s talk • GEANT4 • spherical uniform distribution (HKS) • 12ΛB g.s. width • simulation

  3. spherical uniform distribution for HKS particles distribution at r=1

  4. HKSPrimaryGeneratorAction.cc black  generated events red  accepted events by HKS input/sample.in θ, Δθ , φ , Δφ θ ; same as HES side (backup)

  5. spherical uniform distribution for HKS particles distribution at r=1 • p = 1.2±0.3 [GeV/c] • θ = 0.124±0.124 [rad] • φ = 2.64±0.5 [rad] • No collimator

  6. spherical uniform distribution for HKS • p = 1.2±0.3 [GeV/c] • θ = 0.124±0.124 [rad] • φ = 1.57±1.57 [rad] • No collimator Momentum

  7. HKS solid angle simulation condition solid angle ~11 [msr] • p = 1.2±0.3 [GeV/c] • θ = 0.124±0.124 [rad] • φ = 1.57±1.57 [rad] • No collimator

  8. 12ΛB g.s. width is wider than others +100 [keV] [MeV] [MeV] +150 [keV] [MeV] [MeV] generated iterated num. = 10000 All event num. =700 = N second peak event num. = N/4 second peak pos. = +100,150,200[keV] resolution = 500 [keV] background : peak max. = 1 : 4 +200 [keV]

  9. 12ΛB g.s. width is wider than others • peak pos. difference = +150 [keV] • width (FWHM) = 523.9 ± 30.6(1σ) [keV] • mean = 36.27 ± 13.42 (1σ) [keV] document http://lambda.phys.tohoku.ac.jp/~gogami/Gpdf/width_sim2.pdf

  10. summary and to do SUMMARY • HKS spherical uniform distribution • HKS solid angle ~11 [msr] • width simulation • peak pos. difference = +150 [keV] • width (FWHM) = 523.9 ± 30.6(1σ) [keV] • mean = 36.27 ± 13.42 (1σ) [keV] • document • http://lambda.phys.tohoku.ac.jp/~gogami/Gpdf/width_sim2.pdf • Real data • EH • documents • GCOE RA • GCOE 若手イニシアティブA ~4/21 • 奨学金 ~4/30 • 学振 ~5/6 TO DO

  11. backup

  12. HESPrimaryGeneratorAction.cc 4/8/2010 meeting ppt input/sample.in θ, Δθ , φ , Δφ Δθ θ Δθ min max Δa Δa a

  13. 12ΛB g.s. width is wider than others +100 [keV] [MeV] [MeV] +150 [keV] [MeV] [MeV] generated iterated num. = 10000 All event num. =700 = N second peak event num. = N/2 second peak pos. = +100,150,200[keV] resolution = 500 [keV] background : peak max. = 1 : 4 +200 [keV]

  14. 12ΛB g.s. width is wider than others +100 [keV] [MeV] [MeV] +150 [keV] [MeV] [MeV] generated iterated num. = 10000 All event num. =700 = N second peak event num. = N/3 second peak pos. = +100,150,200[keV] resolution = 500 [keV] background : peak max. = 1 : 4 +200 [keV]

  15. 12ΛB g.s. width is wider than others document http://lambda.phys.tohoku.ac.jp/~gogami/Gpdf/width_sim2.pdf
