Signal Transduction

1. Signal Transduction

2. Many enzymes are regulated by covalent attachment of phosphate, in ester linkage, to the side-chain hydroxyl group of a particular amino acid residue (serine, threonine, or tyrosine).

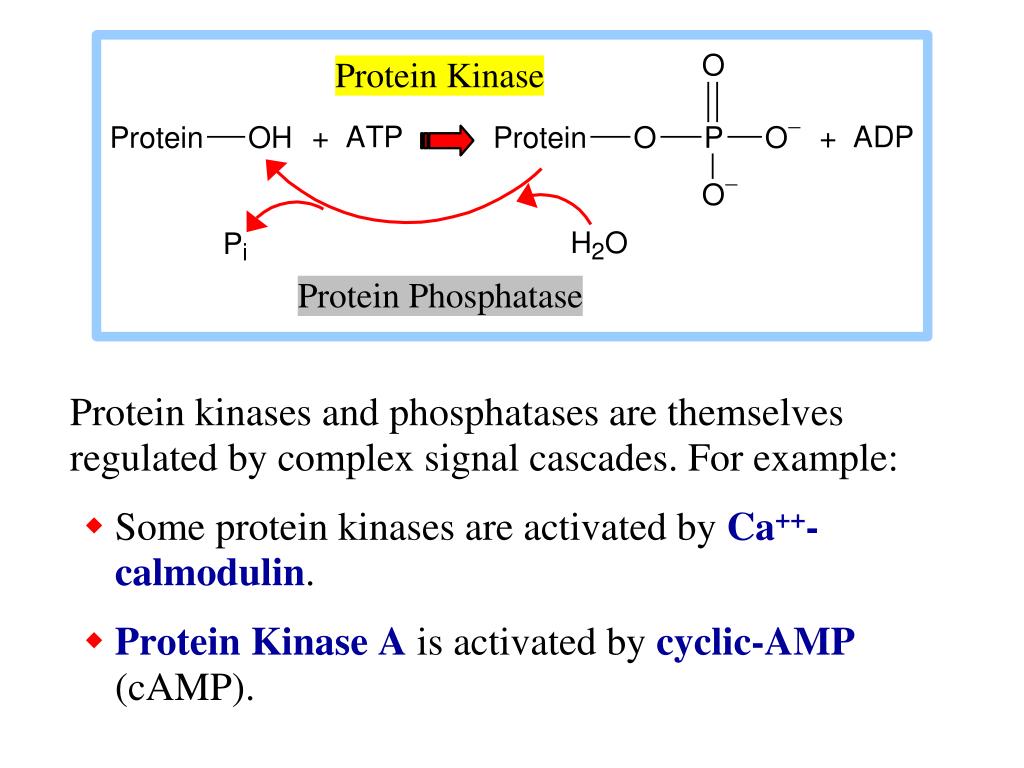

3. A protein kinasetransfers the terminal phosphate of ATP to a hydroxyl group on a protein. • A protein phosphatase catalyzes removal of the Pi by hydrolysis.

4. Phosphorylation may directly alter activity of an enzyme, e.g., by promoting a conformational change. Alternatively, altered activity may result from binding another protein that specifically recognizes a phosphorylated domain. • E.g., 14-3-3 proteins bind to domains that include phosphorylated Ser or Thr in the sequence RXXX[pS/pT]XP, where X can be different amino acids. • Binding to 14-3-3 is a mechanism by which some proteins (e.g., transcription factors) may be retained in the cytosol, and prevented from entering the nucleus.

5. Protein kinases and phosphatases are themselves regulated by complex signal cascades. For example: • Some protein kinases are activated by Ca++-calmodulin. • Protein Kinase A is activated by cyclic-AMP (cAMP).

6. AdenylateCyclase (AdenylylCyclase) catalyzes:  ATPàcAMP + PPi Binding of certain hormones (e.g., epinephrine) to the outer surface of a cell activatesadenylatecyclaseto form cAMP within the cell. Cyclic AMP is thus considered to be a second messenger.

7. Phosphodiesteraseenzymes catalyze: cAMP + H2OAMP The phosphodiesterase that cleaves cAMP is activated by phosphorylation catalyzed by Protein Kinase A. Thus cAMP stimulates its own degradation, leading to rapid turnoff of a cAMP signal.

8. Protein Kinase A (cAMP-Dependent Protein Kinase) transfers Pi from ATP to OH of a Ser or Thr in a particular 5-amino acid sequence. Protein Kinase A in the resting stateis a complex of: • 2 catalytic subunits(C) • 2 regulatory subunits(R). R2C2

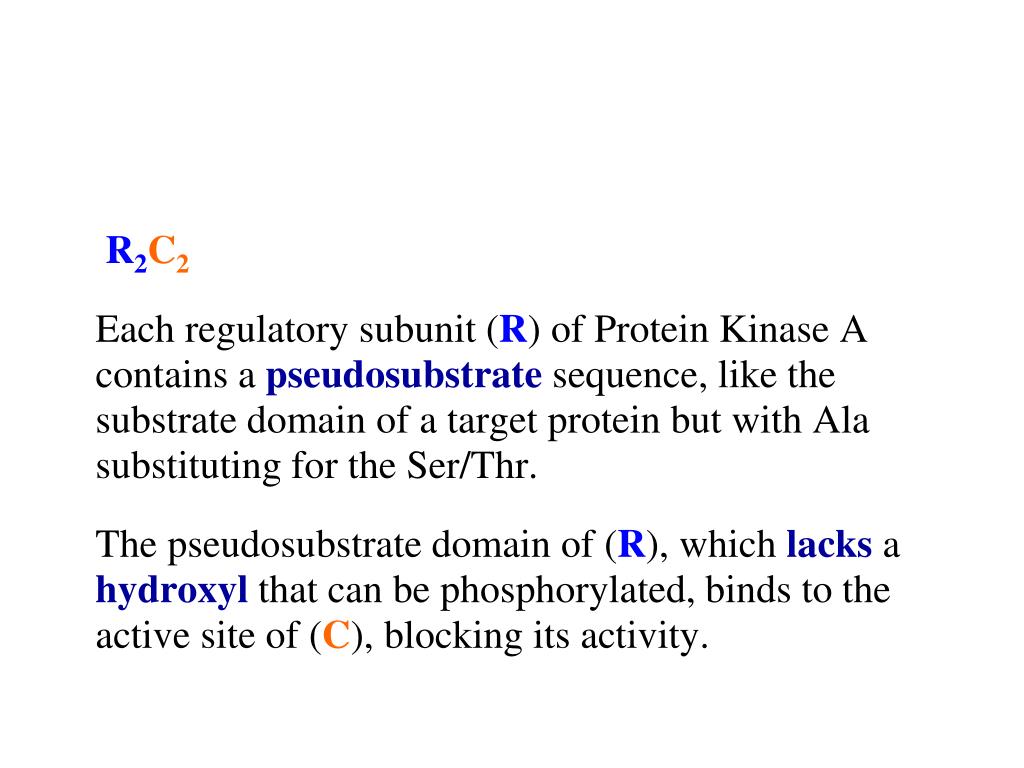

9. R2C2 Each regulatory subunit (R) of Protein Kinase Acontains a pseudosubstrate sequence, like the substrate domain of a target protein but with Ala substituting for the Ser/Thr. The pseudosubstrate domain of (R), which lacks a hydroxyl that can be phosphorylated, binds to the active site of (C), blocking its activity.

10. R2C2 + 4 cAMPR2cAMP4 + 2C When each (R) binds 2 cAMP, a conformational change causes (R) to release (C). The catalytic subunits can then catalyze phosphorylation of Ser or Thr on target proteins. PKIs, Protein Kinase Inhibitors, modulate activity of the catalytic subunits (C).

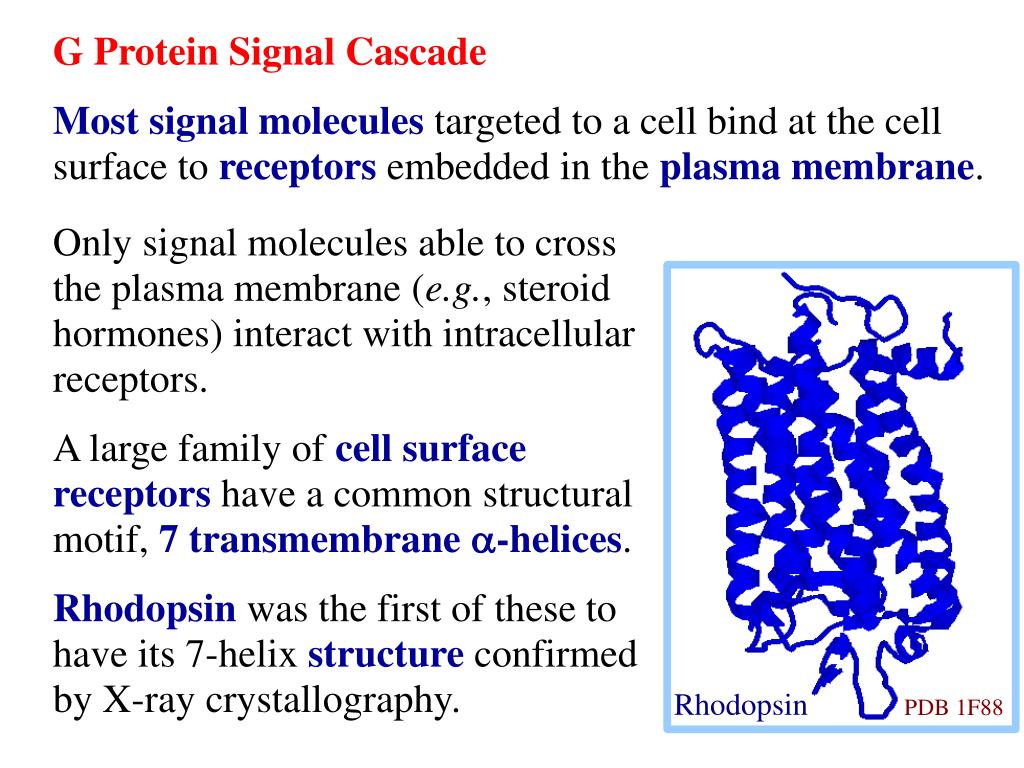

11. G Protein Signal Cascade Mostsignal molecules targeted to a cell bind at the cell surface to receptors embedded in the plasma membrane. Only signal molecules able to cross the plasma membrane (e.g., steroid hormones) interact with intracellular receptors. A large family of cell surface receptors have a common structural motif, 7 transmembranea-helices. Rhodopsin was the first of these to have its 7-helix structure confirmed by X-ray crystallography.

12. Rhodopsin is unique. It senses light, via a bound chromophore, retinal. • Most7-helix receptors have domains facing the extracellular side of the plasma membrane that recognize and bind signal molecules (ligands). E.g., the b-adrenergic receptor is activated by epinephrine and norepinephrine. Crystallization of this receptor was aided by genetically engineering insertion of the soluble enzyme lysozyme into a cytosolic loop between transmembrane a-helices.

13. The signal is usually passed from a 7-helix receptor to an intracellular G-protein. • Seven-helix receptors are thus called GPCR, or G-Protein-Coupled Receptors. • Approx. 800 different GPCRs are encoded in the human genome.

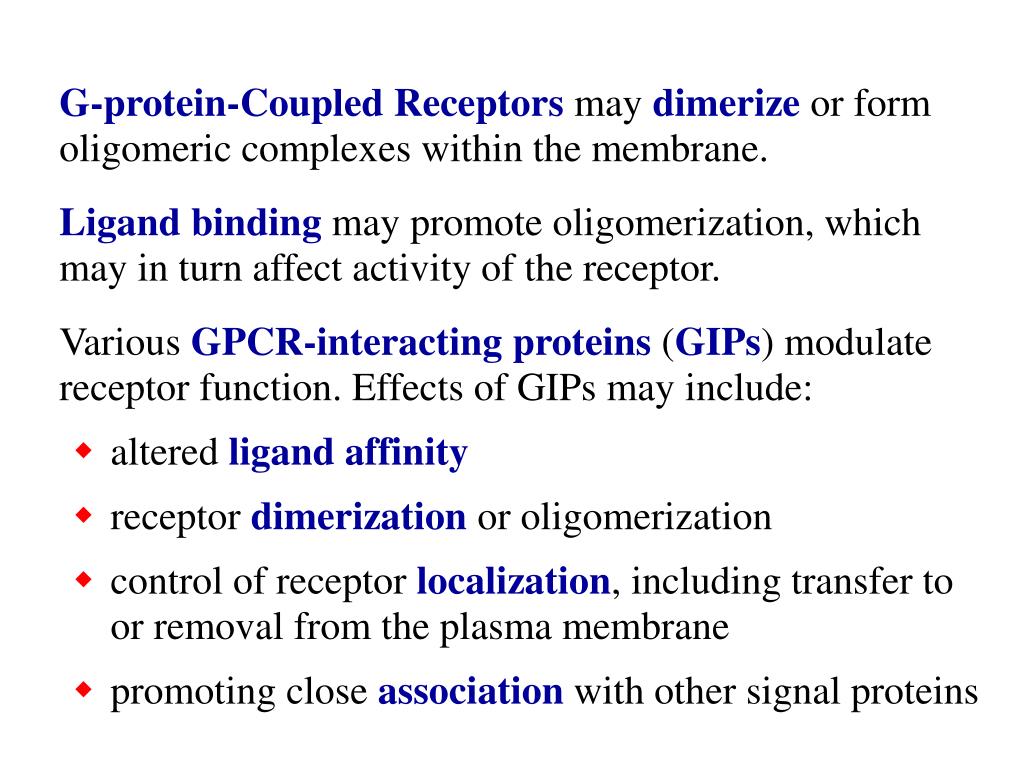

14. G-protein-Coupled Receptors may dimerize or form oligomeric complexes within the membrane. Ligand binding may promote oligomerization, which may in turn affect activity of the receptor. Various GPCR-interacting proteins (GIPs) modulate receptor function. Effects of GIPs may include: • altered ligand affinity • receptor dimerization or oligomerization • control of receptor localization, including transfer to or removal from the plasma membrane • promoting close association with other signal proteins

15. G-proteins are heterotrimeric, with 3 subunits a, b, g. • A G-protein that activates cyclic-AMP formation within a cell is called a stimulatory G-protein, designated Gs with alpha subunit Gsa. • Gs is activated, e.g., by receptors for the hormones epinephrine and glucagon. The b-adrenergic receptor is the GPCR for epinephrine.

16. The asubunit of a G-protein (Ga) binds GTP, and can hydrolyze it to GDP + Pi. A and g subunits have covalently attached lipid anchors that bind a G-protein to the plasma membrane cytosolic surface. AdenylateCyclase (AC) is a transmembrane protein, with cytosolic domains forming the catalytic site.

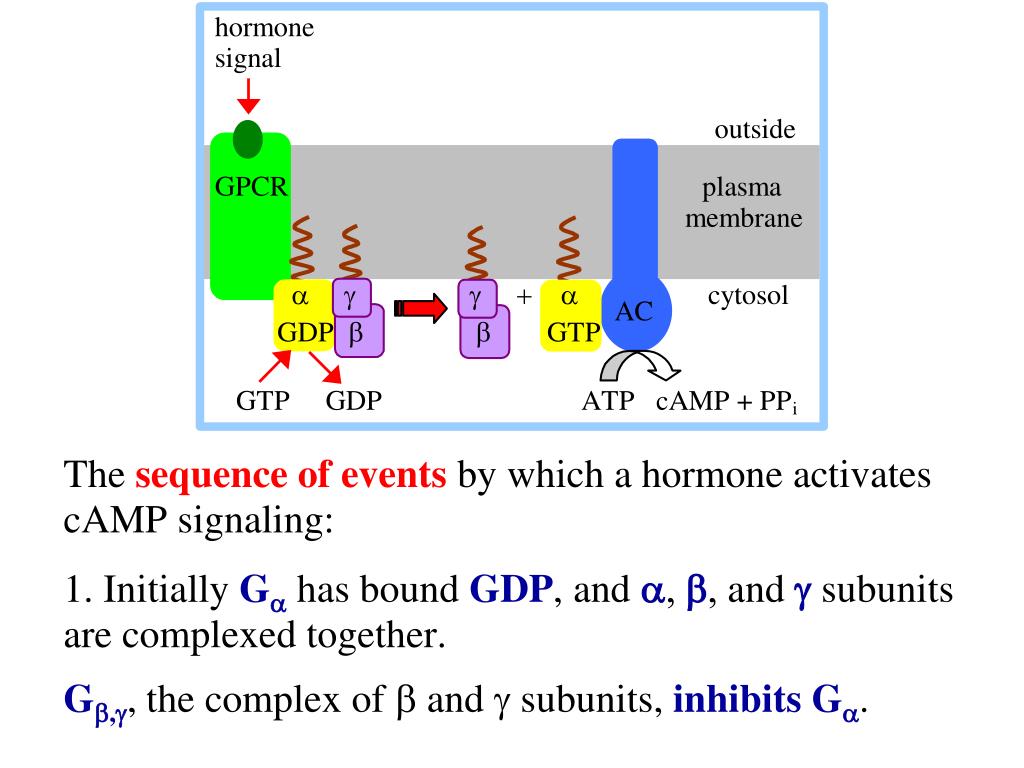

17. The sequence of events by which a hormone activates cAMP signaling: 1. Initially Gahas bound GDP, and a, b, andg subunitsare complexed together. Gb,g, the complex of b and g subunits, inhibits Ga.

18. 2.Hormone binding, usually to an extracellular domain of a 7-helix receptor (GPCR), causes a conformational change in the receptor that is transmitted to a G-protein on the cytosolic side of the membrane. The nucleotide-binding site on Ga becomes more accessible to the cytosol, where [GTP] > [GDP]. Gareleases GDP and binds GTP (GDP-GTP exchange).

19. 3.Substitution of GTP for GDP causes another conformational change in Ga. Ga-GTP dissociates from the inhibitory bg complex and can now bind to and activate AdenylateCyclase.

20. 4. Adenylate Cyclase, activated by the stimulatoryGa-GTP, catalyzes synthesis of cAMP. 5. Protein Kinase A (cAMP Dependent Protein Kinase) catalyzes transfer of phosphate from ATP to serine or threonine residues of various cellular proteins, altering their activity.

21. Turn off of the signal: 1. Ga hydrolyzes GTP to GDP + Pi. (GTPase). The presence of GDP on Ga causes it to rebind to the inhibitory bgcomplex. Adenylate Cyclase is no longer activated. 2. Phosphodiesterasescatalyze hydrolysis of cAMPAMP.

22. 3. Receptordesensitization varies with the hormone. • In some cases the activatedreceptor is phosphorylated via a G-protein Receptor Kinase. • The phosphorylatedreceptor then may bind to a protein b-arrestin. • b-Arrestin promotes removal of the receptor from the membrane by clathrin-mediated endocytosis. • b-Arrestin may also bind a cytosolic Phosphodiesterase, bringing this enzyme close to where cAMP is being produced, contributing to signal turnoff. 4. Protein Phosphatase catalyzes removal by hydrolysis of phosphates that were attached to proteins via ProteinKinase A.

23. Signal amplification is an important feature of signal cascades: • One hormone molecule can lead to formation of many cAMP molecules. • Each catalytic subunit of Protein Kinase A catalyzes phosphorylation of many proteins during the life-time of the cAMP.

24. Differentisoforms of Ga have different signal roles. E.g.: • The stimulatoryGsa, when it binds GTP, activatesadenylatecyclase. • An inhibitoryGia, when it binds GTP, inhibitsadenylatecyclase. Different effectors and their receptorsinduce Gia to exchange GDP for GTP than those that activate Gsa. • The complex of Gb,g that is released when Ga binds GTP is itself an effector that binds to and activates or inhibits several other proteins. E.g., Gb,g inhibits one of several isoforms of AdenylateCyclase, contributing to rapid signal turnoff in cells that express that enzyme.

25. Cholera toxin catalyzes covalent modification of Gsa. • ADP-ribose is transferred from NAD+ to an arginine residue at the GTPase active site of Gsa. • ADP-ribosylation prevents GTP hydrolysis by Gsa. • The stimulatory G-protein is permanently activated. • Pertussis toxin (whooping cough disease) catalyzes ADP-ribosylation at a cysteine residue of the inhibitory Gia, making it incapable of exchanging GDP for GTP. • The inhibitory pathwayis blocked. • ADP-ribosylation is a general mechanism by which activity of many proteins is regulated, in eukaryotes (including mammals) as well as in prokaryotes.

26. ADP ribosylation

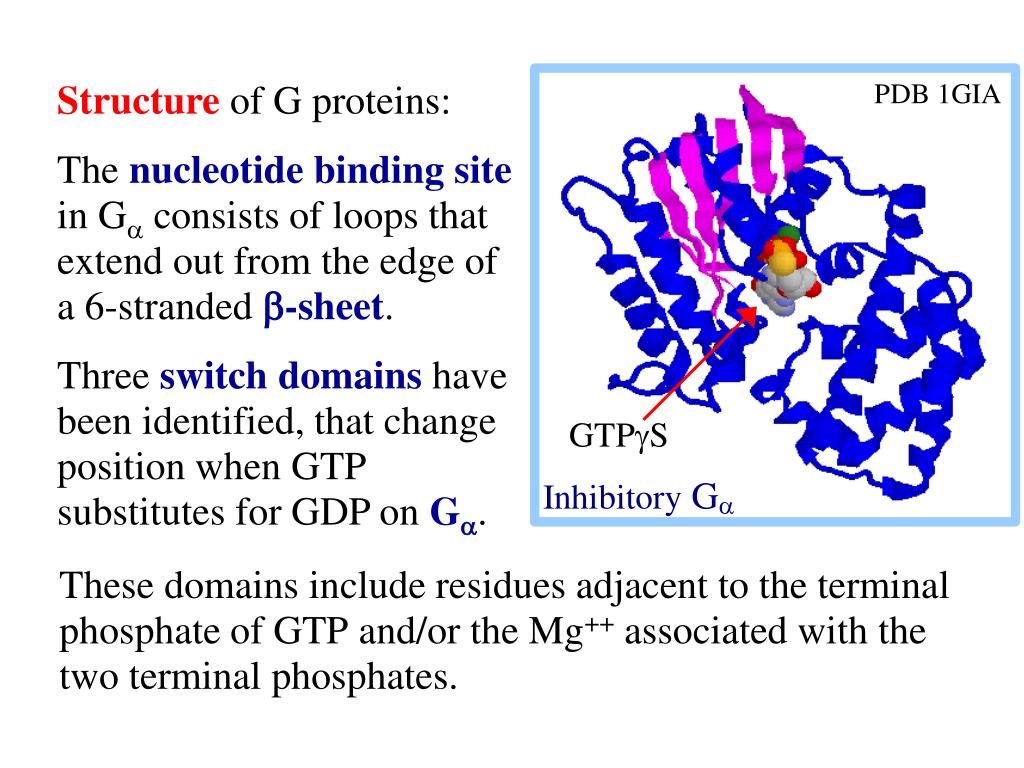

27. Structure of G proteins: The nucleotide binding site in Ga consists of loops that extend out from the edge of a 6-stranded b-sheet. Three switch domains have been identified, that change position when GTP substitutes for GDP on Ga. These domains include residues adjacent to the terminal phosphate of GTP and/or the Mg++ associated with the two terminal phosphates.

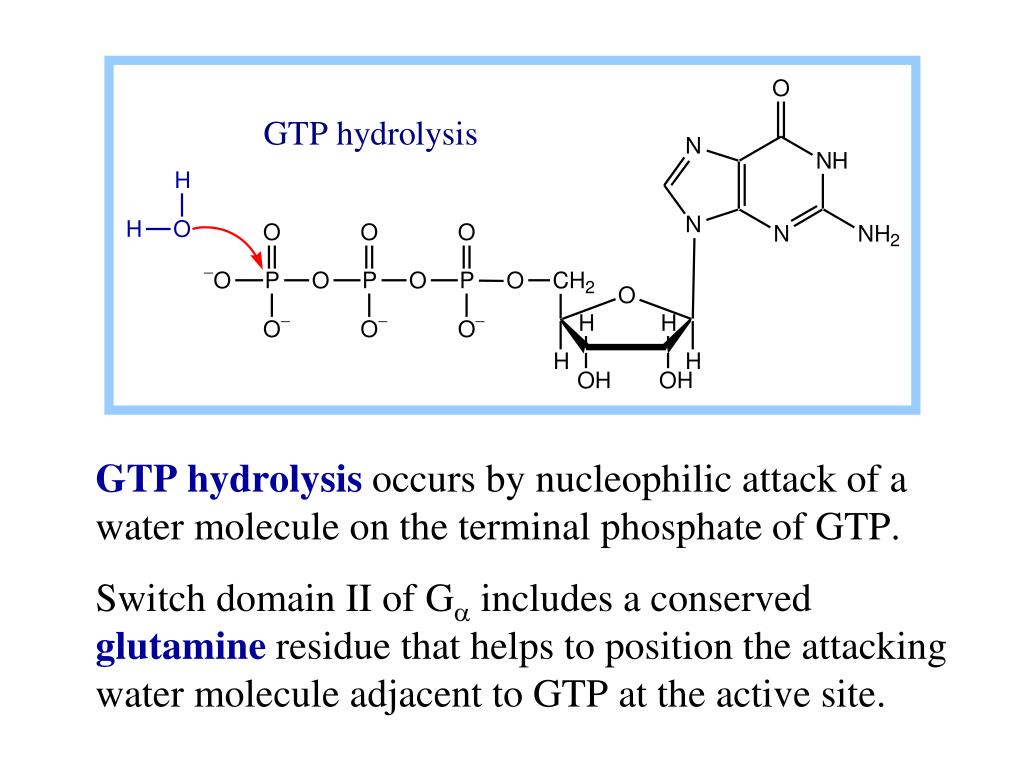

28. GTP hydrolysis occurs by nucleophilic attack of a water molecule on the terminal phosphate of GTP. Switch domain II of Ga includes a conserved glutamine residue that helps to position the attacking water molecule adjacent to GTP at the active site.

29. The bsubunit of the heterotrimeric G Protein has a b-propeller structure, formed from multiple repeats of a sequence called the WD-repeat. The b-propeller provides a stable structural support for residues that bind Ga. It is a common structural motif for protein domains involved in protein-protein interaction.

30. The family of heterotrimeric G proteins includes also: • transducin, involved in sensing of light in the retina. • G-proteins involved in odorant sensing in olfactory neurons. There is a larger family of small GTP-binding switch proteins, related to Ga.

31. Small GTP-binding proteins include (roles indicated): • initiation and elongation factors (protein synthesis). • Ras (growth factor signal cascades). • Rab (vesicle targeting and fusion). • ARF (forming vesicle coatomer coats). • Ran (transport of proteins into and out of the nucleus). • Rho (regulation of actin cytoskeleton) All GTP-binding proteins differ in conformation depending on whether GDP or GTP is present at their nucleotide binding site. Generally, GTP binding induces the active state.

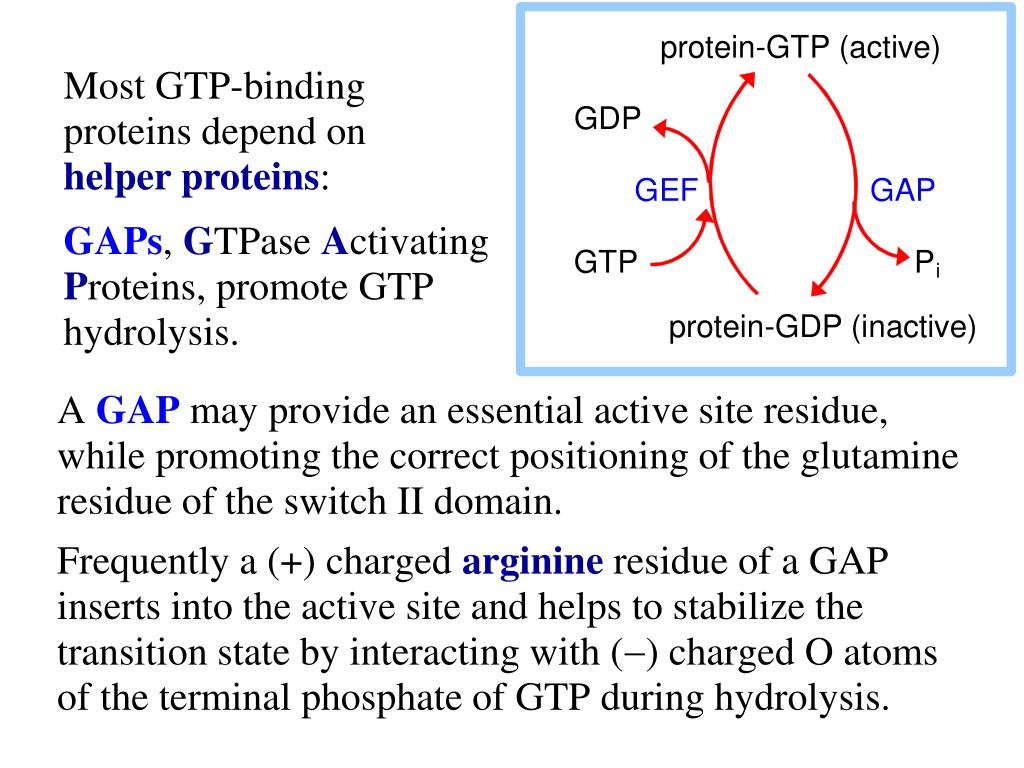

32. Most GTP-binding proteins depend on helper proteins: GAPs, GTPase Activating Proteins, promote GTP hydrolysis. A GAP may provide an essential active site residue, while promoting the correct positioning of the glutamine residue of the switch II domain. Frequently a (+) charged arginine residue of a GAP inserts into the active site and helps to stabilize the transition state by interacting with (-) charged O atoms of the terminal phosphate of GTP during hydrolysis.

33. Ga of a heterotrimeric G protein has innate capability for GTP hydrolysis. It has the essential arginine residue normally provided by a GAP for small GTP-binding proteins. • However,RGS proteins, which are negative regulators of G protein signaling, stimulate GTP hydrolysis by Ga.

34. GEFs, Guanine Nucleotide Exchange Factors, promote GDP/GTP exchange. • An activated receptor (GPCR) normally serves as GEF for a heterotrimeric G-protein. • Alternatively, AGS (Activator of G-protein Signaling) proteins may activate some heterotrimeric G-proteins, independent of a receptor. Some AGS proteins have GEF activity.

35. Phosphatidylinositol Signal Cascades Some hormones activate a signal cascade based on the membrane lipid phosphatidylinositol.

36. Kinases sequentially catalyze transfer of Pi from ATP to OH groups at positions 5 and 4 of the inositol ring, to yield phosphatidylinositol-4,5-bisphosphate (PIP2). PIP2 is cleaved by the enzyme Phospholipase C.

37. Different isoforms of Phospholipase C have different regulatory domains, and thus respond to different signals. A G-protein, Gq activates one form of Phospholipase C. When a particular GPCR (receptor) is activated, GTP exchanges for GDP. Gqa-GTP activates Phospholipase C. Ca++, which is required for activity of Phospholipase C, interacts with (-) charged residues and with Pi moieties of the phosphorylatedinositol at the active site.

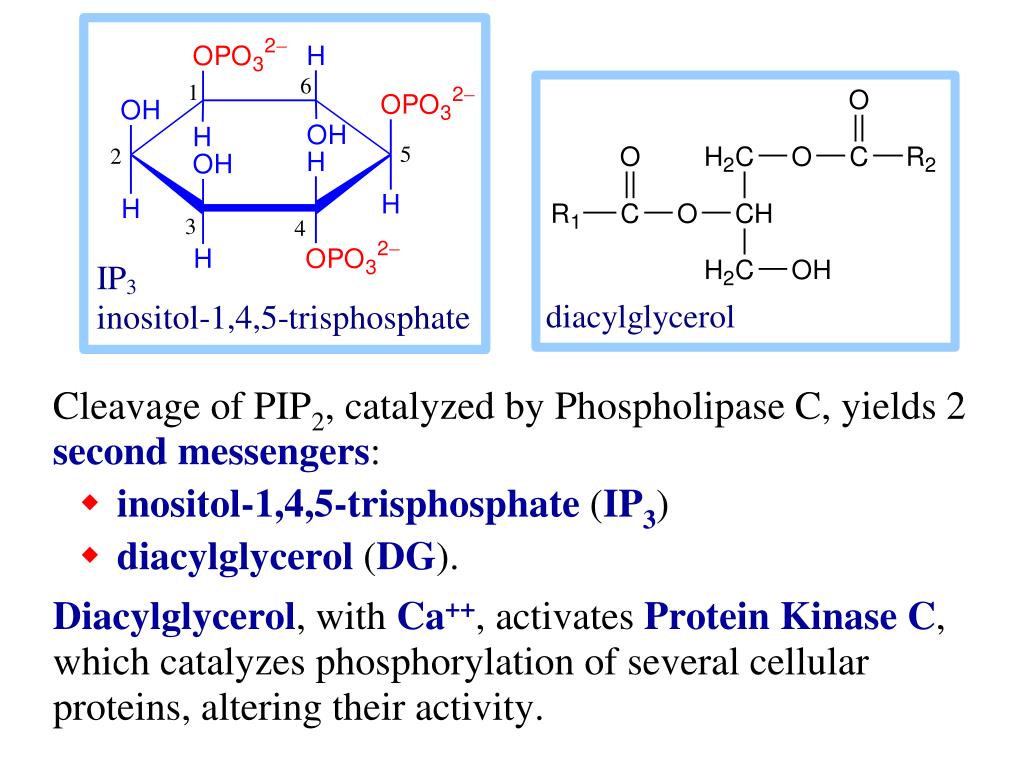

38. Cleavage of PIP2, catalyzed by Phospholipase C, yields 2 second messengers: • inositol-1,4,5-trisphosphate (IP3) • diacylglycerol (DG). Diacylglycerol, with Ca++, activates Protein Kinase C, which catalyzes phosphorylation of several cellular proteins, altering their activity.

39. IP3 activates Ca++-release channels in ER membranes. Ca++ stored in the ER is released to the cytosol, where it may bind calmodulin, or help activate Protein Kinase C. Signalturn-off includes removal of Ca++ from the cytosol via Ca++-ATPase pumps, and degradation of IP3.

40. Sequential dephosphorylation of IP3 by enzyme-catalyzed hydrolysis yields inositol, a substrate for synthesis of PI. IP3 may instead be phosphorylated via specific kinases, to IP4, IP5 or IP6. Some of these have signal roles. E.g., the IP4 inositol-1,3,4,5-tetraphosphate in some cells stimulates Ca++ entry, perhaps by activating plasma membrane Ca++ channels.

41. The kinases that convert PI (phosphatidylinositol) to PIP2 (PI-4,5-P2) transfer Pi from ATP to OH at positions 4 and 5 of the inositol ring. PI 3-Kinases instead catalyze phosphorylation of phosphatidylinositol at the 3 position of the inositol ring.

42. PI-3-P, PI-3,4-P2, PI-3,4,5-P3, and PI-4,5-P2 have signaling roles. Head-groups of these transiently formed lipids are ligands for particular pleckstrin homology (PH) and FYVE protein domains that bind proteins to membrane surfaces.  Other protein domains called MARKS are (+) charged, and their binding to (-) charged head-groups of lipids like PIP2 is antagonized by Ca++.

43. Protein Kinase B(also called Akt) becomes activated when it is recruited from the cytosol to the plasma membrane surface by binding to products of PI-3 Kinase, e.g., PI-3,4,5-P3. • Other kinases at the cytosolic surface of the plasma membrane then catalyze phosphorylation of Protein Kinase B, activating it. • Activated Protein Kinase B catalyzes phosphorylation of Ser or Thr residues of many proteins, with diverse effects on metabolism, cell growth, and apoptosis. • Downstream metabolic effects of Protein Kinase B include stimulation of glycogen synthesis, stimulation of glycolysis, and inhibition of gluconeogenesis.

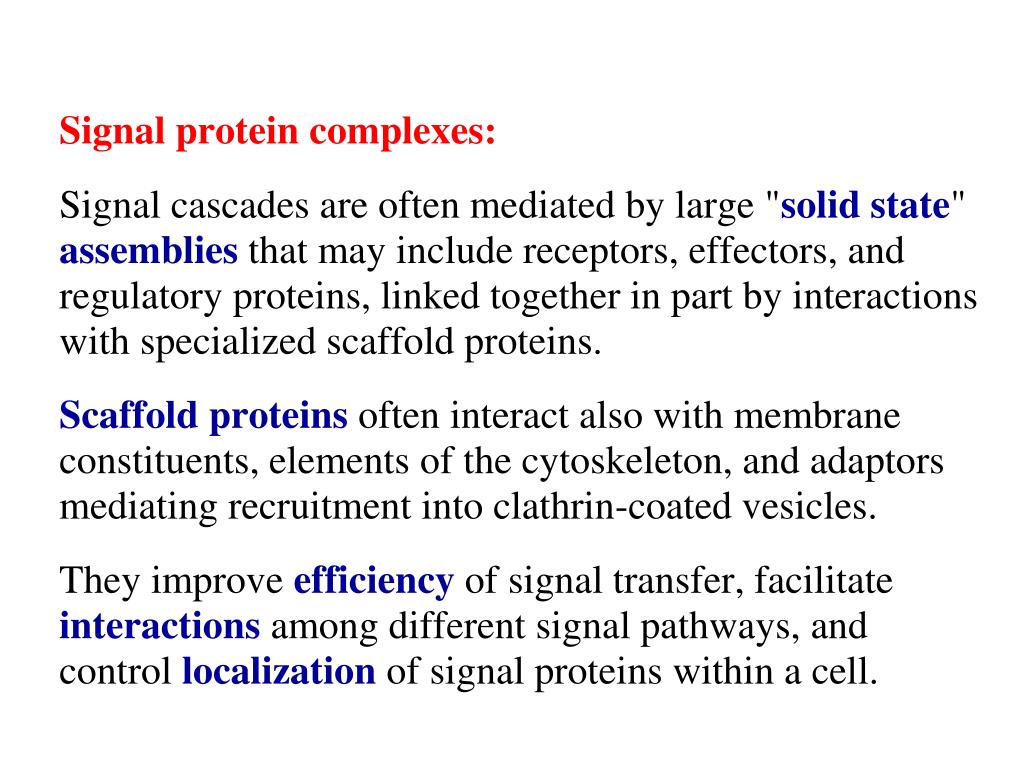

44. Signal protein complexes: Signal cascades are often mediated by large "solid state" assemblies that may include receptors, effectors, and regulatory proteins, linked together in part by interactions with specialized scaffold proteins. Scaffold proteins often interact also with membrane constituents, elements of the cytoskeleton, and adaptors mediating recruitment into clathrin-coated vesicles. They improve efficiency of signal transfer, facilitate interactions among different signal pathways, and control localization of signal proteins within a cell.

45. Lipid rafts: • Complexsphingolipids tend to separate out from glycerophospholipids and co-localize with cholesterol in membrane microdomains called lipid rafts. • Membrane fragments assumed to be lipid rafts are found to be resistant to detergent solubilization, which has facilitated their isolation and characterization. • Differences in molecular shape may contribute to a tendency for sphingolipids to separate out from glycerophospholipids in membrane microdomains.

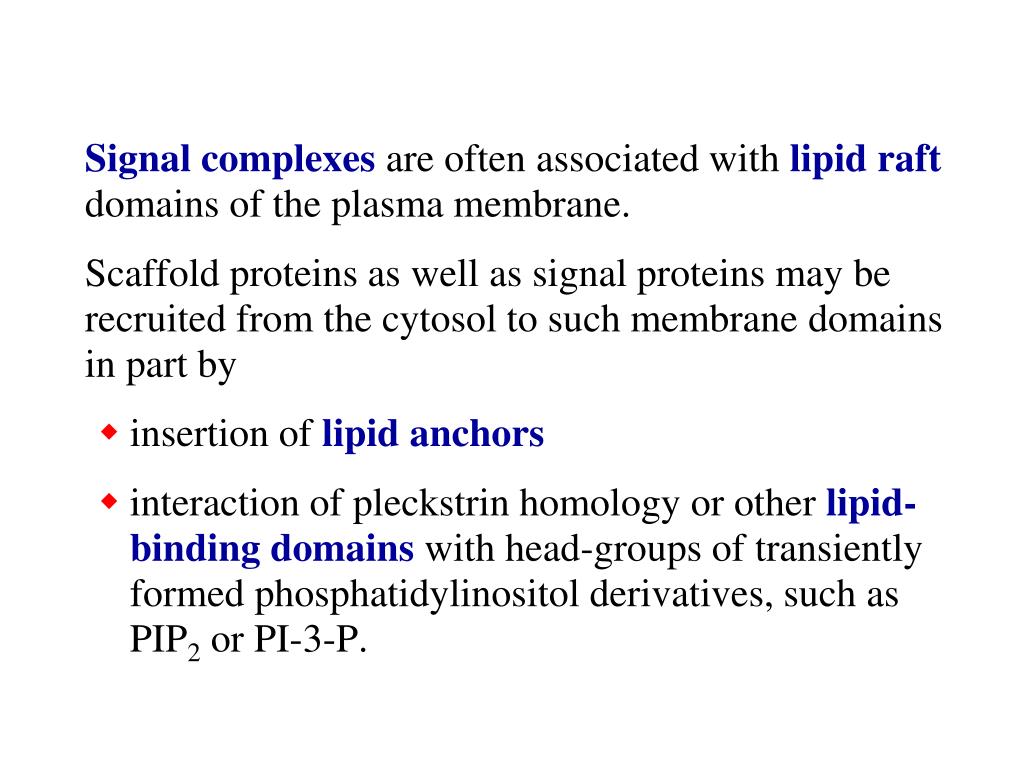

46. Signal complexes are often associated with lipid raft domains of the plasma membrane. Scaffold proteins as well as signal proteins may be recruited from the cytosol to such membrane domains in part by • insertion of lipid anchors • interaction of pleckstrin homology or other lipid-binding domains with head-groups of transiently formed phosphatidylinositol derivatives, such as PIP2 or PI-3-P.

47. AKAPs (A-Kinase Anchoring Proteins) are scaffold proteins with multiple domains that bind to • regulatory subunits of Protein Kinase A • phosphorylated derivatives of phosphatidylinositol • various other signal proteins, such as: • G-protein-coupled receptors (GPCRs) • Other kinases such as Protein Kinase C • Protein phosphatases • Phosphodiesterases AKAPs localize signal cascades within a cell. They coordinate activation of protein kinases as well as rapid turn-off of signals.
