Essentials of OVID. Using UML based notation to capture system requirements and design. Overview of Socio-cognitive Engineering. Design Concept. Contextual Studies. Design space. Task model. Evaluation. System specification. Theory of Use. General requirements. Deployment.
E N D
Essentials of OVID Using UML based notation to capture system requirements and design.
Overview of Socio-cognitive Engineering Design Concept Contextual Studies Design space Task model Evaluation System specification Theory of Use General requirements Deployment Implementation
Use of OVID UML Design Concept Contextual Studies Design space Task model Evaluation System specification Theory of Use * General requirements * Deployment Implementation * also used for business process models and software engineering
Why UML? • CASE tools support UML and can be used to facilitate communication within a project team • design can be partitioned for teams • control levels and versions • software design and business process are already documented in UML • can teach other disciplines to use OVID subset • May use ‘gatekeeper’ to help others understand
Summary of UML used • Class diagrams • for users, goals • for objects and views • Activity diagrams • for old tasks and new tasks • Use cases • for function specification

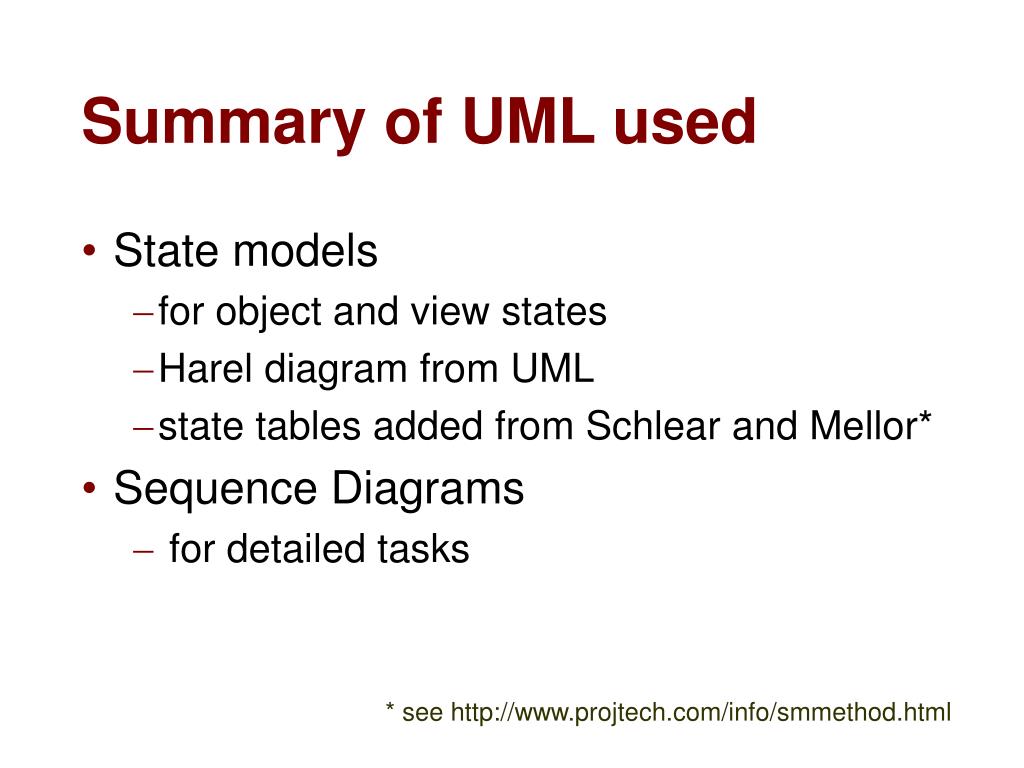

Summary of UML used • State models • for object and view states • Harel diagram from UML • state tables added from Schlear and Mellor* • Sequence Diagrams • for detailed tasks * see http://www.projtech.com/info/smmethod.html
Class diagrams (users and goals) Design Concept Contextual Studies Design space Task model Evaluation System specification Theory of Use General requirements Deployment Implementation

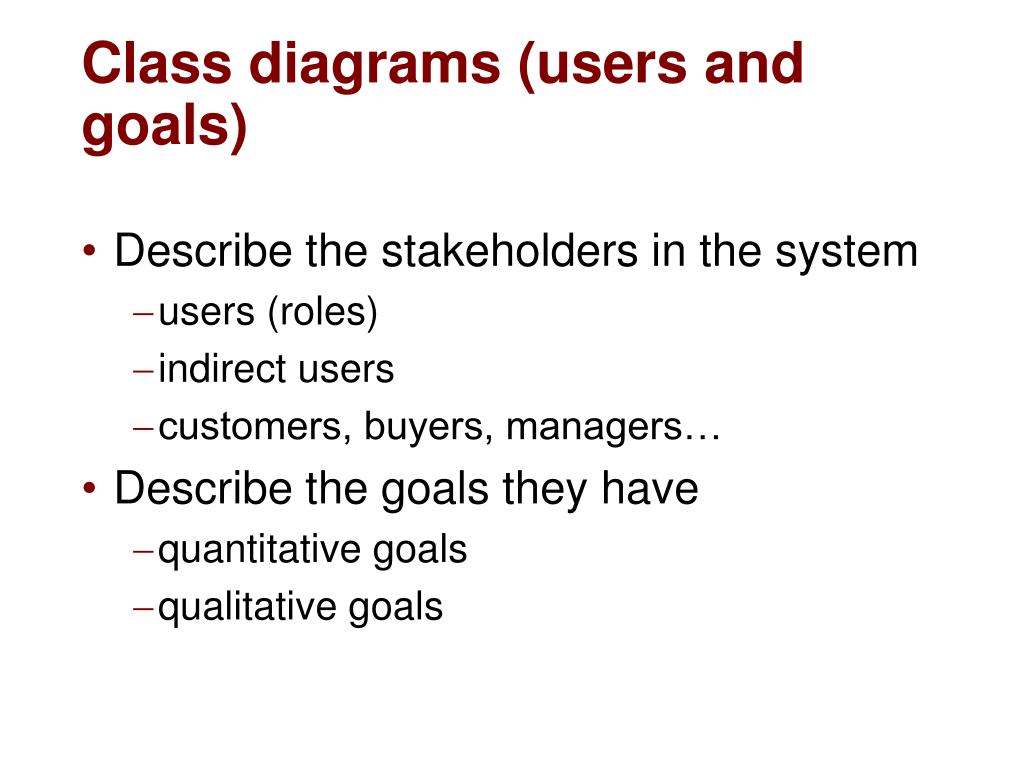

Class diagrams (users and goals) • Describe the stakeholders in the system • users (roles) • indirect users • customers, buyers, managers… • Describe the goals they have • quantitative goals • qualitative goals

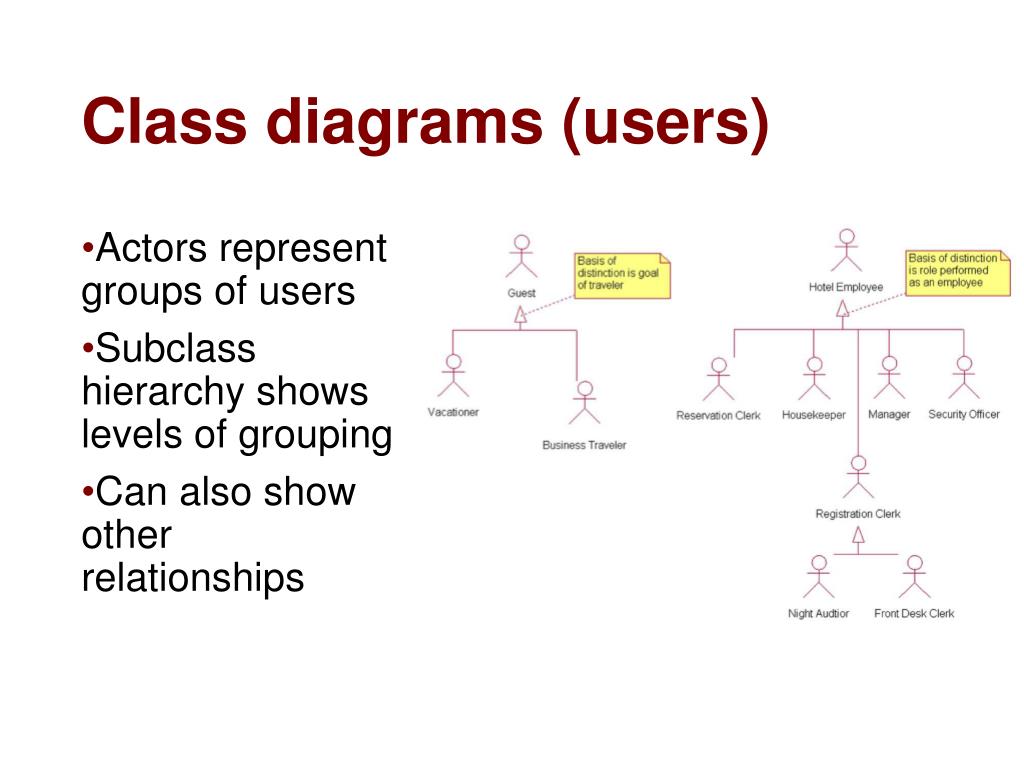

Class diagrams (users) • Actors represent groups of users • Subclass hierarchy shows levels of grouping • Can also show other relationships

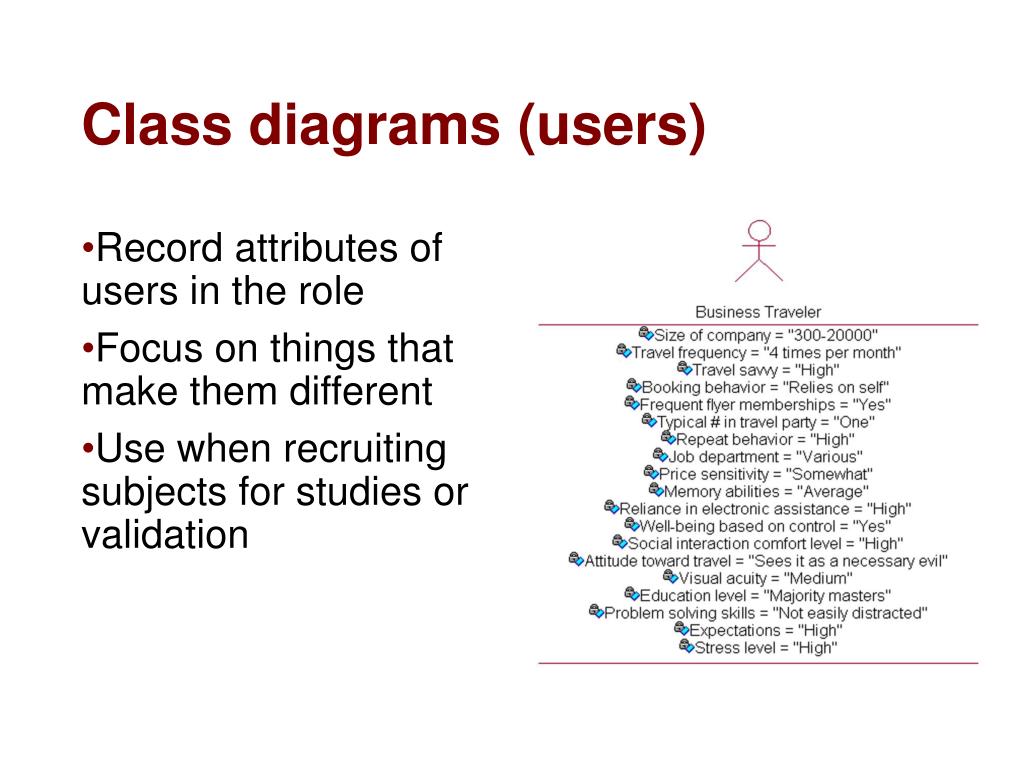

Class diagrams (users) • Record attributes of users in the role • Focus on things that make them different • Use when recruiting subjects for studies or validation
Class diagrams (goals) • Goals are states that users want to reach • Use class showing goal • Connect users who have that goal • Attributes show how to measure the goal

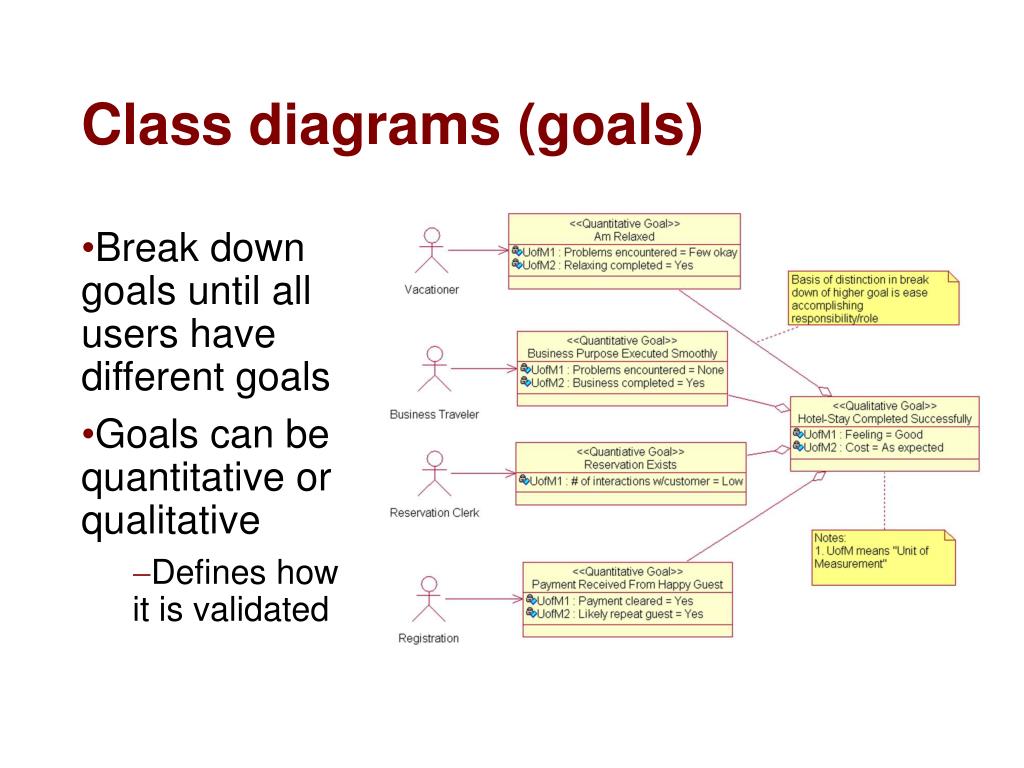

Class diagrams (goals) • Break down goals until all users have different goals • Goals can be quantitative or qualitative • Defines how it is validated

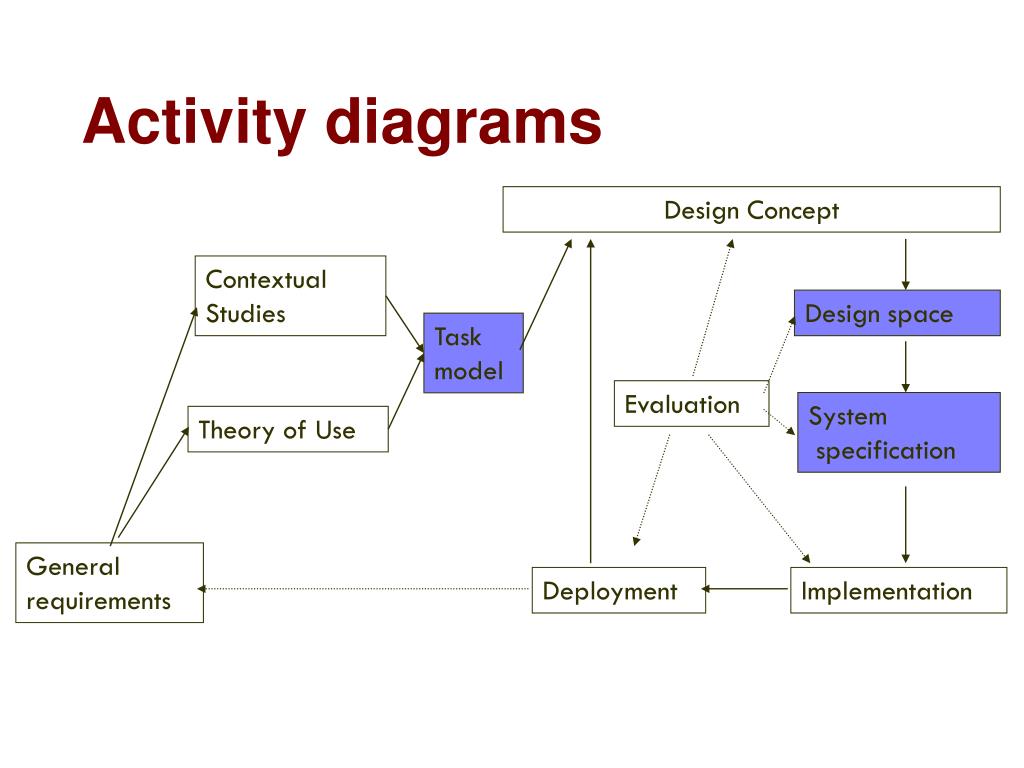

Activity diagrams Design Concept Contextual Studies Design space Task model Evaluation System specification Theory of Use General requirements Deployment Implementation

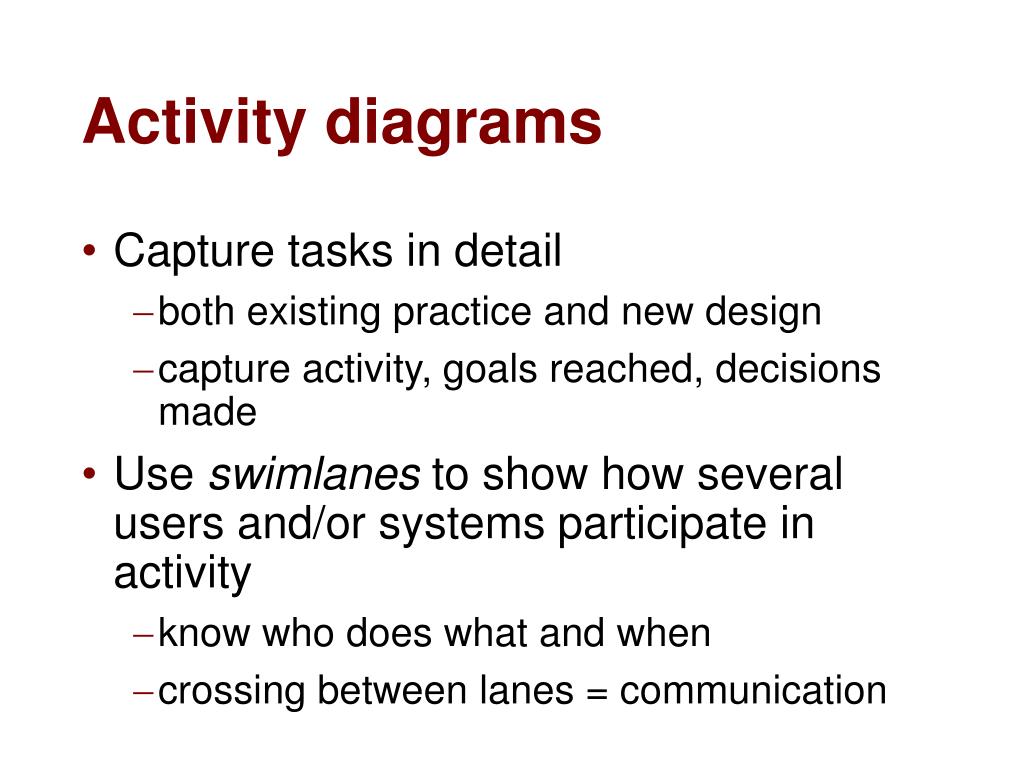

Activity diagrams • Capture tasks in detail • both existing practice and new design • capture activity, goals reached, decisions made • Use swimlanes to show how several users and/or systems participate in activity • know who does what and when • crossing between lanes = communication
Activity diagrams • One lane for each participant • users and system • Place activities, states and decisions in the right lane
Use cases Design Concept Contextual Studies Design space Task model Evaluation System specification Theory of Use General requirements Deployment Implementation

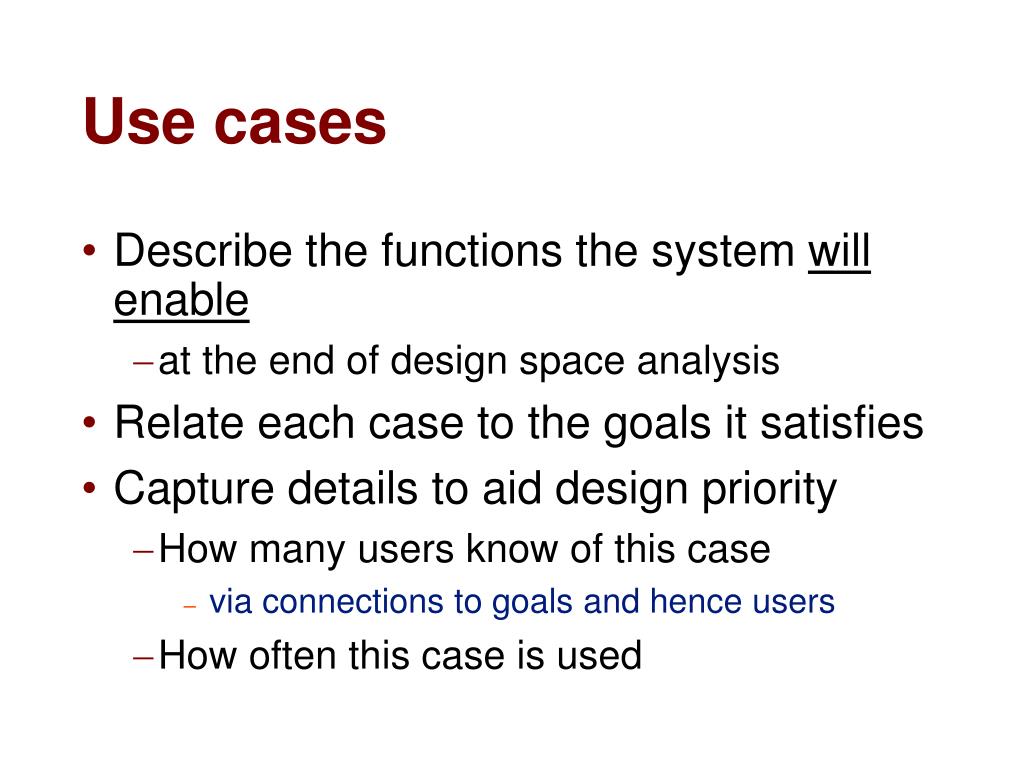

Use cases • Describe the functions the system will enable • at the end of design space analysis • Relate each case to the goals it satisfies • Capture details to aid design priority • How many users know of this case • via connections to goals and hence users • How often this case is used
Use cases • Define functions that you will include in the design • in CASE tools the use cases can contain other diagrams such as activity diagrams • Show which users will need which functions

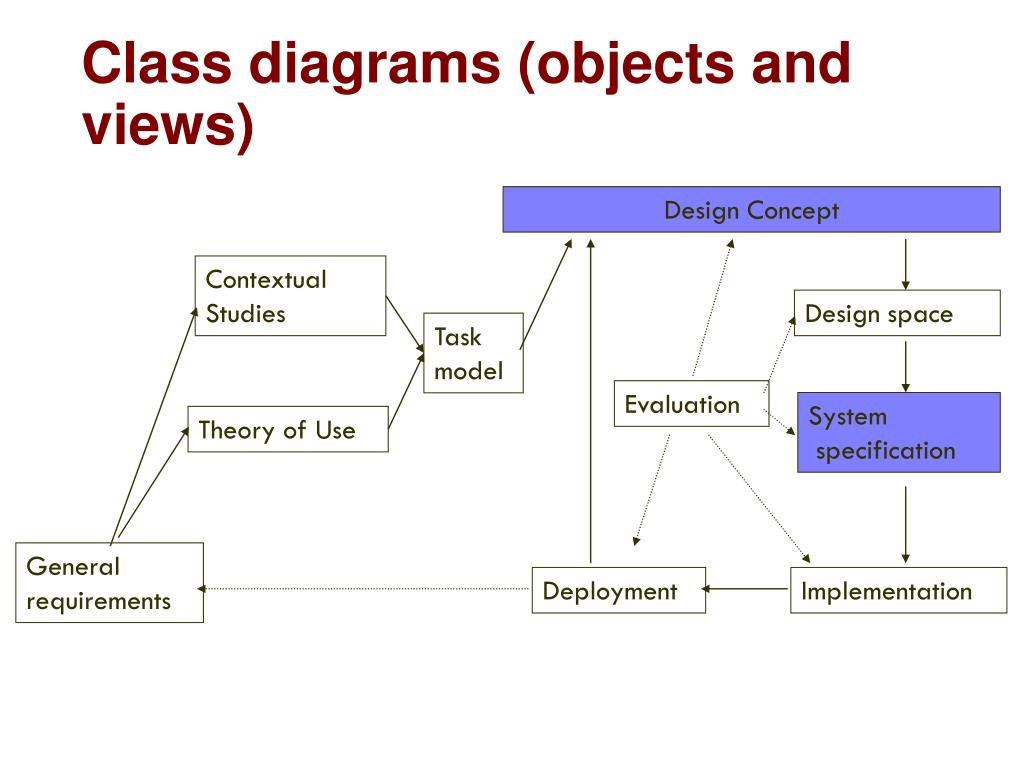

Class diagrams (objects and views) Design Concept Contextual Studies Design space Task model Evaluation System specification Theory of Use General requirements Deployment Implementation
Class diagrams (objects and views) • Define the objects the users will know • name and description lead to metaphor • attributes • Describe how the user will see the objects as multiple views • which attributes are seen when • transition between views

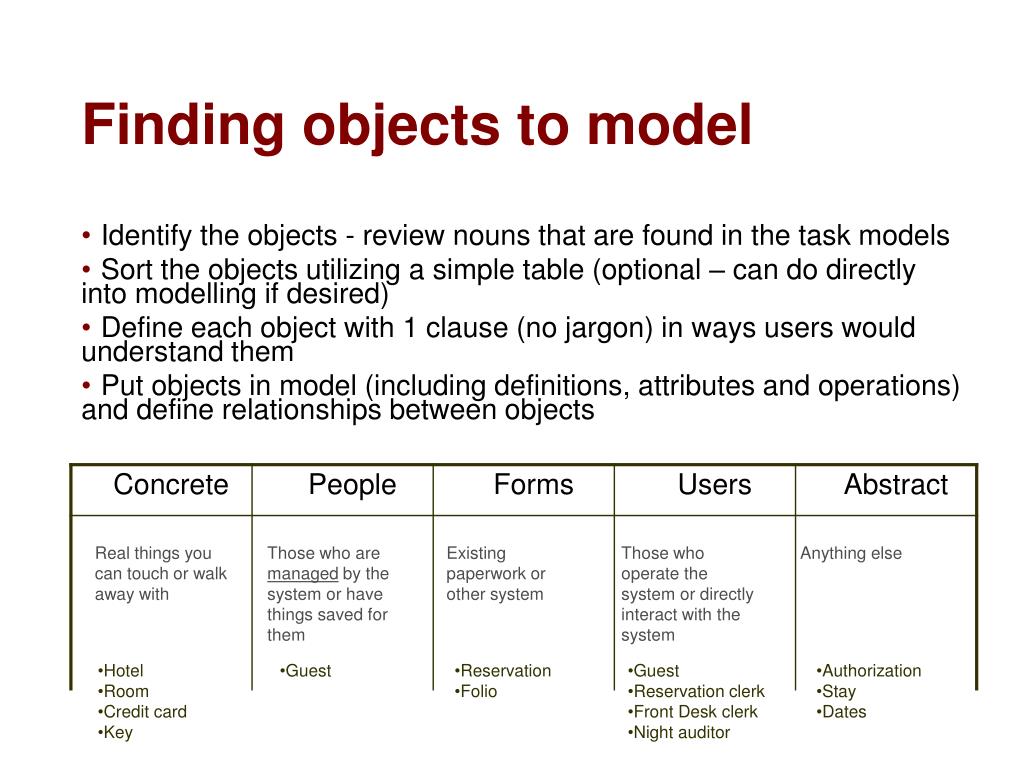

Finding objects to model • Identify the objects - review nouns that are found in the task models • Sort the objects utilizing a simple table (optional – can do directly into modelling if desired) • Define each object with 1 clause (no jargon) in ways users would understand them • Put objects in model (including definitions, attributes and operations) and define relationships between objects Real things you can touch or walk away with Those who are managed by the system or have things saved for them Existing paperwork or other system Those who operate the system or directly interact with the system Anything else • Hotel • Room • Credit card • Key • Guest • Reservation • Folio • Guest • Reservation clerk • Front Desk clerk • Night auditor • Authorization • Stay • Dates

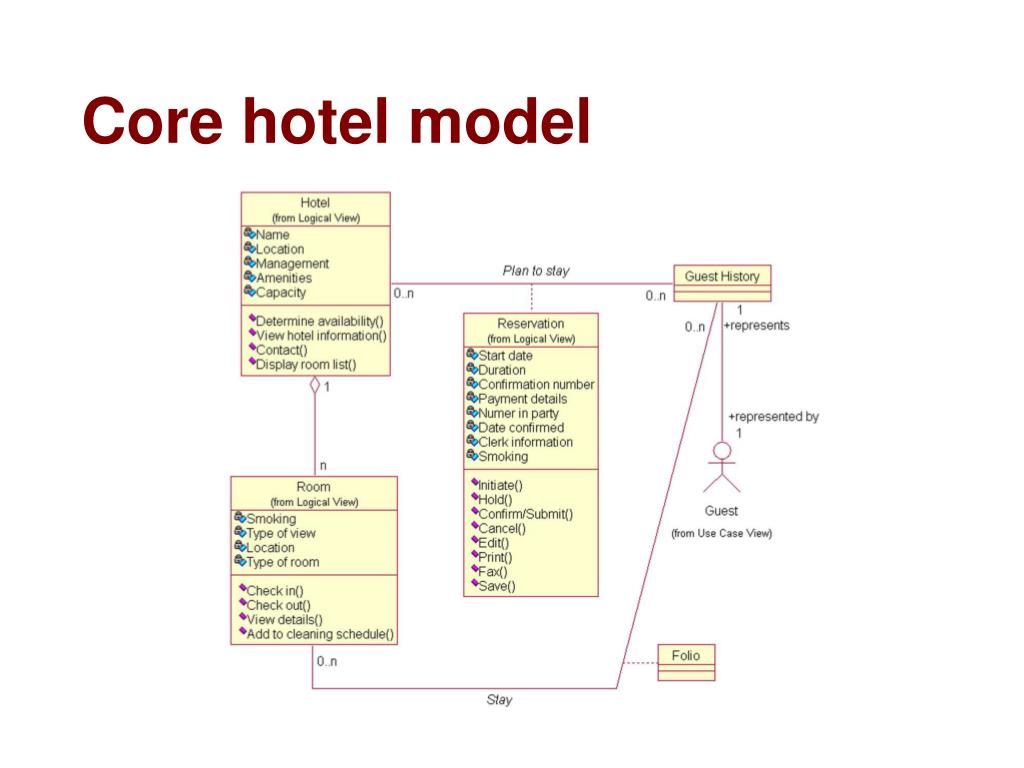

Class diagram for user objects • Create classes for each object the users need • Names and descriptions should be as simple as possible • Add attributes and operations as you design

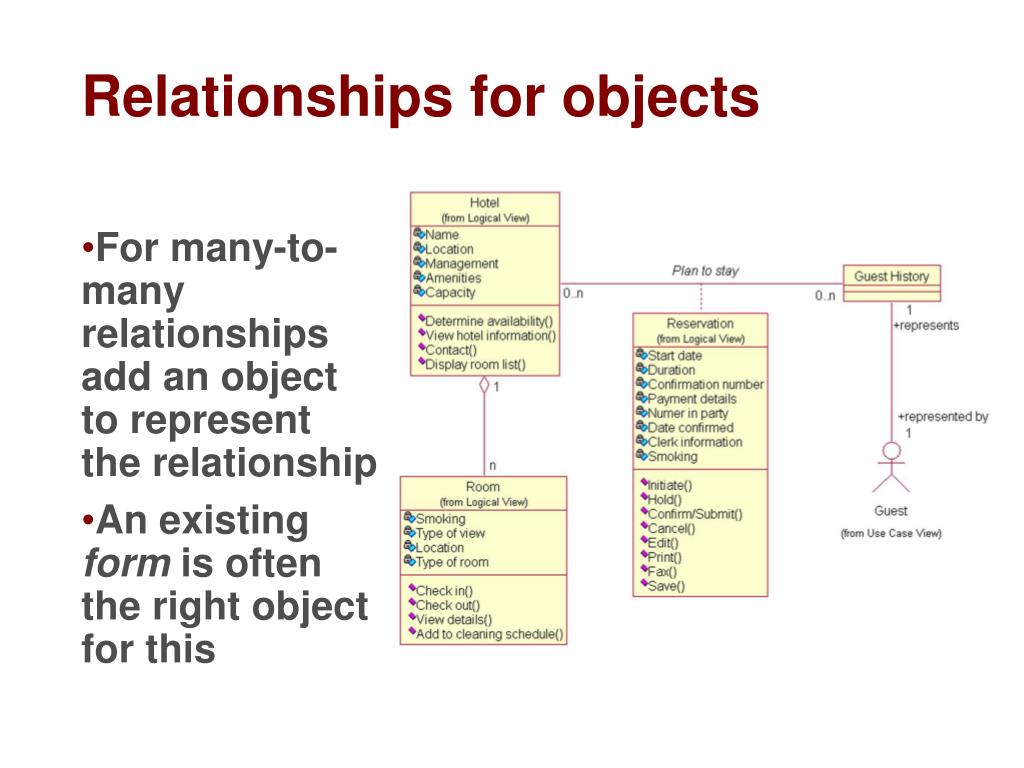

Relationships for objects • For many-to-many relationships add an object to represent the relationship • An existing form is often the right object for this

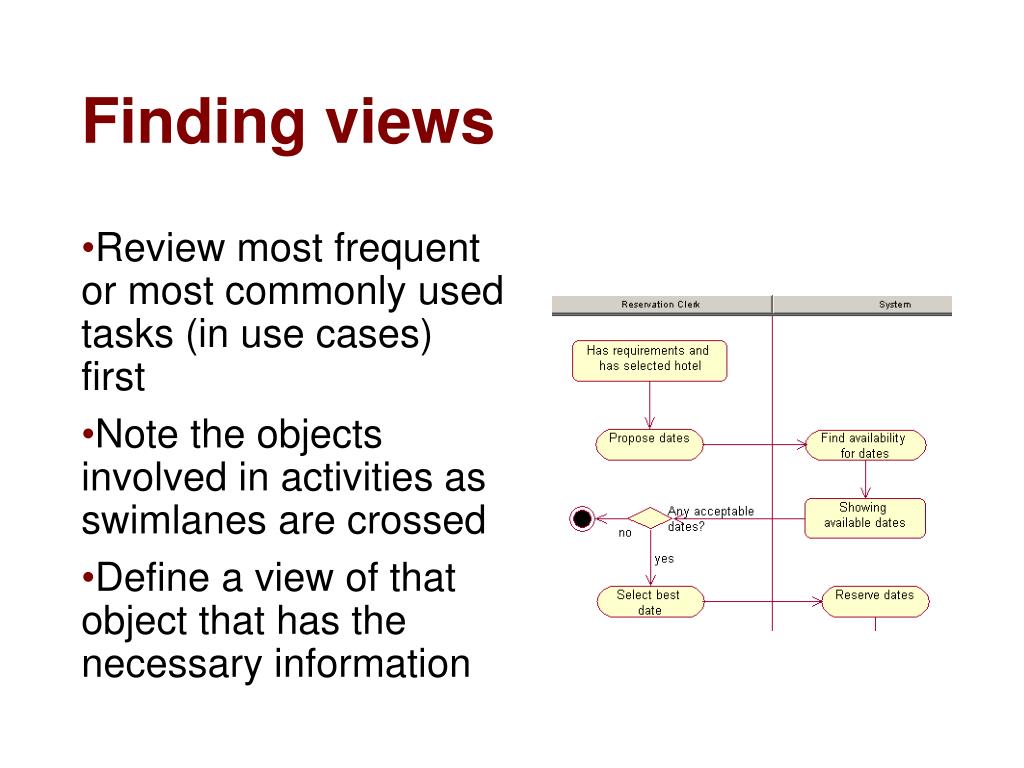

Finding views • Review most frequent or most commonly used tasks (in use cases) first • Note the objects involved in activities as swimlanes are crossed • Define a view of that object that has the necessary information

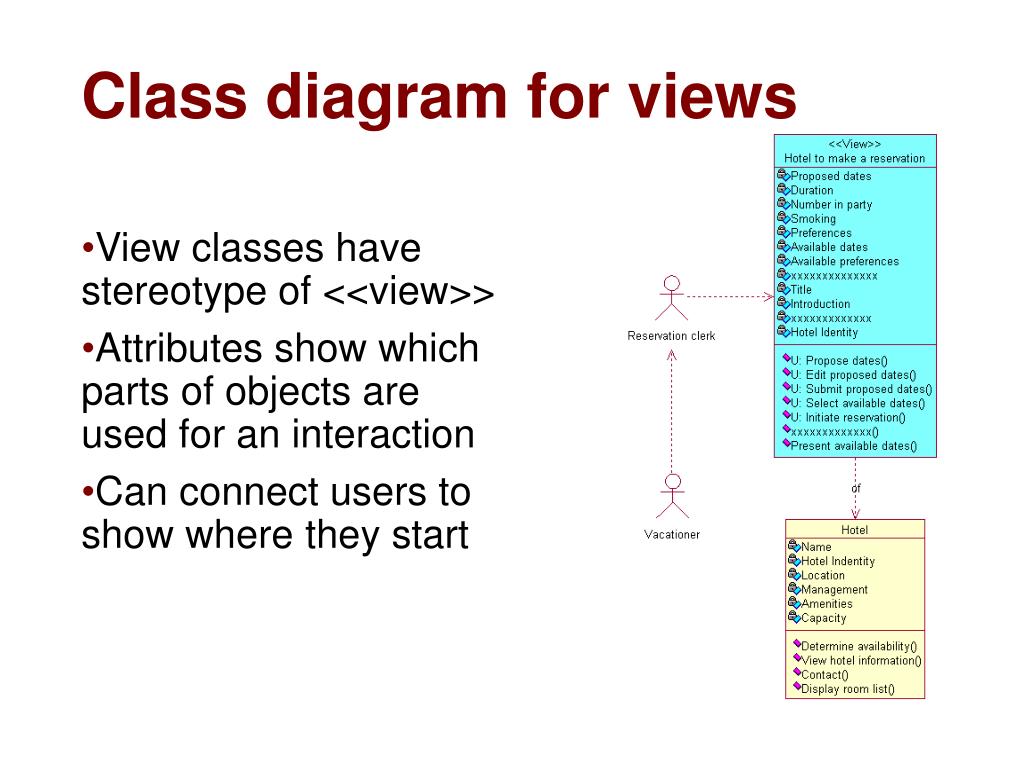

Class diagram for views • View classes have stereotype of <<view>> • Attributes show which parts of objects are used for an interaction • Can connect users to show where they start
State models Design Concept Contextual Studies Design space Task model Evaluation System specification Theory of Use General requirements Deployment Implementation

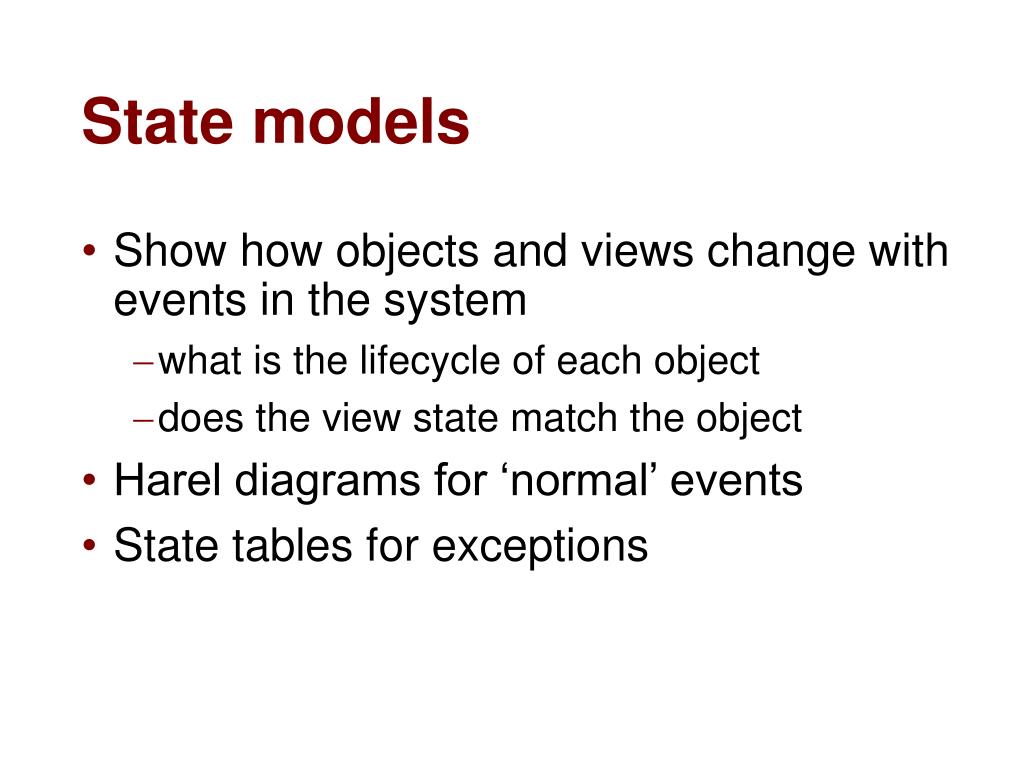

State models • Show how objects and views change with events in the system • what is the lifecycle of each object • does the view state match the object • Harel diagrams for ‘normal’ events • State tables for exceptions
State model as Harel diagram • Use state diagrams (Harel Diagrams) to show normal processes for an object or a view • Transition names should correspond to operations • Convert to state tables to examine all combinations of states and transitions

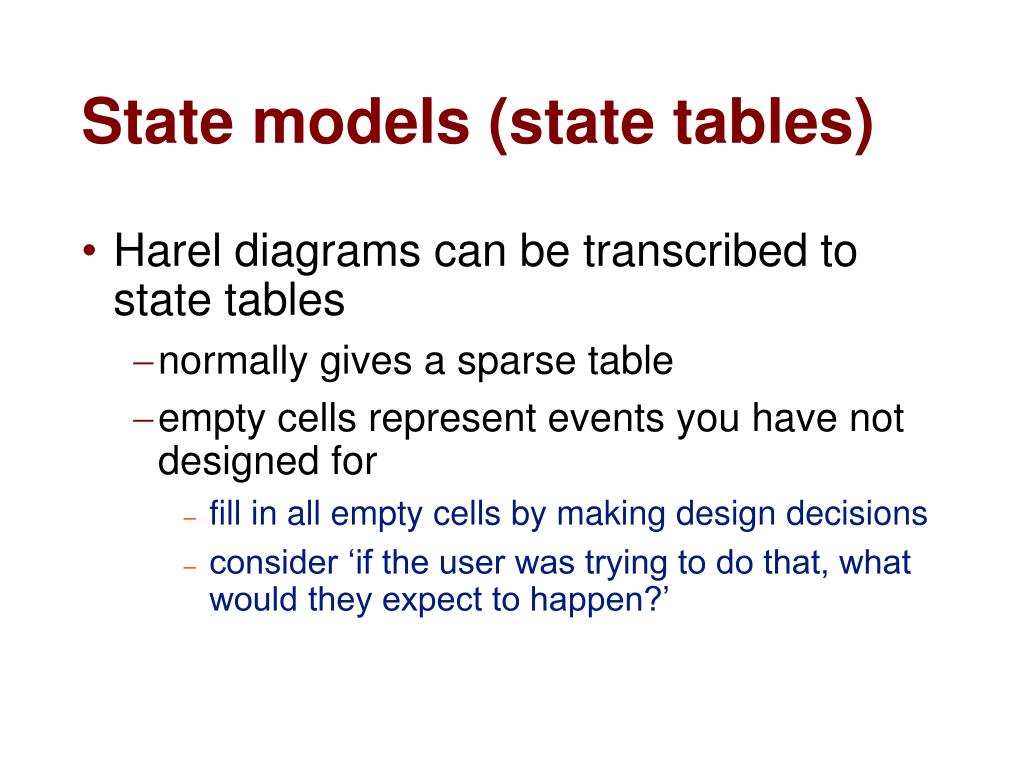

State models (state tables) • Harel diagrams can be transcribed to state tables • normally gives a sparse table • empty cells represent events you have not designed for • fill in all empty cells by making design decisions • consider ‘if the user was trying to do that, what would they expect to happen?’

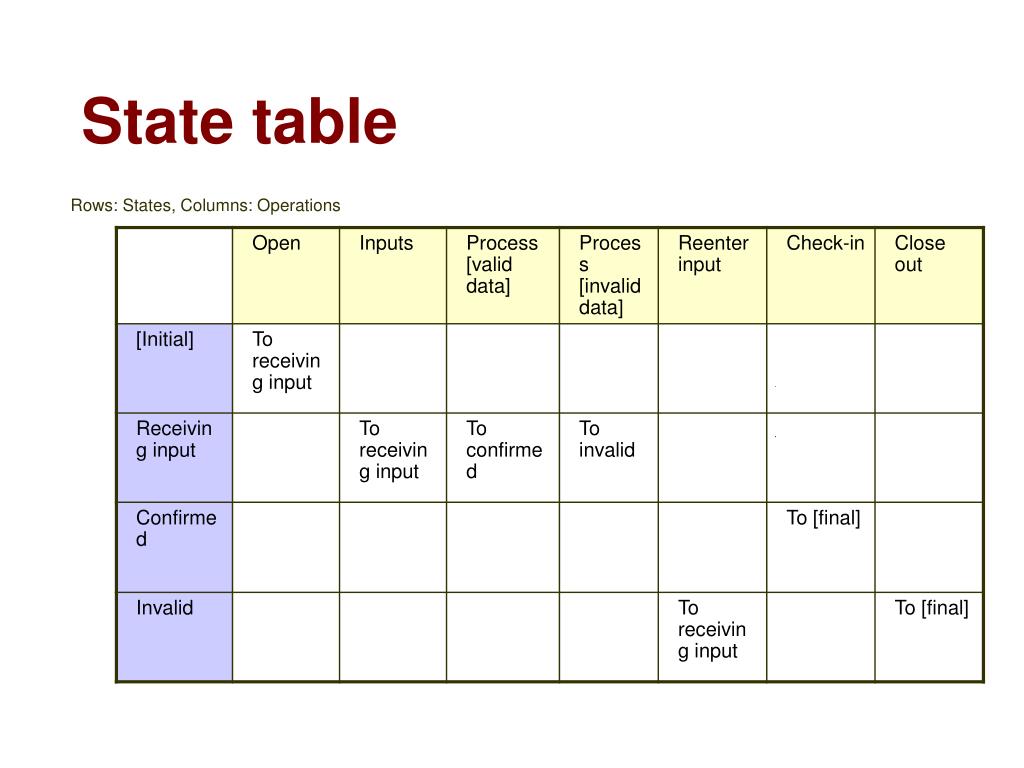

State table Rows: States, Columns: Operations

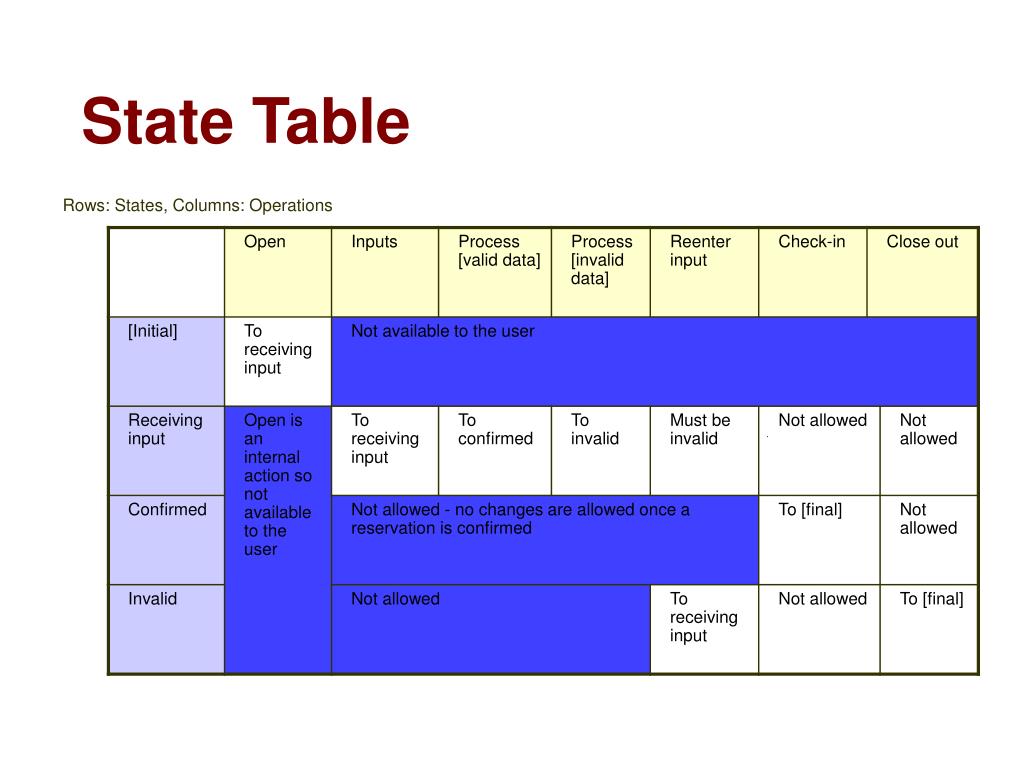

State Table Rows: States, Columns: Operations

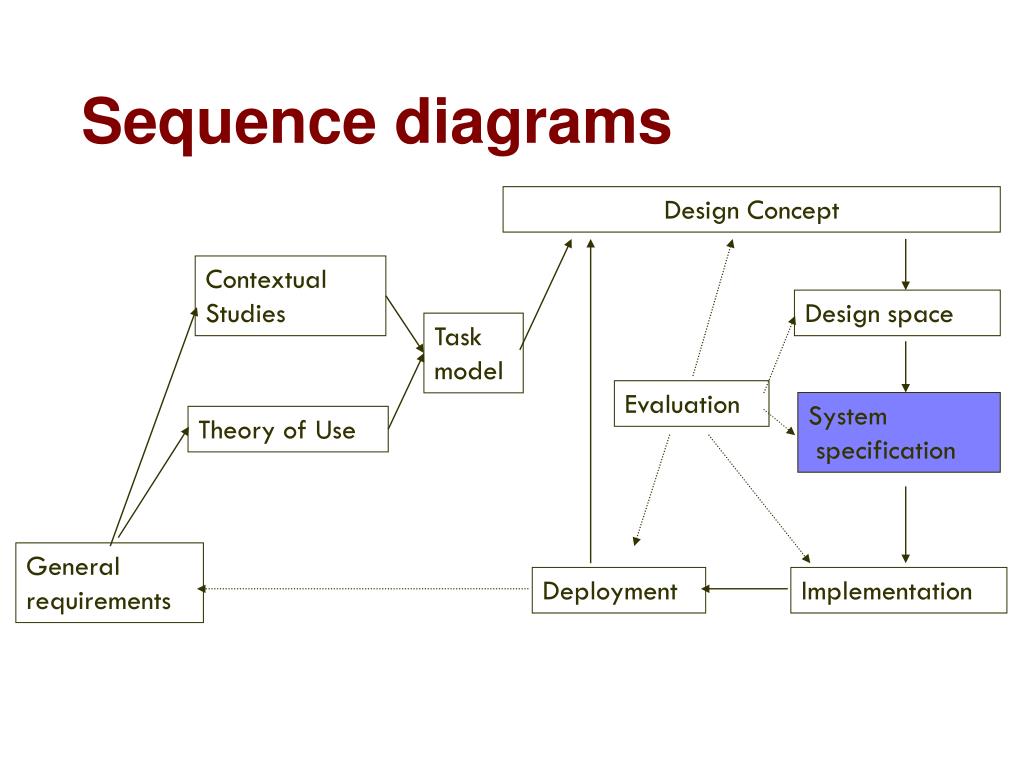

Sequence diagrams Design Concept Contextual Studies Design space Task model Evaluation System specification Theory of Use General requirements Deployment Implementation

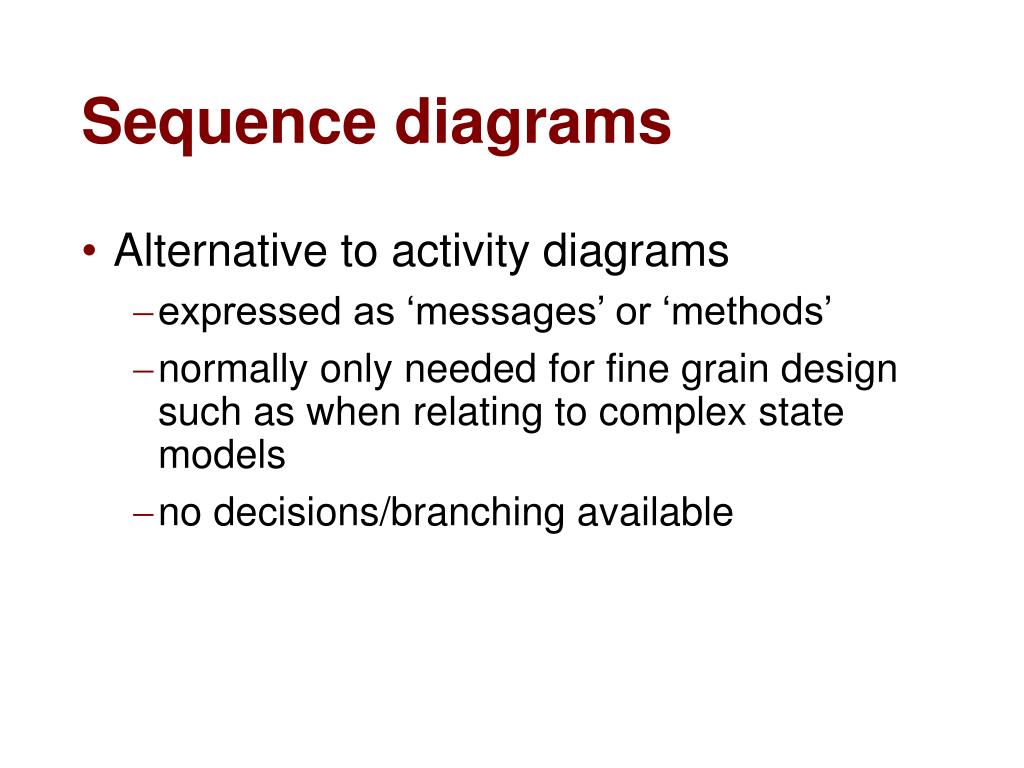

Sequence diagrams • Alternative to activity diagrams • expressed as ‘messages’ or ‘methods’ • normally only needed for fine grain design such as when relating to complex state models • no decisions/branching available

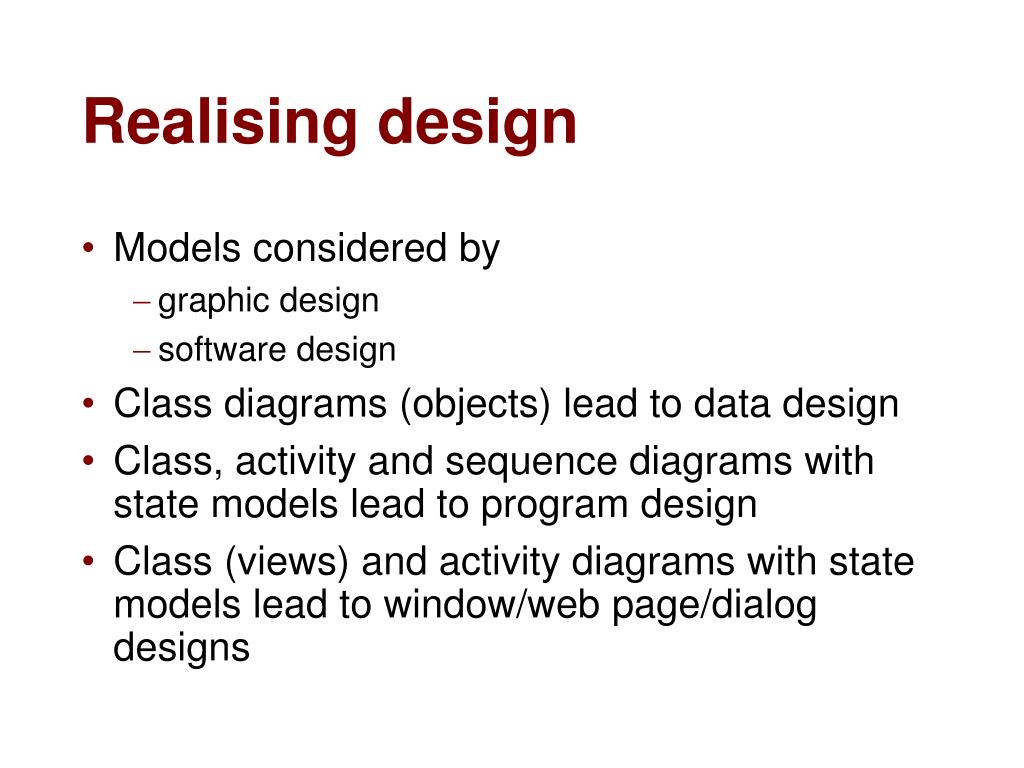

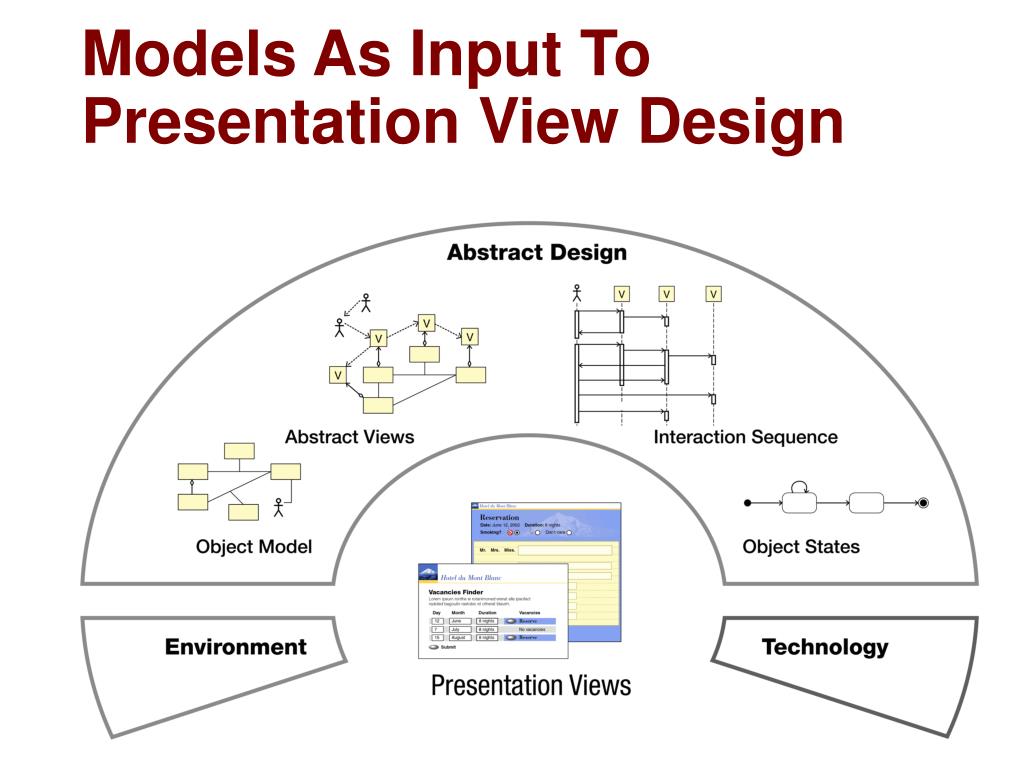

Realising design • Models considered by • graphic design • software design • Class diagrams (objects) lead to data design • Class, activity and sequence diagrams with state models lead to program design • Class (views) and activity diagrams with state models lead to window/web page/dialog designs
Sequence diagram • To read these diagrams – Read down a column to determine the order of activities performed by the entity (an actor, object or view)

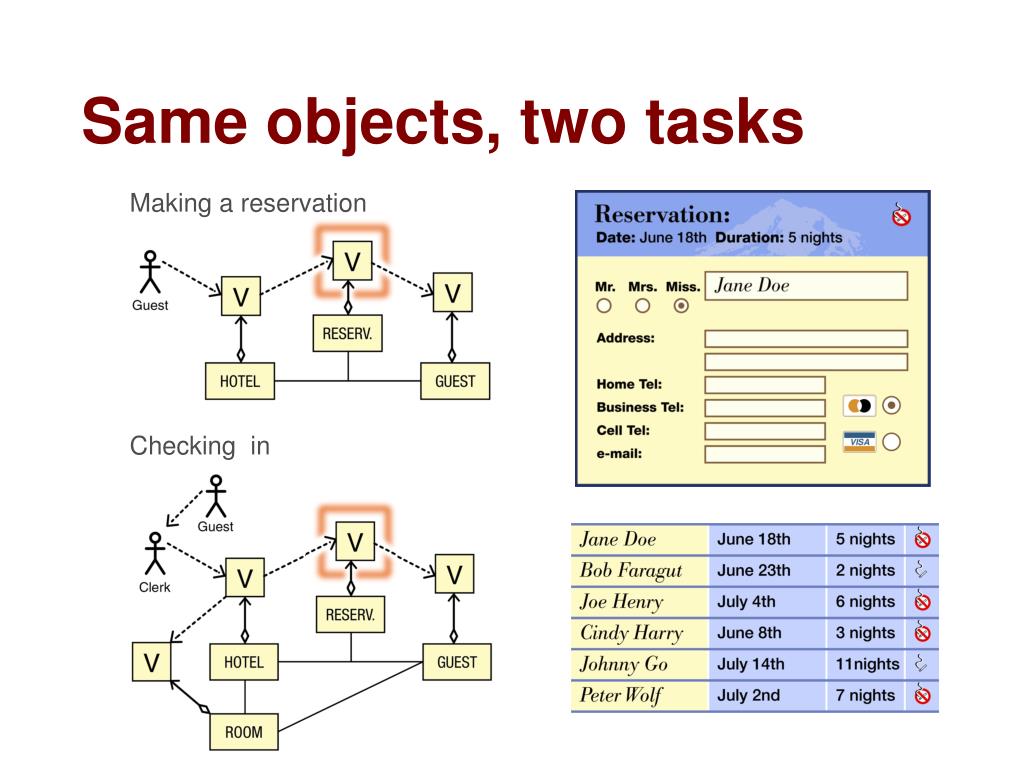

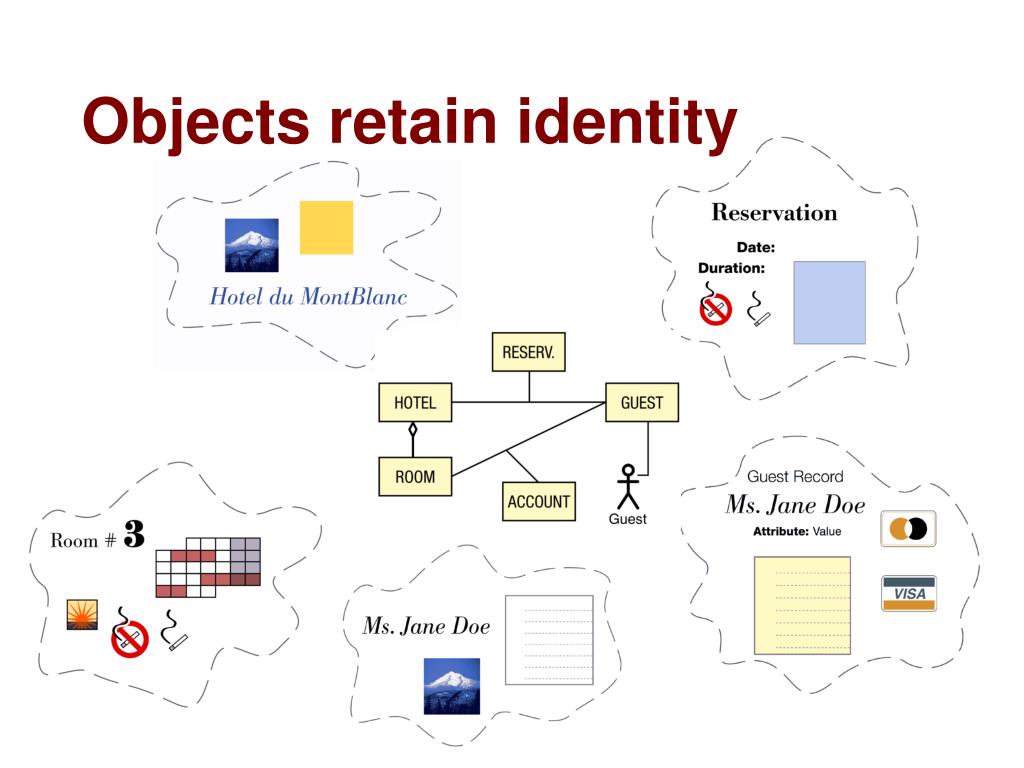

Same objects, two tasks Making a reservation Checking in

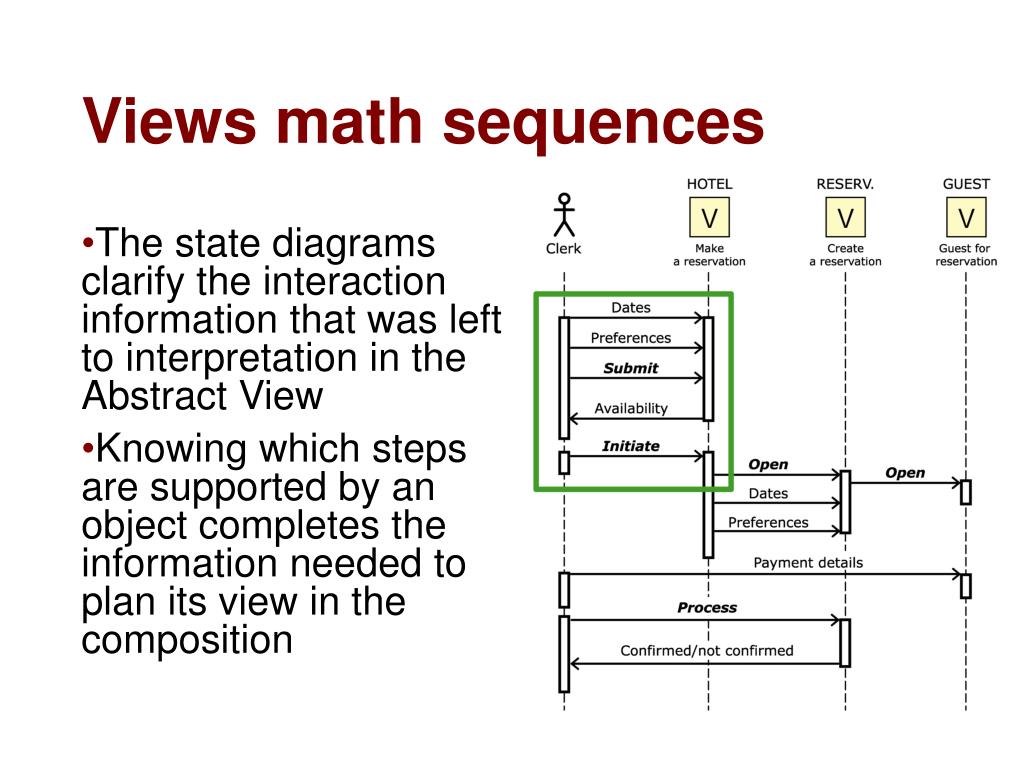

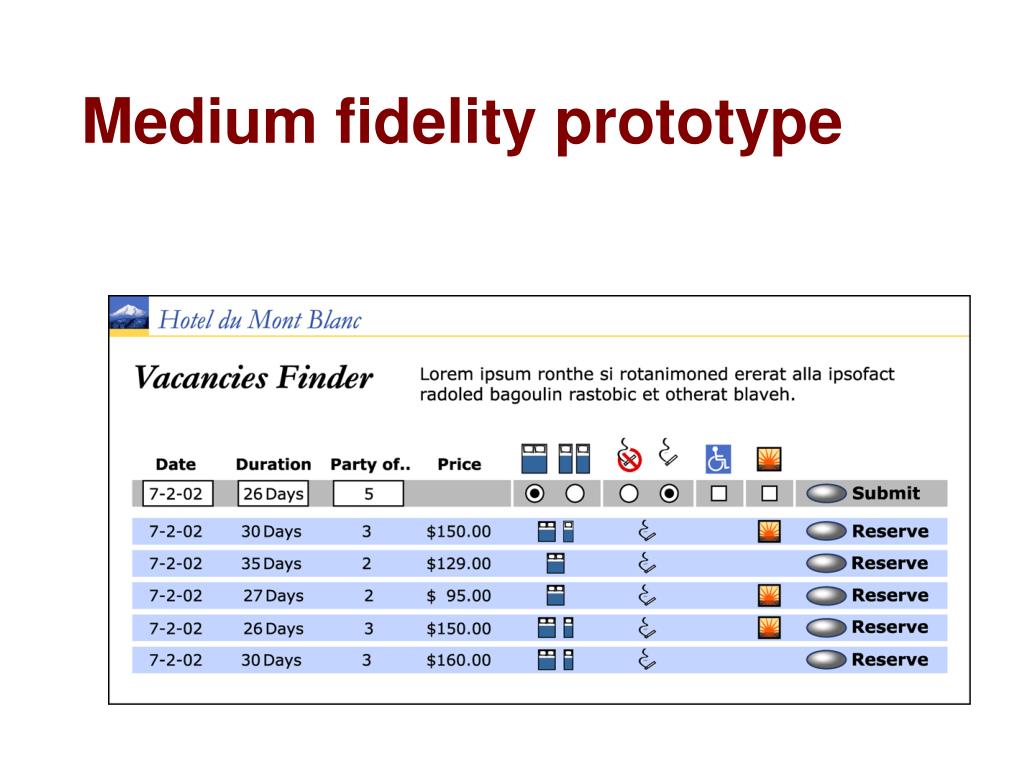

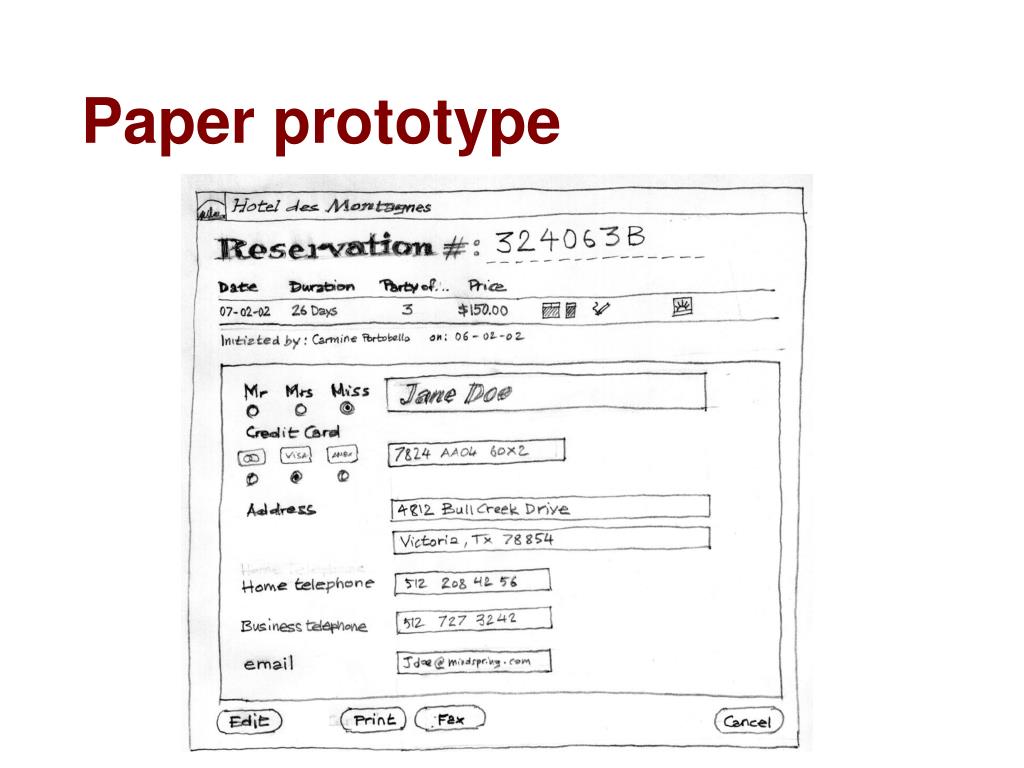

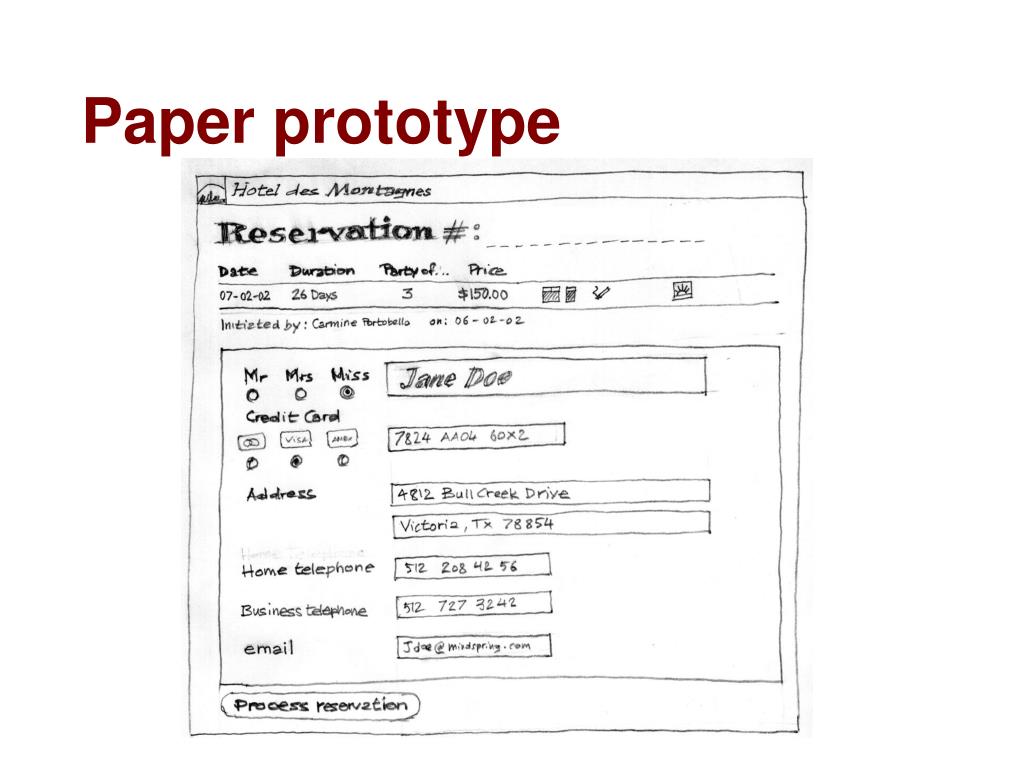

Views math sequences • The state diagrams clarify the interaction information that was left to interpretation in the Abstract View • Knowing which steps are supported by an object completes the information needed to plan its view in the composition
