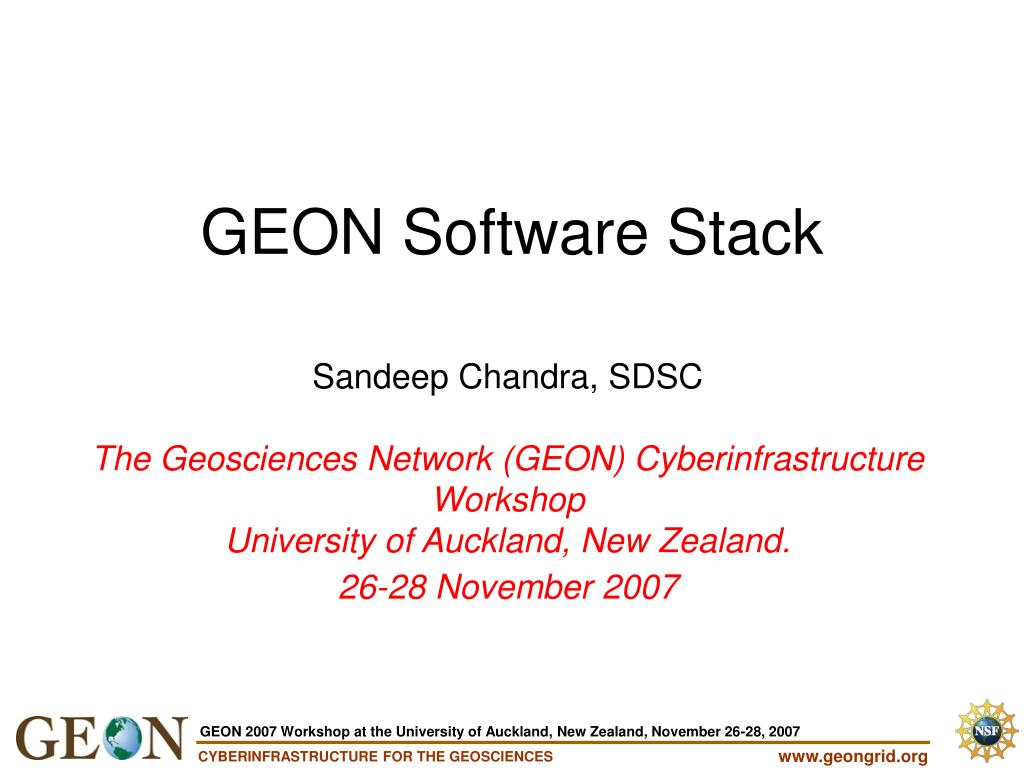

  1. GEON Software Stack SandeepChandra, SDSC The Geosciences Network (GEON) Cyberinfrastructure Workshop University of Auckland, New Zealand. 26-28 November 2007 www.geongrid.org

  2. Common environment to develop and deploy Grid/Web Service based Applications Portal Applications Database Applications HPC Applications Purpose www.geongrid.org

  3. For system developers Monitor resources Consistency of software across sites Perform system and network tests and measurements Administer and track the basic system setup Purpose www.geongrid.org

  4. Base OS Rocks: highly programmatic software configuration management Development Globus 4.0.2 (GSI, GridFTP, etc) Web Services (Jakarta-tomcat-5.0.28, axis-1.2, ant-1.6, jdk1.4.2, etc) GridSphere 2.0.2 Portal Framework Database IBM DB2 Postgres 8.0.3 PostGIS 1.2 (Geos, Proj) Security Tripwire, chkrootkit System Monitoring INCA Testing and Monitoring framework (Teragrid) With GRASP benchmarks Network Weather Service (NWS) Ganglia Job Submission and Monitoring Condor, PBS GRASS (GDAL, NetCDF, Tiff) GMT PBS Condor NWS INCA/GRASP Globus OGSA-DAI Pre-Web Axis Tomcat Postgres PostGIS Geos Proj Ant Samba JDK Tripwire Rocks 4.2.1 based on RedHat Enterprise Linux GEON Software Stack GEONGrid Software Stack GridSphere Portal www.geongrid.org

  5. Enable domain specific scientists to have their own supercomputer Open-source Linux cluster distribution that enables end users to easily build grid endpoints Full Red Hat Linux distribution release, De-facto standard cluster packages, Rocks packages and Rocks community packages Easy to deploy and maintain both small and large clusters Facilitates software customization, configure services in packages Rocks Cluster Software www.geongrid.org

  6. Hardware 20GB Disk, 1GB RAM, Dual NIC’s CD Media WAN Kickstart Static IP address Monitor, Keyboard Building a Rocks Node www.geongrid.org

  7. Building a Rocks Node www.geongrid.org

  8. Building a Rocks Node www.geongrid.org

  9. Building a Rocks Node www.geongrid.org

  10. Building a Rocks Node www.geongrid.org

  11. Building a Rocks Node www.geongrid.org

  12. Building a Rocks Node www.geongrid.org

  13. Building a Rocks Node www.geongrid.org

  14. Building a Rocks Node www.geongrid.org

  15. Building a Rocks Node www.geongrid.org

  16. Building a Rocks Node www.geongrid.org

  17. Building a Rocks Node www.geongrid.org

  18. Building a Rocks Node www.geongrid.org

  19. Building a Rocks Node www.geongrid.org

  20. Building a Rocks Node www.geongrid.org

  21. www.geongrid.org

  22. Software first compiled then packaged Source files are installed as well Post-installation setup at first boot e.g moving files, running scripts, creating DB’s Software installed in /opt/ (optional) e.g Axis installed in /opt/axis Environment Variables setup at install time e.g GLOBUS_LOCATION, JAVA_HOME, etc System Configuration www.geongrid.org

  23. GEON users created geon (axis, globus, gridsphere) nws (nws) inca (inca) postgres (pgsql, postgis, proj, geos) Rocks rolls installed in default locations Tripwire, java, etc User space in /export/home/<user> Remote updates and re-installs will not affect /export/home Required services start at system boot e.g tomcat, postgres, inca, nws System Configuration www.geongrid.org

  24. Java Java development toolkit version 1.4.2_04 Using Rocks Java Roll Ant Apache Ant version 1.6.2 Provides a java based build tool Jakarta-tomcat A servlet container to host services Hosting Axis, Globus Version 5.0.28 Base System Software www.geongrid.org

  25. Axis Java based web service development and deployment environment Version 1.2 Globus Java based grid service development and deployment environment Version 4.0.2 Web/Grid Service Software www.geongrid.org

  26. Pre-Web Globus Pre-Web Services (GridFTP, GRIS, GRAM) Services can be started after generating host certificates using GEON CA OGSA-DAI (part of Globus) Grid service based database access services Version 4.0 Web/Grid Service Software www.geongrid.org

  27. Postgres Relational Database Hosts Gridsphere portal database Version 8.0.3 PostGIS GIS extensions for Postgres Version 1.0.2 Geos & Proj Dependencies for PostGIS Database Software www.geongrid.org

  28. Portal Software • GridSphere • Set of standard GEON services • Framework to develop and deploy standard portlet applications • Get familiar with portal development • Configured to use Postgres • Includes GAMA portlets, configured to talk to GEON GAMA server • Version 2.0.2 www.geongrid.org

  29. INCA Test harness and reporting framework SDSC PoP runs INCA Depot All GEON partner site PoP’s run reporters Monitoring Software www.geongrid.org

  30. Network Weather Service (NWS) Monitor and forecast performance of network and computational resources Name server and Memory server runs on SDSC PoP Version 2.10.1 Monitoring Software www.geongrid.org

  31. Tripwire Utilities to analyze the integrity of files and the kernel. Mail daily/weekly reports to tripwire@geongrid.org Use Rocks Tripwire Roll Samba Allows access & sharing services between Linux/Unix server and windows clients System Software www.geongrid.org

  32. Develop and deploy mechanisms and policies that support HPC on grid computing resources. Using Rocks Condor, PBS roll Used for compute clusters HPC Software www.geongrid.org

  33. Package GEON portal and release a basic edition, standard edition, professional edition, etc. Next Steps www.geongrid.org

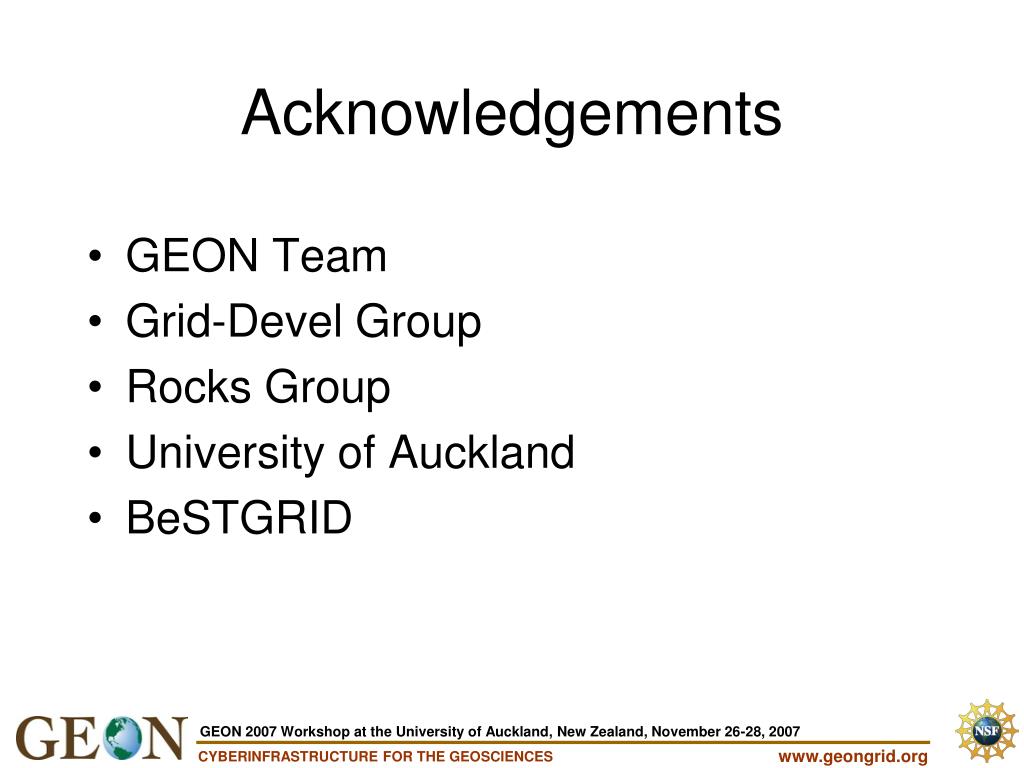

  34. GEON Team Grid-Devel Group Rocks Group University of Auckland BeSTGRID Acknowledgements www.geongrid.org

  35. Mail: systems@geongrid.org Questions or Feedback? www.geongrid.org
