Constructions

This guide covers fundamental construction techniques in geometry. Learn how to bisect a segment by drawing arcs from points A and B to find the midpoint M. Discover how to construct the angle bisector by placing a compass at point C, creating arcs that intersect the angle’s sides, and drawing a ray through the intersection. Lastly, master the method to draw a line through a point not on a given line using compass and straightedge techniques. Perfect for students and anyone looking to strengthen their geometry skills.

elinor
Télécharger la présentation

Constructions

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Constructions

  2. A B Construction #1: Construct the Bisector of a Segment • Place the compass point at A. Draw an arc using a • compass setting greater than half the length of • 2. Place the compass point at B. Draw an arc. It should • intersect the other arc at two places. • 3. Use a straightedge to draw a segment through the • points of intersection. This segment bisects at • M, the midpoint of .

  3. C Construction #2: Construct the Angle Bisector • Place the compass point at C. Draw an arc that intersects • both sides of the angle. Label the intersections A and B. • 2. Place the compass point at A. Draw an arc. Then place the • point at C. Using the same compass setting, draw another • arc. • 3. Label the intersection D. Use a straightedge to draw a ray • through C and D. This is the angle bisector.

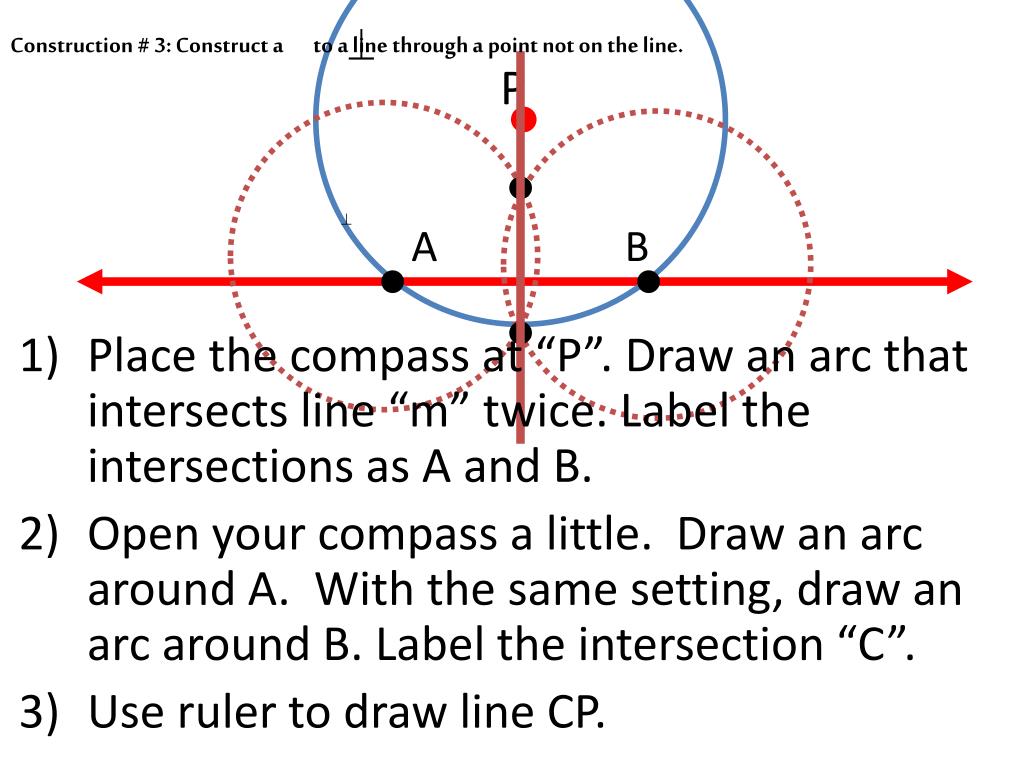

  4. P A B Construction # 3: Construct a to a line through a point not on the line. • Place the compass at “P”. Draw an arc that intersects line “m” twice. Label the intersections as A and B. • Open your compass a little. Draw an arc around A. With the same setting, draw an arc around B. Label the intersection “C”. • Use ruler to draw line CP.

  5. Assignment Constructions Worksheet
