  1. Module on Constraints • The module consists of 4 courses depicted below and of 3 ECTS each. • Course: Topics in Finite Domain Constraints • Dates: 20 Feb – 17 Mar • Lecturer: Pedro Barahona • Course: Constraints over Sets and Optimisation • Dates: 20 Mar – 13 Apr • Lecturer: Francisco Azevedo • Course: Constraints on Continuous Domains • Dates: 17 Apr – 12 May • Lecturer: Jorge Cruz • Course: Fuzzy Constraints • Dates: 15 May – 9 Jun • Lecturer: João Moura Pires Constraints - Finite Domains

  2. Constraints – Finite Domains Course: Topics in Finite Domain Constraints Implementation of constraint solvers: indexical constraints. Constructive approach for combining constraints. Constructive disjunction, and cardinality constraints. Global constraints: their specification and implementation. Redundant constraints: advantages and disadvantages of their use in scheduling, planning and other resource management applications. Course: Constraints over Sets and Optimisation Representation of sets and multisets. Set variables and set features (maximum, minimum and cardinality). Operations on sets (set union, intersection, difference, disjointness, complement), related constraints and their propagation. Sets of sets: representation with union functions. Set constraint solvers: Conjunto and Cardinal. Applications: Set covering and partitioning, timetabling, digital circuits. Comparison with SAT. Optimization. Branch and bound and local search. Constraints - Finite Domains

  3. Constraints – Finite Domains Course: Constraints on Continuous Domains Representation of continuous domains (intervals, boxes) and basic operations. Interval analysis: interval arithmetic, interval extensions of real functions and the interval Newton method. Constraint propagation: narrowing functions and constraint projections. Constraint decomposition method and Newton constraint method. Consistency criteria for continuous domains: local consistency (interval, hull and box) and higher order consistency (3B, bound and global hull). Introduction to differential equations.. Course: Fuzzy Constraints Introduction to fuzzy sets theory and to Possibility Theory. Generalization of CSP to FCSP. Fuzzy constraints and their dual interpretation. Min-FCSP. Constraint propagation in min-FCSP. Solving min-FCSP. Refining min-FCSP by discrimin and leximin-FCSP. Complexity issues. V(alued)-CSP and S(emiring)-CSP as general frameworks. Special cases of these general frameworks (Min-FCSP, Sigma-CSP, Max-CSP and Lexicographic CSP); their complexity. Constraints - Finite Domains

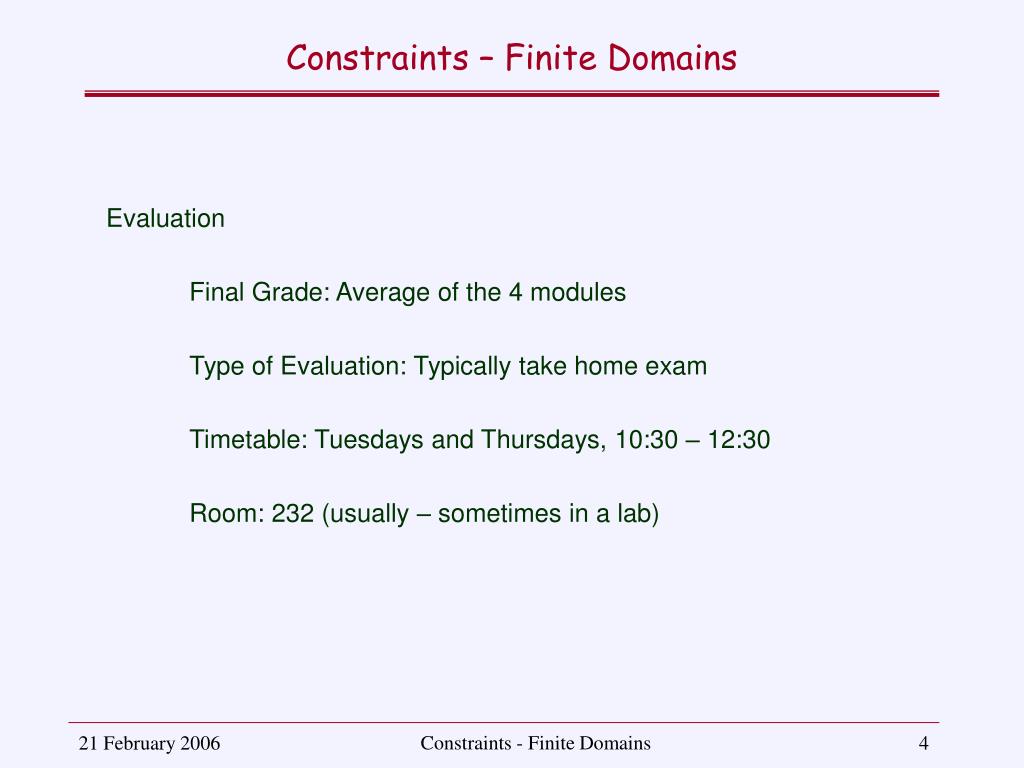

  4. Constraints – Finite Domains Evaluation Final Grade: Average of the 4 modules Type of Evaluation: Typically take home exam Timetable: Tuesdays and Thursdays, 10:30 – 12:30 Room: 232 (usually – sometimes in a lab) Constraints - Finite Domains

  5. Constraints – Finite Domains • Constraint Solvers • Indexical Constraints • Bounds, Node and Arc Consistency • Reified Constraints • Disjuctive Constraints • Ask & Tell Constraint Mechanisms Constraints - Finite Domains

  6. Indexical Constraints • A key issue in Constraint (Logic) Programming system, is the implementation of the underlying Constraint Solvers. A number of features of these solvers must be taken into account: • The ease in representing domains and generic constraints; • The possibility of controling constraint propagation in the ways appropriate to the applications; • The possibility of combining simpler constraints into more complex constraints; • The transparency of the implementation (glass-box) allowing the users to acceed the primitive constraints in order to implement user specific constraints and variable and value heuristics. Constraints - Finite Domains

  7. Indexical Constraints • An adequate way of satisfying all these constraints has been the use of constraint solvers based in indexical constraints. • This is, for example, the methodology adopted in the implementation of SICStus (as well as GNU Prolog), specifically in their finite domains module. • Indexical constraints have a compact and integrated approach to representing both the domains and the constraints of the problem variables. • To be useful, indexical constraints require that variables domains have an ordering. In fact, SICStus requires that the domains are finite subsets of the integers. • Since most constraints are arithmetic, constraint proagation aims in general at achieving bounds arc-consistency. Constraints - Finite Domains

  8. Indexical Constraints Introductory example: • Let us consider the non-strict inequality constraint, , applied to variables A and B whose initial domains are respectively 2000 to 5000 and 1000 to 4000. In SICStus syntax A in 2000..5000, B in 1000..4000, A #=< B • This example will enable an analysis of the advantages and disadvantages of the possible implementation methods, namely to issues such as • Maintaining the variables domains; • Representing the constraints; • The adequate propagation of these constraints Constraints - Finite Domains

  9. Indexical Constraints A in 2000..5000, B in 1000..4000, A #=< B • Concerning the domains, a first issue is whether to adopt a representation by intension or by extension. Notice that during propagation domains may only be reduced, they never increase! • The representation by extension maintains explicitely, in some data structure, all current values in the domains. As domains may only decrease, such data structure may be static, for example a Boolean vector (bit array). • Such option suffers from many disadvantages. For example detection of failures (i.e. empty domains) requires either the traversal of the whole data structure (3000 memory positions!), or the maintenance of “bit counters”. Constraints - Finite Domains

  10. Indexical Constraints A in 2000..5000, B in 1000..4000, A #=< B • Given the importance of an effective detection of failures, and the memory overhead (domain values may usually be represented in a more compact form) it is thus more adequate, for a general purpose solver, to adopt a representation by intension. • In the beginning, one may always consider explicit limits for the domains, all that is required in domains declaration. • Detection of failure is then very simple: the upper limit of a domain cannot be less than the lower limit. • This representation is most efficient when domains are kept convex (i.e. with no holes) by maintaining simple bounds consistency. Constraints - Finite Domains

  11. A #=< B Indexical Constraints A in 2000..5000, B in 1000..4000, A #=< B • Most usual constraints maintain such convexity, namely inequality (and equality) constraints on arithmetic expressions. • Constraint A #=< B is satisfiable as long as the minimum value of the domain of A (in short, the lower bound of A) is not greater than the upper bound of B. • On the other hand, no value from the domain of A may be higher then the upper bound of B, i.e. the upper bound of A must be no greater than the upper bound of B. Similarly, the lower bound of B must be not less than the lower bound of A). Constraints - Finite Domains

  12. Indexical Constraints A in 2000..5000, B in 1000..4000, A #=< B • As these operations are quite common (e.g. in numerical applications), it is necessary to make the appropriate connection between these operations on the upper/lower bounds and the constraints that enforce them to achieve the adequate propagation. • In indexical constraints, this link is achieved by specifying domains bounds as a function of other bounds. • Constraints are thus represented by expressions on the variables bounds. Since the domains can only be reduced, such constraints are implemented by representing the bounds of variables as a function of the bounds of other variables and max/min operations to implement intersection. Constraints - Finite Domains

  13. A #< B Indexical Constraints A in 2000..5000, B in 1000..4000, A #=< B • Posting the constraint A #=< B changes the initial domains of variables A and B • Domain of A 2000 .. 5000  inf .. max(B) ... i.e. max(A) = min(5000, max(B)) = max(B) • Domain of B 1000 .. 4000  min(A) .. sup ... i.e. min(B) = max(1000, min(A)) = min(A) • The constraint is thus implicitely maintained as A in 2000 .. 4000 inf ..max(B) B in 2000 .. 4000 min(A) ..sup Constraints - Finite Domains

  14. Indexical Constraints A in 2000..5000, B in 1000..4000, A #=< B • The implicit constraint representation • A in 2000 .. 4000  inf ..max(B) • B in 2000 .. 4000 min(A) ..sup also allows the intended propagation. Whenever the upper bound of B changes (i.e. decreases!), such condition is propagated to variable A, whose upper bound also decreases (from 5000 to 4000). Comparison with the lower bound of A (2000) detects when the domain of A becomes empty ! • Propagation from A to B is similar. Any change in the lower bound of A is propagated to the lower bound of B. Changes in A’s upper bound and B’s lower bound are not propagated. Constraints - Finite Domains

  15. Indexical Constraints • Propagation may be observed in the introduction of a new variable C, constraining B, C in 3000..3500, B #= C 0 A in 2000 .. 4000 inf ..max(B) B in 2000 .. 4000 min(A) ..sup • Upon posting the domain of C 1 C in 3000 .. 3500 • Upon posting the constraint B #= C 2a C in 3000 .. 3500 min(B) .. max(B) 2b B in 2000 .. 4000 [min(C)..max(C)  min(A)..sup)] 2000 .. 4000max(min(C),min(A)) .. min(max(C),sup) 3000 .. 3500max(min(C),min(A)) .. max(C) 2c A in 2000 .. 3500 inf ..max(B) • Simplifications are made, if possible. The upper bound of B is simplified, but not its lower bound (the greater of the lower bounds of A and C is not determined yet). Constraints - Finite Domains

  16. Indexical Constraints • Of course, the user must not be concerned, in general, with this low level implementation. • The most usual constraints, concerning the usual arithmetic operations and relational operations, are directly compiled in indexical constraints. • For example, constraint A + B #= C is compiled in the following indexical constraints C in min(A)+min(B) .. max(A)+max(B) A in min(C)-max(B) .. max(C)-min(B) B in min(C)-max(A) .. max(C)-min(A) • Notice the monotonic nature of domain operations. The lower bound of A increases with the increase of the lower bound of C and the decrease of the upper bound of B. Constraints - Finite Domains

  17. Indexical Constraints • The previous examples show that the type of consistency maintained by indexical constraints in constraints of equality ( #= ) and inequality, strict or not, ( #< , #=< , #>and #>= ) is, by default, bounds (or interval) consistency. • The default compilation of the constraints only affects the bounds of the domains of the variables. • Nevertheless, there is the possibility of imposing other types of consistency adequate for many other constraints, namely node consistency and arc consistency. • These types of consistency have only interest when it is important to consider concave domains (with “holes”), as for example in the queens and graph colouring problems. Constraints - Finite Domains

  18. Indexical Constraints • Concavities are possibly introduced by disequality constraints (#\=). Let us consider, for example, A in 1..9, B in 3..5, A #\= B • This disequality constraint has to be represented through set complement operations, not intersection. Adopting SICStus syntax A in \dom(B) and B in \dom(A) • This operation raises problems regarding monotonicity, since when the domain of one variable decreases the domains of the other would increase! • A in 1 .. 9  \dom(B) • B in 3 .. 5 \dom(A) Constraints - Finite Domains

  19. Indexical Constraints A in 1..9, B in 3..5, A #\= B A in 1 .. 9  \dom(B) ; B in 3 .. 5  \dom(A) • For this reason, complement operations are “frozen” until the domains to be complemented are reduced to singletons. • This actually implements node consistency, the most useful criterion to handle disequality constraints (in isolation). • When the domain of B becomes a singleton, B = 3 for example, the domain of A becomes concave, being represented by set union. In SICStus syntax ?-Ain1..9,Bin3..5,A#\=B,B#=3, fd_dom(B,S). B = 3, S = {3}, A in(1..2)\/(4..9) ? Constraints - Finite Domains

  20. Indexical Constraints • Arc consistency requires that whenever the domain of a variable (not only its bounds) is changed, a check is made on whether the other variables still maintain support. • (Generalised) Arc consistency is thus implemented by specifying in the indexical constraints the domain of the other variables. • For example, in SICStus syntax, if it is required to maintain arc consistency on the previous sum constraint, the constraint can be specified by the user by means of the following FD predicate sum(A,B,C)+: A in dom(C) - dom(B), B in dom(C) - dom(A), C in dom(A) + dom(B). Constraints - Finite Domains

  21. Indexical Constraints • User defined constraints in SICStus (by means of FD predicates) is thus similar to the predicate definitions in Prolog, with a different “neck” operator (“+:” rather than the Prolog operator “:-”). • There are however some differences, namely there are no alternative “clauses”, i.e. no backtracking in constraint definitions. • Using the previous definition we would get, ?-Ain1..6,A#\=3,A#\=4,A#\=5,Bin1..2, sum(A,B,C). A in(1..2) \/ {6}, Bin 1..2, Cin(2..4)\/(7..8) ? % A+B#= C  C in 1..8 ?-Cin1..9,C#\=5,C#\=6,C#\=7,Bin0..2,sum(A,B,C). Cin(1..4)\/(8..9),Bin0..2,Ain(-1..4)\/(6..9)? % A+B#= C  A in -1..9 Constraints - Finite Domains

  22. Specifying Indexical Constraints • Indexical expressions may only appear in the “body” of FD predicate definitions. Such limitation is due to the different execution mechanisms between the host language (Prolog) and the FD module in SICStus. In fact, given the sum definition sum(A,B,C)+: A in dom(C) - dom(B), B in dom(C) - dom(A), C in dom(A) + dom(B). it is intended that, in the FD module, the domains of A/B/C are re-evaluated by updates on the domains of C,B/C,A/A,B. • In contrast with Prolog execution, the primitives appearing in indexical expressions (e.g. dom, max, min, etc) should be regarded as reactive agents (to changes). Constraints - Finite Domains

  23. Specifying Indexical Constraints - Terms • In addition to the primitives already examplified, indexical expressions may be formed with FD terms. Being X a domain variable and D(X) its current domain, the basic FD terms are • min(X) minimum of D(X) • max(X) maximum of D(X) • card(X)cardinality of D(X) • X value (integer) of X. The expression is only evaluated when X is instantiated. • I an integer • inf minus infinity • sup plus infinity Constraints - Finite Domains

  24. Specifying Indexical Constraints - Terms • FD terms, basic or not, may be combined through arithmetic operators into compound FD terms. Denoting by T1/T2 arbitrary FD terms, and by D(T1)/D(T2) their current “domains”, the following compound terms may be formed (and evaluated by interval arithmetic) • -T1 I-negation of D(T1) • T1+T2 I-sum of D(T1) and D(T2) • T1-T2 I-difference of D(T1) and D(T2) • T1*T2 I-product of D(T1) and D(T2), D(T2) >= 0 • T1/>T2 D(T1) div D(T2), with outbound rounding, T1/<T2 with D(T2) >= 0 • T1 mod T2 D(T1) mod D(T2) Constraints - Finite Domains

  25. Specifying Indexical Constraints - Ranges • FD terms are used in indexical constraints to define ranges for the domain variables, that must be intersected with the current domains of these variables. In general, indexical constraints take the form X in R where R is a range defined by the following grammar: • The basic ranges are the following • dom(X) D(X) • {T1,...,Tn}set of terms Ti • T1 .. T2 interval bound by terms Ti where X denotes a domain variable and Ti an FD term. Other terms may subsequently be obtained by composition. Constraints - Finite Domains

  26. Specifying Indexical Constraints - Ranges • Denoting by Ri a range and by D(Ri) the corresponding domain, the following operators are used to compose terms • R1/\R2 intersection of D(R1) and D(R2) • R1\/R2 union of D(R1) e D(R2) • \R1 complement of D(R1) • R1+R2 (T2) I-sum of D(R1) and D(R2) (or D(T2)) • -R1 I-negation of D(R1) • R1-R2 e R1-T2 I-difference of D(R1) and D(R2) (D(T2)) • R1 mod R2 (T2)I-mod of D(R1) and D(R2) (D(T2)) • R1 ? R2if R1 \=  then D(R2) else  • unionof(X,R1,R2)union of D(Sk): each Sk is obtained from R2 replacing X for the k-th element of R1. Constraints - Finite Domains

  27. Indexical Constraints – Example (1) Example 1:adjust(X,Z,K,N) • For variables X and Z, with domain 1 to N, make X to be shifted from Z by a value K (0=< K < N), with rewrapping. • This kind of adjust enables that, while enumerating Z in the “standard” increasing order, X is enumerated with the “shifted” ordering. • For example, let us assume N = 15 and K = 5, i.e. that while Z is enumerated with the standard increasing order X is enumerated with the order shifted by 5 Constraints - Finite Domains

  28. Indexical Constraints – Example (1) Example 1:adjust(X,Z,K,N) • Notice that X=((Z+K+N-1)mod N)+1 and Z=((X-K+N-1)mod N)+1. For example, for Z = 7  X = 12 as intended X = (7+5+15-1) mod 15 +1 = 26 mod 15 +1 = 11 +1 = 12 Z = (12-5+15-1) mod 15 + 1= 21 mod 15 + 1= 6 +1 = 7 • Hence, we may formulate the correspondence between X and Z with the following specification Solution 1:adjust(X,Z,K,N)+: X in ((dom(Z)+K+N-1) mod N)+1, Z in ((dom(X)-K+N-1) mod N)+1. Constraints - Finite Domains

  29. Indexical Constraints – Example (1) Example 1:adjust(X,Z,K,N) • In fact, the mod operation is unnecessary, if X and Z are defined over 1..N. All that is required is, for each value Z to add K. Since this may result above the upper bound of X, sometimes N must be subtracted. • For example: for Z = 7 X1 = 7 + 5 = 12 and X2 = 7 + 5 - 15 =-3 for Z = 11 X1 = 11 + 5 = 16 and X2 = 11 + 5 - 15 = 1 Constraints - Finite Domains

  30. Indexical Constraints – Example (1) • By using the union of the two intervals, one resulting from simply adding K and the other by adding K and subtracting N, the adequate value of X is thus obtained. This leads to the simpler formulation. Solution 2:adjust(X,Z,K,N)+: X in (dom(Z)+ K) \/ (dom(Z)+ K - N), Z in (dom(X)- K) \/ (dom(X)- K + N). Left as Exercise:Enumerate Y from centre to the “edges” as below. Constraints - Finite Domains

  31. Indexical Constraints – Example (2) Example 2:no_attack(L1,C1,L2,C2) • Two queens, placed in rows L1 and L2 (constants) and columns C1 e C2 (domain variables) should not attack each other, i.e. C1 \= C2 and L1+C1 \= L2+C2 and L1+C1 \= L2+C2. Solution 1:no_attack(L1,C1,L2,C2)+: C1 in \({C2} \/ {C2+L2-L1} \/ {C2+L1-L2}), C2 in \({C1} \/ {C1+L1-L2} \/ {C1+L2-L1}). • In such approach, as the domain variables appear in a negative “context” (\{C}) the constraint is frozen until C is instantiated. Hence, this formulation guarantees the maintenance of node consistency. • In alternative, one may specify arc consistency. Constraints - Finite Domains

  32. Indexical Constraints – Example (2) Example 2:no_attack(L1,C1,L2,C2) Solution 2:no_attack(L1,C1,L2,C2)+: C1 in unionof(Y, dom(C2), \({Y} \/ {Y+L2-L1} \/ {Y+L1-L2})), C2 in unionof(X, dom(C1), \({X} \/ {X+L1-L2} \/ {X+L2-L1})). • Here, we get arc consistency by allowing a queen to be in a position that is not under the attack of at least one possible position of the other queen, which supports the former. • For example, the domain of C1 is obtained by the union of all values that are “safe” for some value in the domain of C2, through a range expression that takes in turn all values of the domain of C2, renaming them as Y C1 in unionof(Y,dom(C2),...). Constraints - Finite Domains

  33. Indexical Constraints – Example (2) Example 2:no_attack(L1,C1,L2,C2) • The third approach below optimises arc consistency in this problem. Taking into account that a position in a queen is always supported by a queen with 4 or more positions available, arc consistency is only evaluated when the cardinality of the domain drops below 4. Solution 3: no_attack(L1,C1,L2,C2)+: C1 in ( 4..card(C2)) ? (inf..sup) \/ unionof(Y,dom(C2),\({Y} \/ {Y+L2-L1} \/ {Y+L1-L2})), C2 in (4..card(C1)) ? (inf..sup) \/ unionof(X,dom(C1),\({X} \/ {X+L1-L2} \/ {X+L2-L1})). • In fact, C1 is constrained to be either inf..sup (when the cardinality of C2 (card(C2) is >=4) or unionof(Y,... ), otherwise. Constraints - Finite Domains

  34. Disjunctive Constraints • In general, the execution of a CLP problem includes a search phase with backtracking on the enumeration of the variables when the constraints and their propagation is not sufficient to eliminate redundant values from the variables domains. • This backtracking occurs in the enumeration phase, when all the constraints are already posted, i.e. There is no backtracking on constraint posting. • However, when constraints are specified by intension, the most natural way to combine them is through the disjunction of the different alternatives. • One must then identify the best way to specify disjunction. Constraints - Finite Domains

  35. Disjunctive Constraints • Example: Given two tasks, T1 and T2, with starting times S1 and S2 and duration D1 and D2, garantee that they do not overlap. • A natural implemention of this constraint is through the equivalent disjunction • T2 does not start before the end of T1; or • T1 does not start before the end of T2 • The specification of this constraint, namely the disjunction of the alternatives, may use the usual disjunction of Prolog clauses (and the associated backtracking) disjoint(S1,S2,D1,D2) :- S1 + D1 #=< S2. disjoint(S1,S2,D1,D2) :- S2 + D2 #=< S1. Constraints - Finite Domains

  36. Disjunctive Constraints Problem(Vars):- Declaration of Variables and Domains, Specification of Constraints, Labelling of the Variables. • This formulation raises the problem of interaction between backtrack mechanisms made either • On the phase of specification and posting of constraints; and • On the enumeration phase of the variables. • With k non-overlaping tasks, there are k*(k-1)/2 combinations of precedence between pairs of tasks. With 50 tasks, k = 50, there will be 50*49/2 = 1225 constraints and 21225 ways of combining them (in fact only 50! are distinct). Constraints - Finite Domains

  37. Disjunctive Constraints Problem(Vars):- Declaration of Variables and Domains, Specification of Constraints, Labelling of the Variables. • Hence the two alternatives: • Either 1 single problem with k variables, with complexity O(dk) ; or • a model with alternative “problems” on the same variables leading to k! problems on these variables, with complexity O(k! dk). • Although each of the k! problems in the second model are more constrained than the single one of the first model, the huge number of problems corresponding to an ordering of the task makes this formulation very inneficient. Constraints - Finite Domains

  38. Reified Constraints • A better formulation uses a single specification of all the constraint alternatives, avoiding the backtracking of multiple constraint definitions. • Such formulation can be obtained through constraints reification. • The basic idea of constraint reification is to associate its satisfaction to a boolean variable 0/1, and make this variable accessible to the program level. • For example associating constraints C1 and C2 to boolean variables B1 and B2, the disjunction of these constraints may be specified by means of constraint B1 + B2 #>= 1 Constraints - Finite Domains

  39. Reified Constraints • Once defined this basic meta-level mechanism of reified constraints, its scope can be enlarged for other types of combinations of constraints, namely those requiring some countings. • For example, if from the 20 constraints C1,..., C20 at least 10 must be satisfied, instead of specifying, • C1020 = 184 756 alternative combinations of 10 out of 20 of the C1 to C20 constraints the only additional specifications required are • the 20 constraints, C1 to C20 • the constraints reification to Boolean variables B1 to B20 • the “counting” constraint B1 + B2 + ... + B20 #>= 10 Constraints - Finite Domains

  40. Reified Constraints - Ask & Tell Mechanisms • To efficiently exploit the correspondance between a constraint C and a Boolean variable B, Ask & Tell mechanisms must be defined: • Tell mechanisms • Tell(C) - Post the constraint • Tell(~C) - Post the “negation” of the constraint • Ask mechanisms • Ask(C) - Check the entailment of the constraint • Ask(~C) - Check the entailment of its negation. • For example, to impose that one and only one of constraints C1 and C2 is satisfied all the 4 above situations must be implemented. Constraints - Finite Domains

  41. Reified Constraints - Ask & Tell Mechanisms • Ask(C1) / Ask(C2) succeeds Once detected the satisfaction of one of the constraints, the negation of the other constraint must be posted, i.e. tell(~R2) / tell(~R1). • Ask(~C1) / Ask(~C2) succeeds Once detected the satisfaction of the negation of one of the constraints, the other constraint must be posted, i.e. tell(C2) / tell(C1). • It is thus important to see how reified constraints, and the underlying Ask&Tell mechanisms may be specified, not only in built-in predefined constraints, but also for user defined constraints. Constraints - Finite Domains

  42. Specification of Ask & Tell Mechanisms • In SICStus the association between constraints and boolean variables is specified through the built-in operator “#<=>” C #<=> B. where B is the boolean variable and C the constraint. • Some built-in constraints are pre-defined. Such is the case of linear numerical constraints. As an application, tasks non-overlapping as described before can be specified with no alternative clauses as disjoint(S1, S2, D1, D2) :- (S1 + D1 #=< S2) #<=> B1, % T1 before T2 (S2 + D2 #=< S1) #<=> B2, % T2 before T1 B1 + B2 #>= 1. Constraints - Finite Domains

  43. Specification of Ask & Tell Mechanisms • For constraints defined by the user, the appropriate Ask & Tell conditions must also be defined. • For instance, let us consider the constraint of difference between two domain variables. • The two Tell mechanisms are imposed by propagating indexical specifications, that include both the positive definitions (‘+:’), already known, as well as the negative definitions (‘-:’) ’x\\=y’(X,Y) +: ’x\\=y’(X,Y) -: X in \{Y}, X in dom(Y), Y in \{X}. Y in dom(X). Constraints - Finite Domains

  44. Specification of Ask & Tell Mechanisms • The Ask mechanisms are imposed by checking indexicals, both positive (‘+?’) ’x\\=y’(X,Y)+? X in \dom(Y). and negative (‘-?’) ’x\\=y’(X,Y) -? X in {Y}. • The intended behaviour to propagating and checking indexicals, imposes some constraints on the expressions that can be used on the “body” of the definitions, as well as to their execution. • Some of these limitations are presented next. Constraints - Finite Domains

  45. Ask & Tell Propagation Propagating Indexicals (Trigger) A Propagating Indexical X in R is scheduled for execution whenever • It becomes monotonic for the first time • It is rescheduled whenever, for another variable Y appearing in R • The domain of Y is changed and Y appears in R in the form card(Y) ou dom(Y); • The upper/lower bounds of Y change and Y appears in R in the form max(Y)/min(Y). Constraints - Finite Domains

  46. Ask & Tell Propagation Propagating Indexicals (Result) • Given some variable X referred to in an indexical constraint, and denoting by M(X) the value of the constraint in the current state of memory and by I(X) the interval between the lower and upper bounds of X, then • If M(X) is disjoint from I(X), there is a contradiction. • If I(X) is within M(X), there are no values in the current domain of X incompatible with the indexical constraints, whose execution is suspended, until the situation becomes “ground”. • Otherwise, the indexical constraint is added to the constraints over X, whose domain will be pruned. Constraints - Finite Domains

  47. Ask & Tell Propagation Propagating Indexicals: Examples • Example 1: Constraint X in \{Y} in the positive propagating indexical is suspended until it gets monotonic, i.e. until Y gets instantiated. • In this case, the constraint is either contradictory, or is propagated, pruning the value of Y from the domain of X. • Example 2: Constraint X in dom(Y), in the negative propagating indexical is inherently monotonic. • Whilst Y has values in its domain, X is getting prunned. • If the domains of X and Y become disjunct, then the negation of the constraint of difference fails! • When the domain of Y gets ground, then so does the domain of X and the constraint succeeds. Constraints - Finite Domains

  48. Ask & Tell Propagation Checking Indexicals (Trigger) • A checking indexical X in R is triggered for execution in the following conditions • It becomes anti-monotonic for the first time • It is rescheduled whenever, • The domain of X has been pruned or got ground; • The domain of another variable Y, appearing in R in the form card(Y) or dom(Y), is pruned; • The upper/lower bounds of another variable Y, appearing in R in the form max(Y)/min(Y), is pruned. Constraints - Finite Domains

  49. Ask & Tell Propagation Checking Indexicals (Result) • Given some variable X referrred to in an indexical constraint, and denoting by M(X) the value of the constraint in the current state of memory and by I(X) the interval between the lower and upper bounds of X, then • If I(X) is contained in M(X), then no value of X may turn the constraint false, as M(X) may only “increase size” (anti-monotonic). Hence the constraint is entailed. • If I(X) is disjoint from M(X) and M(X) is ground then the constraint may no longer be satisfied, and is disentailed. • Otherwise, the checking indexical is suspended. Constraints - Finite Domains

  50. Ask & Tell Propagation Checking Indexicals: Examples • Example 1: Constraint X in \dom(Y) in the positivechecking indexical is inherently anti-monotonic (the values of \dom(Y)may only increase as dom(Y) decreases during execution). • Hence, the positive checking indexicalsucceeds as soon as the domain of X has no elements in common with the domain of Y. • Example 2: Constraint X in {Y}, in the negativechecking indexical only gets anti-monotonic when Y becomes ground to some value. • Whilst X has this value in its domain the constraint suspends. • If X only has this value in its domain the negative checking succeeds, i.e. the constraint of difference fails. Constraints - Finite Domains
