  1. Chapter 10 Flip-Flops and Registers 1

  2. Objectives You should be able to: • Explain the internal circuit operation of S-R and gated S-R flip-flops. • Compare the operation of D latches and D flip-flops by using timing diagrams. • Describe the difference between pulse-triggered and edge-triggered flip-flops. 2

  3. Objectives (Continued) • Explain the theory of operation of master-slave devices. • Connect IC J-K flip-flops as toggle and D flip-flops. • Use timing diagrams to illustrate the synchronous and asynchronous operation of J-K flip-flops. 3

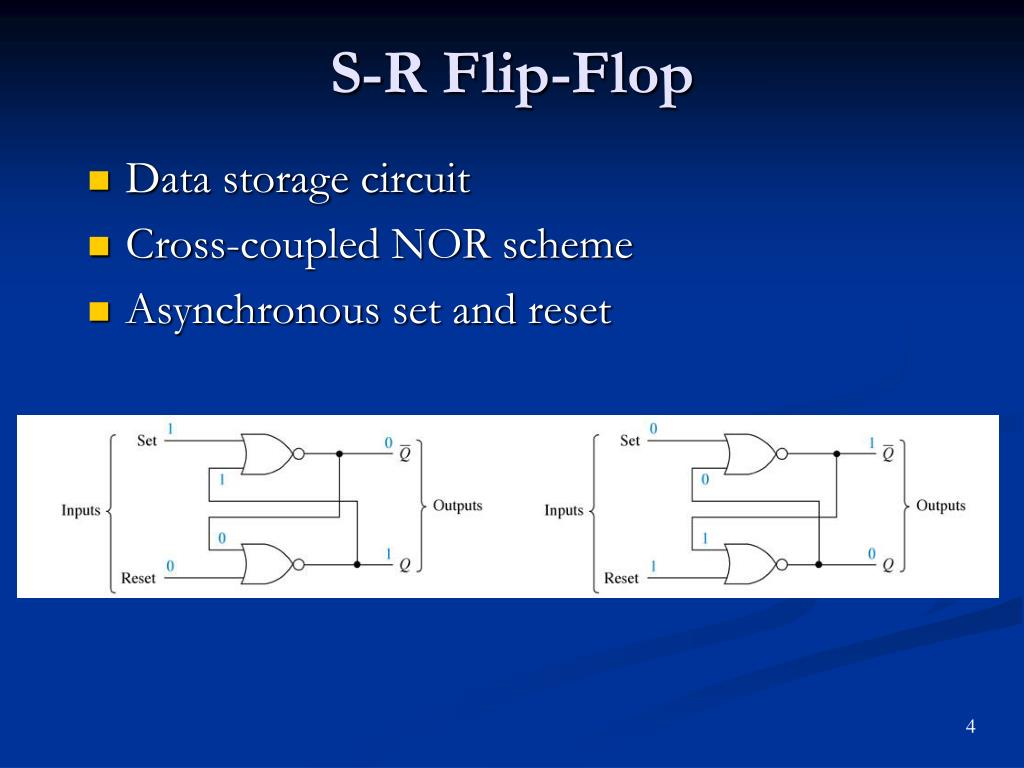

  4. S-R Flip-Flop • Data storage circuit • Cross-coupled NOR scheme • Asynchronous set and reset 4

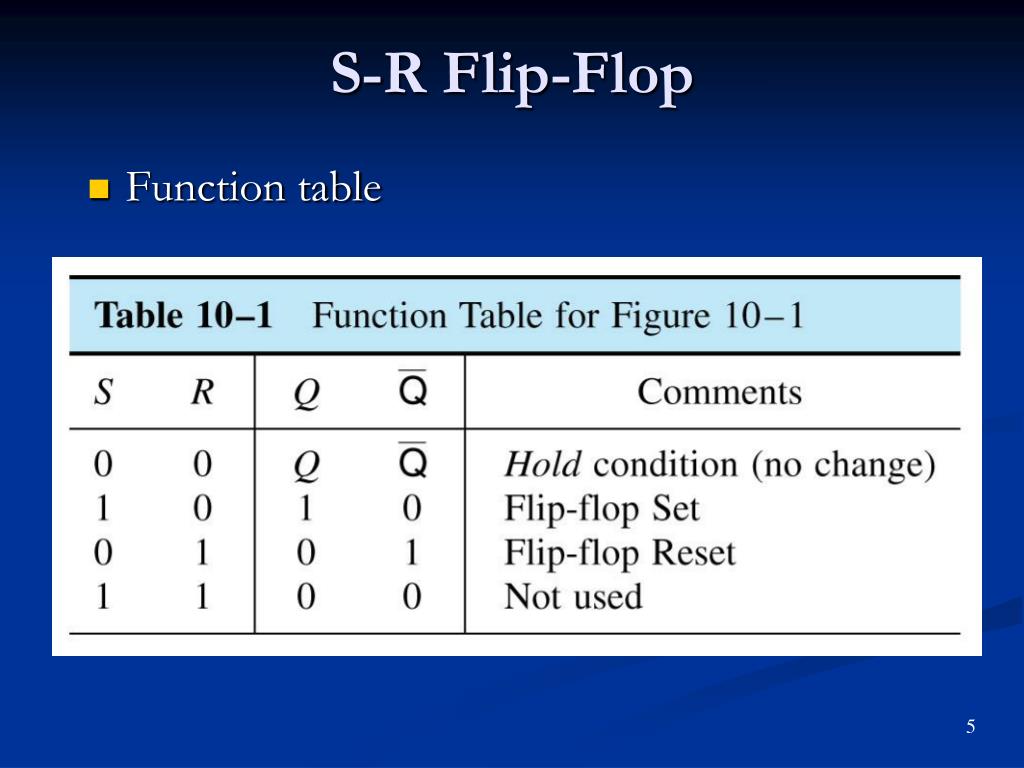

  5. S-R Flip-Flop • Function table 5

  6. S-R Flip-Flop • Data storage circuit • Cross-coupled NAND scheme 6

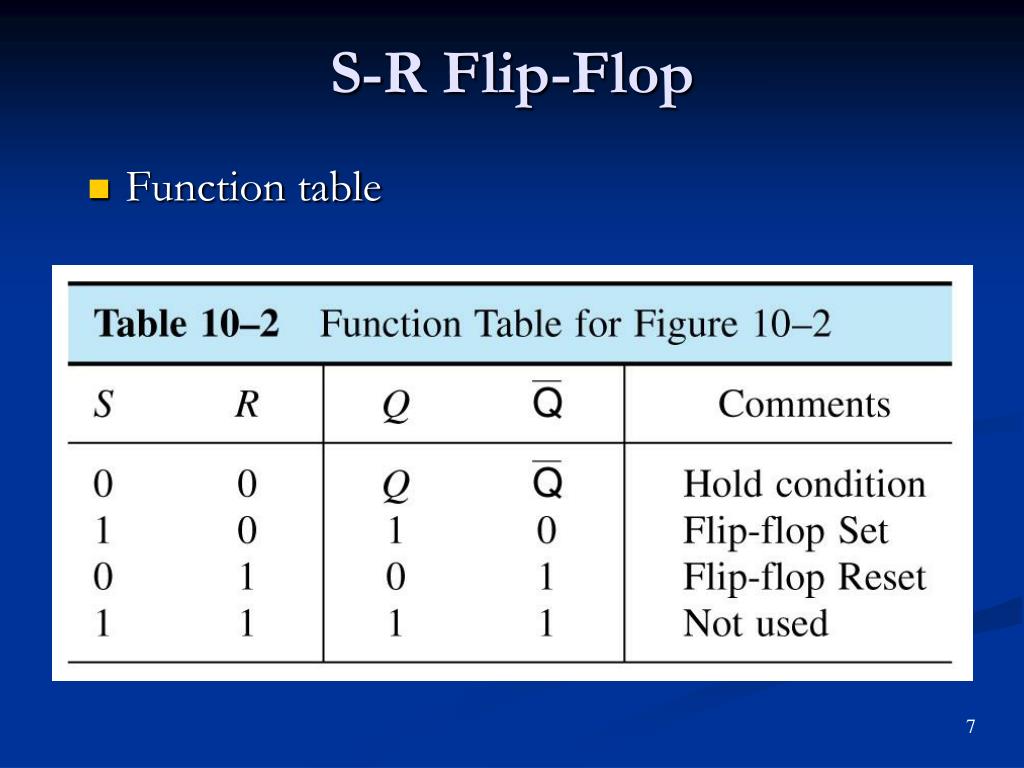

  7. S-R Flip-Flop • Function table 7

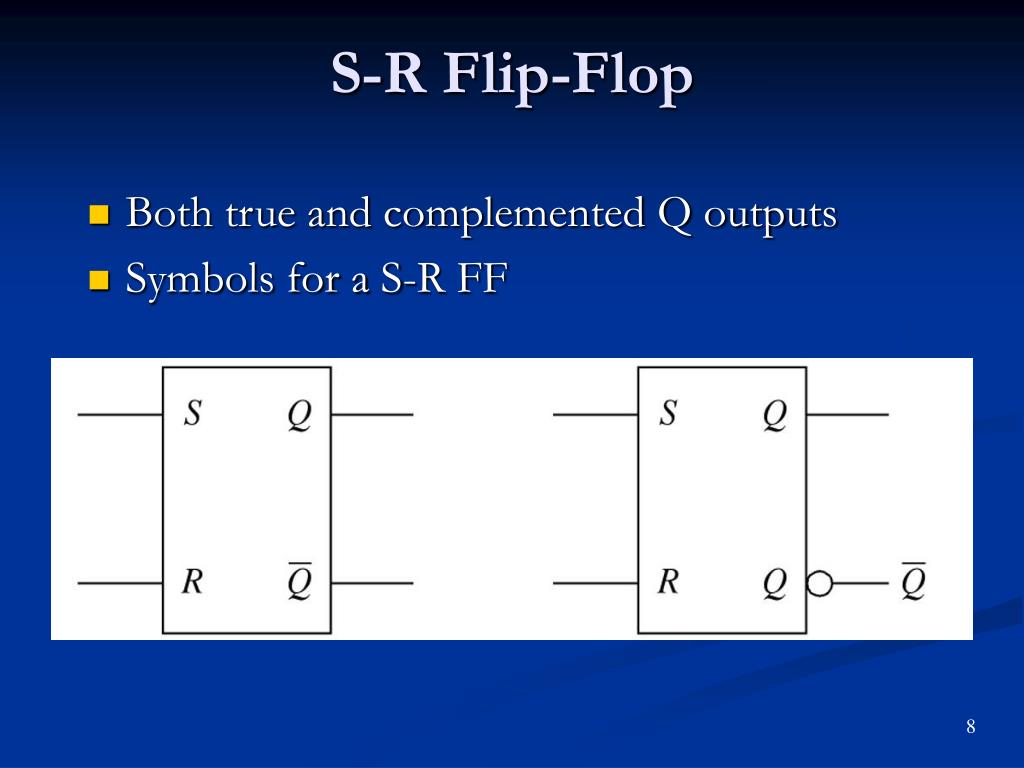

  8. S-R Flip-Flop • Both true and complemented Q outputs • Symbols for a S-R FF 8

  9. S-R Flip-Flop Timing Analysis 9

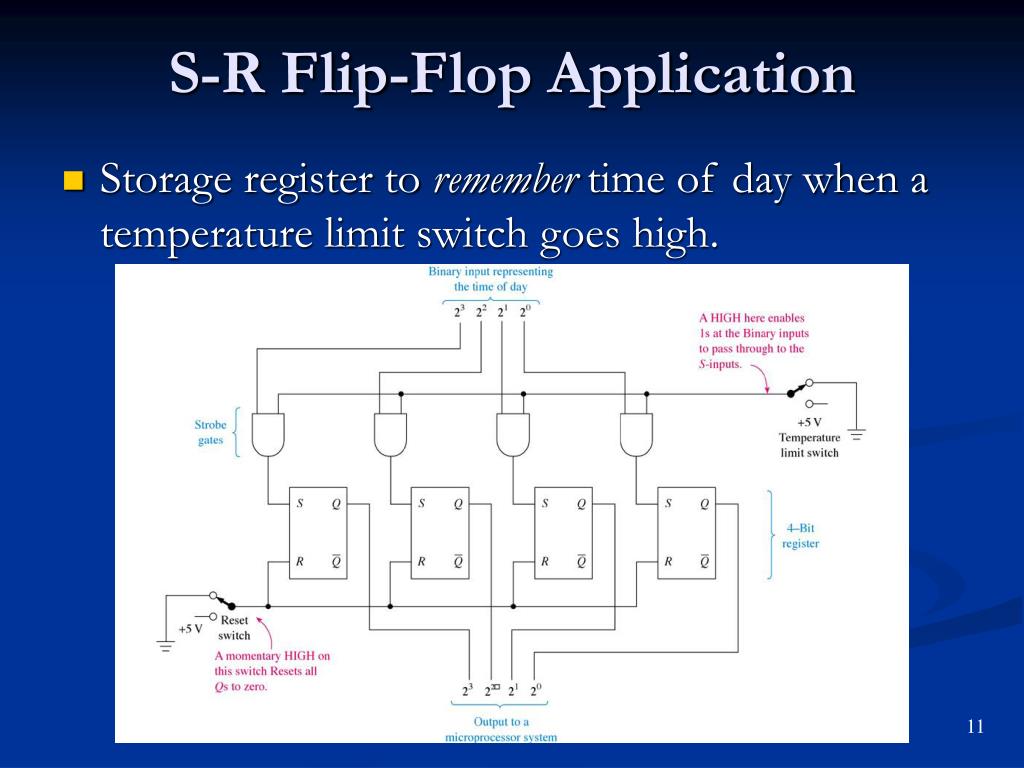

  10. S-R Flip-Flop Application • Storage register to remember time of day when a temperature limit switch goes high. 11

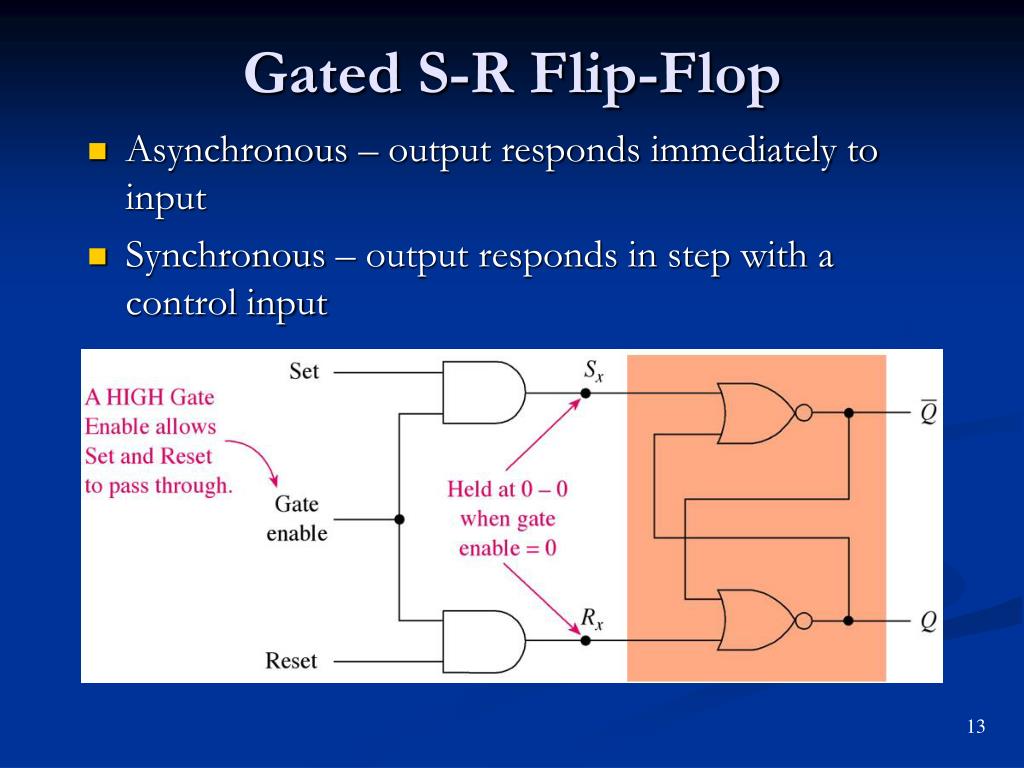

  11. Gated S-R Flip-Flop • Asynchronous – output responds immediately to input • Synchronous – output responds in step with a control input 13

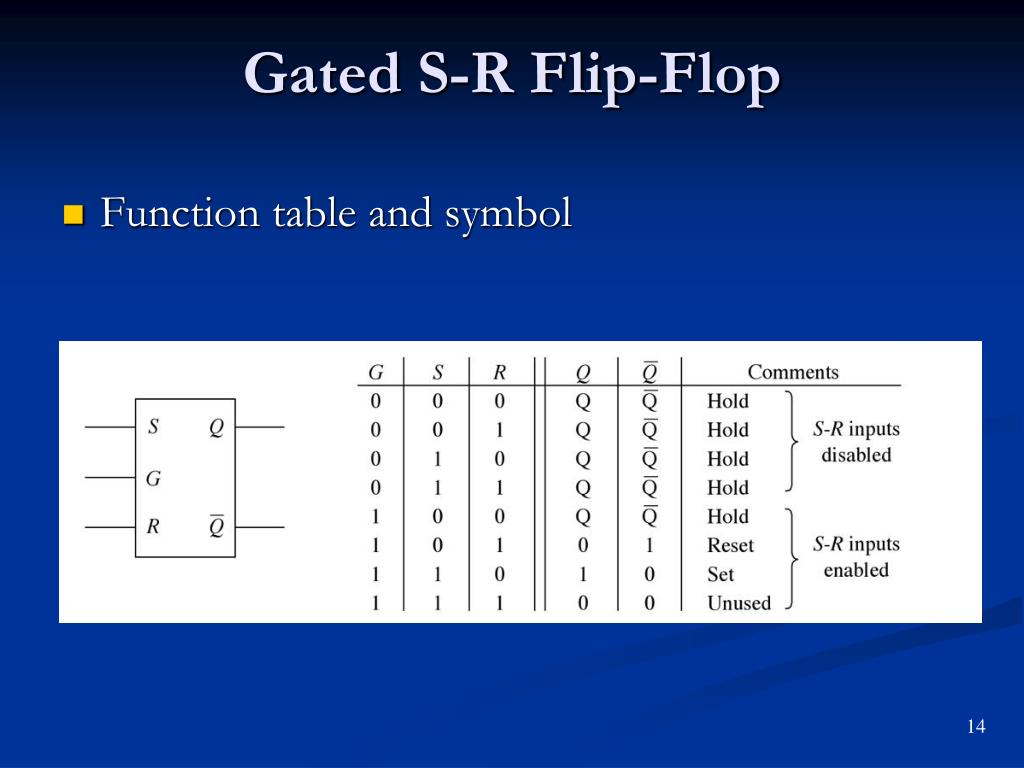

  12. Gated S-R Flip-Flop • Function table and symbol 14

  13. Gated D Flip-Flop • Data flip-flop with example inputs and outputs 15

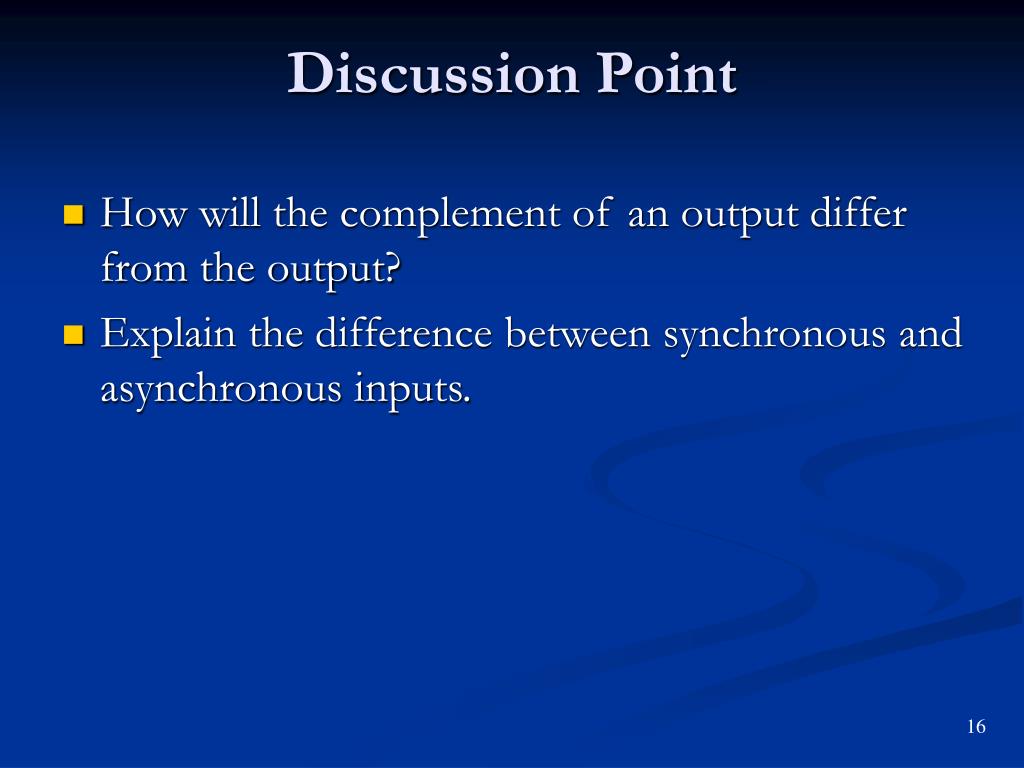

  14. Discussion Point • How will the complement of an output differ from the output? • Explain the difference between synchronous and asynchronous inputs. 16

  15. 7475 Integrated Circuit D Latch • Four transparent D latches • Bistable latch, logic symbol and pin configuration 17

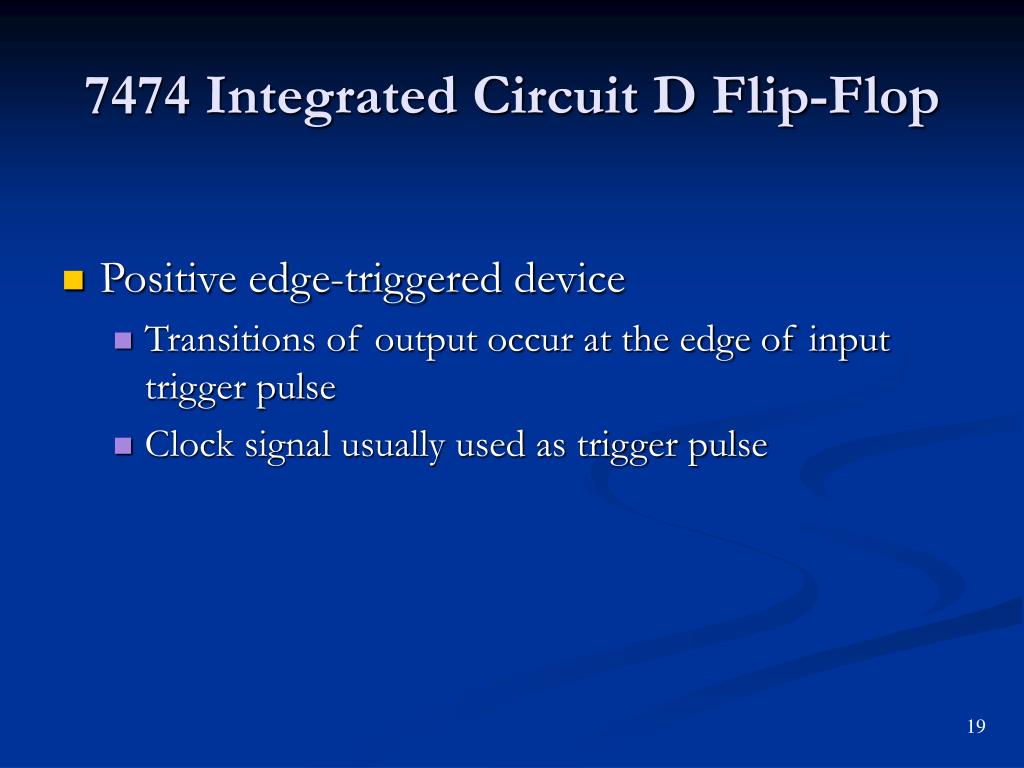

  16. 7474 Integrated Circuit D Flip-Flop • Positive edge-triggered device • Transitions of output occur at the edge of input trigger pulse • Clock signal usually used as trigger pulse 19

  17. 7474 Integrated Circuit D Flip-Flop Logic symbol and pin configuration 20

  18. Integrated Circuit D Flip-Flop • Positive edge-detection circuit 21

  19. Integrated Circuit D Flip-Flop • Synchronous inputs • D (Data) • Cp (Clock) • Asynchronous inputs • SD (Set) • RD (Reset) • Function Table (see Table 10-4 in the text) • Setup Time - time D must be stable before transition of Cp 22

  20. Master-Slave J-K Flip-Flop • Toggle mode • Switches to opposite state at active clock edge • Master-slave • Master receives data while input trigger is HIGH • Slave receives data from master and outputs it when clock goes LOW 24

  21. Master-Slave J-K Flip-Flop • Function Table 25

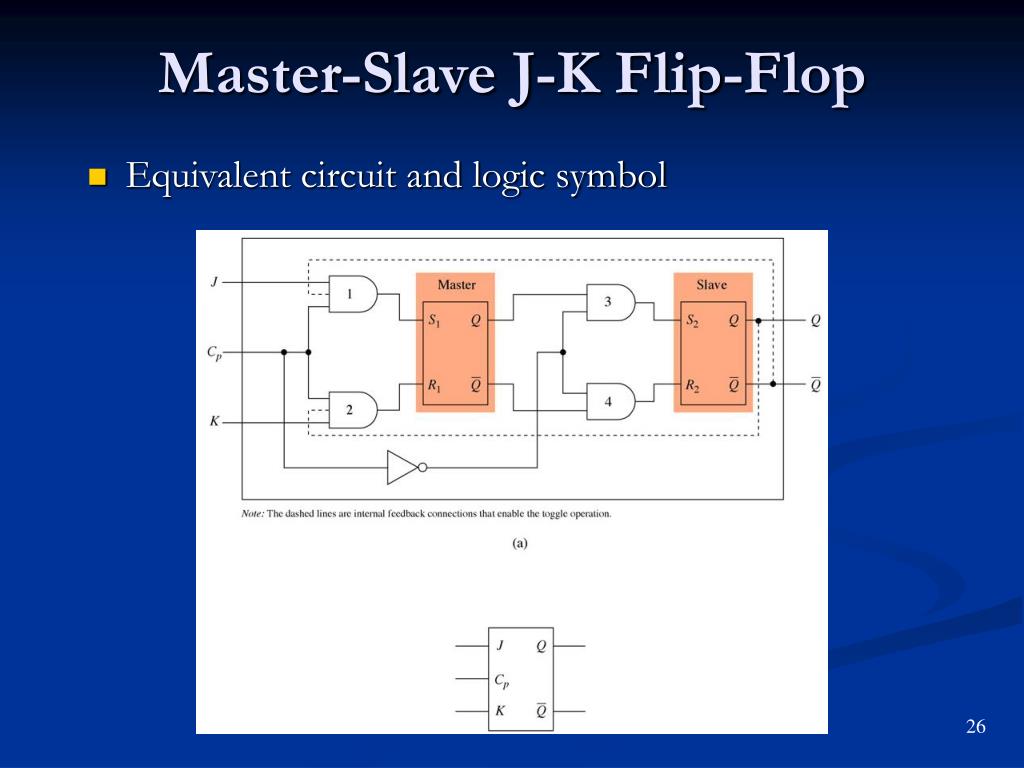

  22. Master-Slave J-K Flip-Flop • Equivalent circuit and logic symbol 26

  23. Master-Slave J-K Flip-Flop • Pulse-triggered (level-triggered) • Input data is read during entire time clock pulse is at a HIGH level • Ones catching 27

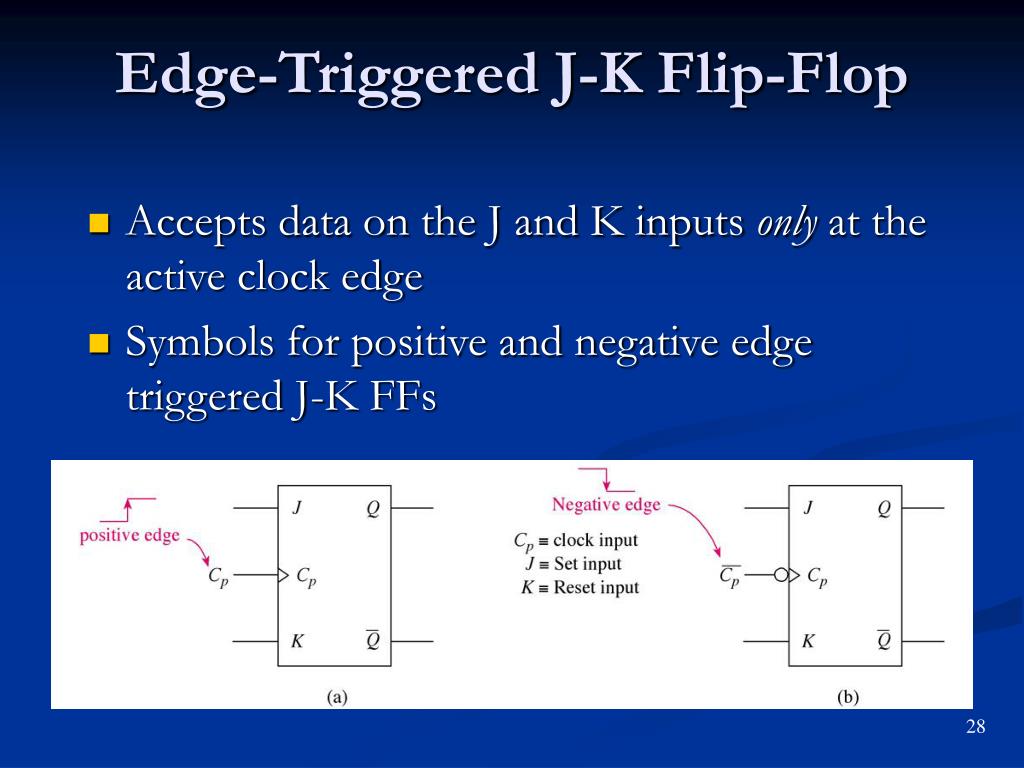

  24. Edge-Triggered J-K Flip-Flop • Accepts data on the J and K inputs only at the active clock edge • Symbols for positive and negative edge triggered J-K FFs 28

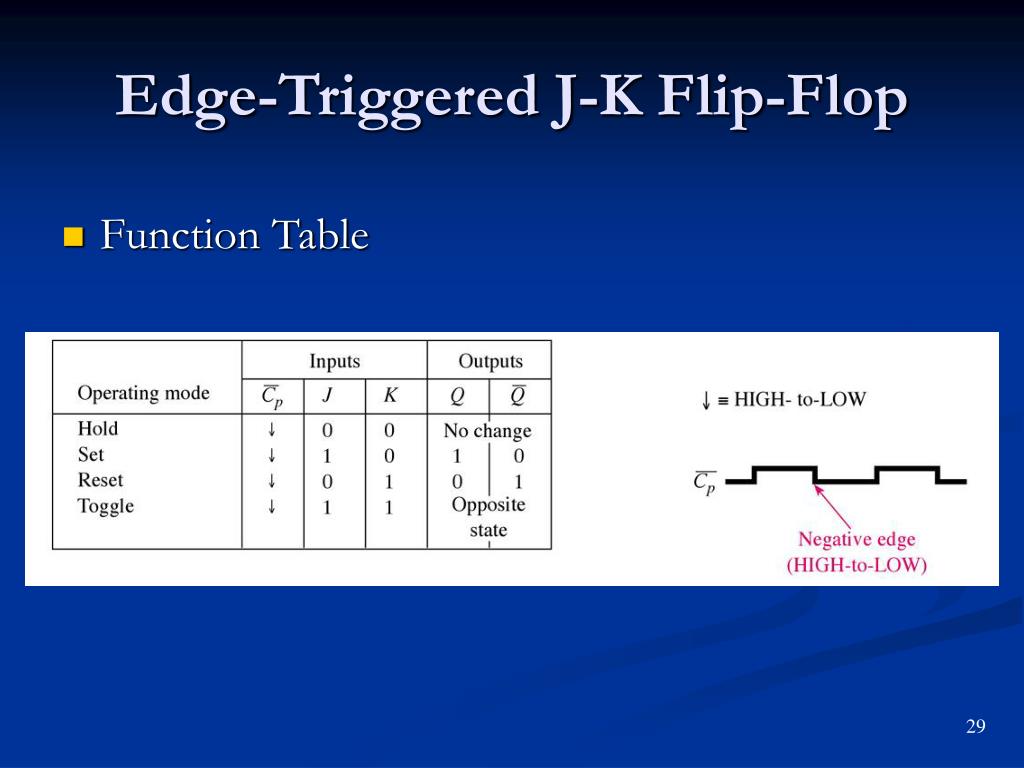

  25. Edge-Triggered J-K Flip-Flop • Function Table 29

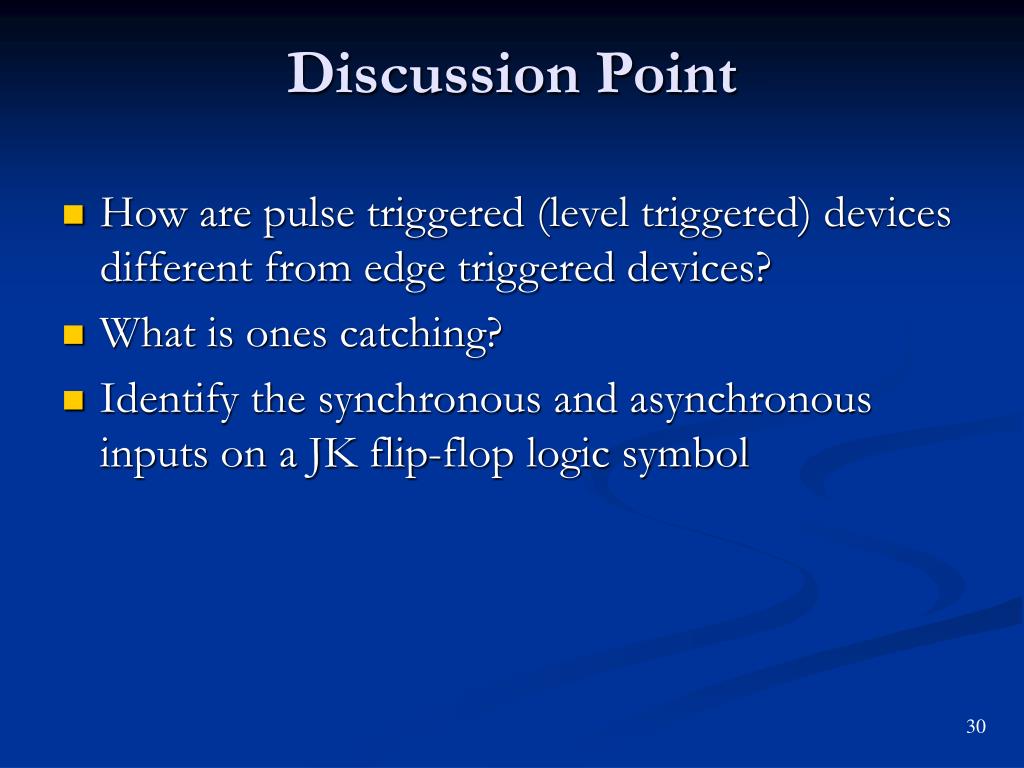

  26. Discussion Point • How are pulse triggered (level triggered) devices different from edge triggered devices? • What is ones catching? • Identify the synchronous and asynchronous inputs on a JK flip-flop logic symbol 30

  27. Integrated Circuit J-K Flip-Flop • 7476 - master-slave • 74LS76 - negative edge-triggered • Logic symbol and pin configuration 31

  28. Integrated Circuit J-K Flip-Flop • To form a D flip-flop add an inverter 33

  29. Integrated Circuit J-K Flip-Flop • To form a toggle flip-flop tie inputs HIGH 34

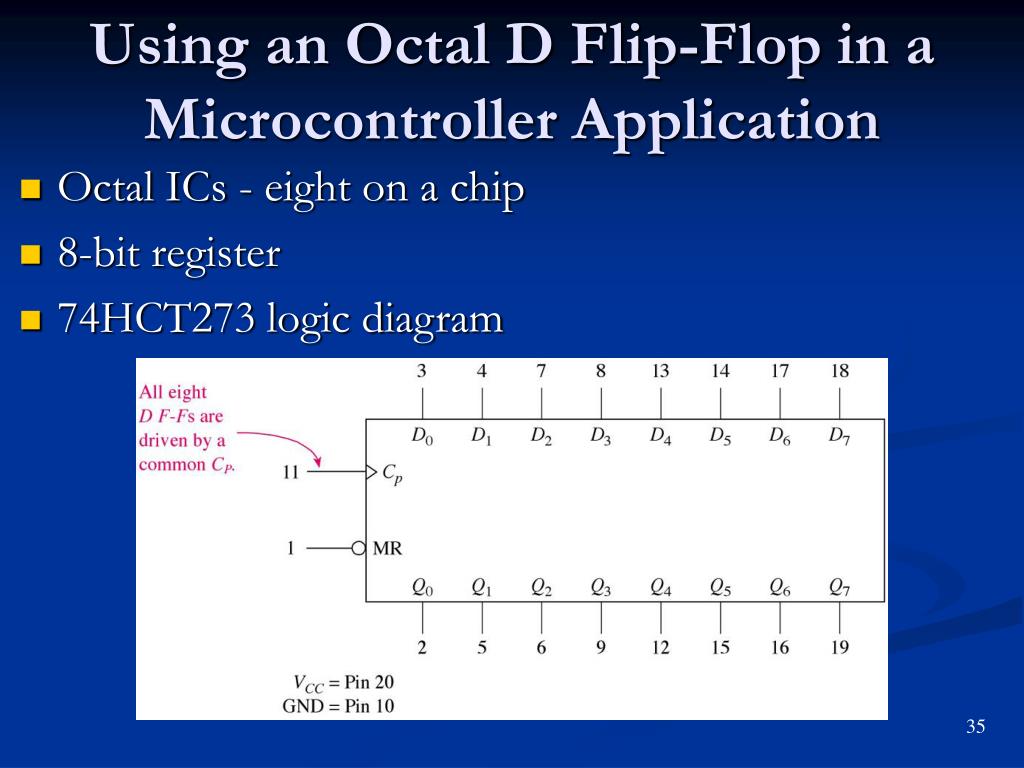

  30. Using an Octal D Flip-Flop in a Microcontroller Application • Octal ICs - eight on a chip • 8-bit register • 74HCT273 logic diagram 35

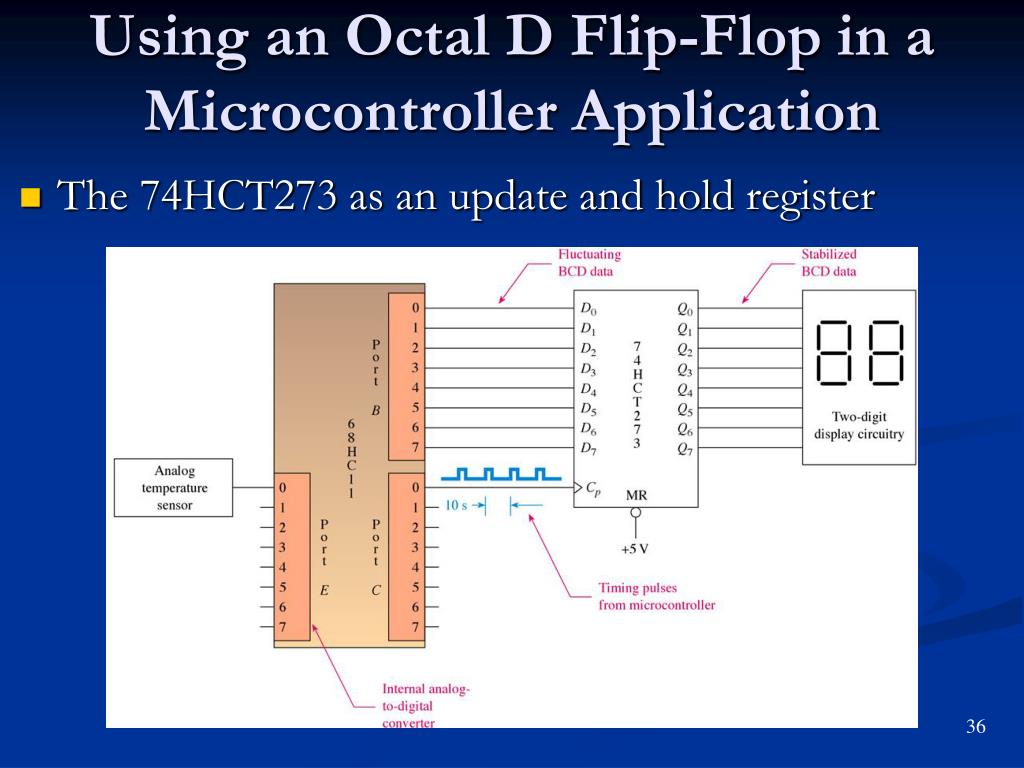

  31. Using an Octal D Flip-Flop in a Microcontroller Application • The 74HCT273 as an update and hold register Figure 10-45 36

  32. Summary • The S-R flip-flop is a single-bit data storage circuit that can be constructed using basic gates. • Adding gate enable circuitry to the S-R flip-flop makes it synchronous. This means that it will operate only under the control of a clock or enable signal. 37

  33. Summary • The D flip-flop operates similar to the S-R, except it has only a single data input, D. • The 7475 is an integrated-circuit D latch. The output (Q) follows D while the enable (E) is HIGH. When E goes LOW, Q remains latched. 38

  34. Summary • The 7474 is an integrated-circuit D flip-flop. It has two synchronous inputs, D and Cp, and two asynchronous inputs, SD and RD. Q changes to the level of D at the positive edge of Cp. Q responds immediately to the asynchronous inputs regardless of the synchronous operations. 39

  35. Summary • The J-K flip-flop differs from the S-R flip-flop because it can also perform a toggle operation. Toggling means that Q flips to its opposite state. • The master-slave J-K slip-flop consists of two latches: a master that receives data while the clock trigger is HIGH, and a slave that receives data from the master and outputs it to Q when the clock goes LOW. 40

  36. Summary • The 74LS76 is an edge-triggered J-K flip-flop IC. It has synchronous and asynchronous inputs. The 7476 is similar, except it is a pulse-triggered master-slave type. • The 74HCT273 is an example of an octal D flip-flop. It has eight D flip-flops in a single IC package, making it ideal for microprocessor applications. 41
