  1. Chapter 3 • Structuring Decision

  2. Structuring DecisionsLearning Objectives • Fundamental steps in model creation • Identify and structure values and objectives • Fundamental objectives and hierarchies • Means objectives and networks • Graphical methods for decision frameworks • Influence diagrams • Decision trees • Concepts for model details • Elements • Probabilities • Cash flows • Objectives measurements

  3. Structuring Decisions Three fundamental steps to create a decision model: • Identify and structure the values and objectives • Structure the decision elements into a logical framework • Refine and precisely define all elements of the model

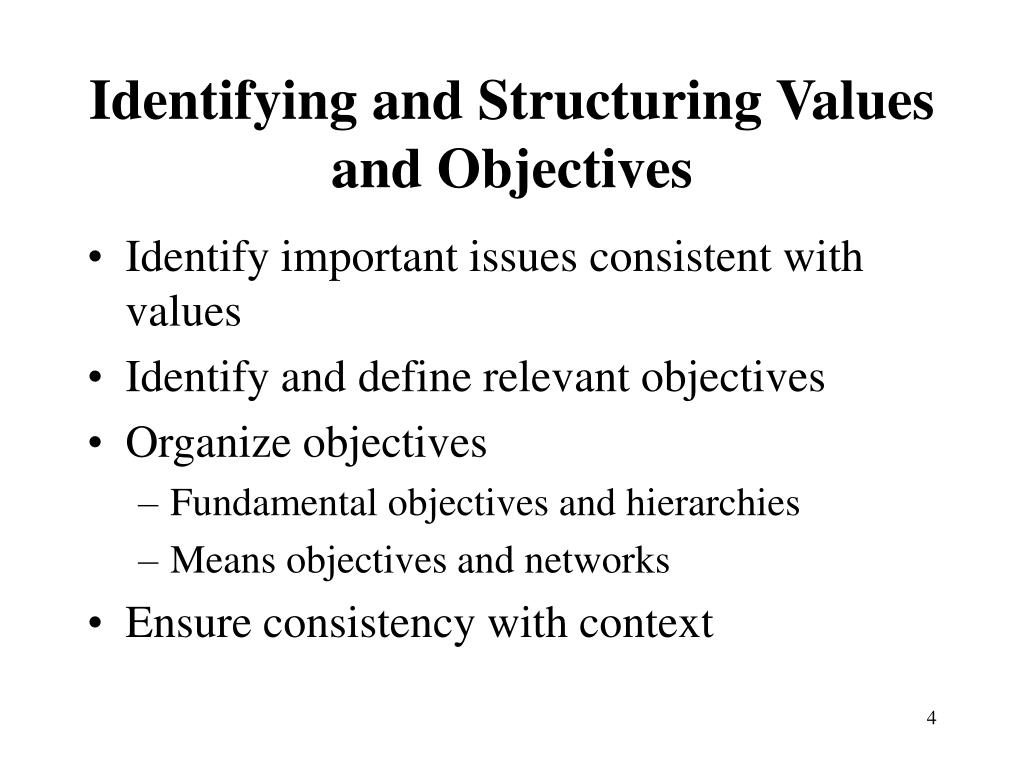

  4. Identifying and Structuring Values and Objectives • Identify important issues consistent with values • Identify and define relevant objectives • Organize objectives • Fundamental objectives and hierarchies • Means objectives and networks • Ensure consistency with context

  5. Fundamental Objectives • General and reflect values • Organized in hierarchies • Paste figure 3.1

  6. Means Objectives • Identify how to accomplish fundamental objectives • Organized in networks • Paste figure 3.2

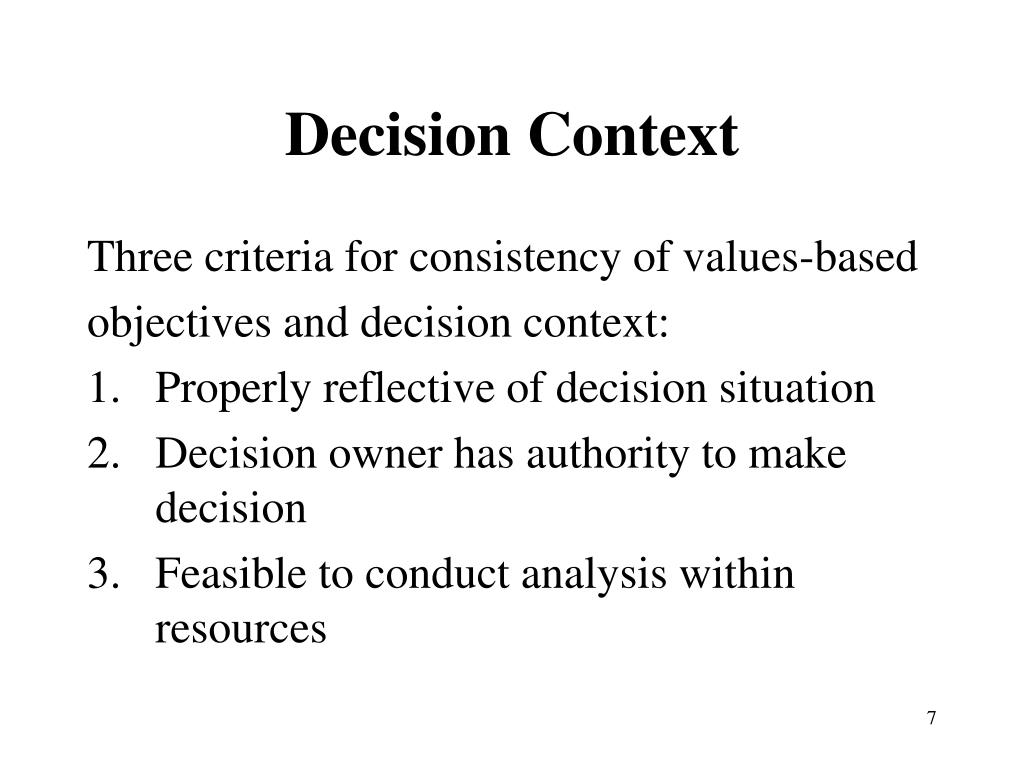

  7. Decision Context Three criteria for consistency of values-based objectives and decision context: • Properly reflective of decision situation • Decision owner has authority to make decision • Feasible to conduct analysis within resources

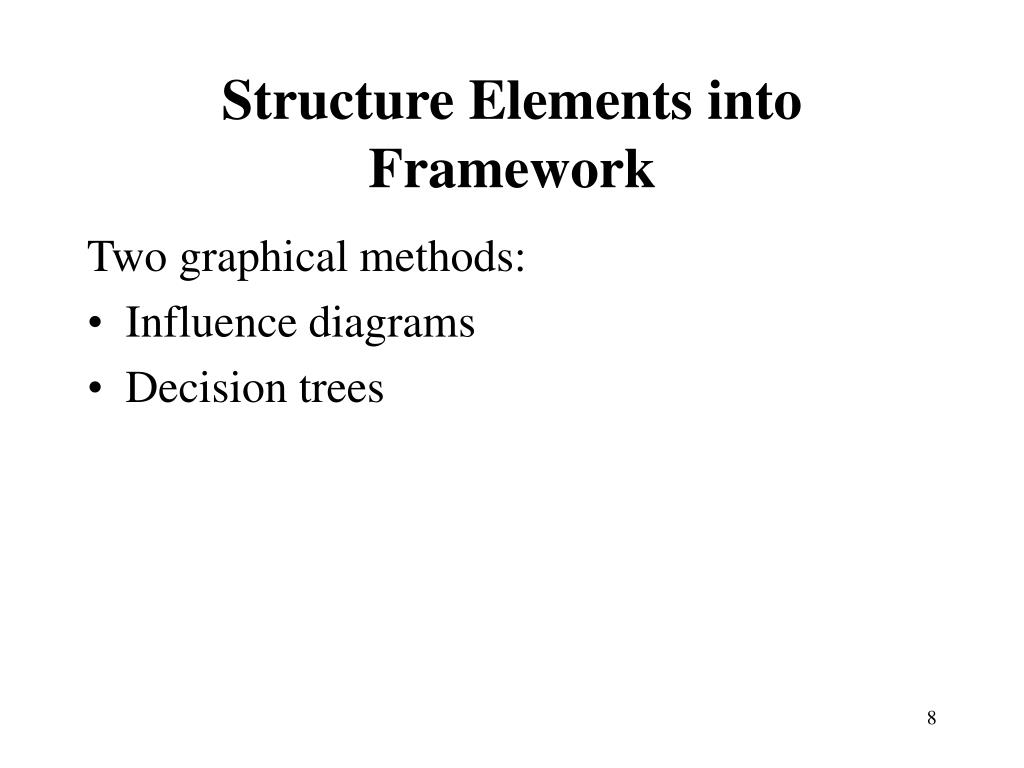

  8. Structure Elements into Framework Two graphical methods: • Influence diagrams • Decision trees

  9. Influence Diagrams • Geometric representation of decision elements: • Rectangles: represent decisions • Ovals: represent chance events • Diamonds: represent payoffs • Round-cornered rectangles: represent intermediate consequences or mathematical calculations

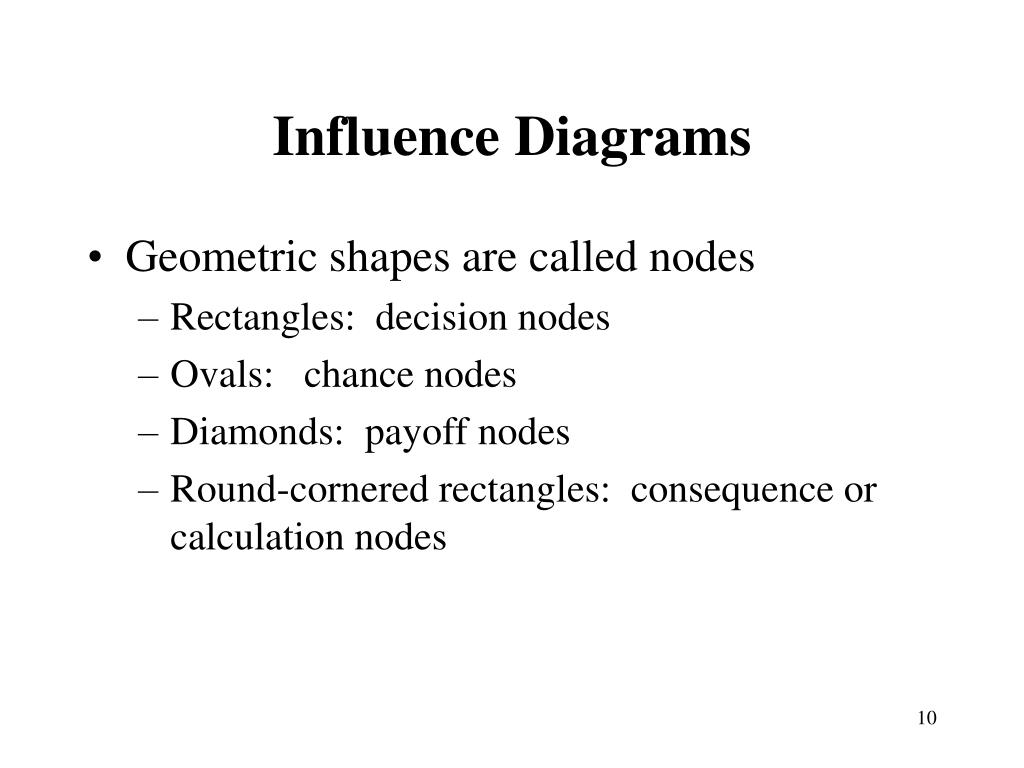

  10. Influence Diagrams • Geometric shapes are called nodes • Rectangles: decision nodes • Ovals: chance nodes • Diamonds: payoff nodes • Round-cornered rectangles: consequence or calculation nodes

  11. Influence Diagrams • Nodes connected by arcs to represent relationships • Nodes are named • Predecessor: if at beginning of arc • Successor: if at termination of arc Copy figure 3.7

  12. Influence Diagrams • Arcs represent two types of relationships, defined by the successor node • Arcs can represent sequence or relevance • Sequence: successor node is decision node • Relevance: successor node is any non-decision node Paste figure 3.8

  13. Influence Diagrams • Basic influence diagrams • Basic risky decision: One decision and one uncertainty • Imperfect information: Imperfect information about an uncertainty influences payoff • Sequential decision: Result from one decision determines if another decision is to be made • Intermediate calculation: Compiles predecessors information

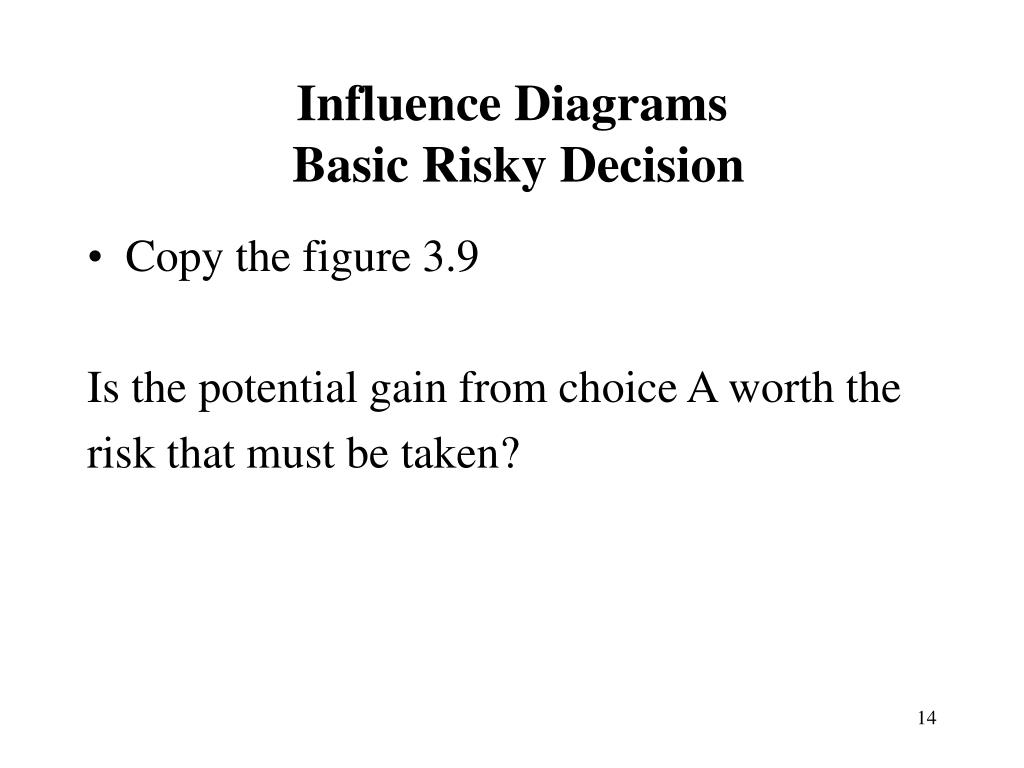

  14. Influence Diagrams Basic Risky Decision • Copy the figure 3.9 Is the potential gain from choice A worth the risk that must be taken?

  15. Influence DiagramsImperfect Information • Copy the figure 3.10 Imperfect information about uncertain event received and decision made; uncertain event is then resolved. Both decision and event affect payoff

  16. Influence DiagramsSequential Decisions • Copy the figure 3.12 Sequential decisions reveal time sequence

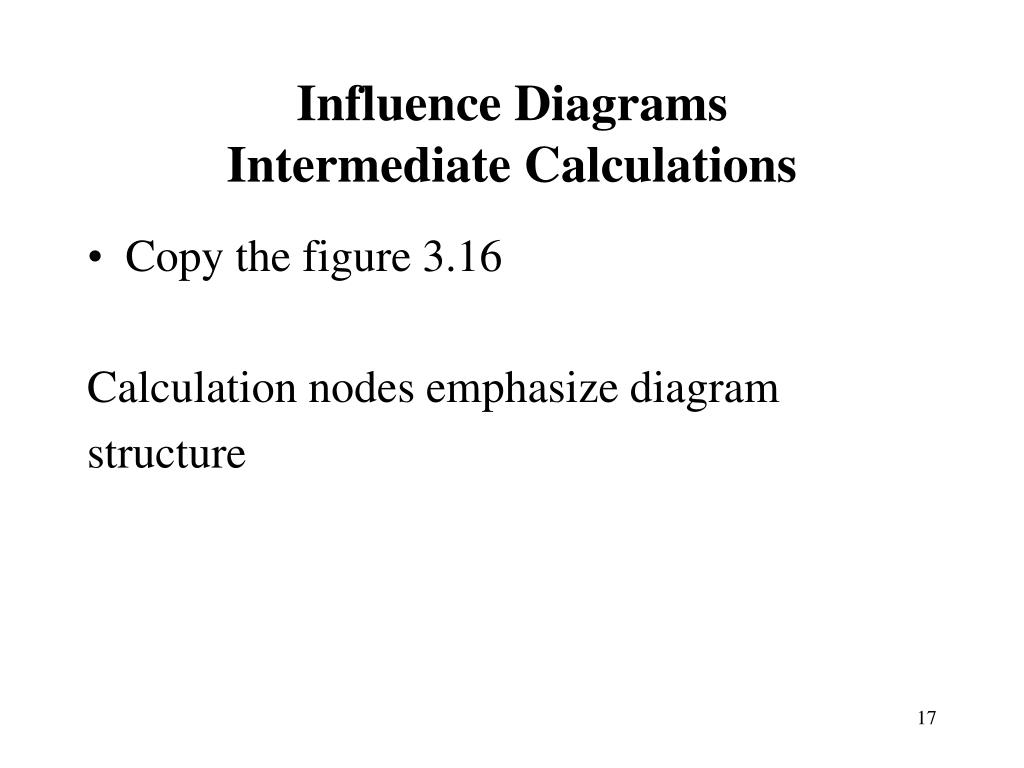

  17. Influence DiagramsIntermediate Calculations • Copy the figure 3.16 Calculation nodes emphasize diagram structure

  18. Creating Influence Diagrams • No single strategy for creation • Identify decision context and objectives • Create simple version, then add details • Unique representation rare

  19. Creating Influence Diagrams Three common mistakes • Confusion with flow charts • Misuse of sequence arcs • Inclusion of cycles

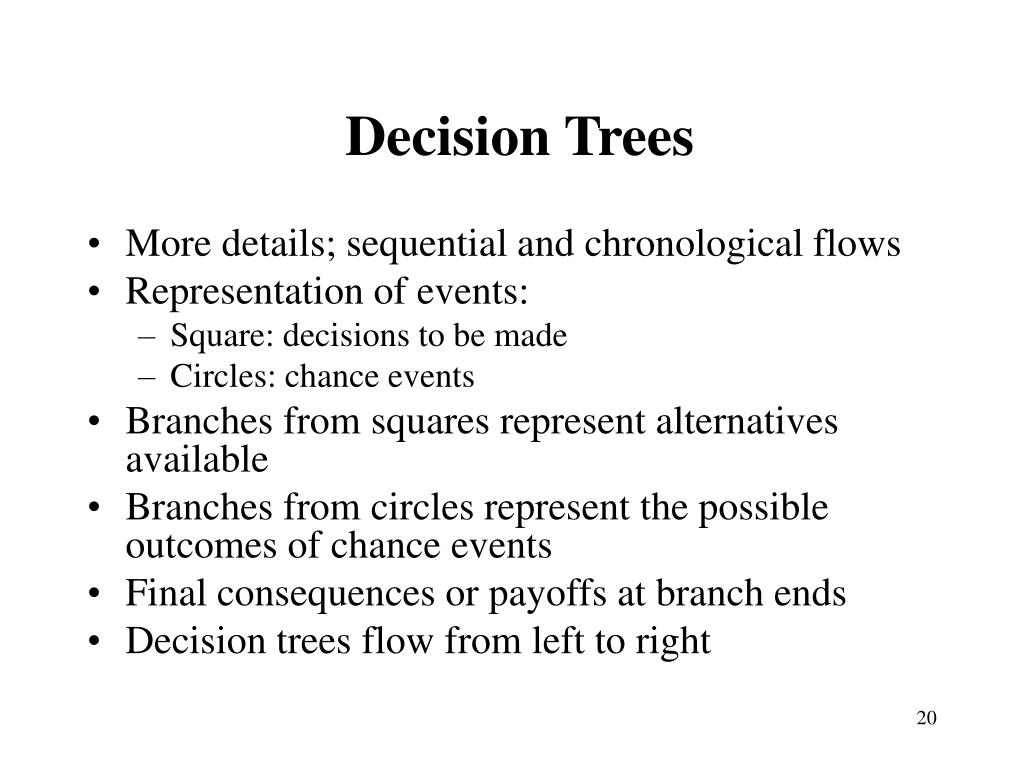

  20. Decision Trees • More details; sequential and chronological flows • Representation of events: • Square: decisions to be made • Circles: chance events • Branches from squares represent alternatives available • Branches from circles represent the possible outcomes of chance events • Final consequences or payoffs at branch ends • Decision trees flow from left to right

  21. Decision Trees • Copy the figure 3.21 • Alternatives: mutually exclusive; collectively exhaustive; select only one • Outcomes: mutually exclusive; collectively exhaustive; only one can occur • Complete tree includes all possible decision paths, alternatives and outcomes

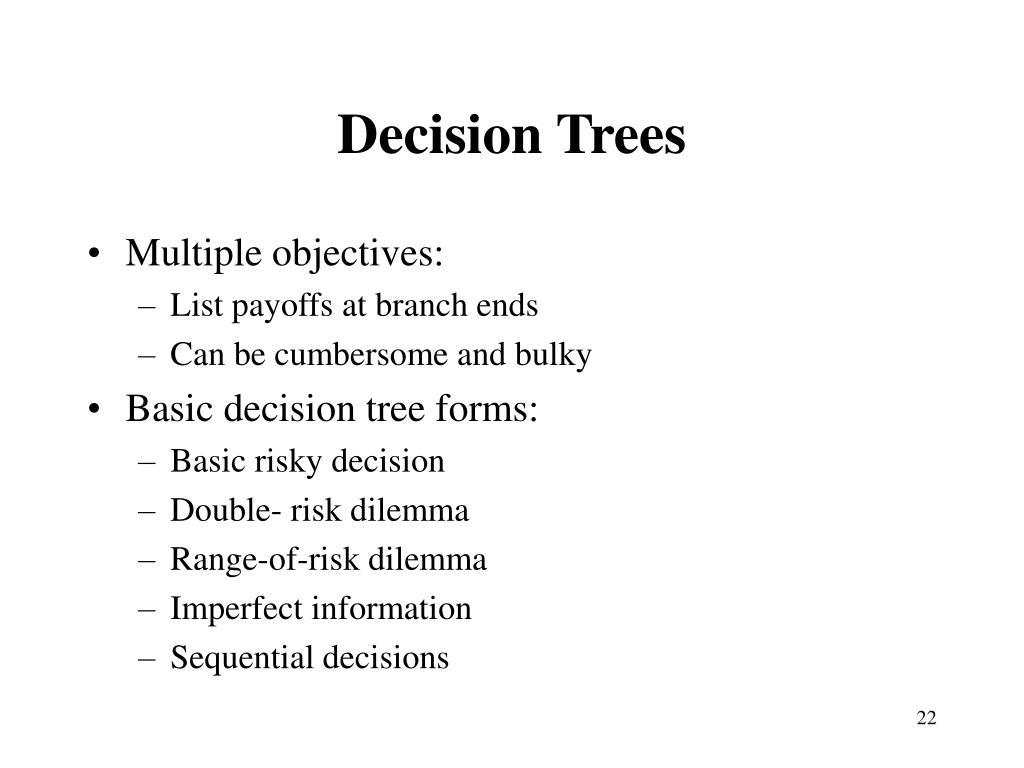

  22. Decision Trees • Multiple objectives: • List payoffs at branch ends • Can be cumbersome and bulky • Basic decision tree forms: • Basic risky decision • Double- risk dilemma • Range-of-risk dilemma • Imperfect information • Sequential decisions

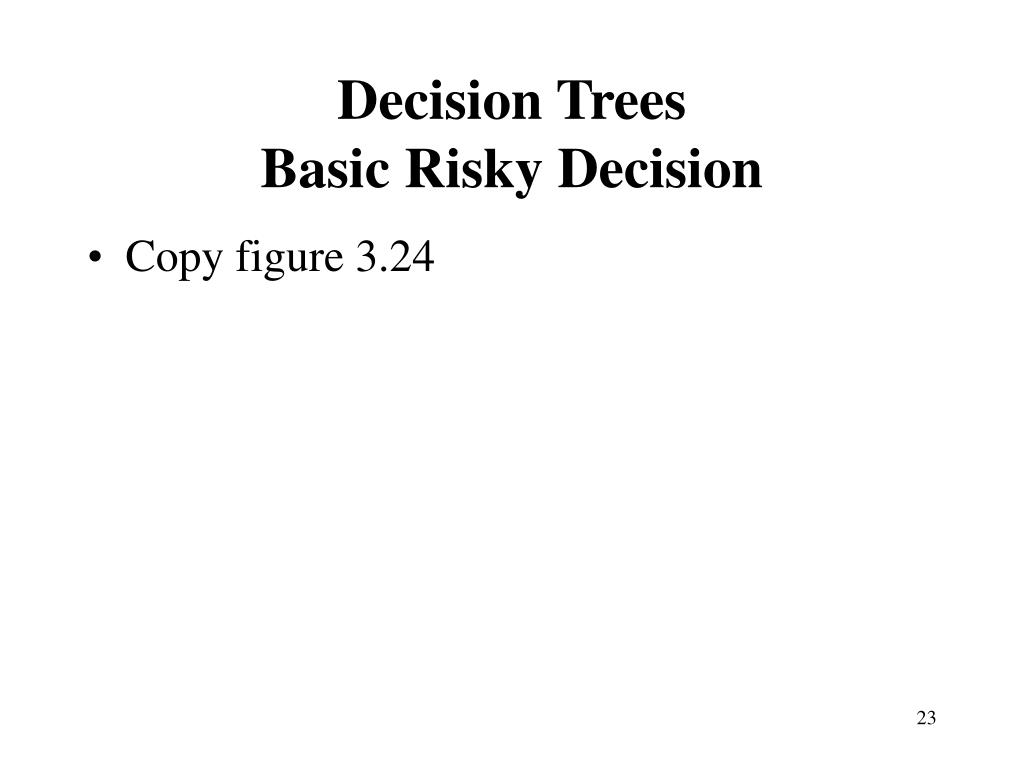

  23. Decision TreesBasic Risky Decision • Copy figure 3.24

  24. Decision TreesDouble-Risk Dilemma • Copy figure 3.26

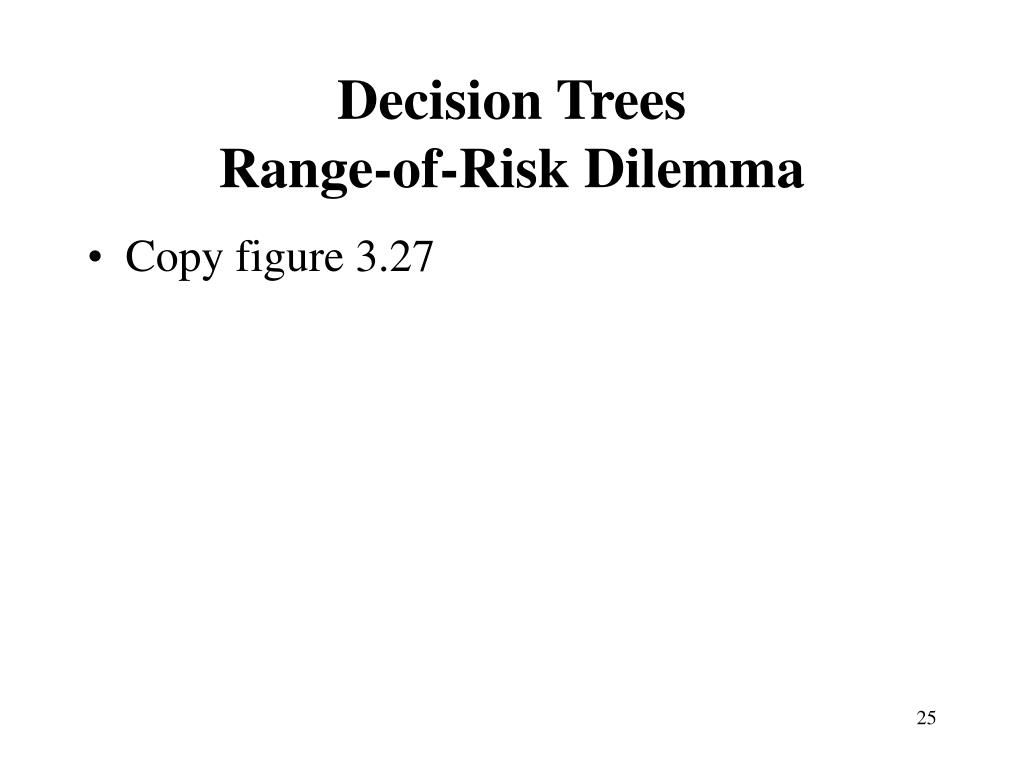

  25. Decision TreesRange-of-Risk Dilemma • Copy figure 3.27

  26. Decision TreesImperfect Information • Copy figure 3.28

  27. Decision TreesSequential Decisions • Copy figure 3.29 Alternatives at second decision do not change as a result of outcome A or B

  28. Decision Trees vs. Influence Diagrams • Decision trees • Display more information • Can become cumbersome • Influence Diagrams • Graphical presentation relatively simple • Easier for some to understand

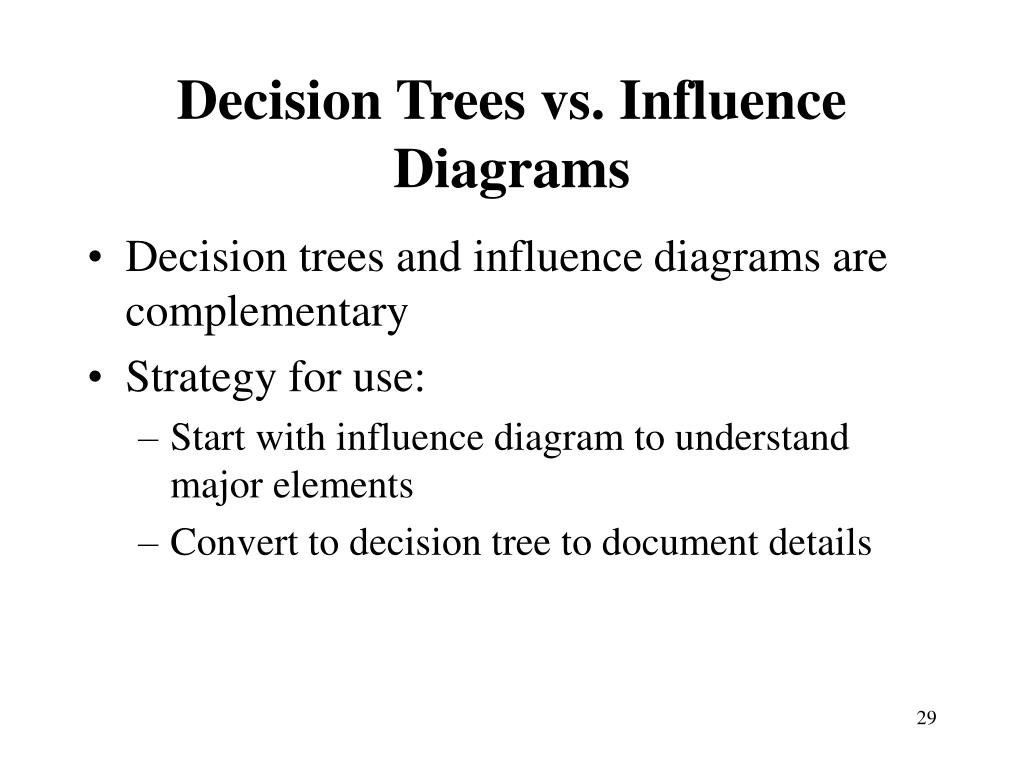

  29. Decision Trees vs. Influence Diagrams • Decision trees and influence diagrams are complementary • Strategy for use: • Start with influence diagram to understand major elements • Convert to decision tree to document details

  30. Decision Details Defining elements • Elements must be measurable • Element definitions must require no judgment or interpretation

  31. Decision Details Probabilities and Cash flows • Chance events require probability assignments • Only one outcome can occur • Probability of an outcome must be between 0 and 1 • Probabilities at chance node must sum to 1.00 • Cash flows specified on branches • Cash flows compiled at branch ends to show consequences • Net present values used to reflect timing effects

  32. Decision Details Measuring fundamental objectives • Measurement is crucial • Measure lowest level objectives in hierarchy • Measurement scales identified by attributes • Natural attribute scales • Proxy (surrogate) attribute scales • Constructed attribute scales

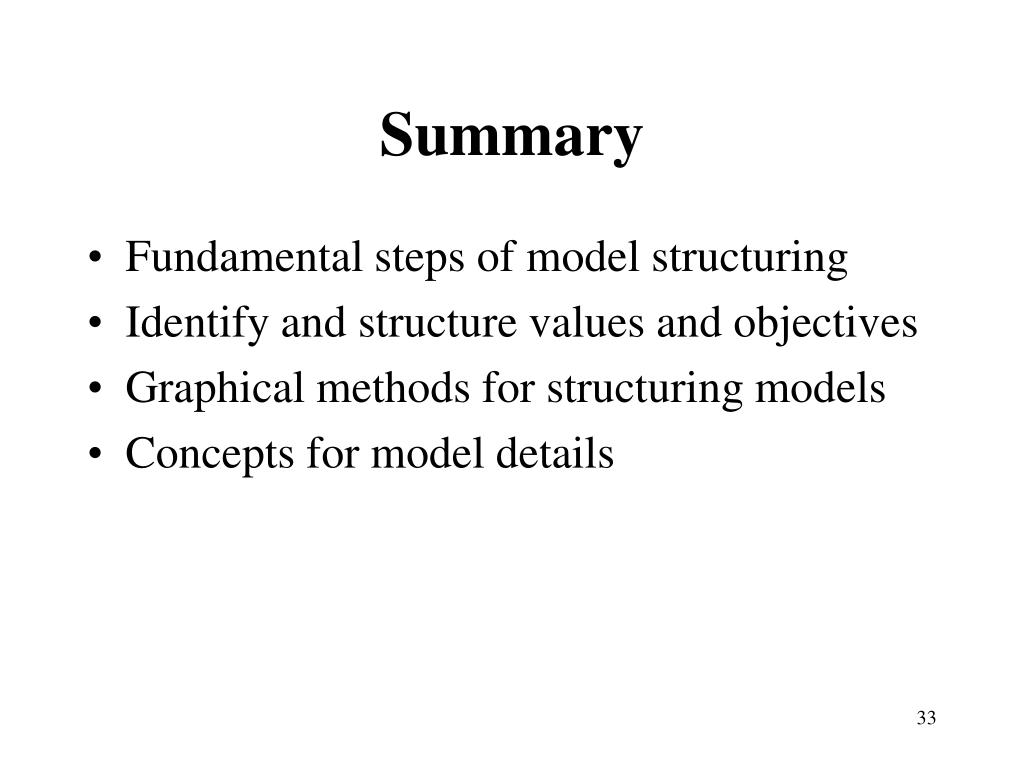

  33. Summary • Fundamental steps of model structuring • Identify and structure values and objectives • Graphical methods for structuring models • Concepts for model details
