Chapter 4: Working with Graphics APIs

Chapter 4: Working with Graphics APIs. We will …. Learn relationships between Graphics and GUI API Understand a Graphics API programming framework Use the framework and apply to Tutorial 3.1. Our Source Code. Graphics API. GUI API. Operating System. The APIs of Tutorial 3.1:.

elma
Télécharger la présentation

Chapter 4: Working with Graphics APIs

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Chapter 4: Working with Graphics APIs Chapter 4

  2. We will … • Learn relationships between Graphics and GUI API • Understand a Graphics API programming framework • Use the framework and apply to Tutorial 3.1 Chapter 4

  3. Our Source Code Graphics API GUI API Operating System The APIs of Tutorial 3.1: • Graphics API: • Needs GUI for window to draw in • GUI API: • Needs Operating system for events Chapter 4

  4. Supports from the APIs • Graphics API • Initialize drawing hardware • GUI API • Create Window + GUI elements (Button) • Create drawing area in Window • Graphics API draws to the drawing area created by GUI API Chapter 4

  5. Graphics API: Programming model Chapter 4

  6. Graphics API framework • Graphics Hardware Context (GHC) • Hardware buffers (e.g., pixel frame buffer) • Can be multiple buffers of different types (e.g., pixel, z, stencil, etc.) • Rendering Context (RC) • Attributes of how to turn geometry into pixels • e.g., transformation, color, lighting shading • Can have multiple RC connecting to GHC Chapter 4

  7. Programming with Graphics API Chapter 4

  8. Programming with Graphics API • A: Initialize Hardware (GHC) • B: Create RC • C: Drawing • C1: Preparations: set Rendering state: transforms, colors, etc. • C2: Send drawing command • GHC buffers are shown through GUI drawing areas Chapter 4

  9. Tutorial 3.1: OnPaint with D3D Chapter 4

  10. Tutorial 3.2: OnPaint with OGL Chapter 4

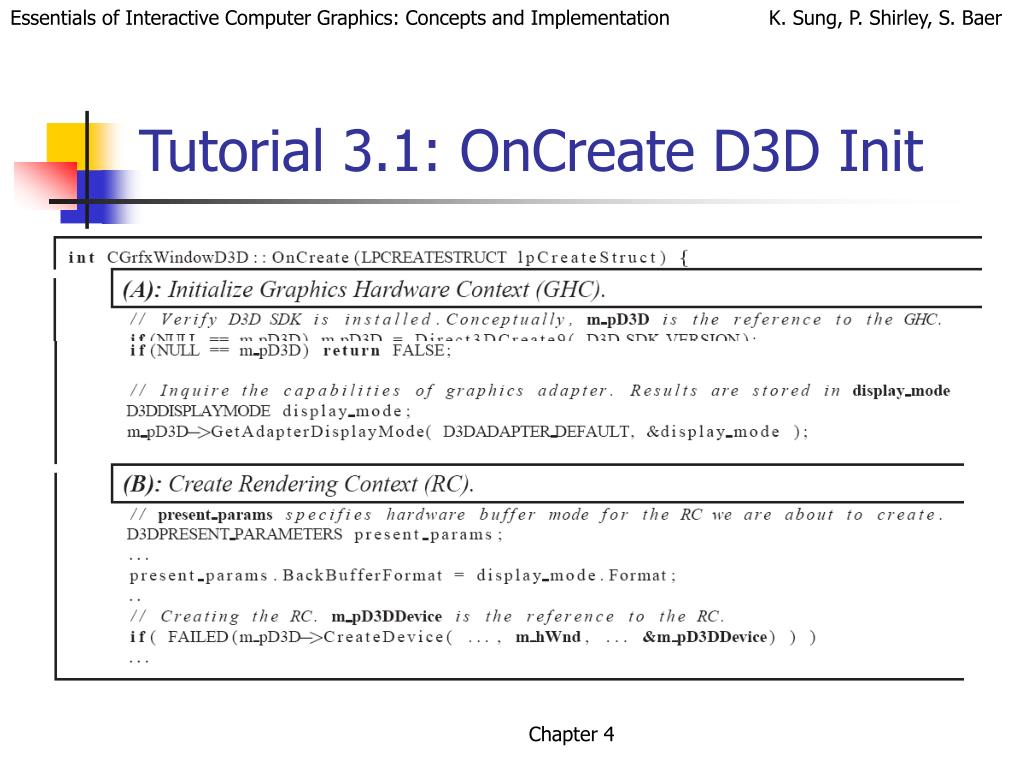

  11. Tutorial 3.1: OnCreate D3D Init Chapter 4

  12. Tutorial 3.2: OnCreate OGL Init Chapter 4

  13. GraphicsSystem abstraction … Chapter 4

  14. Using GraphicsSystem abstraction Chapter 4

  15. Tutorial 4.1: GraphicsSystem class Chapter 4

  16. Tutorial 4.1: using GraphicsSystem Chapter 4

  17. Tutorial 4.1: RectangleClass Chapter 4
