  1. Computer Related 3

  2. Course title Computer related 3 Code (IDF_4104) Lecture (1h) Tutorial (2h) Week 5 Location (L-F 516) – (T-F 513) Supervised by : Prof / Hana Yassen Course Assistant : Eng. Noha Ibrahim

  3. Lecture Monday 1:30 _ 4: 30 OFFICE HOURS SUNDAY:1:30-3:30 MONDAY :11:30- 1:30 Email : hana_yassen@yahoo.com Email : eng_noha1@yahoo.com Text Book:- Lesa Snider,2008, Photoshop CS5: The Missing Manual - Lisa DanaeDayley, Brad Dayley,2009, Photoshop CS5 Bible - Daniel Giordan, 2005,How to use Photoshop cs7

  4. Grades Course Assessment: 1 – Attendance (5) & Projects (25). 2 – Mid – term exam.(10) 3 – Exam (60) • 4 – total 100 The project is delivered in the LAST WEEK for each stage يتم تسليم المشروع فى الأسبوع الأخير من كل مرحلة

  5. Course objective • To learn the basics of Photoshop to create, edit and build projects to be used in Interior Design projects. • 1- Making a workshop between AutoCAD and Photoshop program. • 2-Coloring plans and sections.3-Making a final presentation for the designed project through Photoshop program. Course description Exploring the Photoshop interface . Using several tools for selecting parts of images. Learning how to use layers , applying different layer effects and filters to create special effects. Using painting tools and blending modes to create shading effects.

  6. Special Effects 1

  7. Photoshop - Using Layer Effects • -Adobe Photoshop includes a number of automated effects that you can apply to layers, including drop shadows, glows, beveling, and embossing. When you apply a layer effect, an “f” icon ( ) appears to the right of the layer’s name in the Layers palette. Select the layer you want to use. Choose Layer > Effects > Drop Shadow or Inner Shadow.

  8. Specify the following Options. • Mode: Determines how the layer effect blends with the underlying layers. In most cases, the default mode for each effect produces the best results.See Photoshop drop shadow blends example. • Opacity: Sets the opacity of the layer effect as you enter a value or drag the slider.See Photoshop drop shadow opacity example. • Color: Specifies the color of a shadow, glow, or highlight. In the fig, see the difference when two different colors are selected. See Photoshop drop shadow color example.Angle: Determines the lighting angle at which the effect is applied to the layer.See Photoshop drop shadow angle example. • Distance: Specify the displacement of the shadow from the layer contents. Enter a value or drag the slider. Click here to see example. • Blur, and intensity: determines the blurring and intensity of the shadow. Click here to see example.

  9. Photoshop - To apply an outer or in glow: Specify blending mode, opacity, color, blur, and intensity options, as described above. If you are applying an inner glow, select a glow source option.(1) Center to apply a glow that emanates from the center of the layer contents. (2) Edge to apply a glow that emanates from the inside edges of the layer contents. Click OK. Select the layer you want to use and choose Layer > Effects > Outer Glow or Inner Glow.

  10. Photoshop - To apply beveling or embossing: Select the layer you want to use, and choose Layer > Effects > Bevel and Emboss Specify blending mode, opacity, and color options for the highlight and shadow, as described above. Specify lighting angle and blur options For Depth, enter a value or drag the slider. A higher value results in a more accentuated bevel. Select Up or Down to indicate the position of the highlight in relation to the layer contents

  11. Photoshop - Editing and removing layer effects • You can edit the options for the effects you have applied to a layer at any time. You can also copy effects between layers and remove an effect that you have applied to a layer. • To edit the layer effects applied to a layer: 1 Double-click the layer effects icon ( ) in the Layers palette. 2 Choose the desired layer effect from the top of the Effects dialog box, or click Prev or Next to cycle through the effects list. Edit options as described above.

  12. To copy effects between layers: 1 In the Layers palette, select the source layer containing the effects you want to copy. 2 Choose Layer > Effects > Copy Effects. 3 Do one of the following: • To paste into a single layer, select the destination layer in the palette and choose Layer > Effects > Paste Effects. • To paste into multiple layers, link the destination layers as described in Linking layers And then choose Layer > Effects > Paste to Linked. The pasted effects will replace any existing effects on the destination layer or layers.

  13. To remove a layer effect : 1- In the Layers palette, select the layer containing the effect you want to remove. 2- Do one of the following: • Hold down Alt (Windows) , and choose the desired layer effect from the Layer > Effects menu. Applied effects have checkmarks next to their command names; removing a layer effect removes the checkmark.• Choose the desired layer effect from the top of the Effects dialog box, and deselect Apply. To remove all layer effects applied to a layer:1 In the Layers palette, select the layer containing the effects you want to remove. 2 Choose Layer > Effects > Clear Effects.

  14. Lecture Outline Task1 How to Use Blending Modes Task2 How to Build a Glow Effect with Stroke Path Task3 How to Create Lighting Effects Task4 How to Apply a Radial Blur Task5 How to Apply a Ripple Effect Task6 How to Add a Lens Flare Task7 How to Add Noise Texture Task8 How to Use the Fibers Filter Task9 How to Distort an Image with Liquefy Task10 How to Use the Filter Gallery Task11 How to Add Texture Task12 How to Create a Halftone Pattern Task13 How to Use the Vanishing Point Filter

  15. Task1 How to Use Blending Modes 1. Blending Modes in Layers Palette

  16. 2. Blending Modes in Paint Tools

  17. 4. Blending Modes with Fills

  18. 5. Blending Modes with Pattern Fills

  19. Task 2 How to Build a Glow Effect with Stroke Path 1. Open the File and Draw a Path 2. Select the Glow Color

  20. 3. Configure Settings 4. Stroke the Path

  21. 5. Modify Brush Settings

  22. Task 3 How to Create Lighting Effects 1. Open the File 2. Select Lighting Effects

  23. 3. Reposition the Light

  24. 4. Configure the Light Type 5. Configure Properties

  25. 6. Add Other Lights As Needed 7. View the Results

  26. Task 4 How to Apply a Radial Blur 1. Open the File and Select the Filter

  27. 2. Set the Amount Slider

  28. Task 5 How to Apply a Ripple Effect 1. Open the File 2. Open the ZigZag Filter

  29. 3. Set the Style 4. Set the Amount

  30. 5. Set the Ridges 6. Apply the Filter

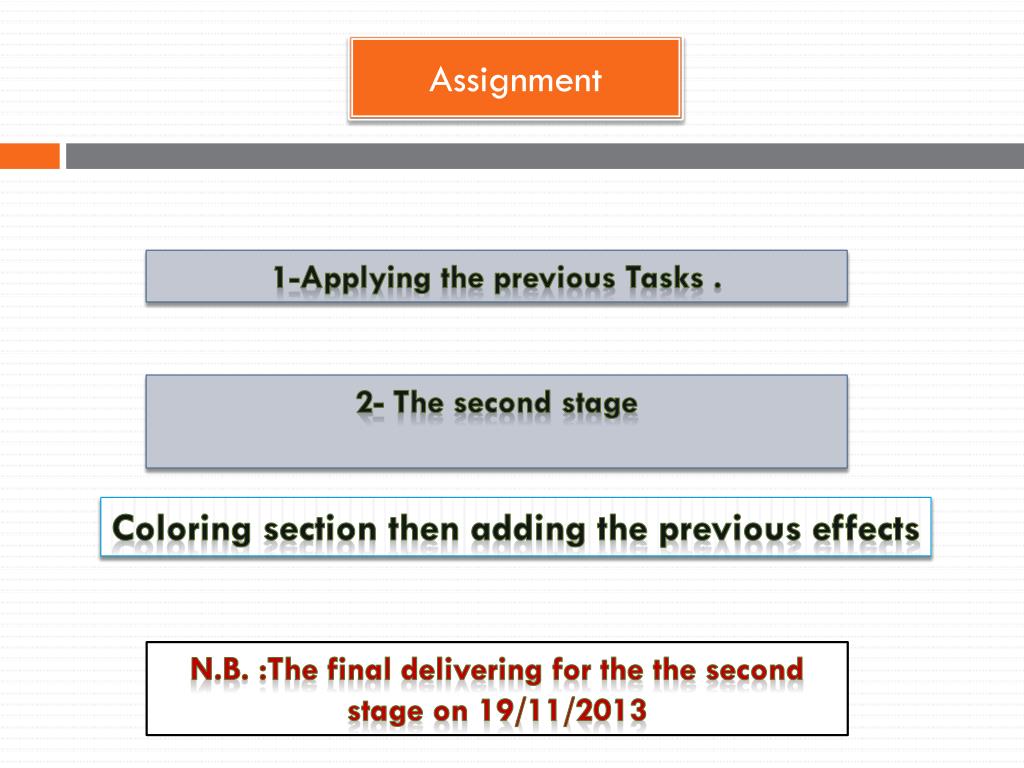

  31. Assignment 1-Applying the previous Tasks. 2- The second stage Coloring section then adding the previous effects N.B. :The final delivering for the the second stage on 19/11/2013

  32. Thank You
