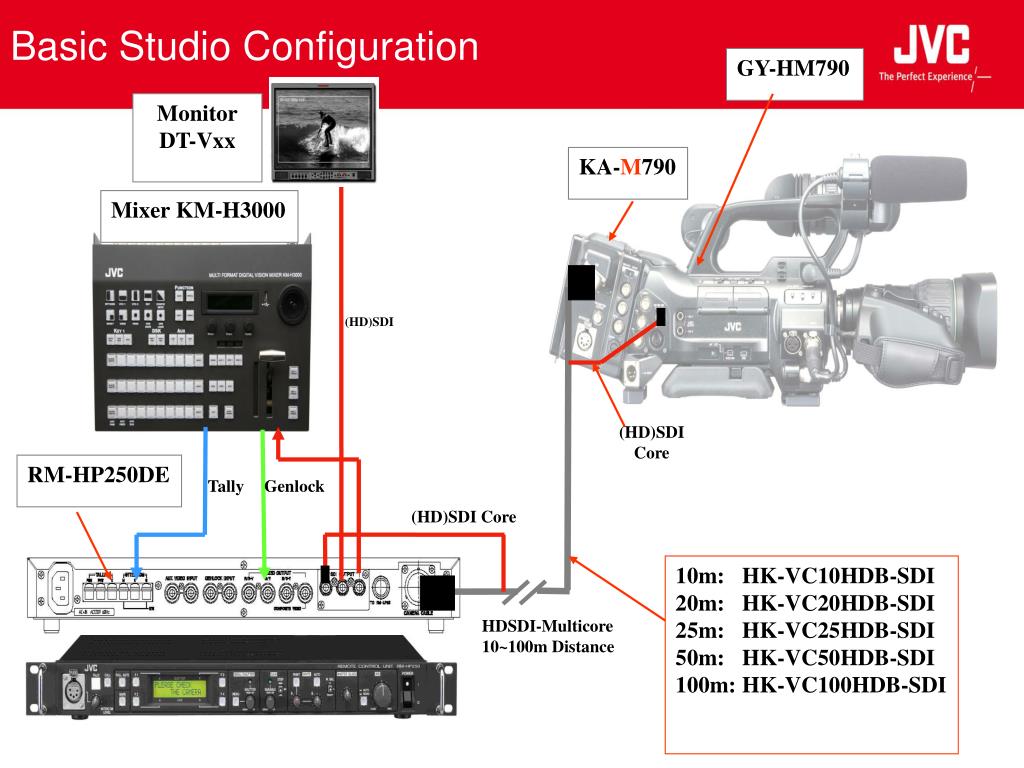

  1. Basic Studio Configuration GY-HM790 Monitor DT-Vxx KA-M790 Mixer KM-H3000 (HD)SDI (HD)SDI Core RM-HP250DE Tally Genlock (HD)SDI Core 10m: HK-VC10HDB-SDI 20m: HK-VC20HDB-SDI 25m: HK-VC25HDB-SDI 50m: HK-VC50HDB-SDI 100m: HK-VC100HDB-SDI HDSDI-Multicore 10~100m Distance

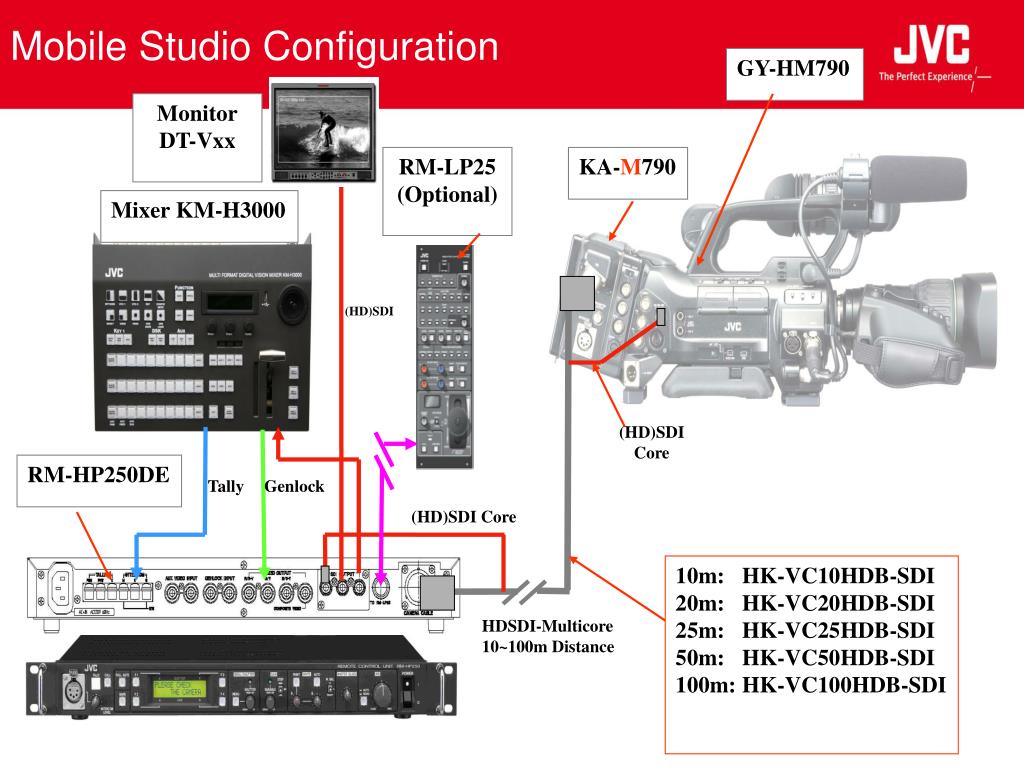

  2. Mobile Studio Configuration GY-HM790 Monitor DT-Vxx RM-LP25 (Optional) KA-M790 Mixer KM-H3000 (HD)SDI (HD)SDI Core RM-HP250DE Tally Genlock (HD)SDI Core 10m: HK-VC10HDB-SDI 20m: HK-VC20HDB-SDI 25m: HK-VC25HDB-SDI 50m: HK-VC50HDB-SDI 100m: HK-VC100HDB-SDI HDSDI-Multicore 10~100m Distance

  3. Sophisticated Studio Configuration Monitor DT-Vxx VF-HP790 Studio Viewfinder RM-LP25 (Optional) GY-HM790 Camera Mixer KM-H3000 KA-M790 Studio Adapter (HD)SDI RM-HP250DE Tally Genlock Studio Sled KA-790 (HD)SDI Core 10m: HK-VC10HDB-SDI 20m: HK-VC20HDB-SDI 25m: HK-VC25HDB-SDI 50m: HK-VC50HDB-SDI 100m: HK-VC100HDB-SDI HDSDI-Multicore 10~100m Distance
