The Discrete-time Unit Impulse Sequence

The Discrete-time Unit Impulse Sequence. 1. n. 0. Impulse Function. volt. time. Delayed Unit Impulse. The Unit Step Sequence. 1. n. 0. Relationship between Unit Impulse & Unit Step Sequences. Discrete-time unit impulse is the first difference of the discrete-time unit step.

emmanuel-maddox
Télécharger la présentation

The Discrete-time Unit Impulse Sequence

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

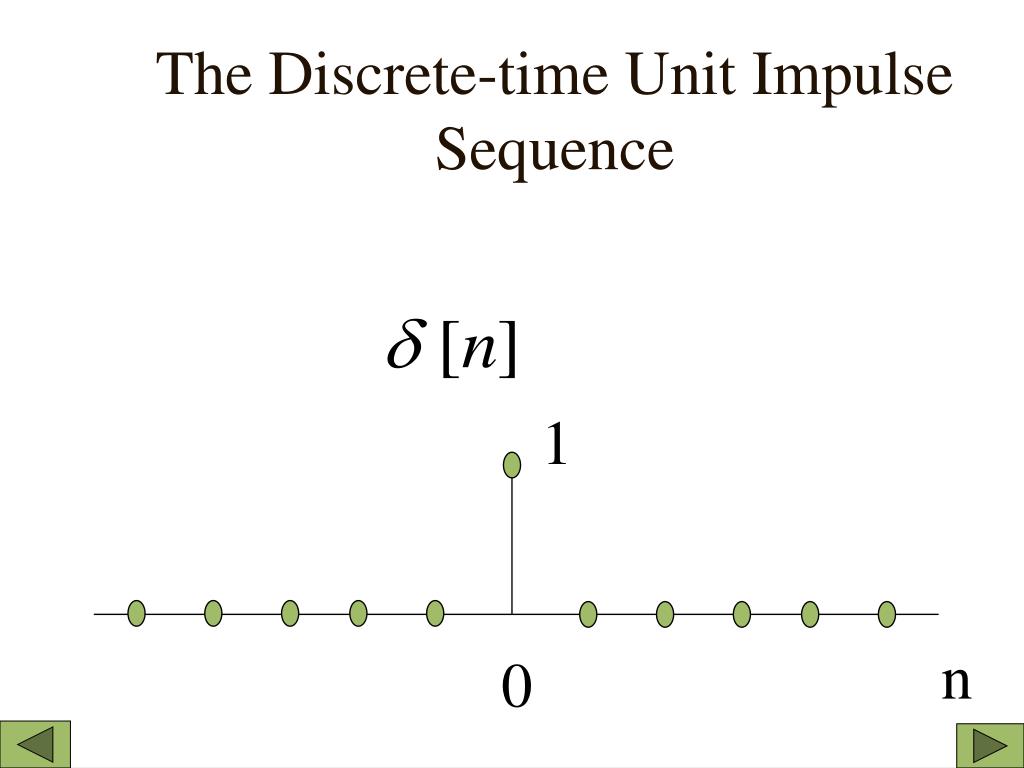

  1. The Discrete-time Unit Impulse Sequence 1 n 0

  2. Impulse Function volt time

  3. Delayed Unit Impulse

  4. The Unit Step Sequence 1 n 0

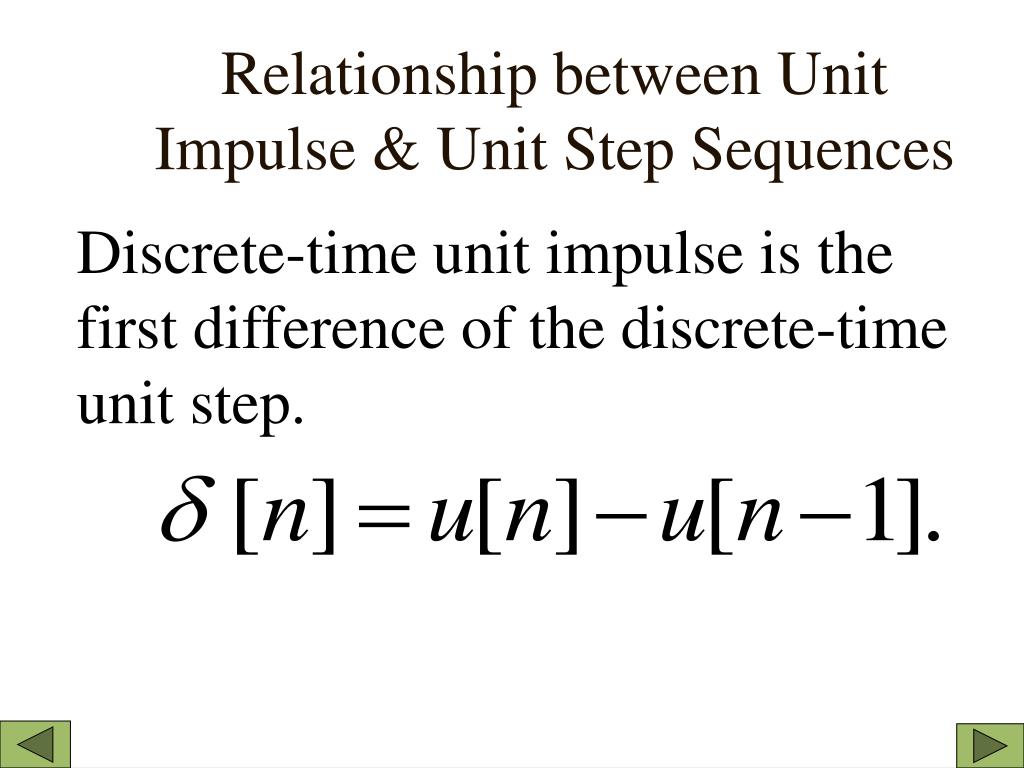

  5. Relationship between Unit Impulse & Unit Step Sequences Discrete-time unit impulse is the first difference of the discrete-time unit step.

  6. Relationship between Unit Impulse & Unit Step Sequences Discrete-time unit step is the running sum of the discrete-time unit impulse or unit sample.

  7. 1 0 n Interval of summation m n 0 Interval of summation m 0 n

  8. Alternative way of expressing the unit step as the summation (superposition) of delayed unit impulse

  9. Interval of summation k n<0 0 Interval of summation k 0

  10. n 0 n 0 n

  11. The Sampling Property of the Unit Impulse.

  12. n 0 n

  13. The Continuous-time Unit Step 1 0 t

  14. The Continuous-time Unit Impulse Function. 0 t

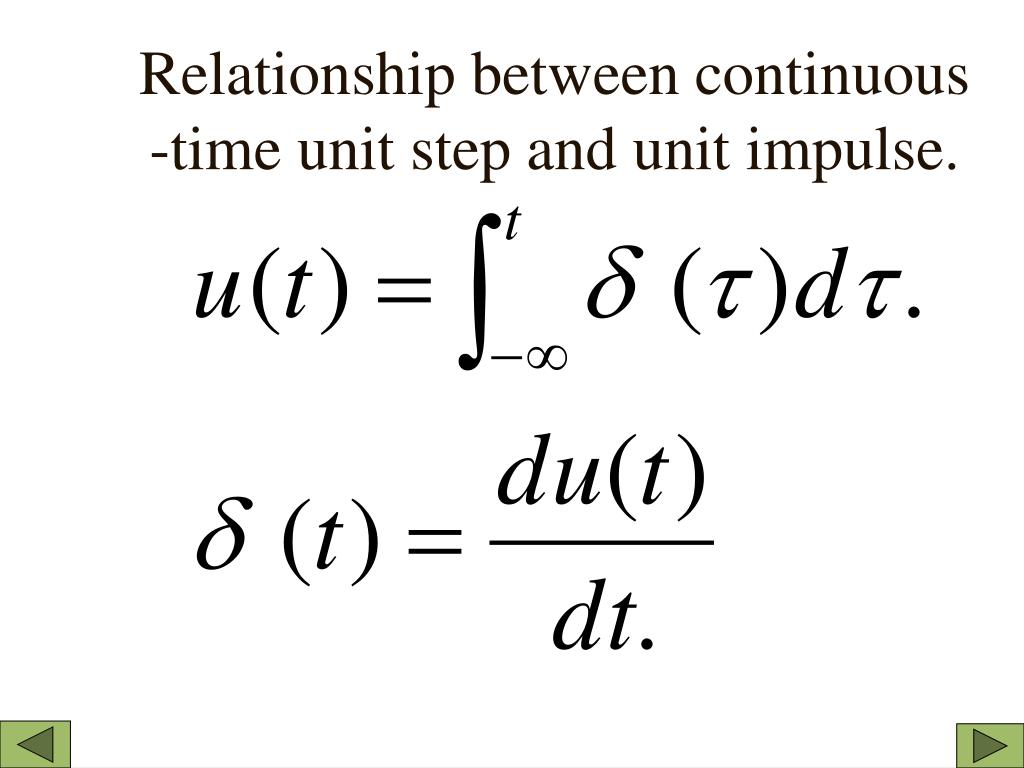

  15. Relationship between continuous-time unit step and unit impulse.

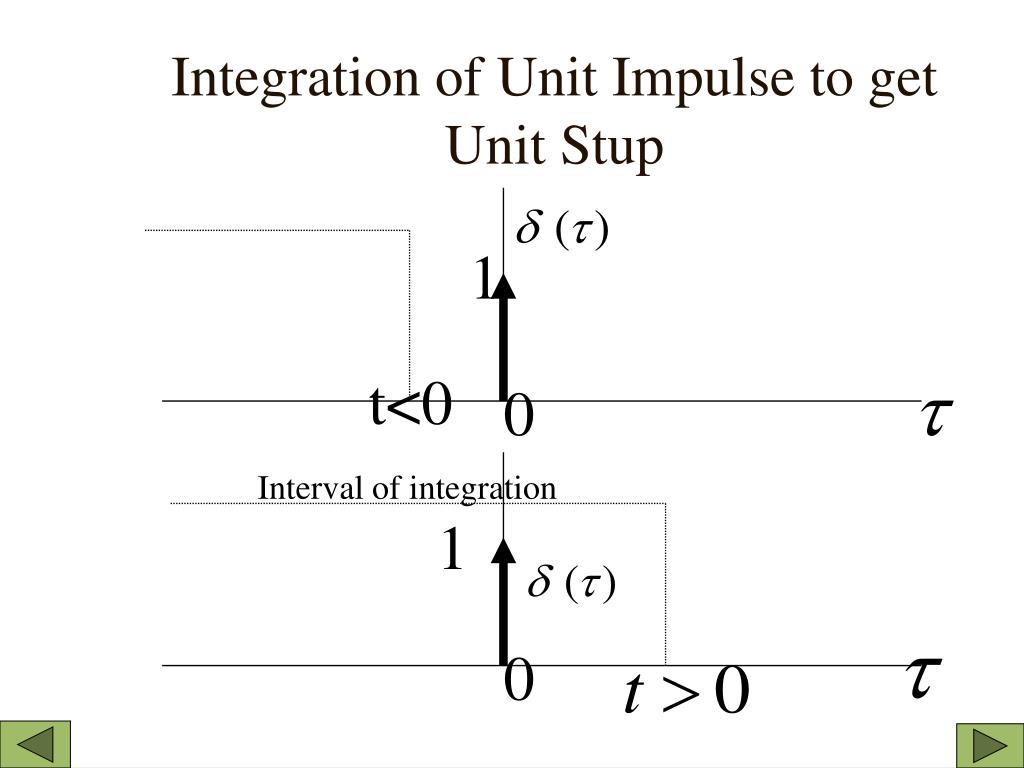

  16. Integration of Unit Impulse to get Unit Stup 1 t<0 0 Interval of integration 1 0

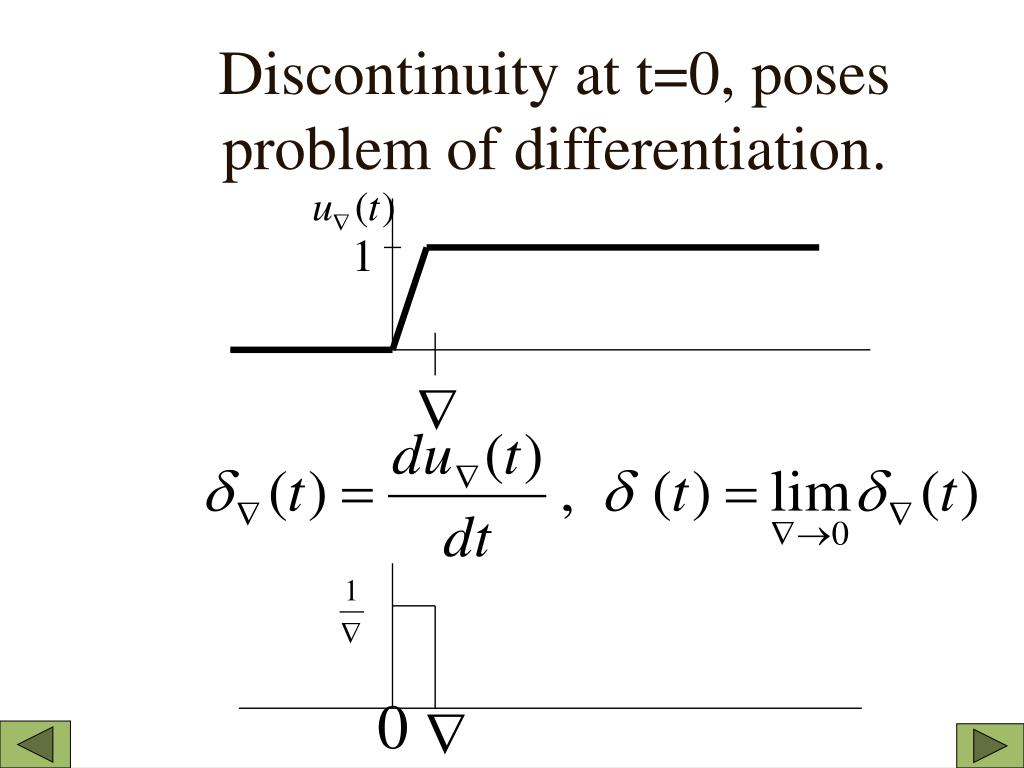

  17. Discontinuity at t=0, poses problem of differentiation. 1 0

  18. Unit and scaled Impulse 1 t 0 k t 0

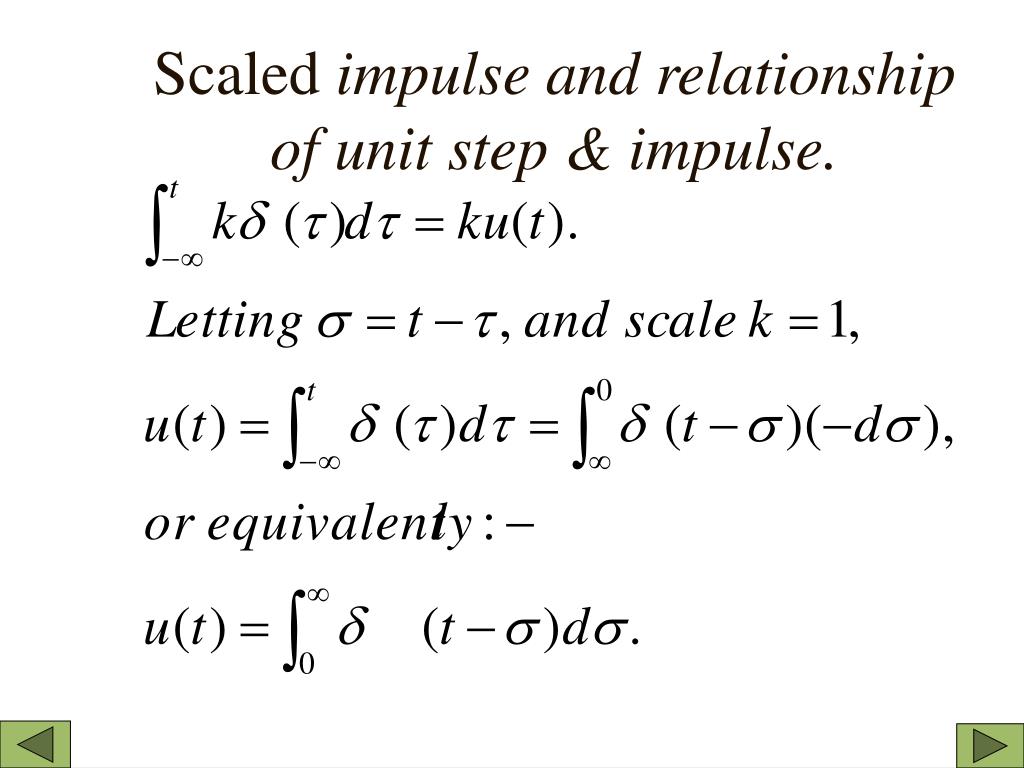

  19. Scaled impulse and relationshipof unit step & impulse.

  20. Relationship of Unit and Impulse Interval of integration 1 0 t<0 Interval of integration 1 0

  21. x(t) t 0 x(0) t 0
