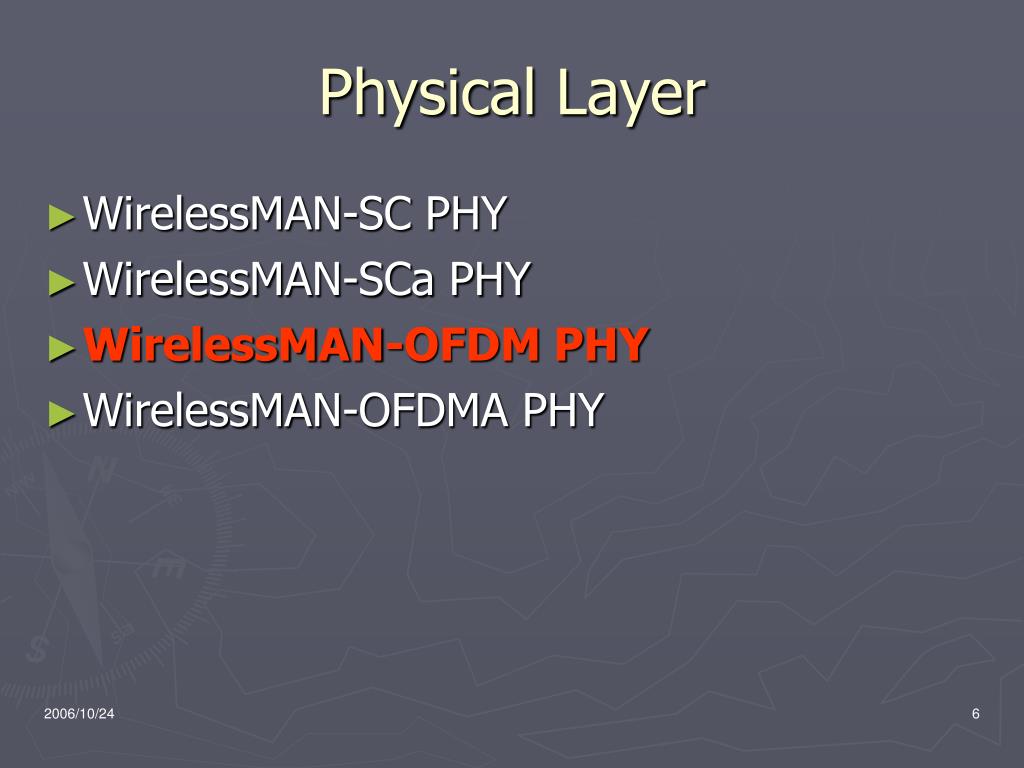

**WiMAX OFDM PHY Overview**Chen-Nien Tsai Institute of Computer Science and Information Engineering National Taipei University of Technology 2006.10.24**Outline**• Introduction • Review of the OFDM System • OFDM PHY • Summary**Introduction**• WiMAX • Worldwide Interoperability for Microwave Access • Replace last mile • Cost saving • Easy to deploy**Core network**Wireless link Base Station (BS) Subscribe Station (SS) Subscribe Station Wired/wireless links Subscribe Station Users Basic WiMAX Network Architecture**Physical Layer**• WirelessMAN-SC PHY • WirelessMAN-SCa PHY • WirelessMAN-OFDM PHY • WirelessMAN-OFDMA PHY**OFDM PHY**• Based on OFDM modulation. • 256 subcarriers • Designed for NLOS operation in the frequency band below 11 GHz.**Outline**• Introduction • Review of the OFDM System • OFDM PHY • Summary**Review of the OFDM System**• OFDM stands for Orthogonal Frequency Division Multiplexing. • It was proposed in mid-1960s and used in several high-frequency military system. • It is a multicarrier transmission technique. • Divides the available spectrum into many subcarriers, each one being modulated by a low data rate stream.**The Applications of OFDM**• High-definition Television • Wireless LANs • IEEE 802.11a/g • HIPERLAN2 • IEEE 802.16 (WiMAX) • IEEE 802.20 • Mobile Broadband Wireless Access (MBWA) • Group’s activities were temporarily suspended.**Single carrier and Multicarrier Transmission**• Single carrier transmission • Each user transmits and receives data stream with only one carrier at any time. • Multicarrier transmission • A user can employ a number of carriers to transmit data simultaneously.**S/P**∑ Single carrier and Multicarrier Transmission Single carrier transmission Multicarrier transmission N oscillators are required**The Basic Principles of OFDM**• FFT-based OFDM system • Modulation and mapping • Orthogonality • Guard interval and Cyclic Extension**S/P**∑ FFT-based OFDM system • Generation of OFDM signal • Discrete/Fast Fourier Transform implementation. • No need for N oscillators to transmit N subcarriers.**Why FFT-based (1/3)**• A OFDM subcarrier signal can be expressed as • Suppose there are N subcarrier signals amplitude phase**Why FFT-based (2/3)**• After sampling • If**Why FFT-based (3/3)**• The definition of IDFT Identical**Modulation and Mapping**• Modulation types over OFDM systems • Phase Shift Keying (PSK) • Quadrature Amplitude Modulation (QAM) • WiMAX OFDM PHY • BPSK • QPSK • 16-QAM • 64-QAM**BPSK**QPSK 64-QAM 16-QAM**An Example**QPSK • Input stream • 11 01 10 11 • Output stream (I, Q) • 1, 1 • -1, 1 • 1, -1 • 1, 1**Orthogonality (1/5)**• Time domain • Frequency domain**Orthogonality (2/5)**• Two signals**Orthogonality (4/5)**Time Domain Frequency Domain**Orthogonality (5/5)**Time Domain Frequency Domain**Guard interval and Cyclic Extension**• Inter-symbol interference (ISI) • The crosstalk between signals within the same subcarrier of consecutive OFDM symbols. • Caused by multipath fading. • Inter-carrier interference (ICI) • The crosstalk between adjacent subcarrier of frequency bands of the same OFDM symbols.**Guard Interval**DATA Guard Interval • To eliminate the effect of ISI • Guard interval is used in OFDM systems**Guard Interval**• The guard interval could consist of no signals at all. • Orthogonality would be violated. • The problem of ICI would arise. • Call for cyclic extension (or cyclic prefix).**COPY**Guard Interval (Cyclic Extension) Cyclic Extension**OFDM symbol time**OFDM symbol time**Outline**• Introduction • Review of OFDM System • OFDM PHY • Summary**OFDM Symbol**• Time domain**OFDM Frequency Description**• Frequency domain • Data subscarriers: For data transmission • Pilot subscarriers: For various estimation purposes • Null subscarriers: For guard bands, non-active subcarriers, and the DC subcarrier**OFDM Frequency Description**• Subchannel is a combination of data subcarriers. • Subcarriers in a subchannel can be adjacent or spread out. • 256 subcarriers per carrier • 1 DC subcarrier (index 0) • 55 Guard subcarriers • data subcarriers + pilot subcarriers = 200 subcarriers**Channel Coding**• Channel coding is composed of three steps • Randomization • FEC • Interleaving Randomizer FEC Bit Interleaver Data to transmit Modulation**Randomization**• Purpose: additional privacy • For each allocation of data block, the randomizer shall be used independently. • Each data byte shall enter sequentially into the randomizer, MSB first.**PBRS (Pseudo-Random Binary Sequence) of randomization with**generator 1+X14+X15**1**0 0 1 0 1 0 1 0 0 0 0 0 0 0 Initialization vector DIUC: Downlink Interval Usage Code • Uplink • For burst #1, the initialization vector is**Initialization vector**UIUC: Uplink Interval Usage Code • Downlink**FEC**• Forward Error Correction • Concatenated Reed-Solomon-convolutional code (RS-CC) – Mandatory • Block Turbo Coding (BTC) – optional • Convolutional Turbo Codes – optional**Binary Convolutional Encoder**• Each m-bit information to be encoded is transformed into an n-bit symbol • Code rate = m/n • To convolutionally encode data: • k memory registers (k = 6 in OFDM PHY) • Input bits are fed into the leftmost register • Output bits are generated by the generator polynomials and the existing values in the remaining registers**Puncturing Pattern**• “1” means a transmitted bit and “0” denotes a removed bit**An Example**• Code rate = 5/6 • Input data = 0100100100 • Output data will be 12 bits. • All memory registers start with a value of 0.**1**1 1 1 0 0 1 0 1 1 1 0 1 1 1 1 1 1 0 1 1 0 1 1 0 1 0 1 0 0 0 1 0 0 0 0 1 1 1 0 1 0 0 1 0 1 Initial values of registers Input • Bitwise multiplication • Summation 0 0 1 0 0 1 0 0 1 0 0 0 0 0 0 0 G1 G2 1 1 0 Puncturing Pattern X Y Output**Interleaveing (1/3)**• Why bother? • FEC codes are effective when transmission errors occur randomly in time. • In most cases, errors occur burstly. • Without interleaving • With interleaving aaaabbbbccccddddeeeeffffgggg aaaabbbbccc____deeeeffffgggg Error-free transmission transmission with a burst error De-interleaving abcdefgabcdefgabcdefgabcdefg abcdefgabcdbcdefgabcdefg aa_abbbbccccdddde_eef_ffg_gg**Interleaveing (2/3)**• Let • k be the index of the coded bit before the first permutation. • mk be the index of the coded bit after the first and before the second permutation. • jk be the index after the second permutation. • Ncpc be the number of coded bits per subcarrier. • BPSK 1 16-QAM 4 • QPSK 2 64-QAM 6**Interleaveing (3/3)**• The first permutation • The second permutation
