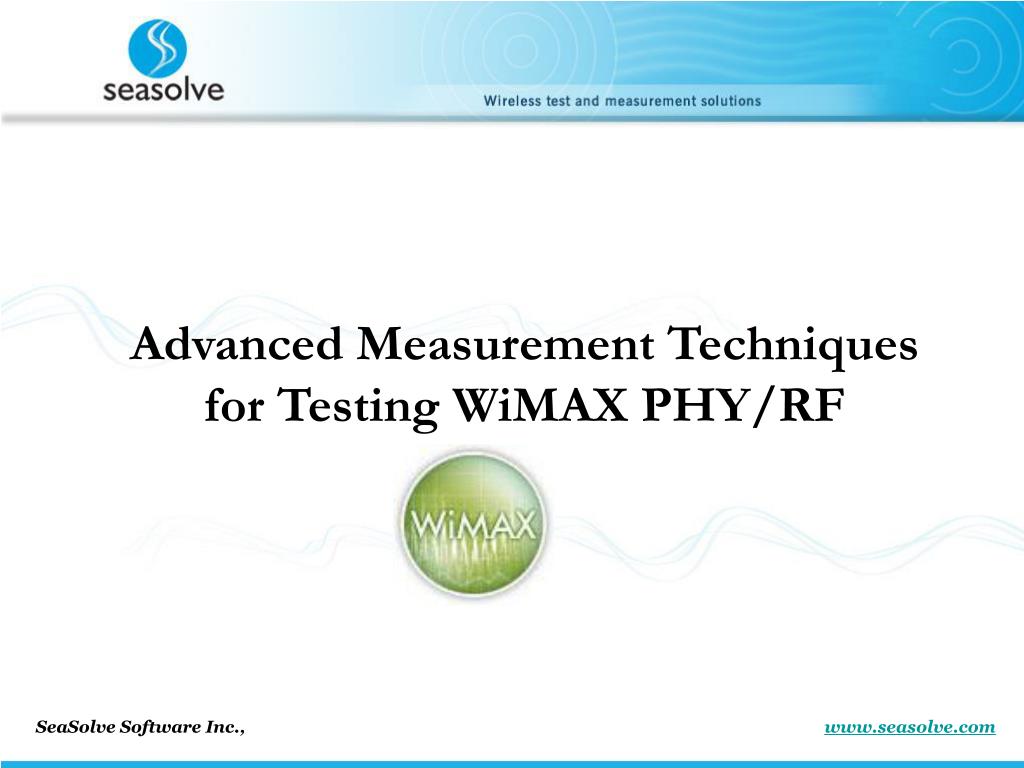

  1. Advanced Measurement Techniques for Testing WiMAX PHY/RF

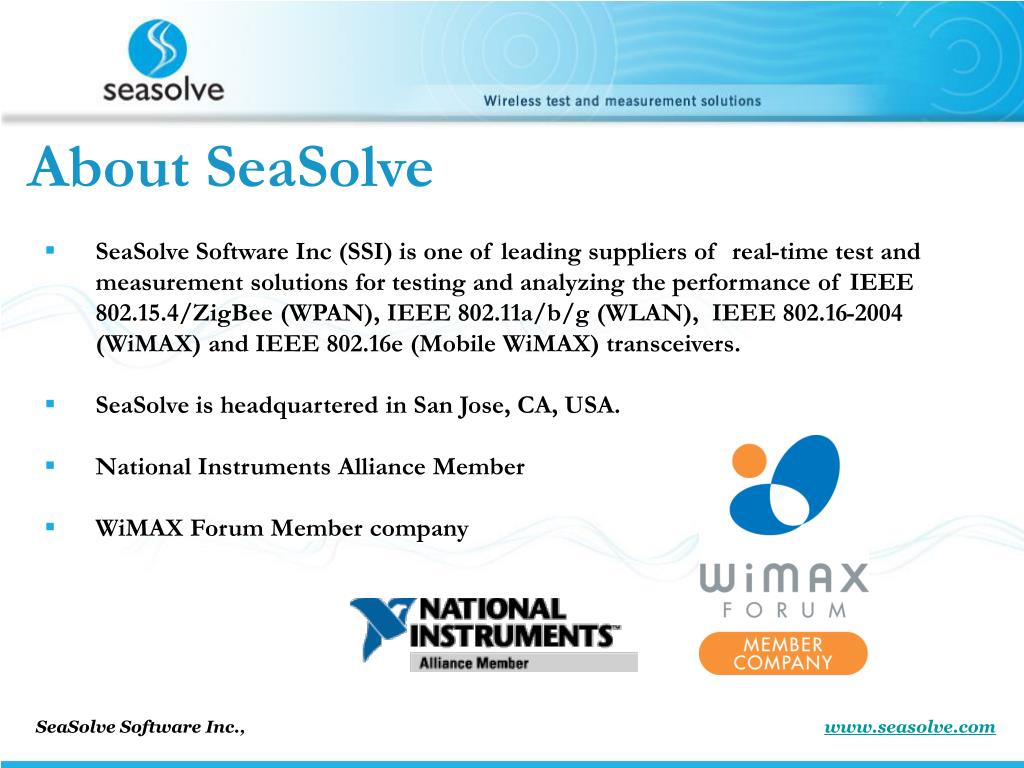

  2. About SeaSolve • SeaSolve Software Inc (SSI) is one of leading suppliers of real-time test and measurement solutions for testing and analyzing the performance of IEEE 802.15.4/ZigBee (WPAN), IEEE 802.11a/b/g (WLAN), IEEE 802.16-2004 (WiMAX) and IEEE 802.16e (Mobile WiMAX) transceivers. • SeaSolve is headquartered in San Jose, CA, USA. • National Instruments Alliance Member • WiMAX Forum Member company

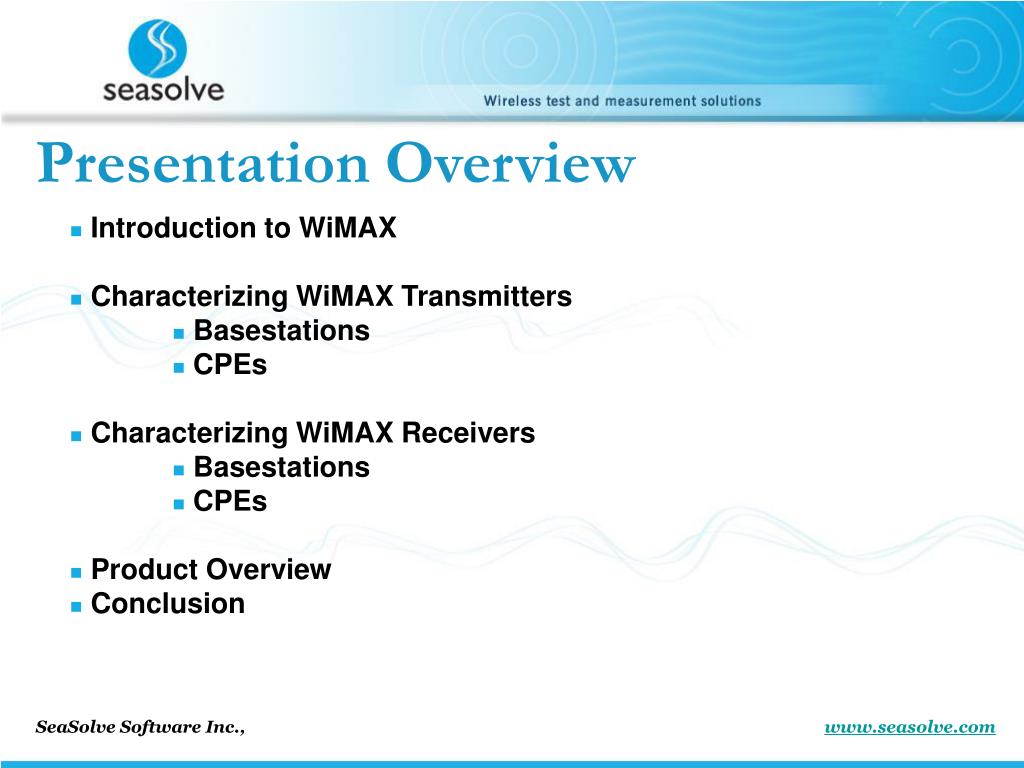

  3. Presentation Overview • Introduction to WiMAX • Characterizing WiMAX Transmitters • Basestations • CPEs • Characterizing WiMAX Receivers • Basestations • CPEs • Product Overview • Conclusion

  4. Introduction to WiMAX • IEEE 802.16-2004 standard for fixed broadband wireless access (FBWA) • 256-carrier OFDM; bandwidths 1.25 to 20 MHz; carrier frequencies up to 11 GHz • High data rates with wireless metropolitan area coverage • Deployed in TDD, FDD, or H-FDD configurations • Base Stations (BS) and Subscriber Stations (SS) in PMP configuration • TDD : BS and SS transmit at the same carrier frequency but at different time • FDD: BS and SS transmit on different carrier frequencies at the same time • H-FDD : BS and SS transmit at the same carrier frequency but one at a time

  5. General WiMAX Frame Downlink (DL) sub frame :Preamble, Header and one or more DL bursts and transmitted by BS Uplink sub frame : Slots for initial ranging, BW request and data transmissions from various SSs.

  6. WiMAXNetworks

  7. Characterizing WiMAX Transmitters Base Station& Subscriber Station • Visualize the data as channel response, EVM/symbols, EVM/sub carriers etc. • Neutralizes front end non idealities from the IQ data • Dynamically detect CP used by Base station from the Base station Preamble • Analyze BS and SS transmission in H-FDD and TDD modes • Configure RF Settings (Trigger, Span, Ref level Acquisition length and Center frequency)

  8. Characterizing WiMAX Receivers Base Station& Subscriber Station • Generate Real world WiMAX RF test signals • Transmit TDD frame for BS & SSs • All Measurements in one solution • Generate impaired RF/Baseband data • Transmit and Save the configured IQ data with MAC information • Configure downlink and uplink bursts profile • Configure RF Settings (Power level, Center frequency and Bandwidth)

  9. SET UP Transmitter Test Set up Receiver Test Set up

  10. WiMAX Test and Measurement Solution set SeaMAX-Fixed IQ Generator PRO: IEEE 802.16 Base Station and Subscriber Station Generator SeaMAX-Fixed Analyzer PRO: IEEE 802.16 Base Station and Subscriber Station Analyzer SeaMAX-Mobile IQ Generator PRO: IEEE 802.16e Base Station and Subscriber Station Generator SeaMAX-Mobile IQ Analyzer PRO: IEEE 802.16e Base Station and Subscriber Station Analyzer

  11. SeaSolve’s Wireless Solutions WiLANTA LVSG11bg • 802.11 a/b/g PHY and MAC signal generation WiLANTA LVSA11bg • 802.11 a/b/g PHY and MAC analysis WiLANTA IQ Generator • IEEE 802.11 a/b/g PHY and MAC IQ signal files generator • WiPAN LVSG • IEEE 802.15.4 PHY and MAC signal generation (868/915/2450 MHz bands) • WiPAN LVSA • IEEE 802.15.4 PHY and MAC analysis (868/915/2450 MHz bands) • WiPAN LVCT • IEEE 802.15.4 PHY compliance testing (868/915/2450 MHz bands) • ZigBee Toolkit • -IEEE 802.15.4 LabVIEW API design and production test solution

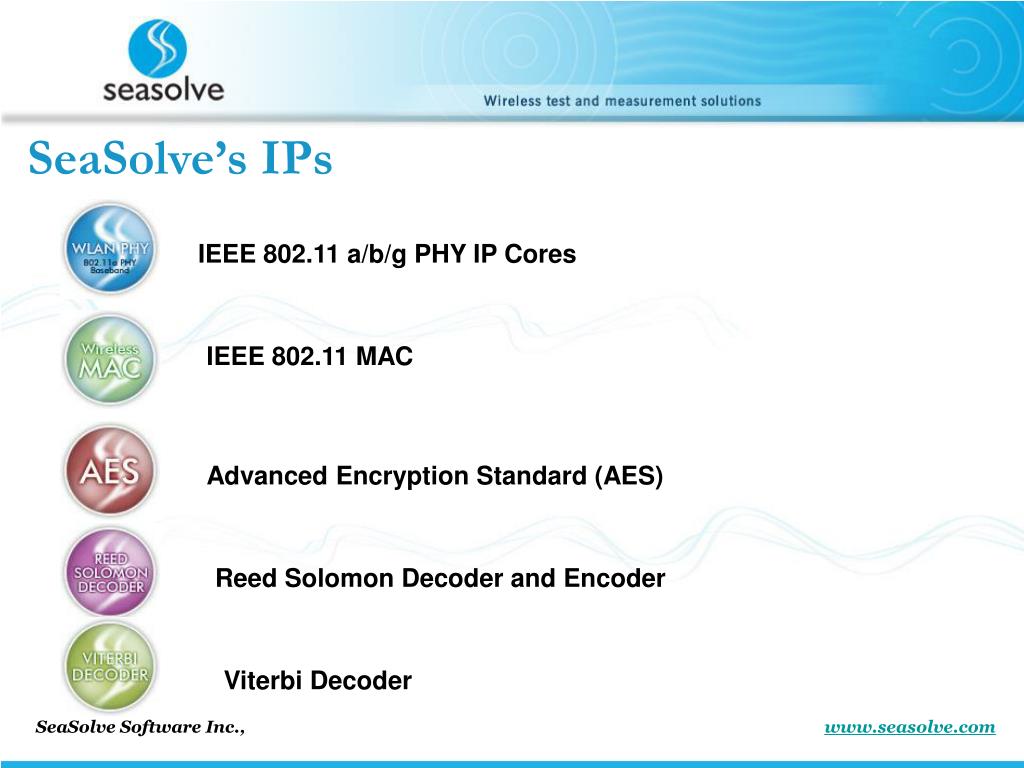

  12. SeaSolve’s IPs IEEE 802.11 a/b/g PHY IP Cores IEEE 802.11 MAC Advanced Encryption Standard (AES) Reed Solomon Decoder and Encoder Viterbi Decoder

  13. Summary • Solutions that address the need of WiMAX device manufacturers, system integrators, chipset manufacturers, test houses, researchers and universities. • SeaMAX-Fixed and Mobile Generator – Benchmark the performance of IEEE 802.16-2004 and 16e Base station and Subscriber station receivers • SeaMAX-Fixed and Mobile Analyzer – Perform drill-down analyses of 802.16-2004 and 16e Base station and Subscriber station transmitters in TDD and H-FDD modes
