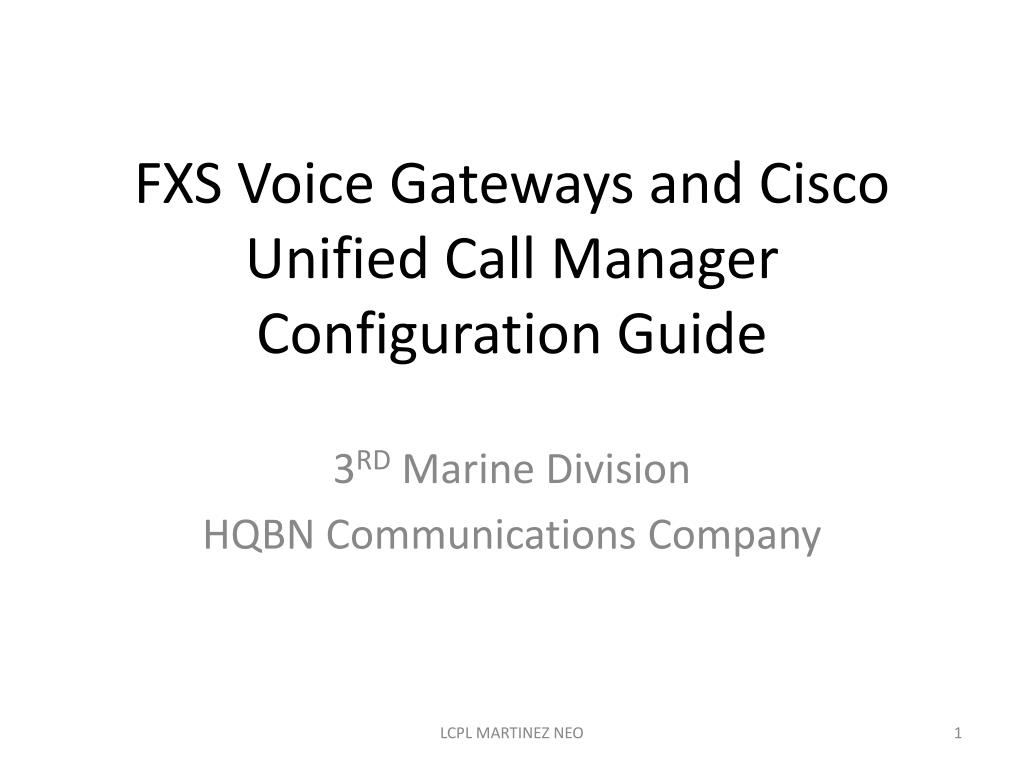

  1. FXS Voice Gateways and Cisco Unified Call Manager Configuration Guide 3RD Marine Division HQBN Communications Company LCPL MARTINEZ NEO

  2. Gateways • Client to Server relationship (controlled by Call Manager.) • SCCP • MGCP • Pont to Point relationship (own intelligence.) • H.323

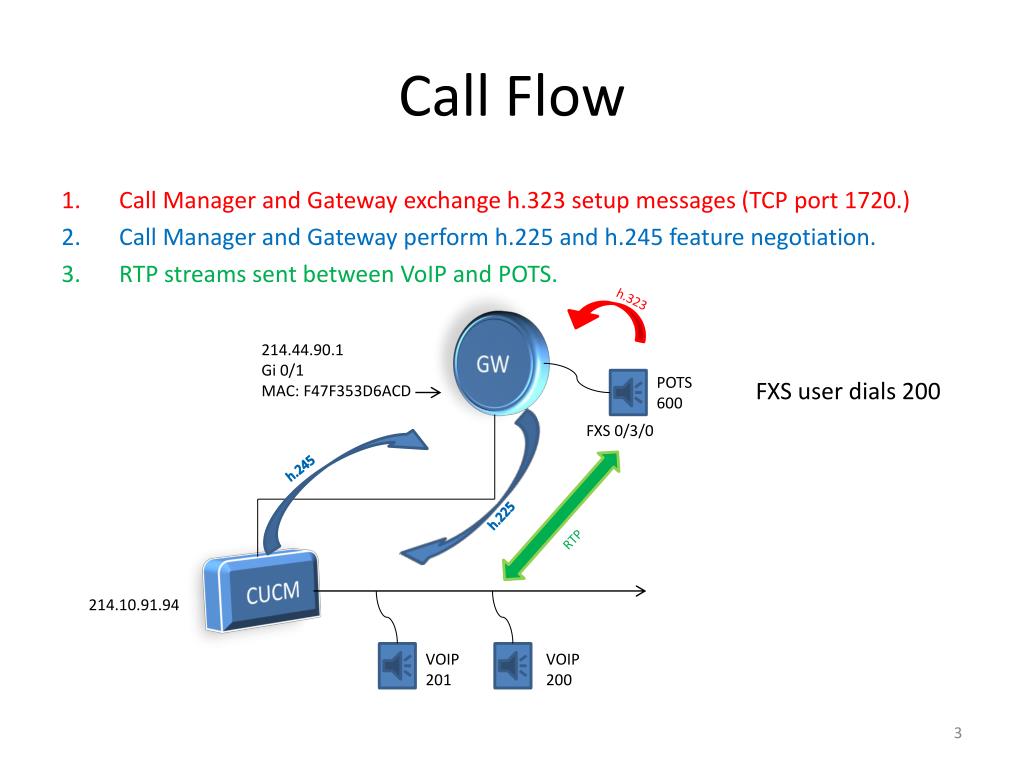

  3. Call Flow • Call Manager and Gateway exchange h.323 setup messages (TCP port 1720.) • Call Manager and Gateway perform h.225 and h.245 feature negotiation. • RTP streams sent between VoIP and POTS. h.323 GW • 214.44.90.1 • Gi 0/1 • MAC: F47F353D6ACD POTS 600 FXS user dials 200 FXS 0/3/0 h.245 h.225 RTP CUCM 214.10.91.94 VOIP 201 VOIP 200

  4. Configure SCCP Gateway SCCP is a centralized controlled gateway registered to a Cisco Unified Call Manager. Call manager Configuration s Device> gateways> add new GW type is the router’s series. Protocol> SCCP Device Name= GiEth 0/1 MAC This is how the CM registers the router. Select Call Manager Group Select slot where FXS card is located> save. Select FXS/DID subunit>save. Configure FXS port. FSX Port: 0/3/0 slot/subunit/port Save> applyconfig> restart before you configure fxs port. Describe Device> Stanadard Analog> Select location> Select Region> Select security profile.

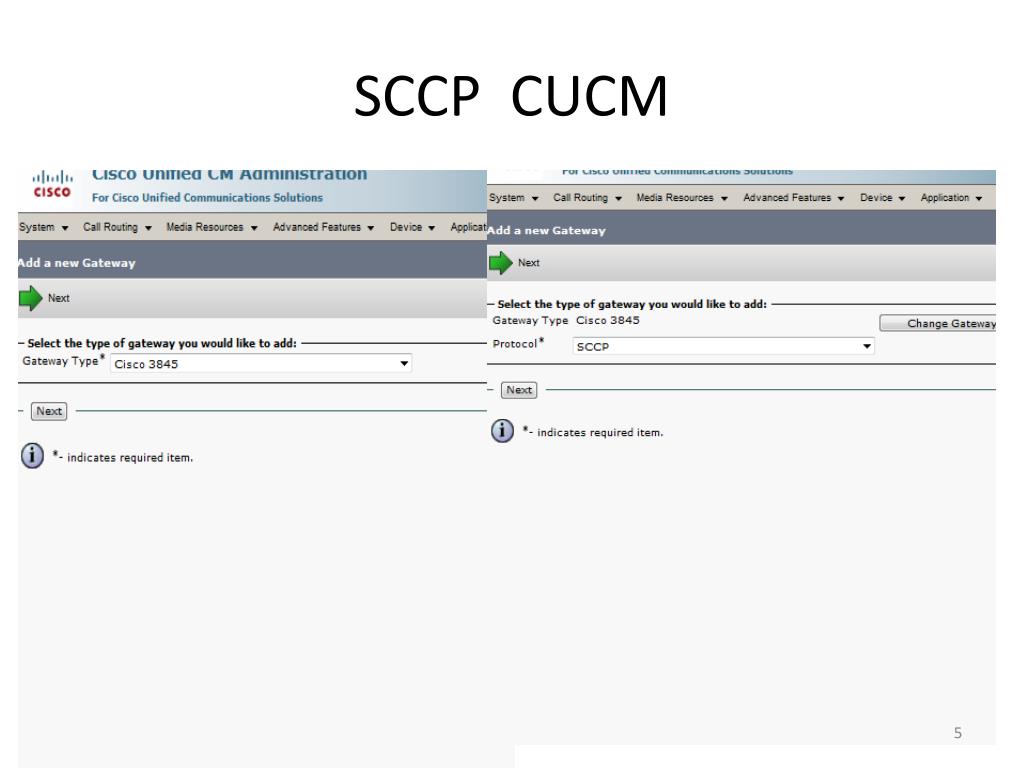

  5. SCCP CUCM

  6. F353D6ACD Default CM group Your FXS port address is 0/3/X If Slot/Subunit/FXSport then Slot=0 and Subunit=3

  7. Router Configuration SCCP GW Enables SCCP on CUCM and assigns a tag number. You can add redundant nodes. (config)#sccp local gi 0/1 (config)#sccpccm214.10.91.94 identifier 10versi 7.0+ (config)#sccp (config)#sccpccm-group 1 (config)#associate ccm10 priority 1 (config)#stcapp feature access code (config)#ccm-manager config server 214.10.91.94 (config)#ccm-manager sccplocal gi0/1 (config)#ccm-manager sccp (config)#no stcapp (config)#stcappccm group 1 (config)#voice-port 0/3/0 (config-voice-if)#timeouts initial 60 (config-voice-if)#timeouts interdigit60 (config-voice-if)#exit (config-dial-peer-if)#dial-peer voice 10 pots (config-dial-peer-if)#service stcapp (config-dial-peer-if)#port 0/3/0 (config-dial-peer-if)#exit (config)#stcapp (config)#stcapp register capability 0/3/0 modem-relay Assings priority to CUCM node and redundant nodes. Registers with CUCM Any number works (dial peer group identifier) Improves STE quality for secure calls

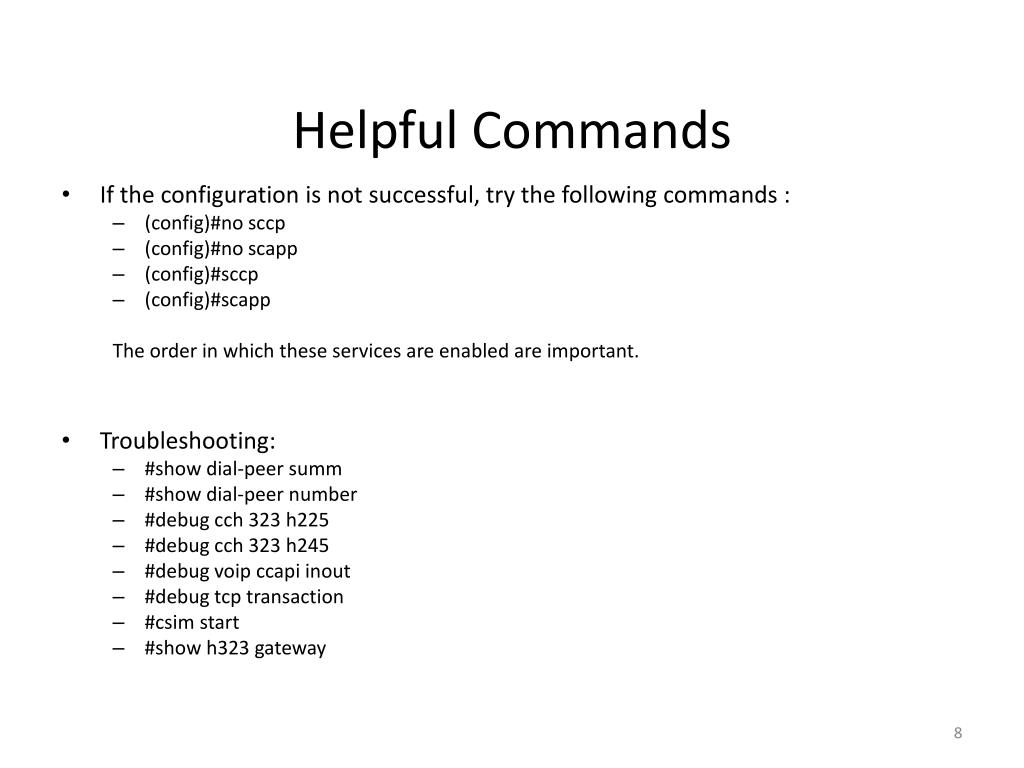

  8. Helpful Commands • If the configuration is not successful, try the following commands : • (config)#no sccp • (config)#no scapp • (config)#sccp • (config)#scapp The order in which these services are enabled are important. • Troubleshooting: • #show dial-peer summ • #show dial-peer number • #debug cch 323 h225 • #debug cch 323 h245 • #debug voipccapiinout • #debug tcp transaction • #csim start • #show h323 gateway

  9. Configuring FXS lines Select the FXS port on the router. Configure like you would any other phone. Make sure you select “Standard Analog” for common phone profile. Ensure you assign a directory number.

  10. FINISHED! NEXT IS MGCP

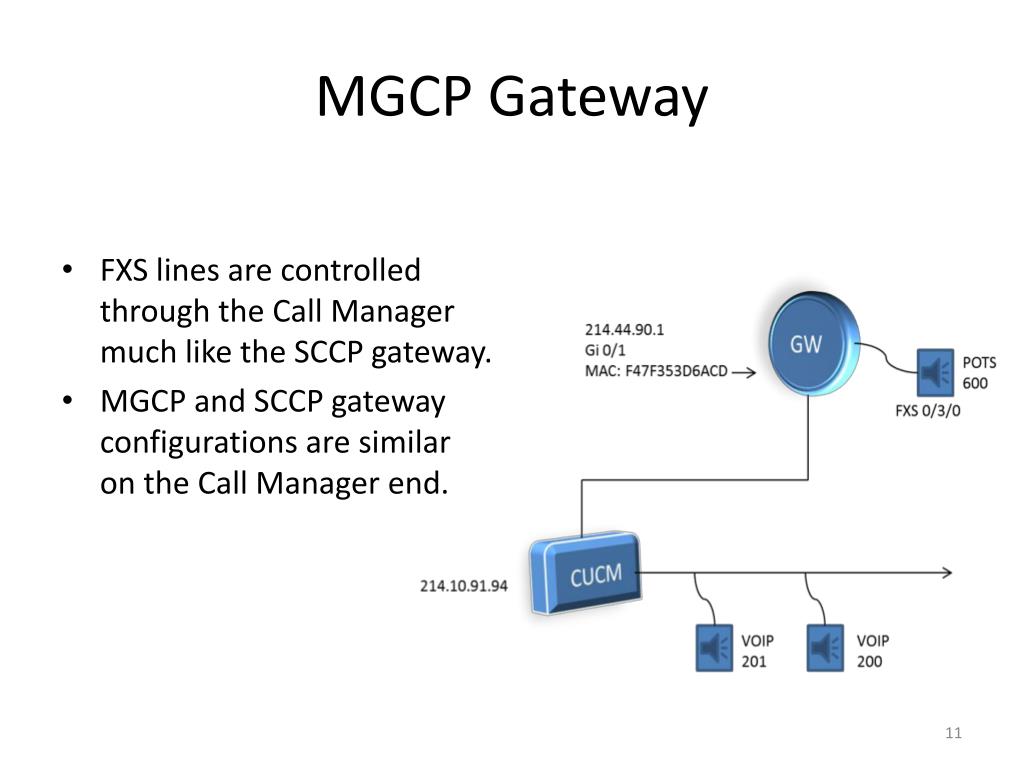

  11. MGCP Gateway • FXS lines are controlled through the Call Manager much like the SCCP gateway. • MGCP and SCCP gateway configurations are similar on the Call Manager end.

  12. Configure MGCP Gateway given the same topology. • Device> gateways> add new GW type is the router’s series. Protocol> MGCP • Device Name= hostname/domain Ex: 3800router.home.local Hostname=3800router Domain=home.local • Select slot where FXS card is located> save. Select FXS/DID subunit>save. Configure FXS port. FSX Port: 0/3/0 slot/subunit/port Save> apply config> restart before you configure fxs port. Describe Device> Stanadard Analog> Select location> Select Region> Select security profile.

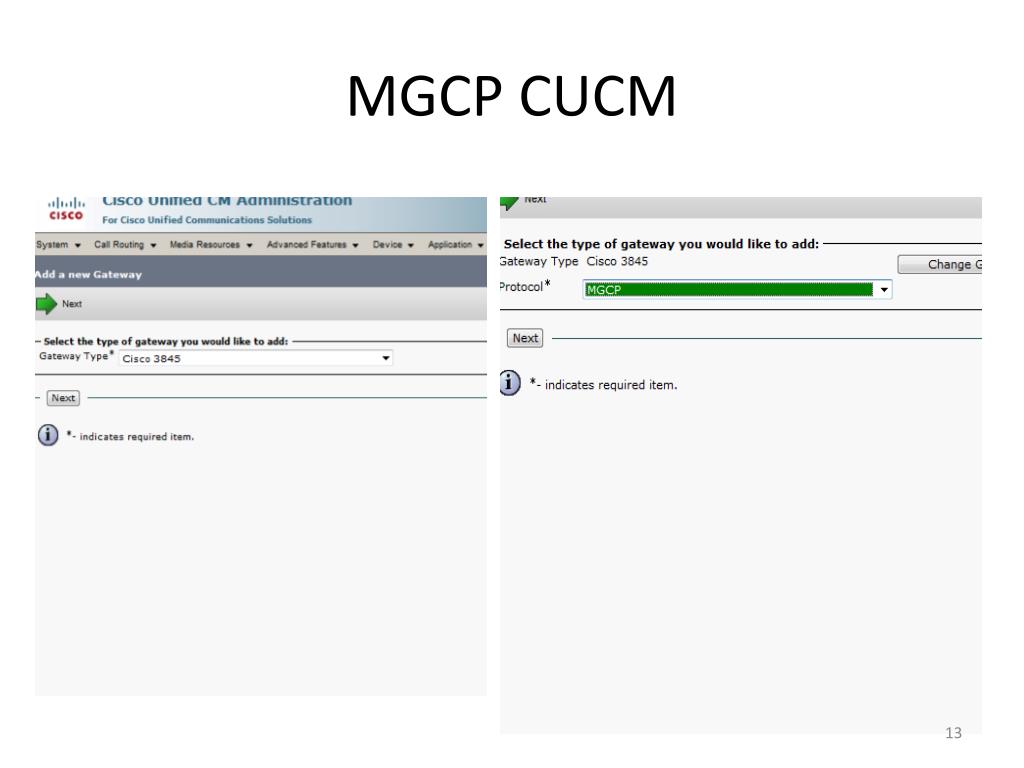

  13. MGCP CUCM

  14. IF IP DOMAIN-NAME IS NOT CONFIGURED ON ROUTER, TYPE HOSTNAME ONLY ! i.e. 3800router 3800router.home.local Default CM group Your FXS port address is 0/3/X If Slot/Subunit/FXSport then Slot=0 and Subunit=3

  15. Configuring FXS lines • Select the FXS port on the router. • Configure like you would any other phone. • Make sure you select “Standard Analog” for common phone profile.

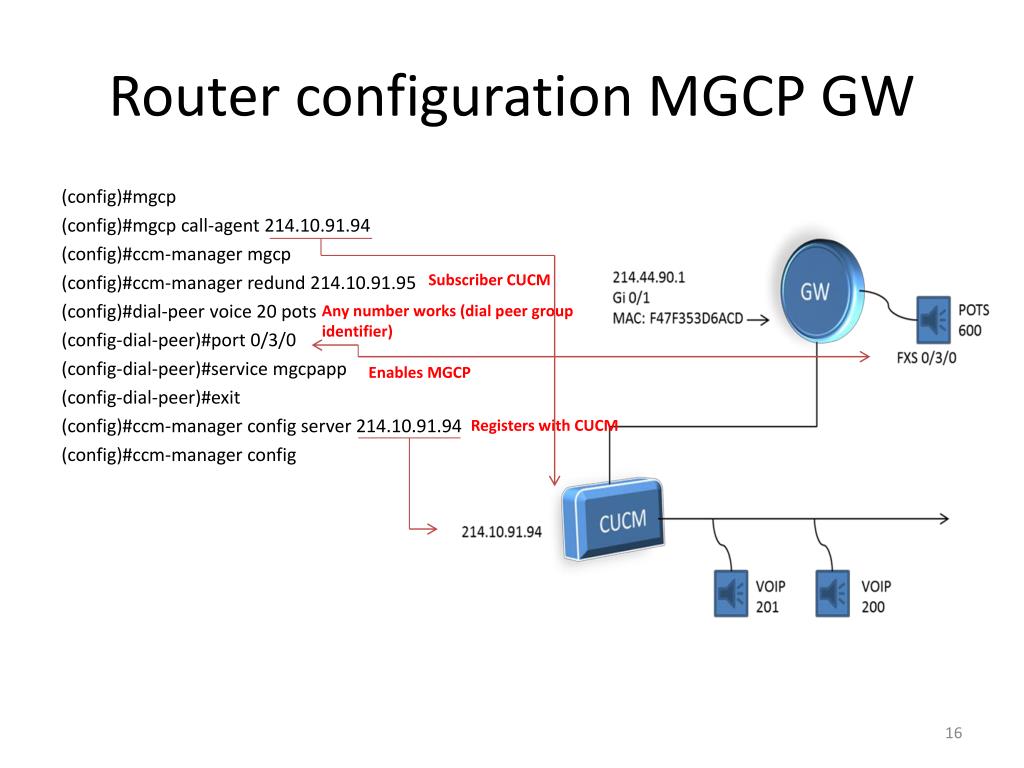

  16. Router configuration MGCP GW (config)#mgcp (config)#mgcp call-agent 214.10.91.94 (config)#ccm-manager mgcp (config)#ccm-manager redund 214.10.91.95 (config)#dial-peer voice 20 pots (config-dial-peer)#port 0/3/0 (config-dial-peer)#service mgcpapp (config-dial-peer)#exit (config)#ccm-manager config server 214.10.91.94 (config)#ccm-manager config Subscriber CUCM Any number works (dial peer group identifier) Enables MGCP Registers with CUCM

  17. FINISHED NEXT IS H.323

  18. Call Legs #2 #3 #1 #4 #3 #2 #1 #1 Inbound call leg; POTS dial peer pointing to PXS ports. Must be added to receive calls. #1 Inbound call leg; POTS dial peer pointing to FXS ports. Must be added to receive calls. #2 Outbound call leg; voip dial peer pointing to CUCM or voip phone number pattern. Inbound call leg from routers perspective. #2 Outbound call leg; VOIP dial peer pointing to CUCM and voip phone number pattern. #3 Voip phone added on CUCM. #3 Outbound call leg; bypasses this gateway once inbound dial peer receives original dial peer destined for CUCM. #3 Voip phone added on CUCM.

  19. H.323 GATEWAY H323 gateways do not rely on a Call Manager rather they provide they're own intelligence allowing features such as digit manipulation loop-start ring down, detailed dial plans, ect. Becoming familiar with the legging theory and the protocols that fall under H.323 will be useful when configuring and troubleshooting this gateway.

  20. H.323 CUCM Add New> H.323 gateway Device name= interface IP address Device Pool= external Location=phantom *Gateway registration is always unknown.

  21. Router Configuration Any number works (dial peer group identifier) (config)#dial-peer voice 200 voip (config-dial-peer)#destination-pattern 2.. (config-dial-peer)#session target ipv4:214.10.91.94 (config-dial-peer)#dial-peer voice 600 pots (config-dial-peer)#destination-pattern 600 (config-dial-peer)#port 0/3/0 (config-dial-peer)#voice-class h323 50 (config)#h225 timeout tcp establish 2 (config)#dial-peer voice 200 voip (config-dial-peer)#voice-class h323 50 (config-dial-peer)#dtmf-relay h245-alpha (config-dial-peer)#dtmf-relay h245-signal (config-dial-peer)#dtmf-relay rtp (config-dial-peer)#exit CUCM number block CUCM FXS number block Sets dial tone tune in to 2sec. (default is 30 sec) Must match
