Plug Lockout Devices by E-Square Alliance

esquarelockout avatar
esquarelockout
4 diapositives · 69 Views · Dec 07, 2019

Plug lockouts are a simple solution for electric equipment lockout procedures. These Plug Lockouts prevent electrical plugs from being inserted into a wall outlet. It is used when the plug is not under the exclusive control of the person performing service or maintenance.

E-Square offers Plug Lockouts manufactured from sturdy polystyrene\/ABS, these units have been developed to completely enclose electrical plugs to prevent a machine from being energized. The plug completely sits inside the unit with the cable being fed through an access hole.

For more details about Plug Lockouts, visit - https:\/\/www.safetylock.net\/plug-lockout.html

#Plug Lockout #Plug Lockout Device #Small Plug Lockout #Large Plug Lockout #Plug Lockout Manufacturer #Plug Lockout Supplier #Lockout Tagout #Lockout Tagout Manufacturer
Plug Lockout Devices by E-Square Alliance - slide 1
01 / 4Plug Lockout Devices by E-Square Alliance
1 / 17

Télécharger la présentation

Plug Lockout Devices by E-Square Alliance
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

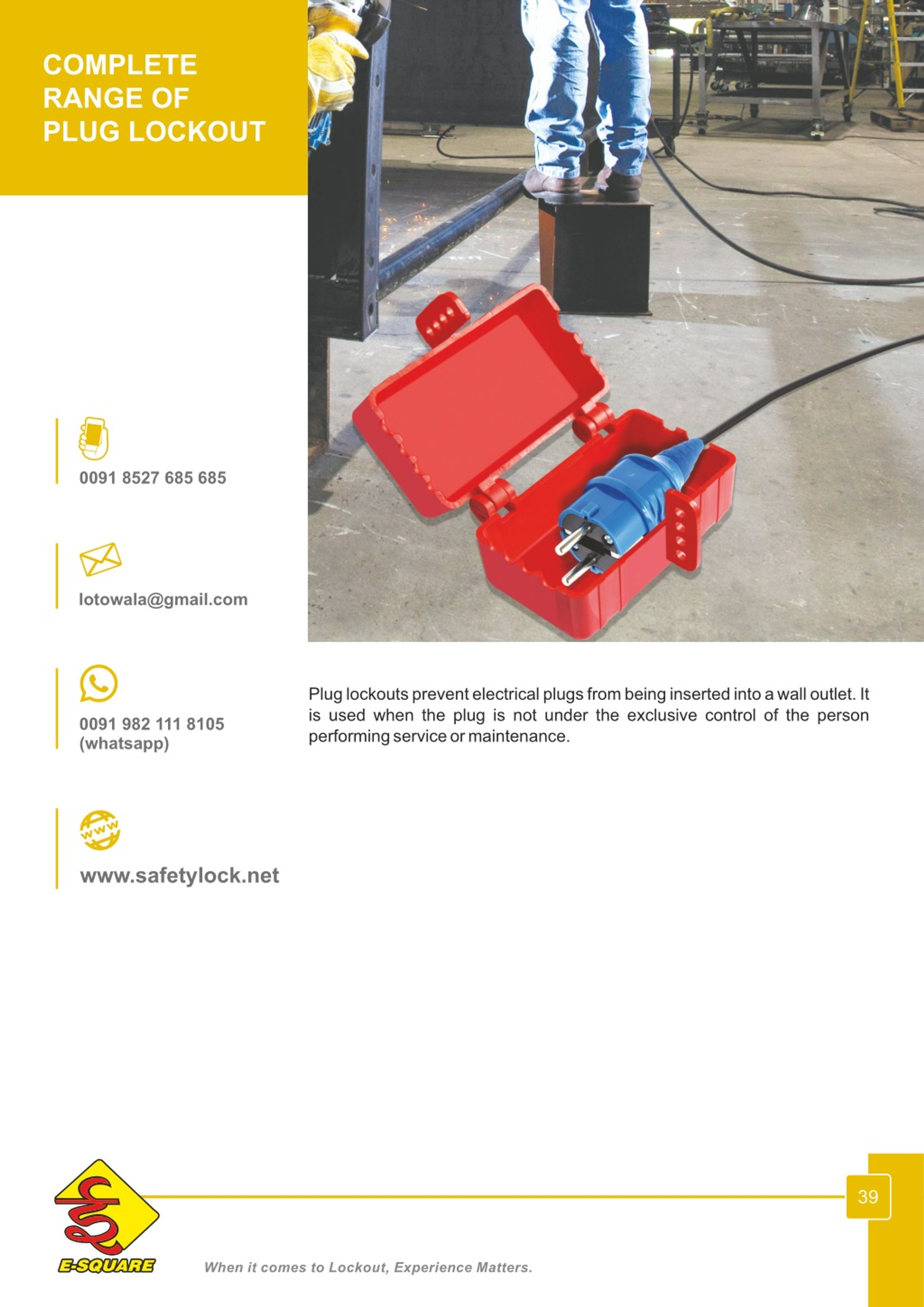

  1. COMPLETE RANGE OF PLUG LOCKOUT 0091 8527 685 685 lotowala@gmail.com Plug lockouts prevent electrical plugs from being inserted into a wall outlet. It is used when the plug is not under the exclusive control of the person performing service or maintenance. 0091 982 111 8105 (whatsapp) www.safetylock.net 39 When it comes to Lockout, Experience Matters.

  2. PLUG LOCKOUT ELECTRICAL PLUG LOCKOUT BOX TYPE Manufactured from sturdy polystyrene / ABS, these units have been developed to completely enclose electrical plugs to prevent a machine from being energized. The plug completely sits inside the unit with the cable being fed through an access hole. The small unit is suitable for a variety of electrical connections up to 40 mm diameter, with a locking mechanism that can accommodate up to 4 safety padlocks. The large unit is suitable for standard and larger electrical plugs, including 3 phase connectors. ! Plug lockout prevents electrical plugs from being inserted into a wall outlet. ! Small 110V plug lockout : 80 H x 44 D x 42 W mm with ½” diameter hole for cable. ! Large 220V / 500V plug lockout : 155 H x 86 D x 84 W mm with 8.5 to 19 diameter holes for cable. ! Completely encloses electrical plugs to prevent accidental re-connection. ES - SPLO ES - LPLO Other available colours MODEL ES - SPLO ES - LPLO PRODUCT DESCRIPTION Small Plug Lockout Large Plug Lockout BLUE YELLOW * Minimum quantity 200 Nos. GREEN 40 Web: www.safetylock.net E-mail: lotowala@gmail.com Help Line: 00 91 98110 76259 When it comes to Lockout, Experience Matters.

  3. PLUG LOCKOUT ELECTRICAL PLUG LOCKOUT PREMIER ! Plug lockout prevents electrical plugs from being inserted into a wall outlet. ! Small 110V plug lockout : 2” H x 2” D x 3½” W with ½” diameter hole for cable. ! Large 220V / 500V plug lockout : 3¼” H x 3¼” D x 7” W with 1” diameter hole for cable. ! Completely encloses electrical plugs to prevent accidental re-connection. Manufactured from sturdy poly- styrene / ABS, these units have been developed to completely enclose electrical plugs to prevent a machine from being energized. The plug completely sits inside the unit with the cable being fed through an access hole. The small unit is suitable for a variety of electrical connections up to 40 mm diameter, with a locking mechanism that can accommodate up to 4 safety padlocks. The large unit is suitable for standard and larger electrical plugs, including 3 phase connectors. ES - SPLO - P ES - LPLO - P Other available colours MODEL ES - SPLO - P ES - LPLO - P PRODUCT DESCRIPTION Small Plug Lockout - Premier Large Plug Lockout - Premier BLUE YELLOW * Minimum quantity 200 Nos. GREEN CYLINDER ELECTRICAL PLUG LOCKOUT ! Unique device prevents plugs from being 'plugged in' until intentionally removed. ! Slip plug into the chemical-resistant plastic cylinder; close one or both cover plates for a snug fit and secure with Padlock. ! Fits any plug up to 600 volts, 5-7/8" x 3" dia. ! Lockout devices are supplied with instructions. ES - CLO - EL MODEL ES - CLO - EL PRODUCT DESCRIPTION Cylinder Electrical Plug Lockout 41 Web: www.safetylock.net E-mail: lotowala@gmail.com Help Line: 00 91 98110 76259 When it comes to Lockout, Experience Matters.

  4. PLUG LOCKOUT PLUG COVER LOCKOUT ! These Large Plug Cover Lockouts are made of special grade non tearable red fabric & black riveted leather encased belt. ! They can be supplied on request with solid PVC pipe insert, of suitable dia to avoid unwanted operation of the control buttons of hoist of cranes etc. (at an extra cost) ES - SPCL ES - LPCL Specification Model Width Length Pipe Dia Pipe Length ES - SPCL ES - LPCL ES - SPCL + P ES - LPCL + P Using pipe is most recommended to avoid any intentional operation of switches. 9 inch 9 inch 9 inch 9 inch 18 inch 25 inch 18 inch 25 inch 5 inch 5 inch 12 inch 20 inch MODEL ES - SPCL ES - SPCL + P PRODUCT DESCRIPTION Small Plug Cover Lockout - Red Small Plug Cover Lockout - with Pipe Large Plug Cover Lockout - Red Large Plug Cover Lockout - with Pipe ES - LPCL ES - LPCL + P E-Square Additional PVC Pipe Insert ES - LPCL + P 42 Web: www.safetylock.net E-mail: lotowala@gmail.com Help Line: 00 91 98110 76259 When it comes to Lockout, Experience Matters.
