XP 1 Blending Chart

XP 1 Blending Chart. XP 3. XP 2. Viscosity @ 100 °F, Centistokes. XP 0. 4. 8. 12. 16. 20. 24. 28. 32. Ounces per quart of XP 1. XP 1 Blending Chart. XP 3. XP 2. Viscosity @ 212 °F, Centistokes. XP 0. 4. 8. 12. 16. 20. 24. 28. 32. Ounces per quart of XP 1.

ethel
Télécharger la présentation

XP 1 Blending Chart

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. XP1 Blending Chart XP3 XP2 Viscosity @ 100°F, Centistokes XP0 4 8 12 16 20 24 28 32 Ounces per quart of XP1

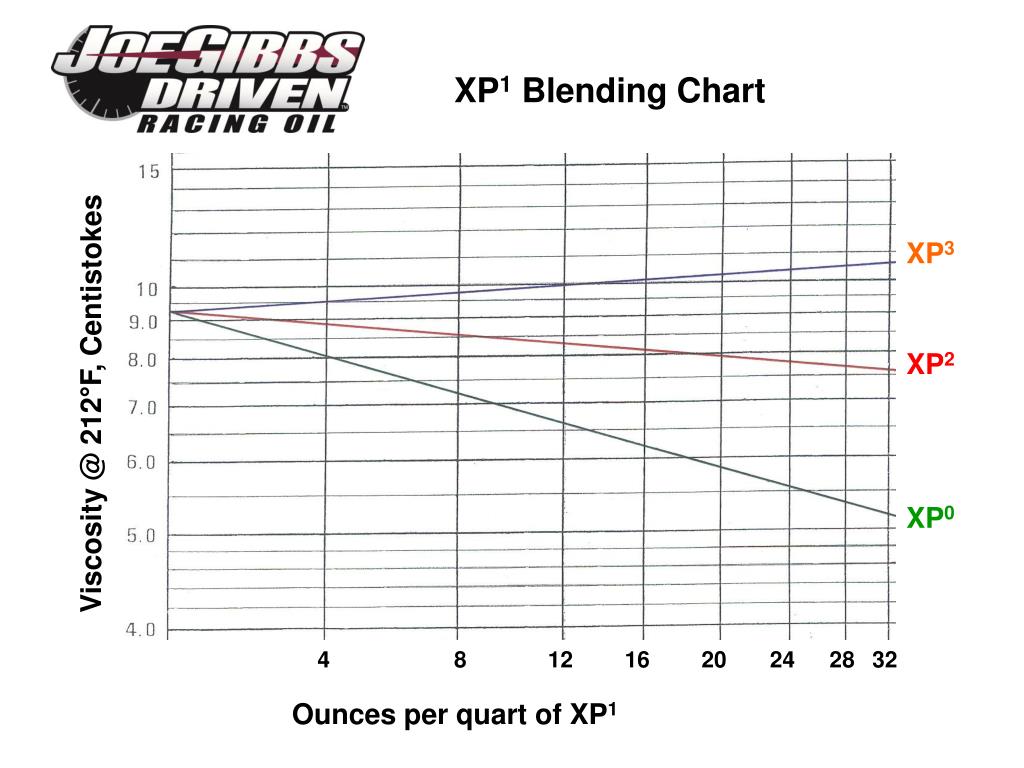

  2. XP1 Blending Chart XP3 XP2 Viscosity @ 212°F, Centistokes XP0 4 8 12 16 20 24 28 32 Ounces per quart of XP1

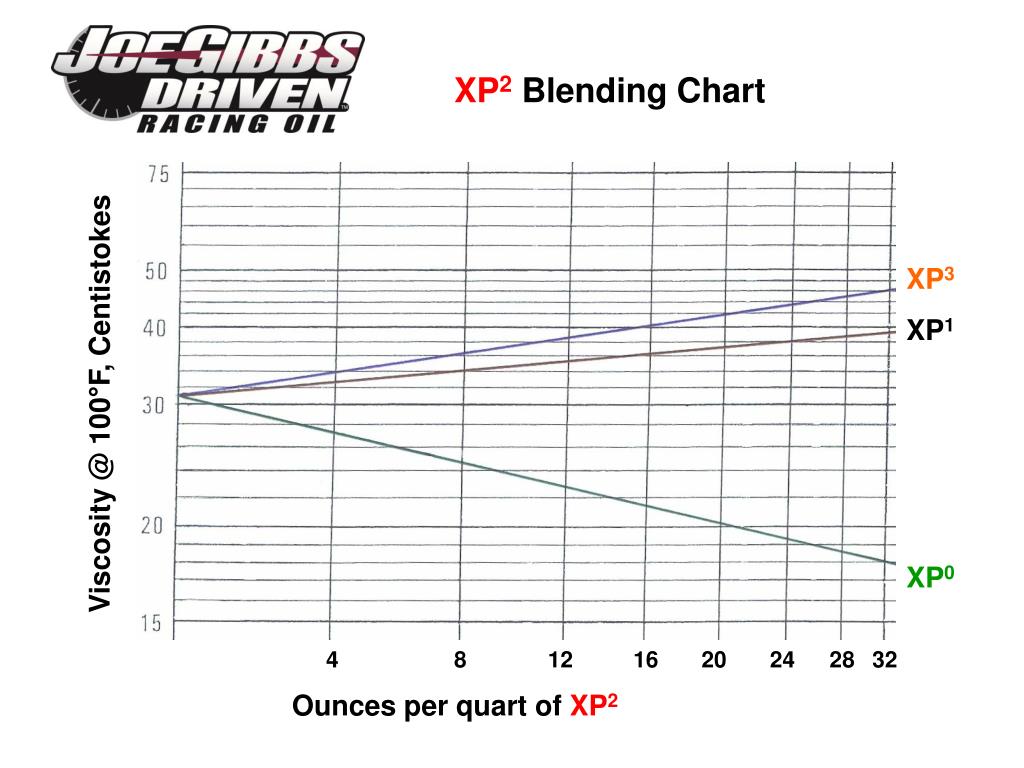

  3. XP2 Blending Chart XP3 XP1 Viscosity @ 100°F, Centistokes XP0 4 8 12 16 20 24 28 32 Ounces per quart of XP2

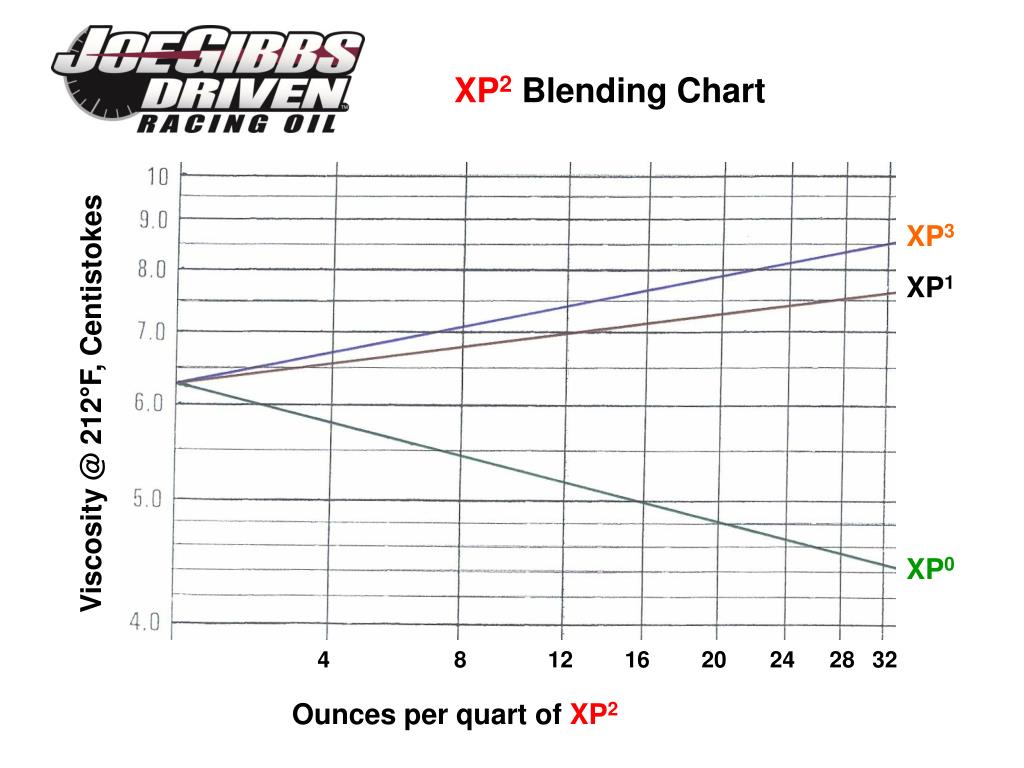

  4. XP2 Blending Chart XP3 XP1 Viscosity @ 212°F, Centistokes XP0 4 8 12 16 20 24 28 32 Ounces per quart of XP2

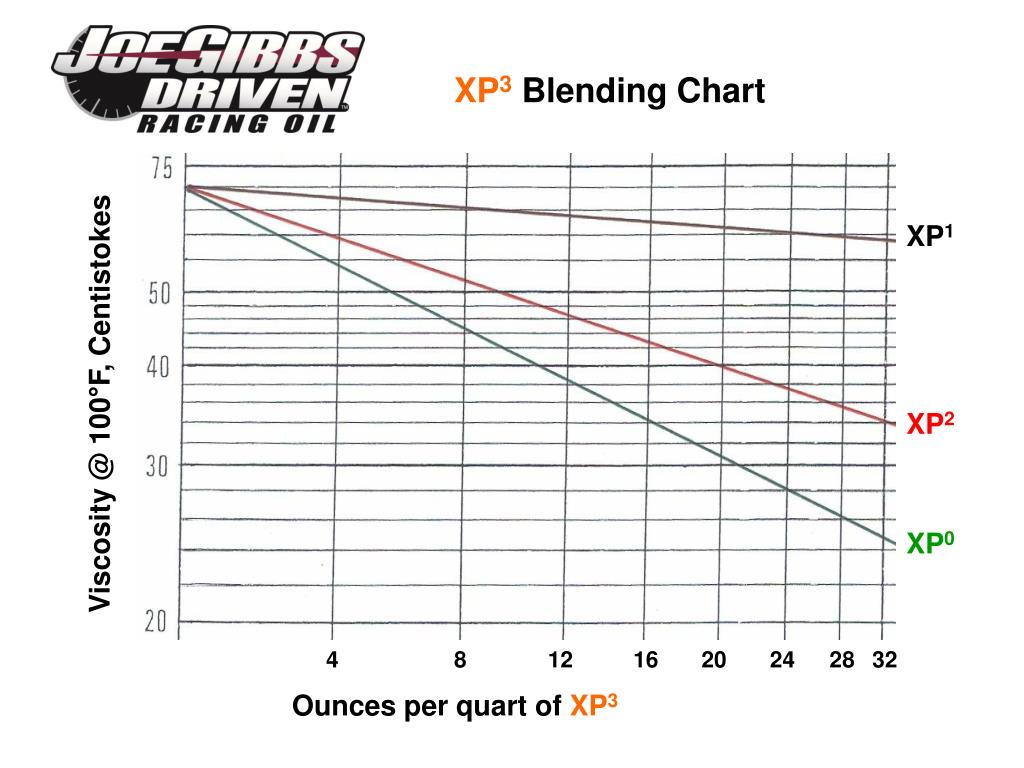

  5. XP3 Blending Chart XP1 Viscosity @ 100°F, Centistokes XP2 XP0 4 8 12 16 20 24 28 32 Ounces per quart of XP3

  6. XP3 Blending Chart XP1 XP2 Viscosity @ 212°F, Centistokes XP0 4 8 12 16 20 24 28 32 Ounces per quart of XP3

  7. XP0 Blending Chart XP3 XP1 XP2 Viscosity @ 100°F, Centistokes 4 8 12 16 20 24 28 32 Ounces per quart of XP0

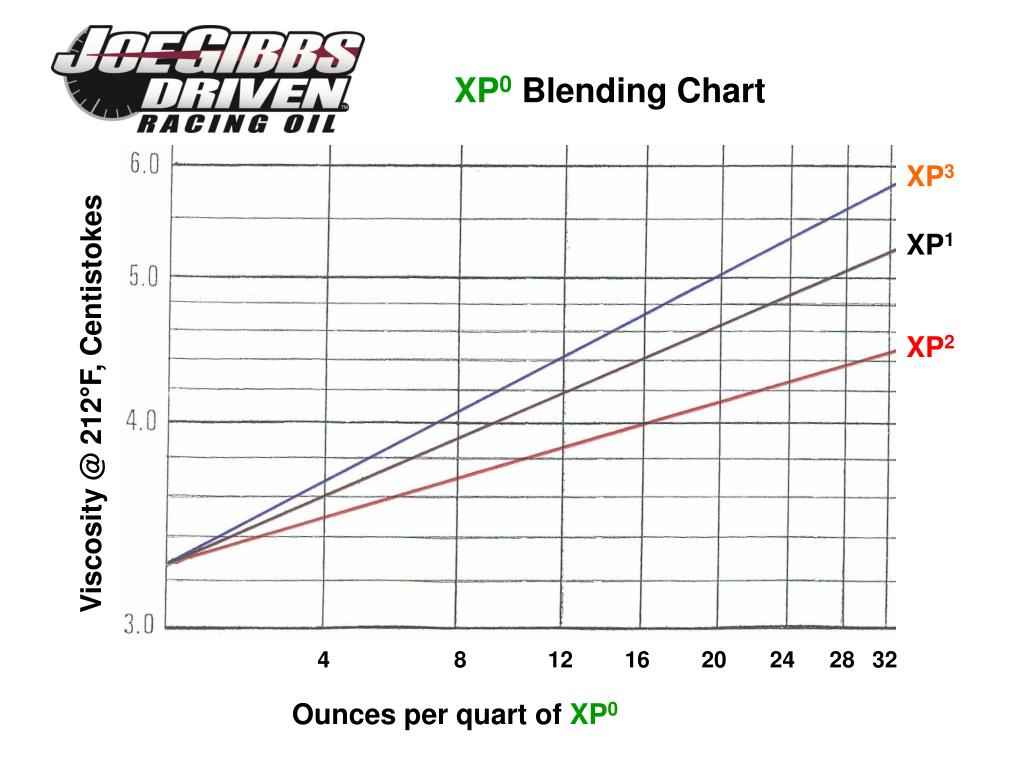

  8. XP0 Blending Chart XP3 XP1 XP2 Viscosity @ 212°F, Centistokes 4 8 12 16 20 24 28 32 Ounces per quart of XP0
