Lecture 14

Lecture 14. CNS – Gross Anatomy Bio-5 Anatomy JPHubbard Hartnell College. Brain: 4 regions 12 pairs Cranial nerves Spinal Cord Begins at foramen magnum ~18 inches Cervical/thoracic/lumbar Cervical + lumbar enlargements Conus medullaris – tapered end 31pairs spinal nerves

evaline
Télécharger la présentation

Lecture 14

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Lecture 14 CNS – Gross Anatomy Bio-5 Anatomy JPHubbard Hartnell College

  2. Brain: • 4 regions • 12 pairs Cranial nerves • Spinal Cord • Begins at foramen magnum • ~18 inches • Cervical/thoracic/lumbar • Cervical + lumbar enlargements • Conusmedullaris – tapered end • 31pairs spinal nerves • Caudaequina • Filumterminale: fibrous extension into sacral canal – part of coccygeal ligament

  3. Coverings of CNS: Meninges • Continuous over brain and spinal cord • Dura mater – single layer • dense irregular CT + simple squamous • Epidural space: adipose + blood vessels • Subdural space filled with interstitial fluid • Dural sinuses - • Arachnoid mater = • Subarachnoid space = CSF • Extends to ~ S2 • Spinal tap – L1-L2 • Pia mater • thin layer covers BV • denticulate ligaments hold in place

  4. Medulla

  5. Organization of Gray Matter - Nuclei: • Posterior Horn: • somatic and visceral (autonomic) sensory association nuclei – association or interneurons • Anterior Horn: • somatic motor nuclei (efferent: to skeletal muscles) • Lateral gray horns (only in thoracic & upper lumbar regions): • Autonomic motor : to viscera • Sympathetic outflow • Gray commissures • Axons of interneurons crossing spinal cord

  6. Anterior median fissure Ventral horn Gray commissure Central canal Lateral horn Spinal nerve Dorsal horn Posterior median sulcus

  7. Sensory nuclei: Somatic Visceral Motor Nuclei Autonomic (in lateral horn) Somatic Gray Commissure

  8. White matter • 3 paired Columns (funiculi) – named for location • Contain Tracts – similar origin/destination • Ascending: sensory information – largely dorsal and lateral • Descending: motor information – ventral or lateral • Transverse: commissural tracts • Generalities: • Cross (decussate) • Involve 2 or 3 neurons • Exhibit somatotopy • paired

  9. Posterior funiculus (column) Lateral funiculus White commissure Anterior funiculus

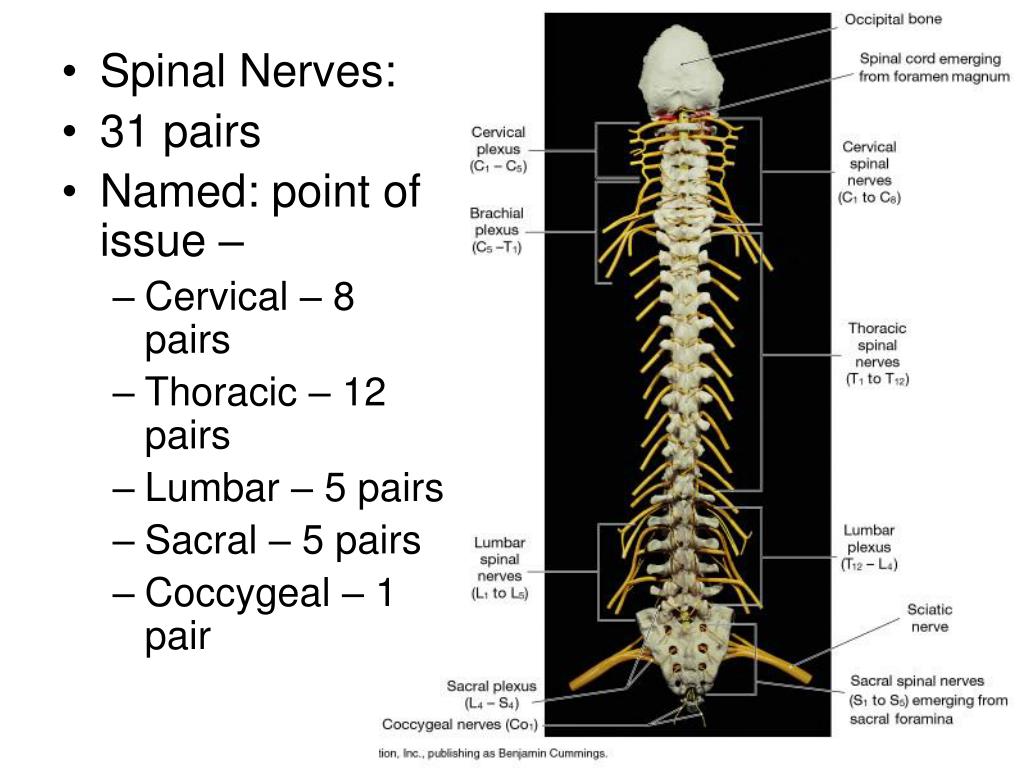

  10. Spinal Nerves: • 31 pairs • Named: point of issue – • Cervical – 8 pairs • Thoracic – 12 pairs • Lumbar – 5 pairs • Sacral – 5 pairs • Coccygeal – 1 pair

  11. Dorsal Root – sensory information Dorsal Root Ganglion – cell bodies of sensory neurons Ventral root - outgoing motor fibers Spinal Nerves Mixed nerves – sensory + motor information

  12. Reflex Arcs • Monosynaptic: • single synapse in CNS • Simple, fast • sensory • motor neuron • Polysynaptic: • Multiple synapses – two or more • Sensory neuron • Motor neuron • 1 or more interneurons – • Complex control – more than one effector may be stimulated

  13. 4 Principal Parts of the Brain Cerebrum Cerebellum Diencephalon Brain Stem

  14. Fissure: deep groove • Longitudinal fissure • Transverse fissure • Gyri (gyrus): ridges • Sulci (sulcus): furrow, shallow groove

  15. Dura mater • Cranial dural septa – stabilize and support • Falxcerebri = in longitid. fissure • Incl. superior and inf. sagital sinuses • Attaches to cristagalli and internal occipital crest • Tentoriumcerebelli – transverse fissure • Falxcerebelli = between hemispheres of cerebellum • Diaphragmasellae – over sellaturcica • Dural sinuses: between endosteal and meningeal layers of dura mater • Superior sagital sinus • Transverse sinus • Collect blood from circulation around brain + CSF • CSF drains via arachnoid granulations

  16. Ventricles • Hollow spaces within brain – 4 • 2 lateral ventricles (1 & 2) : cerebrum • Separated by septum pellucidum • Third ventricle: within diencephalon • Interventricular foramen connects to lateral ventricles • Forth ventricle: in brain stem • Cerebral aqueduct = aqueduct of midbrain connects to 3rd ventricle • Aperatures communicate with subarachnoid space • Lateral + median aperatures • Contain cerebrospinal fluid • Communicate with each other, central canal of spinal cord and with subarachnoid space

  17. Cerebral Spinal Fluid • 20 ml/hr from plasma at choroid plexus • Composition regulated by ependymal cells – • Flow: ventricles  Central canal of spinal cord  sub-arachnoid space  returned to dural sinuses via arachnoid granulations

  18. Hydrocephalus – failure to reabsorb CSF • Genetic • Birth defects • Disease – meningitis • Aneurism • Trama • tumors

  19. Blood Brain Barrier • Provides constant environment in CNS • Endothelium of capillaries form tight junctions • Thick basal lamina • Bulbous feet of astrocytes • Specialized transport characteristics • In: • Glucose, essential AA, certain electrolytes • Not in: • Drugs, proteins, toxins, metab. Wastes • Pumped out: • Non-essential AA, K+ • Get in anyhow: • Lipid soluble substances • Not uniform – more permeable in certain retgions

  20. CSF is produced at ______________________ which are located (where?)____________________. • What regulates its composition? • Where does it go? • How does interstitial fluid in the brain differ from that in other tissues?

  21. White matter: transmission of information in tracts • Gray matter: integration • Centers: aggregates of cell bodies • Nuclei: centers with defined borders

  22. Cerebrum • Cortex: gray matter – 5 lobes • Contains: • Motor areas • Sensory areas • Association areas • Contralateral • Lateralization • Diff. areas involved in actions – communication

  23. Longitudinal fissure (green) Frontal lobe Central sulcus (yellow) precentral & postcentral gyrus Parietal lobe Parieto-occipital sulcus Occipital lobe Lateral sulcus (blue) Temporal lobe Insula Lobes and Fissures

  24. White Matter of Cerebrum • Myelinated fibers in tracts – 3 types • Commissures – transverse – connect corresponding areas in different hemispheres • Corpus callosum • Anterior commissure • Posterior commissure • Association fibers • Long and short – connect w/i hemisphere • Projection fibers: run vertically – tie to lower brain stem • Tie to sensory receptors/motor effectors • Internal capsule – fans out from top of brain stem (corona radiata)

  25. Basal Nuclei • 3 masses • Caudate nucleus • Putnam + globus passidus = lentiform nucleus • Influence muscle movement • Disorders associated with Huntington’s Chorea, Parkinson’s Dosease

  26. Limbic System • System of tracts • Learning – retention and utilization of past memories • Blends emotions with higher mental functions • Hippocampus – modifies behavior based on prior experience • Amygdala – emotions/past experiences

  27. Limbic System

  28. Diencephalon • Thalamus • Paired lateral, egg shaped masses • Hypothalamus • Mammillary bodies • Homeostatic regulatory functions • Epithalamus • Pineal gland

  29. Functions of Hypothalamus • Controls and integrates activities of the ANS which regulates smooth, cardiac muscle and glands • Synthesizes regulatory hormones that control the anterior pituitary • Contains cell bodies of axons that end in posterior pituitary where they secrete hormones • Regulates rage, aggression, pain, pleasure & arousal • Feeding, thirst & satiety centers • Controls body temperature • Regulates daily patterns of sleep

  30. Hypothalamus • Dozen or so nuclei in 4 major regions • mammillary bodies are relay station for olfactory reflexes;infundibulum suspends the pituitary gland • Major regulator of homeostasis • receives somatic and visceral input, taste, smell & hearing information; monitors osmotic pressure, temperature of blood

  31. Cerebellum • Functions • Receives/acts on proprioception (muscle status) input • Sends motor impulses to skeletal muscles that maintain posture and balance.

  32. 2 cerebellar hemispheres and vermis (central area) • 3 lobes w/I each hemisphere • Anterior lobe • Posterior lobe • Flocculonodular lobe

  33. Cerebellar cortex (folia) & central nuclei are grey matter • Arbor vitae = tree of life = white matter • Purkinje cells – extend from gray matter to cerebellar nuclei • Tracts in cerebellar peduncles carry info to other brain regions

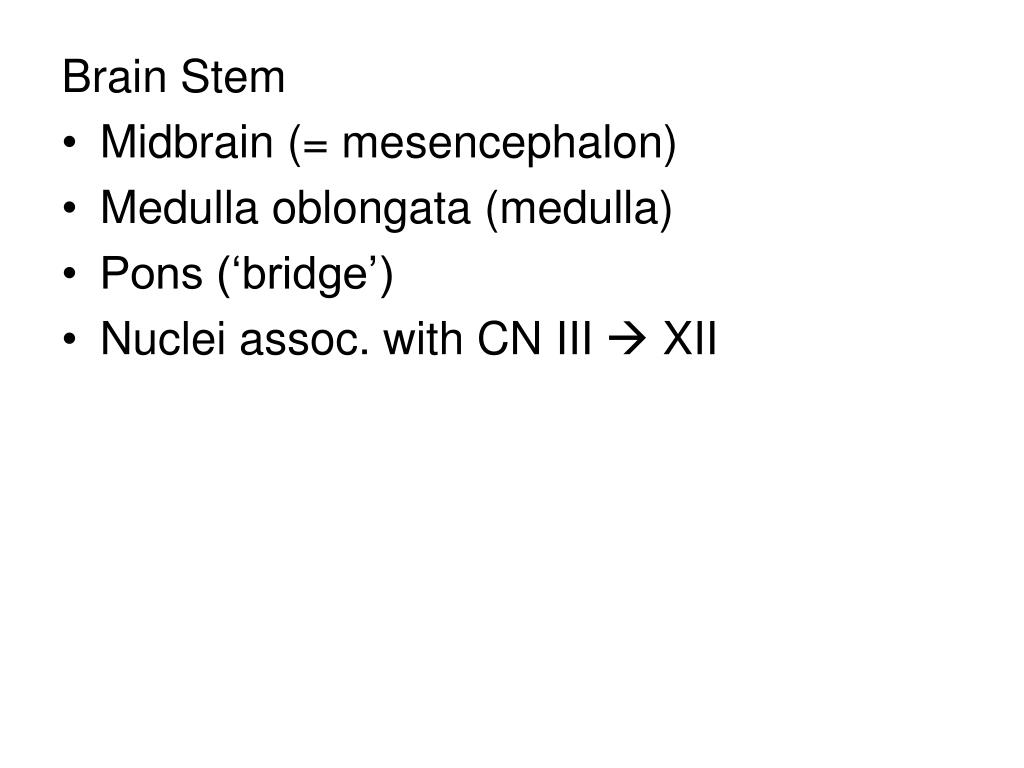

  34. Brain Stem • Midbrain (= mesencephalon) • Medulla oblongata (medulla) • Pons (‘bridge’) • Nuclei assoc. with CN III  XII

  35. Midbrain: • Cerebral peduncles ‘little feet’ of cerebrum • Ventral • Connect to sp. cord motor tracts • Cerebellar peduncles – dorsal • Nuclei • Corpora quadregemina – dorsal domelike • Superior colliculi – eye movements • Inferior colliculi – auditory relay centers • Substantia nigra – prod. of dopamine • Red necleus – relay motor pathways

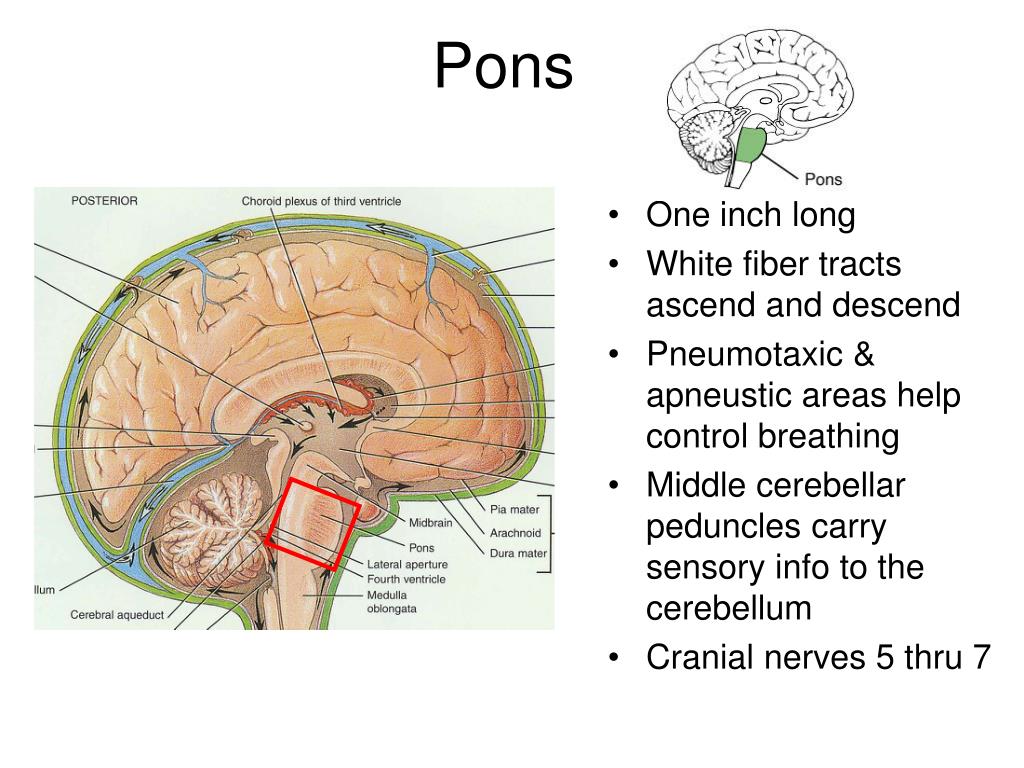

  36. Pons • One inch long • White fiber tracts ascend and descend • Pneumotaxic & apneustic areas help control breathing • Middle cerebellar peduncles carry sensory info to the cerebellum • Cranial nerves 5 thru 7

  37. Medulla Oblongata • Ascending sensory/ Descending motor tracts VIII-XII • Nuclei of 5 cranial nerves • Cardiovascular center • force & rate of heart beat • diameter of blood vessels • Respiratory center • medullary rhythmicity area sets basic rhythm of breathing • Information in & out of cerebellum • Reflex centers for coughing, sneezing, swallowing etc

  38. Reticular Formation • Scattered nuclei in medulla, pons & midbrain • Reticular activating system • alerts cerebral cortex to sensory signals (sound of alarm, flash light, smoke or intruder) to awaken from sleep • maintains consciousness & helps keep you awake with stimuli from ears, eyes, skin and muscles • Motor function is involvement with maintaining muscle tone

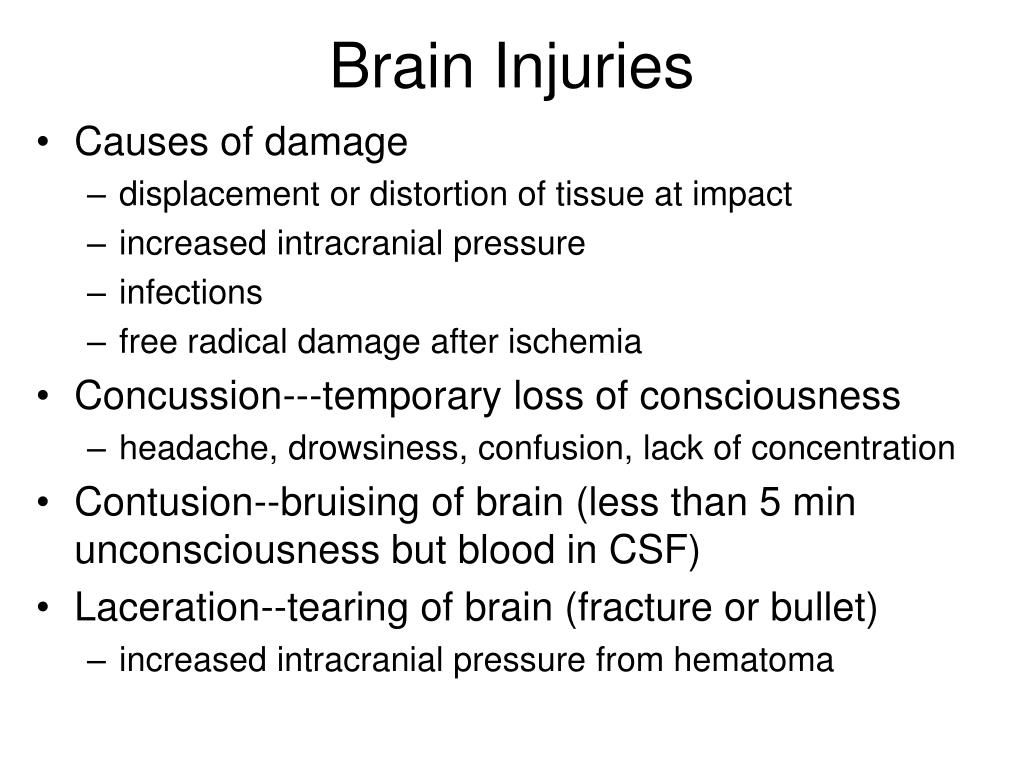

  39. Brain Injuries • Causes of damage • displacement or distortion of tissue at impact • increased intracranial pressure • infections • free radical damage after ischemia • Concussion---temporary loss of consciousness • headache, drowsiness, confusion, lack of concentration • Contusion--bruising of brain (less than 5 min unconsciousness but blood in CSF) • Laceration--tearing of brain (fracture or bullet) • increased intracranial pressure from hematoma

  40. Cranial Nerves • "On Old Olympic Towering Top A Finn And German Viewed A Hop.” • Olfactory- smell. • Optic- vision. • Oculomotor- eyelid & eyeball movement. • Trochlear-innervates superior oblique, turns eye downward and laterally. • Trigeminal- face & mouth touch & pain, chewing. • Abducens- turns eye laterally. • Facial-controls most facial expressions, tears & saliva secretion, taste. • Auditory (Vestibulocochlear)- hearing, equilibrium sensation. • Glossopharyngeal- taste, senses carotid blood pressure. • Vagus- senses aortic blood pressure, slows heart rate, stimulates digestive organs, taste, coughing, swallowing, voice production. • Accessory- controls trapezius, sternocleidomastoid, swallowing • Hypoglossal- controls tongue movement.
