  1. Chapter 14 ATM LANs

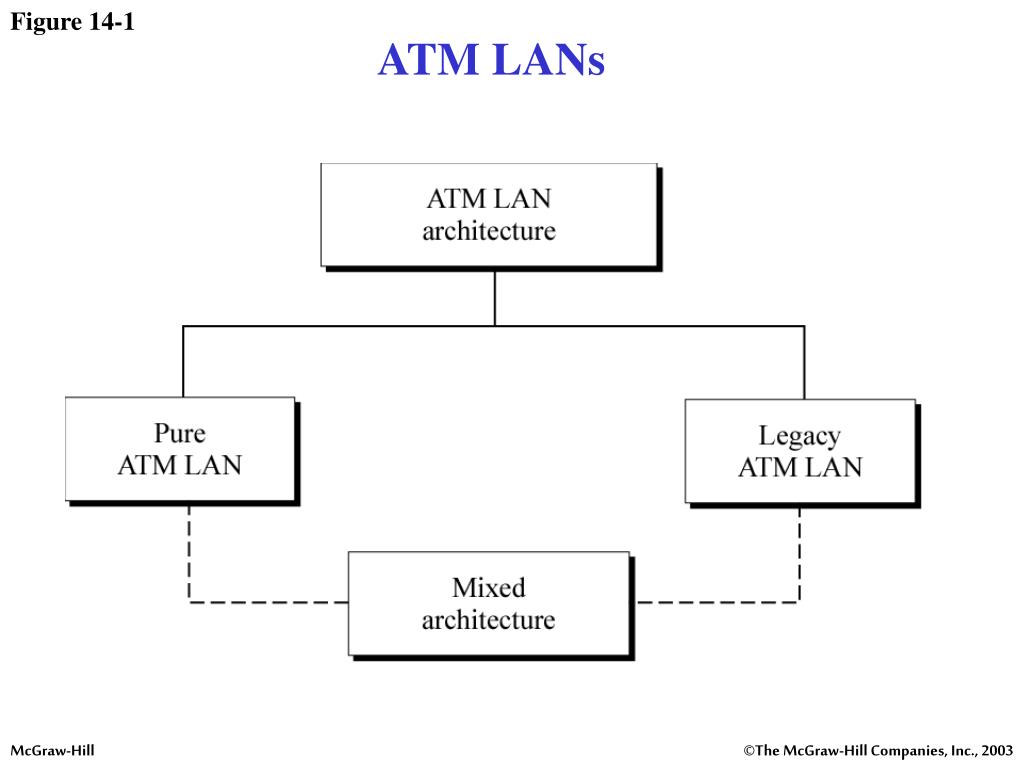

  2. Figure 14-1 ATM LANs

  3. Figure 14-2 Pure ATM LANs

  4. Figure 14-3 Legacy ATM LAN

  5. Figure 14-4 Mixed Architecture ATM LAN

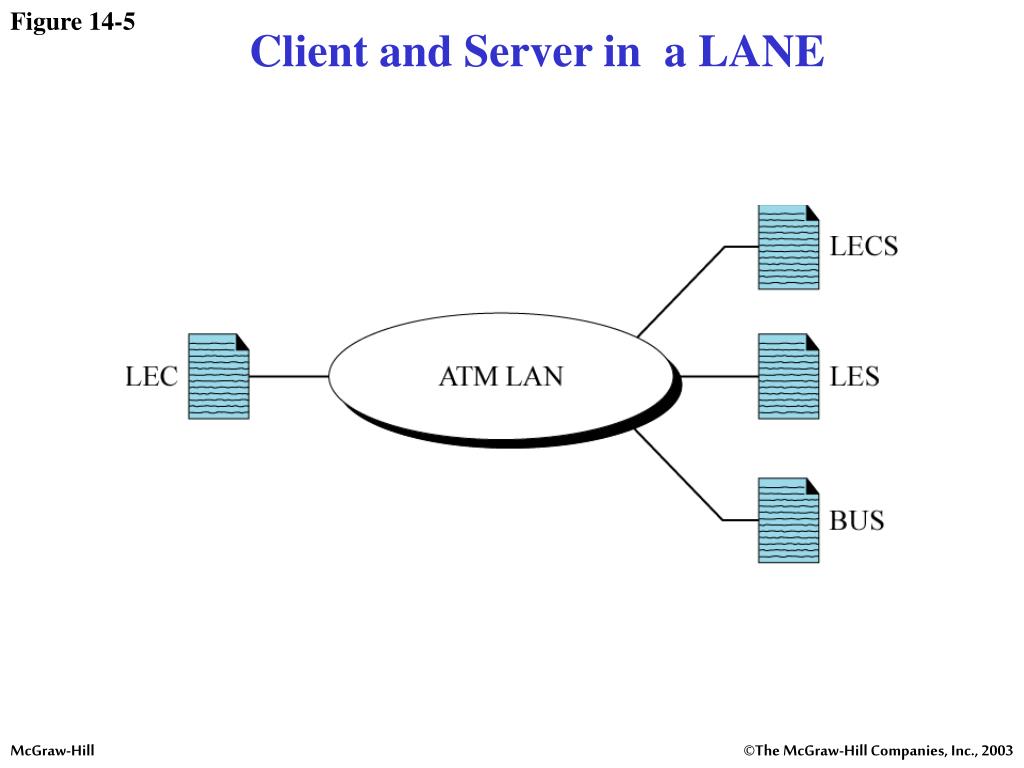

  6. Figure 14-5 Client and Server in a LANE

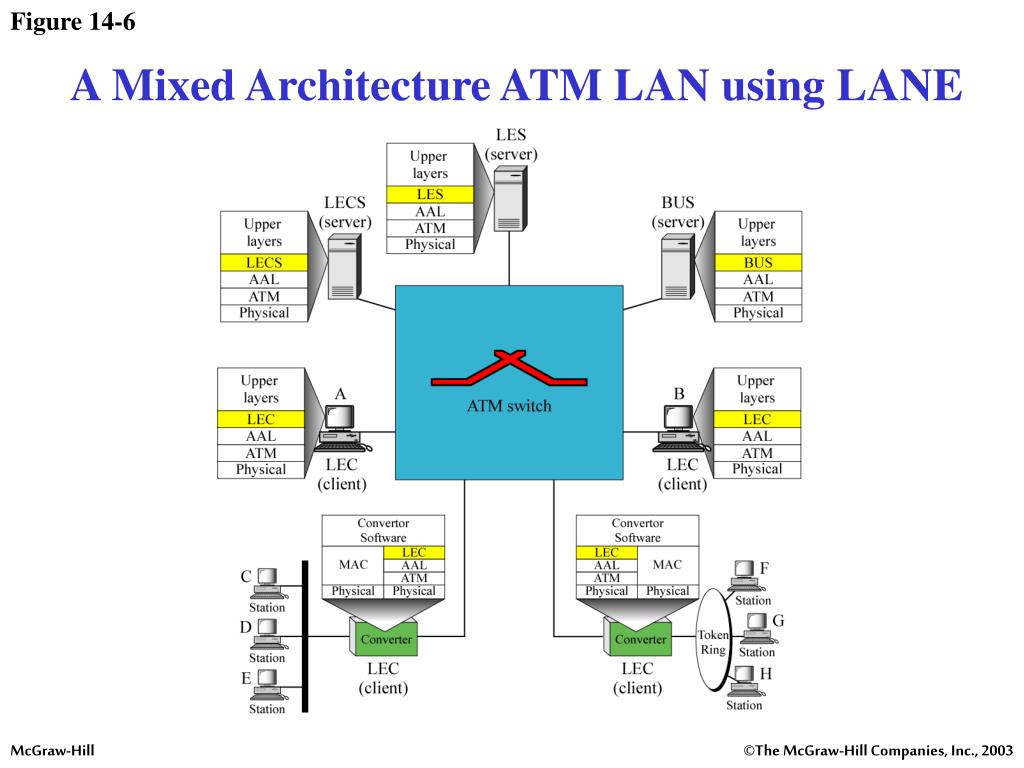

  7. Figure 14-6 A Mixed Architecture ATM LAN using LANE

  8. Figure 14-7 Steps in LANE Operation

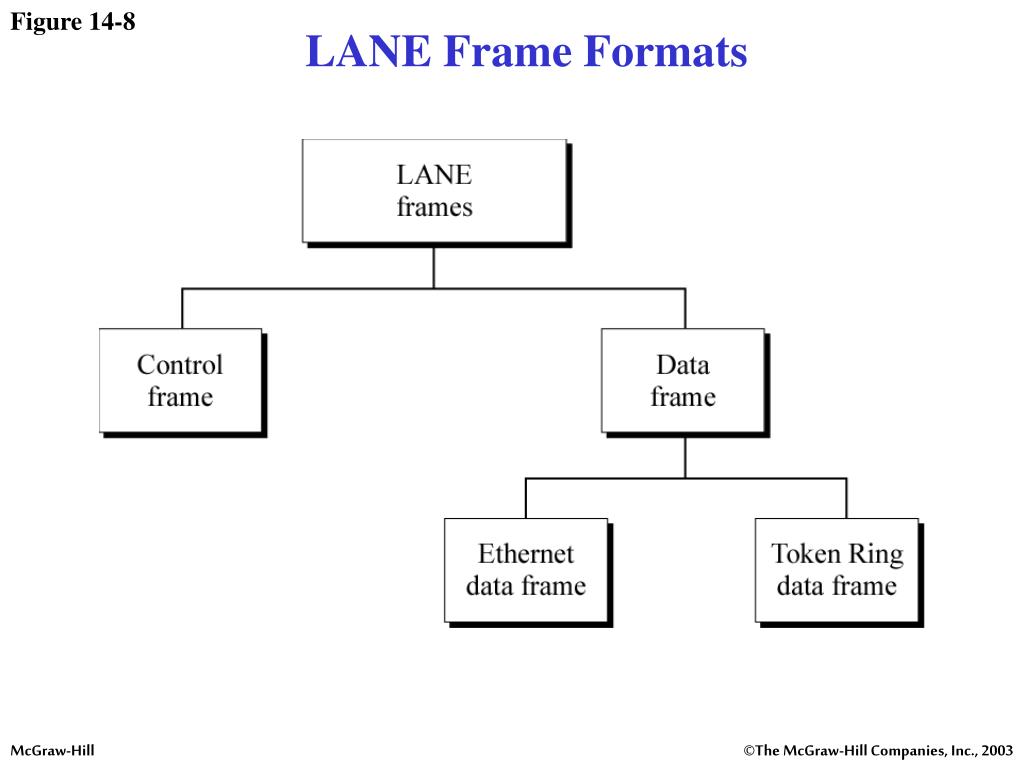

  9. Figure 14-8 LANE Frame Formats

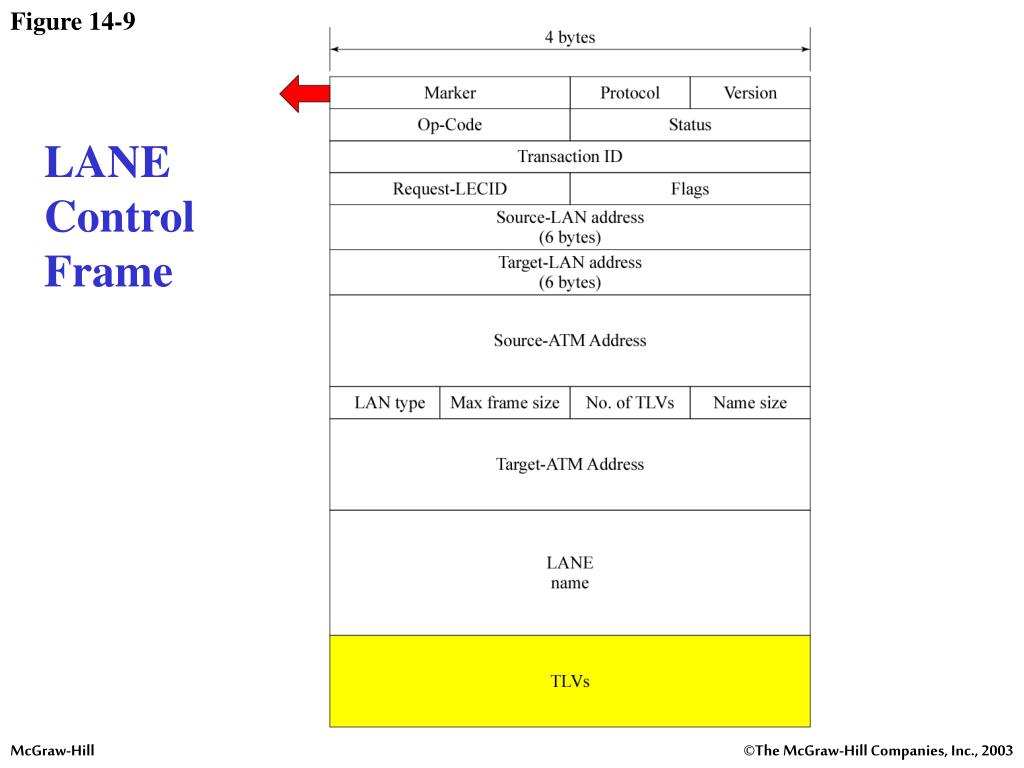

  10. Figure 14-9 LANE Control Frame

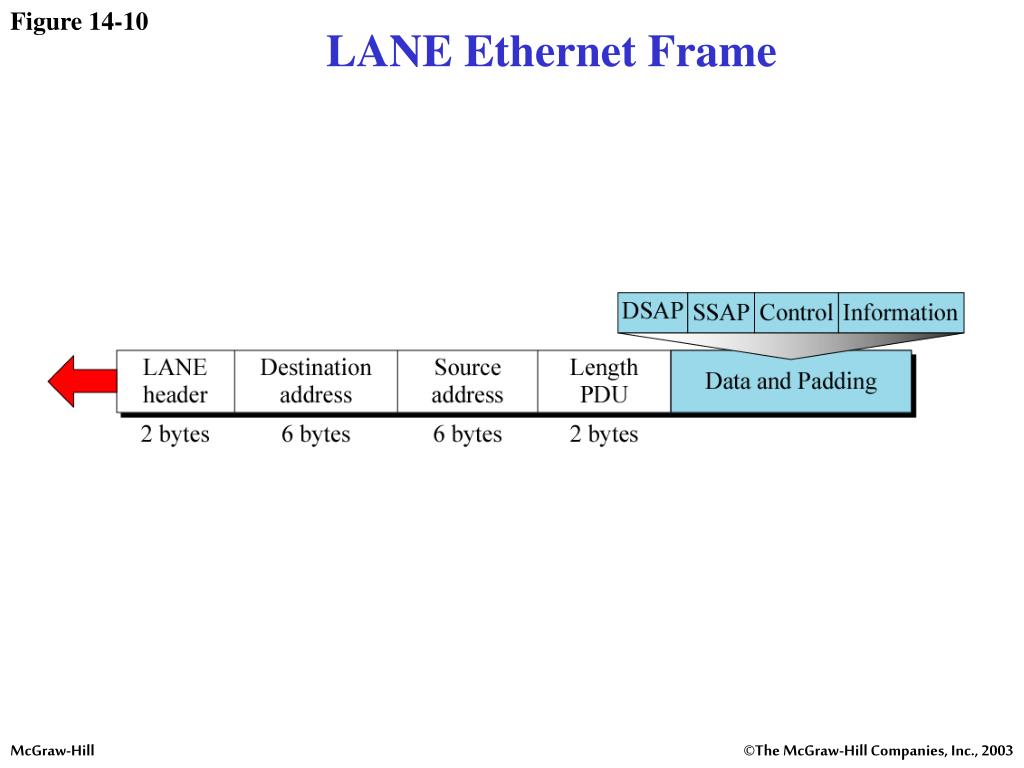

  11. Figure 14-10 LANE Ethernet Frame

  12. Figure 14-11 LANE Token Ring Frame
