  1. TrackingLearningDetection A Camera that Learns.

  2. Why is object tracking so important ? vehicle detection motion capture robot vision scene analysis hand recognition surveillance

  3. Outline Why TLD? - Traditional methods - Challenges to old ways What is TLD intuitively? - Framework - Key ideas Howdoes TLD work exactly? - Tracking - Learning - Detection - TLD Experiment Results

  4. Why TLD ?

  5. Why TLD ?

  6. Why TLD ?- Traditional method1 : Tracking Estimate motion over frames Only need initialization. Appearance changing & Partial occlusions.(?) Accumulate error. Fail if the object disappears.

  7. Why TLD ?- Traditional method2 : Scan every frame independently Off-line Learning Detection Do not fail if the object disappears. Need off-line training. Appearance changing & Partial occlusions.

  8. Why TLD ?- Challenges to old ways • Not fail if the object disappears. • Appearance changing. • Partial occlusions.

  9. Why TLD ?- Challenges to old ways • Not fail if the object disappears. TLD is an algorithm that can solve all these tasks ! • Appearance changing. • Partial occlusions.

  10. What is TLD intuitively?

  11. What is TLD intuitively?- Framework Tracking Off-line Learning Detection

  12. What is TLD intuitively?- Framework On-line Learning Location Trajectory fragment Update Tracking Detection Update

  13. What is TLD intuitively?- Key ideas1 : Learning Updates training examples (add/delete) Detect Track & detect Update detector • Appearance changing. Track

  14. What is TLD intuitively?- Key ideas2 : Updating True trajectory Tracking Detection TLD • Not fail if no object. • Partial occlusions.

  15. How does TLD work exactly?

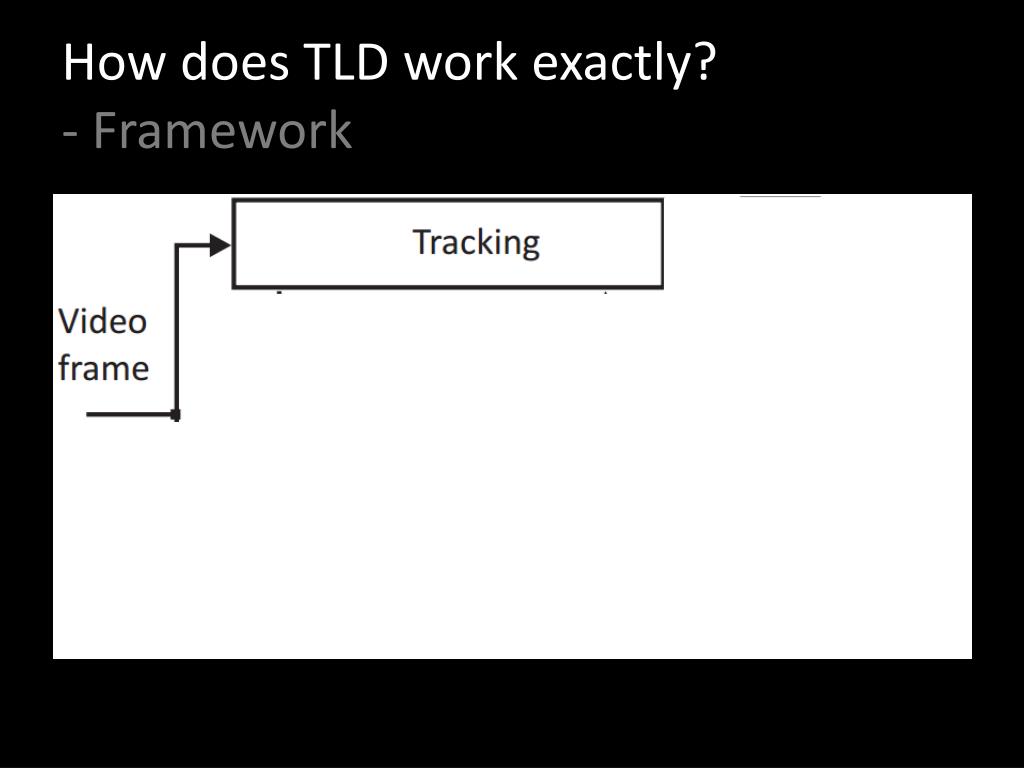

  16. How does TLD work exactly?-Framework

  17. How does TLD work exactly?-Tracking 1.Reliable point selection: - Forward-backward selection Choose point 1 Discard point 2 - Use forward-backward selection to select 50% of the most reliable points.

  18. How does TLD work exactly?-Tracking 2.Median-Flow tracker: and estimates displacement using median with confidence proportional to (1/scale of the median). Tracks the reliable points between consecutive frames ,

  19. How does TLD work exactly?-Framework

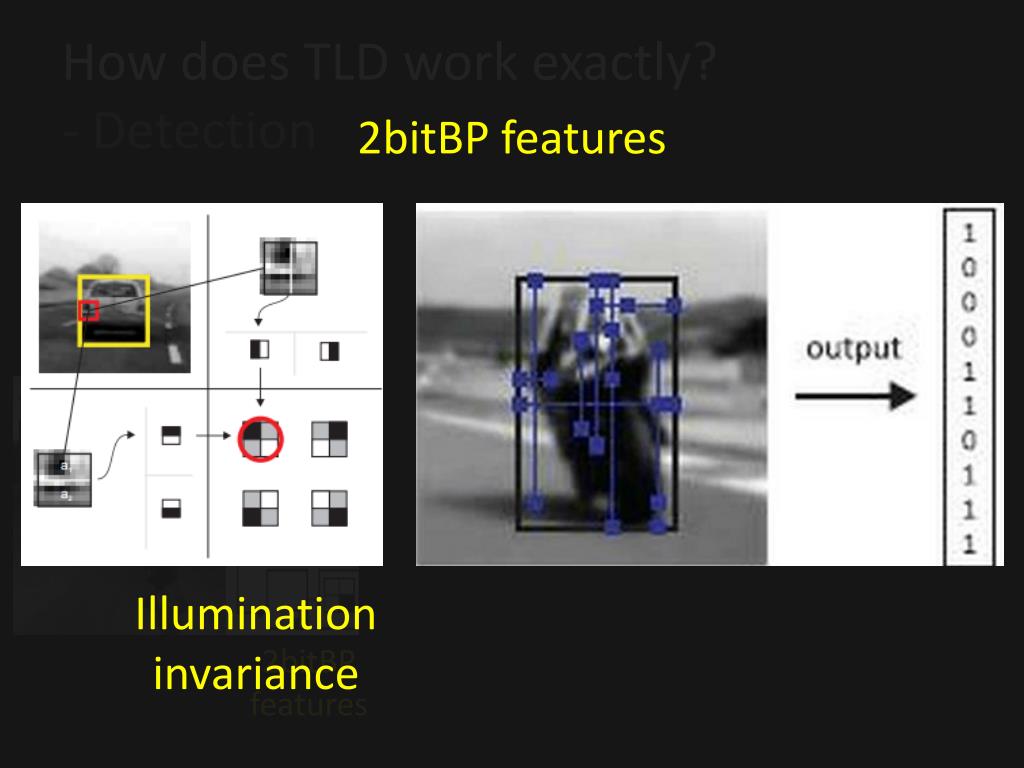

  20. How does TLD work exactly?-Detection 2bitBP features Scanning window Illumination invariance 2bitBP features

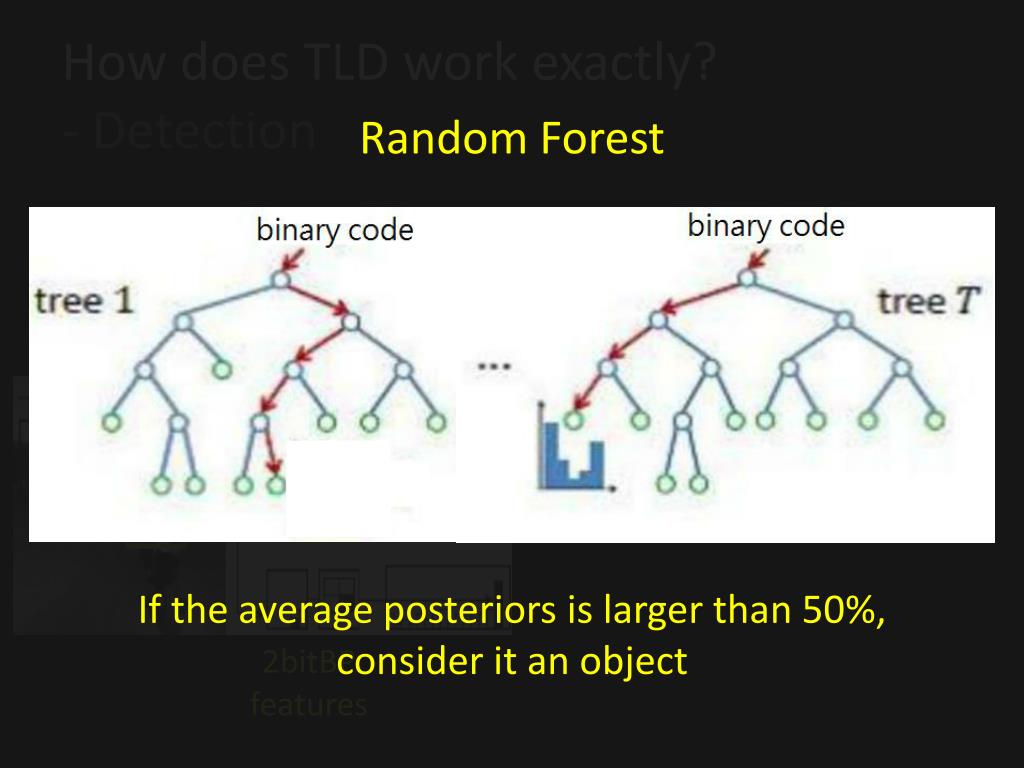

  21. How does TLD work exactly?-Detection Random Forest Random Forest Posteriors Scanning window If the average posteriors is larger than 50%, consider it an object 2bitBP features

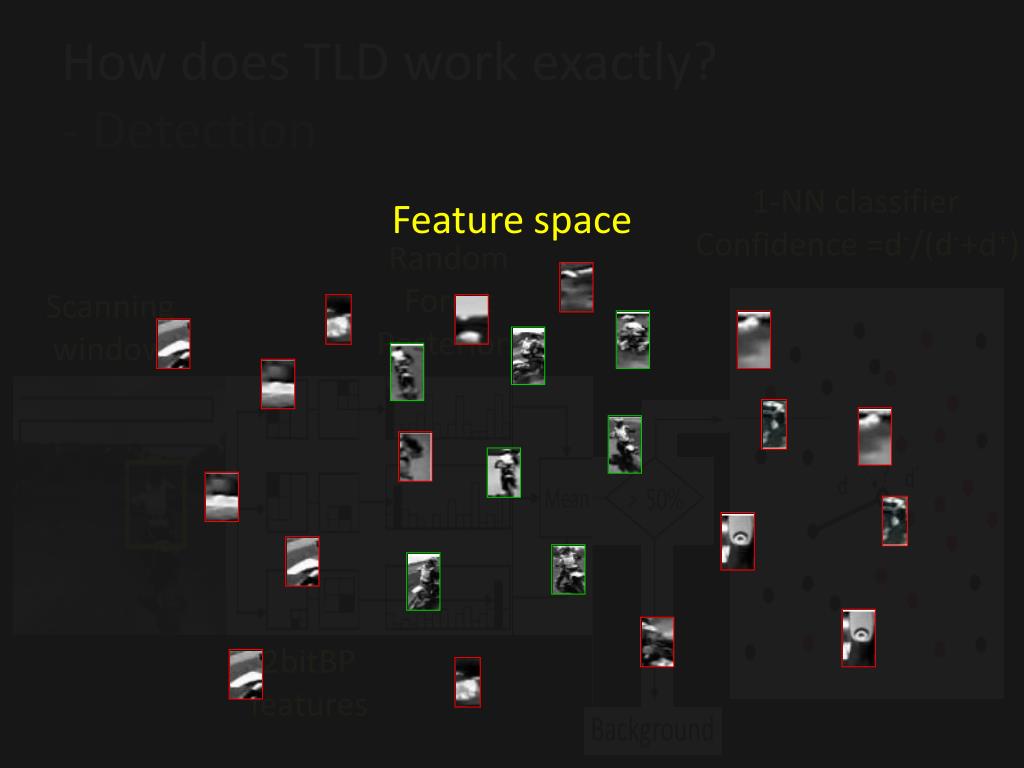

  22. How does TLD work exactly?-Detection 1-NN classifier Confidence =d-/(d-+d+) Feature space Random Forest Posteriors Scanning window 2bitBP features

  23. How does TLD work exactly?-Framework Pick the one with higher confidence score

  24. How does TLD work exactly?-Learning Feature space

  25. How does TLD work exactly?-Learning Updates training examples (add/delete) Detect Track & detect Update detector Track

  26. How does TLD work exactly?-Learning : Appearance changing problem solved! 1 6 10 9

  27. How does TLD work exactly? - Recap : t=0

  28. How does TLD work exactly? - Recap : t=1 Decide by confidence score

  29. How does TLD work exactly? - Recap : t=1

  30. How does TLD work exactly? - Recap : t=2 Remove if false detect

  31. Experiment Result

  32. Experiment Result

  33. Experiment Result

  34. Experiment Result

  35. Thank you
