  1. PRINT READING FOR CABINETMAKERS

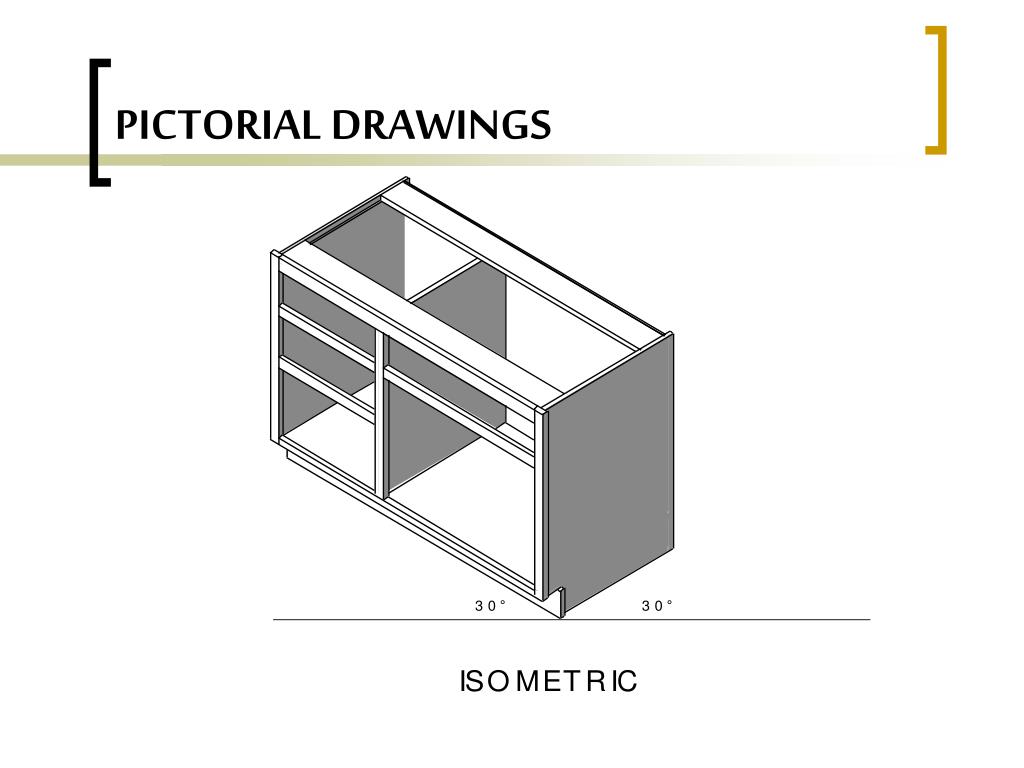

  2. PICTORIAL DRAWINGS

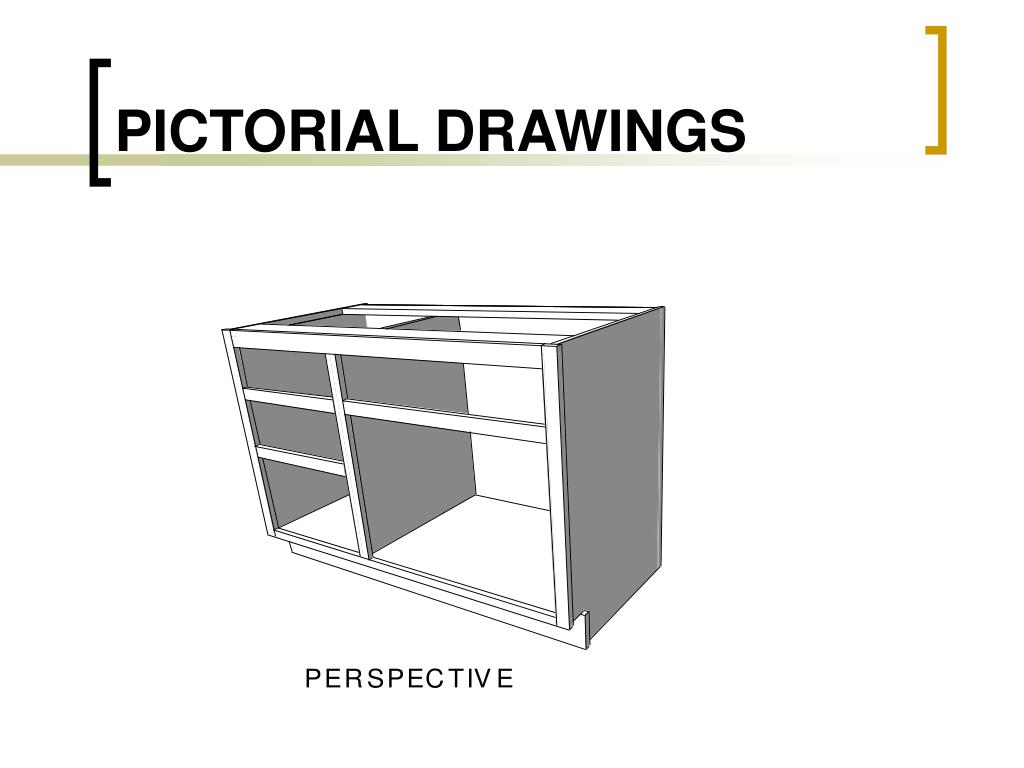

  3. PICTORIAL DRAWINGS

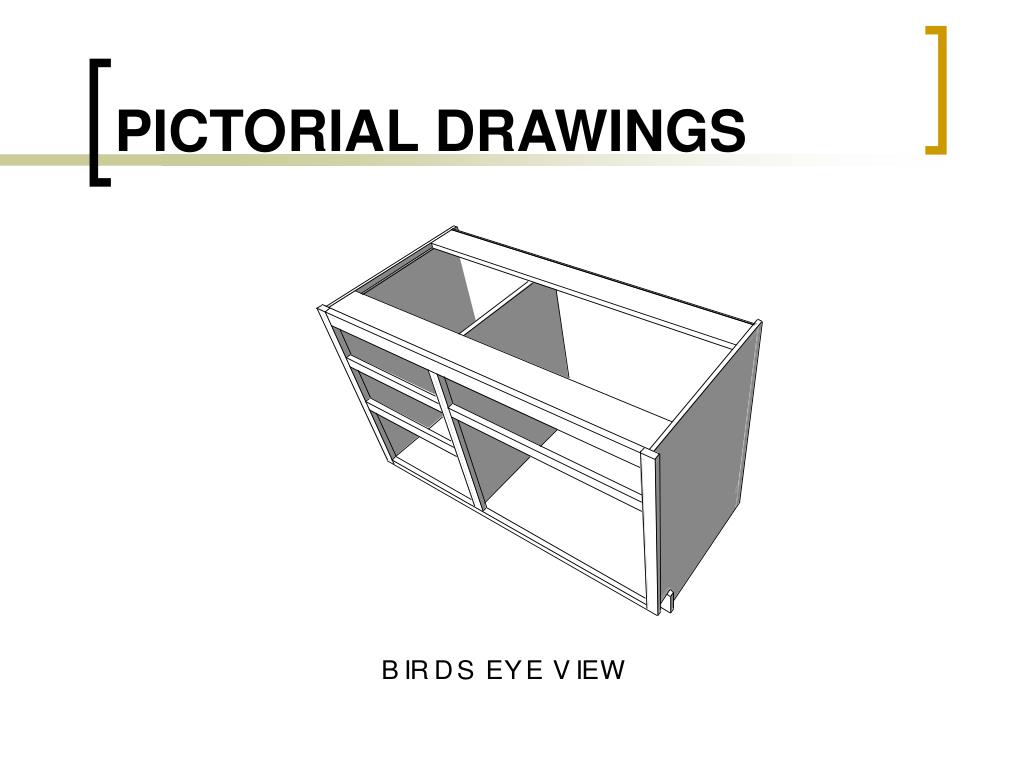

  4. PICTORIAL DRAWINGS

  5. PICTORIAL DRAWINGS

  6. PICTORIAL DRAWINGS

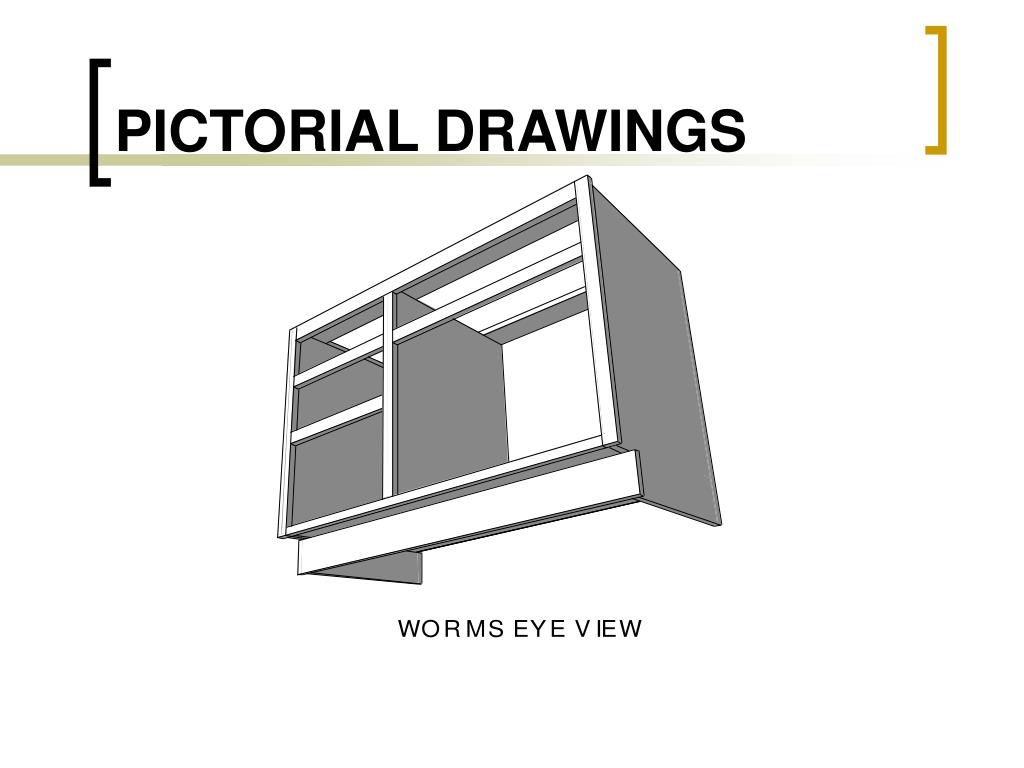

  7. PICTORIAL DRAWINGS

  8. PICTORIAL DRAWINGS

  9. PROJECT DOCUMENTS WORKING DRAWINGS –ALL THE INFORMATION NECESSARY TO BUILD THE PROJECT • PLAN VIEW • ELEVATIONS • SECTIONALS • DETAILS • SPECIFICATIONS

  10. UNITS • ARCHITECTURAL DRAWINGS – FEET AND INCHES 10’-4” • KITCHEN, BATH AND CABINET DRAWINGS IN INCHES 124”

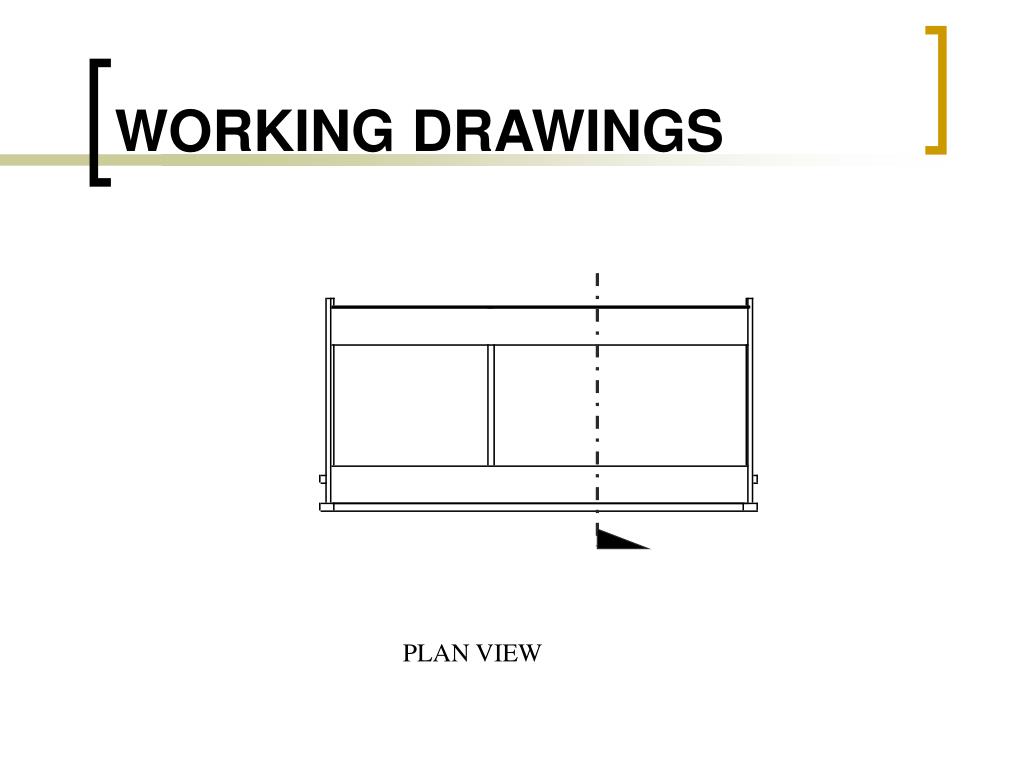

  11. WORKING DRAWINGS PLAN VIEW

  12. WORKING DRAWINGS ELEVATIONS

  13. WORKING DRAWINGS SECTIONAL

  14. SCALE • ARCHITECTURAL DRAWINGS ¼” = 1’-0” • KITCHEN AND BATH DRAWINGS ½” – 1’-0” • SHOP DRAWINGS 1” = 1’-0”

  15. LINE TYPES • Visible Object Lines • Hidden Lines • Center Lines • Break Lines • Leader Lines • Section Line

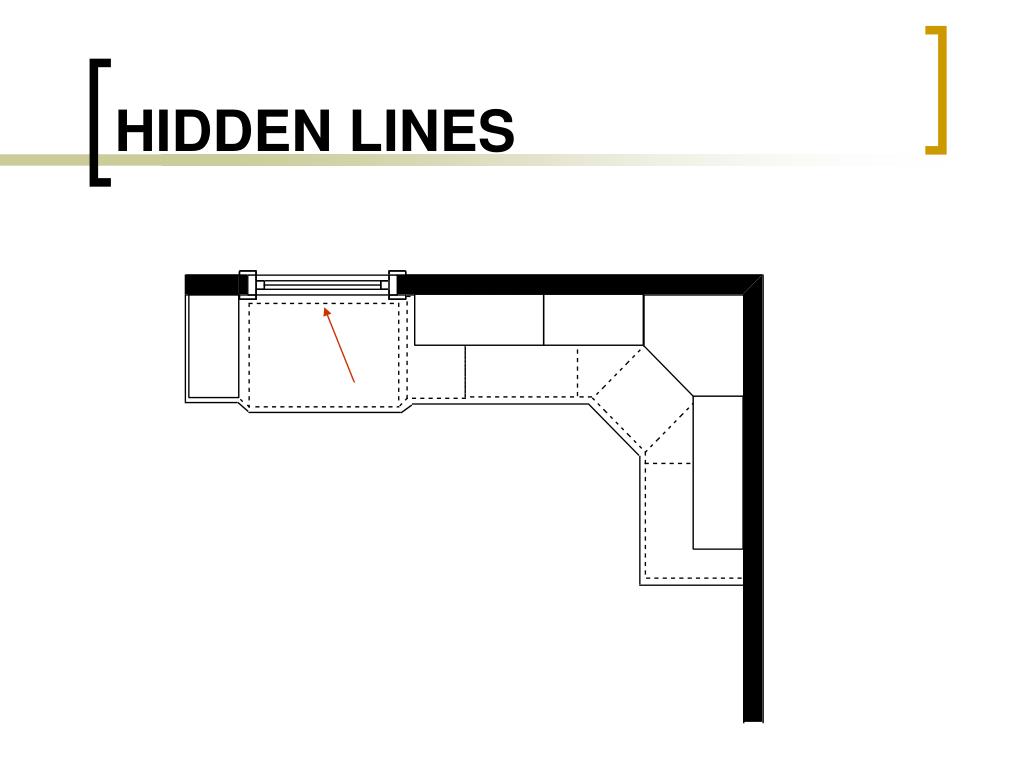

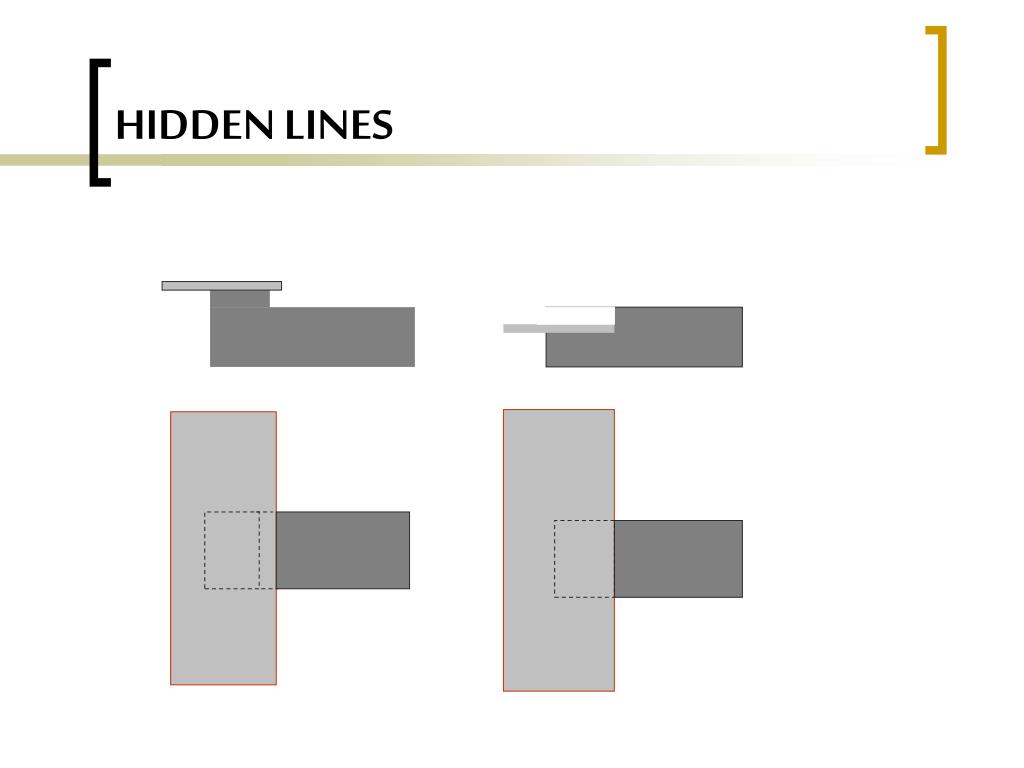

  16. HIDDEN LINES PLAN VIEW ELEVATIONS

  17. HIDDEN LINES

  18. HIDDEN LINES

  19. BREAK LINES • Stairs

  20. LINE TYPES

  21. LINE TYPES – Dimension Lines

  22. DRAWING MARKERS

  23. LINE WEIGHT • For construction lines: • Pencil .5 • Lead 2H • For walls use: • Pencil .7 • Lead B • For other objects use: • Pencil .5 • Lead 2H • For dimension lines use: • Pencil .5 • Lead 2H

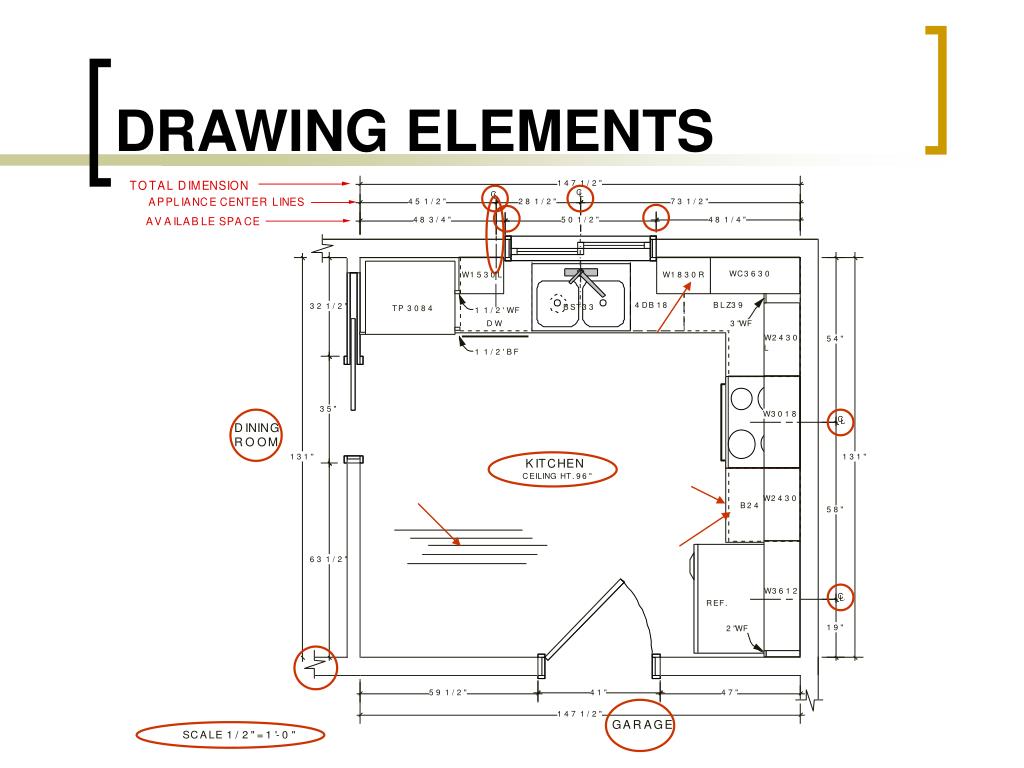

  24. DRAWING ELEMENTS

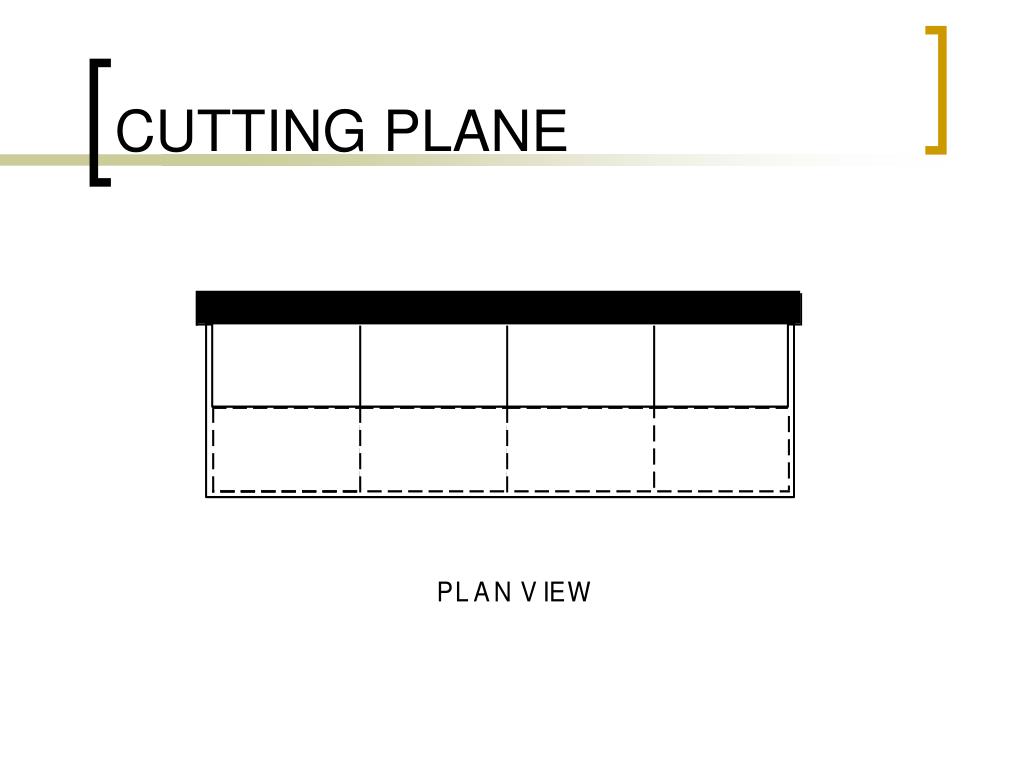

  25. CUTTING PLANE

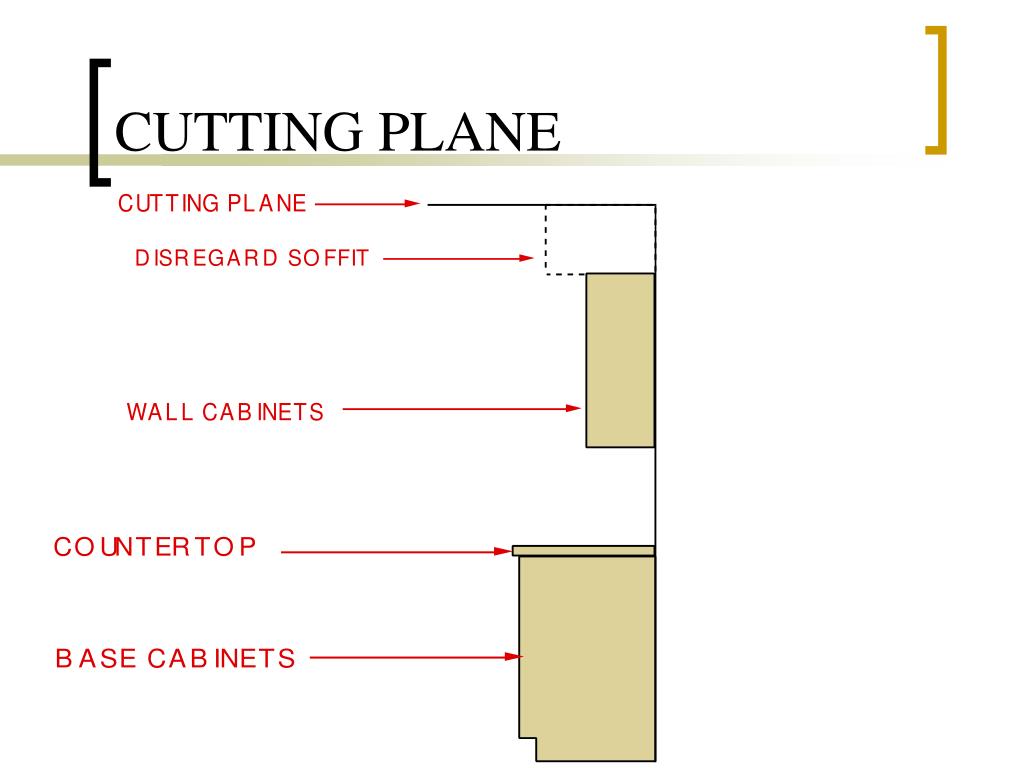

  26. CUTTING PLANE
