Supervised Learning Recap

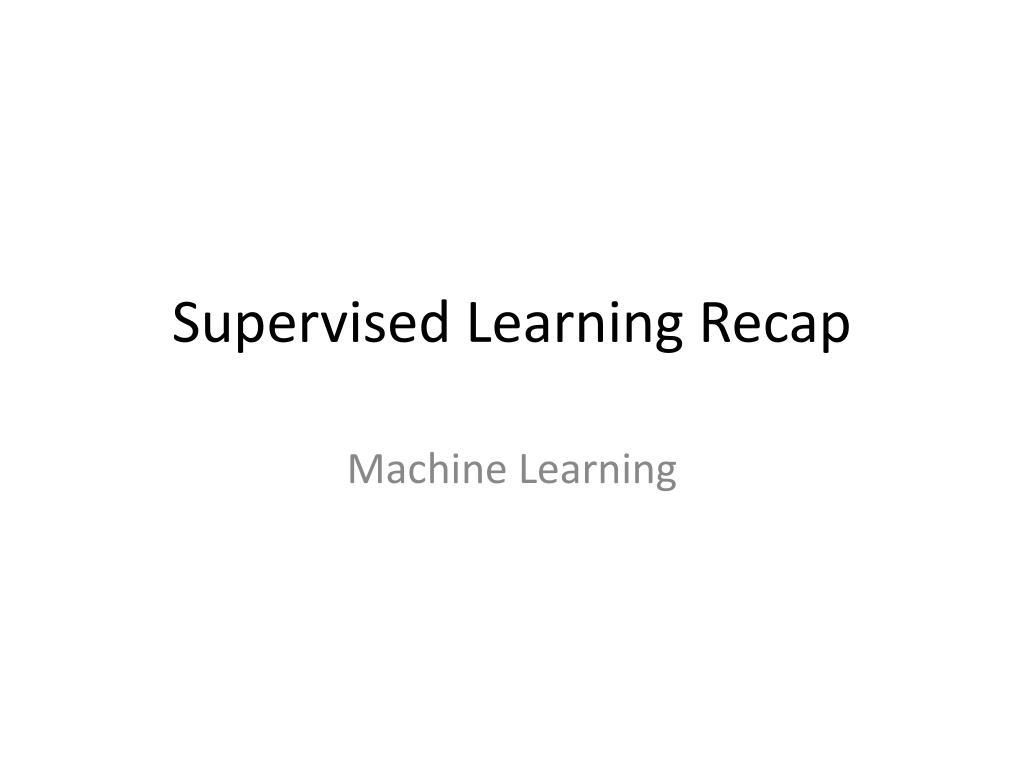

1. Supervised Learning Recap Machine Learning

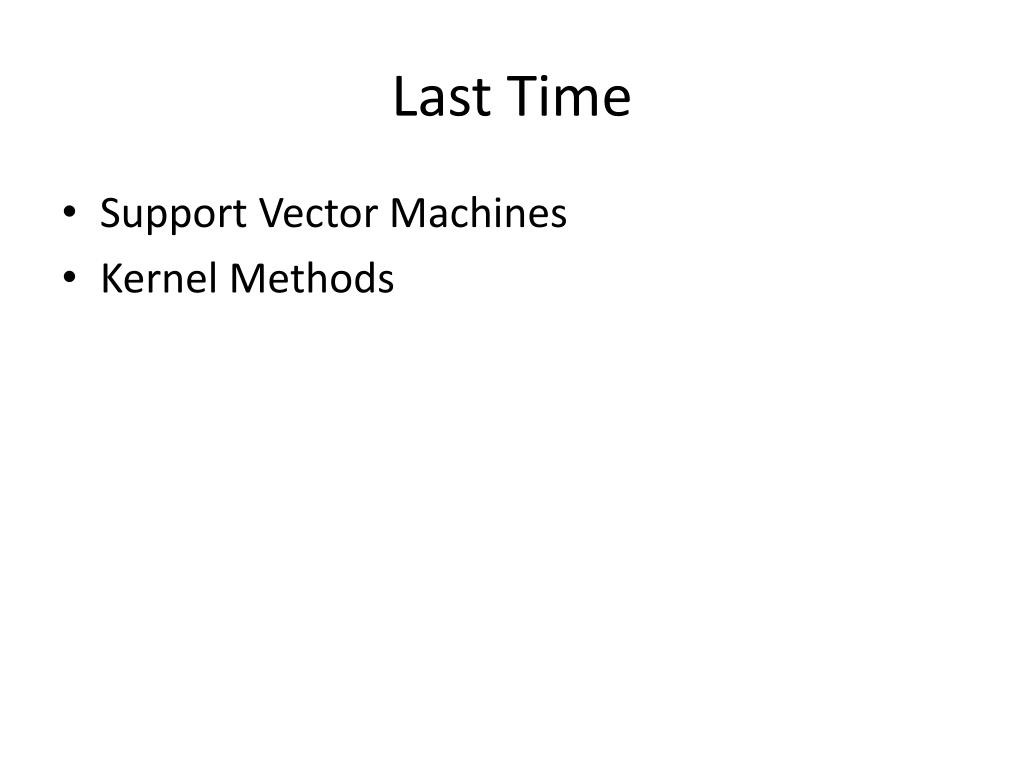

2. Last Time • Support Vector Machines • Kernel Methods

3. Today • Review of Supervised Learning • Unsupervised Learning • (Soft) K-means clustering • Expectation Maximization • Spectral Clustering • Principle Components Analysis • Latent Semantic Analysis

4. Supervised Learning • Linear Regression • Logistic Regression • Graphical Models • Hidden Markov Models • Neural Networks • Support Vector Machines • Kernel Methods

5. Major concepts • Gaussian, Multinomial, Bernoulli Distributions • Joint vs. Conditional Distributions • Marginalization • Maximum Likelihood • Risk Minimization • Gradient Descent • Feature Extraction, Kernel Methods

6. Some favorite distributions • Bernoulli • Multinomial • Gaussian

7. Maximum Likelihood • Identify the parameter values that yield the maximum likelihood of generating the observed data. • Take the partial derivative of the likelihood function • Set to zero • Solve • NB: maximum likelihood parameters are the same as maximum log likelihood parameters

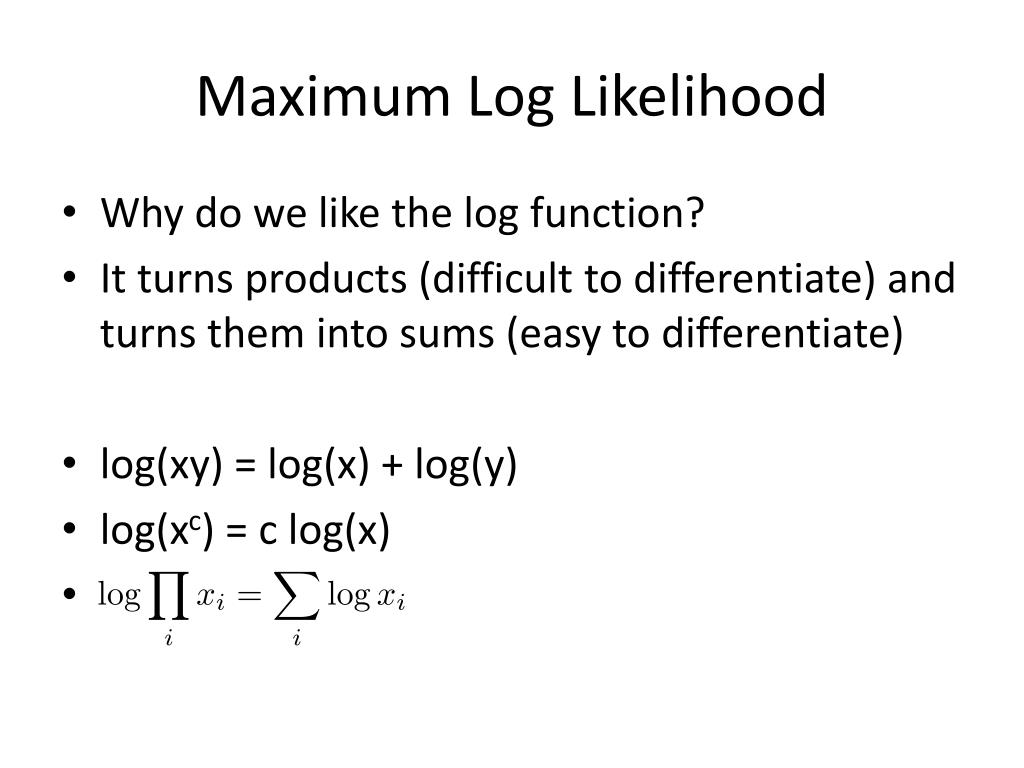

8. Maximum Log Likelihood • Why do we like the log function? • It turns products (difficult to differentiate) and turns them into sums (easy to differentiate) • log(xy) = log(x) + log(y) • log(xc) = clog(x)

9. Risk Minimization • Pick a loss function • Squared loss • Linear loss • Perceptron (classification) loss • Identify the parameters that minimize the loss function. • Take the partial derivative of the loss function • Set to zero • Solve

10. Frequentistsv. Bayesians • Point estimates vs. Posteriors • Risk Minimization vs. Maximum Likelihood • L2-Regularization • Frequentists: Add a constraint on the size of the weight vector • Bayesians: Introduce a zero-mean prior on the weight vector • Result is the same!

11. L2-Regularization • Frequentists: • Introduce a cost on the size of the weights • Bayesians: • Introduce a prior on the weights

12. Types of Classifiers • Generative Models • Highest resource requirements. • Need to approximate the joint probability • Discriminative Models • Moderate resource requirements. • Typically fewer parameters to approximate than generative models • Discriminant Functions • Can be trained probabilistically, but the output does not include confidence information

13. Linear Regression • Fit a line to a set of points

14. Linear Regression • Extension to higher dimensions • Polynomial fitting • Arbitrary function fitting • Wavelets • Radial basis functions • Classifier output

15. Logistic Regression • Fit gaussians to data for each class • The decision boundary is where the PDFs cross • No “closed form” solution to the gradient. • Gradient Descent

16. Graphical Models • General way to describe the dependence relationships between variables. • Junction Tree Algorithm allows us to efficiently calculate marginals over any variable.

17. Junction Tree Algorithm • Moralization • “Marry the parents” • Make undirected • Triangulation • Remove cycles >4 • Junction Tree Construction • Identify separators such that the running intersection property holds • Introduction of Evidence • Pass slices around the junction tree to generate marginals

18. Hidden Markov Models • Sequential Modeling • Generative Model • Relationship between observations and state (class) sequences

19. Perceptron • Step function used for squashing. • Classifier as Neuron metaphor.

20. Perceptron Loss • Classification Error vs. Sigmoid Error • Loss is only calculated on Mistakes Perceptrons use strictly classification error

21. Neural Networks • Interconnected Layers of Perceptrons or Logistic Regression “neurons”

22. Neural Networks • There are many possible configurations of neural networks • Vary the number of layers • Size of layers

23. Support Vector Machines • Maximum Margin Classification Small Margin Large Margin

24. Support Vector Machines • Optimization Function • Decision Function

25. Visualization of Support Vectors

26. Questions? • Now would be a good time to ask questions about Supervised Techniques.

27. Clustering • Identify discrete groups of similar data points • Data points are unlabeled

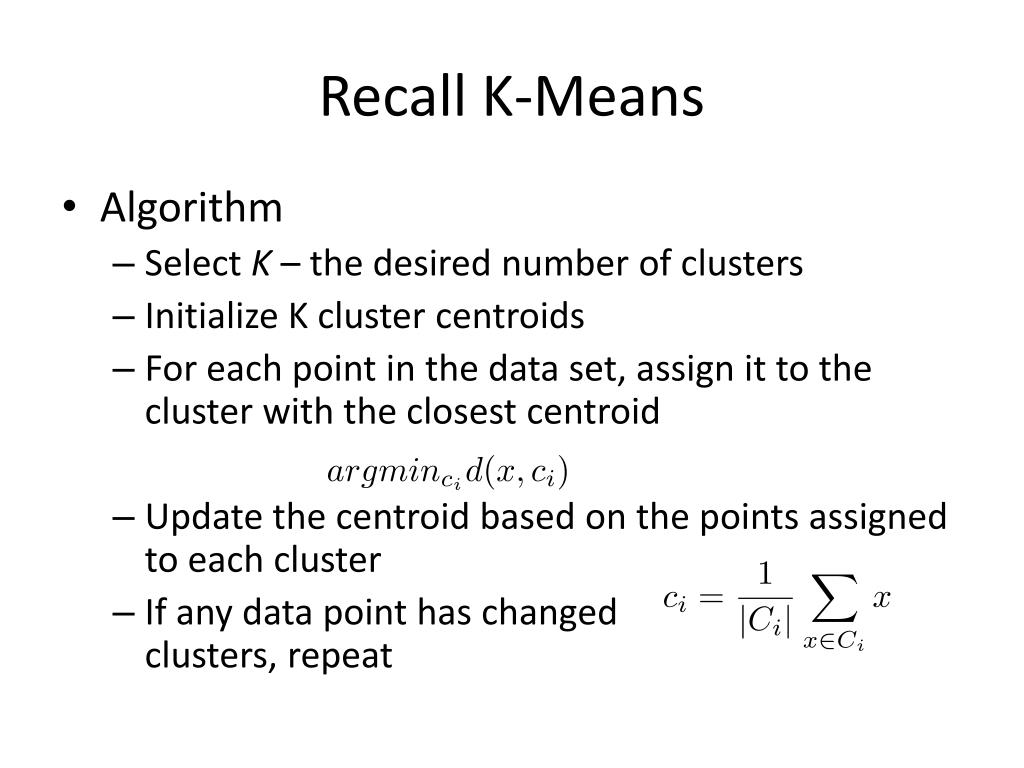

28. Recall K-Means • Algorithm • Select K – the desired number of clusters • Initialize K cluster centroids • For each point in the data set, assign it to the cluster with the closest centroid • Update the centroid based on the points assigned to each cluster • If any data point has changed clusters, repeat

29. k-means output

30. Soft K-means • In k-means, we force every data point to exist in exactly one cluster. • This constraint can be relaxed. Minimizes the entropy of cluster assignment

31. Soft k-means example

32. Soft k-means • We still define a cluster by a centroid, but we calculate the centroid as the weighted mean of all the data points • Convergence is based on a stopping threshold rather than changed assignments

33. Gaussian Mixture Models • Rather than identifying clusters by “nearest” centroids • Fit a Set of k Gaussians to the data.

34. GMM example

35. Gaussian Mixture Models • Formally a Mixture Model is the weighted sum of a number of pdfs where the weights are determined by a distribution,

36. Graphical Modelswith unobserved variables • What if you have variables in a Graphical model that are never observed? • Latent Variables • Training latent variable models is an unsupervised learning application uncomfortable amused sweating laughing

37. Latent Variable HMMs • We can cluster sequences using an HMM with unobserved state variables • We will train the latent variable models using Expectation Maximization

38. Expectation Maximization • Both the training of GMMs and Gaussian Models with latent variables are accomplished using Expectation Maximization • Step 1: Expectation (E-step) • Evaluate the “responsibilities” of each cluster with the current parameters • Step 2: Maximization (M-step) • Re-estimate parameters using the existing “responsibilities” • Related to k-means

39. Questions • One more time for questions on supervised learning…

40. Next Time • Gaussian Mixture Models (GMMs) • Expectation Maximization
