  1. S6C7 Frame Relay Configuration Code

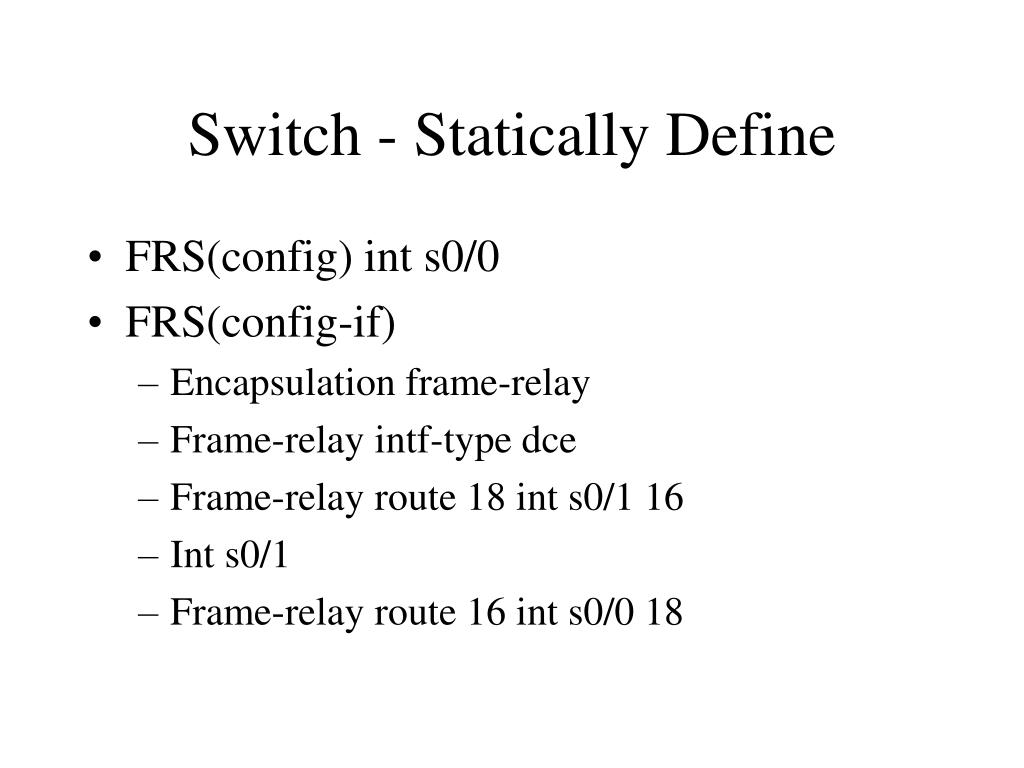

  2. Switch - Statically Define • FRS(config) int s0/0 • FRS(config-if) • Encapsulation frame-relay • Frame-relay intf-type dce • Frame-relay route 18 int s0/1 16 • Int s0/1 • Frame-relay route 16 int s0/0 18

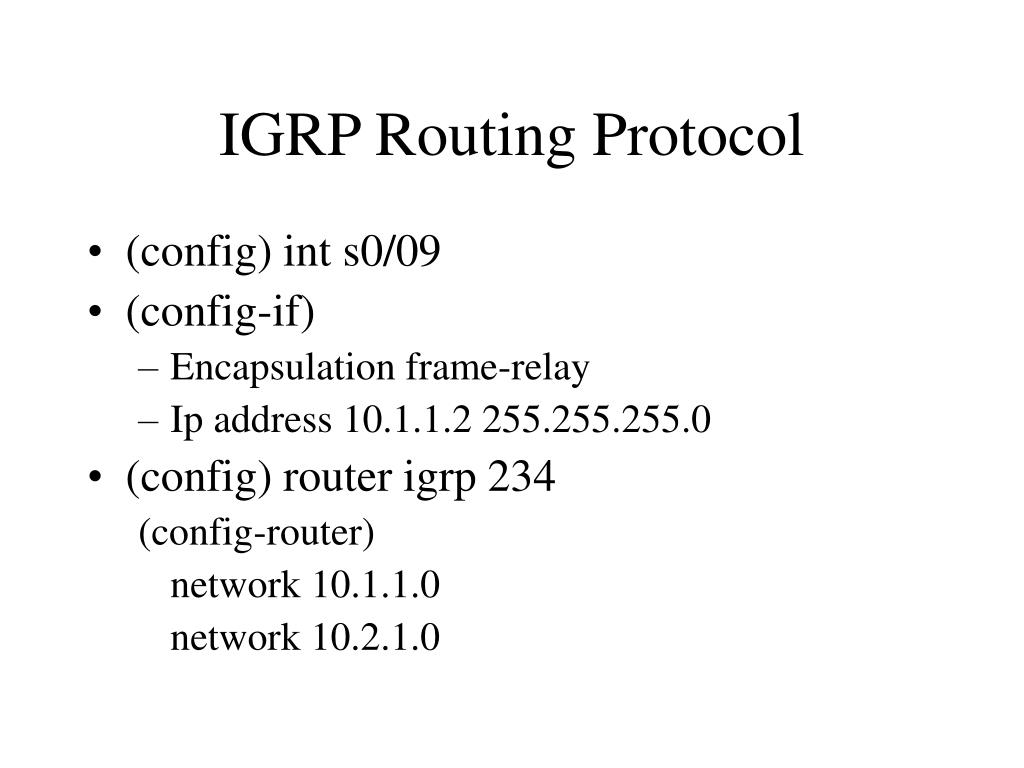

  3. IGRP Routing Protocol • (config) int s0/09 • (config-if) • Encapsulation frame-relay • Ip address 10.1.1.2 255.255.255.0 • (config) router igrp 234 (config-router) network 10.1.1.0 network 10.2.1.0

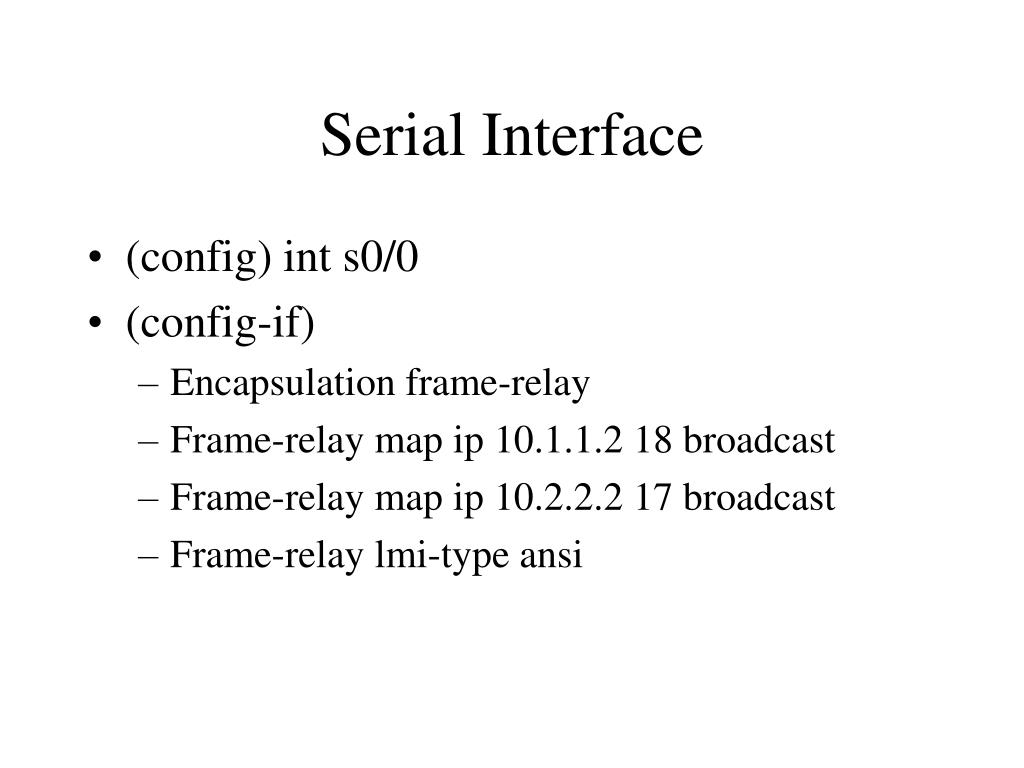

  4. Serial Interface • (config) int s0/0 • (config-if) • Encapsulation frame-relay • Frame-relay map ip 10.1.1.2 18 broadcast • Frame-relay map ip 10.2.2.2 17 broadcast • Frame-relay lmi-type ansi

  5. Subinterfaces • (config) int s0/0 • (config-if) • No ip address • Encapsulation frame-relay • Frame-relay lmi-type ansi • Int s0/0.17 point-to-point • (config-subif) • IP address 10.2.2.1 255.255.255.0 • Frame-relay interface-dlci 17

  6. Hub and Spoke • (config) int s0/0 • (config-if) • Encapsulation frame-relay • Int s0/0.1 multipoint • IP address 10.2.2.1 255.255.255.0 • Frame-relay interface-dlci 17 • Frame-relay interface-dlci 18
