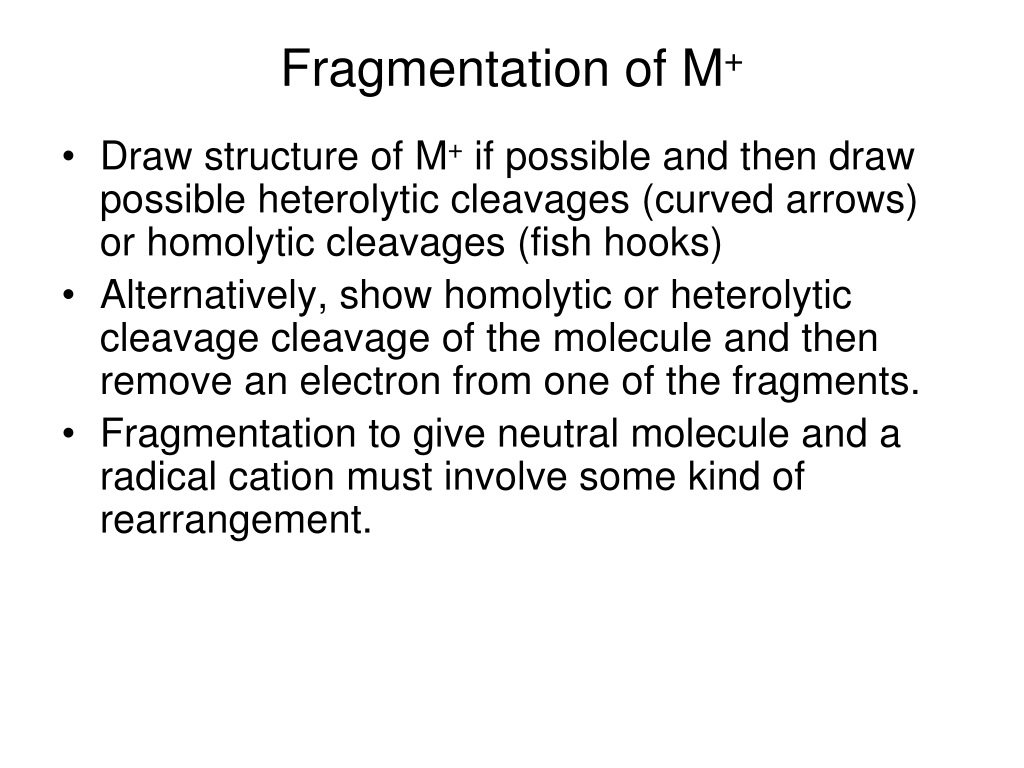

  1. Fragmentation of M+ • Draw structure of M+ if possible and then draw possible heterolytic cleavages (curved arrows) or homolytic cleavages (fish hooks) • Alternatively, show homolytic or heterolytic cleavage cleavage of the molecule and then remove an electron from one of the fragments. • Fragmentation to give neutral molecule and a radical cation must involve some kind of rearrangement.

  2. General Rules Probablity of bond cleavage depends on stability of fragments produced. (3º > 2º > 1º > CH3) (oxonium > carbocation) (allylic, benzylic > no resonance) • Increase branching  decrease M+ • Add carbons  decrease M+ • Cleave more likely at higher º C • Unsubst cyclic have strong M+ (especially aromatic) • Alkenes cleave to allylic species • R on cycloalkanes α cleave. Cyclohexenes do retro Diels-Alder. • R on aromatic rings β-cleave to benzylic • Bonds β to heteroatoms cleave • Loss of small stable molecules, H2O, NH3, C2H4, HCN, CO, H2S,etc often occur

  3. Alkanes • Straight chain alkanes – homologous series of ions – smooth curve max at 57 or 71. M-15 absent. “picket fence” • Discontinuity = branching. Absence of homolog  no single cleavage possible • Cycloalkanes. Larger M+. More even mass fragments (M-C2H4)

  4. Alkenes • Cleave next to double bond to form allylic fragments. (Double bonds can shift in M+.) • Homologous series is -2 (27, 41, 55, 69..) • Cyclohexenes do retro Diels Alder – give even mass fragment (M-C2H4, M-C3H6 etc.)

  5. Aromatics • No branching = strong M+. Often see M++. • m/z 77, 51 = phenyl (monosubst benzene) • Most prominent peaks are due to beta cleavage of branches to benzylic (really tropylium.)

  6. Alcohols • Weak M+. Often not present for 2º, 3º. • M-18 (water) • M-33 (water then methyl) (1º) • β cleave largest branch to oxonium

  7. Ethers • Homologous series is +2 (31, 45, 59….) • β cleave to oxonium • C-O cleavage to R+ • Acetals β cleave to very stable oxonium with 2 res structures  no M+ seen

  8. Carbonyl Compounds • α cleave to acylium ion (vs 43, 57, 71 peak) • McClafferty rearrangement if γ H is present (neutral or pos alkene fragment) • M-28, M-42, M-56 • 28, 42, 56…
