The NOOS Representation Language

fern avatar
fern
20 diapositives · 394 Views · Sep 24, 2014

The NOOS Representation Language. Josep Lluís Arcos IIIA - CSIC. General Overview. Development environment Project Ontologies Domain Knowledge Activities Protocols PSMs Episodic Memory Agent Classes Platform Runtime Environment Launching specific Noos agents n the platform

The NOOS Representation Language - slide 1
01 / 20The NOOS Representation Language
1 / 17

Télécharger la présentation

The NOOS Representation Language
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. The NOOS Representation Language Josep Lluís Arcos IIIA - CSIC

  2. General Overview • Development environment • Project • Ontologies • Domain Knowledge • Activities • Protocols • PSMs • Episodic Memory • Agent Classes • Platform • Runtime Environment • Launching specific Noos agents n the platform • Launching other entities

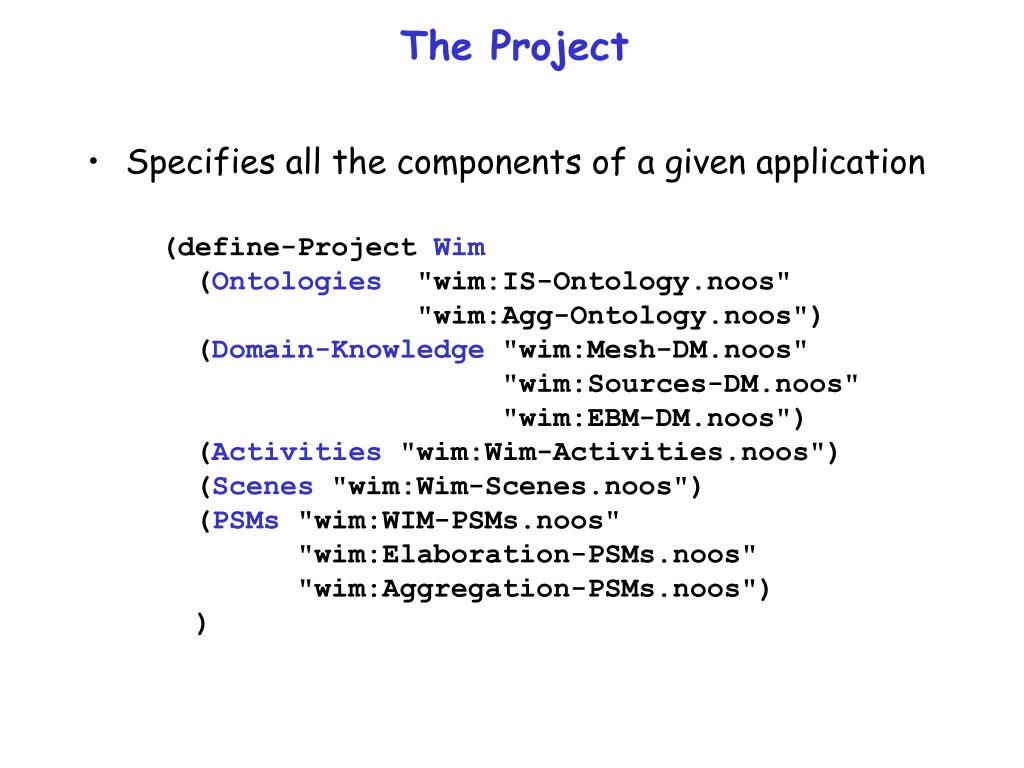

  3. The Project • Specifies all the components of a given application (define-Project Wim (Ontologies "wim:IS-Ontology.noos" "wim:Agg-Ontology.noos") (Domain-Knowledge "wim:Mesh-DM.noos" "wim:Sources-DM.noos" "wim:EBM-DM.noos") (Activities "wim:Wim-Activities.noos") (Scenes "wim:Wim-Scenes.noos") (PSMs "wim:WIM-PSMs.noos" "wim:Elaboration-PSMs.noos" "wim:Aggregation-PSMs.noos") )

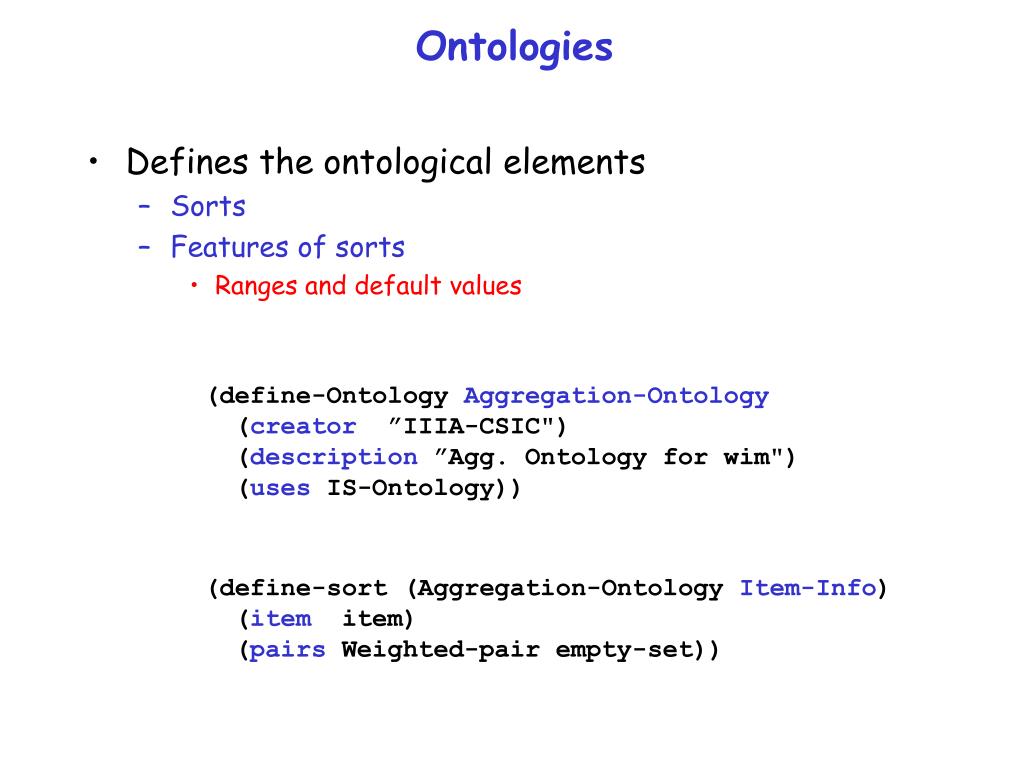

  4. Ontologies • Defines the ontological elements • Sorts • Features of sorts • Ranges and default values (define-Ontology Aggregation-Ontology (creator ”IIIA-CSIC") (description ”Agg. Ontology for wim") (uses IS-Ontology)) (define-sort (Aggregation-Ontology Item-Info) (item item) (pairs Weighted-pair empty-set))

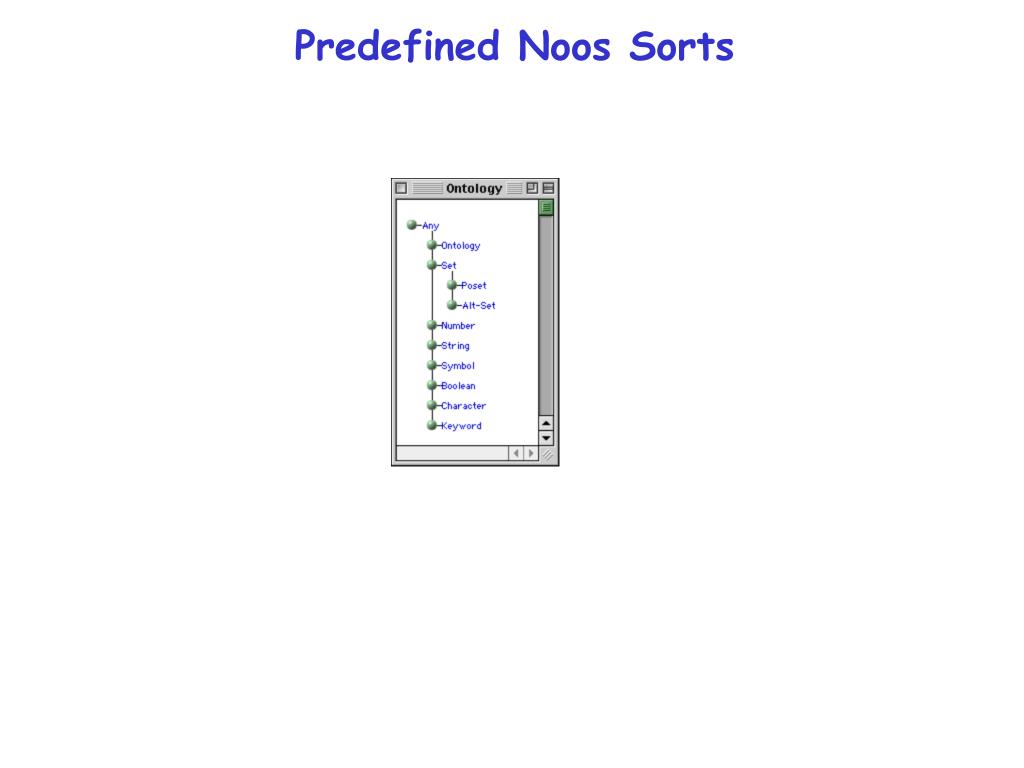

  5. Predefined Noos Sorts

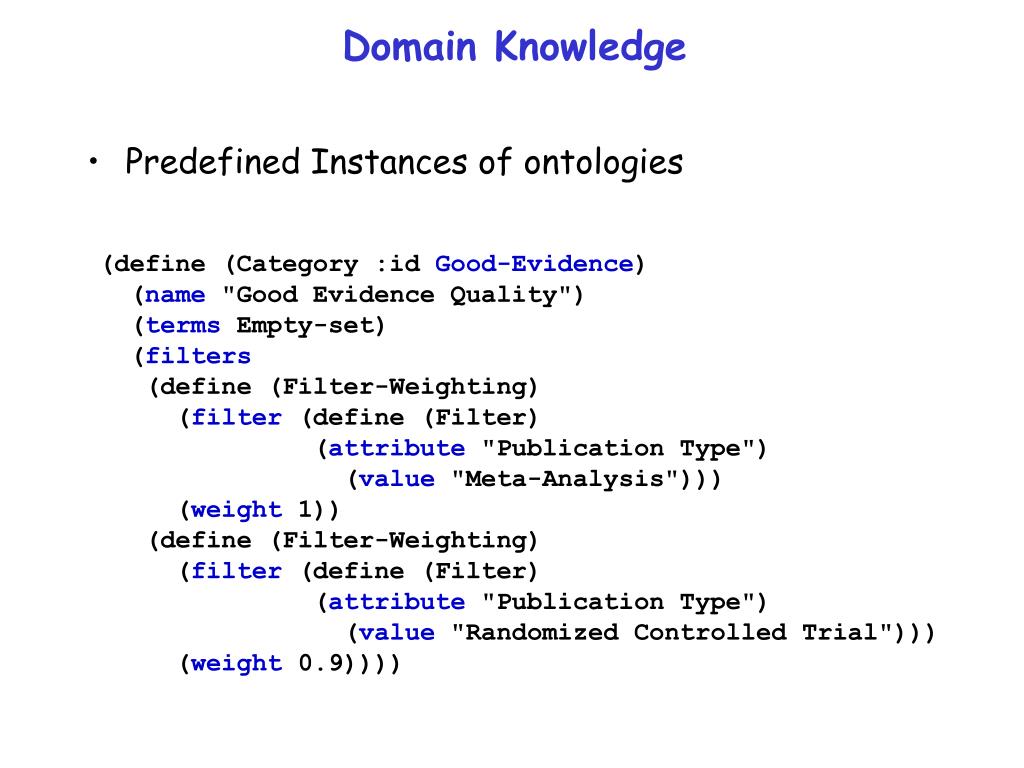

  6. Domain Knowledge • Predefined Instances of ontologies (define (Category :id Good-Evidence) (name "Good Evidence Quality") (terms Empty-set) (filters (define (Filter-Weighting) (filter (define (Filter) (attribute "Publication Type") (value "Meta-Analysis"))) (weight 1)) (define (Filter-Weighting) (filter (define (Filter) (attribute "Publication Type") (value "Randomized Controlled Trial"))) (weight 0.9))))

  7. Domain knowledge browser

  8. !Pubmed.search-attributes (define (Person :id John) (name"John") (father (define (Person) (name"Peter") (wife ..mother) (likes .wife.likes) (children !..))) (mother (define (Person) (name”Susan") (husband ..father) (likes ice-cream)))) (define-method Foo ((item Person)) (if (identity? Item.name "John") "Hello John" "Hello Ghost")) Paths • Absolute paths • Relative paths • Variable paths

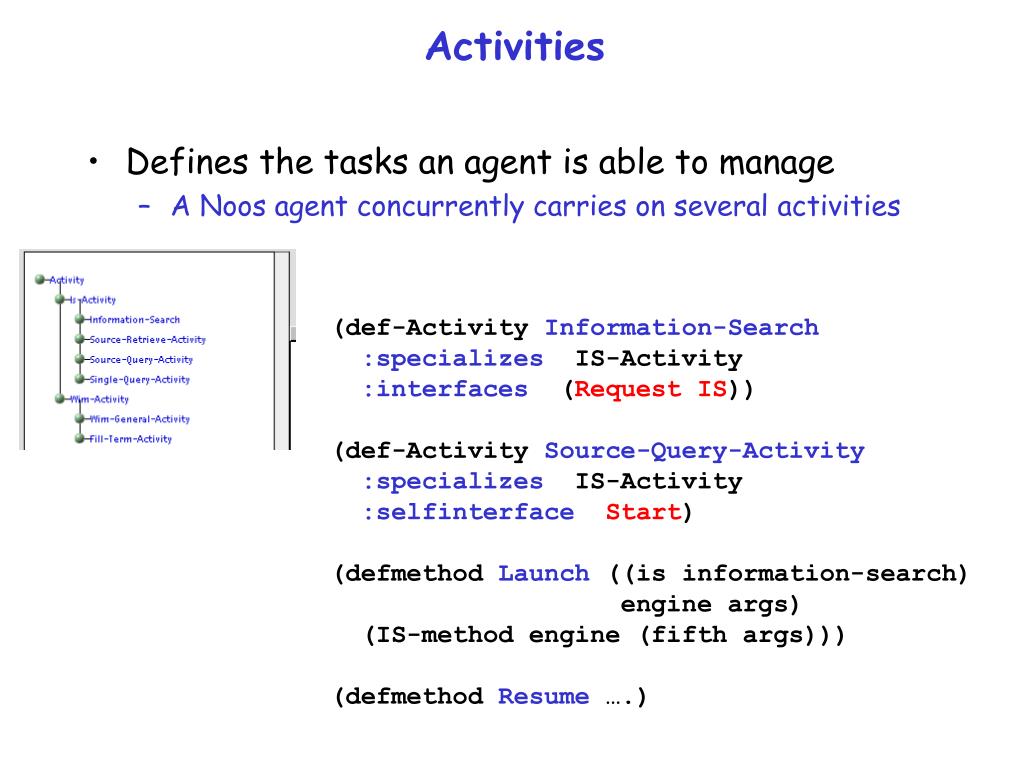

  9. Activities • Defines the tasks an agent is able to manage • A Noos agent concurrently carries on several activities (def-Activity Information-Search :specializes IS-Activity :interfaces (Request IS)) (def-Activity Source-Query-Activity :specializes IS-Activity :selfinterfaceStart) (defmethod Launch ((is information-search) engine args) (IS-method engine (fifth args))) (defmethod Resume ….)

  10. A[Request]->B B[Inform]->A S0 S1 S3 B[Request]->A A[Inform]->B (definterface Request :scene IS (sender symbol) (receiver symbol) (protocol symbol) (language symbol) (content domain-query))) S2 Protocols • Defines interactions among agents • Example: IS protocol

  11. (define-method MethodName ((par1 sort1) …) &body) (let ((var sort) var-spec)) … var.slotName …) PSMs • Define the inference units for an activity • In the body it can be used: • Lisp without global variables • A collection of Noos methods • An extended definition for Lisp macros • Let, Let*, dolist, do, do*

  12. Noos PSMs • Comparison methods • Identity?, Subsumes?, … • Filtering methods • Filter-by-subsumption, … • Methods on sets • Noos-union, noos-intersection, empty-set?, … • Logic Methods • Not, conjunction, disjunction • Retrieval Methods • Preferences • Input/Output

  13. Noos PSMs (II) • Methods for activities • Communication (start-activity ActivityNname Performative params) (send-ACL Performative receiver content :protocol protocolName :scene protocolName :answers list)

  14. A[Request]->B B[Inform]->A S0 S1 S3 B[Request]->A A[Inform]->B S2 Noos PSMs (III) (send-ACL Request IS-Agent (define (domain-query)…) :protocol IS :scene IS :answers ‘((Inform T1 state1) (Request T2 state2))

  15. Noos PSMs (IV) • Synchronizers • Allows the synchronizations among activities • Uses predefined names or dynamically generated (define-sync SyncName InitialValue) (noos-signal SyncName SyncValue) (noos-wait SyncName SyncPattern tag state)

  16. Agents • Defines the components used by a given agent (define-Agent IS-Agent (interface ((REQUEST IS) (sender) (receiver) (protocol) (language) (content)) ((INFORM INFO-RETRIEVAL) (sender) (receiver) (protocol)(language) (content))) (activities (Information-Search ((REQUEST IS)) nil) (Source-Retrieve-Activity nil START) (Source-Query-Activity nil START) (Single-Query-Activity nil START)) (ontologies IS-Ontology Aggregation-Ontology) (domain-knowledge "wim:Mesh-DM.noos" "wim:Sources-DM.noos" "wim:EBM-DM.noos"))

  17. Platform • Defines the platform where the agent society will leave • Possible to connect with other platforms • Next course (define-Platform Wim-Platform (ontologies "wim:IS-ontology.noos” "wim:Agg-ontology.noos") (agents "wim:platform.noos”))

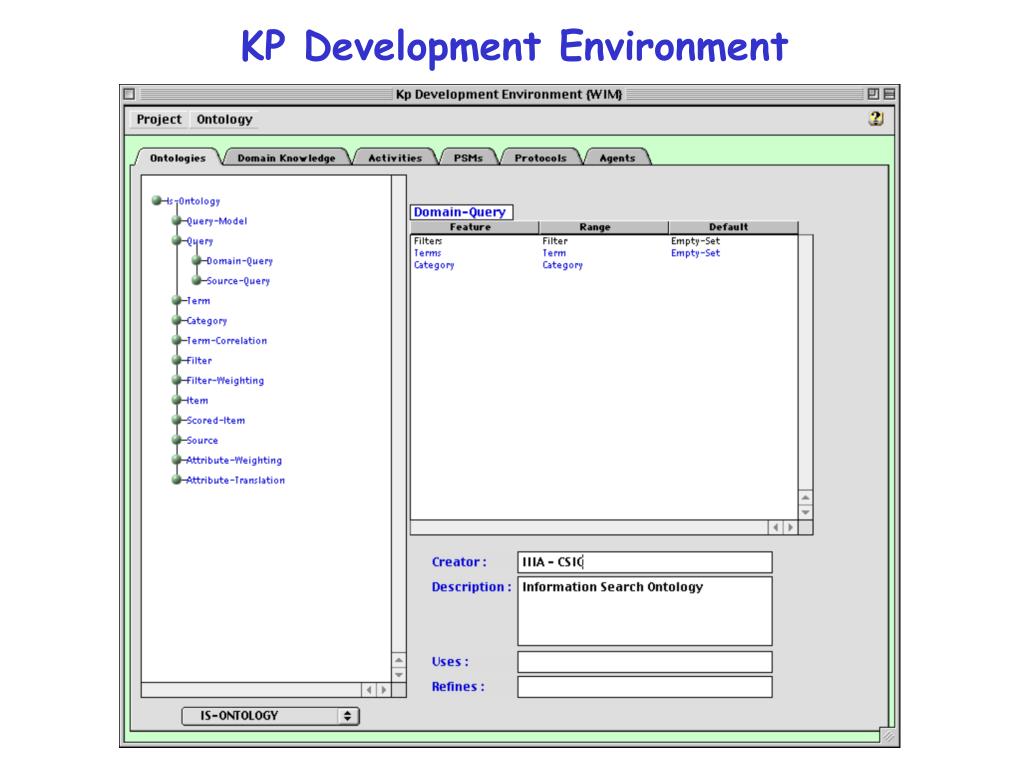

  18. KP Development Environment

  19. General Overview • Development Environment • Project • Ontologies • Domain Knowledge • Activities • Protocols • PSMs • Episodic Memory • Agent Classes • Platform • Runtime Environment • Launching specific Noos Agents in the platform • Launching other entities

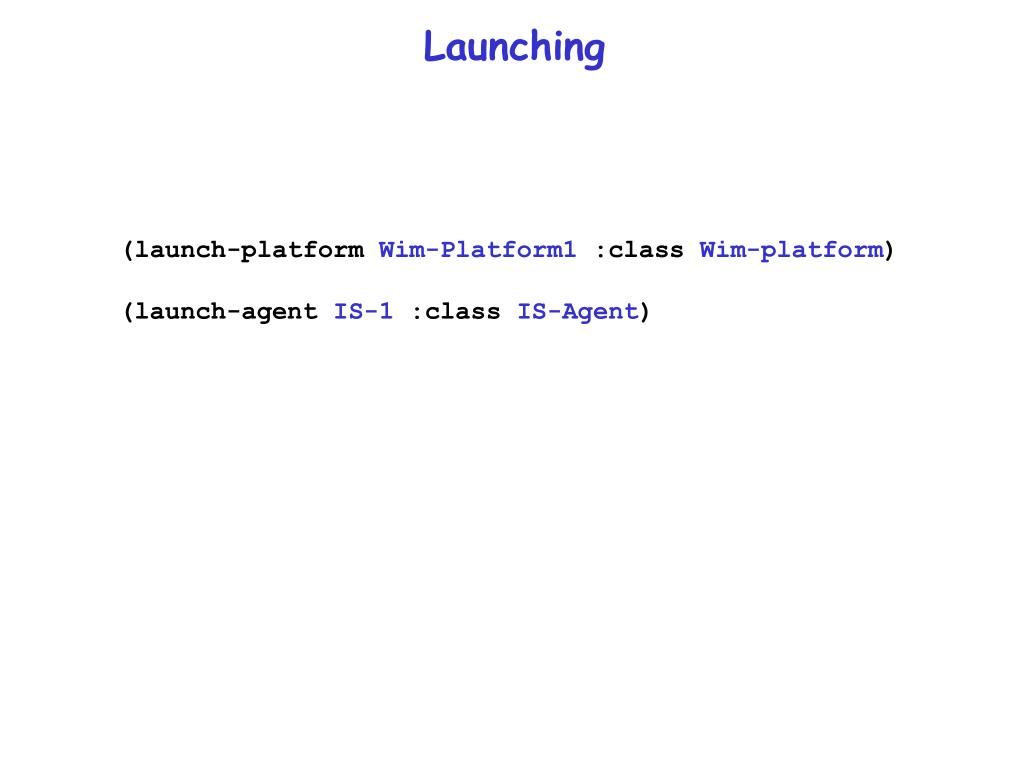

  20. Launching (launch-platform Wim-Platform1 :class Wim-platform) (launch-agent IS-1 :class IS-Agent)
